Whether end effectors are in the box is determined by the quantity table and configuration sheet, not by the words "support" or "compatible." The recommended configuration lists gripper CTAG2F90-D ×2. The standard configuration quantity table has no gripper. RMG22-65 is a separate product page. The standard configuration lists the robotic arm as RM65-B-V ×2, while the robotic arm parameter table lists the model as RM75-B-V. Keep both model designations; lock the selection before ordering; do not collapse them into one. Supporting quick-change, being compatible with certain hands, or recommending a model does not mean it has been delivered.
End-Effector Boundary

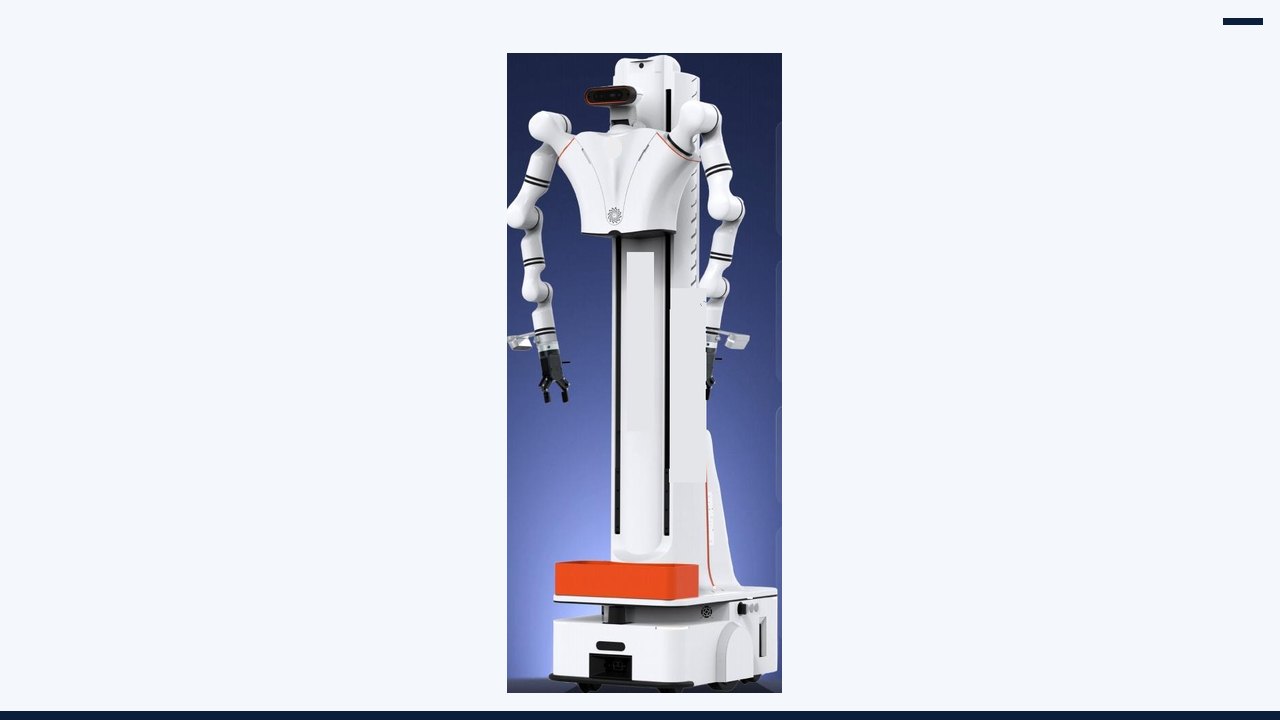

The gripper's own force, stroke, and payload are listed on separate rows on the gripper page. After integration onto a wheeled lifting dual-arm teleoperation robotic platform, the arm's rated specifications remain in the arm's row; the gripper's 130 N or 5 kg envelope must not be written into the arm's rated specification cell. If two sets of ±0.05 mm appear simultaneously, list them on separate rows as well, since one refers to the arm's repeatability and the other to the gripper's positional repeatability.
The rail-mounted ring fixture on the local kit is held by the primary arm, not the slave-end gripper. When you see the word "fixture," ask whether it is on the primary end or the slave end.
The configuration sheet should have three lines: body model, end effector model and quantity, and explicitly excluded end effectors. The third line prevents disputes upon delivery. Both the end effector page and the body page are accessed from the product center; the body page is /product-body-lift.html.

How to Use This Page in This Version
The end-effector decision table has three columns: interface capability, model for this order, and explicitly excluded. The recommended configuration lists gripper CTAG2F90-D ×2. The standard configuration quantity table has no gripper. RMG22-65 is a separate product page. Put it in the first column. The second column must be a model number, such as RMG22-65 or another model on the configuration sheet; "quick-change," "dexterous hand," and "compatible" cannot fill the second column. The third column lists what is not installed in this order, to prevent the packing list from being verbally supplemented. The standard configuration robotic arm is RM65-B-V ×2, while the robotic arm parameter table model is RM75-B-V. Keep both model sets and lock them before ordering; do not collapse them into one.
Force, stroke, and load are not copied from the rig page to the gripper, nor from the gripper page to the rig. The gripper's envelope of 5 kg, friction of 2 kg, 130 N, and 65 mm appear only in the gripper row. The arm's rated 5 kg appears only in the arm row. When two 5 kg values are adjacent, the column headers must differ.
The rail-mounted ring fixture on the master arm is not the end effector. It solves how the human grips the master arm. When you see a fixture, first ask which end it is attached to. If it is on the master side, go to the kit page to match columns; if it is on the slave side, go to the gripper page to match the model.
Do not merge repeatability after installation. Both ±0.05 mm for the arm and ±0.05 mm for the gripper may appear. The page does not provide a composite formula for the serial-chain fingertip error, so acceptance is still done line by line; do not write "system repeatability ±0.05 mm." If system-level error is to be measured, it is a project test, not a line on /product-body-lift.html.
Line-by-Line Verification
Degrees of freedom. The single-arm degrees of freedom for the robotic arm parameter table model RM75-B-V is 7. The product page does not publish the degrees of freedom for the whole machine; do not fill in 17 or 20. This line only states the number and locations of joints that have already been made public. It does not evaluate intelligence, and it does not automatically include the waist, legs, neck, or whole-machine total that are not named on the page. When writing the action vector, create channels only for the body parts listed on this line; leave unlisted parts blank. Do not write blanks as 0, because 0 would be treated by training scripts as a real angle. Do not fill in the degrees of freedom integer from another device to make this line add up. If the master-slave joint order is not given on the page, mark it as pending written configuration confirmation; do not number it yourself. Degrees of freedom do not include the model of any specific gripper. The action vector creates channels only for the body parts named on this line; leave unlisted parts blank and do not fill in 0.
Payload and mass. The single-arm rated payload is 5 kg. The 8 kg in the parameter table is the single-arm self-weight. The cover previously stated a dual-arm rated payload of 8 kg, which conflicts with the parameter table; the parameter table takes precedence. Approximately 80 kg for the whole machine is the whole-machine mass. The numbers on this line must be read with their subjects: rated, self-weight, whole-machine mass, envelope, friction, or gripping force. If the subjects differ, they cannot be merged into one number, nor can conversions not given on the page be performed. If objects in the field are heavier, the specification cannot be changed retroactively; a larger specification also does not prove that every grasping method reaches that limit. The tool mass is undetermined; do not write the arm's rated payload as the graspable object mass. The acceptance table retains the original units. The arm's rated payload and the gripper's envelope, friction, and gripping force are accepted on separate lines. During acceptance, read the subject first and then the number; if the subjects do not match, split into two lines.
Dimensions and scale. Model RMC-AIDAL. Stowed dimensions 640 × 450 × 1780 mm. Base 640 × 450 × 250 mm. This line describes the external or structural dimensions, used to check doors, elevators, tabletops, or transport; it is not the operating height, nor the arm reach. Do not add it to the vertical range. If the diagram shows protrusions, antennas, or a person's standing position not present on this line, note separately that they are not part of the specification. If weight appears in an adjacent line, do not write it into the dimension sentence. The gripper's dimensions are not included in the body dimensions unless this page is the gripper page. Doors, elevators, and transport are checked only against the external dimensions; do not treat this line as the operating height.
Operating range. Lift stroke 900 mm, vertical working range 0–2.4 m (also written as 0–2400 mm in the table). Single-arm reach 633 mm. Single-side overhang beyond the base 790 mm; the original text does not mark a unit at that point, but it appears alongside millimeters in the same sentence, so it is written externally as 790 mm with this note preserved. This line describes the range the hand or lift can reach; the definition must follow the original sentence: vertical working range, arm reach, motion radius, or stroke—these cannot be added together or renamed. If "excluding end effector" is written, it must remain in the figure caption. When the original text does not mark a unit, preserve the note "unit not specified"; do not delete it for tidiness. A stroke of 65 mm is not the same length as arm reach. The figure caption retains the range definitions from the original sentence, as well as words such as "excluding end effector" or "unit not specified."
Motion. Two-wheel differential drive, speed 1.5 m/s, slope climbing 5°. Positioning accuracy ±10 mm / ±3°. This line describes how the ground base or main arm moves. Four-wheel steering, four-wheel drive, differential drive, in-place rotation radius, and rotational speed are terms for different mechanisms and cannot be substituted for one another. The published speed is a capability, not a recommended teaching speed; teaching can be slower, but a slower speed is written under experimental conditions and is not written back as a specification. Do not borrow slope climbing or positioning figures from other pages for pages that do not list them. An opening/closing time of 2 seconds is not a base speed. The teaching speed can be lower, but a lower speed is written under operating conditions and does not change the published capability on this line.
Power. The battery is lithium iron phosphate DC 48V 20Ah. This document dated 2026-08-03 does not state battery life in hours. Do not fill in approximately 6 hours, and do not rewrite it as 48V 31Ah or approximately 4 hours. This line retains only the electrical terms that appear on the page: voltage, capacity, battery life, charging, current, or power. If there are no "hours," write "battery life not specified"; do not fill the gap with hours from an adjacent page. Do not rename charging time as battery life. Rated and maximum values must be listed separately. Preserve "approximately" for approximate values. Do not sum the ampere-hours of multiple devices and state it as one device's battery. Gripper 24 V and main arm DC12V or DC24V are not automatically on the same power circuit. Hours, charging, or current that do not appear remain "not specified"; do not copy them in from an adjacent page.
Perception and computing. Main controller Nvidia Jetson AGX Orin 64G, plus a 1T solid-state drive. Standard vision configuration is D435 ×1, wide-angle camera ×2, voice module ×1. If the cover states 3 depth channels plus 2 wide-angle channels, which conflicts with the list, the specification follows the list. D435 line: ideal ranging 0.3–3 m; depth ≤1280×720, ≤90 fps; RGB 1920×1080, 30 fps; field of view 69°×42°; rolling shutter. Navigation separately lists depth camera ×1, IMU + encoder ×1, LiDAR ×1, safety edge ×1, ultrasonic ×2. This line takes inventory of the items already specified in sensing, computing, or communication, and preserves words such as standard, standard configuration, optional, and selectable. An optional item not checked does not count. When the cover and the list conflict, cite the list while not pretending the cover statement does not exist. Head-mounted devices and gloves do not enter this line. Processors, drive capacities, or camera channel counts not written out must not be drawn into the system diagram. Two lines with the same repeatability still belong to the arm and the gripper respectively. Optional sensors not purchased do not enter this data dictionary.
End effector. The recommended configuration lists gripper CTAG2F90-D ×2. The standard configuration quantity table has no gripper. RMG22-65 is a separate product page. This line states where contact or gripping occurs. Quick-change, compatible, and recommended are not models already in the box. The finger-ring fixture on the main arm is not an end-effector gripper. Force, stroke, and payload are still retained as-is on their respective lines; they are not merged into a single system metric because they are mounted on a given body. Flange and protocol mappings not specified are written as "pending confirmation," not "plug and play." This line cannot substitute for the model column. "Support" or "compatible" without a model cannot be treated as delivered.
Boundary. The standard configuration lists the robotic arm as RM65-B-V ×2, while the robotic arm spec sheet lists the model as RM75-B-V. Both model numbers are retained; lock the selection before ordering and do not collapse them into one. This line is a boundary deliberately separated on the page: another model, another column, another product page, or an interface that still requires project confirmation after modularization. A boundary is not a defect note — it is a safeguard against verbally buying two pages as one. When writing a proposal, copy the boundary into "not included in this order." If excluded equipment is added later, open a new configuration sheet rather than retroactively changing the platform name in the old sample. The recommended gripper model differs from this gripper model and the names are not interchangeable. Equipment within the boundary must be ordered separately; do not rename the old sample to imply it is already included.
Configuration column. The recommended configuration is RM75-B-V ×2, two-wheel differential base ×1, gripper CTAG2F90-D ×2. Teleoperation options are servo teleoperation, backpack teleoperation, and mobile teleoperation; these are not in the standard configuration quantity table. This line distinguishes standard, recommended, and optional. Recommended and optional items are not delivered unless checked. When the standard line and the parameter table line disagree, keep both lines and use "locked for this order" to indicate which one is actually delivered, rather than striking out one line in the order without signing off. Price and lead time are not written into this restatement. The end effector line is a separate line in the order, with a quantity. Unchecked recommended and optional items are written as not delivered in the order.
Excerptable. Attachable copy: RMC-AIDAL; 640×450×1780 mm; approximately 80 kg; lift 900 mm; vertical 0–2.4 m; arm reach 633 mm; rated 5 kg; self-weight 8 kg; repeatability ±0.05 mm; differential drive 1.5 m/s; slope climbing 5°; positioning ±10 mm / ±3°; Orin 64G + 1T SSD; lithium iron phosphate DC 48V 20Ah, hours not given. This is the type of line that can be pasted into an attachment: it has a subject, has units, and can be traced back to the original sentence on the product page. When pasting, keep the words "approximately," "excluding," "not given," and "optional." Do not convert and keep only the result. If the same number has different meanings on two pages, write it as two lines in the attachment. Do not mix test protocols into specification excerpts. The final segment of the attachment must at least contain the model number or an explicit "excluding." When pasting into the attachment, paste the words "approximately," "excluding," and "optional" along with the numbers.
Do not write. Do not write 17 degrees of freedom for the whole machine, 650×512×1700 mm, approximately 120 kg, lifting 0.3 m, vertical 0–2.1 m, speed 0.1–1.0 m/s. Do not write 8 kg as the rated payload. Do not write battery life in hours. This line is a negative statement for review. It does not describe what the equipment can do; it only prevents hours, degrees of freedom, payload subjects, or cover slogans from an adjacent page from being written in. If a manuscript search hits this negative statement, revert to the original sentence on the product page; do not interpret it as "close enough." Success rates from external papers and total hours not published on this site must likewise not be written in. It is prohibited to write that the standard configuration already includes the main arm and gripper. If a manuscript search hits this negative statement, revert to the original sentence on the product page.
| Projects | Public-Facing Positioning of This Page |
|---|---|
| Degrees of Freedom | In the robotic arm parameter table, model RM75-B-V has 7 degrees of freedom per arm. The product page does not publish the total degrees of freedom for the whole unit; do not fill in 17 or 20. |
| Load and Mass | Single-arm rated payload 5 kg. The 8 kg in the parameter table is the single-arm self-weight. The cover previously stated a dual-arm rated payload of 8 kg, which conflicted with the parameter table; the parameter table takes precedence. The total unit weight of approximately 80 kg is the overall mass. |
| Form Factor and Scale | Model RMC-AIDAL. Folded dimensions 640 × 450 × 1780 mm. Chassis 640 × 450 × 250 mm. |
| Operating Range | Lifting stroke 900 mm, vertical working range 0–2.4 m (also written as 0–2400 mm in the table). Single-arm reach 633 mm. Single-side overhang beyond the chassis is 790 mm; the original text did not specify a unit at that point, but since it appears alongside millimeters in the same sentence, it is written externally as 790 mm with this note retained. |
| Motion | Two-wheel differential drive, speed 1.5 m/s, climbing slope 5°. Positioning accuracy ±10 mm / ±3°. |
| Power | The battery is lithium iron phosphate DC 48V 20Ah. This document dated 2026-08-03 does not state battery life in hours. Do not add approximately 6 hours, and do not rewrite it as 48V 31Ah or approximately 4 hours. |
| Perception & Compute | Main controller Nvidia Jetson AGX Orin 64G, with an additional 1T solid-state drive. Standard vision configuration is D435 ×1, wide-angle cameras ×2, voice module ×1. If the cover states 3 depth channels plus 2 wide-angle channels, this conflicts with the list; the specifications follow the list. D435 row: ideal ranging 0.3–3 m; depth ≤1280×720, ≤90 fps; RGB 1920×1080, 30 fps; field of view 69°×42°; rolling shutter. Navigation separately lists depth camera ×1, IMU + encoder ×1, LiDAR ×1, safety edge ×1, ultrasonic ×2. |
| End Effector | The recommended configuration lists gripper CTAG2F90-D ×2. The standard configuration quantity table does not include a gripper. RMG22-65 is a separate product page. |
| Boundary | The standard configuration lists the robotic arm as RM65-B-V ×2, while the robotic arm parameter table lists the model as RM75-B-V. Both model numbers are retained; lock one before placing the order — do not collapse them into a single number. |
| Configuration Panel | Recommended configuration is RM75-B-V ×2, two-wheel differential chassis ×1, gripper CTAG2F90-D ×2. Teleoperation options are servo teleoperation, backpack teleoperation, and mobile teleoperation; these are not included in the standard configuration quantity table. |
| Excerptable | Attachment copy: RMC-AIDAL; 640×450×1780 mm; approximately 80 kg; lifting 900 mm; vertical 0–2.4 m; reach 633 mm; rated 5 kg; self-weight 8 kg; repeatability ±0.05 mm; differential drive 1.5 m/s; slope climbing 5°; positioning ±10 mm / ±3°; Orin 64G + 1T SSD; lithium iron phosphate DC 48V 20Ah, hours not specified. |
| Do not write | Do not write 17 degrees of freedom for the whole unit, and do not write 650×512×1700 mm, approximately 120 kg, lifting 0.3 m, vertical 0–2.1 m, speed 0.1–1.0 m/s. Do not write 8 kg as the rated payload. Do not write battery life in hours. |

Relationship to Public Methods and Adjacent Pages
The end effector is the segment that makes contact, and it is often mistakenly written as "already included with the embodiment." A quick-change interface means it can be swapped; it does not mean a particular gripper or a particular five-finger hand is in the box. Delivery is governed by the configuration list.
The folding model's end effector supports quick tool changes between a two-finger gripper and a five-finger hand. The wheeled humanoid's upper body is modular. The lift model's standard quantity table does not include a gripper; two units of CTAG2F90-D are a recommended option. The two-finger gripper RMG22-65 has its own product page: envelope load 5 kg, recommended friction load 2 kg, 130 N, stroke 65 mm, self-weight 745 g, open/close time 2 s, repeatability ±0.05 mm, RS485 / Modbus-RTU. Writing these numbers into the base unit's standard configuration is incorrect unless the order explicitly includes that line item.
The gripper's repeatability and the arm's repeatability are not the same number. The recommended arm table for the lift type lists a repeatability of ±0.05 mm, and the RMG22-65's repeatability is also ±0.05 mm. Even though the numbers are identical, they must still be placed in two separate rows, because the sources of error differ, and when chained in series you cannot simply keep only one.
This article draws the line: whether the standard delivery of this product includes the end effector, how to write the recommended items, and when the numbers on a standalone gripper page may appear.
Before handing off to a colleague
The end-effector packing list comes in two copies. One copy lists the model and quantity for this order; the other lists the hand or gripper explicitly not included. Both copies must be signed. A photo of the quick-change interface cannot replace the model line. The gripper parameter label and the arm's rated-load label are affixed to opposite sides. If the ring fixture is on the master arm, the label reads "master-side grip" so the warehouse does not treat it as a slave-side spare. After installation, do not add a new "system repeatability" specification row; if the project needs to measure fingertip error, that is a project measurement, and the label still retains the original two-row accuracy. Warehouse bin locations are separated into three categories: master-side grip, slave-side gripper, and unspecified interface. Quick-change parts with unspecified interfaces are not issued to the capture team. Grippers issued to the capture team must carry a model label. If the model label does not match the packing list, return the item — do not alter the label with a marker pen on site. If two accuracy labels have the same numbers, they still use different headings: arm repeatability of positioning, and gripper position repeatability. Labels with lost headings are void.
First, the packing list is split into two: included and not included.
Second, a photo does not substitute for a model number.
Third, the primary-side fixture and the distal-side gripper get separate storage locations.
Fourth, if the label and the packing list do not match, return the item.
Fifth, even if two sets of precision have the same number, use different headings.
Sixth, do not add "system repeatability" as a specification.
