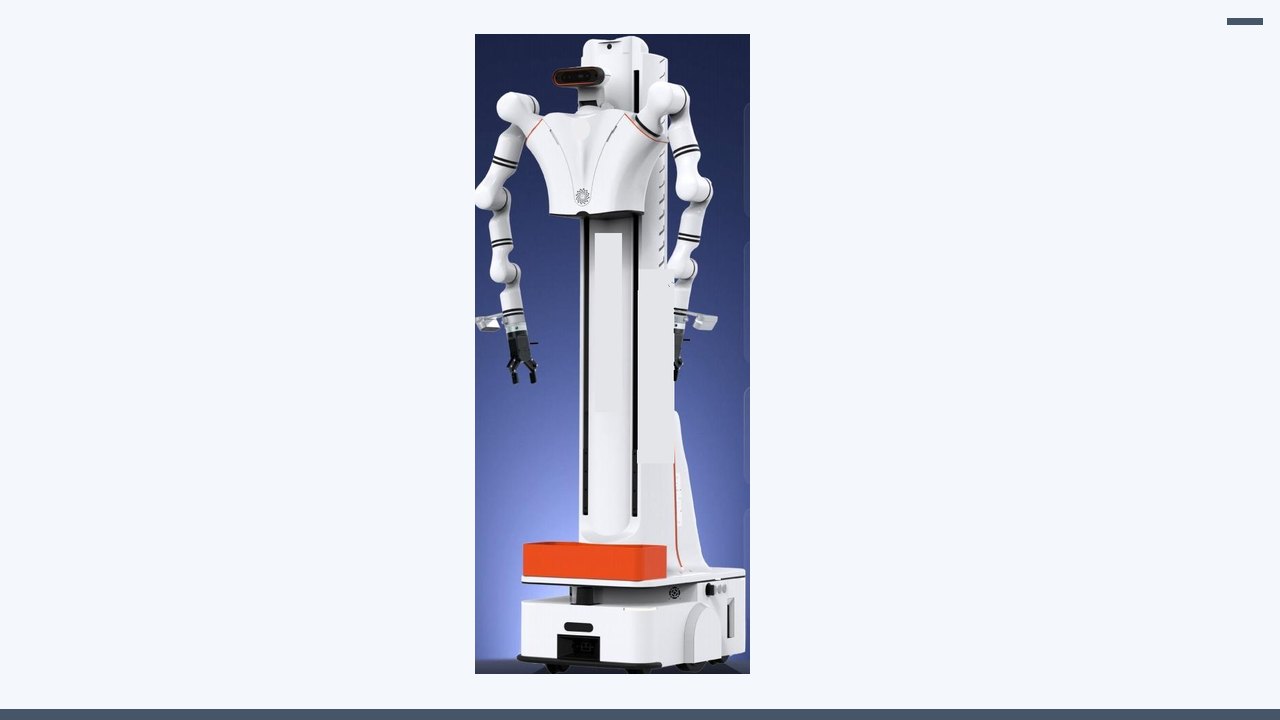

Pressing start simultaneously is not a shared clock. If a wheeled lift dual-arm teleoperation rig is used together with head-mounted devices, the master arm, and the gripper, the configuration sheet must specify the master clock, alignment error, and frame-drop markers. The page does not claim that PPS or serial-port clock synchronization has been used. Powering on the wrist camera and the light ring at the same time is also not clock synchronization.
Time alignment
Sampling rates are copied from each page respectively. The recording frequencies of the glove, head-mounted imaging, and arm are not the same number, and do not invent a body frequency in this article. The main controller is Nvidia Jetson AGX Orin 64G, with an additional 1T solid-state drive. Standard vision is D435 ×1, wide-angle camera ×2, voice module ×1. If the cover states 3 depth channels plus 2 wide-angle channels, which conflicts with the list, the specifications follow the list. D435 row: ideal ranging 0.3–3 m; depth ≤1280×720, ≤90 fps; RGB 1920×1080, 30 fps; field of view 69°×42°; rolling shutter. Navigation separately lists depth camera ×1, IMU + encoder ×1, LiDAR ×1, safety edge ×1, ultrasonic ×2. Here we only determine which sensors are on the list; do not rewrite the list into a single synchronized Hz figure.
The consequence of misalignment is that a visuomotor policy learns a misaligned causal relationship: in the image the hand has already closed, but the joint angles are still from the previous frame. Such samples are worse than missing samples, because they look complete.
Before the clock alignment scheme is written, the synchronization column of the recording sheet is filled in as "not committed." Do not fill in "aligned." /product-body-lift.html can be used to verify which devices the body has; the clock alignment protocol is not on that page.

How to Use This Page in This Version
The synchronization scheme is a separate sheet of paper, not written in the specification table of the wheeled lifting dual-arm teleoperation body, because the specification table does not commit to clock alignment. The sheet must have six lines: who is the master clock; which devices are slaves; what signal is used for alignment; the maximum allowed misalignment; how dropped frames are marked; who signs the recording sheet. If the six lines cannot be written, the synchronization column remains "not committed."
Pressing start simultaneously only proves that a person wants them to go together; it does not prove that the time bases are the same. The wrist camera, light ring, head-mounted display, main arm, gripper, and chassis can share one operator and still each have their own clock. The main controller is Nvidia Jetson AGX Orin 64G, with an additional 1T solid-state drive. Standard vision is D435 ×1, wide-angle camera ×2, voice module ×1. If the cover states 3 depth channels plus 2 wide-angle channels, which conflicts with the list, the specifications follow the list. D435 row: ideal ranging 0.3–3 m; depth ≤1280×720, ≤90 fps; RGB 1920×1080, 30 fps; field of view 69°×42°; rolling shutter. Navigation separately lists depth camera ×1, IMU + encoder ×1, LiDAR ×1, safety edge ×1, ultrasonic ×2. This sentence only states which sensors exist; it does not state that they share a sampling instant.
Do not invent a sampling frequency for the base unit in this article. Gloves and head-mounted images have their own spec-sheet frequencies, and those frequencies must not be filled into the base unit row. The base unit row's frequency follows the written interface specification; if it is not on the page, leave it blank.
The handling rule for misaligned samples should be written in advance: segments exceeding the allowed misalignment are discarded entirely, rather than truncated and still treated as aligned samples. Truncation creates training data that appears continuous but is actually causally incorrect. The rule is written in the experiment plan, not in /product-body-lift.html, to avoid being mistaken for a factory commitment.
Line-by-Line Verification
Degrees of freedom. The single-arm degrees of freedom for the robotic arm parameter table model RM75-B-V is 7. The product page does not publish the whole-machine degrees of freedom; do not fill in 17 or 20. This row only states the joint count and body parts that have been publicly disclosed. It does not evaluate intelligence, and does not automatically include waist, legs, neck, or a whole-machine total that the page does not name. When writing into the action vector, only build channels for the body parts listed in this row; body parts not listed remain blank. Do not write blank as 0, because 0 would be treated by the training script as a real angle. Do not fill in the degrees-of-freedom integer from another device to make this row add up. If the master-slave joint order is not given on the page, mark it as pending written configuration confirmation; do not number it yourself. When the joint channel frequency is not given on the page, keep it blank; do not substitute the degrees-of-freedom count for the frequency. Build action vector channels only for the body parts named in this row; leave unnamed body parts blank, do not fill in 0.
Payload and mass. The single-arm rated payload is 5 kg. The 8 kg in the parameter table is the single-arm self-weight. The cover previously stated a dual-arm rated payload of 8 kg, which conflicts with the parameter table; the parameter table prevails. The whole-machine mass is approximately 80 kg. The numbers in this row must be read with their subject: rated, self-weight, whole-machine mass, envelope, friction, or gripping force. If the subjects differ, they cannot be merged into one number, nor converted without a conversion given on the page. If an object in the field is heavier, this does not reverse-change the specification; a larger specification does not prove that every grasping method reaches that limit. The tool mass is undetermined; do not write the arm's rated payload as the graspable object mass. The acceptance table retains the original units. Payload is unrelated to the clock. During acceptance, read the subject first, then the number; if the subjects differ, split into two rows.
Dimensions and scale. Model RMC-AIDAL. Stowed dimensions 640 × 450 × 1780 mm. Chassis 640 × 450 × 250 mm. This row is an outline or structural scale, used to check doors, elevators, tabletops, or transport; it is not the operating height, nor the arm reach. Do not add it to the vertical range. If the diagram shows protrusions, antennas, or a person's standing position not in this row, note separately that they are not part of the specification. If weight appears in an adjacent row, do not write it into the dimension sentence. Outline is unrelated to alignment error. Doors, elevators, and transport are only checked against the outline; do not treat this row as the operating height.
Operating range. Lift stroke 900 mm, vertical working range 0–2.4 m (also written as 0–2400 mm in the table). Single-arm reach 633 mm. Single-side overhang beyond the chassis is 790 mm; the original text does not mark a unit at that point, and it appears alongside millimeters in the same sentence, so write it externally as 790 mm and retain this note. This row describes the range the hand or lift can reach; the definition must follow the original sentence: vertical working range, arm reach, motion radius, or stroke — these cannot be added to each other or renamed. If "excluding end effector" is written, it must remain in the figure caption. When the original text does not mark a unit, retain the note "unit not marked"; do not delete it for tidiness. The range does not provide a sampling instant. The figure caption retains the range definition from the original sentence, as well as the words "excluding end effector" or "unit not marked."
Motion. Two-wheel differential drive, speed 1.5 m/s, slope 5°. Positioning accuracy ±10 mm / ±3°. This row describes how the ground or main arm moves. Four-wheel steering, four-wheel drive, differential drive, in-place rotation radius, and rotational speed are terms for different mechanisms and cannot substitute for each other. The published speed is a capability, not a recommended teaching speed; teaching can be slower, but the slower speed is written into the experimental conditions and is not written back as a specification. Do not borrow slope or positioning figures from another page. If both the chassis and the arm are recorded, they still need their own timestamps; do not assume they are already aligned. The teaching speed can be lower, but the lower speed is written into the conditions and does not change the published capability in this row.
Power. The battery is lithium iron phosphate DC 48V 20Ah. This material dated 2026-08-03 does not state endurance in hours. Do not fill in approximately 6 hours, and do not rewrite it as 48V 31Ah or approximately 4 hours. This row only retains the electrical terms that appear on the page: voltage, capacity, endurance, charging, current, or power. If there are no "hours," write that endurance is not given; do not fill in the blank with hours from a neighboring page. Do not rename charging time as endurance. Rated and maximum must be listed separately. Preserve "approximately" for approximate values. Do not sum the ampere-hours of multiple devices and state it as one device's battery. The power-on instant is not the master clock. Hours, charging, or current that do not appear remain as not given; do not copy them in from a neighboring page.
Perception and computing. The main controller is Nvidia Jetson AGX Orin 64G, with an additional 1T solid-state drive. Standard vision is D435 ×1, wide-angle camera ×2, voice module ×1. If the cover states 3 depth channels plus 2 wide-angle channels, which conflicts with the list, the specifications follow the list. D435 row: ideal ranging 0.3–3 m; depth ≤1280×720, ≤90 fps; RGB 1920×1080, 30 fps; field of view 69°×42°; rolling shutter. Navigation separately lists depth camera ×1, IMU + encoder ×1, LiDAR ×1, safety edge ×1, ultrasonic ×2. This row takes inventory of the items explicitly stated in sensors, computing, or communications, and preserves the words standard, standard-equipped, optional, and optional configuration. Optional items that are not checked do not count. When the cover conflicts with the list, cite the list while not pretending the cover sentence does not exist. Head-mounted and glove devices do not enter this row. Processors, drive capacities, or camera channel counts that are not written out must not be drawn into the system diagram. Cameras on the list, even if turned on simultaneously, do not equal a shared clock. Optional sensors that were not purchased do not enter this data dictionary.
End effector. The recommended configuration lists gripper CTAG2F90-D ×2. The standard configuration quantity table does not include a gripper. RMG22-65 is a separate product page. This row states where contact or grasping occurs at which end. Quick-change, compatible, and recommended are not models already in the box. The ring fixture on the main arm is not an end-effector gripper. Force, stroke, and payload remain as written in their respective rows and are not merged into a single system metric because they are mounted on a particular body. For flange and protocol mappings that are not given, write "to be confirmed," not "plug and play." The gripper's opening and closing instant must be marked separately; do not merge it into the image frame number unless the synchronization sheet already specifies it. "Supports" or "compatible" without a model number cannot be treated as delivered.
Boundary. The standard configuration lists the robotic arm as RM65-B-V ×2, while the robotic arm parameter table lists the model as RM75-B-V. Keep both model designations; lock the selection before ordering; do not collapse them into one. This line is a deliberate boundary on the page: another model, another column, another product page, or an interface that still requires project confirmation after modularization. The boundary is not a defect note; it prevents verbally buying two pages as one. When writing a proposal, copy the boundary into "Not included in this order." If equipment not included is added later, open a new configuration sheet; do not go back and change the body model name in the old sample. The head-mounted device is not on this page's list, and even less should it be assumed to be time-synchronized with this unit. Equipment within the boundary must be ordered separately; do not rename the old sample to imply it is already included.
Configuration column. The recommended configuration is RM75-B-V ×2, two-wheel differential chassis ×1, gripper CTAG2F90-D ×2. Teleoperation options include servo teleoperation, backpack teleoperation, and mobile teleoperation, which are not included in the standard configuration quantity table. This row distinguishes standard, recommended, and optional items. If recommended and optional items are not checked, they will not be delivered. If the standard row conflicts with the parameter table row, keep both rows and use "locked for this order" to specify exactly which one will be delivered, rather than striking out one row in the order without a signature. Prices and lead times are not written into this row's summary. Sensors that were not purchased do not participate in the synchronization scheme. Unchecked recommended and optional items should be marked as not delivered on the order.
Quotable. The following can be copied into an appendix: RMC-AIDAL; 640×450×1780 mm; approximately 80 kg; lift 900 mm; vertical 0–2.4 m; arm reach 633 mm; rated 5 kg; self-weight 8 kg; repeatability ±0.05 mm; differential drive 1.5 m/s; slope climbing 5°; positioning ±10 mm / ±3°; Orin 64G + 1T SSD; lithium iron phosphate DC 48V 20Ah, hours not specified. This is the type of line that can be pasted into an appendix: it has a subject, has units, and can be traced back to the original sentence on the product page. When pasting, preserve words such as "approximately," "not included," "not specified," "optional," and "recommended." Do not convert and keep only the result. If the same number has different meanings on two pages, write it as two lines in the appendix. Do not mix test protocols into specification excerpts. If the six lines of the synchronization sheet cannot be written out, fill in "not committed" in the synchronization column of the appendix. When pasting into the appendix, paste words such as "approximately," "not included," and "optional" along with the values.
Do not write. Do not write 17 degrees of freedom for the whole machine, 650×512×1700 mm, approximately 120 kg, lifting 0.3 m, vertical 0–2.1 m, speed 0.1–1.0 m/s. Do not write 8 kg as the rated payload. Do not write battery life in hours. This line is a negative statement for review. It does not describe what the equipment can do; it only prevents hours, degrees of freedom, payload subjects, or cover slogans from an adjacent page from being written in. If a manuscript search hits this negative statement, revert to the original sentence on the product page; do not interpret it as "close enough." Success rates from external papers and total hours not published on this site must likewise not be written in. It is prohibited to write that PPS alignment with E6 or E2 has been completed unless there is a separate written agreement. If a manuscript search hits this negative statement, revert to the original sentence on the product page.
| Projects | Public-Facing Positioning of This Page |
|---|---|
| Degrees of Freedom | In the robotic arm parameter table, model RM75-B-V has 7 degrees of freedom per arm. The product page does not publish the total degrees of freedom for the whole unit; do not fill in 17 or 20. |
| Load and Mass | Single-arm rated payload 5 kg. The 8 kg in the parameter table is the single-arm self-weight. The cover previously stated a dual-arm rated payload of 8 kg, which conflicted with the parameter table; the parameter table takes precedence. The total unit weight of approximately 80 kg is the overall mass. |
| Form Factor and Scale | Model RMC-AIDAL. Folded dimensions 640 × 450 × 1780 mm. Chassis 640 × 450 × 250 mm. |
| Operating Range | Lifting stroke 900 mm, vertical working range 0–2.4 m (also written as 0–2400 mm in the table). Single-arm reach 633 mm. Single-side overhang beyond the chassis is 790 mm; the original text did not specify a unit at that point, but since it appears alongside millimeters in the same sentence, it is written externally as 790 mm with this note retained. |
| Motion | Two-wheel differential drive, speed 1.5 m/s, climbing slope 5°. Positioning accuracy ±10 mm / ±3°. |
| Power | The battery is lithium iron phosphate DC 48V 20Ah. This document dated 2026-08-03 does not state battery life in hours. Do not add approximately 6 hours, and do not rewrite it as 48V 31Ah or approximately 4 hours. |
| Perception & Compute | Main controller Nvidia Jetson AGX Orin 64G, with an additional 1T solid-state drive. Standard vision configuration is D435 ×1, wide-angle cameras ×2, voice module ×1. If the cover states 3 depth channels plus 2 wide-angle channels, this conflicts with the list; the specifications follow the list. D435 row: ideal ranging 0.3–3 m; depth ≤1280×720, ≤90 fps; RGB 1920×1080, 30 fps; field of view 69°×42°; rolling shutter. Navigation separately lists depth camera ×1, IMU + encoder ×1, LiDAR ×1, safety edge ×1, ultrasonic ×2. |
| End Effector | The recommended configuration lists gripper CTAG2F90-D ×2. The standard configuration quantity table does not include a gripper. RMG22-65 is a separate product page. |
| Boundary | The standard configuration lists the robotic arm as RM65-B-V ×2, while the robotic arm parameter table lists the model as RM75-B-V. Both model numbers are retained; lock one before placing the order — do not collapse them into a single number. |
| Configuration Panel | Recommended configuration is RM75-B-V ×2, two-wheel differential chassis ×1, gripper CTAG2F90-D ×2. Teleoperation options are servo teleoperation, backpack teleoperation, and mobile teleoperation; these are not included in the standard configuration quantity table. |
| Excerptable | Attachment copy: RMC-AIDAL; 640×450×1780 mm; approximately 80 kg; lifting 900 mm; vertical 0–2.4 m; reach 633 mm; rated 5 kg; self-weight 8 kg; repeatability ±0.05 mm; differential drive 1.5 m/s; slope climbing 5°; positioning ±10 mm / ±3°; Orin 64G + 1T SSD; lithium iron phosphate DC 48V 20Ah, hours not specified. |
| Do not write | Do not write 17 degrees of freedom for the whole unit, and do not write 650×512×1700 mm, approximately 120 kg, lifting 0.3 m, vertical 0–2.1 m, speed 0.1–1.0 m/s. Do not write 8 kg as the rated payload. Do not write battery life in hours. |

Relationship to Public Methods and Adjacent Pages
Pressing start on multiple devices at the same time does not mean the clocks are aligned. The head-mounted unit, master arm, slave arm, gripper, and chassis each have their own sampling clock. Without a common time base, it is impossible afterward to pair "the frame the human saw" with "the joint angles the arm actually reached" into a training sample. When frames are misaligned, the visuomotor policy learns misaligned causality.
The product page does not guarantee that the base unit and E6 or E2 have been synchronized via PPS plus serial port. The wrist camera and ring locator are accessories; powering them on together is not time synchronization. If a project requires synchronization, it must be listed separately in the configuration sheet: who is the master clock, what signal is used, the allowed alignment error, and how dropped frames are marked. If these sentences cannot be written, do not write "synchronized" in the proposal.
Do not mix sampling rates either. The control frequencies of the glove, head-mounted unit, and arm are not the same number. G7 is 120 Hz, G2-L transmits at 50 Hz, and E6 raw imagery can reach 60 Hz. The recording frequency of platform joints follows the actual controller and the written interface; do not invent a frequency that is not written on the page.
This article explains how timestamps should be required when this embodiment is listed alongside the head-mounted device and main arm, and which parts the page has not yet committed to.
Before handing off to a colleague
If the sync sheet has six blank rows, capture can still proceed, but the file name must include "clock not synchronized." Training scripts do not read directories with this marker by default. Do not backfill "it was aligned at the time" after capture ends. A misalignment value may only be used to execute a discard rule if it appears in a written protocol; without a protocol, keep the entire segment as unaligned raw data rather than cutting it into fragments that look continuous. The timestamp field names for head-mounted device, main arm, gripper, and embodiment are separated in advance to avoid overwriting by identical names. The read script for the clock-not-synchronized directory must have an assertion: refuse if the marker is not present in the path. Do not rely on human memory alone. The marker is written in two places: the directory name and the file header. The file header reads "no committed common clock." If a sync protocol is added later, new captures go into a new directory; old directories are not retroactively relabeled as aligned. Retroactive relabeling would make the misalignment at the time appear as though the later protocol had already taken effect.
First, lack of time synchronization must be written into the directory name and the file header.
Second, the script rejects misreadings that are not labeled.
Third, do not relabel as aligned after the fact.
Fourth, a new protocol only covers new directories.
Fifth, keep the timestamp field names of each device separate.
Sixth, without an agreement, do not cut segments into continuous samples.
