Lifting dual-arm teleoperation platform | Map site constraints by zone first: charging spot, network, and protection per model

On-site, first measure doors, elevators, floors, and slopes before discussing models. Model RMC-AIDAL. Folded dimensions 640 × 450 × 1780 mm. Chassis 640 × 450 × 250 mm. Two-wheel differential drive, speed 1.5 m/s, climbing 5°. Positioning accuracy ±…

2026-10-03
TOBI
Product Insights
Lifting dual-arm teleoperation platform | Map site constraints by zone first: charging spot, network, and protection per model
Product InsightsWheeled dual-arm teleoperation robot with lift2026-10-03

Measure the doors, elevator, floor, and slope before discussing models. Model RMC-AIDAL. Stowed dimensions 640 × 450 × 1780 mm. Base 640 × 450 × 250 mm. Two-wheel differential drive, speed 1.5 m/s, climbing slope 5°. Positioning accuracy ±10 mm / ±3°. Lift travel 900 mm, vertical working range 0–2.4 m (also written as 0–2400 mm in the table). Single-arm reach 633 mm. Single-side overhang beyond the base 790 mm; the original text does not specify a unit at this point, and since it appears alongside millimeters in the same sentence, it is written externally as 790 mm with this note retained. These three sentences are the site language already published for the wheeled lift dual-arm teleoperation body. Where no load capacity is stated, do not invent a floor load.

Site Constraints

Speed capability is not the speed allowed on site. The space occupied by people, cables, and the emergency stop is not included in the external dimensions. The desktop occupied by the primary arm workstation is within the motion radius on the kit page, not in the robot's external dimensions.

Positioning accuracy, climbing slope, ultrasonic, and safety edge become inspection items only on pages where they are written. If written, they must go into the checklist; if not written, do not borrow them from an adjacent page. Do not write 17 degrees of freedom for the whole machine, and do not write 650×512×1700 mm, approximately 120 kg, lift 0.3 m, vertical 0–2.1 m, speed 0.1–1.0 m/s. Do not write 8 kg as rated load. Do not write endurance in hours. Dimensions and hour figures from adjacent pages likewise cannot be borrowed to fill this site's blanks.

The first on-site visit performs action verification: direction, emergency stop, open/close, chassis forward/backward. Capture proceeds only after verification passes. The verification record is not a training sample.

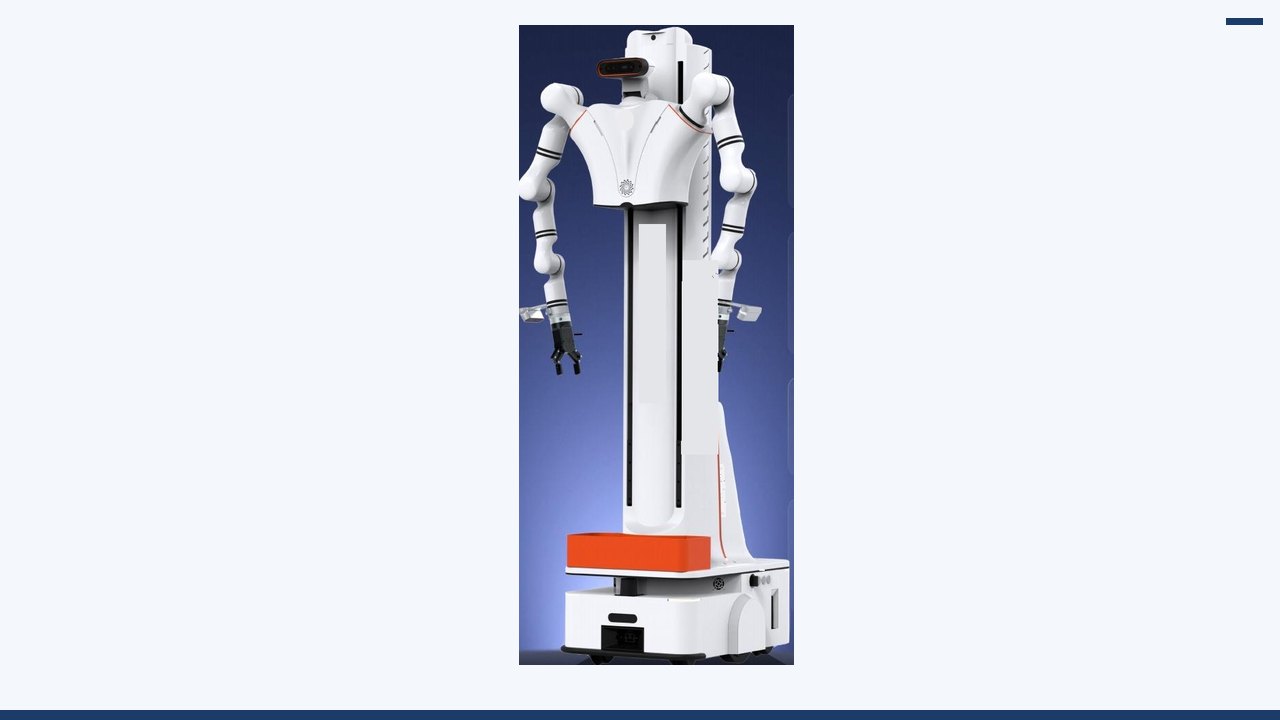

Wheeled lifting dual-arm teleoperation platform RMC-AIDAL
Figure 1 | Wheeled lifting dual-arm teleoperation platform. The caption only states that this is a device photo from the product page; the appearance is not interpreted as parameters not present in the table.

How to Use This Page in This Version

The site confirmation form is filled out before data acquisition, not after. In the dimensions column, copy: Model RMC-AIDAL. Stowed dimensions 640 × 450 × 1780 mm. Base 640 × 450 × 250 mm. In the height or reach column, copy: Lift travel 900 mm, vertical working range 0–2.4 m (also written as 0–2400 mm in the table). Single-arm reach 633 mm. Single-side overhang beyond the base 790 mm; the original text does not specify a unit at this point, and since it appears alongside millimeters in the same sentence, it is written externally as 790 mm with this note retained. In the mobility column, copy: Two-wheel differential drive, speed 1.5 m/s, climbing slope 5°. Positioning accuracy ±10 mm / ±3°. In the power column, copy: The battery is lithium iron phosphate DC 48V 20Ah. This material dated 2026-08-03 does not state endurance in hours. Do not fill in approximately 6 hours, and do not rewrite it as 48V 31Ah or approximately 4 hours. Leave space next to each column for "on-site measured value" and "pass/fail." If the measured value is stricter than the published value, it can pass; if the measured value does not meet the premise of the published value—for example, a door narrower than the outer dimensions—it does not pass.

Personnel space is listed separately. The operator, the master-arm desk, cables, and the emergency stop are not included in the external dimensions. The kit's motion radius appears only when the kit is purchased. Drawing the master-arm footprint on the site plan without buying the kit will reserve desk space while the equipment never arrives.

Only transcribe safety-related rows that exist. Slope climbing, positioning, edge contact, ultrasonic, speed limit — check if present, otherwise write "not specified on this page"; do not fill in from another machine. Do not write 17 degrees of freedom for the whole machine, do not write 650×512×1700 mm, approximately 120 kg, lifting 0.3 m, vertical 0–2.1 m, speed 0.1–1.0 m/s. Do not write 8 kg as rated load. Do not write battery life in hours. This negation is the anti-mixing column of the site sheet.

The first release authorizes only action verification, not training set use. The verification covers direction, emergency stop, opening/closing, and chassis forward/backward. Do not name the verification record files as demo or episode, so they are not swept in by training scripts. The sole on-site source for the wheeled lifting dual-arm teleoperation robotic platform is /product-body-lift.html.

Line-by-Line Verification

Degrees of freedom. The single-arm degrees of freedom for model RM75-B-V in the robotic arm parameter table is 7. The product page does not publish the whole-machine degrees of freedom; do not fill in 17 or 20. This row only states the number and locations of joints that have already been published. It does not evaluate intelligence, and it does not automatically include waist, legs, neck, or a whole-machine total that are not named on the page. When writing into the action vector, only build channels for the body parts listed in this row; body parts not listed remain blank. Do not write blanks as 0, because 0 will be treated by the training script as a real angle. Do not fill in the degrees-of-freedom integer from another device to complete this row. If the master-slave joint order is not given on the page, mark it as pending written configuration confirmation; do not number it yourself. The number of joints does not determine whether the device can enter an elevator. The action vector builds channels only for the body parts named in this row; body parts not named remain blank and are not filled with 0.

Load and mass. Single-arm rated load 5 kg. The 8 kg in the parameter table is the single-arm self-weight. The cover previously stated a dual-arm rated load of 8 kg, which conflicts with the parameter table; the parameter table takes precedence. Approximately 80 kg is the whole-machine mass. The numbers in this row must be read with their subject: rated load, self-weight, whole-machine mass, envelope, friction, or gripping force. If the subjects differ, they cannot be merged into a single number, nor can conversions not given on the page be performed. If an on-site object is heavier, this does not reverse-change the specification; a larger specification likewise does not prove that every grasping method reaches that limit. The tool mass is undetermined; do not write the arm's rated load as the graspable object mass. The acceptance form retains the original units. Only the whole-machine mass is relevant to handling; rated load is not whole-machine mass. During acceptance, read the subject first and then the number; if the subjects do not match, split into two rows.

Outer dimensions and scale. Model RMC-AIDAL. Stowed dimensions 640 × 450 × 1780 mm. Base 640 × 450 × 250 mm. This row describes outer dimensions or structural scale, used to verify doors, elevators, tabletops, or handling; it is not an operating height, nor is it a reach. Do not add it to the vertical range. If the diagram shows protrusions, antennas, or a person's standing position not present in this row, note separately that these are not part of the specification. If weight appears in an adjacent row, do not write it into the dimension sentence. Entry through doors is governed by this row. Doors, elevators, and handling are verified only against the outer dimensions; do not treat this row as an operating height.

Operating range. Lift travel 900 mm, vertical working range 0–2.4 m (also written as 0–2400 mm in the table). Single-arm reach 633 mm. Single-side overhang beyond the base 790 mm; the original text does not specify a unit at this point, and since it appears alongside millimeters in the same sentence, it is written externally as 790 mm with this note retained. This row describes the range the hand or lift can reach; the definitions must follow the original sentence: vertical working range, reach, motion radius, or travel—these cannot be added together or renamed. If "excluding end effector" is written, it must remain in the figure caption. Where the original text does not specify a unit, retain the note "unit not specified"; do not delete it for tidiness. Indoor clear height is compared against the operating range, not the packaging box, unless what is being measured is the box. The figure caption retains the range definitions from the original sentence, as well as terms such as "excluding end effector" or "unit not specified."

Motion. Two-wheel differential drive, speed 1.5 m/s, climbing slope 5°. Positioning accuracy ±10 mm / ±3°. This row describes how the base or main arm moves. Four-wheel steering, four-wheel drive, differential drive, in-place rotation radius, and rotational speed are terms for different mechanisms and cannot substitute for one another. The published speed is a capability, not a recommended teaching speed; teaching can be slower, but a slower speed is recorded under experimental conditions and is not written back as a specification. On pages where climbing slope or positioning is not written, do not borrow from another page. Ground slope and speed limits use only the values written in this row. Teaching speed can be lower, but a lower speed is recorded under operating conditions and does not change the published capability in this row.

Power. The battery is lithium iron phosphate DC 48V 20Ah. This material dated 2026-08-03 does not state endurance in hours. Do not fill in approximately 6 hours, and do not rewrite it as 48V 31Ah or approximately 4 hours. This row retains only the electrical terms that appear on the page: voltage, capacity, endurance, charging, current, or power. If there are no "hours," write that endurance is not given; do not fill the blank with hours from an adjacent page. Do not rename charging time as endurance. Rated and maximum values must be listed separately. Retain "approximately" for approximate values. Do not sum the ampere-hours of multiple devices and state it as one device's battery. On-site outlets or DC power must match this row; if they do not match, do not power on for data acquisition. Hours, charging, or current that do not appear remain as not given and are not copied in from an adjacent page.

Perception and computing. Main controller Nvidia Jetson AGX Orin 64G, with an additional 1T solid-state drive. Standard vision configuration is D435 ×1, wide-angle cameras ×2, voice module ×1. If the cover states 3 depth channels plus 2 wide-angle channels, which conflicts with the list, the specification follows the list. D435 row: ideal ranging 0.3–3 m; depth ≤1280×720, ≤90 fps; RGB 1920×1080, 30 fps; field of view 69°×42°; rolling shutter. Navigation separately lists depth camera ×1, IMU + encoder ×1, LiDAR ×1, safety edge ×1, ultrasonic ×2. This row inventories the items already stated in sensors, computing, or communications, and retains the terms standard, included, optional, and selectable. Optional items not checked do not count. When the cover conflicts with the list, cite the list while not pretending the cover statement does not exist. Head-mounted and glove devices do not enter this row. Processors, storage capacity, or camera channel counts not written out should not be drawn into the system diagram. Sensor mounts do not change door width requirements. Optional sensors not purchased do not enter this data dictionary.

End effector. The recommended configuration lists gripper CTAG2F90-D ×2. The standard configuration quantity table does not include a gripper. RMG22-65 is a separate product page. This row refers to where contact or grasping occurs — at which end. Quick-change, compatible, and recommended are all models that are not included in the box. The ring fixture on the main arm is not an end-effector gripper. Force, stroke, and payload remain as stated in their respective rows; they are not merged into a single system metric just because they are mounted on a robotic platform. Flange and protocol mappings that have not been specified should be marked as to be confirmed, not as plug-and-play. When the end effector has not yet arrived, a no-load check can be performed, but this must be noted on the site sheet. "Supports" or "compatible" without a specific model number cannot be treated as delivered.

Boundaries. The standard configuration robotic arm is written as RM65-B-V ×2, while the robotic arm parameter table model is RM75-B-V. Both model sets are retained and locked before ordering; do not collapse into one. This row is a boundary deliberately separated on the page: another model, another column, another product page, or an interface that still requires project confirmation after modularization. The boundary is not a defect note; it prevents verbally buying two pages as one. When writing the proposal, copy the boundary into "not included in this order." If a device not included is added later, open a new configuration form; do not go back and change the body name in old samples. The main-arm tabletop occupies the site only after the kit is purchased. Devices within the boundary require a separate order; do not rename old samples to say they already include it.

Configuration column. The recommended configuration is RM75-B-V ×2, two-wheel differential-drive chassis ×1, gripper CTAG2F90-D ×2. Teleoperation options are servo teleoperation, backpack teleoperation, and mobile teleoperation, which are not included in the standard configuration quantity table. This row distinguishes standard, recommended, and optional. Recommended and optional items that are not checked will not be delivered. When the standard row and the parameter table row are inconsistent, keep both rows and use "locked for this order" to indicate which one is actually delivered, rather than striking out one of the rows in the order without signing off. Prices and lead times are not written into this row's restatement. Unselected 5G is not a prerequisite for on-site networking. Unchecked recommended and optional items are written as not delivered on the order.

Excerptable. The attachment can copy: RMC-AIDAL; 640×450×1780 mm; approximately 80 kg; lift 900 mm; vertical 0–2.4 m; reach 633 mm; rated load 5 kg; self-weight 8 kg; repeatability ±0.05 mm; differential drive 1.5 m/s; climbing slope 5°; positioning ±10 mm / ±3°; Orin 64G + 1T SSD; lithium iron phosphate DC 48V 20Ah, hours not given. This row is the type that can be pasted into an attachment: with subject, with unit, and traceable back to the original sentence on the product page. When pasting, retain approximately, not included, not given, optional, and recommended. Do not convert and keep only the result. If the same number has different meanings on two pages, write it as two rows in the attachment. Test protocols should not be mixed into specification excerpts. Every limit on the site form can be traced back to the product page. When pasting into the attachment, paste together with terms such as approximately, not included, and optional.

Do not write. Do not write 17 degrees of freedom for the whole machine, do not write 650×512×1700 mm, approximately 120 kg, lifting 0.3 m, vertical 0–2.1 m, speed 0.1–1.0 m/s. Do not write 8 kg as rated load. Do not write battery life in hours. This line is a negative sentence for review purposes. It does not describe what the device can do; it only prevents hours, degrees of freedom, load subjects, or cover slogans from neighboring pages from being written in. If a negative sentence is hit, revert to the original product page sentence and do not interpret it as "approximately." Success rates from external papers and total hours not published on this site must likewise not be written in. Another device's appearance and slope-climbing must not be written into this scene. If manuscript retrieval hits a negative sentence, revert to the original product page sentence.

ProjectsPublic-Facing Positioning of This Page
Degrees of FreedomIn the robotic arm parameter table, model RM75-B-V has 7 degrees of freedom per arm. The product page does not publish the total degrees of freedom for the whole unit; do not fill in 17 or 20.
Load and MassSingle-arm rated payload 5 kg. The 8 kg in the parameter table is the single-arm self-weight. The cover previously stated a dual-arm rated payload of 8 kg, which conflicted with the parameter table; the parameter table takes precedence. The total unit weight of approximately 80 kg is the overall mass.
Form Factor and ScaleModel RMC-AIDAL. Folded dimensions 640 × 450 × 1780 mm. Chassis 640 × 450 × 250 mm.
Operating RangeLifting stroke 900 mm, vertical working range 0–2.4 m (also written as 0–2400 mm in the table). Single-arm reach 633 mm. Single-side overhang beyond the chassis is 790 mm; the original text did not specify a unit at that point, but since it appears alongside millimeters in the same sentence, it is written externally as 790 mm with this note retained.
MotionTwo-wheel differential drive, speed 1.5 m/s, climbing slope 5°. Positioning accuracy ±10 mm / ±3°.
PowerThe battery is lithium iron phosphate DC 48V 20Ah. This document dated 2026-08-03 does not state battery life in hours. Do not add approximately 6 hours, and do not rewrite it as 48V 31Ah or approximately 4 hours.
Perception & ComputeMain controller Nvidia Jetson AGX Orin 64G, with an additional 1T solid-state drive. Standard vision configuration is D435 ×1, wide-angle cameras ×2, voice module ×1. If the cover states 3 depth channels plus 2 wide-angle channels, this conflicts with the list; the specifications follow the list. D435 row: ideal ranging 0.3–3 m; depth ≤1280×720, ≤90 fps; RGB 1920×1080, 30 fps; field of view 69°×42°; rolling shutter. Navigation separately lists depth camera ×1, IMU + encoder ×1, LiDAR ×1, safety edge ×1, ultrasonic ×2.
End EffectorThe recommended configuration lists gripper CTAG2F90-D ×2. The standard configuration quantity table does not include a gripper. RMG22-65 is a separate product page.
BoundaryThe standard configuration lists the robotic arm as RM65-B-V ×2, while the robotic arm parameter table lists the model as RM75-B-V. Both model numbers are retained; lock one before placing the order — do not collapse them into a single number.
Configuration PanelRecommended configuration is RM75-B-V ×2, two-wheel differential chassis ×1, gripper CTAG2F90-D ×2. Teleoperation options are servo teleoperation, backpack teleoperation, and mobile teleoperation; these are not included in the standard configuration quantity table.
ExcerptableAttachment copy: RMC-AIDAL; 640×450×1780 mm; approximately 80 kg; lifting 900 mm; vertical 0–2.4 m; reach 633 mm; rated 5 kg; self-weight 8 kg; repeatability ±0.05 mm; differential drive 1.5 m/s; slope climbing 5°; positioning ±10 mm / ±3°; Orin 64G + 1T SSD; lithium iron phosphate DC 48V 20Ah, hours not specified.
Do not writeDo not write 17 degrees of freedom for the whole unit, and do not write 650×512×1700 mm, approximately 120 kg, lifting 0.3 m, vertical 0–2.1 m, speed 0.1–1.0 m/s. Do not write 8 kg as the rated payload. Do not write battery life in hours.
Wheeled lifting dual-arm teleoperation platform; the product page currently publishes only this one main image.
Figure 2 | The same main image as at the beginning of the article. The product page does not have a second publicly available angle of the chassis, so no photo of a different model is substituted here.

Relationship to Public Methods and Adjacent Pages

Site constraints come before algorithms. Door widths, elevators, floor slopes, aisles, and personnel safety distances determine whether this unit can enter the site; the model architecture does not. Speed is a safety parameter, not a "faster is better" marketing claim. Gradeability, positioning error, ultrasonic sensors, and bump strips are the conditions for whether the chassis can operate on that floor.

The lift model's publicly disclosed differential-drive speed is 1.5 m/s, slope climbing is 5°, positioning accuracy is ±10 mm / ±3°, and it lists one safety edge-sensor channel and two ultrasonic channels. The left and right single-side overhang beyond the chassis is written as 790 in the source material; the sentence is in a millimeter context but the original does not state the unit. Externally, write it as 790 mm and retain this note. The folding model's overall width is approximately 552 mm; the wheeled humanoid's shoulder and chassis are within 465 mm, with a turning radius of 690 mm. Using the wrong width to measure a door will only reveal the problem on installation day when the device cannot fit through.

The demonstration site must also leave room for people. The primary arm workstation, operator, cables, and emergency stop are not included in the robot's external dimensions. The primary arm's self-weight and length on the kit page determine the desktop, not whether the slave end can pass through a door.

This article turns the product's publicly disclosed ground clearance and dimensional constraints into site-entry checklist items. Safety ratings and protection ratings that are not disclosed are not supplemented.

Before handing off to a colleague

The site form is filled out before the equipment enters the door, not after. The measurement column and the specification column are placed side by side. If the measurement does not meet the door width or power supply requirements, unboxing for capture does not proceed. Personnel positions are marked on the floor with tape; the tape dimensions are not written into the specifications.

The title of the first release form is "Action Verification"; the file name does not use "episode". Items that fail verification are marked as "failed", not as "to be handled later in the data". The product page path is written in the header of the site form for easy comparison with the day's table. Pre-entry measurements are taken with a tape measure and a voltmeter, not by eye. Visual estimates of "close enough" are not entered in the measurement column. If the measurement column is left blank, unboxing is not permitted. If an end-effector is found to be missing after unboxing, the action verification may continue, but the release form is changed to "No End-Effector Verification", and this title is printed in the header of every record for that day. Records without the header are not archived into the formal experiment.

First, use a tape measure and a voltmeter before entering the site.

Second, visual estimates are not written in as measured values.

Third, test empty without unboxing.

Fourth, when the end effector is missing, write "no end effector" in the header.

Fifth, personnel tape is not written into the spec.

Sixth, records missing a header do not enter formal experiments.
