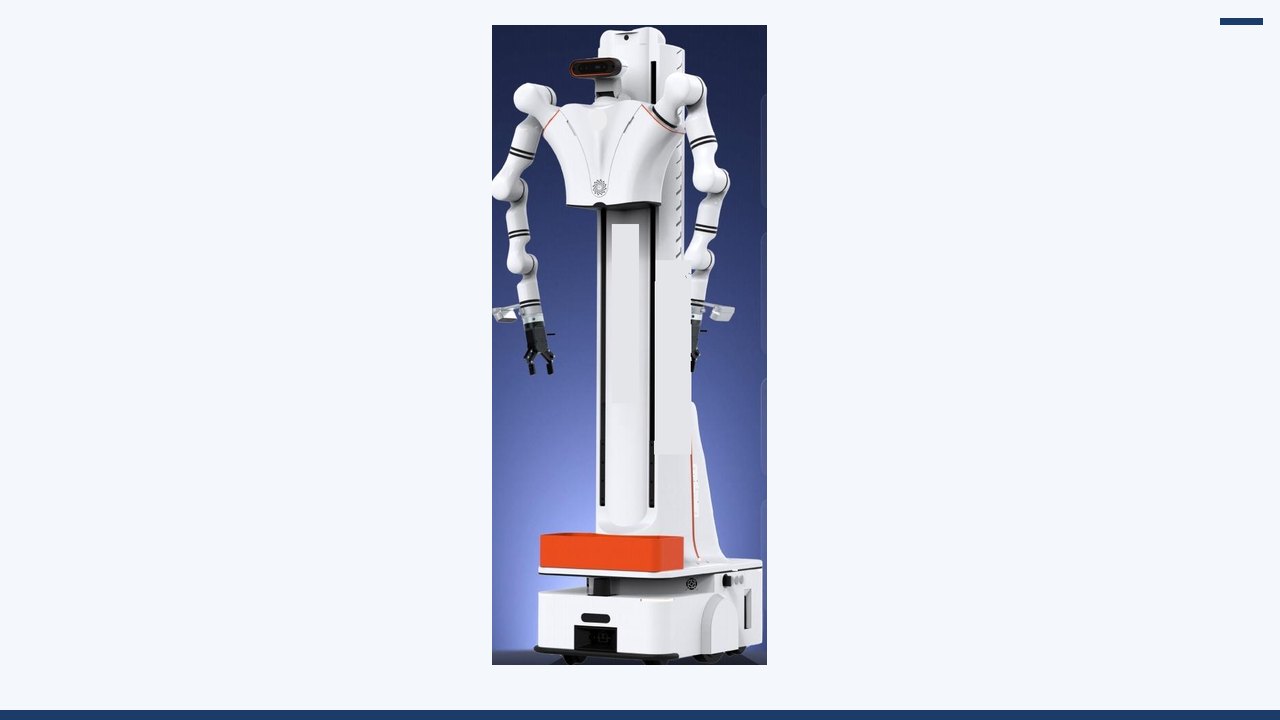

A trainable sample must align at least four things: time, observation, action, and body identifier. The wheeled lifting dual-arm teleoperation body provides the body and part of the action carrier. The main controller is Nvidia Jetson AGX Orin 64G, with an additional 1T solid-state drive. Standard vision is D435 ×1, wide-angle camera ×2, voice module ×1. If the cover states 3 depth channels plus 2 wide-angle channels, that conflicts with the list; the specification follows the list. D435 row: ideal ranging 0.3–3 m; depth ≤1280×720, ≤90 fps; RGB 1920×1080, 30 fps; field of view 69°×42°; rolling shutter. Navigation separately lists depth camera ×1, IMU + encoder ×1, LiDAR ×1, safety edge ×1, ultrasonic ×2. Which channel the observation comes from is governed by this sentence. Video without timestamps is only a recording.
Data Recording
The action field is built separately from degrees of freedom, chassis, and end effector. In the manipulator parameter table, model RM75-B-V has 7 degrees of freedom per arm. The product page does not publish the whole-machine degrees of freedom; do not fill in 17 or 20. Two-wheel differential drive, speed 1.5 m/s, slope climbing 5°. Positioning accuracy ±10 mm / ±3°. The recommended configuration lists gripper CTAG2F90-D ×2. The standard configuration quantity table does not include a gripper. RMG22-65 is a separate product page. Do not write quantities not present in these three sentences into the data dictionary as already collected. If gripper open/close uses RMG22-65, the open/close timing follows the gripper page's 2-second figure; it is not one dimension of the body's degrees of freedom, unless the recording scheme explicitly encodes it as one dimension and clearly states the unit.
A human's head-mounted device and gloves can operate in parallel, but cannot be labeled with the motion labels of this machine body. Cross-embodiment transfer is a research topic, not a feature already completed on this page. Works such as Open X-Embodiment require the embodiment to be explicitly labeled, which precisely shows that sensors from different pages cannot be merged into one robot.
The quality statement should read: the action space of this sample equals the written configuration for this order, not the union of all options on the wheeled lifting dual-arm teleoperation body product page. Options that were not purchased are not in the sample.

How to Use This Page in This Version
The data dictionary starts with four columns: time, observation, action, body. The body column records the wheeled lifting dual-arm teleoperation body and the configuration order number for this order; do not write "teleoperation platform." The number of observation channels comes from: the main controller is Nvidia Jetson AGX Orin 64G, with an additional 1T solid-state drive. Standard vision is D435 ×1, wide-angle camera ×2, voice module ×1. If the cover states 3 depth channels plus 2 wide-angle channels, that conflicts with the list; the specification follows the list. D435 row: ideal ranging 0.3–3 m; depth ≤1280×720, ≤90 fps; RGB 1920×1080, 30 fps; field of view 69°×42°; rolling shutter. Navigation separately lists depth camera ×1, IMU + encoder ×1, LiDAR ×1, safety edge ×1, ultrasonic ×2. The joints in the action column come from: in the manipulator parameter table, model RM75-B-V has 7 degrees of freedom per arm. The product page does not publish the whole-machine degrees of freedom; do not fill in 17 or 20. The chassis comes from: two-wheel differential drive, speed 1.5 m/s, slope climbing 5°. Positioning accuracy ±10 mm / ±3°. The end effector comes from: the recommended configuration lists gripper CTAG2F90-D ×2. The standard configuration quantity table does not include a gripper. RMG22-65 is a separate product page. For anything not present on the page in these four columns, the dictionary writes "not collected," not a default value.
File naming should include date, robot unit, and configuration sheet number. Do not use non-traceable terms like "final version" or "new data." If the end effector or kit column changes on the same day, the configuration sheet number must change; otherwise, samples from two different action spaces will end up in the same folder.
Human-side devices go in a separate directory. Head-mounted video, glove posture, and robot joint data must not be merged into a single training file when they are not aligned. Merging is a subsequent step, contingent on the synchronization scheme having been specified. This page does not promise merging as a factory function.
The quality statement written for human readers repeats the boundaries: optional cameras not purchased are not in the observation column; recommended grippers not written are not in the action column; success rates from papers are not labels for this batch of data. /product-body-lift.html is the basis for the body column.
Line-by-Line Verification
Degrees of freedom. In the manipulator parameter table, model RM75-B-V has 7 degrees of freedom per arm. The product page does not publish the whole-machine degrees of freedom; do not fill in 17 or 20. This row only states the number and location of joints that have been published. It does not evaluate intelligence, and it does not automatically include waist, legs, neck, or a whole-machine total that are not named on the page. When writing into the action vector, build channels only for the body parts present in this row; parts not present remain blank. Do not write blank as 0, because 0 would be treated by training scripts as a real angle. Do not fill in the degrees-of-freedom integer from another device after this row to make the numbers add up. If the master–slave joint order is not given on the page, mark it as to be confirmed in the written configuration; do not number it yourself. The joint set in the action column equals this row, no more and no less. The action vector builds channels only for the body parts named in this row; parts not named remain blank, not 0.
Load and mass. Single-arm rated load 5 kg. The 8 kg in the parameter table is the single-arm self-weight. The dual-arm rated 8 kg once written on the cover conflicts with the parameter table; the parameter table takes precedence. The whole-machine figure of approximately 80 kg is the whole-machine mass. This row's numbers must be read aloud with their subject: rated, self-weight, whole-machine mass, envelope, friction, or gripping force. If the subjects differ, they cannot be merged into a single number, nor can any conversion not given on the page be performed. If field objects are heavier, the spec cannot be changed retroactively; a larger spec also does not prove that every grasping method reaches that limit. Tool mass is undetermined — do not write the arm's rated load as graspable object mass. The acceptance table retains original units. If a mass label uses the rated value, it must state that it is the spec ceiling, not the object weight of each sample. During acceptance, read the subject first and then the number; if subjects are inconsistent, split into two rows.

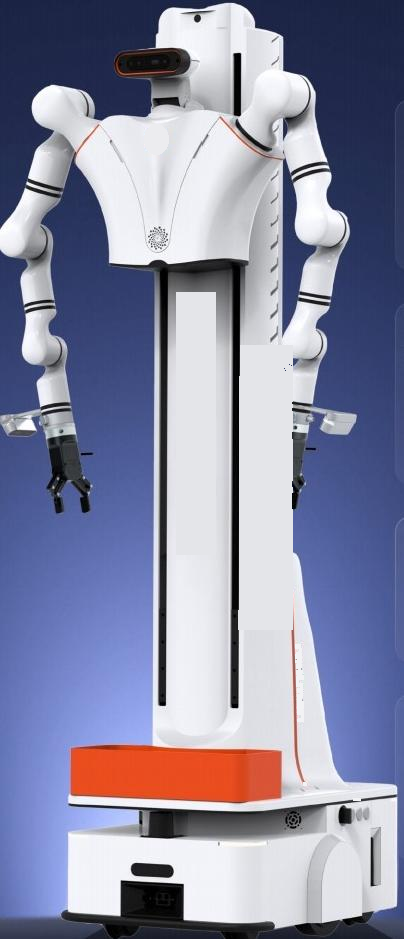

Form and dimensions. Model RMC-AIDAL. Stowed dimensions 640 × 450 × 1780 mm. Chassis 640 × 450 × 250 mm. This row describes form or structural dimensions, used to check doorways, elevators, tabletops, or transport; it is not operating height, nor arm reach. Do not add it to the vertical range. If the figure shows protrusions, antennas, or a person's standing position not present in this row, note separately that they are not part of the specification. If weight appears in an adjacent row, do not write it into the dimension sentence. Form does not enter the action vector. Doorways, elevators, and transport are checked against form only; do not treat this row as operating height.
Operating range. Lift stroke 900 mm, vertical working range 0–2.4 m (also written as 0–2400 mm in the table). Single-arm reach 633 mm. Single-side overhang beyond the chassis 790 mm; the original text does not mark a unit at that point, and it appears alongside millimeters in the same sentence, so write it externally as 790 mm and retain this note. This row describes the range the hand or lift can reach; the definitions must follow the original sentence: vertical working range, arm reach, motion radius, or stroke—these cannot be added together or renamed. If "excludes end effector" is written, it must remain in the figure caption. When the original text does not mark a unit, retain the note "unit not marked"; do not delete it for tidiness. The working range may be written into task metadata, not into joint angles. The figure caption retains the range definitions from the original sentence, as well as the words "excludes end effector" and "unit not marked."
Motion. Two-wheel differential drive, speed 1.5 m/s, slope climbing 5°. Positioning accuracy ±10 mm / ±3°. This row describes how the ground platform or main arm moves. Four-wheel four-drive, differential drive, in-place rotation radius, and rotational speed are terms for different mechanisms and cannot be substituted for one another. Published speed is a capability, not a recommended teaching speed; teaching may be slower, but the slower speed is written into the experimental conditions, not back into the specification. Do not borrow slope climbing or positioning figures from another page for a page that does not state them. Whether a chassis channel exists is determined by whether this row describes movement. Teaching speed may be lower, but the lower speed is written into the conditions and does not change the published capability in this row.
Power. The battery is lithium iron phosphate DC 48V 20Ah. This material dated 2026-08-03 does not state battery life in hours. Do not fill in approximately 6 hours, and do not rewrite it as 48V 31Ah or approximately 4 hours. This row retains only the electrical terms that appear on the page: voltage, capacity, battery life, charging, current, or power. If there is no "hours," write battery life not given; do not fill the blank with hours from an adjacent page. Do not rename charging time as battery life. Rated and maximum must be listed separately. Preserve "approximately" for approximate values. Do not sum the amp-hours of multiple devices and state it as one device's battery. The battery row does not produce sensor timestamps. Hours, charging, or current that do not appear remain not given; do not copy them in from an adjacent page.
Perception and computing. The main controller is Nvidia Jetson AGX Orin 64G, with an additional 1T solid-state drive. Standard vision is D435 ×1, wide-angle camera ×2, voice module ×1. If the cover states 3 depth channels plus 2 wide-angle channels, that conflicts with the list; the specification follows the list. D435 row: ideal ranging 0.3–3 m; depth ≤1280×720, ≤90 fps; RGB 1920×1080, 30 fps; field of view 69°×42°; rolling shutter. Navigation separately lists depth camera ×1, IMU + encoder ×1, LiDAR ×1, safety edge ×1, ultrasonic ×2. This row inventories the items explicitly stated in sensors, computing, or communications, and preserves the words standard, standard-equipped, optional, and optional-order. Unchecked optional items do not count. When the cover conflicts with the list, cite the list while not pretending the cover sentence does not exist. Head-mounted devices and gloves do not enter this row. Processors, drive capacities, or camera channel counts that are not written out must not be drawn into the system diagram. The topics in the observation column are consistent with the channel counts in this row. Optional sensors not purchased do not enter this data dictionary.
End effector. The recommended configuration lists gripper CTAG2F90-D ×2. The standard configuration quantity table does not include a gripper. RMG22-65 is a separate product page. This row states where contact or grasping occurs at which end. Quick-change, compatible, and recommended are not models already in the box. The ring fixture on the main arm is not an end-effector gripper. Force, stroke, and payload remain as written in their respective rows and are not merged into a single system metric because they are mounted on a particular body. For flange and protocol mappings that are not given, write "to be confirmed," not "plug and play." The end-effector state enters the action column only after the model is determined. "Supports" or "compatible" without a model number cannot be treated as delivered.
Boundary. The standard configuration lists the robotic arm as RM65-B-V ×2, while the robotic arm parameter table lists the model as RM75-B-V. Both model numbers are retained and must be locked before ordering; do not collapse them into one. This row is a deliberate boundary on the page: another model, another column, another product page, or an interface that still requires project confirmation after modularization. The boundary is not a defect note; it prevents verbally buying two pages as one. When writing a proposal, copy the boundary into "not included in this order." If equipment not included is added later, open a new configuration sheet; do not go back and change the body name in the old sample. Equipment not included must not appear in the body identifier. Equipment within the boundary must be ordered separately; do not rename the old sample to imply it already includes it.
Configuration column. The recommended configuration is RM75-B-V ×2, two-wheel differential chassis ×1, gripper CTAG2F90-D ×2. Teleoperation options are servo teleoperation, backpack teleoperation, and mobile teleoperation; these are not in the standard configuration quantity table. This row distinguishes standard, recommended, and optional. Recommended and optional items are not delivered unless checked. When the standard row and the parameter table row disagree, keep both rows and use "locked for this order" to indicate which one is actually delivered, rather than striking out one row in the order without signing off. Price and lead time are not written into this row's restatement. The sample's configuration sheet number must be able to explain whether recommended items are checked. Unchecked recommended and optional items are written as not delivered on the order.
Excerptable. Attachment data may be copied: RMC-AIDAL; 640×450×1780 mm; approximately 80 kg; lift 900 mm; vertical 0–2.4 m; arm reach 633 mm; rated 5 kg; self-weight 8 kg; repeatability ±0.05 mm; differential drive 1.5 m/s; slope 5°; positioning ±10 mm / ±3°; Orin 64G + 1T SSD; lithium iron phosphate DC 48V 20Ah, hours not given. This row is the type that can be pasted into an attachment: it has a subject, units, and can be traced back to the original sentence on the product page. When pasting, preserve "approximately," "not included," "not given," "optional," and "recommended." Do not convert and keep only the result. If the same number has different meanings on two pages, write it as two rows in the attachment. Do not mix test protocols into specification excerpts. The data description cites the attachment's original sentences and does not write a separate set of numbers. When pasting into the attachment, paste the words "approximately," "not included," and "optional" along with the numbers.
Do not write. Do not write 17 degrees of freedom for the whole machine, do not write 650×512×1700 mm, approximately 120 kg, lifting 0.3 m, vertical 0–2.1 m, speed 0.1–1.0 m/s. Do not write 8 kg as rated load. Do not write battery life in hours. This line is a negative sentence for review purposes. It does not describe what the device can do; it only prevents hours, degrees of freedom, load subjects, or cover slogans from adjacent pages from being written in. If a negative sentence is hit, revert to the original product page sentence, and do not interpret it as "close enough". Success rates from external papers and total hours not published on this site should also not be written in. If a number from a negative sentence appears in the dictionary, judge it as mixed writing. If manuscript retrieval hits a negative sentence, revert to the original product page sentence.
| Projects | Public-Facing Positioning of This Page |
|---|---|
| Degrees of Freedom | In the robotic arm parameter table, model RM75-B-V has 7 degrees of freedom per arm. The product page does not publish the total degrees of freedom for the whole unit; do not fill in 17 or 20. |
| Load and Mass | Single-arm rated payload 5 kg. The 8 kg in the parameter table is the single-arm self-weight. The cover previously stated a dual-arm rated payload of 8 kg, which conflicted with the parameter table; the parameter table takes precedence. The total unit weight of approximately 80 kg is the overall mass. |
| Form Factor and Scale | Model RMC-AIDAL. Folded dimensions 640 × 450 × 1780 mm. Chassis 640 × 450 × 250 mm. |
| Operating Range | Lifting stroke 900 mm, vertical working range 0–2.4 m (also written as 0–2400 mm in the table). Single-arm reach 633 mm. Single-side overhang beyond the chassis is 790 mm; the original text did not specify a unit at that point, but since it appears alongside millimeters in the same sentence, it is written externally as 790 mm with this note retained. |
| Motion | Two-wheel differential drive, speed 1.5 m/s, climbing slope 5°. Positioning accuracy ±10 mm / ±3°. |
| Power | The battery is lithium iron phosphate DC 48V 20Ah. This document dated 2026-08-03 does not state battery life in hours. Do not add approximately 6 hours, and do not rewrite it as 48V 31Ah or approximately 4 hours. |
| Perception & Compute | Main controller Nvidia Jetson AGX Orin 64G, with an additional 1T solid-state drive. Standard vision configuration is D435 ×1, wide-angle cameras ×2, voice module ×1. If the cover states 3 depth channels plus 2 wide-angle channels, this conflicts with the list; the specifications follow the list. D435 row: ideal ranging 0.3–3 m; depth ≤1280×720, ≤90 fps; RGB 1920×1080, 30 fps; field of view 69°×42°; rolling shutter. Navigation separately lists depth camera ×1, IMU + encoder ×1, LiDAR ×1, safety edge ×1, ultrasonic ×2. |
| End Effector | The recommended configuration lists gripper CTAG2F90-D ×2. The standard configuration quantity table does not include a gripper. RMG22-65 is a separate product page. |
| Boundary | The standard configuration lists the robotic arm as RM65-B-V ×2, while the robotic arm parameter table lists the model as RM75-B-V. Both model numbers are retained; lock one before placing the order — do not collapse them into a single number. |
| Configuration Panel | Recommended configuration is RM75-B-V ×2, two-wheel differential chassis ×1, gripper CTAG2F90-D ×2. Teleoperation options are servo teleoperation, backpack teleoperation, and mobile teleoperation; these are not included in the standard configuration quantity table. |
| Excerptable | Attachment copy: RMC-AIDAL; 640×450×1780 mm; approximately 80 kg; lifting 900 mm; vertical 0–2.4 m; reach 633 mm; rated 5 kg; self-weight 8 kg; repeatability ±0.05 mm; differential drive 1.5 m/s; slope climbing 5°; positioning ±10 mm / ±3°; Orin 64G + 1T SSD; lithium iron phosphate DC 48V 20Ah, hours not specified. |
| Do not write | Do not write 17 degrees of freedom for the whole unit, and do not write 650×512×1700 mm, approximately 120 kg, lifting 0.3 m, vertical 0–2.1 m, speed 0.1–1.0 m/s. Do not write 8 kg as the rated payload. Do not write battery life in hours. |

Relationship to Public Methods and Adjacent Pages
The embodiment is an actuator, not a dataset. Running the machine once does not automatically produce trainable action labels. A trainable demonstration must at least be alignable on: time, observation (which camera stream, resolution, frame rate), action (which of the joints, gripper, chassis), and the identifier of that specific physical unit. If any one is missing, the file is merely a log, not an imitation learning sample.
A person wearing E6 or E2 walking around produces the human's head pose and hand data, not the motion of a robot end effector. The public documentation for E2 does not include on-board SLAM; poses are reconstructed offline. A 4 Hz preview is not training footage. E6 training should read the 60 Hz raw stream, not the 10 Hz preview. The G7 and G2-L gloves record the hand, not the joints of this rig. These devices can be used simultaneously, but the files serve different roles.
The "success rate" in strategy papers is computed on the authors' own tasks and data. Writing ALOHA or Diffusion Policy results as "achievable with this embodiment" mistakes method literature for an acceptance report.
This article lists: the fields that must appear on the recording sheet if this embodiment is used for demonstration, and which adjacent products' data cannot impersonate its motions.
Before handing off to a colleague
During data dictionary review, ask four questions for each column: where does the time come from, how many observation streams are there, what action channels exist, and which configuration sheet does the rig belong to. If any column's answer is "approximately," the dictionary is returned. Human-side directories and rig directories are stored separately. When the configuration sheet number changes, new samples must not be written into the old directory. The last sentence of the quality note is repeated: optional items not purchased are not in the samples, and the paper's success rate is not a label. The dictionary version is submitted together with the product page verification date. In directory permissions, unsynchronized and signed-configuration data are placed under two separate root directories. The training account has read-only access to signed configurations by default. The root directory name for human-side data contains "human"; the rig directory name contains the rig and configuration sheet number. Directories without numbering are cleaned up weekly and not transferred into the training set. The required fields in the quality note template are: time, number of observation streams, action channels, and rig number — the form cannot be saved if these are left blank. The save button does not offer "fill in later."
First, if the four columns cannot be answered, return the dictionary.
Second, the human side and the robot side get separate root directories.
Third, whenever the configuration number changes, switch directories.
Fourth, directories without numbering do not enter the training set.
Fifth, required fields cannot be left blank when saving.
Sixth, a paper's success rate is not a label.
