The path starts from the product center: first look at the five cards, then click into the wheeled lift dual-arm teleoperation rig. Do not place an order based on abbreviations from chat logs. Parameters can be viewed before leaving your contact information — this article does not put specifications behind a form.
Evaluation Path
Step 2 is a written three-column breakdown: standard, recommended, and optional, plus an exclusion statement. The recommended configuration is RM75-B-V ×2, two-wheel differential-drive chassis ×1, gripper CTAG2F90-D ×2. Teleoperation options are servo teleoperation, backpack teleoperation, and mobile teleoperation; these are not included in the standard configuration quantity table. Do not write 17 degrees of freedom for the whole machine, do not write 650×512×1700 mm, approximately 120 kg, lifting 0.3 m, vertical 0–2.1 m, speed 0.1–1.0 m/s. Do not write 8 kg as rated payload. Do not write battery life in hours. Step 3 is the contact step. Phone: +86 137 5502 0164, email: lk@langhuiai.com. Address: Beijing Langhui Technology Co., Ltd., 5th Floor, Room 501, Building F1, Lugu Enterprise Plaza, No. 27 Wenxuan Road, Yuelu District, Changsha.
The page you should open after reading this article is /product-body-lift.html. Open the corresponding card only when you need the end effector or master device; do not record the two pages as one.
The evaluation response should be understood, at the pace published on the site, as a written configuration, not a verbal "we can do everything." Price and lead time are not covered in this article; they follow the written configuration.

How to Use This Page in This Version

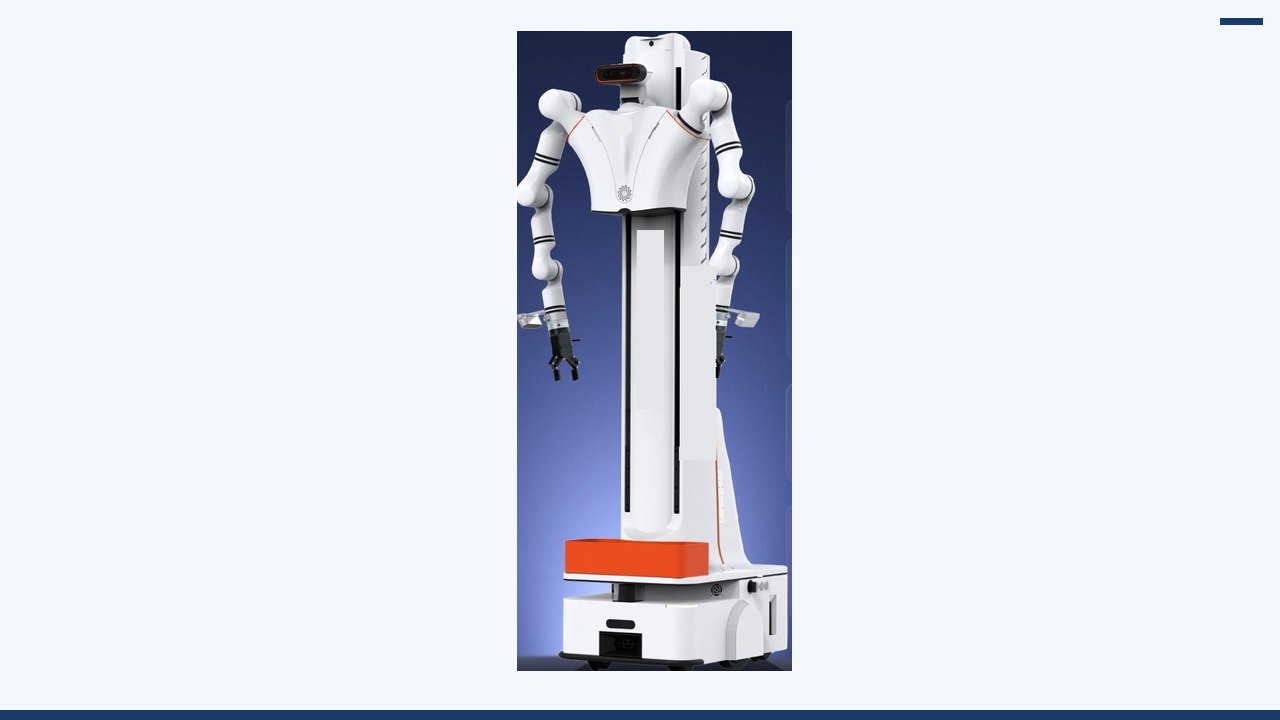

The reader's next step is not to bookmark this article, but to open the product page and check the original sentences. The path is: Product Center https://www.tobi.cn/products.html, then enter the wheeled lift dual-arm teleoperation body: /product-body-lift.html. Do not merge the five cards into a single note in your browser. Merging them into a single note is where mixed writing begins.
On the product page, do only three things. First, find the lines cited in this article and check whether they still match. Second, separate standard, recommended, and optional into three columns. The recommended configuration is RM75-B-V ×2, two-wheel differential chassis ×1, grippers CTAG2F90-D ×2. Teleoperation options are servo teleoperation, backpack teleoperation, and mobile teleoperation; these are not in the standard configuration quantity table. Third, put the sentences that must not be written into the exclusion column. Do not write 17 degrees of freedom for the whole machine, and do not write 650×512×1700 mm, approximately 120 kg, lifting 0.3 m, vertical 0–2.1 m, speed 0.1–1.0 m/s. Do not write 8 kg as rated payload. Do not write battery life in hours. Only after completing these three things should you fill in the evaluation requirements.
Contact information is used to confirm the written configuration, not to qualify access to specifications. Phone +86 137 5502 0164, email lk@langhuiai.com, address 5th Floor, Room 501, Building F1, Lugu Enterprise Plaza, No. 27 Wenxuan Road, Yuelu District, Changsha, Beijing Langhui Technology Co., Ltd. The specification table is readable before you submit anything.
In the evaluation request, state the task height, object mass, whether the platform moves, whether master-side column names are needed, and whether an end-effector model is needed. Do not write "build an embodied AI system." The closer the writing is to a table, the closer the reply will be to an orderable configuration, rather than a paragraph re-explaining the specs.
Line-by-Line Verification
Degrees of freedom. For the robotic arm parameter table model RM75-B-V, the single-arm degree of freedom is 7. The product page does not publish the total degrees of freedom for the whole system; do not fill in 17 or 20. This row only states the number of joints and body parts that have already been made public. It does not evaluate intelligence, and it does not automatically include waist, legs, neck, or a whole-system total that is not named on the page. When writing the action vector, only create channels for the body parts listed in this row; leave unlisted body parts blank. Do not write blanks as 0, because 0 would be treated by the training script as a real angle. Do not fill in the degrees-of-freedom integer from another device to this row to make up the numbers. If the master-slave joint order is not given on the page, mark it as pending written configuration confirmation; do not number it yourself. Locate the original degrees-of-freedom sentence on the product page before deciding whether to inquire. The action vector only creates channels for the body parts named in this row; unlisted body parts are left blank and not filled with 0.
Load and mass. The single-arm rated load is 5 kg. The 8 kg in the parameter table is the single-arm self-weight. The dual-arm rated load of 8 kg once written on the cover conflicts with the parameter table; the parameter table takes precedence. The approximately 80 kg for the whole unit is the overall machine mass. The numbers in this row must be read aloud with their subject: rated load, self-weight, overall machine mass, envelope, friction or gripping force. If the subjects differ, they cannot be merged into a single number, nor can any conversion not given on the page be performed. If objects on site are heavier, the specification cannot be changed retroactively; a larger specification likewise does not prove that every grasping method reaches that limit. The tool mass is undetermined, so do not write the arm's rated load as the graspable object mass. The acceptance table retains the original units. Confirm the load subject on the product page before describing objects. During acceptance, read the subject first and then the number; if the subjects are inconsistent, split them into two rows.
Dimensions and scale. Model RMC-AIDAL. Stowed dimensions 640 × 450 × 1780 mm. Chassis 640 × 450 × 250 mm. This row describes external or structural dimensions, used to check doorways, elevators, tabletops or transport; it is not an operating height and not an arm reach. Do not add it to the vertical range. If the diagram shows protrusions, antennas or a person's standing position not present in this row, note separately that they are not part of the specification. If weight appears in an adjacent row, do not write it into the dimension sentence. After comparing the site doorway width with this row, write the numbers into the requirements; do not write "space is sufficient" without giving numbers. Doorways, elevators and transport are checked only against the external dimensions; do not treat this row as an operating height.
Operating range. Lifting stroke 900 mm, vertical working range 0–2.4 m (also written as 0–2400 mm in the table). Single-arm reach 633 mm. Overhang beyond the chassis on one side 790 mm; the source does not specify a unit at this point, and it appears alongside millimeters in the same sentence, so write it externally as 790 mm and retain this note. This row describes the range that a hand or the lift can reach; the definitions must follow the source sentence: vertical working range, reach, motion radius, or stroke — these cannot be added together or renamed. If "excluding end effector" is written, it must remain in the figure caption. When the source does not specify a unit, retain the "unit not specified" note; do not delete it for the sake of tidiness. Include the operating height and the definitions in this row in the requirements. The figure caption retains the range definitions from the source sentence, as well as the phrases "excluding end effector" or "unit not specified."
Motion. Two-wheel differential drive, speed 1.5 m/s, slope climbing 5°. Positioning accuracy ±10 mm / ±3°. This row describes how the ground platform or the main arm moves. Four-wheel steering, four-wheel drive, differential drive, in-place rotation radius and rotational speed are terms for different mechanisms and cannot be substituted for one another. The published speed is a capability, not a recommended teaching speed; teaching can be slower, but a slower speed is recorded under experimental conditions and is not written back into the specification. Do not borrow slope climbing or positioning figures from other pages for a page that does not state them. Specify whether base movement is required or which column of the main arm is involved. The teaching speed can be lower, but a lower speed is recorded under operating conditions and does not change the published capability in this row.
Power. The battery is lithium iron phosphate, DC 48V 20Ah. This document dated 2026-08-03 does not state runtime in hours. Do not fill in approximately 6 hours, and do not rewrite it as 48V 31Ah or approximately 4 hours. This line retains only the electrical terms that appear on the page: voltage, capacity, runtime, charging, current, or power. If there is no "hours" figure, write "runtime not specified"; do not fill in hours from an adjacent page. Do not rename charging time as runtime. Rated and maximum values must be listed separately. Keep "approximately" for approximate values. Do not sum the ampere-hours across multiple devices and present the result as one device's battery. Do not request a runtime commitment in the requirements that is not present on the page. Hours, charging, or current that do not appear should remain as not specified; do not copy them in from an adjacent page.
Perception and computing. Main controller Nvidia Jetson AGX Orin 64G, plus a 1T solid-state drive. Standard vision configuration is D435 ×1, wide-angle camera ×2, voice module ×1. If the cover states 3 depth channels plus 2 wide-angle channels, which conflicts with the list, the specification follows the list. D435 row: ideal ranging 0.3–3 m; depth ≤1280×720, ≤90 fps; RGB 1920×1080, 30 fps; field of view 69°×42°; rolling shutter. Navigation separately lists depth camera ×1, IMU + encoder ×1, LiDAR ×1, safety contact edge ×1, ultrasonic ×2. This row inventories the items already stated in sensing, computing or communications, and preserves the terms standard, included, optional and selectable. An optional item not checked does not count. When the cover and the list conflict, cite the list while not pretending the cover statement does not exist. Head-mounted and glove items do not enter this row. Processors, storage capacity or camera channel counts not stated must not be drawn into the system diagram. Specify whether the standard list or a particular option is required. Optional sensors not purchased do not enter this data dictionary.
End effector. The recommended configuration specifies gripper CTAG2F90-D ×2. The standard configuration quantity table does not include a gripper. RMG22-65 is on a separate product page. This row specifies at which end contact or grasping occurs. Quick-change, compatible, and recommended are not models already included in the box. The ring fixture on the main arm is not an end-effector gripper. Force, stroke, and payload remain as stated in their respective rows and are not merged into a single system metric merely because they are mounted on a particular robotic platform. Flange and protocol mappings that have not been specified should be marked as to be confirmed, not as plug-and-play. Specify the end-effector model or explicitly state that no end effector is required. "Supports" or "compatible" without a model number cannot be treated as delivered.
Boundaries. The standard configuration lists the robotic arm as RM65-B-V ×2, while the robotic arm parameter table lists the model as RM75-B-V. Both model designations are retained and must be locked before ordering; do not collapse them into one. This row is a boundary deliberately kept separate on the page: another model, another column, another product page, or an interface that still requires project confirmation after modularization. The boundary is not a defect note; it prevents verbally buying two pages as one. When writing a proposal, copy the boundary into "not included in this scope." If equipment not included is added later, open a new configuration sheet; do not go back and change the machine name in the old sample. If another card is needed at the same time, write it as a second line in the requirements. Equipment within the boundary must be ordered separately; do not rename the old sample to imply it already includes it.
Configuration column. The recommended configuration is RM75-B-V ×2, two-wheel differential chassis ×1, gripper CTAG2F90-D ×2. Teleoperation options are servo teleoperation, backpack teleoperation and mobile teleoperation, which are not included in the standard configuration quantity table. This row distinguishes standard, recommended and optional. Recommended and optional items are not delivered unless checked. When the standard row and the parameter table row are inconsistent, keep both rows and use "locked for this order" to indicate which one is actually delivered, rather than striking out one row in the order without signing off. Prices and lead times are not written into this row's restatement. Requirements are filled in across three columns: standard, recommended and optional. Unchecked recommended and optional items are written on the order as not delivered.
Excerptable. The attachment may copy: RMC-AIDAL; 640×450×1780 mm; approximately 80 kg; lift 900 mm; vertical 0–2.4 m; reach 633 mm; rated 5 kg; self-weight 8 kg; repeatability ±0.05 mm; differential speed 1.5 m/s; slope climbing 5°; positioning ±10 mm / ±3°; Orin 64G + 1T SSD; lithium iron phosphate DC 48V 20Ah, hours not given. This is the type of line that can be pasted into the attachment: it has a subject, has units, and can be traced back to the original sentence on the product page. When pasting, preserve words such as "approximately," "excluding," "not given," and "optional/recommended." Do not convert and keep only the result. If the same number has different meanings on two pages, write it as two lines in the attachment. Do not mix test protocols into the specification excerpt. Verify the excerptable original sentence before submitting the evaluation. When pasting into the attachment, paste words such as "approximately," "excluding," and "optional" together with the values.
Do not write. Do not write 17 degrees of freedom for the whole unit, do not write 650×512×1700 mm, approximately 120 kg, lifting 0.3 m, vertical 0–2.1 m, speed 0.1–1.0 m/s. Do not write 8 kg as the rated load. Do not write battery life in hours. This row is a negative checklist for review. It does not describe what the equipment can do; it only prevents hours, degrees of freedom, load subjects or cover slogans from adjacent pages from being written in. If a negative checklist item is hit, revert to the original sentence on the product page; do not interpret it as "close enough." External papers' success rates and total hours not published on this site likewise must not be written in. The prohibited phrasings must not appear in requirement text. If a draft search hits a negative checklist item, revert to the original sentence on the product page.
| Projects | Public-Facing Positioning of This Page |
|---|---|
| Degrees of Freedom | In the robotic arm parameter table, model RM75-B-V has 7 degrees of freedom per arm. The product page does not publish the total degrees of freedom for the whole unit; do not fill in 17 or 20. |
| Load and Mass | Single-arm rated payload 5 kg. The 8 kg in the parameter table is the single-arm self-weight. The cover previously stated a dual-arm rated payload of 8 kg, which conflicted with the parameter table; the parameter table takes precedence. The total unit weight of approximately 80 kg is the overall mass. |
| Form Factor and Scale | Model RMC-AIDAL. Folded dimensions 640 × 450 × 1780 mm. Chassis 640 × 450 × 250 mm. |
| Operating Range | Lifting stroke 900 mm, vertical working range 0–2.4 m (also written as 0–2400 mm in the table). Single-arm reach 633 mm. Single-side overhang beyond the chassis is 790 mm; the original text did not specify a unit at that point, but since it appears alongside millimeters in the same sentence, it is written externally as 790 mm with this note retained. |
| Motion | Two-wheel differential drive, speed 1.5 m/s, climbing slope 5°. Positioning accuracy ±10 mm / ±3°. |
| Power | The battery is lithium iron phosphate DC 48V 20Ah. This document dated 2026-08-03 does not state battery life in hours. Do not add approximately 6 hours, and do not rewrite it as 48V 31Ah or approximately 4 hours. |
| Perception & Compute | Main controller Nvidia Jetson AGX Orin 64G, with an additional 1T solid-state drive. Standard vision configuration is D435 ×1, wide-angle cameras ×2, voice module ×1. If the cover states 3 depth channels plus 2 wide-angle channels, this conflicts with the list; the specifications follow the list. D435 row: ideal ranging 0.3–3 m; depth ≤1280×720, ≤90 fps; RGB 1920×1080, 30 fps; field of view 69°×42°; rolling shutter. Navigation separately lists depth camera ×1, IMU + encoder ×1, LiDAR ×1, safety edge ×1, ultrasonic ×2. |
| End Effector | The recommended configuration lists gripper CTAG2F90-D ×2. The standard configuration quantity table does not include a gripper. RMG22-65 is a separate product page. |
| Boundary | The standard configuration lists the robotic arm as RM65-B-V ×2, while the robotic arm parameter table lists the model as RM75-B-V. Both model numbers are retained; lock one before placing the order — do not collapse them into a single number. |
| Configuration Panel | Recommended configuration is RM75-B-V ×2, two-wheel differential chassis ×1, gripper CTAG2F90-D ×2. Teleoperation options are servo teleoperation, backpack teleoperation, and mobile teleoperation; these are not included in the standard configuration quantity table. |
| Excerptable | Attachment copy: RMC-AIDAL; 640×450×1780 mm; approximately 80 kg; lifting 900 mm; vertical 0–2.4 m; reach 633 mm; rated 5 kg; self-weight 8 kg; repeatability ±0.05 mm; differential drive 1.5 m/s; slope climbing 5°; positioning ±10 mm / ±3°; Orin 64G + 1T SSD; lithium iron phosphate DC 48V 20Ah, hours not specified. |
| Do not write | Do not write 17 degrees of freedom for the whole unit, and do not write 650×512×1700 mm, approximately 120 kg, lifting 0.3 m, vertical 0–2.1 m, speed 0.1–1.0 m/s. Do not write 8 kg as the rated payload. Do not write battery life in hours. |

Relationship to Public Methods and Adjacent Pages
The evaluation path starts from the product center, not from a verbal model name in a chat log. The entry point is https://www.tobi.cn/products.html . Five cards are separate: folding dual-arm, lifting dual-arm, wheeled humanoid, isomorphic teleoperation kit, two-finger gripper. Click into the corresponding product page and read only the specification table and configuration column on that page. When a comparison is needed, open the second card; do not merge the two pages into one in memory.
The second step of the path is the written configuration: standard row, recommended row, optional row, plus sentences explicitly stating what is not included. The third step is contact. The phone number is +86 137 5502 0164, the email is lk@langhuiai.com, and the address is 5th Floor, Building F1, Lugu Enterprise Plaza, No. 27 Wenxuan Road, Yuelu District, Changsha City, Beijing Langhui Technology Co., Ltd. Specifications and examples should be viewable before leaving contact information. This article does not create a barrier of "you must leave your details to see the parameters".
Do not insert external brand site links into the path, and do not write the data market as having accumulated a certain number of hours. The site's homepage currently publishes browsing by scenario, sample verification, fields, quality notes, and licensing—not a total hour count.
This article places that product back at which step of this path, and writes out the one product page the reader should open after finishing.
Before handing off to a colleague
After reading, do not stop at the article. Open the product center, go to the corresponding product page, and re-check the rows cited in this article. If there is a discrepancy, the product page takes precedence; the article is considered a paraphrase that needs correction. Then fill in the three-column requirement: task height and load, whether the main-end column is needed, and the end-effector model or explicitly "none." The contact phone number and email are used only to confirm this written requirement. Do not request hours not present on the page in the requirement, and do not write the five cards as a single system. Before submitting the requirement, do a final check against the product page: height definition copied, load subject copied, mobility mechanism copied, main-end column name selected or explicitly "none," end-effector model written or explicitly "none," and no hours requested that do not exist on the page. If any of the six items is missing, do not submit. Submission channels are the assessment form on the page or the public phone number and email. Do not paste the parameters of the five cards into a single paragraph of one email.
First, all six items must be checked before submission.
Second, do not submit if anything is missing.
Third, the five cards are not written into the same paragraph.
Fourth, do not request hours that do not exist.
Fifth, the product page takes precedence over this article.
Sixth, contact information only confirms written requirements.
