Lifting dual-arm teleoperation platform | How to lock rows on the configuration sheet: platform, end effector, and kit each get their own row
Product InsightsWheeled dual-arm teleoperation robot with lift2026-10-03

The configuration sheet is divided into three columns. The recommended configuration is RM75-B-V ×2, two-wheel differential chassis ×1, and gripper CTAG2F90-D ×2. Teleoperation options are servo teleoperation, backpack teleoperation, and mobile teleoperation, which are not included in the standard configuration quantity table. The standard configuration lists the robotic arm as RM65-B-V ×2, while the robotic arm parameter table lists the model as RM75-B-V. Both model numbers are retained and must be locked in before ordering; do not collapse them into one. The first column contains rows that should be delivered without additional notes, the second column is recommended, and the third column is optional. Recommended and optional items are not delivered unless checked.

Configuration Sheet

When model numbers are listed side by side, both rows are kept. The RM65-B-V and RM75-B-V of the lifting model are examples; other products are the same: if the page gives a standard row and a parameter table row, do not collapse them into one sentence in the order such as "the standard row is void because the parameter table governs", unless a written confirmation explicitly voids it and is signed.

The kit must have a column name. The gripper must have a model number. The embodiment must have the name from its product page. If any of these three rows is missing, the purchase order is still just a verbal plan.

After finishing the three-column write-up of the wheeled lifting dual-arm teleoperation platform, attach a one-page exclusions list, drawn from: do not write 17 degrees of freedom for the whole machine, do not write 650×512×1700 mm, approximately 120 kg, lift 0.3 m, vertical 0–2.1 m, speed 0.1–1.0 m/s. Do not write 8 kg as rated load. Do not write battery life in hours. Place the exclusions alongside the ordering items so readers do not only see the positive statements.

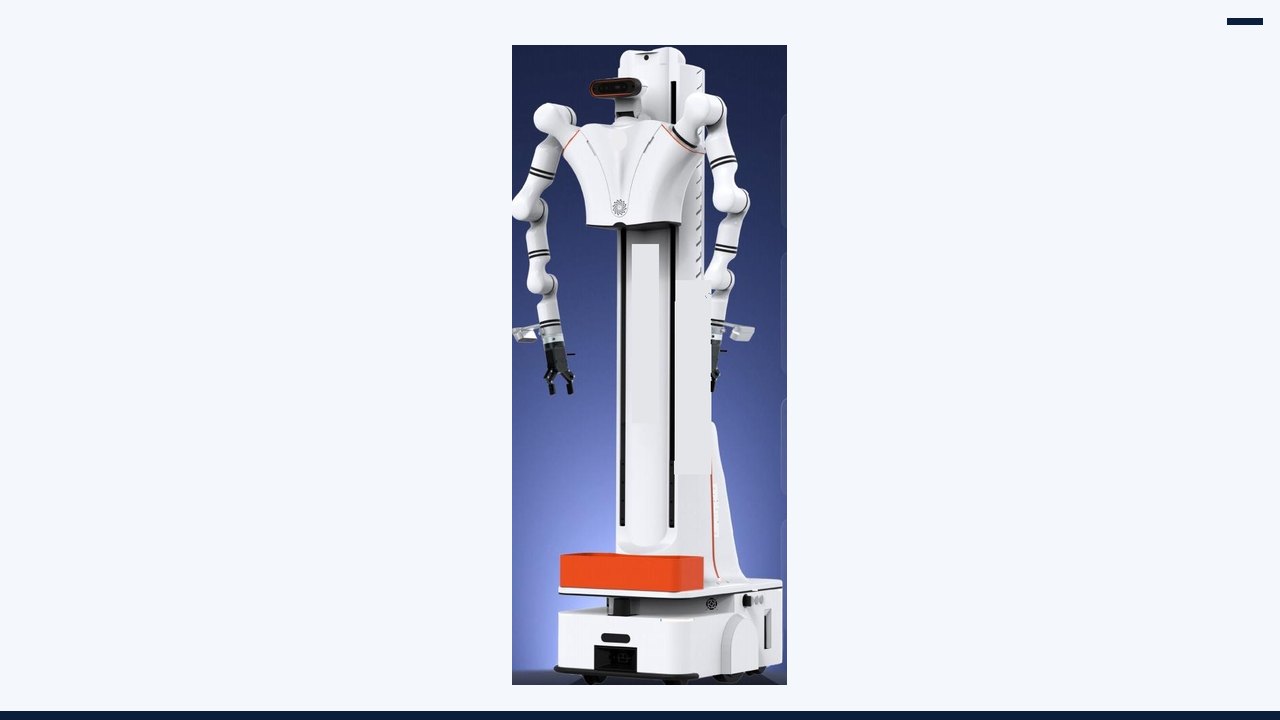

Wheeled lifting dual-arm teleoperation platform RMC-AIDAL
Figure 1 | Wheeled lifting dual-arm teleoperation platform. The caption only states that this is a device photo from the product page; the appearance is not interpreted as parameters not present in the table.

How to Use This Page in This Version

The order page is recommended to be printed as a table rather than a paragraph. The table for the wheeled lift dual-arm teleoperation body should have at least these rows: product page name, model locked for this order, standard row, whether the recommended row is checked, whether the optional row is checked, end effector model, master-side column name, exclusions. The recommended configuration is RM75-B-V ×2, two-wheel differential drive base ×1, gripper CTAG2F90-D ×2. Teleoperation options are servo teleoperation, backpack teleoperation, and mobile teleoperation; these are not included in the standard configuration quantity table. The standard configuration robotic arm is written as RM65-B-V ×2, while the robotic arm parameter table model is RM75-B-V. Both model sets are retained and locked before ordering; do not collapse into one. Empty cells should be filled with "not selected for this order"; do not leave them blank.

Cells with conflicting model numbers may coexist, but there must be a "locked for this order" column. RM65-B-V and RM75-B-V on the lift model are exactly this kind of cell. For other products with only one model, the locked column simply copies that model, to prevent procurement from writing an abbreviation as a different one.

Price and lead time are not filled in this article's template. They change with the written configuration. If the template prints a price, it will be mistaken for a catalog price. What the site publishes is that specs can be reviewed first; price and lead time are discussed after the configuration is confirmed.

Data acquisition begins only after the table is signed. If an unsigned recommended item appears in the laboratory, the data dictionary must treat it as a temporary component and cannot write it as a sample of the standard configuration. Samples of temporary components and samples of standard components are stored in separate directories. The product page corresponding to this template is /product-body-lift.html.

Line-by-Line Verification

Degrees of freedom. The single-arm degrees of freedom for model RM75-B-V in the robotic arm parameter table is 7. The product page does not publish the whole-machine degrees of freedom; do not fill in 17 or 20. This row only states the number and locations of joints that have already been published. It does not evaluate intelligence, and it does not automatically include waist, legs, neck, or a whole-machine total that are not named on the page. When writing into the action vector, only build channels for the body parts listed in this row; body parts not listed remain blank. Do not write blanks as 0, because 0 will be treated by the training script as a real angle. Do not fill in the degrees-of-freedom integer from another device to complete this row. If the master-slave joint order is not given on the page, mark it as pending written configuration confirmation; do not number it yourself. After locking the model, the degrees of freedom follow the sentence for that model on the page, not the abbreviation. The action vector builds channels only for the body parts named in this row; body parts not named remain blank and are not filled with 0.

Load and mass. The rated payload of a single arm is 5 kg. The 8 kg in the parameter table is the self-weight of a single arm. The dual-arm rated 8 kg once written on the cover conflicts with the parameter table; the parameter table takes precedence. The approximately 80 kg for the whole machine is the overall mass. The numbers in this row must be read aloud with their subjects: rated, self-weight, overall mass, envelope, friction or gripping force. If the subjects differ, they cannot be merged into a single number, nor can any conversion not given on the page be performed. If objects on site are heavier, the specification cannot be changed retroactively; a larger specification likewise does not prove that every grasping method reaches that limit. The tool mass is undetermined; do not write the arm's rated value as the graspable object mass. The acceptance table retains the original units. Load acceptance follows the arm or gripper model locked for this session. During acceptance, read the subject first and then the number; if the subjects are inconsistent, split them into two rows.

Dimensions and scale. Model RMC-AIDAL. Stowed dimensions 640 × 450 × 1780 mm. Chassis 640 × 450 × 250 mm. This row describes external or structural dimensions, used to check doorways, elevators, tabletops or transport; it is not an operating height, nor an arm reach. Do not add it to the vertical range. If the figure shows protrusions, antennas or a person's standing position not present in this row, note separately that they are not part of the specification. If weight appears in an adjacent row, do not write it into the dimension sentence. The external dimensions are based on this model on this page; do not substitute other dimensions from the series. Doorways, elevators and transport are checked only against the external dimensions; do not treat this row as an operating height.

Operating range. Lift travel 900 mm, vertical working range 0–2.4 m (also written as 0–2400 mm in the table). Single-arm reach 633 mm. Extending 790 mm beyond the chassis on one side; the original text does not mark a unit at that point, and it appears alongside millimeters in the same sentence, so externally write 790 mm and retain this note. This row describes the range the hand or lift can reach; the definitions must follow the original sentence: vertical working range, reach, motion radius or travel — these cannot be added together or renamed. If "excluding end effector" is written, it must remain in the figure caption. When the original text does not mark a unit, retain the note "unit not specified"; do not delete it for the sake of tidiness. The range sentence follows the locked model; do not mix two sets of arm reach figures. The figure caption retains the range definitions from the original sentence, as well as the phrases "excluding end" or "unit not specified".

Motion. Two-wheel differential drive, speed 1.5 m/s, slope climbing 5°. Positioning accuracy ±10 mm / ±3°. This row describes how the ground platform or main arm moves. Four-wheel steering, four-wheel drive, differential drive, in-place rotation radius, and rotational speed are terms for different mechanisms and cannot be substituted for one another. Published speed is a capability, not a recommended teaching speed; teaching may be slower, but the slower speed is recorded under experimental conditions and is not written back into the specifications. Do not borrow slope climbing or positioning figures from other pages that do not list them. If the chassis type appears in the recommended column, it is only written into the order after being checked. Teaching speed may be lower, but the lower speed is recorded under operating conditions and does not change the published capability in this row.

Power supply. The battery is lithium iron phosphate DC 48V 20Ah. This 2026-08-03 document does not state endurance in hours. Do not fill in approximately 6 hours, and do not rewrite it as 48V 31Ah or approximately 4 hours. This row retains only the electrical terms that appear on the page: voltage, capacity, endurance, charging, current, or power. If "hours" is absent, write "endurance not specified"; do not fill in hours from an adjacent page. Do not rename charging time as endurance. Rated and maximum values must be listed separately. Preserve "approximately" where it appears. Do not sum the ampere-hours of multiple devices and attribute the total to a single device's battery. Whether the battery row is a standard or document-specific figure, follow the original text on this page and do not upgrade the capacity. Hours, charging, or current that do not appear should remain unspecified and must not be copied in from an adjacent page.

Perception and computing. Main controller Nvidia Jetson AGX Orin 64G, plus a 1T solid-state drive. Standard vision configuration is D435 ×1, wide-angle camera ×2, voice module ×1. If the cover states 3 depth channels plus 2 wide-angle channels, that conflicts with the list — the specifications follow the list. D435 line: ideal ranging 0.3–3 m; depth ≤1280×720, ≤90 fps; RGB 1920×1080, 30 fps; field of view 69°×42°; rolling shutter. Navigation separately lists depth camera ×1, IMU + encoder ×1, LiDAR ×1, safety edge ×1, ultrasonic ×2. This line inventories items already specified in sensors, computing, or communications, and preserves the words standard, included, optional, and selectable. Unchecked optional items do not count. When the cover conflicts with the list, cite the list while not pretending the cover statement does not exist. Headsets and gloves do not enter this line. Processors, storage capacity, or camera channel counts not written out must not be drawn into the system diagram. Optional cameras and microphones use checkboxes. Optional sensors not purchased do not enter this data dictionary.

End effector. The recommended configuration specifies gripper CTAG2F90-D ×2. The standard configuration quantity table does not include a gripper. RMG22-65 is a separate product page. This row describes at which end contact or grasping occurs. Quick-change, compatible, and recommended are all not models already in the box. The ring fixture on the main arm is not an end-effector gripper. Force, stroke, and payload remain as-is on their respective rows and are not merged into a single system metric because they are mounted on a particular robotic platform. Flange and protocol mappings that are not provided should be marked as to be confirmed, not plug-and-play. The gripper quantity is written on the end-effector row, not vaguely noted in parentheses on the platform row. "Supports" or "compatible" without a model number cannot be treated as delivered.

Boundaries. The standard configuration lists the robotic arms as RM65-B-V ×2, while the robotic arm parameter table lists the model as RM75-B-V. Both model sets are retained; lock them before ordering; do not collapse them into one. This row is a boundary deliberately separated on the page: another model, another column, another product page, or an interface that still requires project confirmation after modularization. The boundary is not a defect note; it prevents verbally buying two pages as one. When writing a proposal, copy the boundary into "not included in this session." If equipment not included is added later, open a new configuration sheet; do not go back and change the machine name in the old sample. When two arm model sets coexist, the locked column is mandatory. Equipment within the boundary must be ordered separately; do not rename the old sample to imply it already includes it.

Configuration column. The recommended configuration is RM75-B-V ×2, two-wheel differential-drive chassis ×1, gripper CTAG2F90-D ×2. Teleoperation options are servo teleoperation, backpack teleoperation, and mobile teleoperation, which are not included in the standard configuration quantity table. This line distinguishes standard, recommended, and optional. Recommended and optional items are not delivered unless checked. When the standard line and the parameter table line are inconsistent, keep both lines and use "locked for this order" to indicate which one is actually delivered — rather than striking out one line in the order without signing off. Price and lead time are not written into this restatement. This is the three-column table itself; fill in "not selected for this order" where blank. Unchecked recommended and optional items are written as not delivered on the order.

Quotable. Attachments may copy: RMC-AIDAL; 640×450×1780 mm; approximately 80 kg; lift 900 mm; vertical 0–2.4 m; reach 633 mm; rated 5 kg; self-weight 8 kg; repeatability ±0.05 mm; differential drive 1.5 m/s; slope climbing 5°; positioning ±10 mm / ±3°; Orin 64G + 1T SSD; lithium iron phosphate DC 48V 20Ah, hours not specified. This line is the type that can be pasted into an attachment: it has a subject, has units, and can be traced back to the original wording on the product page. When pasting, retain words such as approximately, not included, not specified, optional, and recommended. Do not convert and keep only the result. If the same number has different meanings on two pages, write it as two lines in the attachment. Test protocols must not be mixed into specification excerpts. Three-column printing is required before collection. When pasting into the attachment, paste the words approximately, not included, optional, etc. together with it.

Do not write. Do not write 17 degrees of freedom for the whole machine, 650×512×1700 mm, approximately 120 kg, lift 0.3 m, vertical 0–2.1 m, speed 0.1–1.0 m/s. Do not write 8 kg as the rated payload. Do not write battery life in hours. This row is an editorial negative statement. It does not describe what the equipment can do; it only prevents hours, degrees of freedom, payload subjects or cover slogans from an adjacent page from being written in. If a negative statement is hit, revert to the original sentence on the product page; do not interpret it as "close enough." Success rates from external papers and total hours not published on this site are likewise not to be written in. Do not use the old model parameters in the negative statement as default values for any column. If a manuscript search hits a negative statement, revert to the original sentence on the product page.

ProjectsPublic-Facing Positioning of This Page
Degrees of FreedomIn the robotic arm parameter table, model RM75-B-V has 7 degrees of freedom per arm. The product page does not publish the total degrees of freedom for the whole unit; do not fill in 17 or 20.
Load and MassSingle-arm rated payload 5 kg. The 8 kg in the parameter table is the single-arm self-weight. The cover previously stated a dual-arm rated payload of 8 kg, which conflicted with the parameter table; the parameter table takes precedence. The total unit weight of approximately 80 kg is the overall mass.
Form Factor and ScaleModel RMC-AIDAL. Folded dimensions 640 × 450 × 1780 mm. Chassis 640 × 450 × 250 mm.
Operating RangeLifting stroke 900 mm, vertical working range 0–2.4 m (also written as 0–2400 mm in the table). Single-arm reach 633 mm. Single-side overhang beyond the chassis is 790 mm; the original text did not specify a unit at that point, but since it appears alongside millimeters in the same sentence, it is written externally as 790 mm with this note retained.
MotionTwo-wheel differential drive, speed 1.5 m/s, climbing slope 5°. Positioning accuracy ±10 mm / ±3°.
PowerThe battery is lithium iron phosphate DC 48V 20Ah. This document dated 2026-08-03 does not state battery life in hours. Do not add approximately 6 hours, and do not rewrite it as 48V 31Ah or approximately 4 hours.
Perception & ComputeMain controller Nvidia Jetson AGX Orin 64G, with an additional 1T solid-state drive. Standard vision configuration is D435 ×1, wide-angle cameras ×2, voice module ×1. If the cover states 3 depth channels plus 2 wide-angle channels, this conflicts with the list; the specifications follow the list. D435 row: ideal ranging 0.3–3 m; depth ≤1280×720, ≤90 fps; RGB 1920×1080, 30 fps; field of view 69°×42°; rolling shutter. Navigation separately lists depth camera ×1, IMU + encoder ×1, LiDAR ×1, safety edge ×1, ultrasonic ×2.
End EffectorThe recommended configuration lists gripper CTAG2F90-D ×2. The standard configuration quantity table does not include a gripper. RMG22-65 is a separate product page.
BoundaryThe standard configuration lists the robotic arm as RM65-B-V ×2, while the robotic arm parameter table lists the model as RM75-B-V. Both model numbers are retained; lock one before placing the order — do not collapse them into a single number.
Configuration PanelRecommended configuration is RM75-B-V ×2, two-wheel differential chassis ×1, gripper CTAG2F90-D ×2. Teleoperation options are servo teleoperation, backpack teleoperation, and mobile teleoperation; these are not included in the standard configuration quantity table.
ExcerptableAttachment copy: RMC-AIDAL; 640×450×1780 mm; approximately 80 kg; lifting 900 mm; vertical 0–2.4 m; reach 633 mm; rated 5 kg; self-weight 8 kg; repeatability ±0.05 mm; differential drive 1.5 m/s; slope climbing 5°; positioning ±10 mm / ±3°; Orin 64G + 1T SSD; lithium iron phosphate DC 48V 20Ah, hours not specified.
Do not writeDo not write 17 degrees of freedom for the whole unit, and do not write 650×512×1700 mm, approximately 120 kg, lifting 0.3 m, vertical 0–2.1 m, speed 0.1–1.0 m/s. Do not write 8 kg as the rated payload. Do not write battery life in hours.
Wheeled lifting dual-arm teleoperation platform; the product page currently publishes only this one main image.
Figure 2 | The same main image as at the beginning of the article. The product page does not have a second publicly available angle of the chassis, so no photo of a different model is substituted here.

Relationship to Public Methods and Adjacent Pages

The configuration sheet has three columns: standard quantity, recommended configuration, and optional teleoperation method. Standard quantity is the row that should be delivered without additional notes. Recommended configuration is the row suggested for the order; if not written, it will not arrive as recommended. Optional items are for selection, not free gifts.

The lift model most needs these three columns. The standard checklist lists the arm model as two units of RM65-B-V; the recommended configuration and arm parameter table list RM75-B-V. Both rows are accurate and must not be collapsed into "it's just 75" or "it's just 65." Two grippers CTAG2F90-D are in the recommended column. The three teleoperation methods—servo, backpack, and mobile—are in the optional column, not the standard quantity table. Compute is Jetson AGX Orin 64G plus a 1T solid-state drive. The vision standard is one D435 plus two wide-angle cameras. One voice module and two servo channels appear in the standard checklist; follow the checklist and do not merge them with the optional teleoperation methods into one sentence.

The foldable, wheeled humanoid, kit, and gripper each have their own table. The kit must specify the column name: GLN-RX75, GLN-RX71, or a locally isomorphic kit. Gripper orders are written as RMG22-65, not "gripper included with the base unit."

This article shows how to fill in the three columns when ordering this product, so that recommended sentences are not printed as already included.

Before handing off to a colleague

After the order form is printed, no blank cells are allowed. Every blank cell is either unfilled or means "not selected this time." Cells with model conflicts must be signed in the Lock column. An order with a conflict and no Lock column is returned. Recommended grippers, optional teleoperation configurations, and optional cameras that are not selected must be listed on the packing list as "not included this time." Capture personnel recognize only the packing list, not the union of all model numbers that have ever appeared on the product page. The packing list and the data dictionary must use the same configuration number. If the order system can only accept a single model field, do not stuff a second model into the remarks field — use an attachment spreadsheet instead. If the Lock column in the attachment spreadsheet is empty, the system should reject the submission. The default value for recommended items should be "not selected," not "select all." Select all would cause optional items that nobody deselected to be treated as purchased, and the action space in the samples would be larger than what is actually delivered.

First, the only value that can be filled in the blank is "not selected this time."

Second, if the conflicting model has no locked column, return it.

Third, recommended items are unchecked by default.

Fourth, remarks cannot substitute for a second model field.

Fifth, capture personnel only recognize the packing list.

Sixth, the packing-list number must match the data dictionary. The numbers on the order, packing list, and data dictionary must all be identical. Samples with different numbers do not enter the same training set, even if the content appears identical. The numbering rule is written in the header of the order template, not in verbal instructions.
