Back to News & Insights
Product Insights

Lifting dual-arm teleoperation platform | Quotable sentences: only copy lines found on the product page

Attachments should only include sentences with units, a subject, and that can be found on /product-body-lift.html. Attachments may copy: RMC-AIDAL; 640×450×1780 mm; approximately 80 kg; lift 900 mm; vertical 0–2.4 m; arm reach …

2026-10-03
TOBI
Product Insights
Lifting dual-arm teleoperation platform | Quotable sentences: only copy lines found on the product page
Product InsightsWheeled dual-arm teleoperation robot with lift2026-10-03

The attachment should only include sentences that carry units, carry a subject, and can be found on /product-body-lift.html. The following may be copied into the attachment: RMC-AIDAL; 640×450×1780 mm; approximately 80 kg; lift 900 mm; vertical 0–2.4 m; arm reach 633 mm; rated 5 kg; self-weight 8 kg; repeatability ±0.05 mm; differential drive 1.5 m/s; slope climbing 5°; positioning ±10 mm / ±3°; Orin 64G + 1T SSD; lithium iron phosphate DC 48V 20Ah, hours not given. When copying, retain the model and the qualifiers, such as "approximately," "excluding end effector," "hours not given," and "unit not marked in the original text." These words are part of the sentence.

Acceptable Statements

If the same number appears twice, write two rows. 5 kg can be a single-arm rated load or a gripper envelope. ±0.05 mm can be the arm's repeatability or the gripper's position repeatability. Whether 48V 20Ah is followed by hours depends on which page it comes from.

Recommended and optional sentences go in the latter half of the attachment, with a checkbox on each line. Printing unchecked lines is safer than not printing them. The recommended configuration is RM75-B-V ×2, two-wheel differential-drive chassis ×1, and gripper CTAG2F90-D ×2. The teleoperation options are servo teleoperation, backpack teleoperation, and mobile teleoperation; these are not included in the standard configuration quantity table.

Place the exclusion statement at the end of the attachment. Do not write 17 degrees of freedom for the whole machine, do not write 650×512×1700 mm, approximately 120 kg, lifting 0.3 m, vertical 0–2.1 m, speed 0.1–1.0 m/s. Do not write 8 kg as rated load. Do not write battery life in hours. A contract without an exclusion statement will by default be filled in with verbal supplements.

Wheeled lifting dual-arm teleoperation platform RMC-AIDAL

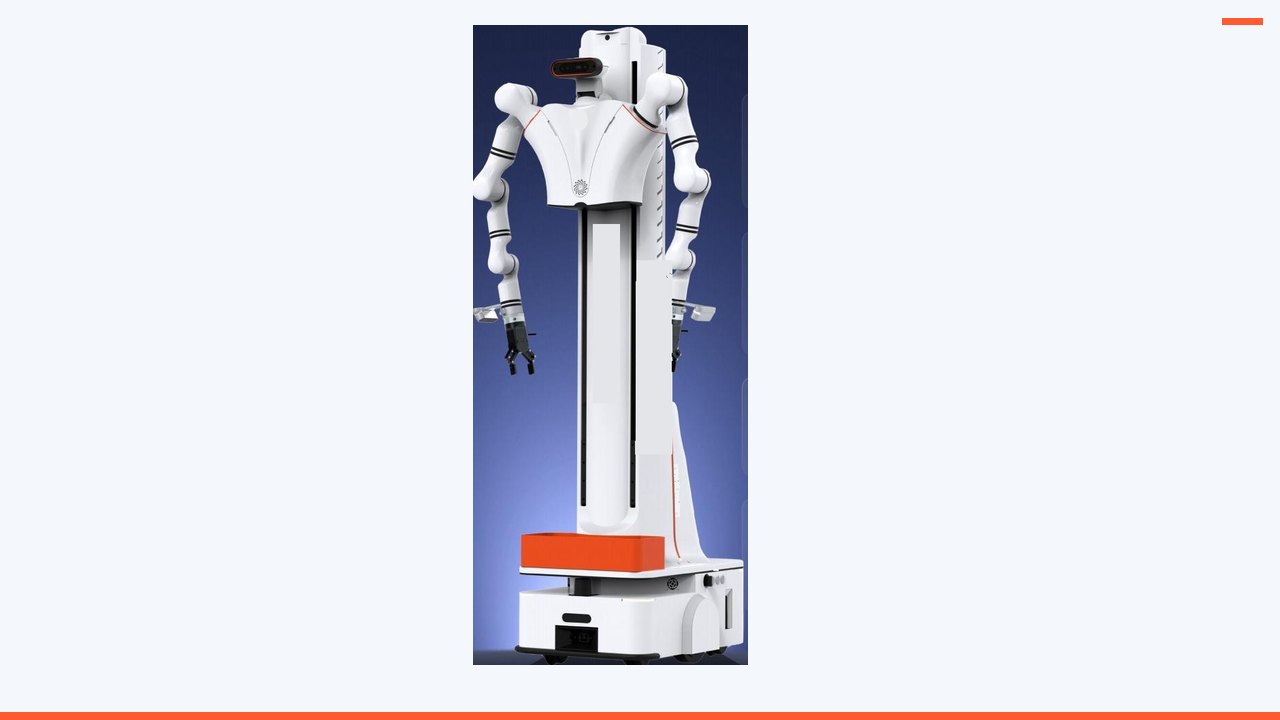

Figure 1 | Wheeled lifting dual-arm teleoperation platform. The caption only states that this is a device photo from the product page; the appearance is not interpreted as parameters not present in the table.

How to Use This Page in This Version

Contract attachments use excerpts, not paraphrases. Excerpt format: table header, original sentence, source path. The following may be copied into the attachment: RMC-AIDAL; 640×450×1780 mm; approximately 80 kg; lifting 900 mm; vertical 0–2.4 m; arm reach 633 mm; rated 5 kg; self-weight 8 kg; repeatability ±0.05 mm; differential drive 1.5 m/s; climbing 5°; positioning ±10 mm / ±3°; Orin 64G + 1T SSD; lithium iron phosphate DC 48V 20Ah, hours not given. All words in the original sentence — "approximately," "excluding," "hours not given," "unit not specified in the original," "optional," "recommended" — must be preserved. Removing these words changes the legal meaning of the sentence.

When the same number appears on multiple rows, the appendix also has multiple rows, and the subject is written in the header. Do not perform a unit conversion and keep only the converted result. 130 N is not converted to kilograms to replace the original row. Millimeters are not changed to meters to make the number look smaller, unless both rows are kept.

Checkboxes are used for recommended and optional items. The recommended configuration is RM75-B-V ×2, two-wheel differential-drive chassis ×1, and gripper CTAG2F90-D ×2. The teleoperation options are servo teleoperation, backpack teleoperation, and mobile teleoperation; these are not included in the standard configuration quantity table. Unchecked lines are printed as "not delivered." Exclusions use affirmative negative statements, drawn from: Do not write 17 degrees of freedom for the whole machine. Do not write 650×512×1700 mm, approximately 120 kg, lift 0.3 m, vertical 0–2.1 m, speed 0.1–1.0 m/s. Do not write 8 kg as the rated payload. Do not write battery life in hours. Exclusions and ordered items are printed on separate pages to avoid signing only the front page.

The attachment does not include a price formula, does not state "equivalent to the platform of a certain paper", and does not include brand logos that do not appear on /product-body-lift.html. Additional tests, such as actual battery life or system repeatability, should be written as a separate test protocol, not into the specification excerpt.

Line-by-Line Verification

Degrees of freedom. For the robotic arm specification sheet model RM75-B-V, the degrees of freedom of a single arm is 7. The product page does not publish the degrees of freedom of the whole machine; do not fill in 17 or 20. This line only states the number and locations of joints that have already been made public. It does not evaluate intelligence, and it does not automatically include the waist, legs, neck, or whole-machine total that are not named on the page. When writing the action vector, create channels only for the body parts listed in this line; body parts not listed remain blank. Do not write blank as 0, because 0 will be treated by the training script as a real angle. Do not fill in the degrees-of-freedom integer from another device to make this line add up. If the master–slave joint order is not given on the page, mark it as pending written configuration confirmation and do not number it yourself. In the attachment's degrees-of-freedom column, paste the original sentence. The action vector creates channels only for the body parts named in this line; body parts not named remain blank, not filled with 0.

Load and mass. The rated payload of a single arm is 5 kg. The 8 kg in the parameter table is the self-weight of a single arm. The dual-arm rated figure of 8 kg once shown on the cover conflicts with the parameter table; the parameter table takes precedence. The approximately 80 kg for the whole unit is the total mass of the complete system. Each figure on this line must be read aloud with its subject: rated, self-weight, total system mass, envelope, friction, or gripping force. Figures with different subjects must not be merged into a single number, nor may any conversion not given on the page be performed. If the actual object on site is heavier, the specification must not be revised in the opposite direction; a larger specification likewise does not prove that every grasping method reaches that limit. The tool mass is undetermined, so do not write the arm's rated value as the graspable object mass. The acceptance form retains the original units. The accessory load column is split into separate rows by subject. During acceptance, read the subject first and then the number; if the subjects differ, split them into two rows.

Form factor and scale. Model RMC-AIDAL. Stowed dimensions 640 × 450 × 1780 mm. Chassis 640 × 450 × 250 mm. This line describes form factor or structural scale, used to verify doorways, elevators, tabletops, or transport; it is not an operating height, nor is it a reach. Do not add it to the vertical range. If the diagram shows protrusions, antennas, or human standing positions not present in this line, note separately that they are not part of the specification. If weight appears in an adjacent line, do not include it in the dimension sentence. The attachment dimension column retains the multiplication sign and millimeters. Doorways, elevators, and transport are verified against form factor only; do not treat this line as an operating height.

Operating range. Lifting stroke 900 mm, vertical working range 0–2.4 m (also written as 0–2400 mm in the table). Single-arm reach 633 mm. Single-side overhang beyond the chassis 790 mm; the original text did not mark a unit here, and since it appears alongside millimeters in the same sentence, write it externally as 790 mm and retain this note. This row describes the range that the hand or lift can reach; the definition must follow the original sentence: vertical working range, reach, motion radius, or stroke — these cannot be added together or renamed. If "excluding end effector" is written, it must remain in the figure caption. When the original text does not mark a unit, retain the "unit not specified" note and do not delete it for the sake of tidiness. The attachment range column retains the "excluding end effector" or "unit not specified" note. The figure caption retains the range definition from the original sentence, as well as the terms "excluding end effector" or "unit not specified."

Motion. Two-wheel differential drive, speed 1.5 m/s, climbing 5°. Positioning accuracy ±10 mm / ±3°. This line describes how the ground or main arm moves. Four-wheel four-drive, differential drive, in-place rotation radius, and rotational speed are terms for different mechanisms and cannot be substituted for one another. Public speed is a capability, not a recommended teaching speed; teaching can be slower, but a slower speed is recorded under experimental conditions and is not written back into the specification. Do not borrow climbing or positioning figures from other pages for pages that do not list them. The motion column of the attachment retains mechanism terms. Teaching speed can be lower, but a lower speed is recorded under operating conditions and does not change the public capability stated in this line.

Power supply. The battery is lithium iron phosphate DC 48V 20Ah. This document dated 2026-08-03 does not state battery life in hours. Do not fill in approximately 6 hours, and do not rewrite it as 48V 31Ah or approximately 4 hours. This line retains only the electrical terms that appear on the page: voltage, capacity, battery life, charging, current, or power. If there are no "hours," write "battery life not given"; do not fill the blank with hours from a neighboring page. Do not rename charging time as battery life. Rated and maximum values must be listed in separate columns. Retain "approximately" for approximate values. Do not sum the amp-hours of multiple devices and state them as the battery of a single device. The attachment's electrical column does not add hours. Hours, charging, or current that do not appear remain as not given; do not copy them in from a neighboring page.

Perception and computing. The main controller is Nvidia Jetson AGX Orin 64G, with an additional 1T solid-state drive. The standard vision configuration is D435 ×1, wide-angle camera ×2, and voice module ×1. If the cover states 3 depth channels plus 2 wide-angle channels, which conflicts with the list, the specification follows the list. D435 line: ideal ranging 0.3–3 m; depth ≤1280×720, ≤90 fps; RGB 1920×1080, 30 fps; field of view 69°×42°; rolling shutter. Navigation separately lists depth camera ×1, IMU + encoder ×1, LiDAR ×1, safety edge ×1, and ultrasonic ×2. This line takes inventory of the items already specified in sensors, computing, or communications, and retains the terms standard, included, optional, and optional add-on. An optional item that is not checked does not count. When the cover conflicts with the list, cite the list while not pretending the cover sentence does not exist. Head-mounted and glove devices do not enter this line. Processors, drive capacities, or camera channel counts that are not written out must not be drawn into the system diagram. The attachment's sensor column distinguishes standard from optional. Optional sensors not purchased do not enter the data dictionary for this order.

End effector. The recommended configuration lists the gripper CTAG2F90-D ×2. The standard configuration quantity table does not include a gripper. RMG22-65 is a separate product page. This line states at which end contact or gripping occurs. Quick-change, compatible, and recommended are not models already included in the box. The ring gripper on the master arm is not the gripper of the slave end. Force, stroke, and payload are still retained as they appear in their respective lines; they are not merged into a single system metric just because they are mounted on a particular body. For flange and protocol mappings that are not given, write "pending confirmation," not "plug and play." The attachment's end-effector column is either a model and quantity, or "not included." "Supports" or "compatible" without a model number cannot be treated as delivered.

Boundary. The standard configuration lists the robotic arm as RM65-B-V ×2, while the robotic arm specification sheet lists the model as RM75-B-V. Keep both model designations; lock them before placing the order and do not collapse them into one. This line is a boundary deliberately separated on the page: another model, another column, another product page, or an interface that still requires project confirmation after modularization. The boundary is not a defect description; it prevents verbally buying two pages as one. When writing a proposal, copy the boundary into "not included in this order." If a device not included is added later, open a new configuration sheet; do not go back and change the body name in the old sample. The attachment has a "not included" column, whose content comes from the boundary line. Devices within the boundary must be ordered separately; do not rename the old sample to say it already includes them.

Configuration column. The recommended configuration is RM75-B-V ×2, two-wheel differential-drive chassis ×1, and gripper CTAG2F90-D ×2. Teleoperation options are servo teleoperation, backpack teleoperation, and mobile teleoperation; these are not included in the standard configuration quantity table. This row distinguishes standard, recommended, and optional items. Recommended and optional items that are not checked will not be delivered. If the standard row is inconsistent with the parameter table row, keep both rows and use "locked for this order" to indicate which one is actually delivered, rather than striking out one row in the order without sign-off. Price and lead time are not written into this row's summary. The latter half of the attachment contains checkboxes; unchecked items are printed as not delivered. Unchecked recommended and optional items are written as not delivered on the order.

May be excerpted. The following may be copied into the appendix: RMC-AIDAL; 640×450×1780 mm; approximately 80 kg; lift 900 mm; vertical 0–2.4 m; arm reach 633 mm; rated 5 kg; self-weight 8 kg; repeatability ±0.05 mm; differential drive 1.5 m/s; slope climbing 5°; positioning ±10 mm / ±3°; Orin 64G + 1T SSD; lithium iron phosphate DC 48V 20Ah, hours not given. This is the type of line that may be pasted into the appendix: it has a subject, includes units, and can be traced back to the original sentence on the product page. When pasting, retain the words approximately, not included, not given, optional, and recommended. Do not convert and keep only the result. If the same number has different meanings on two pages, write it as two separate lines in the appendix. Do not mix test protocols into specification excerpts. This is the permitted scope for the appendix body. When pasting into the appendix, paste the words approximately, not included, and optional together with the values.

Do not write. Do not write 17 degrees of freedom for the whole system, do not write 650×512×1700 mm, approximately 120 kg, lifting 0.3 m, vertical 0–2.1 m, speed 0.1–1.0 m/s. Do not write 8 kg as rated payload. Do not write battery life in hours. This row is a negative statement for editorial review. It does not describe what the device can do; it only prevents hours, degrees of freedom, payload subjects, or cover slogans from adjacent pages from being written in. If a negative statement is hit, revert to the original product page sentence; do not interpret it as approximately correct. External paper success rates and total hours not publicly disclosed on this site should likewise not be written in. The last page of the attachment lists negative statements to prevent only signing off on the positive. If manuscript retrieval hits a negative statement, revert to the original product page sentence.

ProjectsPublic-Facing Positioning of This Page
Degrees of FreedomIn the robotic arm parameter table, model RM75-B-V has 7 degrees of freedom per arm. The product page does not publish the total degrees of freedom for the whole unit; do not fill in 17 or 20.
Load and MassSingle-arm rated payload 5 kg. The 8 kg in the parameter table is the single-arm self-weight. The cover previously stated a dual-arm rated payload of 8 kg, which conflicted with the parameter table; the parameter table takes precedence. The total unit weight of approximately 80 kg is the overall mass.
Form Factor and ScaleModel RMC-AIDAL. Folded dimensions 640 × 450 × 1780 mm. Chassis 640 × 450 × 250 mm.
Operating RangeLifting stroke 900 mm, vertical working range 0–2.4 m (also written as 0–2400 mm in the table). Single-arm reach 633 mm. Single-side overhang beyond the chassis is 790 mm; the original text did not specify a unit at that point, but since it appears alongside millimeters in the same sentence, it is written externally as 790 mm with this note retained.
MotionTwo-wheel differential drive, speed 1.5 m/s, climbing slope 5°. Positioning accuracy ±10 mm / ±3°.
PowerThe battery is lithium iron phosphate DC 48V 20Ah. This document dated 2026-08-03 does not state battery life in hours. Do not add approximately 6 hours, and do not rewrite it as 48V 31Ah or approximately 4 hours.
Perception & ComputeMain controller Nvidia Jetson AGX Orin 64G, with an additional 1T solid-state drive. Standard vision configuration is D435 ×1, wide-angle cameras ×2, voice module ×1. If the cover states 3 depth channels plus 2 wide-angle channels, this conflicts with the list; the specifications follow the list. D435 row: ideal ranging 0.3–3 m; depth ≤1280×720, ≤90 fps; RGB 1920×1080, 30 fps; field of view 69°×42°; rolling shutter. Navigation separately lists depth camera ×1, IMU + encoder ×1, LiDAR ×1, safety edge ×1, ultrasonic ×2.
End EffectorThe recommended configuration lists gripper CTAG2F90-D ×2. The standard configuration quantity table does not include a gripper. RMG22-65 is a separate product page.
BoundaryThe standard configuration lists the robotic arm as RM65-B-V ×2, while the robotic arm parameter table lists the model as RM75-B-V. Both model numbers are retained; lock one before placing the order — do not collapse them into a single number.
Configuration PanelRecommended configuration is RM75-B-V ×2, two-wheel differential chassis ×1, gripper CTAG2F90-D ×2. Teleoperation options are servo teleoperation, backpack teleoperation, and mobile teleoperation; these are not included in the standard configuration quantity table.
ExcerptableAttachment copy: RMC-AIDAL; 640×450×1780 mm; approximately 80 kg; lifting 900 mm; vertical 0–2.4 m; reach 633 mm; rated 5 kg; self-weight 8 kg; repeatability ±0.05 mm; differential drive 1.5 m/s; slope climbing 5°; positioning ±10 mm / ±3°; Orin 64G + 1T SSD; lithium iron phosphate DC 48V 20Ah, hours not specified.
Do not writeDo not write 17 degrees of freedom for the whole unit, and do not write 650×512×1700 mm, approximately 120 kg, lifting 0.3 m, vertical 0–2.1 m, speed 0.1–1.0 m/s. Do not write 8 kg as the rated payload. Do not write battery life in hours.
Wheeled lifting dual-arm teleoperation platform; the product page currently publishes only this one main image.
Figure 2 | The same main image as at the beginning of the article. The product page does not have a second publicly available angle of the chassis, so no photo of a different model is substituted here.

Relationship to Public Methods and Adjacent Pages

Acceptance attachments should replicate sentences that are already public on the product page and include units, and cite which page and which table they come from. Sentences that may be written are verifiable: model number, dimensions, mass, degrees of freedom and their locations, rated load, travel, speed, voltage capacity, communication, standard quantity. Sentences that may not be written are inferred statements: "equivalent to", "industry-leading", "six hours at full load", "includes gripper", "includes force feedback".

Even identical numbers get separate rows. ±0.05 mm appearing in both the arm's repeatability and the gripper's repeatability becomes two rows in the appendix. 5 kg appearing in single-arm rated load and gripper envelope load is also two rows. 48 V 20 Ah appearing in both the folding model and the lift model—whether hours follow it depends on each respective page.

Recommended attachment structure: 1. Excerpt from the standard quantity table; 2. Recommended items — if unchecked, they will not be delivered; 3. Optional items — state which column is selected or not selected for this order; 4. Explicitly excluded items, e.g., for the lift model do not list battery life in hours, do not list whole-machine degrees of freedom, and do not treat 8 kg as rated load.

This article lists the original sentences that this product may include in an appendix, along with a recommended exclusion statement.

Before handing off to a colleague

The binding order of the attachments is fixed: standard-row excerpts, recommended and optional checkmarks, not-included list, and synchronization and test booklets if any are bound separately. Test results do not appear in the specification excerpts. If test results are written into the same volume, they will be treated as specifications. The signature page repeats the product page path. If legal or procurement requires rewriting an original sentence, the rewritten draft must be traceable word by word back to the original sentence; words that cannot be traced are deleted. The words "approximately", "not included", "not specified", and "optional" are considered undeletable. Every page footer of the attachment contains the product page path and "an excerpt is not a rewrite". If a page is a checkmark page, the footer adds "unchecked equals not delivered". If a page is a not-included list, the footer adds "this page is an exclusion". If a test booklet exists, its cover uses a different color and states "tests are not specifications". When binding, the test booklet is not inserted in the middle of the specification excerpts. If inserted in the middle, it is returned for rebinding.

First, specification excerpts do not include test results.

Second, unchecked equals not delivered, written in the footer.

Third, the exclusions list gets its own page.

Fourth, the test booklet cover states that tests are not specifications.

Fifth, every rewrite must be traceable word by word.

Sixth, do not delete "approximately," "not included," "not provided," or "optional." Every line in a specification excerpt must be findable as continuous original text on the product page using the search function. If the continuous original text cannot be found, the line has been rewritten and must be returned. Keep the test log and the excerpt in separate volumes to avoid inserting the wrong one during binding. Write the product page path again in the footer; after binding, spot-check that the paths on the first and last pages are consistent.
