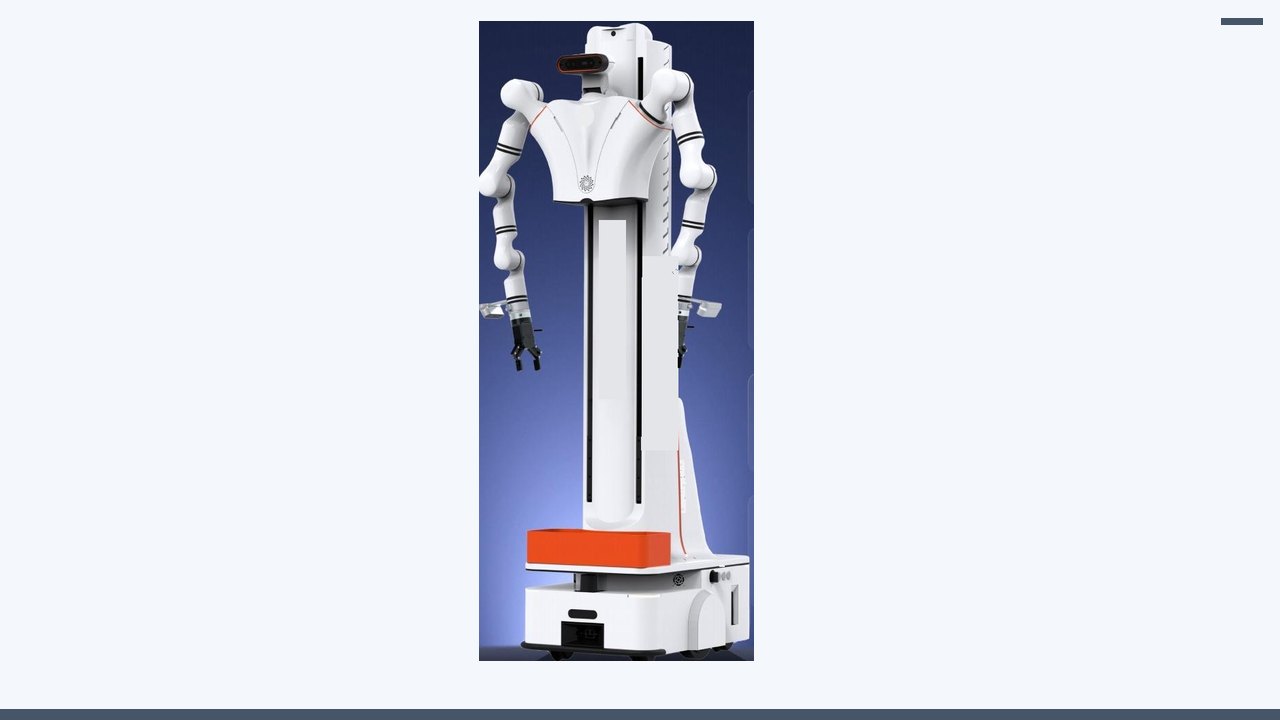

External dimensions, vertical range, and arm reach are three coordinate sets. Model: RMC-AIDAL. Stowed dimensions: 640 × 450 × 1780 mm. Chassis: 640 × 450 × 250 mm. Lift travel: 900 mm; vertical working range: 0–2.4 m (also written as 0–2400 mm in the table). Single-arm reach: 633 mm. Single-side overhang beyond the chassis: 790 mm; the original text omits the unit at that point, but since it appears alongside millimeters in the same sentence, it is written externally as 790 mm with this note preserved. Use external dimensions for doorways and elevators, vertical range or vertical arm reach for shelf height, and arm reach or horizontal overhang for shelf depth. Adding the three sets of numbers together has no physical meaning.
Workspace
The arm reach excluding the end effector becomes shorter once a gripper is installed; the amount of shortening depends on the end-effector dimensions, and the page usually does not provide this reduction. The recommended configuration lists gripper CTAG2F90-D ×2. The standard configuration quantity table does not include a gripper. RMG22-65 is a separate product page. Therefore, the workspace diagram must be labeled "excluding end effector" or "end effector accounted for separately"; do not draw the arm reach directly as the reachable domain of the gripper fingertips.
The ground footprint of the wheeled lifting dual-arm teleoperation body must also account for the standing position of the operator or the main arm. The main arm length is on the kit page, not in the external dimensions of this section. If the workstation is drawn only from the body dimensions, the operator will have nowhere to stand.
Tasks that cannot be drawn within these three coordinate frames are not tasks for this device. Changing cameras cannot turn a 0.69 m arm reach into 2 m, nor can it copy a vertical range from one page to another. The verification page is /product-body-lift.html.

How to Use This Page in This Version
The workspace diagram uses three layers and must not be drawn as a single sphere. The first layer is the external dimensions, which determine doorways and elevators: Model RMC-AIDAL. Stowed dimensions: 640 × 450 × 1780 mm. Chassis: 640 × 450 × 250 mm. The second layer is the vertical and horizontal operating range: lift travel 900 mm; vertical working range 0–2.4 m (also written as 0–2400 mm in the table). Single-arm reach: 633 mm. Single-side overhang beyond the chassis: 790 mm; the original text omits the unit at that point, but since it appears alongside millimeters in the same sentence, it is written externally as 790 mm with this note preserved. The third layer is the part not accounted for by the end effector: the recommended configuration lists gripper CTAG2F90-D ×2. The standard configuration quantity table does not include a gripper. RMG22-65 is a separate product page. The three layers use different line styles. Tracing all three layers as a single "maximum radius" is the most common error in diagrams for this dimension.
The arm span excluding the end effector is stated in the figure caption. Whether the fingertips can still reach that point after a gripper is installed must be measured on site with a gauge; do not automatically extend the arm span by a gripper length on the figure, nor automatically shorten it. The page does not provide a correction to the arm span for the gripper length.
Left/right overhang, shoulder width, and chassis width are used for passages, not for shelf height. If the original text does not specify a unit for one-sided overhang, the caption retains "the original text does not mark a unit; recorded in the millimeter context". Do not erase this note.
The operator's standing position and the main arm's tabletop form a fourth layer, but they do not belong to the external dimensions of the wheeled lifting dual-arm teleoperation body unless this page is the kit page. The kit's motion radius is on the scale of the main arm and must not be drawn into the end effector's reachable sphere. The end effector's vertical range must likewise not be drawn into the main arm's motion radius.
After completing the diagram, verify with one sentence: every dimension on the diagram can be traced to a row on /product-body-lift.html. Any dimension that cannot be traced must be deleted. Do not write 17 degrees of freedom for the whole unit. Do not write 650×512×1700 mm, approximately 120 kg, lift 0.3 m, vertical 0–2.1 m, or speed 0.1–1.0 m/s. Do not write 8 kg as the rated load. Do not write runtime in hours. Dimensions from adjacent pages in particular must be deleted.
Line-by-Line Verification
Degrees of freedom. The single-arm degrees of freedom for model RM75-B-V in the arm parameter table is 7. The product page does not publish the total degrees of freedom for the whole unit; do not fill in 17 or 20. This row only states the number and locations of joints that have already been made public. It does not evaluate intelligence, and it does not automatically include the waist, legs, neck, or a whole-unit total that the page does not name. When writing into the action vector, create channels only for the body parts named in this row; body parts not named remain blank. Blank must not be written as 0, because 0 would be treated by the training script as a real angle. Do not fill in the integer degrees of freedom from another device to make this row add up. If the master-slave joint ordering is not given on the page, mark it as pending written configuration confirmation; do not number it yourself. Degrees of freedom do not describe spatial extent. The action vector creates channels only for the body parts named in this row; unnamed body parts remain blank and are not filled with 0.
Load and mass. Single-arm rated load 5 kg. The 8 kg in the parameter table is the single-arm self-weight. The dual-arm rated 8 kg once written on the cover conflicts with the parameter table; the parameter table takes precedence. The whole-machine approximately 80 kg is the whole-machine mass. This line's numbers must be read with their subject: rated, self-weight, whole-machine mass, envelope, friction, or gripping force. If the subjects differ, they cannot be merged into a single number, nor can conversions not given on the page be performed. If the object on site is heavier, the specification cannot be changed in reverse; a larger specification also does not prove that every grasping method reaches that limit. The tool mass is undetermined; do not write the arm's rated load as the graspable object mass. The acceptance form retains the original units. Load does not describe reachability. During acceptance, read the subject first and then the number; if the subjects are inconsistent, split them into two lines.
Form and Dimensions. Model RMC-AIDAL. Stowed dimensions 640 × 450 × 1780 mm. Base 640 × 450 × 250 mm. This row covers form or structural dimensions, used to check doorways, elevators, tabletops, or transport. It is not operating height and not arm reach. Do not add it to the vertical range. If the diagram shows protrusions, antennas, or a person's standing position not listed in this row, note separately that they are not part of the specification. If weight appears in an adjacent row, do not include it in the dimension sentence. This row goes into the form layer of the workstation diagram. Doorways, elevators, and transport are checked against form only; do not treat this row as operating height.
Operating Range. Lift travel 900 mm, vertical working range 0–2.4 m (also written as 0–2400 mm in the table). Single-arm reach 633 mm. Single-side overhang beyond the base 790 mm; the source does not specify a unit at that point, but it appears alongside millimeters in the same sentence, so write 790 mm externally and retain this note. This row describes the range the hand or lift can reach. The definitions must follow the source sentence: vertical working range, reach, motion radius, or travel — these cannot be added together or renamed. If "excluding end effector" is stated, it must remain in the figure caption. When the source does not specify a unit, retain the "unit not specified" note; do not remove it for tidiness. This row goes into the operating layer of the workstation diagram and is not added to the form layer. The figure caption retains the range definitions from the source sentence, as well as the terms "excluding end" or "unit not specified."
Motion. Two-wheel differential, speed 1.5 m/s, slope climbing 5°. Positioning accuracy ±10 mm / ±3°. This row describes how the ground or the main arm moves. Four-wheel steering and four-wheel drive, differential, in-place rotation radius, and rotational speed are terms for different mechanisms and cannot be substituted for one another. The published speed is a capability, not a recommended teaching speed; teaching can be slower, but a slower speed is written into the experimental conditions and is not written back as a specification. For pages that do not state slope climbing or positioning, do not borrow from other pages. The chassis range of motion is not the arm's workspace, unless the original sentence is indeed talking about the chassis. The teaching speed can be lower, but a lower speed is written into the operating conditions and does not change the published capability in this row.
Power. The battery is lithium iron phosphate DC 48V 20Ah. This document dated 2026-08-03 does not state runtime in hours. Do not fill in approximately 6 hours, and do not rewrite it as 48V 31Ah or approximately 4 hours. This line should only retain the electrical terms that appear on the page: voltage, capacity, runtime, charging, current, or power. If there are no "hours," write runtime not specified; do not fill in from hours on adjacent pages. Do not rename charging time as runtime. Rated and maximum values must be listed separately. Keep "approximately" for approximate values. Do not sum the amp-hours of multiple devices and claim it as one device's battery. The battery does not change the reachable workspace. Hours, charging, or current that do not appear should remain as not specified, not copied from adjacent pages.
Perception and compute. Main controller: Nvidia Jetson AGX Orin 64G, with an additional 1T solid-state drive. Standard vision configuration: D435 ×1, wide-angle cameras ×2, voice module ×1. If the cover states 3 depth channels plus 2 wide-angle channels, that conflicts with the list; the specification follows the list. D435 row: ideal ranging 0.3–3 m; depth ≤1280×720, ≤90 fps; RGB 1920×1080, 30 fps; field of view 69°×42°; rolling shutter. Navigation additionally lists depth camera ×1, IMU + encoders ×1, LiDAR ×1, safety edge ×1, ultrasonic sensors ×2. This row inventories items already specified under sensors, compute, or communications, and retains the terms standard, included, optional, and optional add-on. Unchecked optional items do not count. When the cover conflicts with the list, cite the list, while not pretending the cover statement does not exist. Head-mounted devices and gloves do not belong in this row. Do not draw processors, storage capacity, or camera channel counts into the system diagram if they are not written out. Camera field of view is not the mechanical reachable workspace. Optional sensors that have not been purchased do not enter this data dictionary.
End Effector. The recommended configuration lists gripper CTAG2F90-D ×2. The standard configuration quantity table does not include a gripper. RMG22-65 is a separate product page. This row describes where contact or grasping occurs. Quick-change, compatible, and recommended are not models already included in the box. The ring fixture on the main arm is not an end gripper. Force, travel, and payload remain as written in their respective rows and are not merged into a single system metric just because they are mounted on a particular body. Where flange and protocol mapping are not provided, write "to be confirmed," not "plug and play." The page does not provide a formula for how end-effector length affects reachable points; do not add or subtract automatically in the diagram. "Supports" or "compatible" without a model number cannot be treated as delivered.
Boundary. The standard configuration lists robotic arm RM65-B-V ×2, while the robotic arm parameter table lists model RM75-B-V. Keep both model numbers; lock them before ordering; do not collapse them into one. This row is a deliberate boundary on the page: another model, another column, another product page, or an interface that still requires project confirmation after modularization. The boundary is not a defect note; it prevents verbally buying two pages as one. When writing a proposal, copy the boundary into "not included in this order." If equipment not included is added later, open a new configuration sheet; do not go back and change the body name in old samples. The main arm's motion radius is not drawn into the end-effector reachable domain unless this page is a kit. Equipment within the boundary must be ordered separately; do not rename old samples to say it is already included.
Configuration Column. Recommended configuration: RM75-B-V ×2, two-wheel differential base ×1, gripper CTAG2F90-D ×2. Teleoperation options: servo teleoperation, backpack teleoperation, mobile teleoperation — not included in the standard configuration quantity table. This row distinguishes standard, recommended, and optional. Recommended and optional items are not delivered unless checked. When the standard row and the parameter table row disagree, keep both rows and use "locked for this order" to indicate which one is actually delivered, rather than crossing out one row in the order without signing off. Price and lead time are not written into this row's restatement. Unselected end effectors are not drawn into the reachable diagram. Unchecked recommended and optional items are written as not delivered on the order.
Excerptable. The following may be copied into the attachment: RMC-AIDAL; 640×450×1780 mm; approximately 80 kg; lifting 900 mm; vertical 0–2.4 m; arm reach 633 mm; rated 5 kg; self-weight 8 kg; repeatability ±0.05 mm; differential drive 1.5 m/s; climbing 5°; positioning ±10 mm / ±3°; Orin 64G + 1T SSD; lithium iron phosphate DC 48V 20Ah, hours not given. This is the type of line that can be pasted into an attachment: it has a subject, has units, and can be traced back to the original sentence on the product page. When pasting, preserve words such as "approximately," "excluding," "not given," "optional," and "recommended." Do not convert and keep only the result. If the same number has different meanings on two pages, write it as two lines in the attachment. Do not mix test protocols into specification excerpts. Every number in a figure caption must be traceable back to the table. When pasting into the attachment, paste words such as "approximately," "excluding," and "optional" together with the numbers.
Do not write. Do not write 17 degrees of freedom for the whole machine, do not write 650×512×1700 mm, approximately 120 kg, lifting 0.3 m, vertical 0–2.1 m, speed 0.1–1.0 m/s. Do not write 8 kg as rated load. Do not write runtime in hours. This line is a negative statement for review purposes. It does not describe what the equipment can do; it only prevents hours, degrees of freedom, load subjects, or cover slogans from adjacent pages from being written in. If a negative statement is hit, revert to the original sentence on the product page; do not interpret it as "close enough." External paper success rates and total hours not published on this site should also not be written in. Meters from adjacent pages cannot be used to fill in blanks in this figure. If manuscript retrieval hits a negative statement, revert to the original sentence on the product page.
| Projects | Public-Facing Positioning of This Page |
|---|---|
| Degrees of Freedom | In the robotic arm parameter table, model RM75-B-V has 7 degrees of freedom per arm. The product page does not publish the total degrees of freedom for the whole unit; do not fill in 17 or 20. |
| Load and Mass | Single-arm rated payload 5 kg. The 8 kg in the parameter table is the single-arm self-weight. The cover previously stated a dual-arm rated payload of 8 kg, which conflicted with the parameter table; the parameter table takes precedence. The total unit weight of approximately 80 kg is the overall mass. |
| Form Factor and Scale | Model RMC-AIDAL. Folded dimensions 640 × 450 × 1780 mm. Chassis 640 × 450 × 250 mm. |
| Operating Range | Lifting stroke 900 mm, vertical working range 0–2.4 m (also written as 0–2400 mm in the table). Single-arm reach 633 mm. Single-side overhang beyond the chassis is 790 mm; the original text did not specify a unit at that point, but since it appears alongside millimeters in the same sentence, it is written externally as 790 mm with this note retained. |
| Motion | Two-wheel differential drive, speed 1.5 m/s, climbing slope 5°. Positioning accuracy ±10 mm / ±3°. |
| Power | The battery is lithium iron phosphate DC 48V 20Ah. This document dated 2026-08-03 does not state battery life in hours. Do not add approximately 6 hours, and do not rewrite it as 48V 31Ah or approximately 4 hours. |
| Perception & Compute | Main controller Nvidia Jetson AGX Orin 64G, with an additional 1T solid-state drive. Standard vision configuration is D435 ×1, wide-angle cameras ×2, voice module ×1. If the cover states 3 depth channels plus 2 wide-angle channels, this conflicts with the list; the specifications follow the list. D435 row: ideal ranging 0.3–3 m; depth ≤1280×720, ≤90 fps; RGB 1920×1080, 30 fps; field of view 69°×42°; rolling shutter. Navigation separately lists depth camera ×1, IMU + encoder ×1, LiDAR ×1, safety edge ×1, ultrasonic ×2. |
| End Effector | The recommended configuration lists gripper CTAG2F90-D ×2. The standard configuration quantity table does not include a gripper. RMG22-65 is a separate product page. |
| Boundary | The standard configuration lists the robotic arm as RM65-B-V ×2, while the robotic arm parameter table lists the model as RM75-B-V. Both model numbers are retained; lock one before placing the order — do not collapse them into a single number. |
| Configuration Panel | Recommended configuration is RM75-B-V ×2, two-wheel differential chassis ×1, gripper CTAG2F90-D ×2. Teleoperation options are servo teleoperation, backpack teleoperation, and mobile teleoperation; these are not included in the standard configuration quantity table. |
| Excerptable | Attachment copy: RMC-AIDAL; 640×450×1780 mm; approximately 80 kg; lifting 900 mm; vertical 0–2.4 m; reach 633 mm; rated 5 kg; self-weight 8 kg; repeatability ±0.05 mm; differential drive 1.5 m/s; slope climbing 5°; positioning ±10 mm / ±3°; Orin 64G + 1T SSD; lithium iron phosphate DC 48V 20Ah, hours not specified. |
| Do not write | Do not write 17 degrees of freedom for the whole unit, and do not write 650×512×1700 mm, approximately 120 kg, lifting 0.3 m, vertical 0–2.1 m, speed 0.1–1.0 m/s. Do not write 8 kg as the rated payload. Do not write battery life in hours. |

Relationship to Public Methods and Adjacent Pages
A workspace typically has at least three coordinate frames; mixing them up will record the lab door width and operating height as the same number. The first is the overall machine envelope: length, width, and height, which determine whether it can fit through a door or an elevator. The second is the chassis footprint and obstacle traversal, which determine ground compatibility. The third is the operating envelope reachable by the arm or lift: vertical range, arm reach, and the distance the arm extends beyond the chassis on either side. The vertical range is the interval of heights the end-effector or platform can reach — it is not the overall machine height, nor is it the kinematic reach of the arm.
The folding model measures approximately 614×552×1700 mm, with a vertical operating range of 0–2.1 m. The lift model folds to 640×450×1780 mm, with a vertical range of 0–2.4 m and a lift stroke of 900 mm; the reach listed on the recommended arm sheet is 633 mm, which is the arm's working radius, not the overall machine height. The wheeled humanoid measures 570×465×1680 mm, with both shoulder width and chassis width falling within 465 mm. The "height" of the three units is therefore stated in three different sentences.
When writing an acquisition plan, mark the operating height in the task onto the vertical range, the shelf depth onto the arm reach or left-right overhang, and the door width onto the outline width. A task that cannot be marked in is not a task for this body — do not just round the spec to "approximately".
This article reads that product page using these three coordinate sets; if one set is missing, write that it is missing, and do not fill in with another device's numbers.
Before handing off to a colleague
Print out the workspace diagram and use a ruler to check each dimension in the figure caption one by one. Any dimension that cannot be found on the product page should be crossed out in red pen, including the dashed lines reserved for the operator's standing position, unless the dashed lines are explicitly labeled as not being specifications. Next to the reach that excludes the end effector, handwrite "end effector not included." If a one-sided overhang retains a note without units, the note text must not be cropped off by the figure frame. If the main arm's motion radius appears in the same figure, it must be given a different title and must not be called the slave-side reachable workspace. Write the product page path in the title block. Figures without a path do not enter the experimental record. Use the layer names from the original sentence for the figure layers; do not use the new term "maximum range." If the outline layer, operation layer, end-effector-not-included layer, and main arm layer all exist, all four legend rows must appear. If a layer is missing an explanation, do not draw that layer. The print scale does not need to be accurate to the millimeter, but the numbers in the figure caption must be exact to the original sentence. If someone edits numbers on the figure with a pen, the edited figure is void — go back to the product page and re-copy, rather than treating the pen edit as a new specification.
First, layer names use the words from the original sentence.
Second, do not draw layers without a source.
Third, "excludes end effector" must be written in the figure caption.
Fourth, notes without units are not cropped away.
Fifth, the primary arm radius is not the distal reachable workspace.
Sixth, any diagram altered by hand is void.
