Lifting dual-arm teleoperation body | How to count degrees of freedom: only count the parts listed on the page, do not fill in a whole-machine integer

Degrees of freedom are counted only for the parts explicitly listed on the page. In the robotic arm spec table, model RM75-B-V has 7 degrees of freedom per arm. The product page does not publish the total degrees of freedom for the whole machine — do not fill in 17 or 20. Waist, legs, neck, or any whole-machine total that does not appear should remain undisclosed. Do not pad a number just to align with another machine's integer...

2026-10-03
TOBI
Product Insights
Lifting dual-arm teleoperation body | How to count degrees of freedom: only count the parts listed on the page, do not fill in a whole-machine integer
Product InsightsWheeled dual-arm teleoperation robot with lift2026-10-03

Degrees of freedom are counted only by the parts explicitly listed on the page. In the spec sheet for the robotic arm model RM75-B-V, the single-arm degree of freedom is 7. The product page does not publish the whole-machine degree of freedom; do not fill in 17 or 20. Any waist, legs, neck, or whole-machine total that does not appear should remain unpublished. Padding in a degree of freedom to align with another machine's integer will make the action vector dimensionally wrong from day one.

Degrees of Freedom

The action vectors for imitation learning must be isomorphic to this degrees-of-freedom statement. Main arm 7 axes against slave arm 7 axes is one recording convention; whole unit 20 or 21 is another recording convention, which also includes joints not present in a single arm. The wheeled lift dual-arm teleoperation body uses the statement above, not the statement on the adjacent page.

If lift, chassis speed, or gripper open/close are to enter the action vector, separate channel names must be provided. They are not implicit decimals "already included in the degrees of freedom." Where the page writes them as travel, speed, or time, record them in those units; do not convert them into degrees of freedom.

Suggested dataset fields: joint list, the unit of each joint, and unrecorded parts. Unrecorded parts are written as empty, not as 0. 0 would be interpreted as a real angle. Joint limits not given in /product-body-lift.html must not be fabricated in the field descriptions either.

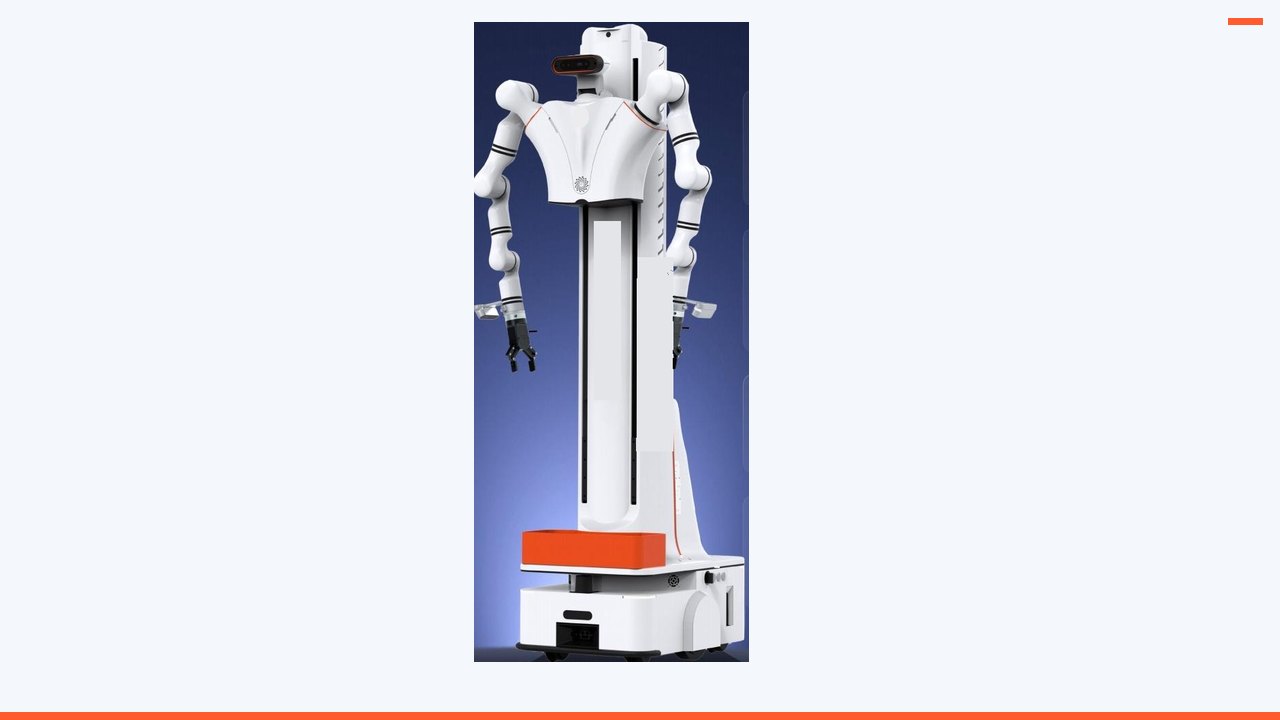

Wheeled lifting dual-arm teleoperation platform RMC-AIDAL
Figure 1 | Wheeled lifting dual-arm teleoperation platform. The caption only states that this is a device photo from the product page; the appearance is not interpreted as parameters not present in the table.

How to Use This Page in This Version

The degrees-of-freedom dimension does one thing only: write the action vector dimension of the wheeled lifting dual-arm teleoperation robotic platform into a table, where every row can be found on the product page. The degrees-of-freedom sentence given on this page is: the single-arm degrees of freedom for model RM75-B-V in the robotic arm parameter table is 7. The product page does not publish the whole-machine degrees of freedom; do not fill in 17 or 20. If the sentence already breaks down body parts, the body parts are the grouping of the table—do not rearrange them. If the sentence only gives the single arm, do not add waist, legs, neck, or a whole-machine total on your own.

Action vectors and degrees of freedom are not automatically equivalent. Chassis velocity, lift travel, and gripper opening can all be recorded channels, but their units are meters per second, millimeters, or open/close state — not "an additional 0.5 degrees of freedom." Two-wheel differential drive, velocity 1.5 m/s, climbing slope 5°. Positioning accuracy ±10 mm / ±3°. Lift travel 900 mm, vertical working range 0–2.4 m (also written as 0–2400 mm in the table). Single-arm reach 633 mm. Single-side overhang beyond the chassis 790 mm; the original text does not specify a unit at this point, and since it appears alongside millimeters in the same sentence, write it externally as 790 mm and retain this note. The recommended configuration specifies gripper CTAG2F90-D ×2. The standard configuration quantity table does not include a gripper. RMG22-65 is on a separate product page. If these sentences are to be converted into vectors, name them individually and include units.

When master and slave are isomorphic, the master side lists 7 degrees of freedom and the slave side single arm is also often 7. Equality does not mean the mapping table can be omitted. The mapping table must state: which joint on the master side corresponds to which joint on the slave side, whether the direction is reversed, and whether the zero position is the same set. If the page for the wheeled lift dual-arm teleoperation body does not give the joint order, mark the mapping table as "order to be confirmed by written configuration" and do not number it yourself.

Do not fill unrecorded joints with 0. 0 is an angle. Leave it empty and write "not published on this page" in the data description. Filling in 20 or 21 from another machine would make the training script believe those joints exist. Do not write 17 degrees of freedom for the whole unit, and do not write 650×512×1700 mm, approximately 120 kg, lift 0.3 m, vertical 0–2.1 m, speed 0.1–1.0 m/s. Do not write 8 kg as the rated payload. Do not write endurance in hours.

The dataset version number should include the hash of the original sentence stating the degrees of freedom, or at least a verbatim transcription of it. If the product page is corrected later, old samples can still be matched to the sentence as it stood at the time, rather than silently becoming a new definition.

Line-by-Line Verification

Degrees of freedom. In the robotic arm parameter table, model RM75-B-V has 7 degrees of freedom per arm. The product page does not publish the whole-machine degrees of freedom; do not fill in 17 or 20. This line only states the joint counts and body parts that have already been made public. It does not evaluate intelligence, and does not automatically include the waist, legs, neck, or whole-machine total that are not named on the page. When writing into the action vector, only build channels for body parts present in this line; body parts not present remain blank. Do not write blanks as 0, because 0 would be treated by training scripts as a real angle. Also do not fill in the degrees-of-freedom integer from another device after this line to make up the numbers. If the master-slave joint order is not given on the page, mark it as pending written configuration confirmation; do not number it yourself. This is the direct basis for action vector grouping. The action vector only builds channels for the body parts named in this line; body parts not named are left blank, not filled with 0.

Load and mass. The rated payload of a single arm is 5 kg. The 8 kg in the parameter table is the self-weight of a single arm. The dual-arm rated 8 kg once written on the cover conflicts with the parameter table; the parameter table takes precedence. The whole unit is approximately 80 kg, which is the overall mass. The numbers in this row must be read with their subjects: rated, self-weight, overall mass, envelope, friction or gripping force. If the subjects differ, they cannot be merged into a single number, nor can any conversion not given on the page be performed. If objects on site are heavier, the specification cannot be changed retroactively; a higher specification does not prove that every grasping method reaches that limit. The tool mass is undetermined, so do not write the arm's rated payload as the graspable object mass. The acceptance table retains its original units. Load does not change the degrees-of-freedom count; do not add or remove joints based on the load magnitude. During acceptance, read the subject first and then the number; if the subjects are inconsistent, split them into two rows.

Dimensions and scale. Model RMC-AIDAL. Stowed dimensions 640 × 450 × 1780 mm. Chassis 640 × 450 × 250 mm. This line describes external or structural dimensions, used to check doors, elevators, tabletops, or transport; it is not operating height, nor is it arm reach. Do not add it to the vertical range. If the diagram shows protrusions, antennas, or human standing positions not present in this line, note separately that they are not part of the specifications. If weight appears in an adjacent line, do not write it into the dimension sentence. The external dimensions do not include hidden joints; do not infer degrees of freedom from dimensions. Doors, elevators, and transport are checked only against external dimensions; do not treat this line as operating height.

Operating range. The lift stroke is 900 mm, and the vertical working range is 0–2.4 m (also written as 0–2400 mm in the table). The reach of a single arm is 633 mm. The overhang beyond the chassis on one side is 790 mm; the original text does not specify a unit at that point, and it appears alongside millimeters in the same sentence, so write it as 790 mm externally and retain this note. This row describes the range that the hand or lift can reach; the definition must follow the original sentence: vertical working range, reach, motion radius or stroke — these cannot be added together or renamed. If "excluding the end effector" is written, it must remain in the figure caption. When the original text does not specify a unit, retain the note "unit not specified" and do not delete it for the sake of tidiness. Stroke and reach are length channels, not fractional degrees of freedom. The figure caption retains the range definition from the original sentence, as well as the words "excluding the end" or "unit not specified".

Motion. Two-wheel differential drive, speed 1.5 m/s, climbing 5°. Positioning accuracy ±10 mm / ±3°. This line describes how the ground base or main arm moves. Four-wheel four-drive, differential drive, in-place rotation radius, and rotational speed are terms for different mechanisms and cannot be substituted for one another. Published speed is a capability, not a recommended teaching speed; teaching can be slower, but the slower speed is recorded under experimental conditions and is not written back into the specification. Pages that do not state climbing or positioning should not borrow from other pages. If the chassis is not included in the degrees-of-freedom sentence, name its channel separately. The teaching speed can be lower, but the lower value is recorded under operating conditions and does not change the published capability in this line.

Power supply. The battery is lithium iron phosphate DC 48V 20Ah. This 2026-08-03 document does not state runtime in hours. Do not fill in approximately 6 hours, and do not rewrite it as 48V 31Ah or approximately 4 hours. This line only retains the electrical terms that appear on the page: voltage, capacity, runtime, charging, current, or power. If there is no "hours," write runtime not specified; do not fill in the blank with hours from an adjacent page. Do not rename charging time as runtime. Rated and maximum values must be listed separately. Keep "approximately" for approximate values. Do not sum amp-hours across multiple devices and attribute the total to a single device's battery. Power supply method does not provide joint count. Hours, charging, or current that do not appear should remain as not specified, not copied in from adjacent pages.

Perception and computing. Main controller: Nvidia Jetson AGX Orin 64G, plus a 1T solid-state drive. Standard vision configuration: D435 ×1, wide-angle cameras ×2, voice module ×1. If the cover states 3 depth channels plus 2 wide-angle channels, that conflicts with the list; the specification follows the list. D435 row: ideal ranging 0.3–3 m; depth ≤1280×720, ≤90 fps; RGB 1920×1080, 30 fps; field of view 69°×42°; rolling shutter. Navigation separately lists depth camera ×1, IMU + encoder ×1, LiDAR ×1, safety edge ×1, ultrasonic ×2. This row enumerates items already specified under sensors, computing, or communication, and retains the terms standard, included, optional, and optional-order. Unchecked optional items do not count. When the cover conflicts with the list, cite the list while not pretending the cover statement does not exist. Head-mounted and glove devices do not belong in this row. Do not draw processors, drive capacities, or camera channel counts into the system diagram if they are not written out. Camera channel count is not a joint degree of freedom. Optional sensors not purchased do not enter this data dictionary.

End effector. The recommended configuration specifies gripper CTAG2F90-D ×2. The standard configuration quantity table does not include a gripper. RMG22-65 is a separate product page. This row states where contact or grasping occurs. Quick-change, compatible and recommended are not models already in the box. The ring fixture on the main arm is not a slave-side gripper. Force, stroke and payload are still retained as-is in their respective rows and are not merged into a single system metric merely because they are mounted on a particular body. Flange and protocol mappings that are not given are written as to be confirmed, not as plug-and-play. Whether gripper open/close is encoded as one dimension must be declared in the recording scheme, not assumed from the degrees-of-freedom sentence. "Supports" or "compatible" without a model number cannot be treated as delivered.

Boundaries. The standard configuration lists the robotic arm as RM65-B-V ×2, while the robotic arm parameter table lists the model as RM75-B-V. Both model numbers are retained; lock in before ordering, and do not collapse them into one. This line is a deliberately separated boundary on the page: another model, another column, another product page, or an interface that still requires project confirmation after modularization. A boundary is not a defect note — it is to prevent verbally buying two pages as one. When writing a proposal, copy the boundary into "Not included in this scope." If equipment not included is added later, open a new configuration sheet; do not go back and change the platform name in the old sample. Unannounced degrees of freedom for the full system remain unannounced. Equipment within the boundary requires a separate order; do not rename the old sample to imply it is already included.

Configuration column. The recommended configuration is RM75-B-V ×2, two-wheel differential chassis ×1, gripper CTAG2F90-D ×2. Teleoperation options are servo teleoperation, backpack teleoperation and mobile teleoperation, which are not included in the standard configuration quantity table. This row distinguishes standard, recommended and optional. Recommended and optional items are not delivered unless checked. When the standard row and the parameter table row are inconsistent, keep both rows and use "locked for this order" to indicate which one is actually delivered, rather than striking out one of the rows in the order without signing off. Price and lead time are not written into this row's restatement. After the model is locked, the degrees of freedom still follow the sentence for that model on the page. Unchecked recommended and optional items are written as not delivered on the order.

Excerptable. The following can be copied into an appendix: RMC-AIDAL; 640×450×1780 mm; approximately 80 kg; lift 900 mm; vertical 0–2.4 m; reach 633 mm; rated 5 kg; self-weight 8 kg; repeatability ±0.05 mm; differential 1.5 m/s; climbing 5°; positioning ±10 mm / ±3°; Orin 64G + 1T SSD; lithium iron phosphate DC 48V 20Ah, hours not given. This row is the type of content that can be pasted into an appendix: with subject, with unit, and traceable back to the original sentence on the product page. When pasting, retain approximately, excluding, not given, optional and recommended. Do not convert and keep only the result. If the same number has different meanings on two pages, write it as two rows in the appendix. Do not mix test protocols into specification excerpts. In the appendix, copy the degrees of freedom from the original sentence, including the breakdown in parentheses. When pasting into the appendix, paste the words approximately, excluding and optional along with them.

Do not write. Do not write 17 degrees of freedom for the whole machine, do not write 650×512×1700 mm, approximately 120 kg, lifting 0.3 m, vertical 0–2.1 m, speed 0.1–1.0 m/s. Do not write 8 kg as rated load. Do not write battery life in hours. This line is a negative sentence for review purposes. It does not describe what the device can do; it only prevents hours, degrees of freedom, load subjects, or cover slogans from adjacent pages from being written in. If a negative sentence is hit, revert to the original product page sentence, and do not interpret it as "close enough". Success rates from external papers and total hours not published on this site should also not be written in. Do not use 17, 20, or 21 from another unit to fill in the blanks on this page. If manuscript retrieval hits a negative sentence, revert to the original product page sentence.

ProjectsPublic-Facing Positioning of This Page
Degrees of FreedomIn the robotic arm parameter table, model RM75-B-V has 7 degrees of freedom per arm. The product page does not publish the total degrees of freedom for the whole unit; do not fill in 17 or 20.
Load and MassSingle-arm rated payload 5 kg. The 8 kg in the parameter table is the single-arm self-weight. The cover previously stated a dual-arm rated payload of 8 kg, which conflicted with the parameter table; the parameter table takes precedence. The total unit weight of approximately 80 kg is the overall mass.
Form Factor and ScaleModel RMC-AIDAL. Folded dimensions 640 × 450 × 1780 mm. Chassis 640 × 450 × 250 mm.
Operating RangeLifting stroke 900 mm, vertical working range 0–2.4 m (also written as 0–2400 mm in the table). Single-arm reach 633 mm. Single-side overhang beyond the chassis is 790 mm; the original text did not specify a unit at that point, but since it appears alongside millimeters in the same sentence, it is written externally as 790 mm with this note retained.
MotionTwo-wheel differential drive, speed 1.5 m/s, climbing slope 5°. Positioning accuracy ±10 mm / ±3°.
PowerThe battery is lithium iron phosphate DC 48V 20Ah. This document dated 2026-08-03 does not state battery life in hours. Do not add approximately 6 hours, and do not rewrite it as 48V 31Ah or approximately 4 hours.
Perception & ComputeMain controller Nvidia Jetson AGX Orin 64G, with an additional 1T solid-state drive. Standard vision configuration is D435 ×1, wide-angle cameras ×2, voice module ×1. If the cover states 3 depth channels plus 2 wide-angle channels, this conflicts with the list; the specifications follow the list. D435 row: ideal ranging 0.3–3 m; depth ≤1280×720, ≤90 fps; RGB 1920×1080, 30 fps; field of view 69°×42°; rolling shutter. Navigation separately lists depth camera ×1, IMU + encoder ×1, LiDAR ×1, safety edge ×1, ultrasonic ×2.
End EffectorThe recommended configuration lists gripper CTAG2F90-D ×2. The standard configuration quantity table does not include a gripper. RMG22-65 is a separate product page.
BoundaryThe standard configuration lists the robotic arm as RM65-B-V ×2, while the robotic arm parameter table lists the model as RM75-B-V. Both model numbers are retained; lock one before placing the order — do not collapse them into a single number.
Configuration PanelRecommended configuration is RM75-B-V ×2, two-wheel differential chassis ×1, gripper CTAG2F90-D ×2. Teleoperation options are servo teleoperation, backpack teleoperation, and mobile teleoperation; these are not included in the standard configuration quantity table.
ExcerptableAttachment copy: RMC-AIDAL; 640×450×1780 mm; approximately 80 kg; lifting 900 mm; vertical 0–2.4 m; reach 633 mm; rated 5 kg; self-weight 8 kg; repeatability ±0.05 mm; differential drive 1.5 m/s; slope climbing 5°; positioning ±10 mm / ±3°; Orin 64G + 1T SSD; lithium iron phosphate DC 48V 20Ah, hours not specified.
Do not writeDo not write 17 degrees of freedom for the whole unit, and do not write 650×512×1700 mm, approximately 120 kg, lifting 0.3 m, vertical 0–2.1 m, speed 0.1–1.0 m/s. Do not write 8 kg as the rated payload. Do not write battery life in hours.
Wheeled lifting dual-arm teleoperation platform; the product page currently publishes only this one main image.
Figure 2 | The same main image as at the beginning of the article. The product page does not have a second publicly available angle of the chassis, so no photo of a different model is substituted here.

Relationship to Public Methods and Adjacent Pages

Degrees of freedom is the number of joints a mechanism can independently drive; it is not a measure of intelligence, nor a score of data quality. Degrees of freedom must always be written with the body part: single arm, waist, legs, neck, lift stroke. It must not be written as a body-part-free "full-body degrees of freedom" unless the product page itself publishes it that way.

Imitation learning cares about the dimensionality and semantics of the action vector. In ALOHA, the slave arm's actions correspond to the primary arm's joints; if the slave end has one fewer joint or one extra lift axis, the policy's action dimension changes. Therefore, the capture plan must first specify: which joints are recorded, whether lift is a separate dimension, and whether chassis velocity is part of the action. Joints not listed on the page must not be added just to reach a round number.

The folding model publishes 20 active degrees of freedom and specifies 7 axes for a single arm. The wheeled humanoid publishes 21 active degrees of freedom with a breakdown of arms 14, waist 3, legs 2, neck 2. The lift model does not publish overall machine degrees of freedom; what it publishes is 7 degrees of freedom for a single arm from the recommended arm sheet, plus a lift stroke of 900 mm. The three sentences cannot fill in for each other.

This article only explains the degrees of freedom or travel already made public for this product, and indicates which segment of the demonstration action vector it occupies. For parts not made public, write "not provided on the product page" rather than substituting numbers from another machine.

Before handing off to a colleague

Before handing the degrees-of-freedom table to the recording software, run an empty-table test: undisclosed parts should be blank, not 0; if the chassis and gripper are to be recorded, use their own units. When the master-slave mapping has no joint order, the joint names in the software should read "to be confirmed" rather than a guess of 1 through 7. Transcribe the original degrees-of-freedom sentence into the version number. If someone later merges integers from a different machine, the version mismatch will reveal it. Do not add or remove joints just to make the vector length match a network's input dimension. The network adapts to the vector, not the vector to the network. Before the recording software goes live, check it with a sample of fake data: leave undisclosed parts blank, export a training sample, and confirm that blank has not become 0. Then write the gripper opening in millimeters or as an open/closed state, and confirm that nobody calls it the 8th degree of freedom. Export a joint-name list from both the master and slave sides and compare them manually, rather than only checking whether both lengths equal 7. Equal length can still mean reversed order. When the order is unconfirmed, the sample directory name carries "order to be confirmed," and the training script skips it by default.

First, undisclosed parts remain blank.

Second, blank is not 0.

Third, grippers and chassis use their own units.

Fourth, do not number joints until the joint order is confirmed.

Fifth, vector length is not increased or decreased for network input.

Sixth, copy the version number from the original sentence.
