Lifting dual-arm teleoperation platform | On-site deployment checklist: integration testing only verifies capabilities listed on purchased items
Product InsightsWheeled dual-arm teleoperation robot with lift2026-10-03

The site-entry checklist contains only published conditions and the written configuration for this order. Model RMC-AIDAL. Stowed dimensions 640 × 450 × 1780 mm. Chassis 640 × 450 × 250 mm. Two-wheel differential drive, speed 1.5 m/s, slope climbing 5°. Positioning accuracy ±10 mm / ±3°. Battery is lithium iron phosphate DC 48V 20Ah. This document dated 2026-08-03 does not state battery life in hours. Do not fill in approximately 6 hours, and do not rewrite it as 48V 31Ah or approximately 4 hours. Main controller Nvidia Jetson AGX Orin 64G, plus a 1T solid-state drive. Standard vision configuration is D435 ×1, wide-angle cameras ×2, voice module ×1. If the cover page states 3 depth channels plus 2 wide-angle channels, which conflicts with the list, the specification follows the list. D435 line: ideal ranging 0.3–3 m; depth ≤1280×720, ≤90 fps; RGB 1920×1080, 30 fps; field of view 69°×42°; rolling shutter. Navigation separately lists depth camera ×1, IMU + encoder ×1, LiDAR ×1, safety edge ×1, ultrasonic ×2. Check off door width, voltage, camera channel count, emergency stop, and personnel standing position one by one. If an item cannot be checked off, stop and complete the configuration; do not begin data acquisition first.

On-Site Deployment

Communications follow the table: if Ethernet, Wi-Fi, RS485, RJ45, 6-pin aviation connector, or Modbus-RTU is written, implement per that page. If no register address is written, do not invent addresses on site. Joint brakes are executed only on arm tables that specify both hard brakes and soft brakes.

Record roles separately: operator, recorder, safety officer. They can be the same person, but the recording sheet has three columns to avoid confusion afterward about who confirmed the emergency stop.

Do not build a training set on the first power-up. First verify direction and open/close. Only after the wheeled lift dual-arm teleoperation body passes verification may you proceed to the data acquisition discussion supported by /product-body-lift.html.

Wheeled lifting dual-arm teleoperation platform RMC-AIDAL

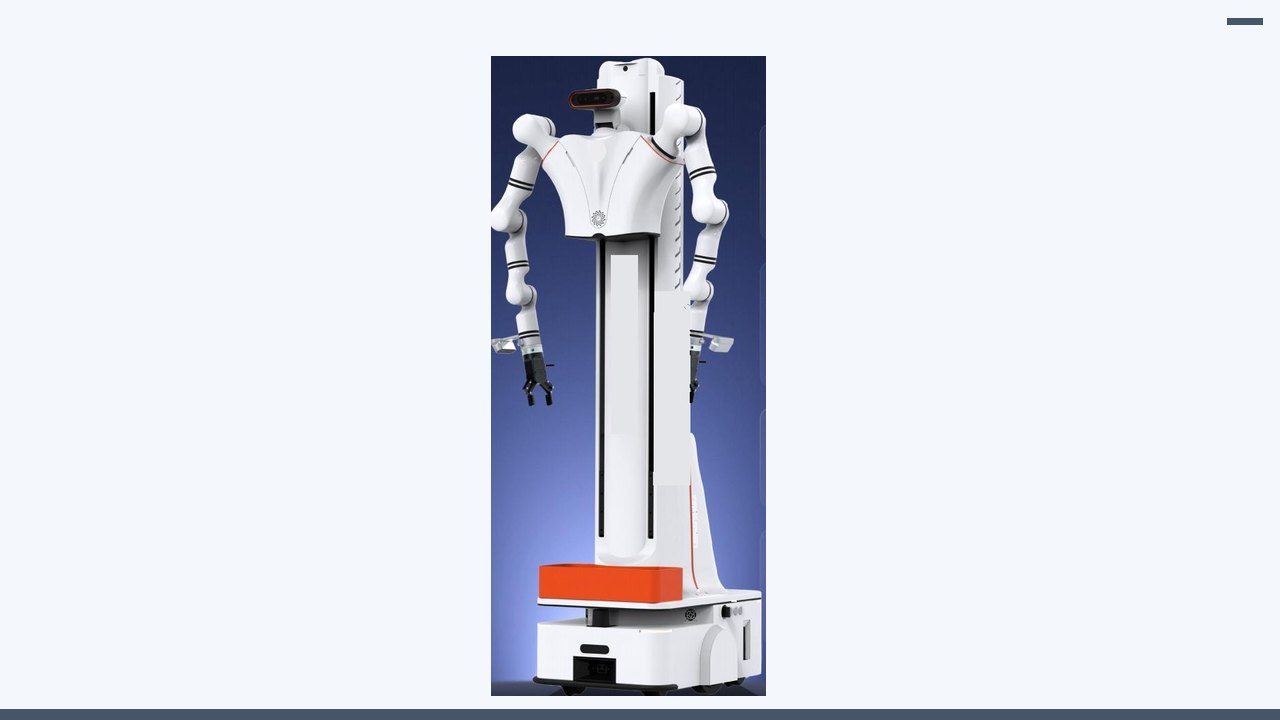

Figure 1 | Wheeled lifting dual-arm teleoperation platform. The caption only states that this is a device photo from the product page; the appearance is not interpreted as parameters not present in the table.

How to Use This Page in This Version

The deployment-day checklist starts with power and doors, not with the model. Model RMC-AIDAL. Stowed dimensions 640 × 450 × 1780 mm. Base 640 × 450 × 250 mm. Can it fit through the door? The battery is lithium iron phosphate, DC 48V 20Ah. This document dated 2026-08-03 does not state battery life in hours. Do not add "approximately 6 hours," and do not rewrite it as 48V 31Ah or approximately 4 hours. Whether on-site power matches, and any battery life not given, must not be written into the commissioning schedule. Two-wheel differential drive, speed 1.5 m/s, climbing 5°. Positioning accuracy ±10 mm / ±3°. Check whether the floor and speed are within published capabilities; on site, you may go slower. Main controller Nvidia Jetson AGX Orin 64G, plus a 1T solid-state drive. Standard vision is D435 ×1, wide-angle cameras ×2, voice module ×1. If the cover states 3 depth channels plus 2 wide-angle channels, that conflicts with the list; the specification follows the list. D435 line: ideal ranging 0.3–3 m; depth ≤1280×720, ≤90 fps; RGB 1920×1080, 30 fps; field of view 69°×42°; rolling shutter. Navigation separately lists depth camera ×1, IMU + encoders ×1, LiDAR ×1, safety edge ×1, ultrasonic ×2. Check whether the cameras and compute match the list; if optional items have not arrived, update the data dictionary.

Network and storage use only the interfaces explicitly listed. RJ45, Wi-Fi, RS485, aviation connectors, and Modbus-RTU are wired according to the corresponding page. Do not assume 5G is available on site unless the page lists 5G as a selected option. Do not assume a 1 TB hard drive is available on site unless the page states 1 TB.

Personnel are divided into three roles: operation, recording, and safety. The emergency stop is confirmed by the safety role. The first power-on script is an orientation check; the output is a checklist, not an episode. Only after the checklist passes do you collect data according to the written configuration. The recommended configuration lists grippers CTAG2F90-D ×2. The standard configuration quantity table does not include grippers. RMG22-65 is on a separate product page. When the end effectors have not arrived, the check can include unloaded motion, but the file names must be marked as having no end effector and must not be mixed into datasets that include grasping.

The last line of the deployment record should state the product page version date or the check date, and point to /product-body-lift.html. When specifications are corrected later, it will be possible to know which version of the public table this deployment was based on. Do not write 17 degrees of freedom for the whole machine, and do not write 650×512×1700 mm, approximately 120 kg, lifting 0.3 m, vertical 0–2.1 m, speed 0.1–1.0 m/s. Do not write 8 kg as rated payload. Do not write battery life in hours.

Line-by-Line Verification

Degrees of freedom. In the arm parameter table, model RM75-B-V has 7 degrees of freedom per arm. The product page does not publish the total degrees of freedom for the whole machine; do not fill in 17 or 20. This line only states the number and locations of joints that have already been made public. It does not evaluate intelligence, and it does not automatically include the waist, legs, neck, or whole-machine total that are not named on the page. When writing the action vector, create channels only for the body parts listed in this line; leave unlisted parts blank. Do not write blanks as 0, because 0 would be treated by the training script as a real angle. Do not fill in the degrees-of-freedom integer from another device to complete this line. If the master-slave joint order is not given on the page, mark it as pending confirmation in the written configuration; do not number it yourself. The joint list for the power-on check is limited to this line. The action vector creates channels only for the body parts named in this line; unlisted parts remain blank and are not filled with 0.

Payload and mass. Single-arm rated payload 5 kg. The 8 kg in the parameter table is the single-arm self-weight. The cover previously stated a dual-arm rated payload of 8 kg, which conflicts with the parameter table; the parameter table takes precedence. Approximately 80 kg is the whole-machine mass. The numbers in this line must be read with their subjects: rated, self-weight, whole-machine mass, envelope, friction, or gripping force. If the subjects differ, they cannot be merged into a single number, nor can conversions not given on the page be performed. If an object on site is heavier, you cannot change the specification in reverse; a larger specification also does not prove that every grasping method reaches that limit. The tool mass is undetermined; do not write the arm's rated payload as the graspable object mass. The acceptance table retains the original units. Passing an unloaded check does not mean the rated payload is reached. During acceptance, read the subject first and then the number; if the subjects do not match, split them into two lines.

Exterior and dimensions. Model RMC-AIDAL. Stowed dimensions 640 × 450 × 1780 mm. Base 640 × 450 × 250 mm. This line describes exterior or structural dimensions, used to check doors, elevators, tabletops, or transport; it is not an operating height, nor is it an arm reach. Do not add it to the vertical range. If the diagram shows protrusions, antennas, or a person's standing position not present in this line, note separately that they are not part of the specification. If weight appears in an adjacent line, do not write it into the dimension sentence. The first item for entry is whether this line can pass through the door and elevator. Doors, elevators, and transport are checked only against the exterior; do not treat this line as an operating height.

Operating range. Lift travel 900 mm, vertical working range 0–2.4 m (also written as 0–2400 mm in the table). Single-arm reach 633 mm. Extends 790 mm beyond the base on one side; the original text does not mark a unit there, but since it appears alongside millimeters in the same sentence, write it externally as 790 mm and retain this note. This line describes the range the hand or lift can reach; the definitions must follow the original sentence: vertical working range, arm reach, motion radius, or travel. These cannot be added together or renamed. If "excluding end effector" is written, it must remain in the figure caption. When the original text does not mark a unit, retain the note "unit not specified"; do not delete it for tidiness. Clear height and shelving are checked against this line during verification; do not change the wording on site. The figure caption retains the range definitions from the original sentence, as well as terms like "excluding end effector" or "unit not specified."

Motion. Two-wheel differential drive, speed 1.5 m/s, climbing 5°. Positioning accuracy ±10 mm / ±3°. This line describes how the ground or main arm moves. Four-wheel steering, four-wheel drive, differential drive, in-place rotation radius, and rotational speed are terms for different mechanisms and cannot substitute for one another. Published speed is a capability, not a recommended teaching speed; teaching may be slower, but the slower speed is recorded in the experimental conditions and is not written back as a specification. Do not borrow climbing or positioning data from other pages. Chassis front/back orientation and the emergency stop come before any speed test. Teaching speed may be lower, but the lower speed is recorded in the conditions and does not change the published capability in this line.

Power. The battery is lithium iron phosphate DC 48V 20Ah. This 2026-08-03 document does not state runtime in hours. Do not fill in approximately 6 hours, and do not rewrite it as 48V 31Ah or approximately 4 hours. This line retains only the electrical terms that appear on the page: voltage, capacity, runtime, charging, current, or power. If there is no "hours," write runtime not given; do not fill in the blank with hours from an adjacent page. Do not rename charging time as runtime. Rated and maximum values must be listed separately. Keep "approximately" for approximate values. Do not sum the ampere-hours of multiple devices and claim it as one device's battery. If the power supply does not match, stop; do not capture first and add power supply notes afterward. Hours, charging, or current that do not appear remain as not given and must not be copied from an adjacent page.

Perception and computing. Main controller Nvidia Jetson AGX Orin 64G, plus a 1T solid-state drive. Standard vision is D435 ×1, wide-angle cameras ×2, voice module ×1. If the cover states 3 depth channels plus 2 wide-angle channels, that conflicts with the list; the specification follows the list. D435 line: ideal ranging 0.3–3 m; depth ≤1280×720, ≤90 fps; RGB 1920×1080, 30 fps; field of view 69°×42°; rolling shutter. Navigation separately lists depth camera ×1, IMU + encoders ×1, LiDAR ×1, safety edge ×1, ultrasonic ×2. This line inventories the items explicitly stated in sensors, computing, or communications, and retains the terms standard, included, optional, and selectable. Unchecked optional items do not count. When the cover conflicts with the list, cite the list, but do not pretend the cover statement does not exist. Head-mounted devices and gloves do not enter this line. Processors, storage capacity, or camera channel counts not written out must not be drawn into the system diagram. Topic names are finalized on deployment day; channel counts are not increased on the fly. Optional sensors not purchased do not enter this data dictionary.

End effector. The recommended configuration lists grippers CTAG2F90-D ×2. The standard configuration quantity table does not include grippers. RMG22-65 is on a separate product page. This line states where contact or gripping occurs. Quick-change, compatible, and recommended are not models already in the box. The finger-ring fixture on the main arm is not an end-effector gripper. Force, travel, and payload remain as written in their respective lines and are not merged into a single system metric because they are installed on a particular body. Flange and protocol mappings not given are written as pending confirmation, not as plug-and-play. When end effectors have not arrived, file names are marked as having no end effector. "Supports" or "compatible" without a model number cannot be treated as delivered.

Boundary. The standard configuration lists the robotic arm as RM65-B-V ×2, while the robotic arm parameter table lists the model as RM75-B-V. Both model numbers are retained; lock them in before placing the order, and do not collapse them into one. This row is a deliberately separated boundary on the page: another model, another column, another product page, or an interface that still requires project confirmation after modularization. The boundary is not a defect note — it prevents verbally buying two pages as one. When writing a proposal, copy the boundary into "not included in this scope." If equipment not included is added later, open a new configuration sheet; do not go back and change the robotic platform name in the old sample. A main arm that has not been ordered must not appear in the wiring table. Equipment within the boundary must be ordered separately; do not rename the old sample to imply it already includes it.

Configuration column. The recommended configuration is RM75-B-V ×2, two-wheel differential chassis ×1, grippers CTAG2F90-D ×2. Teleoperation options are servo teleoperation, backpack teleoperation, and mobile teleoperation; these are not in the standard configuration quantity table. This line distinguishes standard, recommended, and optional. Recommended and optional items are not delivered unless checked. When the standard line and the parameter table line do not match, keep both lines and use "locked for this order" to indicate which one is actually delivered, rather than striking out one line in the order without signing. Prices and lead times are not written into this line's restatement. Deployment is based on the signed three columns, not the union of all options on the product page. Unchecked recommended and optional items are written as not delivered on the order.

Excerptable. The following can be copied into an attachment: RMC-AIDAL; 640×450×1780 mm; approximately 80 kg; lift 900 mm; vertical 0–2.4 m; reach 633 mm; rated 5 kg; self-weight 8 kg; repeatability ±0.05 mm; differential 1.5 m/s; climbing 5°; positioning ±10 mm / ±3°; Orin 64G + 1T SSD; lithium iron phosphate DC 48V 20Ah, hours not given. This line is the type that can be pasted into an attachment: with subject, with unit, and traceable to the original sentence on the product page. When pasting, retain terms like approximately, excluding, not given, optional, and recommended. Do not convert and keep only the result. If the same number has different meanings on two pages, write it as two lines in the attachment. Test protocols must not be mixed into specification excerpts. The deployment record states the product page it is based on. When pasting into an attachment, paste the words approximately, excluding, and optional along with the numbers.

Do not write. Do not write 17 degrees of freedom for the whole machine, and do not write 650×512×1700 mm, approximately 120 kg, lifting 0.3 m, vertical 0–2.1 m, speed 0.1–1.0 m/s. Do not write 8 kg as rated payload. Do not write battery life in hours. This line is a negative statement for review purposes. It does not describe what the device can do; it only prevents hours, degrees of freedom, payload subjects, or cover slogans from adjacent pages from being written in. If a negative statement is hit, revert to the original sentence on the product page; do not interpret it as "close enough." Success rates from external papers and total hours not published on this site must not be written in either. Capabilities added verbally on site are not written into the specification column of the deployment record. If a draft search hits a negative statement, revert to the original sentence on the product page.

ProjectsPublic-Facing Positioning of This Page
Degrees of FreedomIn the robotic arm parameter table, model RM75-B-V has 7 degrees of freedom per arm. The product page does not publish the total degrees of freedom for the whole unit; do not fill in 17 or 20.
Load and MassSingle-arm rated payload 5 kg. The 8 kg in the parameter table is the single-arm self-weight. The cover previously stated a dual-arm rated payload of 8 kg, which conflicted with the parameter table; the parameter table takes precedence. The total unit weight of approximately 80 kg is the overall mass.
Form Factor and ScaleModel RMC-AIDAL. Folded dimensions 640 × 450 × 1780 mm. Chassis 640 × 450 × 250 mm.
Operating RangeLifting stroke 900 mm, vertical working range 0–2.4 m (also written as 0–2400 mm in the table). Single-arm reach 633 mm. Single-side overhang beyond the chassis is 790 mm; the original text did not specify a unit at that point, but since it appears alongside millimeters in the same sentence, it is written externally as 790 mm with this note retained.
MotionTwo-wheel differential drive, speed 1.5 m/s, climbing slope 5°. Positioning accuracy ±10 mm / ±3°.
PowerThe battery is lithium iron phosphate DC 48V 20Ah. This document dated 2026-08-03 does not state battery life in hours. Do not add approximately 6 hours, and do not rewrite it as 48V 31Ah or approximately 4 hours.
Perception & ComputeMain controller Nvidia Jetson AGX Orin 64G, with an additional 1T solid-state drive. Standard vision configuration is D435 ×1, wide-angle cameras ×2, voice module ×1. If the cover states 3 depth channels plus 2 wide-angle channels, this conflicts with the list; the specifications follow the list. D435 row: ideal ranging 0.3–3 m; depth ≤1280×720, ≤90 fps; RGB 1920×1080, 30 fps; field of view 69°×42°; rolling shutter. Navigation separately lists depth camera ×1, IMU + encoder ×1, LiDAR ×1, safety edge ×1, ultrasonic ×2.
End EffectorThe recommended configuration lists gripper CTAG2F90-D ×2. The standard configuration quantity table does not include a gripper. RMG22-65 is a separate product page.
BoundaryThe standard configuration lists the robotic arm as RM65-B-V ×2, while the robotic arm parameter table lists the model as RM75-B-V. Both model numbers are retained; lock one before placing the order — do not collapse them into a single number.
Configuration PanelRecommended configuration is RM75-B-V ×2, two-wheel differential chassis ×1, gripper CTAG2F90-D ×2. Teleoperation options are servo teleoperation, backpack teleoperation, and mobile teleoperation; these are not included in the standard configuration quantity table.
ExcerptableAttachment copy: RMC-AIDAL; 640×450×1780 mm; approximately 80 kg; lifting 900 mm; vertical 0–2.4 m; reach 633 mm; rated 5 kg; self-weight 8 kg; repeatability ±0.05 mm; differential drive 1.5 m/s; slope climbing 5°; positioning ±10 mm / ±3°; Orin 64G + 1T SSD; lithium iron phosphate DC 48V 20Ah, hours not specified.
Do not writeDo not write 17 degrees of freedom for the whole unit, and do not write 650×512×1700 mm, approximately 120 kg, lifting 0.3 m, vertical 0–2.1 m, speed 0.1–1.0 m/s. Do not write 8 kg as the rated payload. Do not write battery life in hours.
Wheeled lifting dual-arm teleoperation platform; the product page currently publishes only this one main image.
Figure 2 | The same main image as at the beginning of the article. The product page does not have a second publicly available angle of the chassis, so no photo of a different model is substituted here.

Relationship to Public Methods and Adjacent Pages

Deployment describes site-entry conditions, not slogans. At a minimum it includes: floor load capacity and slope; whether doors and elevators are larger than the unit's dimensions; whether the operating height falls within the vertical range; whether the power supply matches the voltage on the page; who provides the network; where the primary-side workstation is placed; emergency stop and personnel positions; and which computer the recorded files are stored on. The compute platform appears only for products where it is written on the page. The folding model is Nvidia Jetson AGX Orin 64G, with no solid-state drive capacity stated. The lift model is Nvidia Jetson AGX Orin 64G plus a 1T solid-state drive. The wheeled humanoid, kits, and grippers do not default to having the same compute board.

Communication is copied from the table. The recommended arm table for the lifting model lists Ethernet, Wi-Fi, RS485; joints 1–4 have hard brakes, 5–7 have soft brakes. The gripper is RS485 / Modbus-RTU. The kit's main arm is RJ45, and the local column may also be 10-pin. Where no protocol mapping is written, do not invent register addresses in the deployment document.

On personnel, the operator, recorder, and safety officer can be the same person, but the roles must be recorded separately on the log sheet. For the first evaluation, it is recommended to start with a motion check without capturing training data: joint directions, gripper open/close, chassis forward/backward, emergency stop. Only after the check passes should you discuss samples.

This article presents the product intake checklist as short, printable statements.

Before handing off to a colleague

Execute the deployment day checklist in order: doors and power, emergency stop, unloaded direction check, whether the end effector is on the packing list, topic names, and whether file names mistakenly use "episode." If any step fails, stop. Failure records do not enter the training set directory. The specification column of the deployment record may only contain pasted original sentences from the product page; wishes added on site go in the "Not Accepted" column. At the end, photograph the labels: power label, end-effector label, packing list. The photos are part of the deployment record. Deployment photos are named by label type, not with names like IMG_0001. The name must contain power, end effector, or packing list. A deployment record without these three types of photos is not closed. Before closing, review the file names once more; unloaded verification files containing "episode" or "demo" are moved out of the training directory. The move action is written into the deployment record. A verbal claim that files were moved, with no record, is treated as not moved.

First, name photos according to label type.

Second, the record must not be closed if three types of photographs are missing.

Third, move episode files out of the training directory.

Fourth, write the removal action into the record.

Fifth, paste only the original sentence in the specification column.

Sixth, record on-site wishes in the Not Accepted column. Before closing a deployment record, check the Safety column once more to confirm that the emergency stop has been written into the record. A record without an emergency stop entry must not be closed. Once closed, no further specification sentences may be appended to the record.
