Rated payload, self-weight, overall mass and gripping force are four separate accounts. The rated payload of a single arm is 5 kg. The 8 kg in the parameter table is the self-weight of a single arm. The dual-arm rated 8 kg once written on the cover conflicts with the parameter table; the parameter table takes precedence. The whole unit is approximately 80 kg, which is the overall mass. When reading, first circle out the unit and the subject: whose 5 kg, whose 8 kg, whose 125 kg or 80 kg or 745 g. If the subject changes, the number cannot be inherited.
Payload and self-weight
During teleoperation, the mass of the tool itself must also be added at the end effector. If no tool has been selected, the arm's rated value must not be written as "graspable object mass." The recommended configuration lists gripper CTAG2F90-D ×2. The standard configuration quantity table does not include a gripper. RMG22-65 is a separate product page. The envelope load and friction load on the gripper page are also not the arm's rating; when both pages appear, transcribe each row separately.
Overload does not necessarily appear in the data as a failed grasp. It manifests as increased current, decreased speed, or a change in resistance at the master end. If the record contains no current data or no object mass, it later becomes impossible to explain why the same trajectory is not comparable. The product page for the wheeled lifting dual-arm teleoperation body does not provide current curves; if current is needed, it must be listed separately in the experimental record, not pretended to be given by the specification table.
Acceptance only checks the definition on that one line of the page. Friction load cannot be substituted with envelope load; self-weight cannot be substituted with rated load. Get one line wrong, and the quality labels for the entire batch of teaching data will be off.

How to Use This Page in This Version
Load language must be read row by row. Single-arm rated load: 5 kg. The 8 kg in the parameter table is the single-arm self-weight. The dual-arm rated 8 kg previously written on the cover conflicts with the parameter table; the parameter table takes precedence. The approximately 80 kg for the whole unit is the total machine mass. When reading aloud, add a subject before each number: single-arm rated, single-arm self-weight, total machine mass, envelope grasp, friction recommendation, clamping force. Any number whose subject cannot be stated must be deleted from the sentence.
The object side must also be listed separately. Object mass, end-effector tool mass, and the arm's rated payload—the page does not provide a general formula for summing these three, so do not write "rated minus tool equals graspable object." When the tool is unknown, the object mass field in the record may be filled with a measured value, but the rated payload must not be rewritten as that measured value. The recommended configuration lists gripper CTAG2F90-D ×2. The standard configuration quantity table does not include a gripper. RMG22-65 is a separate product page.
When the gripper and the arm appear together, the gripper's 5 kg is on the envelope basis, 2 kg is on the friction recommendation basis, and 130 N is a force. None of these rewrite the arm's 5 kg rating, and the arm's 5 kg does not prove that the gripper can support 5 kg by friction. If the wheeled lifting dual-arm teleoperation body is itself a gripper, do not introduce an arm's rating to "explain" the gripper.
Self-weight affects carrying and the desktop, not grasping capability. A main arm of 7.8 kg, 3.8 kg, or approximately 1.5 kg determines whether a person can hold the main arm for long periods — it does not determine how much the slave end can grasp. A whole-machine weight of approximately 125 kg or approximately 80 kg determines the floor and carrying requirements — it does not determine the single-arm rated load.
The acceptance record is recommended to have three columns: specification subject, specification value, and on-site measured value. The measured value may be stricter, but it must not be written as a value already committed by the specification. /product-body-lift.html is the source for the specification column.
Line-by-Line Verification
Degrees of freedom. For the robotic arm parameter table model RM75-B-V, the single-arm degree of freedom is 7. The product page does not publish the whole-machine degree of freedom; do not fill in 17 or 20. This row only states the joint count and body parts that have already been made public. It does not evaluate intelligence, and it does not automatically include waist, legs, neck, or a whole-machine total that the page does not name. When writing the action vector, create channels only for the body parts listed in this row; body parts not listed remain blank. Do not write blanks as 0, because 0 would be treated by the training script as a real angle. Also do not fill in the degree-of-freedom integer from another device after this row to make the numbers add up. If the page does not provide the master–slave joint order, mark it as pending written configuration confirmation rather than numbering it yourself. Joint count does not prove payload capability. The action vector creates channels only for the body parts named in this row; unnamed body parts remain blank and are not filled with 0.
Load and mass. Single-arm rated load: 5 kg. The 8 kg in the parameter table is the single-arm self-weight. The dual-arm rated 8 kg previously written on the cover conflicts with the parameter table; the parameter table takes precedence. The approximately 80 kg for the whole unit is the total machine mass. The numbers in this row must be read with their subjects: rated, self-weight, total machine mass, envelope, friction, or clamping force. Numbers with different subjects must not be merged into a single figure, nor may conversions not given on the page be performed. If the actual object on site is heavier, this does not retroactively change the specification; a larger specification does not prove that every grasping method reaches that limit. If the tool mass is undetermined, do not write the arm's rated value as graspable object mass. The acceptance table retains the original units. This is the primary row for the load dimension; the subject must enter the dataset's mass field description verbatim. During acceptance, read the subject first and then the number; if the subjects differ, split into two rows.

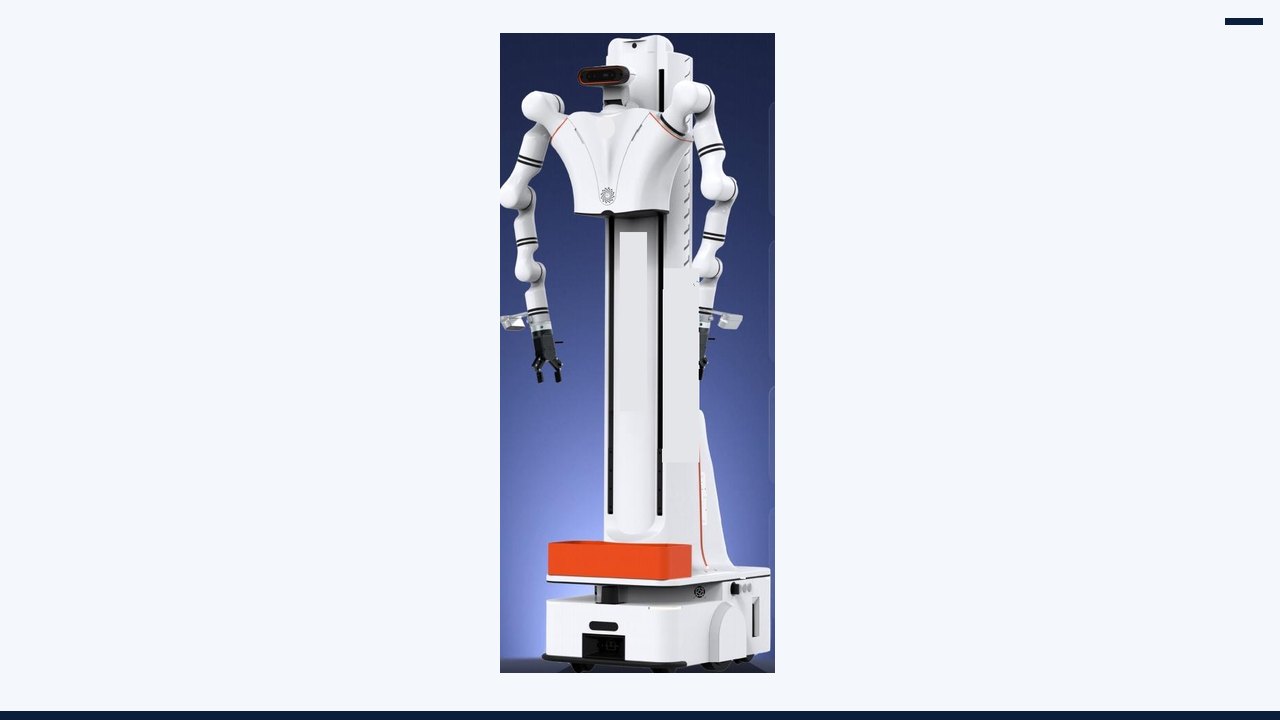

Dimensions and scale. Model: RMC-AIDAL. Stowed dimensions: 640 × 450 × 1780 mm. Chassis: 640 × 450 × 250 mm. This row describes external or structural dimensions, used to check doorways, elevators, tabletops, or transport. It is not an operating height, nor an arm reach. Do not add it to the vertical range. If the diagram shows protrusions, antennas, or a person's standing position not present in this row, note separately that they are not part of the specification. If weight appears in an adjacent row, do not write it into the dimension sentence. If total machine mass appears near the dimensions, still do not write it into the grasping load. Doorways, elevators, and transport are checked only against external dimensions; do not treat this row as an operating height.
Operating range. Lifting stroke 900 mm, vertical working range 0–2.4 m (also written as 0–2400 mm in the table). Single-arm reach 633 mm. Single-side overhang beyond the chassis 790 mm; the source does not specify a unit at this point, appearing alongside millimeters in the same sentence, so write it externally as 790 mm and retain this note. This row describes the range reachable by the hand or the lift; the definition must follow the original sentence: vertical working range, reach, motion radius, or stroke — these cannot be added together or renamed. If "excluding end effector" is written, it must remain in the caption. When the source does not specify a unit, retain the "unit not specified" note and do not delete it for the sake of tidiness. Reach length is not converted into graspable mass. The caption retains the range definition from the original sentence, as well as wording such as "excluding end" or "unit not specified".
Motion. Two-wheel differential drive, speed 1.5 m/s, climbing 5°. Positioning accuracy ±10 mm / ±3°. This row describes how the ground base or the main arm moves. Four-wheel steering, four-wheel drive, differential drive, in-place rotation radius, and rotational speed are terms for different mechanisms and cannot be substituted for one another. Published speed is a capability, not a recommended teleoperation teaching speed; teaching may be slower, but the slower speed is recorded in the experimental conditions, not written back as a specification. Do not borrow climbing or positioning data from other pages. Speed does not convert into transportable mass. The teaching speed may be lower, but the lower value is recorded in the conditions and does not change the published capability in this row.
Power. The battery is lithium iron phosphate, DC 48V 20Ah. This document dated 2026-08-03 does not state runtime in hours. Do not fill in approximately 6 hours, and do not rewrite it as 48V 31Ah or approximately 4 hours. This row retains only the electrical terms that appear on the page: voltage, capacity, runtime, charging, current, or power. If "hours" is absent, write that runtime is not given; do not fill the gap with hours from an adjacent page. Do not rename charging time as runtime. Rated and maximum values must be listed separately. Approximate values retain "approximately." Ampere-hours from multiple devices must not be summed and presented as one unit's battery. Current and power are not substitute units for load. Hours, charging, or current that do not appear must remain as not given and must not be copied in from adjacent pages.
Perception and computing. Main controller: Nvidia Jetson AGX Orin 64G, plus a 1T solid-state drive. Standard vision configuration: D435 ×1, wide-angle cameras ×2, voice module ×1. If the cover states 3 depth channels plus 2 wide-angle channels, conflicting with the list, the specification follows the list. D435 row: ideal ranging 0.3–3 m; depth ≤1280×720, ≤90 fps; RGB 1920×1080, 30 fps; field of view 69°×42°; rolling shutter. Navigation lists separately: depth camera ×1, IMU + encoder ×1, LiDAR ×1, safety edge ×1, ultrasonic ×2. This row inventories the items explicitly stated in sensing, computing, or communication, and retains the terms standard, standard configuration, optional, and optional configuration. An optional item not checked does not count. When the cover and the list conflict, cite the list while not pretending the cover statement does not exist. Head-mounted and glove devices do not enter this row. Processors, storage capacity, or camera channel counts not written out must not be drawn into the system diagram. Cameras do not change the rating. Optional sensors not purchased do not enter this data dictionary.
End effector. The recommended configuration lists gripper CTAG2F90-D ×2. The standard configuration quantity table does not include a gripper. RMG22-65 is a separate product page. This row states where contact or gripping occurs. Quick-change, compatible, and recommended are not models already included in the box. The finger-ring fixture on the main arm is not an end-effector gripper. Force, stroke, and load are still retained verbatim in their respective rows and are not merged into a single system metric merely because they are installed on a particular body. Flange and protocol mappings not given must be written as pending confirmation, not as plug-and-play. The end effector's own force and load are recorded in a separate table and do not overwrite the original rows for the arm or gripper. "Supports" or "compatible" without a model number cannot be treated as delivered.
Boundary. The standard configuration lists the robotic arm as RM65-B-V ×2, while the robotic arm parameter table lists the model as RM75-B-V. Both model numbers are retained; lock in the selection before placing the order, and do not collapse them into one. This line is a deliberately separated boundary on the page: a different model, a different column, a different product page, or an interface that still requires project confirmation after modularization. The boundary is not a defect disclosure; it prevents verbally purchasing two pages as one. When writing a proposal, copy the boundary into "Not included in this scope." If an excluded device is added later, open a new configuration sheet rather than retroactively changing the platform name in the old sample. The payload of the other model is not automatically inherited. Devices within the boundary require a separate order; do not rename the old sample to imply it already includes them.
Configuration column. The recommended configuration is RM75-B-V ×2, two-wheel differential chassis ×1, gripper CTAG2F90-D ×2. Teleoperation options are servo teleoperation, backpack teleoperation, and mobile teleoperation; these are not in the standard configuration quantity table. This row distinguishes standard, recommended, and optional. Recommended and optional items are not delivered unless checked. When the standard row and the parameter table row disagree, keep both rows and use "locked for this order" to indicate which is actually delivered, rather than striking out one row in the order without signing off. Price and lead time are not written into this row's transcription. If the end effector is a recommended item, the load column must specify which model's row is used for acceptance. Unchecked recommended and optional items are written as not delivered on the order.
Excerptable. The following may be copied into the appendix: RMC-AIDAL; 640×450×1780 mm; approximately 80 kg; lift 900 mm; vertical 0–2.4 m; arm reach 633 mm; rated 5 kg; self-weight 8 kg; repeatability ±0.05 mm; differential drive 1.5 m/s; climbing 5°; positioning ±10 mm / ±3°; Orin 64G + 1T SSD; lithium iron phosphate DC 48V 20Ah, hours not given. This row is the type that can be pasted into the appendix: with subject, with unit, traceable to the original sentence on the product page. When pasting, retain approximately, excludes, not given, optional, and recommended. Do not convert and keep only the result. If the same number has different meanings on two pages, write it as two rows in the appendix. Test protocols must not be mixed into specification excerpts. In the appendix, 5 kg, 8 kg, 2 kg, and 130 N must be listed in separate rows whenever they appear together. When pasting into the appendix, paste the words approximately, excludes, and optional along with the numbers.
Do not write. Do not write 17 degrees of freedom for the whole machine, do not write 650×512×1700 mm, approximately 120 kg, lifting 0.3 m, vertical 0–2.1 m, speed 0.1–1.0 m/s. Do not write 8 kg as rated payload. Do not write battery life in hours. This line is a negative statement for editorial review. It does not describe what the device can do; it only prevents pulling in hours, degrees of freedom, payload subjects, or cover slogans from adjacent pages. If a negative statement is hit, revert to the original product page sentence and do not interpret it as "close enough". Do not bring in success rates from external papers or total hours not published on this site. Do not write self-weight as rated load, or convert newtons to kilograms and then delete the newtons. If manuscript retrieval hits a negative statement, revert to the original product page sentence.
| Projects | Public-Facing Positioning of This Page |
|---|---|
| Degrees of Freedom | In the robotic arm parameter table, model RM75-B-V has 7 degrees of freedom per arm. The product page does not publish the total degrees of freedom for the whole unit; do not fill in 17 or 20. |
| Load and Mass | Single-arm rated payload 5 kg. The 8 kg in the parameter table is the single-arm self-weight. The cover previously stated a dual-arm rated payload of 8 kg, which conflicted with the parameter table; the parameter table takes precedence. The total unit weight of approximately 80 kg is the overall mass. |
| Form Factor and Scale | Model RMC-AIDAL. Folded dimensions 640 × 450 × 1780 mm. Chassis 640 × 450 × 250 mm. |
| Operating Range | Lifting stroke 900 mm, vertical working range 0–2.4 m (also written as 0–2400 mm in the table). Single-arm reach 633 mm. Single-side overhang beyond the chassis is 790 mm; the original text did not specify a unit at that point, but since it appears alongside millimeters in the same sentence, it is written externally as 790 mm with this note retained. |
| Motion | Two-wheel differential drive, speed 1.5 m/s, climbing slope 5°. Positioning accuracy ±10 mm / ±3°. |
| Power | The battery is lithium iron phosphate DC 48V 20Ah. This document dated 2026-08-03 does not state battery life in hours. Do not add approximately 6 hours, and do not rewrite it as 48V 31Ah or approximately 4 hours. |
| Perception & Compute | Main controller Nvidia Jetson AGX Orin 64G, with an additional 1T solid-state drive. Standard vision configuration is D435 ×1, wide-angle cameras ×2, voice module ×1. If the cover states 3 depth channels plus 2 wide-angle channels, this conflicts with the list; the specifications follow the list. D435 row: ideal ranging 0.3–3 m; depth ≤1280×720, ≤90 fps; RGB 1920×1080, 30 fps; field of view 69°×42°; rolling shutter. Navigation separately lists depth camera ×1, IMU + encoder ×1, LiDAR ×1, safety edge ×1, ultrasonic ×2. |
| End Effector | The recommended configuration lists gripper CTAG2F90-D ×2. The standard configuration quantity table does not include a gripper. RMG22-65 is a separate product page. |
| Boundary | The standard configuration lists the robotic arm as RM65-B-V ×2, while the robotic arm parameter table lists the model as RM75-B-V. Both model numbers are retained; lock one before placing the order — do not collapse them into a single number. |
| Configuration Panel | Recommended configuration is RM75-B-V ×2, two-wheel differential chassis ×1, gripper CTAG2F90-D ×2. Teleoperation options are servo teleoperation, backpack teleoperation, and mobile teleoperation; these are not included in the standard configuration quantity table. |
| Excerptable | Attachment copy: RMC-AIDAL; 640×450×1780 mm; approximately 80 kg; lifting 900 mm; vertical 0–2.4 m; reach 633 mm; rated 5 kg; self-weight 8 kg; repeatability ±0.05 mm; differential drive 1.5 m/s; slope climbing 5°; positioning ±10 mm / ±3°; Orin 64G + 1T SSD; lithium iron phosphate DC 48V 20Ah, hours not specified. |
| Do not write | Do not write 17 degrees of freedom for the whole unit, and do not write 650×512×1700 mm, approximately 120 kg, lifting 0.3 m, vertical 0–2.1 m, speed 0.1–1.0 m/s. Do not write 8 kg as the rated payload. Do not write battery life in hours. |

Relationship to Public Methods and Adjacent Pages
The most common failure in payload language is writing three quantities as one number. Rated payload is the working load the end effector may continuously carry. Self-weight is the mass of the arm or the whole machine. Gripping force is the force output by the gripper, measured in newtons, not kilograms. Envelope load and recommended friction load are also not the same number: envelope load relies on form closure, friction load relies on the contact surface, and the latter is usually smaller and depends on the material.
In teleoperation demonstrations, overload does not only manifest as "it didn't pick it up." It manifests as increased current, decreased speed, changed resistance felt by the operator at the main end, and demonstration trajectories that are not comparable to no-load calibration trajectories. Therefore, the dataset fields must at least distinguish: the arm's rated load, the actual mass of the tool mounted at the end effector, and the object mass. If the tool mass has not yet been selected, the arm's rated load cannot be written as "graspable object mass."
The lift-type arm table places the rated 5 kg and the self-weight 8 kg in adjacent rows. The 8 kg is the mass of a single arm, not the dual-arm rated load, and certainly not the "dual-arm rated 8 kg" that once appeared on the cover. The single-arm rated load of the folding type and the wheeled humanoid is also 5 kg, and likewise must not be conflated with the whole-machine mass of approximately 125 kg. The two-finger gripper RMG22-65 lists the envelope 5 kg, the recommended friction load 2 kg, the gripping force 130 N, and the stroke 65 mm in separate rows.
This article uses only the payload line on the product page and states which line it cannot replace.
Before handing off to a colleague
Load acceptance is done as a separate round, not mixed into the same checklist as appearance acceptance. Prepare three labels: rated or envelope, friction recommendation or self-weight, and on-site object mass. Label paper colors differ. Object mass is measured with a scale, not borrowed from the rated value. When the tool is undetermined, the label reads "Tool undetermined; do not substitute rated value for graspable mass." When both the gripper and the arm are present, both sets of labels must be attached; it is forbidden to attach only one label reading 5 kg. The 130 N label remains in Newtons. In acceptance photos, the full text of the label must be visible, to avoid only a number remaining afterward. The scale and the specification sheet must not be placed in the same grid. On the on-site record sheet, the left side is the scale reading and unit, and the right side is the original specification sentence. When the numbers on both sides are close, extra care is needed to prevent copying into the wrong column. Close is not equal. When 5 kg appears twice, the column names must differ, for example, single-arm rated and envelope grip. When archiving photos, capture the column names. Photos showing only numbers are non-compliant. If the gripping force is given in Newtons, the record sheet does not provide a kilogram conversion column, to avoid on-site personnel mentally overwriting the original value.
First, the scale reading and the original specification sentence are listed separately.
Second, do not merge even if the numbers are close.
Third, if 5 kg appears twice, the column names must differ.
Fourth, delete after converting Newtons to kilograms.
Fifth, if the tool is undetermined, do not substitute rated load for graspable mass.
Sixth, the photo must show the column name.
