Back to News & Insights
Product Insights

Lifting dual-arm teleoperation platform | Power supply: only use the wording on the page — if there are no hours, do not state battery life

The power row should only retain terms that appear on the page. The battery is lithium iron phosphate, DC 48V 20Ah. This document dated 2026-08-03 does not state runtime in hours. Do not fill in approximately 6 hours, and do not rewrite it as 48V 31Ah or approximately 4 hours. Only write hours if runtime in hours is available; if charging time is available then…

2026-10-03
TOBI
Product Insights
Lifting dual-arm teleoperation platform | Power supply: only use the wording on the page — if there are no hours, do not state battery life
Product InsightsWheeled dual-arm teleoperation robot with lift2026-10-03

The power-supply row retains only the words that appear on the page. The battery is lithium iron phosphate, DC 48V 20Ah. This material dated 2026-08-03 does not state battery life in hours. Do not fill in approximately 6 hours, and do not rewrite it as 48V 31Ah or approximately 4 hours. Hours may be written only if battery life in hours is given; if charging time is given, write charging; if voltage, current, and power are given, list them separately. Items that are not given remain not given.

Power Supply Criteria

The approximately 6 hours of the folding model cannot be lent out. The 48V 20Ah of the lift model is not followed by any hours figure. The approximately 2 hours of the wheeled humanoid is charging. The kits and grippers have no battery capacity. When all five sentences appear in one solution, each device follows its own row; they are not averaged into a single endurance figure.

Even if "approximately 6 hours" is stated, it is an order-of-magnitude figure from the product page, not the working hours measured in this article under simultaneous full-load teleoperation, multi-camera operation, and continuous movement. On-site working hours must be tested separately in writing, with test conditions recorded in the log, not written back into the specification table as if they were a factory commitment.

If the power-supply interface, circuit breaker, and wire gauge of the wheeled lifting dual-arm teleoperation body are not stated on the page, request them from the written configuration during deployment; do not fill in an ampere figure in the article. The voltage and current that are available are quoted above.

Wheeled lifting dual-arm teleoperation platform RMC-AIDAL

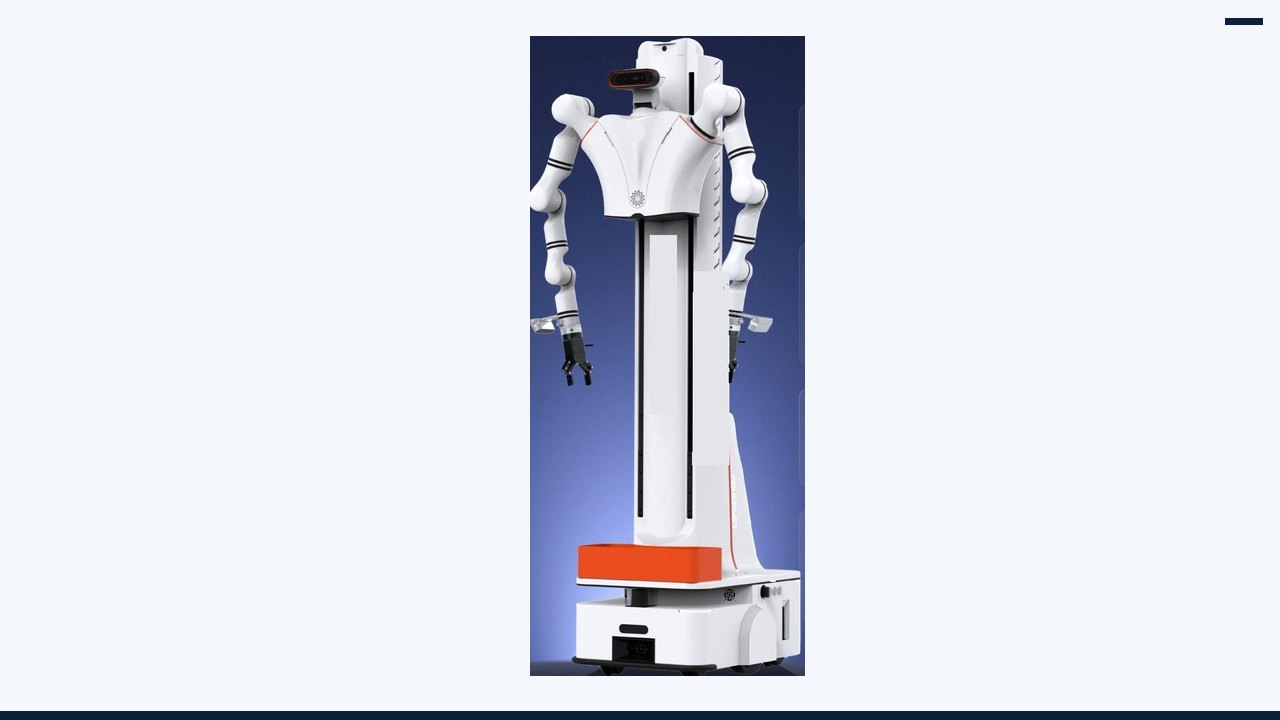

Figure 1 | Wheeled lifting dual-arm teleoperation platform. The caption only states that this is a device photo from the product page; the appearance is not interpreted as parameters not present in the table.

How to Use This Page in This Version

The power-supply column copies only fields that exist. The battery is lithium iron phosphate, DC 48V 20Ah. This material dated 2026-08-03 does not state battery life in hours. Do not fill in approximately 6 hours, and do not rewrite it as 48V 31Ah or approximately 4 hours. After copying, check whether the word "hours" appears. If there are no hours, write "battery life not given" in the column rather than leaving it blank for someone else to fill in. If there is "charging approximately 2 hours", the column is named charging, not battery life. If there is "approximately 6 h", the column name must note that it applies only to the folding model, and it must not be copied into other devices' columns.

If the kit and gripper only have voltage, current, and power, list the column header as power supply, not battery. Writing DC12V and DC24V on the same device is wrong; they belong to different columns. Writing rated power and maximum power as a single wattage is also wrong.

Approximately 6 hours, even if it exists, does not mean 6 hours under all operating conditions. If an experiment is to claim continuous operating time, write out the test conditions separately: load, speed, number of camera channels, and whether the unit is moving. Test results go in the experiment report and do not change the "approximately" on the product page. The "approximately" on the product page remains as a public order-of-magnitude figure.

When multiple devices are powered on simultaneously, do not aggregate their respective voltages into a single total amp-hour figure. If a total power-consumption estimate is needed, note that it is a project estimate, not a specification of the wheeled lifting dual-arm teleoperation robotic platform. The specification source only goes as far as /product-body-lift.html. Do not write 17 degrees of freedom for the whole machine, do not write 650×512×1700 mm, approximately 120 kg, lifting 0.3 m, vertical 0–2.1 m, speed 0.1–1.0 m/s. Do not write 8 kg as the rated load. Do not write battery life in hours.

Line-by-Line Verification

Degrees of freedom. For the robotic arm parameter table, model RM75-B-V has 7 degrees of freedom for a single arm. The product page does not publish the total degrees of freedom for the whole system; do not fill in 17 or 20. This row only states the number of joints and body parts that have already been made public. It does not evaluate intelligence, and it does not automatically include waist, legs, neck, or a whole-system total that is not named on the page. When writing the action vector, create channels only for body parts listed in this row; leave unlisted body parts blank. Do not write blanks as 0, because 0 would be treated by the training script as a real angle. Do not fill in the degrees-of-freedom integer from another device to complete this row. If the master-slave joint order is not given on the page, mark it as pending written configuration confirmation; do not number it yourself. The joint count does not provide endurance. The action vector creates channels only for the body parts named in this row; unlisted body parts remain blank and are not filled with 0.

Payload and mass. Rated payload per arm: 5 kg. The 8 kg in the parameter table is the weight of a single arm. The dual-arm rated payload of 8 kg previously written on the cover conflicts with the parameter table; the parameter table takes precedence. Approximately 80 kg for the whole machine is the total machine mass. The numbers in this row must be read together with their subject: rated, self-weight, total machine mass, envelope, friction, or gripping force. If the subjects differ, they cannot be merged into a single number, nor can any conversion not given on the page be performed. If objects in the field are heavier, this does not allow the specification to be changed retroactively; a larger specification also does not prove that every grasping method reaches that limit. The tool mass is undetermined; do not write the arm's rated payload as the mass of the object that can be grasped. The acceptance table retains the original units. Payload conditions change actual power consumption, but do not rewrite the battery row. During acceptance, read the subject first and then the number; if the subjects differ, split them into two rows.

Dimensions and scale. Model RMC-AIDAL. Stowed dimensions: 640 × 450 × 1780 mm. Chassis: 640 × 450 × 250 mm. This row is an outline or structural scale, used to check doorways, elevators, tabletops, or transport; it is not the operating height, nor is it the arm reach. Do not add it to the vertical range. If a figure shows protrusions, antennas, or a person's standing position that are not in this row, note separately that they are not part of the specification. If weight appears in an adjacent row, do not write it into the dimension sentence. The outline does not include battery compartment capacity. Doorways, elevators, and transport are checked only against the outline; do not treat this row as the operating height.

Operating range. Lifting stroke 900 mm; vertical working range 0–2.4 m (also written as 0–2400 mm in the table). Single-arm reach 633 mm. Overhang beyond the chassis on one side: 790 mm; the original text does not mark a unit at that point, and it appears alongside millimeters in the same sentence, so externally write 790 mm and retain this note. This row describes the range that the hand or the lift can reach; the definition must follow the original sentence: vertical working range, arm reach, motion radius, or stroke. These cannot be added together or renamed. If "excluding end effector" is written, it must remain in the figure caption. When the original text does not mark a unit, retain the note "unit not specified"; do not delete it for the sake of tidiness. The lifting stroke is not converted into power-consumption time. The figure caption retains the range definitions from the original sentence, as well as the words "excluding end" or "unit not specified".

Motion. Two-wheel differential drive, speed 1.5 m/s, climbing 5°. Positioning accuracy ±10 mm / ±3°. This row describes how the ground unit or main arm moves. Four-wheel steering, four-wheel drive, differential drive, in-place rotation radius, and rotational speed are terms for different mechanisms and cannot be substituted for one another. Published speed is a capability, not a recommended teaching speed; teaching can be slower, but the slower speed is recorded under experimental conditions and is not written back into the spec. Pages that do not state climbing or positioning should not borrow from other pages. Speed capability is not converted into runtime. Teaching speed can be lower, but the lower speed is recorded under operating conditions and does not change this row's published capability.

Power. The battery is lithium iron phosphate, DC 48V 20Ah. This document dated 2026-08-03 does not state runtime in hours. Do not fill in approximately 6 hours, and do not rewrite it as 48V 31Ah or approximately 4 hours. This row retains only the electrical terms that appear on the page: voltage, capacity, runtime, charging, current, or power. If "hours" is not present, state that runtime is not given; do not fill in hour values from adjacent pages. Do not rename charging time as runtime. Rated and maximum values must be listed separately. Preserve "approximately" where it appears. Do not sum the amp-hour values of multiple devices and present the total as the battery of a single device. This is the primary electrical row. Write hours only if hours are present; write charging only if charging is present. Any hours, charging, or current that do not appear remain as not given; do not copy them in from adjacent pages.

Perception and computing. Main controller: Nvidia Jetson AGX Orin 64G, plus a 1T solid-state drive. Standard vision configuration: D435 ×1, wide-angle cameras ×2, voice module ×1. If the cover states 3 depth channels plus 2 wide-angle channels, this conflicts with the list; the list governs the specification. D435 row: ideal ranging 0.3–3 m; depth ≤1280×720, ≤90 fps; RGB 1920×1080, 30 fps; field of view 69°×42°; rolling shutter. Navigation lists separately: depth camera ×1, IMU + encoder ×1, LiDAR ×1, safety touch edge ×1, ultrasonic ×2. This row inventories the items explicitly stated in the sensors, computing, or communications sections, and preserves the terms standard, included, optional, and optional-order. An unchecked optional item does not count. When the cover and the list conflict, cite the list, while not pretending the cover statement does not exist. Head-mounted devices and gloves do not enter this row. Processors, storage capacity, or camera channel counts that are not written out must not be drawn into the system diagram. Multiple camera channels being open simultaneously does not mean the specification already includes the hours for that operating condition. Optional sensors that were not purchased do not enter this data dictionary.

End effector. The recommended configuration lists gripper CTAG2F90-D ×2. The standard configuration quantity table does not include a gripper. RMG22-65 is a separate product page. This row states where contact or grasping occurs. Quick-change, compatible, and recommended are not models included in the box. The finger-ring fixture on the main arm is not an end-effector gripper. Force, stroke, and payload remain as stated in their respective rows and are not merged into a single system metric because they are mounted on a particular body. For flange and protocol mappings that are not provided, write "to be confirmed" rather than "plug and play." The gripper's 24 V does not automatically equal the body's battery voltage. "Supports" or "compatible" without a model number cannot be treated as delivered.

Boundary. The standard configuration robotic arm is written as RM65-B-V ×2, while the model in the robotic arm parameter table is RM75-B-V. Keep both models, lock them before ordering, and do not collapse them into one. This line is a deliberately separated boundary on the page: another model, another column, another product page, or an interface that still requires project confirmation after modularization. The boundary is not a defect note; it is to prevent verbally buying two pages as one. When writing a proposal, copy the boundary into "not included in this session." If equipment not included is added later, open a new configuration form rather than going back to change the body name in the old sample. Kit voltages follow the column and are not merged into a single power supply. Equipment within the boundary must be ordered separately; do not rename the old sample to say it already includes it.

Configuration column. The recommended configuration is RM75-B-V ×2, two-wheel differential-drive chassis ×1, gripper CTAG2F90-D ×2. Teleoperation options are servo teleoperation, backpack teleoperation, and mobile teleoperation; these are not included in the standard configuration quantity table. This row distinguishes standard, recommended, and optional. Recommended and optional items are not delivered unless checked. When the standard row and the parameter table row conflict, keep both rows and use "locked for this order" to indicate which one is actually delivered, rather than striking out one row in the order without sign-off. Price and lead time are not written into this row's paraphrase. If an optional 5G or wireless module has power consumption, it is not counted when not selected. Unchecked recommended and optional items are written as not delivered on the order.

Excerptable. The following may be copied into an appendix: RMC-AIDAL; 640×450×1780 mm; approximately 80 kg; lift 900 mm; vertical 0–2.4 m; arm reach 633 mm; rated 5 kg; self-weight 8 kg; repeatability ±0.05 mm; differential drive 1.5 m/s; slope climbing 5°; positioning ±10 mm / ±3°; Orin 64G + 1T SSD; lithium iron phosphate DC 48V 20Ah, hours not given. This row is the type of content that can be pasted into an appendix: it has a subject, units, and can be traced back to the original sentence on the product page. When pasting, preserve "approximately," "excludes," "not given," "optional," and "recommended." Do not convert and keep only the result. If the same number has different meanings on two pages, write it as two rows in the appendix. Do not mix test protocols into specification excerpts. The appendix electrical row must not add hours that do not appear. When pasting into the appendix, paste the words "approximately," "excludes," and "optional" along with the values.

Do not write. Do not write 17 degrees of freedom for the whole machine, 650×512×1700 mm, approximately 120 kg, lifting 0.3 m, vertical 0–2.1 m, or speed 0.1–1.0 m/s. Do not write 8 kg as the rated payload. Do not write battery life in hours. This row is a negative statement for review purposes. It does not describe what the equipment can do; it only prevents hours, degrees of freedom, payload subjects, or cover slogans from adjacent pages from being written in. If a negative statement is hit, revert to the original sentence on the product page; do not interpret it as "close enough." Success rates from external papers and total hours not published on this site must likewise not be written in. Approximately 6 hours, charging approximately 2 hours, and hours not given must not be substituted for one another. If a draft search hits a negative statement, revert to the original sentence on the product page.

ProjectsPublic-Facing Positioning of This Page
Degrees of FreedomIn the robotic arm parameter table, model RM75-B-V has 7 degrees of freedom per arm. The product page does not publish the total degrees of freedom for the whole unit; do not fill in 17 or 20.
Load and MassSingle-arm rated payload 5 kg. The 8 kg in the parameter table is the single-arm self-weight. The cover previously stated a dual-arm rated payload of 8 kg, which conflicted with the parameter table; the parameter table takes precedence. The total unit weight of approximately 80 kg is the overall mass.
Form Factor and ScaleModel RMC-AIDAL. Folded dimensions 640 × 450 × 1780 mm. Chassis 640 × 450 × 250 mm.
Operating RangeLifting stroke 900 mm, vertical working range 0–2.4 m (also written as 0–2400 mm in the table). Single-arm reach 633 mm. Single-side overhang beyond the chassis is 790 mm; the original text did not specify a unit at that point, but since it appears alongside millimeters in the same sentence, it is written externally as 790 mm with this note retained.
MotionTwo-wheel differential drive, speed 1.5 m/s, climbing slope 5°. Positioning accuracy ±10 mm / ±3°.
PowerThe battery is lithium iron phosphate DC 48V 20Ah. This document dated 2026-08-03 does not state battery life in hours. Do not add approximately 6 hours, and do not rewrite it as 48V 31Ah or approximately 4 hours.
Perception & ComputeMain controller Nvidia Jetson AGX Orin 64G, with an additional 1T solid-state drive. Standard vision configuration is D435 ×1, wide-angle cameras ×2, voice module ×1. If the cover states 3 depth channels plus 2 wide-angle channels, this conflicts with the list; the specifications follow the list. D435 row: ideal ranging 0.3–3 m; depth ≤1280×720, ≤90 fps; RGB 1920×1080, 30 fps; field of view 69°×42°; rolling shutter. Navigation separately lists depth camera ×1, IMU + encoder ×1, LiDAR ×1, safety edge ×1, ultrasonic ×2.
End EffectorThe recommended configuration lists gripper CTAG2F90-D ×2. The standard configuration quantity table does not include a gripper. RMG22-65 is a separate product page.
BoundaryThe standard configuration lists the robotic arm as RM65-B-V ×2, while the robotic arm parameter table lists the model as RM75-B-V. Both model numbers are retained; lock one before placing the order — do not collapse them into a single number.
Configuration PanelRecommended configuration is RM75-B-V ×2, two-wheel differential chassis ×1, gripper CTAG2F90-D ×2. Teleoperation options are servo teleoperation, backpack teleoperation, and mobile teleoperation; these are not included in the standard configuration quantity table.
ExcerptableAttachment copy: RMC-AIDAL; 640×450×1780 mm; approximately 80 kg; lifting 900 mm; vertical 0–2.4 m; reach 633 mm; rated 5 kg; self-weight 8 kg; repeatability ±0.05 mm; differential drive 1.5 m/s; slope climbing 5°; positioning ±10 mm / ±3°; Orin 64G + 1T SSD; lithium iron phosphate DC 48V 20Ah, hours not specified.
Do not writeDo not write 17 degrees of freedom for the whole unit, and do not write 650×512×1700 mm, approximately 120 kg, lifting 0.3 m, vertical 0–2.1 m, speed 0.1–1.0 m/s. Do not write 8 kg as the rated payload. Do not write battery life in hours.
Wheeled lifting dual-arm teleoperation platform; the product page currently publishes only this one main image.
Figure 2 | The same main image as at the beginning of the article. The product page does not have a second publicly available angle of the chassis, so no photo of a different model is substituted here.

Relationship to Public Methods and Adjacent Pages

The battery row only states the chemistry, voltage, and capacity written on the page, and—only when stated—endurance or charging time. A table without an hour figure cannot be filled in with "same voltage, so roughly six hours." The folding model lists lithium iron phosphate, DC 48 V, 20 Ah, endurance approximately 6 hours; this sentence belongs only to the folding model. The lift model also lists lithium iron phosphate, DC 48 V, 20 Ah, but the documentation does not give an endurance figure in hours; the approximately 6 hours cannot be added in articles, contracts, or verbally. The wheeled humanoid states 40 Ah and charging approximately 2 hours; charging time is not endurance time.

The specification table for the isomorphic teleoperation kit has no battery row. Neither the kit page nor the gripper page uses empty sentences such as "battery or battery life: see table below." The master arm supply voltage is read by column: the two remote force-feedback master arms are DC 24 V, and the local isomorphic kit is DC 12 V.

Endurance also depends on operating conditions. Even though the folding type has published approximately 6 hours, that is a magnitude from the product page, not the working hours measured in this article under full-load teleoperation, continuous lifting, and multiple camera streams running simultaneously. On-site working hours are governed by the written test conditions.

This article only restates the fields present in this product's power row, and names the sentence it refuses to inherit.

Before handing off to a colleague

The power column is made into a single-line physical label affixed to the device. The label contains only the words from the original sentence. If there is no hour figure, it is printed as "No endurance given", to prevent someone from filling in 6 hours on the duty roster. The label for charging time is printed as "Charging", not "Endurance". Devices with different voltages are affixed with different labels, to prevent the claim that a DC12V device is connected to DC24V from being treated as already verified. When multiple devices are used simultaneously, labels are not merged. If an operating-condition duration test is to be performed, the test record is kept in a separate book and does not overwrite the label. Two copies of the label are printed: one affixed to the device and one to the duty roster. The text of both copies must be identical. If someone hand-writes an hour figure on the duty roster with a pen, the pen mark is erased in favor of the label, and a note is made on the duty roster: "Not given on the page; hours must not be handwritten." Devices with different voltages do not share a single power description. If an operating-condition test yields a duration, the report title reads "Project Test", and the first line reads "Not a product specification."

First, labels contain only the original sentence.

Second, if there are no hours, print that battery life is not specified.

Third, charging is not renamed as runtime.

Fourth, different voltages do not share documentation.

Fifth, handwritten hours are erased and the label takes precedence.

Sixth, the operating-condition duration title reads project test.

Continue Reading

Back to Product Center View this product page

This article was written on October 3, 2026, for selection and specification verification purposes. Device parameters are subject to the product page tables and do not constitute a supply commitment. External papers only illustrate how problems are framed in the industry; their success rates and data scales belong to the original authors' experiments and are not TOBI's measured results. Phone: +86 137 5502 0164.
