Lifting Dual-Arm Teleoperation Body | Order the Primary Arm by Column: force feedback availability and voltage must not be merged into one table

Place orders for the master and slave sides separately. The standard configuration lists the robotic arm as RM65-B-V ×2, while the robotic arm parameter sheet lists the model as RM75-B-V. Keep both models and lock them in before placing the order; do not collapse them into one. The recommended configuration is RM75-B-V ×2, two-wheel differential-drive chassis ×1, gripper CTAG2…

2026-10-03
TOBI
Product Insights
Lifting Dual-Arm Teleoperation Body | Order the Primary Arm by Column: force feedback availability and voltage must not be merged into one table
Product InsightsWheeled dual-arm teleoperation robot with lift2026-10-03

The master end and the slave end are ordered separately. The standard configuration lists the robotic arm as RM65-B-V ×2, while the robotic arm specification sheet lists the model as RM75-B-V. Keep both model designations; lock them before placing the order and do not collapse them into one. The recommended configuration is RM75-B-V ×2, two-wheel differential-drive chassis ×1, and gripper CTAG2F90-D ×2. The teleoperation options are servo teleoperation, backpack teleoperation, and mobile teleoperation; these are not included in the standard configuration quantity table. The three columns of the kit differ in force feedback, voltage, rotational speed, resolution, and grip form. The local column has no force feedback, but all three columns list zero-force gravity compensation. Zero-force gravity compensation must not be treated as a synonym for force feedback.

Master-slave workstation

If the remote end is a wheeled lift dual-arm teleoperation robotic platform, the main-end column name must still be written separately. If servos, backpack, or mobility appear in the lift model's options, that is an installation form, not a selection of GLN-RX75 or the local column.

The main arm's motion radius is a desktop scale. 709 mm, 474 mm, and 599 mm must not be written into the slave-side reach. The slave-side reach is still governed by the slave-side page.

In the contract, there is one line for the master end, one line for the slave end, and one line for the end effector. All three lines point to specific URLs in the product center, not to a generic entry such as "one teleoperation system." The wheeled lifting dual-arm teleoperation body corresponds to /product-body-lift.html.

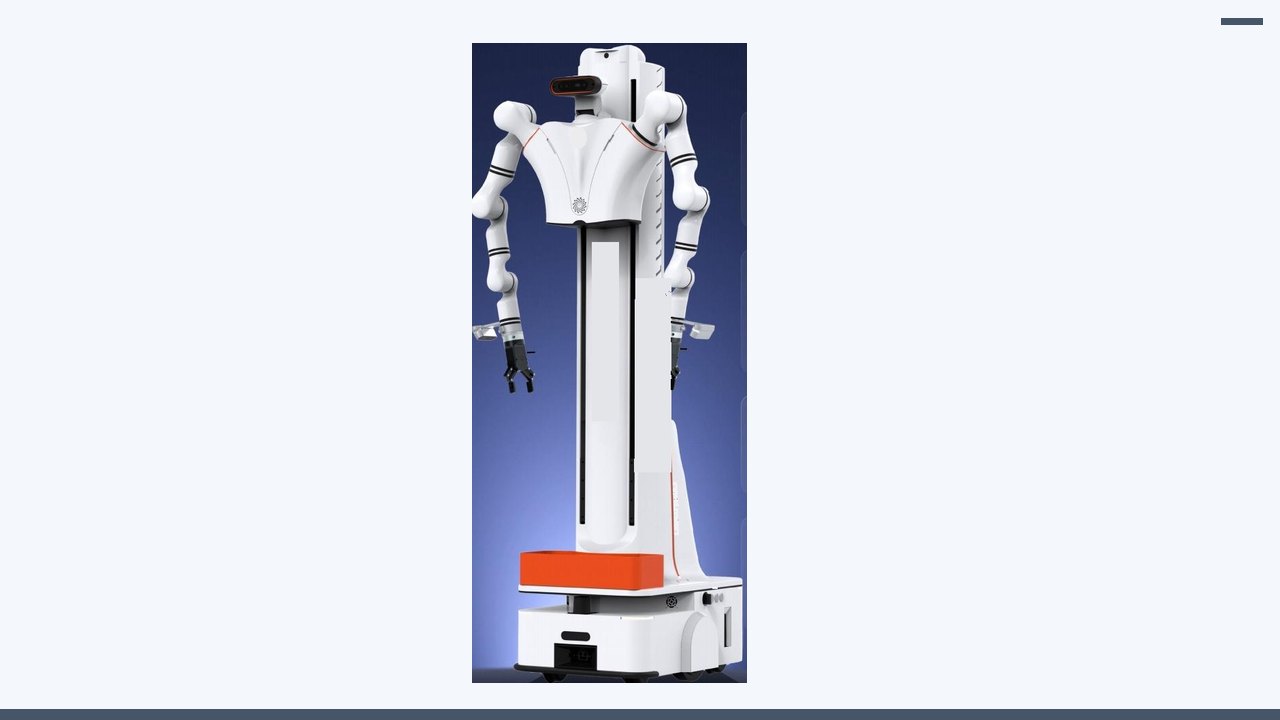

Wheeled lifting dual-arm teleoperation platform RMC-AIDAL
Figure 1 | Wheeled lifting dual-arm teleoperation platform. The caption only states that this is a device photo from the product page; the appearance is not interpreted as parameters not present in the table.

How to Use This Page in This Version

Teleoperation procurement is always multiple line items. The wheeled lifting dual-arm teleoperation platform occupies only one line. The master controller is a separate line, and it must be one of three columns: GLN-RX75, GLN-RX71, or a locally sourced isomorphic kit. The first two columns support force feedback; the local column does not. All three columns list zero-force gravity-compensated dragging, so "can be dragged" cannot be used to prove force feedback capability.

Voltage, power, rotational speed, resolution, grip, motor, and interface are all copied column by column. The first two columns are DC24V, the local column is DC12V. The first two columns are 30 RPM, ±0.003°, handle, integrated joint, RJ45. The local column is 110 RPM, 0.088°, rail-type ring fixture, bus servo, RJ45 / 10-pin aviation connector, self-weight approximately 1.5 kg including the fixture. The motion radius of 709 / 474 / 599 mm is the primary arm, not the distal arm reach.

The slave-side arm reach, degrees of freedom, and rated load are still governed by the slave-side page. If the lift model is equipped with a servo, backpack, or mobile configuration, that is an optional installation and does not automatically equate to a particular column of the main arm. The folding model and wheeled humanoid do not include the kit in the standard row. The gripper is listed on a separate row.

When all three lines are blank, do not begin recording "teleoperation data." What is recorded is only the log of a single device, and the action space is incomplete. Only after the lines are fully filled in can the data dictionary reference the column names. /product-body-lift.html is the source for the line corresponding to the wheeled lifting dual-arm teleoperation body. Do not write 17 degrees of freedom for the whole machine. Do not write 650×512×1700 mm, approximately 120 kg, lift 0.3 m, vertical 0–2.1 m, speed 0.1–1.0 m/s. Do not write 8 kg as the rated payload. Do not write battery life in hours.

Line-by-Line Verification

Degrees of freedom. For the robotic arm specification sheet model RM75-B-V, the degrees of freedom of a single arm is 7. The product page does not publish the degrees of freedom of the whole machine; do not fill in 17 or 20. This line only states the number and locations of joints that have already been made public. It does not evaluate intelligence, and it does not automatically include the waist, legs, neck, or whole-machine total that are not named on the page. When writing the action vector, create channels only for the body parts listed in this line; body parts not listed remain blank. Do not write blank as 0, because 0 will be treated by the training script as a real angle. Do not fill in the degrees-of-freedom integer from another device to make this line add up. If the master–slave joint order is not given on the page, mark it as pending written configuration confirmation and do not number it yourself. Whether the master end has 7 joints and the slave end has the same number, the mapping must still be written; do not omit it just because both are 7. The action vector creates channels only for the body parts named in this line; body parts not named remain blank, not filled with 0.

Payload and mass. The rated payload of a single arm is 5 kg. The 8 kg in the specification sheet is the self-weight of a single arm. The dual-arm rated 8 kg previously written on the cover conflicts with the specification sheet; the specification sheet takes precedence. Approximately 80 kg for the whole machine is the whole-machine mass. The numbers in this line must be read with their subjects: rated, self-weight, whole-machine mass, envelope, friction, or gripping force. If the subjects differ, they cannot be merged into a single number, nor can conversions not given on the page be performed. If an object on site is heavier, the specification cannot be changed retroactively; conversely, a larger specification does not prove that every grasping method reaches that limit. The tool mass is undetermined; do not write the arm's rated value as the mass of the object that can be grasped. The acceptance table retains the original units. The self-weight of the master arm is not the rated value of the slave end. During acceptance, read the subject first and then the number; if the subjects do not match, split them into two lines.

Dimensions and scale. Model RMC-AIDAL. Stowed dimensions 640 × 450 × 1780 mm. Chassis 640 × 450 × 250 mm. This line describes the external or structural dimensions, used to check doorways, elevators, tabletops, or transport; it is not the operating height, nor is the arm reach. Do not add it to the vertical range. If the figure depicts protrusions, antennas, or a person's standing position that are not in this line, note separately that they are not part of the specification. If weight appears in an adjacent line, do not write it into the dimension sentence. The motion radius of the master arm is not the external dimension of the slave end. Doorways, elevators, and transport are checked only against the external dimensions; do not treat this line as the operating height.

Operating range. Lifting stroke 900 mm, vertical working range 0–2.4 m (also written as 0–2400 mm in the table). Single-arm reach 633 mm. Single-side overhang beyond the chassis 790 mm; the original text does not mark a unit at that point, and it appears alongside millimeters in the same sentence, so write it externally as 790 mm and retain this note. This row describes the range that the hand or lift can reach; the definition must follow the original sentence: vertical working range, reach, motion radius, or stroke — these cannot be added together or renamed. If "excluding end-effector" is written, it must remain in the figure caption. When the original text does not mark a unit, retain the "unit not specified" note; do not delete it for the sake of tidiness. The slave arm reach is not written into the master arm column. The figure caption retains the range definition from the original sentence, as well as the phrases "excluding end-effector" or "unit not specified."

Motion. Two-wheel differential drive, speed 1.5 m/s, climbing 5°. Positioning accuracy ±10 mm / ±3°. This row describes how the ground platform or the main arm moves. Four-wheel steering and four-wheel drive, differential drive, in-place rotation radius, and rotational speed are terms for different mechanisms and cannot be substituted for one another. Published speed is a capability, not a recommended teaching speed; teaching can be slower, but the slower value is recorded under experimental operating conditions and is not written back into the specification. Pages that do not list climbing grade or positioning should not borrow from other pages. Main arm rotational speed and follower chassis speed are listed separately. Teaching speed can be lower, but the lower value is recorded under operating conditions and does not change the published capability in this row.

Power. The battery is lithium iron phosphate, DC 48V 20Ah. This 2026-08-03 document does not state runtime in hours. Do not fill in approximately 6 hours, and do not rewrite it as 48V 31Ah or approximately 4 hours. This line retains only the electrical terms that appear on the page: voltage, capacity, runtime, charging, current, or power. If "hours" is absent, write that runtime is not given; do not fill the blank with hours from an adjacent page. Do not rename charging time as runtime. Rated and maximum values must be listed separately. Preserve "approximately" for approximate values. Do not sum the ampere-hours of multiple devices and present the total as the battery of a single device. List the main arm voltage by column; do not merge it with the end battery into a single power source. Hours, charging, or current that do not appear must remain as not given and must not be copied in from an adjacent page.

Perception and computing. Main controller: Nvidia Jetson AGX Orin 64G, plus a 1T solid-state drive. Standard vision configuration: D435 ×1, wide-angle cameras ×2, voice module ×1. If the cover states 3 depth channels plus 2 wide-angle channels, that conflicts with the list; the specification follows the list. D435 row: ideal ranging 0.3–3 m; depth ≤1280×720, ≤90 fps; RGB 1920×1080, 30 fps; field of view 69°×42°; rolling shutter. Navigation separately lists depth camera ×1, IMU + encoder ×1, LiDAR ×1, safety edge ×1, ultrasonic ×2. This row enumerates items already specified under sensors, computing, or communications, and retains the terms standard, included, optional, and configurable. Unchecked optional items do not count. When the cover conflicts with the list, cite the list while not pretending the cover statement does not exist. Head-mounted and glove items do not belong in this row. Do not draw processors, drive capacities, or camera channel counts into the system diagram if they are not written out. Angular resolution is listed per column; 0.088° and ±0.003° must not be averaged. Optional sensors not purchased do not enter this data dictionary.

End effector. The recommended configuration lists the gripper CTAG2F90-D ×2. The standard configuration quantity table does not include a gripper. RMG22-65 is a separate product page. This line states at which end contact or gripping occurs. Quick-change, compatible, and recommended are not models already included in the box. The ring gripper on the master arm is not the gripper of the slave end. Force, stroke, and payload are still retained as they appear in their respective lines; they are not merged into a single system metric just because they are mounted on a particular body. For flange and protocol mappings that are not given, write "pending confirmation," not "plug and play." The ring gripper and the slave-end gripper are two ends. "Supports" or "compatible" without a model number cannot be treated as delivered.

Boundary. The standard configuration lists the robotic arm as RM65-B-V ×2, while the robotic arm specification sheet lists the model as RM75-B-V. Keep both model designations; lock them before placing the order and do not collapse them into one. This line is a boundary deliberately separated on the page: another model, another column, another product page, or an interface that still requires project confirmation after modularization. The boundary is not a defect description; it prevents verbally buying two pages as one. When writing a proposal, copy the boundary into "not included in this order." If a device not included is added later, open a new configuration sheet; do not go back and change the body name in the old sample. Force feedback exists only in the columns that state support. Zero-force gravity compensation appears in all three columns and cannot be treated as force feedback. Devices within the boundary must be ordered separately; do not rename the old sample to say it already includes them.

Configuration column. The recommended configuration is RM75-B-V ×2, two-wheel differential chassis ×1, gripper CTAG2F90-D ×2. Remote-operation options are servo remote operation, backpack-style remote operation, and mobile remote operation; these are not included in the standard configuration quantity table. This row distinguishes standard, recommended, and optional items. Recommended and optional items are not delivered unless checked. When the standard row and the parameter table row are inconsistent, keep both rows and use "locked for this order" to indicate which one is actually delivered, rather than striking out one row in the order without sign-off. Price and lead time are not written into this row's restatement. The installation form of the end-side option is not a column name for the main arm. Unchecked recommended and optional items are written as not delivered on the order.

Excerptable. Attachment may copy: RMC-AIDAL; 640×450×1780 mm; approximately 80 kg; lift 900 mm; vertical 0–2.4 m; arm reach 633 mm; rated 5 kg; self-weight 8 kg; repeatability ±0.05 mm; differential drive 1.5 m/s; slope climbing 5°; positioning ±10 mm / ±3°; Orin 64G + 1T SSD; lithium iron phosphate DC 48V 20Ah, hours not given. This is the type of line that can be pasted into an attachment: with a subject, with units, and traceable back to the original sentence on the product page. When pasting, preserve words like approximately, excluding, not given, optional, recommended. Do not convert and keep only the result. If the same number has different meanings on two pages, write it as two lines in the attachment. Do not mix test protocols into the specification excerpt. The order needs at least two lines: primary-side column name, secondary-side page name. Add one more line at the end. When pasting into the attachment, paste together with words like approximately, excluding, optional.

Do not write. Do not write 17 degrees of freedom for the whole machine. Do not write 650×512×1700 mm, approximately 120 kg, lift 0.3 m, vertical 0–2.1 m, speed 0.1–1.0 m/s. Do not write 8 kg as the rated payload. Do not write battery life in hours. This line is a negative statement for review purposes. It does not describe what the device can do; it only prevents hours, degrees of freedom, payload subjects, or cover slogans from the neighboring page from being written in. If a negative statement is hit, revert to the original sentence on the product page; do not interpret it as "close enough." Success rates from external papers and total hours not published on this site must likewise not be written in. The combined sentence "one teleoperation kit, with force feedback" is prohibited. If a manuscript search hits a negative statement, revert to the original sentence on the product page.

ProjectsPublic-Facing Positioning of This Page
Degrees of FreedomIn the robotic arm parameter table, model RM75-B-V has 7 degrees of freedom per arm. The product page does not publish the total degrees of freedom for the whole unit; do not fill in 17 or 20.
Load and MassSingle-arm rated payload 5 kg. The 8 kg in the parameter table is the single-arm self-weight. The cover previously stated a dual-arm rated payload of 8 kg, which conflicted with the parameter table; the parameter table takes precedence. The total unit weight of approximately 80 kg is the overall mass.
Form Factor and ScaleModel RMC-AIDAL. Folded dimensions 640 × 450 × 1780 mm. Chassis 640 × 450 × 250 mm.
Operating RangeLifting stroke 900 mm, vertical working range 0–2.4 m (also written as 0–2400 mm in the table). Single-arm reach 633 mm. Single-side overhang beyond the chassis is 790 mm; the original text did not specify a unit at that point, but since it appears alongside millimeters in the same sentence, it is written externally as 790 mm with this note retained.
MotionTwo-wheel differential drive, speed 1.5 m/s, climbing slope 5°. Positioning accuracy ±10 mm / ±3°.
PowerThe battery is lithium iron phosphate DC 48V 20Ah. This document dated 2026-08-03 does not state battery life in hours. Do not add approximately 6 hours, and do not rewrite it as 48V 31Ah or approximately 4 hours.
Perception & ComputeMain controller Nvidia Jetson AGX Orin 64G, with an additional 1T solid-state drive. Standard vision configuration is D435 ×1, wide-angle cameras ×2, voice module ×1. If the cover states 3 depth channels plus 2 wide-angle channels, this conflicts with the list; the specifications follow the list. D435 row: ideal ranging 0.3–3 m; depth ≤1280×720, ≤90 fps; RGB 1920×1080, 30 fps; field of view 69°×42°; rolling shutter. Navigation separately lists depth camera ×1, IMU + encoder ×1, LiDAR ×1, safety edge ×1, ultrasonic ×2.
End EffectorThe recommended configuration lists gripper CTAG2F90-D ×2. The standard configuration quantity table does not include a gripper. RMG22-65 is a separate product page.
BoundaryThe standard configuration lists the robotic arm as RM65-B-V ×2, while the robotic arm parameter table lists the model as RM75-B-V. Both model numbers are retained; lock one before placing the order — do not collapse them into a single number.
Configuration PanelRecommended configuration is RM75-B-V ×2, two-wheel differential chassis ×1, gripper CTAG2F90-D ×2. Teleoperation options are servo teleoperation, backpack teleoperation, and mobile teleoperation; these are not included in the standard configuration quantity table.
ExcerptableAttachment copy: RMC-AIDAL; 640×450×1780 mm; approximately 80 kg; lifting 900 mm; vertical 0–2.4 m; reach 633 mm; rated 5 kg; self-weight 8 kg; repeatability ±0.05 mm; differential drive 1.5 m/s; slope climbing 5°; positioning ±10 mm / ±3°; Orin 64G + 1T SSD; lithium iron phosphate DC 48V 20Ah, hours not specified.
Do not writeDo not write 17 degrees of freedom for the whole unit, and do not write 650×512×1700 mm, approximately 120 kg, lifting 0.3 m, vertical 0–2.1 m, speed 0.1–1.0 m/s. Do not write 8 kg as the rated payload. Do not write battery life in hours.
Wheeled lifting dual-arm teleoperation platform; the product page currently publishes only this one main image.
Figure 2 | The same main image as at the beginning of the article. The product page does not have a second publicly available angle of the chassis, so no photo of a different model is substituted here.

Relationship to Public Methods and Adjacent Pages

The master-slave isomorphic kit is the main end, and the base unit is the slave end. The page has two tables, and the order usually has two lines. The kit itself has three columns, and merging them into "one teleoperation kit" is prohibited.

GLN-RX75: Supports force feedback, main arm length 709 mm, self-weight 7.8 kg, grip is a handle, 7 degrees of freedom, joint angle resolution ±0.003 degrees, zero-force dragging, rated speed 30 rpm, integrated joints, RJ45, DC 24 V, total power consumption no more than 200 W, main arm model RX75 in the YDS series. GLN-RX71: Also supports force feedback, length 474 mm, self-weight 3.8 kg, power consumption no more than 100 W, main arm model RX71; other interaction forms and the 75's same-category items follow that column's cell. Local isomorphic kit: Does not support force feedback, isomorphic to the slave arm, length 599 mm, grip is a rail-type ring fixture, angular resolution 0.088 degrees, self-weight including fixture approximately 1.5 kg, speed 110 rpm, bus servos, RJ45 or 10-pin, DC 12 V, rated power 84 W, main arm model YDS-DAP-75/65/RX75S.

If the main unit page lists servos, backpack, and mobile base as optional teleoperation modes, that is an installation configuration, not a selection already made from one of the three columns above. Force feedback exists only in the first two columns.

This article explains the interface relationship between this product and the three-column kit: which includes which, and which must be ordered separately.

Before handing off to a colleague

The master-slave order is placed in the upper and lower columns of a single sheet, with no "one system set" allowed in between. The upper column is the column name of one of three columns; the lower column is the slave-side product page name. Force feedback is checked only in the upper column and only when the first two columns are selected. When the local column is selected, the force feedback checkbox prints as unsupported, even if zero-force dragging is supported. Voltage is filled in according to the upper column. If an end effector is needed, use the third sheet; do not cram it into the notes between the upper and lower columns. A horizontal line is printed between the upper and lower columns, with "not the same device" written on the line. Column names use a dropdown rather than free text; the dropdown has only three columns. Free text will produce statements like "teleoperation kit" that cannot be mapped to a cell. The force feedback checkbox automatically locks to unsupported when the local column is selected, and cannot be changed back. The voltage field is likewise locked by column. A form whose lock fails cannot be saved.

First, the upper and lower rows are not the same machine.

Second, column names can only be one of three options.

Third, the force-feedback column is fixed to "not supported."

Fourth, zero-force drag does not change the previous entry.

Fifth, voltage is locked to its column.

Sixth, the end effector uses the third sheet. The three sheets are filed separately: master side, slave side, end effector. If any one sheet is missing, do not create the collection directory. Once the directory is created, someone will start putting files into it.
