Product Insights

Lifting dual-arm teleoperation platform | Compare three platforms side by side: folding, lifting, and wheeled humanoid — each from its own spec sheet

Three robot bodies plus one kit plus one gripper make five cards, not one averaged parameter. When comparing, each row contains only that page's own sentences. The reason the wheeled lifting dual-arm teleoperation body is selected in this article can only come from its own sentences: the single-arm degrees of freedom for model RM75-B-V in the robot arm parameter table is 7. The product page…

2026-10-03
TOBI
Product Insights
Lifting dual-arm teleoperation platform | Compare three platforms side by side: folding, lifting, and wheeled humanoid — each from its own spec sheet
Product InsightsWheeled dual-arm teleoperation robot with lift2026-10-03

Three bodies plus one kit plus one gripper make five cards, not one averaged parameter set. When comparing, place only that page's own sentences in each row. The reasons the wheeled lift dual-arm teleoperation body is selected in this article can only come from its own sentences: the single-arm degrees of freedom for robotic arm parameter table model RM75-B-V is 7. The product page does not publish the whole-machine degrees of freedom; do not fill in 17 or 20. Lift travel 900 mm, vertical working range 0–2.4 m (also written as 0–2400 mm in the table). Single-arm reach 633 mm. Extending 790 mm beyond the chassis on one side; the original text does not mark a unit at that point, and it appears alongside millimeters in the same sentence, so externally write 790 mm and retain this note. Two-wheel differential drive, speed 1.5 m/s, climbing 5°. Positioning accuracy ±10 mm / ±3°. The battery is lithium iron phosphate DC 48V 20Ah. This material dated 2026-08-03 does not state battery life in hours. Do not fill in approximately 6 hours, and do not rewrite it as 48V 31Ah or approximately 4 hours.

Three-way comparison

Quantities that cannot be used for ranking include: degree-of-freedom integers, whole-machine mass, battery amp-hours, and whether force feedback is present. Their definitions differ. Force feedback belongs to the kit's column, not to the three base units' default configurations. Endurance hours are only stated for the folding model.

The wheeled lift dual-arm teleoperation body is usually selected because the item cited above happens to be the constraint of the task: height, doorway width, differential drive or four-wheel steering, in-place rotation, the primary arm column, or the gripper's force and travel. Not because a number in some row is larger.

The other two units in the comparison table are governed by their respective product pages. This article does not write their numbers into the order for the wheeled lift dual-arm teleoperation body. The product center separates the five cards precisely for this procedure.

Wheeled lifting dual-arm teleoperation platform RMC-AIDAL

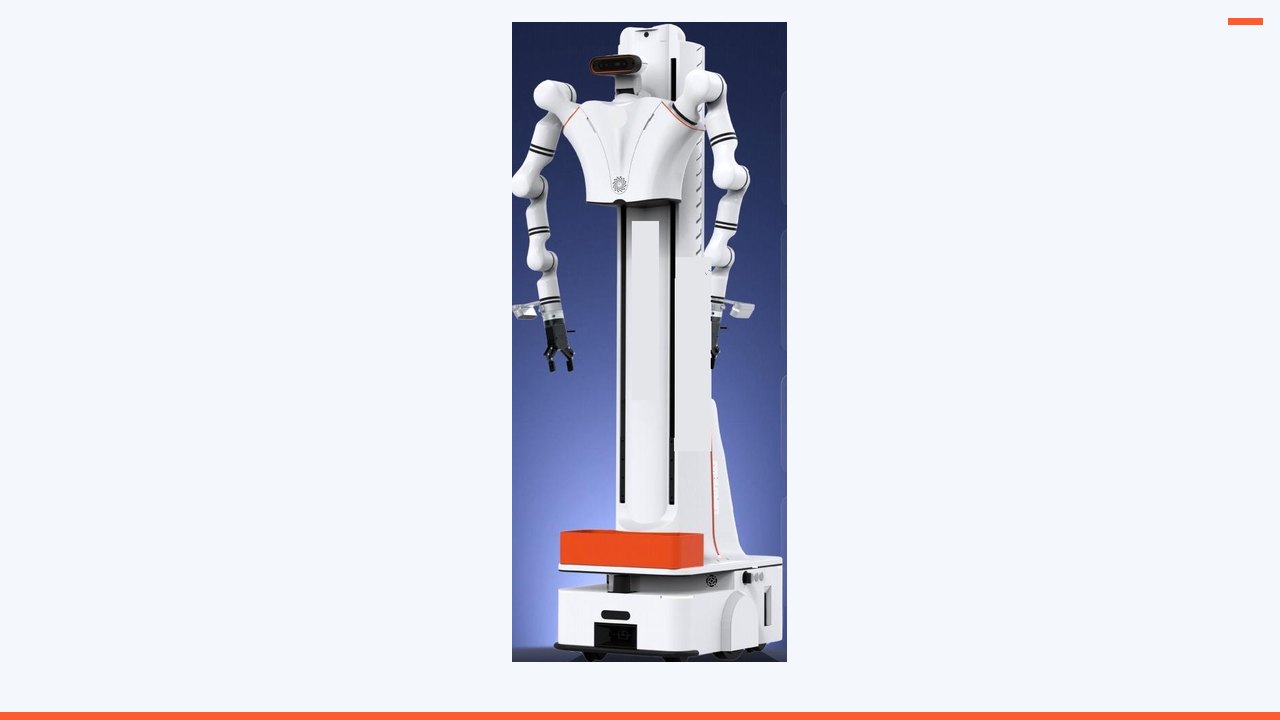

Figure 1 | Wheeled lifting dual-arm teleoperation platform. The caption only states that this is a device photo from the product page; the appearance is not interpreted as parameters not present in the table.

How to Use This Page in This Version

In the selection comparison table, each cell contains only that page's original sentence, not adjectives. The column for the wheeled lift dual-arm teleoperation body must contain at least: the single-arm degrees of freedom for robotic arm parameter table model RM75-B-V is 7. The product page does not publish the whole-machine degrees of freedom; do not fill in 17 or 20. Model RMC-AIDAL. Stowed dimensions 640 × 450 × 1780 mm. Chassis 640 × 450 × 250 mm. Lift travel 900 mm, vertical working range 0–2.4 m (also written as 0–2400 mm in the table). Single-arm reach 633 mm. Extending 790 mm beyond the chassis on one side; the original text does not mark a unit at that point, and it appears alongside millimeters in the same sentence, so externally write 790 mm and retain this note. Two-wheel differential drive, speed 1.5 m/s, climbing 5°. Positioning accuracy ±10 mm / ±3°. The battery is lithium iron phosphate DC 48V 20Ah. This material dated 2026-08-03 does not state battery life in hours. Do not fill in approximately 6 hours, and do not rewrite it as 48V 31Ah or approximately 4 hours. The rated payload of a single arm is 5 kg. The 8 kg in the parameter table is the self-weight of a single arm. The dual-arm rated 8 kg once written on the cover conflicts with the parameter table; the parameter table takes precedence. The approximately 80 kg for the whole machine is the overall mass. Other columns are copied from their corresponding product pages; do not fill them in from memory in this article. Memory is most likely to fill in approximately 6 hours, 900 mm, 690 mm and 21 degrees of freedom into the wrong columns.

Do not rank. Do not rank degrees of freedom, mass, amp-hours, or speed as "higher is better." If the task involves a narrow doorway, a width limit of 465 mm may be more relevant than larger dimensions; if the task involves overhead work, vertical range or vertical reach is what matters; if the task involves master-slave force feedback, leave the embodiment column and look at the first two columns of the kit.

Kits and grippers do not go into the three-column rig table. Each occupies its own row. Writing force feedback into the folding-model cell, or writing 130 N into the wheeled-humanoid cell, is a column violation.

The conclusion of the comparison is written as "because a certain cell matches the task," not as "overall stronger." The matching cell must be clickable at /product-body-lift.html. If it cannot be clicked, the selection is not complete. Do not write 17 degrees of freedom for the whole machine, 650×512×1700 mm, approximately 120 kg, lift 0.3 m, vertical 0–2.1 m, speed 0.1–1.0 m/s. Do not write 8 kg as the rated payload. Do not write battery life in hours.

Line-by-Line Verification

Degrees of freedom. The single-arm degrees of freedom for robotic arm parameter table model RM75-B-V is 7. The product page does not publish the whole-machine degrees of freedom; do not fill in 17 or 20. This row only states the number and locations of joints that have already been made public. It does not evaluate intelligence, and it does not automatically include waist, legs, neck or a whole-machine total that is not named on the page. When writing into an action vector, create channels only for the body parts listed in this row; body parts not listed remain blank. Do not write blank as 0, because 0 would be treated by training scripts as a real angle. Do not fill in the degrees-of-freedom integer from another device after this row to make the numbers add up. If the master-slave joint order is not given on the page, mark it as pending written configuration confirmation; do not number it yourself. The cell in the comparison table contains only this page's original sentence on degrees of freedom. The action vector creates channels only for the body parts named in this row; unnamed body parts remain blank and are not filled with 0.

Load and mass. Single-arm rated load 5 kg. The 8 kg in the parameter table is the single-arm self-weight. The dual-arm rated figure 8 kg once written on the cover conflicts with the parameter table; the parameter table takes precedence. The overall figure of approximately 80 kg is the total system mass. This row's numbers must be read aloud with their subject: rated load, self-weight, total system mass, envelope, friction, or gripping force. If the subjects differ, they cannot be merged into a single number, nor can any conversion not given on the page be performed. If objects in the field are heavier, the specification cannot be revised in reverse; a larger specification likewise does not prove that every grasping method reaches that limit. Tool mass is undetermined—do not write the arm's rated load as the graspable object mass. The acceptance table retains its original units. The comparison table does not place the masses of the three units into a single "load" cell. During acceptance, read the subject first and the number second; if the subjects are inconsistent, split them into two rows.

Form factor and dimensions. Model RMC-AIDAL. Stowed dimensions 640 × 450 × 1780 mm. Chassis 640 × 450 × 250 mm. This row describes form factor or structural dimensions, used to verify doorways, elevators, tabletops, or transport — it is not operating height, nor is it reach. Do not add it to the vertical range. If the diagram shows protrusions, antennas, or human positions not present in this row, note separately that they are not part of the specification. If weight appears in an adjacent row, do not include it in the dimension sentence. Each of the three units has its own form-factor cell. Doorways, elevators, and transport are verified against form factor only; do not treat this row as operating height.

Operating range. Lift travel 900 mm, vertical working range 0–2.4 m (also written as 0–2400 mm in the table). Single-arm reach 633 mm. Extending 790 mm beyond the chassis on one side; the original text does not mark a unit at that point, and it appears alongside millimeters in the same sentence, so externally write 790 mm and retain this note. This row describes the range the hand or lift can reach; the definitions must follow the original sentence: vertical working range, reach, motion radius or travel — these cannot be added together or renamed. If "excluding end effector" is written, it must remain in the figure caption. When the original text does not mark a unit, retain the note "unit not specified"; do not delete it for the sake of tidiness. Vertical range, lift travel and vertical arm reach are not merged into a company standard height. The figure caption retains the range definitions from the original sentence, as well as the phrases "excluding end" or "unit not specified."

Motion. Two-wheel differential drive, speed 1.5 m/s, climbing 5°. Positioning accuracy ±10 mm / ±3°. This row describes how the base or primary arm moves. Four-wheel steering, differential drive, in-place rotation radius and rotational speed are terms for different mechanisms; they cannot substitute for one another. The published speed is a capability, not a recommended teaching speed; teaching may be slower, but a slower speed is recorded under experimental conditions and is not written back as a specification. Pages that do not state climbing or positioning should not borrow from other pages. The three mobility terms each occupy their own cell. Teaching speed may be lower, but a lower speed is recorded under operating conditions and does not change the published capability in this row.

Power. The battery is lithium iron phosphate DC 48V 20Ah. This material dated 2026-08-03 does not state battery life in hours. Do not fill in approximately 6 hours, and do not rewrite it as 48V 31Ah or approximately 4 hours. This row retains only the electrical terms that appear on the page: voltage, capacity, battery life, charging, current or power. If there are no "hours," write that battery life is not given; do not fill in the blank with hours from an adjacent page. Do not rename charging time as battery life. Rated and maximum values are listed in separate columns. Approximate values retain "approximately." Do not sum the amp-hours of multiple devices and present the total as one device's battery. Hours appear only in cells where hours are written. Hours, charging or current that do not appear remain as not given; do not copy them in from an adjacent page.

Sensing and computing. Main controller Nvidia Jetson AGX Orin 64G, with an additional 1T solid-state drive. Standard vision configuration is D435 ×1, wide-angle camera ×2, voice module ×1. If the cover states 3 depth channels plus 2 wide-angle channels, that conflicts with the list; the specification follows the list. D435 row: ideal ranging 0.3–3 m; depth ≤1280×720, ≤90 fps; RGB 1920×1080, 30 fps; field of view 69°×42°; rolling shutter. Navigation separately lists depth camera ×1, IMU + encoder ×1, LiDAR ×1, safety contact edge ×1, ultrasonic ×2. This row inventories the items already specified in sensing, computing or communications, and retains the terms standard, included as standard, optional and configurable. An optional item not selected does not count. When the cover and the list conflict, cite the list, while not pretending the cover sentence does not exist. Head-mounted devices and gloves do not enter this row. Processors, drive capacities or camera channel counts not written out should not be drawn into the system diagram. Camera configuration does not participate in body ranking. Optional sensors not purchased do not enter this data dictionary.

End effector. The recommended configuration lists gripper CTAG2F90-D ×2. The standard configuration quantity list has no gripper. RMG22-65 is a separate product page. This row states where contact or gripping occurs. Quick-change, compatible and recommended are not models already in the box. The finger-ring fixture on the primary arm is not an end-of-arm gripper. Force, travel and payload are still retained as-is in their respective rows; they are not merged into a single system metric because they are mounted on a particular body. Flange and protocol mappings not given are written as pending confirmation, not as plug-and-play. End effectors are not written into the capability score of the body comparison. "Supports" or "compatible" without a model number cannot be treated as delivered.

Boundaries. The standard configuration lists the robotic arm as RM65-B-V ×2, while the robotic arm specification table lists the model as RM75-B-V. Both model names are retained; lock the selection before ordering and do not collapse them into one. This line is a deliberate boundary on the page: a different model, a different column, a different product page, or an interface that still requires project confirmation after modularization. The boundary is not a defect note; it prevents verbally buying two pages as one. When writing a proposal, copy the boundary into "Not included in this scope." If an excluded device is added later, open a new configuration sheet; do not go back and change the body name in the old sample. The kit column and the gripper row do not mix into the three body columns. Devices within the boundary must be ordered separately; do not rename the old sample to imply that it already includes them.

Configuration column. The recommended configuration is RM75-B-V ×2, two-wheel differential-drive chassis ×1, gripper CTAG2F90-D ×2. Teleoperation options are servo teleoperation, backpack teleoperation, and mobile teleoperation, which are not included in the standard configuration quantity table. This row distinguishes standard, recommended, and optional items. Recommended and optional items that are not checked will not be delivered. When the standard row is inconsistent with the parameter table row, keep both rows and use "locked for this order" to indicate which one is actually delivered, rather than striking out one of the rows in the order without sign-off. Prices and lead times are not written into the paraphrase of this row. Recommended items are not written as standard on all three units. Unchecked recommended and optional items are written as not delivered on the order.

Excerptable. The following may be copied into an appendix: RMC-AIDAL; 640×450×1780 mm; approximately 80 kg; lift 900 mm; vertical 0–2.4 m; reach 633 mm; rated 5 kg; self-weight 8 kg; repeatability ±0.05 mm; differential drive 1.5 m/s; slope climbing 5°; positioning ±10 mm / ±3°; Orin 64G + 1T SSD; lithium iron phosphate DC 48V 20Ah, hours not given. This is the type of line that can be pasted into an appendix: it has a subject, has units, and can be traced back to the original sentence on the product page. When pasting, retain the words "approximately," "not included," "not given," "optional," and "recommended." Do not convert units and keep only the result. If the same number has different meanings on two pages, write it as two lines in the appendix. Do not mix test protocols into specification excerpts. A selection conclusion cites the matching cell; it does not claim overall superiority. When pasting into the appendix, paste the words "approximately," "not included," and "optional" along with the numbers.

Do not write. Do not write 17 degrees of freedom for the whole machine, 650×512×1700 mm, approximately 120 kg, lifting 0.3 m, vertical 0–2.1 m, or speed 0.1–1.0 m/s. Do not write 8 kg as the rated payload. Do not write battery life in hours. This line is a negative statement for review purposes. It does not describe what the equipment can do; it only prevents hours, degrees of freedom, payload subjects, or cover slogans from an adjacent page from being written in. If a negative statement is hit, revert to the original sentence on the product page; do not interpret it as "close enough." Success rates from external papers and total hours not published on this site must likewise not be written in. Remove numbers listed in a row from the comparison table. If a manuscript search hits a negative statement, revert to the original sentence on the product page.

ProjectsPublic-Facing Positioning of This Page
Degrees of FreedomIn the robotic arm parameter table, model RM75-B-V has 7 degrees of freedom per arm. The product page does not publish the total degrees of freedom for the whole unit; do not fill in 17 or 20.
Load and MassSingle-arm rated payload 5 kg. The 8 kg in the parameter table is the single-arm self-weight. The cover previously stated a dual-arm rated payload of 8 kg, which conflicted with the parameter table; the parameter table takes precedence. The total unit weight of approximately 80 kg is the overall mass.
Form Factor and ScaleModel RMC-AIDAL. Folded dimensions 640 × 450 × 1780 mm. Chassis 640 × 450 × 250 mm.
Operating RangeLifting stroke 900 mm, vertical working range 0–2.4 m (also written as 0–2400 mm in the table). Single-arm reach 633 mm. Single-side overhang beyond the chassis is 790 mm; the original text did not specify a unit at that point, but since it appears alongside millimeters in the same sentence, it is written externally as 790 mm with this note retained.
MotionTwo-wheel differential drive, speed 1.5 m/s, climbing slope 5°. Positioning accuracy ±10 mm / ±3°.
PowerThe battery is lithium iron phosphate DC 48V 20Ah. This document dated 2026-08-03 does not state battery life in hours. Do not add approximately 6 hours, and do not rewrite it as 48V 31Ah or approximately 4 hours.
Perception & ComputeMain controller Nvidia Jetson AGX Orin 64G, with an additional 1T solid-state drive. Standard vision configuration is D435 ×1, wide-angle cameras ×2, voice module ×1. If the cover states 3 depth channels plus 2 wide-angle channels, this conflicts with the list; the specifications follow the list. D435 row: ideal ranging 0.3–3 m; depth ≤1280×720, ≤90 fps; RGB 1920×1080, 30 fps; field of view 69°×42°; rolling shutter. Navigation separately lists depth camera ×1, IMU + encoder ×1, LiDAR ×1, safety edge ×1, ultrasonic ×2.
End EffectorThe recommended configuration lists gripper CTAG2F90-D ×2. The standard configuration quantity table does not include a gripper. RMG22-65 is a separate product page.
BoundaryThe standard configuration lists the robotic arm as RM65-B-V ×2, while the robotic arm parameter table lists the model as RM75-B-V. Both model numbers are retained; lock one before placing the order — do not collapse them into a single number.
Configuration PanelRecommended configuration is RM75-B-V ×2, two-wheel differential chassis ×1, gripper CTAG2F90-D ×2. Teleoperation options are servo teleoperation, backpack teleoperation, and mobile teleoperation; these are not included in the standard configuration quantity table.
ExcerptableAttachment copy: RMC-AIDAL; 640×450×1780 mm; approximately 80 kg; lifting 900 mm; vertical 0–2.4 m; reach 633 mm; rated 5 kg; self-weight 8 kg; repeatability ±0.05 mm; differential drive 1.5 m/s; slope climbing 5°; positioning ±10 mm / ±3°; Orin 64G + 1T SSD; lithium iron phosphate DC 48V 20Ah, hours not specified.
Do not writeDo not write 17 degrees of freedom for the whole unit, and do not write 650×512×1700 mm, approximately 120 kg, lifting 0.3 m, vertical 0–2.1 m, speed 0.1–1.0 m/s. Do not write 8 kg as the rated payload. Do not write battery life in hours.
Wheeled lifting dual-arm teleoperation platform; the product page currently publishes only this one main image.
Figure 2 | The same main image as at the beginning of the article. The product page does not have a second publicly available angle of the chassis, so no photo of a different model is substituted here.

Relationship to Public Methods and Adjacent Pages

Do not merge the three platforms into a single product-line spec. The folding dual-arm, lift dual-arm, and wheeled humanoid platforms solve different ground and manipulation-height problems. The purpose of comparison is selection, not proving that one unit is "more advanced." Degrees of freedom count, total mass, and battery capacity cannot be ranked, because their definitions differ.

Folding type: 20 active degrees of freedom, four-wheel steering with drive, vertical 0–2.1 m, dimensions approximately 614×552×1700 mm, mass approximately 125 kg, 48 V 20 Ah, endurance approximately 6 hours, single-arm rated load 5 kg. Lift type: model RMC-AIDAL, folded dimensions 640×450×1780 mm, mass approximately 80 kg, vertical 0–2.4 m, lift stroke 900 mm, differential drive, single-arm rated load per the arm table is 5 kg, the self-weight 8 kg is the arm mass; battery 48 V 20 Ah but no endurance in hours; whole-machine degrees of freedom not published. Wheeled humanoid: 21 active degrees of freedom (arms 14, waist 3, legs 2, neck 2), dimensions 570×465×1680 mm, mass approximately 125 kg, turning radius 690 mm, 40 Ah, charging approximately 2 hours, single-arm rated load 5 kg.

Kits and grippers do not participate in this base-unit comparison. They are separate line items.

This article uses comparison to help choose that product, and specifies on which point it cannot be interchanged with the other two.

Before handing off to a colleague

After completing the comparison table, cover the other columns, read only the selected column, and ask yourself: is the task constraint one of the cells in this column? If you cannot name that cell, you have not finished selecting. Do not add or average numbers across several columns before selecting. If kits and grippers are written into the embodiment column, the entire table is void and must be rewritten. The conclusion sentence uses only "because a certain cell matches," never "composite score." Every cell in the table can point to the corresponding product page. The comparison table uses paper or a spreadsheet, not a paragraph. A paragraph will inevitably use "and" to link the numbers of two devices, and readers will remember them as one device. Each cell holds only one original sentence. If it does not fit, wrap to a new line; do not abbreviate it into a new number. After selecting, fold the unselected columns and clip only the selected column into the experiment plan. Unselected columns remain in the selection archive and do not appear on the wall at the capture site, to prevent on-site personnel from mixing them up.

First, use a table, not a paragraph.

Second, one original sentence per cell.

Third, do not average, do not add.

Fourth, kits and grippers do not go in the main unit column.

Fifth, the conclusion should only state that a particular cell matches.

Sixth, unselected columns are not posted at the capture site. After selection, copy the original sentence from that cell into the first page of the experiment plan and write the product page path. If the first page does not contain the original sentence, on-site personnel will fall back on memory — and memory is the source of column violations.

Continue Reading

Back to Product Center View this product page

This article was written on October 3, 2026, for selection and specification verification purposes. Device parameters are subject to the product page tables and do not constitute a supply commitment. External papers only illustrate how problems are framed in the industry; their success rates and data scales belong to the original authors' experiments and are not TOBI's measured results. Phone: +86 137 5502 0164.
