Isomorphic teleoperation kit | Compare three platforms side by side: folding, lifting, and wheeled humanoid — each from its own spec sheet

Three units plus one kit plus one gripper make five cards, not a single averaged parameter. When comparing, each row should contain only that page's own statements. The reason the isomorphic teleoperation kit is selected in this article can only come from its own statements: all three columns have 7 degrees of freedom, and they cannot be merged into one unit. The column names are GLN-RX75, G...

2026-10-03
TOBI
Product Insights
Isomorphic teleoperation kit | Compare three platforms side by side: folding, lifting, and wheeled humanoid — each from its own spec sheet
Product InsightsIsomorphic teleoperation kit2026-10-03

Three robotic platforms plus one kit plus one gripper make five cards, not a single averaged parameter set. When comparing, each row should contain only that page's own statements. The reason the isomorphic teleoperation kit is selected in this article can only come from its own statements: all three columns have 7 degrees of freedom, but this does not mean they can be merged into one unit. The column names are GLN-RX75, GLN-RX71, and local isomorphic kit. Configuration: the first two columns are humanoid configurations; the local column is a twin-arm setup. Grip: the first two columns use handles; the local column uses a rail-type ring fixture. Maximum operating speed: the first two columns are 30 RPM; the local column is 110 RPM. Drag force: all three columns state zero-force dragging. Zero-force dragging is not force feedback. Operating voltage: the first two columns are DC24V; the local column is DC12V. Power: ≤200 W, ≤100 W, rated 84 W. The spec sheet has no battery row, so do not state battery life.

Three-way comparison

Quantities that cannot be used for ranking include: degree-of-freedom integers, whole-machine mass, battery amp-hours, and whether force feedback is present. Their definitions differ. Force feedback belongs to the kit's column, not to the three base units' default configurations. Endurance hours are only stated for the folding model.

An isomorphic teleoperation kit is usually selected because the item cited above happens to be the constraint of the task: height, door width, differential drive or four-wheel steering, in-place rotation, main arm column, or the force and stroke of the gripper. Not because the numbers in one row are larger.

The other two units in the comparison table are governed by their respective product pages. This article does not write their figures into the order for the isomorphic teleoperation kit. The product center separates the five cards precisely for this procedure.

GLN-RX75 main arm, working radius 709 mm

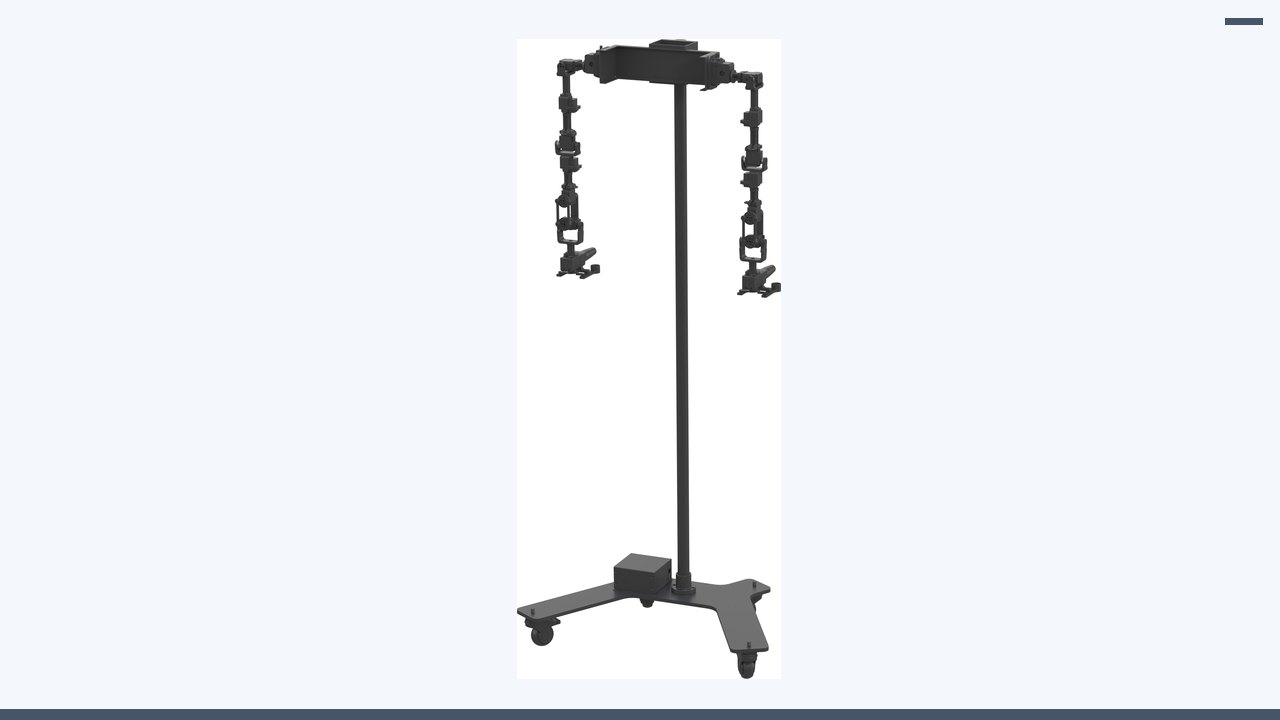

Figure 1 | Isomorphic teleoperation kit. The caption only states that this is a device photo from the product page; the appearance is not interpreted as parameters not present in the table.

How to Use This Page in This Version

Each cell of the selection comparison table contains only the original sentence from that page, with no adjectives. The isomorphic teleoperation kit column must contain at least: all three columns have 7 degrees of freedom, which cannot be merged into a single unit. The column names are GLN-RX75, GLN-RX71, and local isomorphic kit. Motion radius: 709 mm, 474 mm, 599 mm. This is the scale of the main arm, not the outline of the slave body. Configuration: the first two columns are humanoid configuration, the local column is a co-axial arm. Grip: the first two columns are handles, the local column is a rail-type ring fixture. Maximum operating speed: the first two columns are 30 RPM, the local column is 110 RPM. All three columns list zero-force dragging for drag force. Zero-force dragging is not force feedback. Operating voltage: the first two columns are DC24V, the local column is DC12V. Power: ≤200 W, ≤100 W, rated 84 W. The specification table has no battery row, so do not write endurance. Main arm self-weight: GLN-RX75 is 7.8 kg, GLN-RX71 is 3.8 kg, local isomorphic kit is approximately 1.5 kg (including fixture). Self-weight is not the rated load of the slave end. Other columns must be copied from the corresponding product pages; do not fill them in from memory in this article. Memory is most likely to fill in approximately 6 hours, 900 mm, 690 mm, and 21 degrees of freedom in the wrong columns.

Do not rank. Do not rank degrees of freedom, mass, amp-hours, or speed as "higher is better." If the task involves a narrow doorway, a width limit of 465 mm may be more relevant than larger dimensions; if the task involves overhead work, vertical range or vertical reach is what matters; if the task involves master-slave force feedback, leave the embodiment column and look at the first two columns of the kit.

Kits and grippers do not go into the three-column rig table. Each occupies its own row. Writing force feedback into the folding-model cell, or writing 130 N into the wheeled-humanoid cell, is a column violation.

The conclusion of the comparison should be written as "because a certain cell matches the task," not as "overall stronger." The matching cell must be clickable at /product-teleop-kit.html. If it cannot be clicked, the selection is not complete. Do not write "one teleoperation kit, approximately 5 kg, with force feedback." Do not merge 30 RPM and 110 RPM into a single speed, and do not merge DC24V and DC12V into a single voltage.

Line-by-Line Verification

Degrees of freedom. All three columns have 7 degrees of freedom, which cannot be merged into a single unit. The column names are GLN-RX75, GLN-RX71, and local isomorphic kit. This row only states the number and locations of joints that have already been published. It does not evaluate intelligence, and it does not automatically include waist, legs, neck, or whole-machine totals that are not named on the page. When writing into the action vector, channels are created only for the body parts listed in this row; body parts not listed remain blank. Blank must not be written as 0, because 0 would be treated by training scripts as a real angle. Do not fill in the integer degrees of freedom from another device to complete this row. If the master-slave joint order is not given on the page, mark it as pending written configuration confirmation; do not number it yourself. This cell of the comparison table contains only the original sentence about degrees of freedom on this page. The action vector creates channels only for the body parts named in this row; unnamed body parts remain blank and are not filled with 0.

Load and mass. Main arm self-weight: GLN-RX75 is 7.8 kg, GLN-RX71 is 3.8 kg, and the local isomorphic kit is approximately 1.5 kg (including fixtures). Self-weight is not the end-effector rated load. The numbers in this line must be read aloud with their subject: rated, self-weight, whole-machine mass, envelope, friction, or gripping force. If the subjects differ, they cannot be merged into a single number, nor can any conversion not given on the page be performed. If field objects are heavier, the specifications cannot be revised in reverse; a larger specification also does not prove that every grasping method reaches that limit. The tool mass is undetermined, so do not write the arm's rated value as the graspable object mass. The acceptance table retains the original units. The comparison table does not place the masses of the three units into the same "load" cell. During acceptance, read the subject first and then the number; if the subjects are inconsistent, split them into two rows.

Form and dimensions. Motion radius: 709 mm, 474 mm, 599 mm. These are the dimensions of the main arm, not the form factor of the end-effector platform. This row describes form or structural dimensions, intended for checking doorways, elevators, tabletops, or transport clearance — not operating height, and not reach. Do not add it to the vertical range. If the diagram shows protrusions, antennas, or human standing positions not listed in this row, note separately that they are not part of the specification. If weight appears in an adjacent row, do not include it in the dimension sentence. Each of the three units has its own dimension cell. Doorways, elevators, and transport checks use form factor only; this row is not an operating height.

Operating range. Configuration: the first two columns are humanoid configuration, the local column is a co-axial arm. Grip: the first two columns are handles, the local column is a rail-type ring fixture. This row describes the range that the hand or lift can reach; the definition must follow the original sentence: vertical working range, arm span, motion radius, or stroke. These cannot be added together or renamed. If "excluding end effector" is written, it must remain in the figure caption. When the original text does not specify units, retain the note "units not specified"; do not delete it for the sake of tidiness. Vertical range, lift stroke, and vertical arm span are not merged into a company standard height. The figure caption retains the range definition from the original sentence, as well as terms such as "excluding end" or "units not specified."

Motion. Maximum operating speed: the first two columns are 30 RPM, the local column is 110 RPM. All three columns list zero-force dragging for drag force. Zero-force dragging is not force feedback. This row describes how the ground or main arm moves. Four-wheel steering, differential drive, in-place rotation radius, and rotational speed are terms for different mechanisms and cannot substitute for one another. Published speed is a capability, not a recommended teaching speed; teaching can be slower, but slower speeds are recorded in experimental conditions and are not written back as specifications. Do not borrow slope-climbing or positioning data from other pages for pages that do not mention them. The three mobility terms each occupy their own cell. Teaching speed can be lower, but lower speeds are recorded in the conditions and do not change the published capability in this row.

Power. Operating voltage: the first two columns are DC24V, the local column is DC12V. Power: ≤200 W, ≤100 W, rated 84 W. The specification table has no battery row, so do not write endurance. This row retains only the electrical terms that appear on the page: voltage, capacity, endurance, charging, current, or power. If there are no "hours," write that endurance is not given; do not fill in the blank with hours from an adjacent page. Do not rename charging time as endurance. Rated and maximum values must be in separate columns. Retain "approximately" for approximate values. Do not sum the ampere-hours of multiple devices and claim them as the battery of a single device. Hours appear only in cells where hours are written. Hours, charging, or current that do not appear remain as not given and are not copied in from adjacent pages.

Perception and computing. Angular resolution: the first two columns ±0.003°, the local column 0.088°. Motors: the first two columns use integrated joints, the local column uses bus servos. Communication: the first two columns use RJ45, the local column uses RJ45 / 10-pin aviation connectors. This row inventories items already specified in perception, computing, or communication, and retains the terms standard, included as standard, optional, and optional configuration. Unchecked optional items do not count. When the cover conflicts with the checklist, cite the checklist, while not pretending the cover statement does not exist. Head-mounted devices and gloves do not enter this row. Processors, hard drive capacity, or camera channel counts that are not written out must not be drawn into the system diagram. Camera configuration does not participate in the platform ranking. Optional sensors that were not purchased do not enter this data dictionary.

End effector. The fixture in the local column is a rail-type ring fixture used to grip the main arm; it is not the RMG22-65 at the slave end. The slave-end gripper is ordered separately. This row states at which end contact or gripping occurs. Quick-change, compatible, and recommended are not models already included in the box. The ring fixture on the main arm is not the slave-end gripper. Force, stroke, and load are still retained as-is in their respective rows; they are not merged into a single system metric because they are mounted on a particular body. Flange and protocol mappings that are not given are written as pending confirmation, not as plug-and-play. End effectors are not included in the capability score of the body comparison. "Supports" or "compatible" without a model number cannot be treated as delivered.

Boundaries. Force feedback is listed as supported only for GLN-RX75 and GLN-RX71. The local isomorphic kit is listed as not supported. The main arm models are RX75, RX71, and YDS-DAP-75/65/RX75S. This row is a boundary deliberately separated on the page: another model, another column, another product page, or an interface that still requires project confirmation after modularization. The boundary is not a defect description; it prevents verbally buying two pages as one. When writing a proposal, copy the boundary into "not included in this order." If equipment not included is added later, open a new configuration sheet; do not go back and change the body name in the old sample. The kit column and the gripper row are not mixed into the three body columns. Equipment within the boundary must be ordered separately; do not rename the old sample to say it already includes it.

Configuration column. The contract must specify the column names. Purchasing the robotic platform does not by default include the kit. For remote operation, refer to the first two columns; for local data collection, refer to the third column; in either case, order by cell. This row distinguishes standard, recommended, and optional. Recommended and optional items are not delivered unless checked. If the standard row and the parameter table row are inconsistent, keep both rows and use "locked for this order" to indicate which one is actually delivered, rather than striking out one row in the order without signing off. Prices and lead times are not included in the paraphrase of this row. Recommended items must not be described as standard on all three units. Unchecked recommended and optional items must be written as not delivered on the order.

Excerptable. Accessories are copied column by column and not merged. Example: GLN-RX75, force feedback supported, 709 mm, 7.8 kg, handle, ±0.003°, 30 RPM, integrated joint, RJ45, DC24V, ≤200 W. This row is the type that can be pasted into an appendix: with a subject, with units, and traceable to the original sentence on the product page. When pasting, retain "approximately," "excluding," "not given," "optional," and "recommended." Do not convert and keep only the result. If the same number has different meanings on two pages, write it as two rows in the appendix. Test protocols must not be mixed into specification excerpts. The selection conclusion cites the matching cell, not "overall stronger." When pasting into an appendix, paste the words "approximately," "excluding," and "optional" along with the content.

Do not write. Do not write "one teleoperation kit, approximately 5 kg, with force feedback." Do not merge 30 RPM and 110 RPM into a single speed, and do not merge DC24V and DC12V into a single voltage. This line is a negative statement for editorial review. It does not describe what the device can do; it only prevents hours, degrees of freedom, load subjects, or cover slogans from adjacent pages from being written in. If a negative statement is hit, revert to the original product-page sentence; do not interpret it as "close enough." Do not write in success rates from external papers or total hours not publicly disclosed on this site. Remove serially listed numbers from the comparison table. If manuscript retrieval hits a negative statement, revert to the original product-page sentence.

ProjectsPublic-Facing Positioning of This Page
Degrees of FreedomAll three columns have 7 degrees of freedom, but this does not mean they can be merged into a single unit. The column names are GLN-RX75, GLN-RX71, and local isomorphic kit.
Load and MassMain arm self-weight: GLN-RX75 is 7.8 kg, GLN-RX71 is 3.8 kg, the local isomorphic kit is approximately 1.5 kg (including the fixture). Self-weight is not the rated payload at the end-effector.
Form Factor and ScaleWorking radius: 709 mm, 474 mm, 599 mm. These are the dimensions of the main arm, not the outline of the end unit.
Operating RangeConfiguration: the first two columns are anthropomorphic configurations; the local column is the same as the follower arm. Gripping: the first two columns use handles; the local column uses a rail-mounted finger-ring fixture.
MotionMaximum operating speed: the first two columns are 30 RPM, the local column is 110 RPM. All three columns list zero-force gravity compensation. Zero-force gravity compensation is not force feedback.
PowerOperating voltage: the first two columns are DC24V, the local column is DC12V. Power: ≤200 W, ≤100 W, rated 84 W. The specification table has no battery row, so do not state battery life.
Perception & ComputeAngular resolution: the first two columns are ±0.003°, the local column is 0.088°. Motor: the first two columns use integrated joints, the local column uses bus servos. Communication: the first two columns use RJ45, the local column uses RJ45 / 10-pin aviation connector.
End EffectorThe fixture in the local column is a rail-type ring fixture used to hold the main arm; it is not the RMG22-65 end-effector. The end-effector gripper is ordered separately.
BoundaryForce feedback is listed as supported only for GLN-RX75 and GLN-RX71. The local isomorphic kit is listed as not supported. The main arm models are RX75, RX71, and YDS-DAP-75/65/RX75S.
Configuration PanelThe contract must specify column names. Purchasing the platform does not include the kit by default. For remote operation, refer to the first two columns; for local data capture, refer to the third column; in either case, order by the individual cell.
ExcerptableTranscribe the attachments column by column; do not merge. Example: GLN-RX75, force feedback supported, 709 mm, 7.8 kg, handle, ±0.003°, 30 RPM, integrated joint, RJ45, DC24V, ≤200 W.
Do not writeDo not write "one teleoperation kit, approximately 5 kg, with force feedback." Do not write 30 RPM and 110 RPM as a single speed, and do not write DC24V and DC12V as a single voltage.
Local isomorphic kit, working radius 599 mm, no force feedback support
Figure 2 | Local isomorphic kit. It forms three columns with GLN-RX75 and GLN-RX71; it does not support force feedback, and the grip is a rail-type ring fixture.

Relationship to Public Methods and Adjacent Pages

Do not merge the three platforms into a single product-line spec. The folding dual-arm, lift dual-arm, and wheeled humanoid platforms solve different ground and manipulation-height problems. The purpose of comparison is selection, not proving that one unit is "more advanced." Degrees of freedom count, total mass, and battery capacity cannot be ranked, because their definitions differ.

Folding type: 20 active degrees of freedom, four-wheel steering with drive, vertical 0–2.1 m, dimensions approximately 614×552×1700 mm, mass approximately 125 kg, 48 V 20 Ah, endurance approximately 6 hours, single-arm rated load 5 kg. Lift type: model RMC-AIDAL, folded dimensions 640×450×1780 mm, mass approximately 80 kg, vertical 0–2.4 m, lift stroke 900 mm, differential drive, single-arm rated load per the arm table is 5 kg, the self-weight 8 kg is the arm mass; battery 48 V 20 Ah but no endurance in hours; whole-machine degrees of freedom not published. Wheeled humanoid: 21 active degrees of freedom (arms 14, waist 3, legs 2, neck 2), dimensions 570×465×1680 mm, mass approximately 125 kg, turning radius 690 mm, 40 Ah, charging approximately 2 hours, single-arm rated load 5 kg.

Kits and grippers do not participate in this base-unit comparison. They are separate line items.

This article uses comparison to help choose that product, and specifies on which point it cannot be interchanged with the other two.

Before handing off to a colleague

After completing the comparison table, cover the other columns, read only the selected column, and ask yourself: is the task constraint one of the cells in this column? If you cannot name that cell, you have not finished selecting. Do not add or average numbers across several columns before selecting. If kits and grippers are written into the embodiment column, the entire table is void and must be rewritten. The conclusion sentence uses only "because a certain cell matches," never "composite score." Every cell in the table can point to the corresponding product page. The comparison table uses paper or a spreadsheet, not a paragraph. A paragraph will inevitably use "and" to link the numbers of two devices, and readers will remember them as one device. Each cell holds only one original sentence. If it does not fit, wrap to a new line; do not abbreviate it into a new number. After selecting, fold the unselected columns and clip only the selected column into the experiment plan. Unselected columns remain in the selection archive and do not appear on the wall at the capture site, to prevent on-site personnel from mixing them up.

First, use a table, not a paragraph.

Second, one original sentence per cell.

Third, do not average, do not add.

Fourth, kits and grippers do not go in the main unit column.

Fifth, the conclusion should only state that a particular cell matches.

Sixth, unselected columns are not posted at the capture site. After selection, copy the original sentence from that cell into the first page of the experiment plan and write the product page path. If the first page does not contain the original sentence, on-site personnel will fall back on memory — and memory is the source of column violations.
