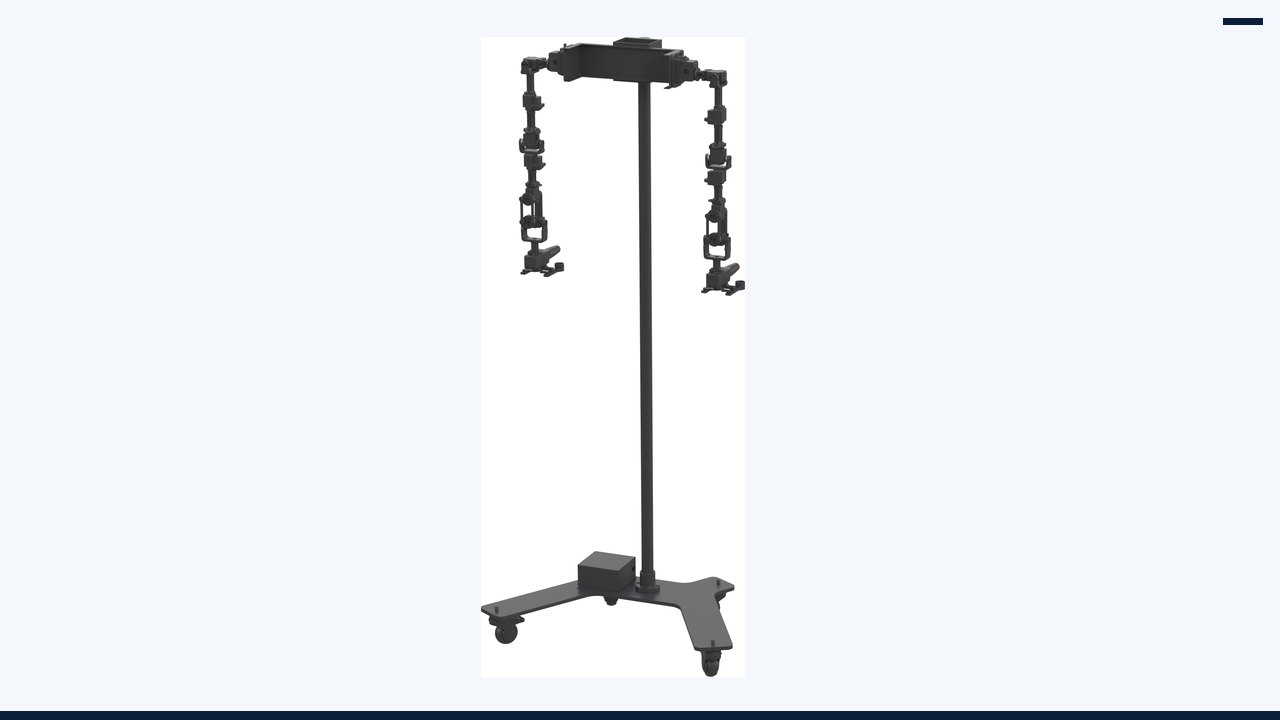

Rated load, self-weight, overall machine mass, and gripping force are four separate accounts. Main arm self-weight: GLN-RX75 is 7.8 kg, GLN-RX71 is 3.8 kg, and the local equivalent kit is approximately 1.5 kg (including fixture). Self-weight is not the rated payload at the end. When reading, first circle the unit and the subject: whose 5 kg, whose 8 kg, whose 125 kg or 80 kg or 745 g. When the subject changes, the number cannot be carried over.
Payload and self-weight
During teaching, the mass of the tool itself must also be added to the end effector. If the tool has not been selected, the arm's rated capacity cannot be written as "graspable object mass." The gripper listed locally is a rail-type ring gripper, used to hold the main arm — it is not the RMG22-65 on the slave side. The slave-side gripper is ordered separately. The envelope load and friction load on the gripper page are also not the arm's rated capacity; when both pages appear, transcribe each row from its own page.
Overload does not necessarily appear as a failed grasp in the data. It shows up as increased current, decreased speed, or changed resistance at the master end. If the record has no current or no object mass, it later becomes impossible to explain why the same trajectory is not comparable. The page for an isomorphic teleoperation kit does not provide current curves; if current is needed, list it separately in the experiment log rather than pretending the spec sheet already provides it.
Acceptance only checks the definition on that one line of the page. Friction load cannot be substituted with envelope load; self-weight cannot be substituted with rated load. Get one line wrong, and the quality labels for the entire batch of teaching data will be off.

How to Use This Page in This Version
Load language must be read line by line. Main arm self-weight: GLN-RX75 is 7.8 kg, GLN-RX71 is 3.8 kg, the local isomorphic kit is approximately 1.5 kg (including fixtures). Self-weight is not the rated payload of the slave end. When reading aloud, add a subject before each number: single-arm rated, single-arm self-weight, whole-machine mass, envelope grip, friction recommendation, clamping force. If the subject of a number cannot be stated, delete that number from the sentence.
The object side must also be listed separately. The page does not provide a general formula for summing object mass, end-tool mass, and the arm's rated capacity, so do not write "rated minus tool equals graspable object mass." When the tool is unknown, the object mass field in the record may be filled with a measured value, but the rated value must not be rewritten as that measured value. The gripper in the local column is a rail-type ring gripper, used to hold the leader arm; it is not the follower-side RMG22-65. The follower gripper is ordered separately.
When the gripper and the arm appear together, the gripper's 5 kg is an envelope figure, 2 kg is a friction-based recommendation, and 130 N is a force. None of these rewrite the arm's 5 kg rating, and the arm's 5 kg does not prove the gripper can support 5 kg by friction alone. If the isomorphic teleoperation kit is itself a gripper, do not introduce an arm's rating to "explain" the gripper.
Self-weight affects carrying and the desktop, not grasping capability. A main arm of 7.8 kg, 3.8 kg, or approximately 1.5 kg determines whether a person can hold the main arm for long periods — it does not determine how much the slave end can grasp. A whole-machine weight of approximately 125 kg or approximately 80 kg determines the floor and carrying requirements — it does not determine the single-arm rated load.
Recommended acceptance record with three columns: specification subject, specification value, on-site measured value. The measured value may be stricter, but it must not be written as a value the specification has already promised. /product-teleop-kit.html is the source for the specification column.
Line-by-Line Verification
Degrees of freedom. All three columns list 7 degrees of freedom, but this does not mean they can be merged into one machine. The column names are GLN-RX75, GLN-RX71, and the local isomorphic kit. This row only states the number and locations of joints that have already been made public. It does not evaluate intelligence, and it does not automatically include the waist, legs, neck, or whole-machine totals that are not named on the page. When writing the action vector, create channels only for the parts listed in this row; leave parts not listed blank. Do not write blank as 0, because 0 will be treated by the training script as a real angle. Do not fill in the degrees-of-freedom integer from another device to pad this row. If the master–slave joint order is not given on the page, mark it as pending written configuration confirmation and do not number it yourself. The number of joints does not prove payload capacity. The action vector creates channels only for the parts named in this row; parts not named are left blank and not filled with 0.
Load and mass. Main arm self-weight: GLN-RX75 is 7.8 kg, GLN-RX71 is 3.8 kg, and the local isomorphic kit is approximately 1.5 kg (including fixtures). Self-weight is not the rated payload at the end effector. The numbers in this line must be read aloud with their subject: rated, self-weight, total machine mass, envelope, friction, or gripping force. If the subject differs, they cannot be merged into a single number, nor can any conversion not given on the page be performed. If a field object is heavier, the specification cannot be changed retroactively; a larger specification also does not prove that every grasping method reaches that limit. The tool mass is undetermined, so do not write the arm's rated payload as the graspable object mass. The acceptance table retains the original units. This is the primary row for the load dimension, and the subject must enter the dataset's mass field description verbatim. During acceptance, read the subject first and then the number; if the subjects are inconsistent, split them into two rows.
Appearance and dimensions. Motion radius: 709 mm, 474 mm, 599 mm. These are leader-arm dimensions, not the appearance of the follower body. This row is an appearance or structural dimension, used to check doorways, elevators, tabletops, or transport; it is not operating height and not reach. Do not add it to the vertical range. If the figure shows protrusions, antennas, or a person's standing position that are not in this row, note separately that they are not part of the specification. If weight appears in an adjacent row, do not write it into the dimension sentence. If the whole-machine mass appears near the dimensions, still do not write it as grasping payload. Doorways, elevators, and transport are checked against appearance only; do not treat this row as operating height.
Operating range. Configuration: the first two columns are humanoid configuration; the local column is the same as the follower arm. Gripping: the first two columns use a handle; the local column uses a rail-type ring gripper. This row describes the range that the hand or lift can reach. The definition must follow the original wording: vertical working range, reach, motion radius, or stroke — these cannot be added together and cannot be renamed. If "excluding end effector" is stated, it must remain in the figure caption. When the original text does not specify units, keep the note "units not specified" and do not delete it for tidiness. Reach length is not converted into graspable mass. The figure caption retains the range definition from the original wording, as well as the terms "excluding end" or "units not specified."
Motion. Maximum operating speed: 30 RPM for the first two columns, 110 RPM for the local column. All three columns list zero-force gravity compensation for dragging. Zero-force dragging is not force feedback. This row describes how the ground platform or leader arm moves. Four-wheel steering, four-wheel drive, differential drive, in-place rotation radius, and rotational speed are terms for different mechanisms and cannot be substituted for one another. Published speed is a capability, not a recommended teaching speed; teaching can be slower, but the slower speed is recorded under experimental conditions and is not written back as a specification. If the page does not mention slope climbing or positioning, do not borrow from another page. Speed is not converted into transportable mass. Teaching speed can be lower, but the lower speed is recorded under conditions and does not change the published capability in this row.
Power supply. Operating voltage: DC24V for the first two columns, DC12V for the local column. Power: ≤200 W, ≤100 W, rated 84 W. The specification table has no battery row, so do not write battery life. This row retains only the electrical terms that appear on the page: voltage, capacity, battery life, charging, current, or power. If there is no "hours," write that battery life is not given; do not fill in the blank with hours from an adjacent page. Do not rename charging time as battery life. Rated and maximum values must be listed in separate columns. Keep "approximately" for approximate values. Do not sum the ampere-hours of multiple devices and claim it as the battery of a single device. Current and power are not substitute units for load. Hours, charging, or current that do not appear remain as not given; do not copy them in from an adjacent page.
Sensing and computing. Angle resolution: ±0.003° for the first two columns, 0.088° for the local column. Motor: integrated joint for the first two columns, bus servo for the local column. Communication: RJ45 for the first two columns, RJ45 / 10-pin aviation connector for the local column. This row inventories the items explicitly stated in sensing, computing, or communication, and retains the terms standard, included, optional, and selectable. Optional items that are not checked do not count. When the cover conflicts with the list, cite the list, but do not pretend the cover sentence does not exist. Head-mounted devices and gloves do not enter this row. Processors, hard-drive capacity, or camera channel counts that are not written out must not be drawn into the system diagram. Cameras do not change the rating. Optional sensors that were not purchased do not enter this data dictionary.
End effector. The gripper in the local column is a rail-type ring gripper, used to hold the leader arm; it is not the follower-side RMG22-65. The follower gripper is ordered separately. This row states at which end contact or gripping occurs. Quick-change, compatible, and recommended are not models already included in the box. The ring gripper on the leader arm is not the follower gripper. Force, stroke, and payload are each retained as-is in their respective rows; they are not merged into a single system metric just because they are mounted on a given body. Flanges and protocol mappings that are not given are written as pending confirmation, not as plug-and-play. The end effector's own force and payload are recorded in a separate table and do not overwrite the arm's or gripper's original row. "Supports" or "compatible" without a model number cannot be treated as already delivered.
Boundary. Force feedback is only written as supported for GLN-RX75 and GLN-RX71. The local isomorphic suite is written as not supported. The main arm models are RX75, RX71, YDS-DAP-75/65/RX75S respectively. This row is a boundary deliberately separated on the page: another model, another column, another product page, or an interface that still requires project confirmation after modularization. The boundary is not a defect description; it is to prevent verbally buying two pages as one. When writing the proposal, copy the boundary into "Not Included in This Order." If equipment not included is added later, open a new configuration sheet; do not go back and change the body name in old samples. The payload of another model is not automatically inherited. Equipment within the boundary must be ordered separately; do not rename old samples to indicate it is already included.
Configuration column. The contract must state the column names. Purchasing the base unit does not include the kit by default. For remote operation, refer to the first two columns; for local data acquisition, refer to the third column. Orders must still be placed per cell. This row distinguishes standard, recommended, and optional items. Recommended and optional items are not delivered unless checked. If the standard row conflicts with the parameter table row, keep both rows and use "Locked for this order" to indicate which one is actually delivered, rather than striking out one row in the order without sign-off. Prices and lead times are not written into this row's paraphrase. If the end-effector is a recommended item, the payload column must specify which model's row is used for acceptance. Unchecked recommended and optional items are marked as not delivered on the order.
Excerptable. Copy attachments column by column; do not merge. Example: GLN-RX75, force feedback supported, 709 mm, 7.8 kg, handle, ±0.003°, 30 RPM, integrated joint, RJ45, DC24V, ≤200 W. This is the type of row that can be pasted into an attachment: it has a subject, has units, and can be traced back to the original sentence on the product page. When pasting, preserve words like "approximately," "does not include," "not specified," "optional," and "recommended." Do not convert units and keep only the result. If the same number has different meanings on two pages, write it as two rows in the attachment. Do not mix test protocols into specification excerpts. In the attachment, 5 kg, 8 kg, 2 kg, and 130 N must be placed in separate columns when they appear together. When pasting into an attachment, include words like "approximately," "does not include," and "optional" along with the values.
Do not write. Do not write "one teleoperation kit, approximately 5 kg, with force feedback." Do not write 30 RPM and 110 RPM as a single rotational speed, and do not write DC24V and DC12V as a single voltage. This line is a negative statement for review purposes. It does not describe what the equipment can do; it only prevents hours, degrees of freedom, load subjects, or cover slogans from adjacent pages from being written in. If a negative statement is hit, revert to the original sentence on the product page; do not interpret it as "close enough." External paper success rates and total hours not publicly disclosed on this site must likewise not be written in. It is forbidden to write self-weight as rated load, or to convert Newtons to kilograms and then drop the Newtons. If manuscript retrieval hits a negative statement, revert to the original sentence on the product page.
| Projects | Public-Facing Positioning of This Page |
|---|---|
| Degrees of Freedom | All three columns have 7 degrees of freedom, but this does not mean they can be merged into a single unit. The column names are GLN-RX75, GLN-RX71, and local isomorphic kit. |
| Load and Mass | Main arm self-weight: GLN-RX75 is 7.8 kg, GLN-RX71 is 3.8 kg, the local isomorphic kit is approximately 1.5 kg (including the fixture). Self-weight is not the rated payload at the end-effector. |
| Form Factor and Scale | Working radius: 709 mm, 474 mm, 599 mm. These are the dimensions of the main arm, not the outline of the end unit. |
| Operating Range | Configuration: the first two columns are anthropomorphic configurations; the local column is the same as the follower arm. Gripping: the first two columns use handles; the local column uses a rail-mounted finger-ring fixture. |
| Motion | Maximum operating speed: the first two columns are 30 RPM, the local column is 110 RPM. All three columns list zero-force gravity compensation. Zero-force gravity compensation is not force feedback. |
| Power | Operating voltage: the first two columns are DC24V, the local column is DC12V. Power: ≤200 W, ≤100 W, rated 84 W. The specification table has no battery row, so do not state battery life. |
| Perception & Compute | Angular resolution: the first two columns are ±0.003°, the local column is 0.088°. Motor: the first two columns use integrated joints, the local column uses bus servos. Communication: the first two columns use RJ45, the local column uses RJ45 / 10-pin aviation connector. |
| End Effector | The fixture in the local column is a rail-type ring fixture used to hold the main arm; it is not the RMG22-65 end-effector. The end-effector gripper is ordered separately. |
| Boundary | Force feedback is listed as supported only for GLN-RX75 and GLN-RX71. The local isomorphic kit is listed as not supported. The main arm models are RX75, RX71, and YDS-DAP-75/65/RX75S. |
| Configuration Panel | The contract must specify column names. Purchasing the platform does not include the kit by default. For remote operation, refer to the first two columns; for local data capture, refer to the third column; in either case, order by the individual cell. |
| Excerptable | Transcribe the attachments column by column; do not merge. Example: GLN-RX75, force feedback supported, 709 mm, 7.8 kg, handle, ±0.003°, 30 RPM, integrated joint, RJ45, DC24V, ≤200 W. |
| Do not write | Do not write "one teleoperation kit, approximately 5 kg, with force feedback." Do not write 30 RPM and 110 RPM as a single speed, and do not write DC24V and DC12V as a single voltage. |

Relationship to Public Methods and Adjacent Pages
The most common failure in payload language is writing three quantities as one number. Rated payload is the working load the end effector may continuously carry. Self-weight is the mass of the arm or the whole machine. Gripping force is the force output by the gripper, measured in newtons, not kilograms. Envelope load and recommended friction load are also not the same number: envelope load relies on form closure, friction load relies on the contact surface, and the latter is usually smaller and depends on the material.
In teleoperation demonstrations, overload does not only manifest as "it didn't pick it up." It manifests as increased current, decreased speed, changed resistance felt by the operator at the main end, and demonstration trajectories that are not comparable to no-load calibration trajectories. Therefore, the dataset fields must at least distinguish: the arm's rated load, the actual mass of the tool mounted at the end effector, and the object mass. If the tool mass has not yet been selected, the arm's rated load cannot be written as "graspable object mass."
The lift-type arm table places the rated 5 kg and the self-weight 8 kg in adjacent rows. The 8 kg is the mass of a single arm, not the dual-arm rated load, and certainly not the "dual-arm rated 8 kg" that once appeared on the cover. The single-arm rated load of the folding type and the wheeled humanoid is also 5 kg, and likewise must not be conflated with the whole-machine mass of approximately 125 kg. The two-finger gripper RMG22-65 lists the envelope 5 kg, the recommended friction load 2 kg, the gripping force 130 N, and the stroke 65 mm in separate rows.
This article uses only the payload line on the product page and states which line it cannot replace.
Before handing off to a colleague
Load acceptance is done as a separate round, not mixed into the same checklist as appearance acceptance. Prepare three labels: rated or envelope, friction recommendation or self-weight, and on-site object mass. Label paper colors differ. Object mass is measured with a scale, not borrowed from the rated value. When the tool is undetermined, the label reads "Tool undetermined; do not substitute rated value for graspable mass." When both the gripper and the arm are present, both sets of labels must be attached; it is forbidden to attach only one label reading 5 kg. The 130 N label remains in Newtons. In acceptance photos, the full text of the label must be visible, to avoid only a number remaining afterward. The scale and the specification sheet must not be placed in the same grid. On the on-site record sheet, the left side is the scale reading and unit, and the right side is the original specification sentence. When the numbers on both sides are close, extra care is needed to prevent copying into the wrong column. Close is not equal. When 5 kg appears twice, the column names must differ, for example, single-arm rated and envelope grip. When archiving photos, capture the column names. Photos showing only numbers are non-compliant. If the gripping force is given in Newtons, the record sheet does not provide a kilogram conversion column, to avoid on-site personnel mentally overwriting the original value.
First, the scale reading and the original specification sentence are listed separately.
Second, do not merge even if the numbers are close.
Third, if 5 kg appears twice, the column names must differ.
Fourth, delete after converting Newtons to kilograms.
Fifth, if the tool is undetermined, do not substitute rated load for graspable mass.
Sixth, the photo must show the column name.
