Isomorphic teleoperation kit | Chassis wording depends on locomotion: differential drive, four-wheel steering/four-wheel drive, and in-place rotation are not interchangeable

The mobile mechanism determines how chassis actions are recorded. Maximum operating speed: first two columns 30 RPM, local column 110 RPM. All three columns list drag force as zero-force drag. Zero-force drag is not force feedback. Four-wheel drive, two-wheel differential drive, and in-place rotation radius are three different ground-level statements and cannot be rewritten into each other. Speed range and single…

2026-10-03
TOBI
Product Insights
Isomorphic teleoperation kit | Chassis wording depends on locomotion: differential drive, four-wheel steering/four-wheel drive, and in-place rotation are not interchangeable
Product InsightsIsomorphic teleoperation kit2026-10-03

The mobility mechanism determines how chassis motion is recorded. Maximum operating speed: 30 RPM in the first two columns, 110 RPM in the local column. Traction force: all three columns state zero-force dragging. Zero-force dragging is not force feedback. Four-wheel steering, two-wheel differential drive, and in-place rotation radius are three different ground statements and cannot be rewritten into one another. A speed range and a single speed value are also not interchangeable.

Mobility method

If teaching includes pushing a cart, line following, or changing workstations, the recording must include a chassis channel: at least speed or pose, plus a timestamp. Recording only the arm makes the sample incomplete for mobile manipulation. Recording only the chassis also leaves the arm missing from tabletop manipulation samples. All three columns have 7 degrees of freedom, but this does not mean they can be merged into one unit. The column names are GLN-RX75, GLN-RX71, and local isomorphic kit. How channels are split is governed by this degrees-of-freedom statement or this page's description of the chassis.

Slope climbing, positioning error, ultrasonic sensing, and bumper edges only become site conditions on pages where they are stated. Do not infer on pages where they are not stated that "since it can move, it has the same positioning accuracy." For the isomorphic teleoperation kit page, the ground statements are exactly the sentences quoted above.

Safe speed is not the maximum speed on the table. The 1.5 m/s or 0.1–1.5 m/s on the table is the publicly stated motion capability; teaching can be slower. Slower does not require changing the specification, but it must be written into the experiment record so that later readers do not assume the samples were collected at maximum speed.

GLN-RX75 main arm, working radius 709 mm

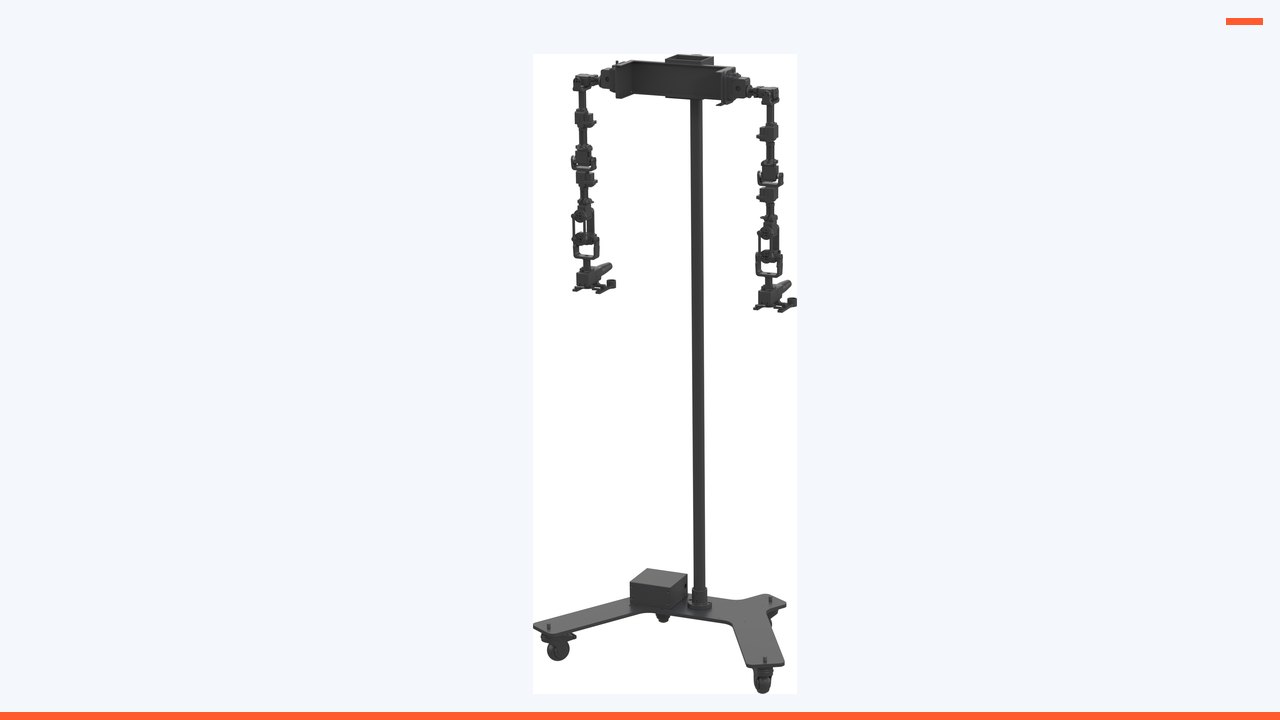

Figure 1 | Isomorphic teleoperation kit. The caption only states that this is a device photo from the product page; the appearance is not interpreted as parameters not present in the table.

How to Use This Page in This Version

How the base moves determines whether teleoperation involves mobile manipulation. Maximum operating speed: 30 RPM for the first two columns, 110 RPM for the local column. Drag force is listed as zero-force dragging in all three columns. Zero-force dragging is not force feedback. Copy this sentence into the ground column of the experiment plan verbatim; do not rewrite it as "omnidirectional" or "differential" unless the original sentence uses that term. Four-wheel four-drive is not colloquial for differential drive, in-place rotation radius is not the turning radius of a differential-drive vehicle, and a single 1.5 m/s is not shorthand for 0.1–1.5 m/s.

The recording format should include at least: timestamp, base velocity or pose, whether rotation is permitted, and emergency-stop status. Samples that record only arm joint motion cannot distinguish "the arm is moving" from "the base is moving" afterward. Samples that record only the base in a tabletop setup lack the manipulation itself. All three columns have 7 degrees of freedom; this does not mean they can be merged into a single unit. The column names are GLN-RX75, GLN-RX71, and the local isomorphic kit. If the degrees of freedom on this page do not include the base, the base channel must be listed separately rather than folded into the DOF integer.

The upper limit of speed is not the capture speed. The capture speed is written in the operating-condition column of the experiment record and may be lower than the publicly stated motion capability. The operating-condition column is not written back to the product page, nor is a single slow experiment described as a specification limited to that slow speed.

Slope, positioning accuracy, edge detection, and ultrasonic sensing become mobility conditions only on pages where they appear. If the isomorphic teleoperation kit does not have these rows, do not borrow 5° or ±10 mm from the lift-equipped model. If these rows do appear, write them into site confirmation, not into algorithm advantages. Use /product-teleop-kit.html to verify whether these rows actually exist.

Line-by-Line Verification

Degrees of freedom. All three columns have 7 degrees of freedom; this does not mean they can be merged into a single unit. The column names are GLN-RX75, GLN-RX71, and the local isomorphic kit. This row only states the number of joints and body parts that have already been publicly disclosed. It does not evaluate intelligence, and it does not automatically include waist, legs, neck, or a whole-machine total that is not named on the page. When writing the action vector, create channels only for body parts listed in this row; leave unlisted body parts blank. Do not write blanks as 0, because 0 would be treated by training scripts as a real angle. Do not fill in the degrees-of-freedom integer from another device to make the row add up. If the master–slave joint order is not given on the page, mark it as pending written configuration confirmation; do not number it yourself. If the base is not included in the degrees of freedom, record it as a separate channel. The action vector creates channels only for body parts named in this row; unlisted body parts are left blank, not filled with 0.

Payload and mass. Main arm self-weight: 7.8 kg for GLN-RX75, 3.8 kg for GLN-RX71, and approximately 1.5 kg for the local isomorphic kit (including the fixture). Self-weight is not the rated payload at the end. The numbers in this row must be read with their subject: rated, self-weight, whole-machine mass, envelope, friction, or gripping force. Different subjects cannot be merged into a single number, nor can conversions not given on the page be performed. If field objects are heavier, this does not retroactively change the specification; a larger specification also does not prove that every grasping method reaches that limit. The tool mass is undetermined; do not write the arm's rated value as the mass of graspable objects. Keep the original units in the acceptance table. Payload does not determine the steering method. During acceptance, read the subject first and then the number; if the subjects differ, split them into two rows.

Dimensions and scale. Motion radius: 709 mm, 474 mm, 599 mm. This is the scale of the main arm, not the outline of the slave unit. This row is an outline or structural dimension, used to check doorways, elevators, tabletops, or transport; it is not operating height, nor is it arm reach. Do not add it to the vertical range. If the diagram shows protrusions, antennas, or a person's standing position not listed in this row, note separately that these are not part of the specification. If weight appears in an adjacent row, do not write it into the dimension sentence. Outline width is used for passing through doorways, not for calculating rotation radius. Doorways, elevators, and transport are checked against the outline only; do not treat this row as operating height.

Operating range. Configuration: the first two columns are humanoid configuration, and the local column is a slave arm of the same type. Grip: the first two columns use a handle, and the local column uses a rail-type ring fixture. This row describes the range that the hand or lift can reach; the definition must follow the original wording: vertical working range, arm reach, motion radius, or stroke. These cannot be added together or renamed. If "excluding end effector" is written, it must remain in the figure caption. If the original text does not specify units, keep the note "units not specified"; do not delete it for tidiness. Operating height does not substitute for ground mobility. The figure caption retains the range definition from the original wording, as well as terms like "excluding end" or "units not specified."

Motion. Maximum operating speed: 30 RPM for the first two columns, 110 RPM for the local column. Drag force is listed as zero-force dragging in all three columns. Zero-force dragging is not force feedback. This row describes how the ground or main arm moves. Four-wheel four-drive, differential drive, in-place rotation radius, and rotational speed are terms for different mechanisms and cannot be substituted for one another. Published speed is a capability, not a recommended teaching speed; teaching can be slower, but the slower speed is recorded in the experimental conditions, not written back as a specification. On pages that do not mention slope climbing or positioning, do not borrow from other pages. This is the primary row for ground motion or rotational speed; mechanism terms must not be substituted. Teaching speed can be lower, but the lower speed is recorded in the conditions and does not change the published capability in this row.

Power supply. Operating voltage: DC24V for the first two columns, DC12V for the local column. Power: ≤200 W, ≤100 W, rated 84 W. The specification table has no battery row, so do not write battery life. This row retains only the electrical terms that appear on the page: voltage, capacity, battery life, charging, current, or power. If there is no "hours," write that battery life is not given; do not fill in hours from an adjacent page. Do not rename charging time as battery life. Rated and maximum values must be listed in separate columns. Keep "approximately" for approximate values. Do not sum the ampere-hours of multiple devices and claim it as the battery of a single device. Battery life does not prove that the device can run continuously at the tabled speed for that duration. Hours, charging, or current that do not appear remain as not given; do not copy them in from an adjacent page.

Sensing and computation. Angular resolution: ±0.003° for the first two columns, 0.088° for the local column. Motors: integrated joints for the first two columns, bus servos for the local column. Communication: RJ45 for the first two columns, RJ45 / 10-pin aviation connector for the local column. This row lists the items already specified in sensing, computation, or communication, and retains the terms standard, included, optional, and optional-order. Unchecked optional items do not count. If the cover conflicts with the list, cite the list while not pretending the cover statement does not exist. Head-mounted devices and gloves do not enter this row. Processors, storage capacity, or camera channel counts not written out should not be drawn into the system diagram. If radar and ultrasonics appear in the list, they are navigation conditions, not speed values. Optional sensors not purchased do not enter this data dictionary.

End effector. The fixture in the local column is a rail-type ring fixture, used to grip the main arm; it is not the RMG22-65 of the slave unit. The slave gripper is ordered separately. This row states at which end contact or gripping occurs. Quick-change, compatible, and recommended are not models already included in the box. The ring fixture on the main arm is not the slave gripper. Force, stroke, and payload remain as originally stated in their respective rows; they are not merged into a single system metric because they are mounted on a particular unit. Flanges and protocol mappings not given are marked as pending confirmation, not as plug-and-play. The end effector does not change the base drive type. "Supports" or "compatible" without a model number cannot be treated as delivered.

Boundary. Force feedback is only listed as supported for GLN-RX75 and GLN-RX71. The local isomorphic suite is listed as not supported. The main arm models are RX75, RX71, and YDS-DAP-75/65/RX75S respectively. This line is a boundary deliberately kept separate on the page: a different model, a different column, a different product page, or an interface that still requires project confirmation after modularization. The boundary is not a defect description; it is to prevent verbally purchasing two pages as one. When writing a proposal, copy the boundary into "Not Included in This Scope." If a device not included is added later, open a new configuration form; do not go back and change the body name in the old sample. Do not borrow the ramp-up or positioning data from the other device. Devices within the boundary must be ordered separately; do not rename the old sample to imply it already includes them.

Configuration column. The contract must specify the column name. Purchasing the unit does not by default include the kit. For remote operation, refer to the first two columns; for local data acquisition, refer to the third column. Ordering must still be done cell by cell. This row distinguishes standard, recommended, and optional. Unchecked recommended and optional items are not delivered. If the standard row conflicts with the parameter table row, keep both rows and use "locked for this order" to indicate which one is actually delivered, rather than striking out one row in the order without signing off. Prices and lead times are not written into this row's restatement. If the mobility mechanism is a recommended base, the order must specify whether this order is for that base. Unchecked recommended and optional items are written as not delivered on the order.

Excerptable. Copy attachments column by column; do not merge. Example: GLN-RX75, force feedback supported, 709 mm, 7.8 kg, handle, ±0.003°, 30 RPM, integrated joint, RJ45, DC24V, ≤200 W. This row is the type that can be pasted into an attachment: with subject, with units, and traceable to the original sentence on the product page. When pasting, retain "approximately," "excluding," "not given," "optional-order," and "recommended." Do not convert and keep only the result. If the same number has different meanings on two pages, write it as two rows in the attachment. Do not mix test protocols into specification excerpts. Write speed as the original range or single value; do not change it to "fastest." When pasting into an attachment, paste terms like "approximately," "excluding," and "optional-order" along with the values.

Do not write. Do not write "one teleoperation kit, approximately 5 kg, with force feedback." Do not combine 30 RPM and 110 RPM into a single rotational speed, and do not combine DC24V and DC12V into a single voltage. This row is a negative statement for review purposes. It does not describe what the equipment can do; it only prevents hours, degrees of freedom, payload subjects, or cover slogans from adjacent pages from being written in. If a negative statement is hit, revert to the original sentence on the product page; do not interpret it as "close enough." External papers' success rates and total hours not published on this site likewise should not be written in. It is forbidden to write 0.1–1.5 m/s, 1.5 m/s, and rotational speed RPM as the same speed. If a manuscript search hits a negative statement, revert to the original sentence on the product page.

ProjectsPublic-Facing Positioning of This Page
Degrees of FreedomAll three columns have 7 degrees of freedom, but this does not mean they can be merged into a single unit. The column names are GLN-RX75, GLN-RX71, and local isomorphic kit.
Load and MassMain arm self-weight: GLN-RX75 is 7.8 kg, GLN-RX71 is 3.8 kg, the local isomorphic kit is approximately 1.5 kg (including the fixture). Self-weight is not the rated payload at the end-effector.
Form Factor and ScaleWorking radius: 709 mm, 474 mm, 599 mm. These are the dimensions of the main arm, not the outline of the end unit.
Operating RangeConfiguration: the first two columns are anthropomorphic configurations; the local column is the same as the follower arm. Gripping: the first two columns use handles; the local column uses a rail-mounted finger-ring fixture.
MotionMaximum operating speed: the first two columns are 30 RPM, the local column is 110 RPM. All three columns list zero-force gravity compensation. Zero-force gravity compensation is not force feedback.
PowerOperating voltage: the first two columns are DC24V, the local column is DC12V. Power: ≤200 W, ≤100 W, rated 84 W. The specification table has no battery row, so do not state battery life.
Perception & ComputeAngular resolution: the first two columns are ±0.003°, the local column is 0.088°. Motor: the first two columns use integrated joints, the local column uses bus servos. Communication: the first two columns use RJ45, the local column uses RJ45 / 10-pin aviation connector.
End EffectorThe fixture in the local column is a rail-type ring fixture used to hold the main arm; it is not the RMG22-65 end-effector. The end-effector gripper is ordered separately.
BoundaryForce feedback is listed as supported only for GLN-RX75 and GLN-RX71. The local isomorphic kit is listed as not supported. The main arm models are RX75, RX71, and YDS-DAP-75/65/RX75S.
Configuration PanelThe contract must specify column names. Purchasing the platform does not include the kit by default. For remote operation, refer to the first two columns; for local data capture, refer to the third column; in either case, order by the individual cell.
ExcerptableTranscribe the attachments column by column; do not merge. Example: GLN-RX75, force feedback supported, 709 mm, 7.8 kg, handle, ±0.003°, 30 RPM, integrated joint, RJ45, DC24V, ≤200 W.
Do not writeDo not write "one teleoperation kit, approximately 5 kg, with force feedback." Do not write 30 RPM and 110 RPM as a single speed, and do not write DC24V and DC12V as a single voltage.
Local isomorphic kit, working radius 599 mm, no force feedback support
Figure 2 | Local isomorphic kit. It forms three columns with GLN-RX75 and GLN-RX71; it does not support force feedback, and the grip is a rail-type ring fixture.

Relationship to Public Methods and Adjacent Pages

The locomotion type determines what "chassis motion" means in teleoperation. Four-wheel independent steering with drive can adjust heading laterally and in place, suitable for repositioning between narrow lab benches. A differential chassis steers by varying left and right wheel speeds; its structure differs, and speed and gradeability must be cited separately. The wheeled humanoid's turning radius is a ground-scale measurement of turning around its own axis; it cannot be written as the minimum turning radius of a differential vehicle unless the page defines it that way.

The folding model is specified as four-wheel steering and four-wheel drive. The lift model's chassis is differential drive, speed 1.5 m/s, climbing grade 5 degrees, positioning accuracy ±10 mm / ±3 degrees. The wheeled humanoid gives a turning radius of 690 mm, and both the shoulders and the chassis fit within a 465 mm width. Three sentences describe three ground strategies. Writing 1.5 m/s onto the folding model or the wheeled humanoid is cross-page copying.

For data, chassis speed, angular speed, and the joint angles of the manipulator are different channels. Recording only the arm and not the chassis makes the mobile manipulation demonstration incomplete. Recording only the chassis and not the arm makes the tabletop manipulation demonstration incomplete. When the product page does not provide details of the chassis control interface, the interface is governed by the written configuration; do not invent a topic name in the article.

This article explains the product's publicly disclosed motion parameters and the type of chassis quantities it requires to be retained in the dataset.

Before handing off to a colleague

Mobile testing is carried out in two steps.

The first step is to confirm only the mechanism terms: whether the on-site chassis or main arm is the type described in the original sentence — if not, stop.

Only in the second step do you record velocity, and the recorded value may be below the publicly stated capability, as long as it is noted in the operating conditions column. Do not backfill the speed of a single slow demonstration as a specification. Positioning, slope climbing, ultrasonic, and edge contact: if they are not on the page, do not test whether these items "meet the standard"; you may use the project's own safety requirements, but do not write those requirements as product specifications. The emergency stop test comes before any mobile capture. Mechanism confirmation uses photos plus the original sentence, not a verbal "you know, that kind of wheel." Photos cannot replace the original sentence; the original sentence goes in the photo caption. If the velocity logger shows a higher or lower value, do not modify the product page. If higher and it exceeds the publicly stated capability, stop and check whether the wrong device was recorded; if lower, write it into the operating conditions. Samples after the emergency stop and samples before it go in separate directories. Do not automatically append the first segment after emergency stop recovery to the previous segment.

First, confirm the mechanism terms before recording the speed.

Second, a lower demonstration speed is written into the operating conditions.

Third, do not write operating conditions back into specifications.

Fourth, gradeability and positioning not on the page must not be tested as specifications.

Fifth, emergency stop comes before capture.

Sixth, separate directories before and after emergency stops.
