On site, measure doors, elevators, floors, and slopes first, then discuss models. Working radius: 709 mm, 474 mm, 599 mm. This is the master arm's scale, not the slave unit's outline. Maximum operating speed: the first two columns are 30 RPM, and the local column is 110 RPM. All three columns list zero-force gravity compensation for dragging. Zero-force dragging is not force feedback. Configuration: the first two columns are humanoid configuration, and the local column is a slave arm. Holding method: the first two columns are handles, and the local column is a rail-type ring fixture. These three sentences are the site language already published for the isomorphic teleoperation kit. Where load-bearing capacity is not written, do not invent a floor load rating.

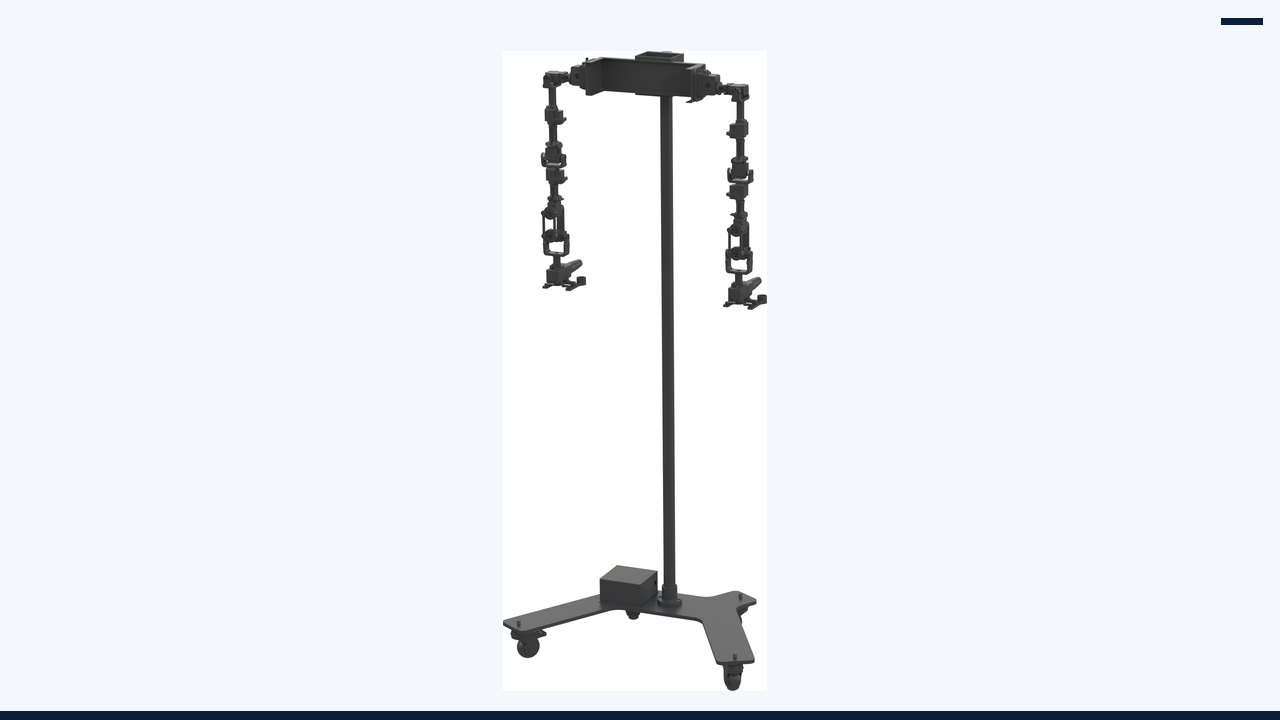

Site Constraints
Speed capability is not the speed allowed on site. The space occupied by people, cables, and the emergency stop is not included in the external dimensions. The desktop occupied by the primary arm workstation is within the motion radius on the kit page, not in the robot's external dimensions.
Positioning accuracy, slope climbing, ultrasonic sensing, and touch edges become check items only on pages where they are written. If written, they must enter the checklist; if not written, do not borrow them from an adjacent page. Do not write "one teleoperation kit, approximately 5 kg, with force feedback." Do not merge 30 RPM and 110 RPM into a single speed, and do not merge DC24V and DC12V into a single voltage. Dimensions and hours from adjacent pages likewise cannot be borrowed to fill blanks on this site.
The first on-site visit performs action verification: direction, emergency stop, open/close, chassis forward/backward. Capture proceeds only after verification passes. The verification record is not a training sample.

How to Use This Page in This Version
The site confirmation form is filled in before data capture, not after. Copy the dimensions column as: operating radius: 709 mm, 474 mm, 599 mm. This is the scale of the primary arm, not the external dimensions of the end-effector platform. Copy the height or reach column as: configuration: the first two columns are humanoid configurations, the local column is the same as the secondary arm. Gripping: the first two columns are handles, the local column is a rail-type finger ring fixture. Copy the mobility column as: maximum operating speed: the first two columns are 30 RPM, the local column is 110 RPM. The towing force column reads zero-force towing in all three columns. Zero-force towing is not force feedback. Copy the power column as: operating voltage: the first two columns are DC24V, the local column is DC12V. Power: ≤200 W, ≤100 W, rated 84 W. The specification table has no battery row, so do not write battery life. Leave space next to each column for "field-measured" and "pass/fail." If the field measurement is stricter than the published value, it can pass; if the field measurement does not meet the premise of the published value—for example, the door width is smaller than the external dimensions—it does not pass.
Personnel space is listed separately. The operator, the master-arm desk, cables, and the emergency stop are not included in the external dimensions. The kit's motion radius appears only when the kit is purchased. Drawing the master-arm footprint on the site plan without buying the kit will reserve desk space while the equipment never arrives.
Copy only rows that exist for safety-related items. Slope climbing, positioning, edge contact, ultrasonic, speed limits: check them if present, and write "not specified on this page" if absent; do not fill in from another machine. Do not write "one teleoperation kit, approximately 5 kg, with force feedback." Do not merge 30 RPM and 110 RPM into a single rotational speed, and do not merge DC24V and DC12V into a single voltage. This negative statement is the anti-conflation field of the site sheet.
The first release authorizes only motion verification, not a training set. The verification content is direction, emergency stop, opening and closing, and chassis forward and backward. The file name of the verification record must not be written as demo or episode, so that it is not swept in by training scripts. The source of the site sheet for the isomorphic teleoperation kit is /product-teleop-kit.html.
Line-by-Line Verification
Degrees of freedom. All three columns list 7 degrees of freedom; they must not be merged into a single unit. The column names are GLN-RX75, GLN-RX71, and the local isomorphic kit. This line only states the number and locations of joints that have already been published. It does not evaluate intelligence, and it does not automatically include waist, legs, neck, or whole-body totals not named on the page. When writing the action vector, channels are created only for body parts listed in this row; body parts not listed remain blank. Blank must not be written as 0, because 0 would be treated by training scripts as a real angle. Do not fill in the integer degrees of freedom from another device to complete this row. If the master-slave joint order is not given on the page, mark it as pending written configuration confirmation; do not number it yourself. The number of joints does not determine whether the unit can fit in an elevator. The action vector creates channels only for the body parts named in this row; unnamed body parts are left blank and are not filled with 0.
Load and mass. Main arm self-weight: GLN-RX75 is 7.8 kg, GLN-RX71 is 3.8 kg, and the local isomorphic kit is approximately 1.5 kg (including the fixture). Self-weight is not the rated payload at the end effector. The numbers in this row must be read aloud with their subject: rated, self-weight, total machine mass, envelope, friction, or gripping force. If the subjects differ, they cannot be merged into a single number, nor can any conversion not given on the page be performed. If field objects are heavier, the specifications cannot be revised retroactively; conversely, a larger specification does not prove that every grasping method reaches that limit. The tool mass is undetermined, so do not write the arm's rated value as the mass of graspable objects. The acceptance table retains the original units. Only the total machine mass relates to handling; the rated value is not the total machine mass. During acceptance, read the subject first and then the number; if the subjects are inconsistent, split them into two rows.
Dimensions and scale. Motion radius: 709 mm, 474 mm, 599 mm. This is the scale of the main arm, not the outline of the end effector itself. This row is an outline or structural dimension, used to check doorways, elevators, tabletops, or handling; it is not the operating height, nor the arm span. Do not add it to the vertical range. If the diagram shows protrusions, antennas, or a person's standing position that are not in this row, note separately that they are not part of the specification. If weight appears in an adjacent row, do not write it into the dimension sentence. Doorway entry is governed by this row. Doorways, elevators, and handling are checked only against the outline; do not treat this row as the operating height.
Operating range. Configuration: the first two columns are humanoid configurations, and the local column is a follower arm. Grip: the first two columns use a handle, and the local column uses a rail-type ring fixture. This row describes the range that the hand or lift can reach; the definition must follow the original sentence: vertical working range, arm span, motion radius, or stroke. These cannot be added together or renamed. If "excluding end effector" is stated, it must remain in the figure caption. When the original text does not specify units, retain the "units not specified" note and do not delete it for tidiness. Indoor clear height is compared against the operating range, not the packaging box, unless the box is what is being measured. The figure caption retains the range definition from the original sentence, as well as the terms "excluding end effector" or "units not specified."
Motion. Maximum operating speed: the first two columns are 30 RPM, and the local column is 110 RPM. Traction force: all three columns state zero-force dragging. Zero-force dragging is not force feedback. This row describes how the ground or main arm moves. Four-wheel steering, four-wheel drive, differential drive, in-place rotation radius, and rotational speed are terms for different mechanisms and cannot be substituted for one another. The published speed is a capability, not a recommended teaching speed; teaching can be slower, but the slower speed is recorded under experimental conditions and is not written back into the specification. If the page does not state slope climbing or positioning, do not borrow from another page. Ground slope and speed limits use only the values written in this row. The teaching speed can be lower, but the lower speed is recorded under the operating conditions and does not change the published capability in this row.
Power supply. Operating voltage: the first two columns are DC24V, and the local column is DC12V. Power: ≤200 W, ≤100 W, rated 84 W. The specification table has no battery row, so do not write endurance. This row retains only the electrical terms that appear on the page: voltage, capacity, endurance, charging, current, or power. If there are no "hours," write that endurance is not given; do not fill in hours from an adjacent page. Do not rename charging time as endurance. Rated and maximum values must be listed in separate columns. Approximate values retain "approximately." Do not sum the ampere-hours of multiple devices and claim it as the battery of a single device. The field outlet or DC power supply must match this row; if it cannot be matched, do not power on for data acquisition. Hours, charging, or current that do not appear remain as not given and are not copied in from an adjacent page.
Perception and Computing. Angular resolution: the first two columns ±0.003°, the local column 0.088°. Motors: the first two columns use integrated joints, the local column uses bus servos. Communication: the first two columns use RJ45, the local column uses RJ45 / 10-pin aviation connectors. This row inventories items already specified in sensors, computing, or communications, and retains the terms standard, included, optional, and optional-order. Unchecked optional items do not count. When the cover conflicts with the inventory, cite the inventory, while not pretending the cover statement does not exist. Headsets and gloves do not belong in this row. Processors, hard drive capacity, or camera channel counts that are not specified should not be drawn into the system diagram. Sensor mounts do not change the door width requirement. Optional sensors that were not purchased do not enter this data dictionary.
End effector. The fixture in the local column is a rail-type ring fixture used to grip the main arm; it is not the follower-side RMG22-65. The follower-side gripper is ordered separately. This row states at which end contact or gripping occurs. Quick-change, compatible, and recommended are not models already included in the box. The ring fixture on the main arm is not the follower-side gripper. Force, stroke, and payload remain as they are in their respective rows and are not merged into a single system metric because they are installed on a particular body. For flange and protocol mappings that are not given, write "to be confirmed," not "plug and play." When the end effector has not yet arrived, an unloaded check can be performed, but the site order must note this. "Supports" or "compatible" without a model number cannot be treated as delivered.
Boundaries. Force feedback is stated as supported only for GLN-RX75 and GLN-RX71. The local isomorphic kit is stated as not supported. The main arm models are RX75, RX71, and YDS-DAP-75/65/RX75S respectively. This row is a boundary deliberately separated on the page: another model, another column, another product page, or an interface that still requires project confirmation after modularization. The boundary is not a defect statement; it prevents verbally buying two pages as one. When writing a proposal, copy the boundary into "not included this time." If equipment not included is later added, open a new configuration order; do not go back and change the body name in the old sample. The main arm desktop occupies the site only after the kit is purchased. Equipment within the boundary must be ordered separately; do not rename the old sample to say it already includes it.
Configuration column. The contract must state the column names. Purchasing the body does not include the kit by default. For remote operation, refer to the first two columns; for local data acquisition, refer to the third column; in either case, order by cell. This row distinguishes standard, recommended, and optional. Recommended and optional items are not delivered unless checked. When the standard row and the parameter table row are inconsistent, keep both rows and use "locked this time" to indicate which one is actually delivered, rather than crossing out one row in the order without signing. Prices and lead times are not written into this row's restatement. Unselected 5G is not a prerequisite for the field network. Unchecked recommended and optional items are written as not delivered on the order.
Excerptable. Copy the attachment column by column; do not merge. Example: GLN-RX75, force feedback supported, 709 mm, 7.8 kg, handle, ±0.003°, 30 RPM, integrated joint, RJ45, DC24V, ≤200 W. This is the type of line that can be pasted into an attachment: it has a subject, has units, and can be traced back to the original sentence on the product page. When pasting, preserve words like approximately, not included, not given, optional, recommended. Do not convert and keep only the result. If the same number has different meanings on two pages, write it as two lines in the attachment. Do not mix test protocols into specification excerpts. Every limit on the site sheet can be traced back to the product page. When pasting into the attachment, paste the words approximately, not included, optional, etc. along with the numbers.
Do not write. Do not write "one teleoperation kit, approximately 5 kg, with force feedback." Do not merge 30 RPM and 110 RPM into a single rotational speed, and do not merge DC24V and DC12V into a single voltage. This line is a negative statement for review purposes. It does not describe what the equipment can do; it only prevents hours, degrees of freedom, payload subjects, or cover slogans from adjacent pages from being written in. If this negative statement is matched, revert to the original product page sentence and do not interpret it as "close enough." External paper success rates and total hours not publicly disclosed on this site should likewise not be written in. The appearance and slope-climbing capability of another unit must not be written into this entry. If manuscript retrieval matches this negative statement, revert to the original product page sentence.
| Projects | Public-Facing Positioning of This Page |
|---|---|
| Degrees of Freedom | All three columns have 7 degrees of freedom, but this does not mean they can be merged into a single unit. The column names are GLN-RX75, GLN-RX71, and local isomorphic kit. |
| Load and Mass | Main arm self-weight: GLN-RX75 is 7.8 kg, GLN-RX71 is 3.8 kg, the local isomorphic kit is approximately 1.5 kg (including the fixture). Self-weight is not the rated payload at the end-effector. |
| Form Factor and Scale | Working radius: 709 mm, 474 mm, 599 mm. These are the dimensions of the main arm, not the outline of the end unit. |
| Operating Range | Configuration: the first two columns are anthropomorphic configurations; the local column is the same as the follower arm. Gripping: the first two columns use handles; the local column uses a rail-mounted finger-ring fixture. |
| Motion | Maximum operating speed: the first two columns are 30 RPM, the local column is 110 RPM. All three columns list zero-force gravity compensation. Zero-force gravity compensation is not force feedback. |
| Power | Operating voltage: the first two columns are DC24V, the local column is DC12V. Power: ≤200 W, ≤100 W, rated 84 W. The specification table has no battery row, so do not state battery life. |
| Perception & Compute | Angular resolution: the first two columns are ±0.003°, the local column is 0.088°. Motor: the first two columns use integrated joints, the local column uses bus servos. Communication: the first two columns use RJ45, the local column uses RJ45 / 10-pin aviation connector. |
| End Effector | The fixture in the local column is a rail-type ring fixture used to hold the main arm; it is not the RMG22-65 end-effector. The end-effector gripper is ordered separately. |
| Boundary | Force feedback is listed as supported only for GLN-RX75 and GLN-RX71. The local isomorphic kit is listed as not supported. The main arm models are RX75, RX71, and YDS-DAP-75/65/RX75S. |
| Configuration Panel | The contract must specify column names. Purchasing the platform does not include the kit by default. For remote operation, refer to the first two columns; for local data capture, refer to the third column; in either case, order by the individual cell. |
| Excerptable | Transcribe the attachments column by column; do not merge. Example: GLN-RX75, force feedback supported, 709 mm, 7.8 kg, handle, ±0.003°, 30 RPM, integrated joint, RJ45, DC24V, ≤200 W. |
| Do not write | Do not write "one teleoperation kit, approximately 5 kg, with force feedback." Do not write 30 RPM and 110 RPM as a single speed, and do not write DC24V and DC12V as a single voltage. |

Relationship to Public Methods and Adjacent Pages
Site constraints come before algorithms. Door widths, elevators, floor slopes, aisles, and personnel safety distances determine whether this unit can enter the site; the model architecture does not. Speed is a safety parameter, not a "faster is better" marketing claim. Gradeability, positioning error, ultrasonic sensors, and bump strips are the conditions for whether the chassis can operate on that floor.
The lift model's publicly disclosed differential-drive speed is 1.5 m/s, slope climbing is 5°, positioning accuracy is ±10 mm / ±3°, and it lists one safety edge-sensor channel and two ultrasonic channels. The left and right single-side overhang beyond the chassis is written as 790 in the source material; the sentence is in a millimeter context but the original does not state the unit. Externally, write it as 790 mm and retain this note. The folding model's overall width is approximately 552 mm; the wheeled humanoid's shoulder and chassis are within 465 mm, with a turning radius of 690 mm. Using the wrong width to measure a door will only reveal the problem on installation day when the device cannot fit through.
The demonstration site must also leave room for people. The primary arm workstation, operator, cables, and emergency stop are not included in the robot's external dimensions. The primary arm's self-weight and length on the kit page determine the desktop, not whether the slave end can pass through a door.
This article turns the product's publicly disclosed ground clearance and dimensional constraints into site-entry checklist items. Safety ratings and protection ratings that are not disclosed are not supplemented.
Before handing off to a colleague
The site form is filled out before the equipment enters the door, not after. The measurement column and the specification column are placed side by side. If the measurement does not meet the door width or power supply requirements, unboxing for capture does not proceed. Personnel positions are marked on the floor with tape; the tape dimensions are not written into the specifications.
The title of the first release form is "Action Verification"; the file name does not use "episode". Items that fail verification are marked as "failed", not as "to be handled later in the data". The product page path is written in the header of the site form for easy comparison with the day's table. Pre-entry measurements are taken with a tape measure and a voltmeter, not by eye. Visual estimates of "close enough" are not entered in the measurement column. If the measurement column is left blank, unboxing is not permitted. If an end-effector is found to be missing after unboxing, the action verification may continue, but the release form is changed to "No End-Effector Verification", and this title is printed in the header of every record for that day. Records without the header are not archived into the formal experiment.
First, use a tape measure and a voltmeter before entering the site.
Second, visual estimates are not written in as measured values.
Third, test empty without unboxing.
Fourth, when the end effector is missing, write "no end effector" in the header.
Fifth, personnel tape is not written into the spec.
Sixth, records missing a header do not enter formal experiments.
