Isomorphic Teleoperation Kit | Sentences Quotable in Contracts: only copy rows found on the product page
Product InsightsIsomorphic teleoperation kit2026-10-03

Attachments should only include sentences that carry units, a subject, and can be found on /product-teleop-kit.html. Copy the attachment column by column; do not merge columns. Example: GLN-RX75, force feedback supported, 709 mm, 7.8 kg, handle, ±0.003°, 30 RPM, integrated joint, RJ45, DC24V, ≤200 W. When pasting, preserve the model number and qualifiers such as "approximately," "excluding the end-effector," "hours not provided," and "unit not specified in the original text." These words are part of the sentence.

Acceptable Statements

If the same number appears twice, write two rows. 5 kg can be a single-arm rated load or a gripper envelope. ±0.05 mm can be the arm's repeatability or the gripper's position repeatability. Whether 48V 20Ah is followed by hours depends on which page it comes from.

Recommended and optional items are placed in the latter half of the annex, with a checkbox on each line. Printing unchecked items is safer than not printing them. The contract must specify column names. Purchasing the robotic platform does not by default include the kit. For remote operations, refer to the first two columns; for local data capture, refer to the third column, and orders must still be placed per cell.

The exclusion statement goes at the end of the attachment. Do not write "one teleoperation kit, approximately 5 kg, with force feedback." Do not merge 30 RPM and 110 RPM into a single speed, and do not merge DC24V and DC12V into a single voltage. A contract without an exclusion statement will by default be filled in with verbal additions.

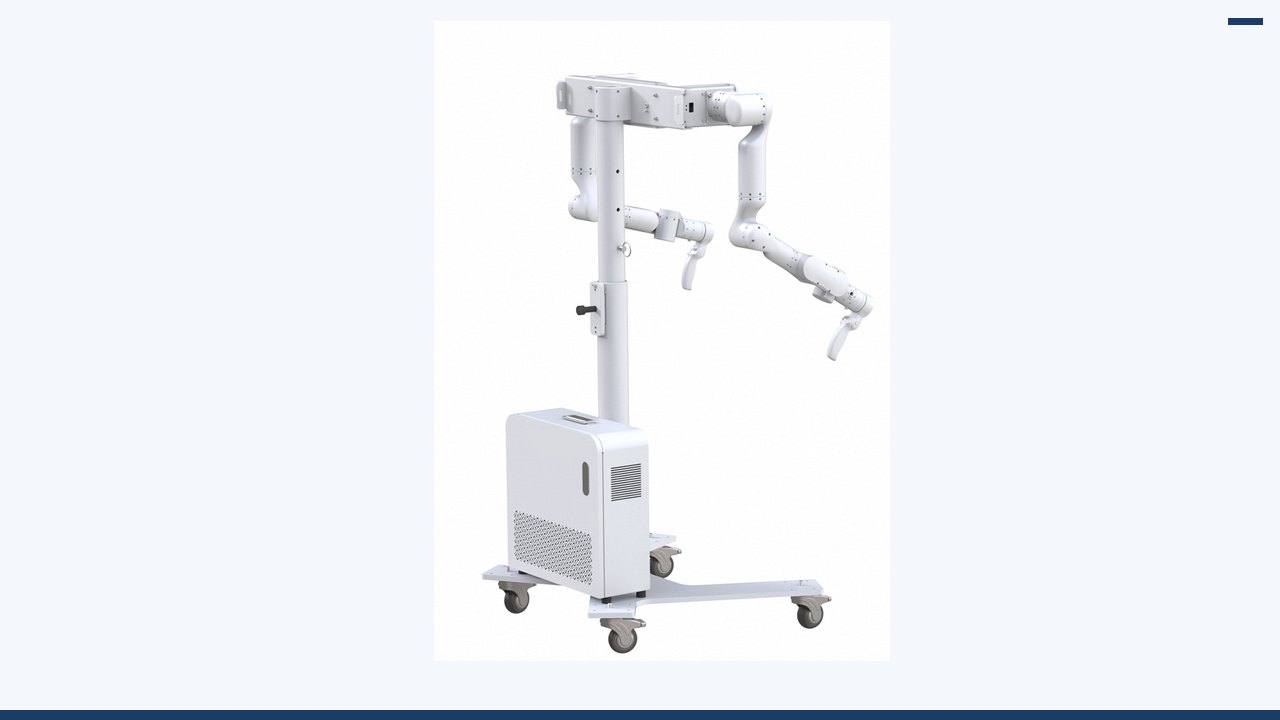

GLN-RX75 main arm, working radius 709 mm
Figure 1 | Isomorphic teleoperation kit. The caption only states that this is a device photo from the product page; the appearance is not interpreted as parameters not present in the table.

How to Use This Page in This Version

Contract attachments use excerpts, not paraphrases. Excerpt format: table header, original sentence, source path. Copy the attachment column by column; do not merge. Example: GLN-RX75, force feedback supported, 709 mm, 7.8 kg, handle, ±0.003°, 30 RPM, integrated joint, RJ45, DC24V, ≤200 W. Preserve all of "approximately," "not included," "hours not specified," "units not specified in the original text," "optional add-on," and "recommended" from the original sentence. Removing these words changes the legal meaning of the sentence.

When the same number appears on multiple rows, the appendix also has multiple rows, and the subject is written in the header. Do not perform a unit conversion and keep only the converted result. 130 N is not converted to kilograms to replace the original row. Millimeters are not changed to meters to make the number look smaller, unless both rows are kept.

Checkboxes are used for recommended and optional items. The contract must state the column name. Purchasing the body does not include the kit by default. For remote operation, refer to the first two columns; for local data acquisition, refer to the third column; in either case, order by cell. Unchecked rows are printed as "not delivered." Exclusions are written as affirmative negative statements, sourced from: Do not write "one teleoperation kit, approximately 5 kg, with force feedback." Do not merge 30 RPM and 110 RPM into a single speed, and do not merge DC24V and DC12V into a single voltage. Exclusions and ordered items are printed on separate pages to avoid signing only the front page.

The attachment does not include a price formula, does not state "equivalent to the platform in a certain paper," and does not include brand logos that do not appear on /product-teleop-kit.html. Additional tests that are needed, such as actual battery life or system repeatability, should be written as a separate test protocol, not into the specification excerpt.

Line-by-Line Verification

Degrees of freedom. All three columns have 7 degrees of freedom; they cannot be merged into one machine on that basis. The column names are GLN-RX75, GLN-RX71, and the local homogeneous kit. This row only states the number and locations of joints that have already been made public. It does not evaluate intelligence, and it does not automatically include waist, legs, neck, or a whole-machine total that is not named on the page. When writing into the action vector, create channels only for the body parts listed in the row; body parts not listed remain blank. Do not write blanks as 0, because 0 would be treated by training scripts as a real angle. Do not fill in the integer degrees of freedom from another device to make this row add up. If the master-slave joint order is not given on the page, mark it as pending written configuration confirmation; do not number it yourself. The degrees-of-freedom column in the attachment pastes the original sentence. The action vector creates channels only for the body parts named in this row; unnamed body parts are left blank, not filled with 0.

Load and quality. Main arm self-weight: GLN-RX75 is 7.8 kg, GLN-RX71 is 3.8 kg, and the local isomorphic kit is approximately 1.5 kg (including fixtures). Self-weight is not the payload rating at the end effector. The numbers on this line must be read aloud with their subject: rated, self-weight, total machine mass, envelope, friction, or gripping force. If the subject differs, the numbers must not be merged into a single figure, nor converted using any conversion not given on the page. If objects in the field are heavier, the specification must not be changed retroactively; a larger specification also does not prove that every grasping method reaches that limit. The tool mass is undetermined, so do not write the arm's rated value as the mass of graspable objects. The acceptance checklist retains the original units. The accessory load column is split into rows by subject. During acceptance, read the subject first and then the number; if the subjects are inconsistent, split them into two rows.

Dimensions and scale. Motion radius: 709 mm, 474 mm, 599 mm. These are master-arm dimensions, not the outline of the slave body. This row is an outline or structural scale, used to check doorways, elevators, tabletops, or transport; it is not operating height, nor arm span. Do not add it to the vertical range. If the diagram shows protrusions, antennas, or a person's standing position not present in this row, note separately that they are not part of the specification. If weight appears in an adjacent row, do not write it into the dimension sentence. The dimensions column in the attachment retains the multiplication sign and millimeters. Doorways, elevators, and transport are checked only against the outline; do not treat this row as operating height.

Operating range. Configuration: the first two columns are humanoid configurations; the local column is a follower arm. Gripping: the first two columns use handles; the local column uses a rail-type ring gripper. This row describes the range that the hand or lift can reach. The definitions must follow the original wording: vertical working range, arm span, motion radius, or stroke. These cannot be added together or renamed. If "excluding end effector" is stated, it must remain in the figure caption. If the original text does not specify units, retain the "units not specified" note; do not delete it for the sake of tidiness. The attachment range column retains the "excluding end effector" or "units not specified" notes. The figure caption retains the range definitions from the original wording, as well as the terms "excluding end effector" or "units not specified".

Motion. Maximum operating speed: 30 RPM for the first two columns, 110 RPM for the local column. All three columns state zero-force dragging for drag force. Zero-force dragging is not force feedback. This row describes how the ground unit or master arm moves. Four-wheel steering, four-wheel drive, differential drive, in-place rotation radius, and rotational speed are terms for different mechanisms and cannot be substituted for one another. Published speed is a capability, not a recommended teaching speed; teaching can be slower, but the slower speed is recorded under experimental conditions and is not written back into the specifications. If a page does not mention gradeability or positioning, do not borrow from another page. The attachment motion column retains the mechanism terms. Teaching speed can be lower, but the lower speed is recorded under conditions and does not change the published capability in this row.

Power supply. Operating voltage: DC24V for the first two columns, DC12V for the local column. Power: ≤200 W, ≤100 W, rated 84 W. The specification table has no battery row, so do not write battery life. This row retains only the electrical terms that appear on the page: voltage, capacity, battery life, charging, current, or power. If there is no "hours," write that battery life is not given; do not fill in hours from an adjacent page. Do not rename charging time as battery life. Rated and maximum values must be listed in separate columns. Retain "approximately" where an approximate value is given. Do not sum the ampere-hours of multiple devices and present the total as the battery of a single device. The attachment electrical column does not add hours. Hours, charging, or current that do not appear remain as not given; do not copy them in from an adjacent page.

Sensing and computing. Angular resolution: ±0.003° for the first two columns, 0.088° for the local column. Motors: integrated joints for the first two columns, bus servos for the local column. Communication: RJ45 for the first two columns, RJ45 / 10-pin aviation connector for the local column. This row lists the items already specified in sensing, computing, or communication, and retains the terms standard, included as standard, optional, and optional accessory. An optional item that is not checked does not count. If the cover conflicts with the list, cite the list, but do not pretend the cover statement does not exist. Headsets and gloves do not enter this row. Do not draw processors, hard drive capacity, or camera channel counts into the system diagram if they are not specified. The attachment sensor column distinguishes standard from optional. Optional sensors that have not been purchased do not enter this data dictionary.

End effector. The gripper in the local column is a rail-type ring gripper used to grip the master arm; it is not the follower-side RMG22-65. The follower-side gripper is ordered separately. This row states at which end contact or gripping occurs. Quick-change, compatible, and recommended are not models already included in the box. The ring gripper on the master arm is not the follower-side gripper. Force, stroke, and payload are each retained as-is in their respective rows; they are not merged into a single system metric because they are mounted on a particular body. For flanges and protocol mappings that are not given, write "to be confirmed," not "plug and play." The attachment end-effector column is either a model and quantity, or "not included." "Supports" or "compatible" without a model number cannot be treated as delivered.

Boundaries. Force feedback is stated as supported only for GLN-RX75 and GLN-RX71. The local isomorphic kit states not supported. The master arm models are RX75, RX71, and YDS-DAP-75/65/RX75S respectively. This row is a boundary deliberately kept separate on the page: another model, another column, another product page, or an interface that still requires project confirmation after modularization. The boundary is not a defect note; it prevents verbally treating two pages as one page. When writing a proposal, copy the boundary into "not included in this order." If a device that is not included is added later, open a new configuration sheet; do not go back and change the body name in the old sample. The attachment "not included" column is populated from the boundary row. Devices within the boundary must be ordered separately; do not rename the old sample to say it already includes them.

Configuration column. The contract must state the column names. Purchasing the body does not by default include the kit. Remote operation refers to the first two columns; local data acquisition refers to the third column; ordering must still be done cell by cell. This row distinguishes standard, recommended, and optional. Recommended and optional items are not delivered unless checked. If the standard row conflicts with the parameter table row, keep both rows and use "locked for this order" to indicate which one is actually delivered, rather than striking out one row in the order without signing off. Prices and lead times are not written into this row's restatement. The latter half of the attachment consists of checkboxes; unchecked items are printed as not delivered. Unchecked recommended and optional items are written as not delivered in the order.

Excerptable. Copy the attachment column by column; do not merge. Example: GLN-RX75, force feedback supported, 709 mm, 7.8 kg, handle, ±0.003°, 30 RPM, integrated joint, RJ45, DC24V, ≤200 W. This row defines the type of content that can be pasted into the attachment: with a subject, with units, and traceable to the original sentence on the product page. When pasting, retain "approximately," "not included," "not given," "optional accessory," and "recommended." Do not convert and keep only the result. If the same number has different meanings on two pages, write it as two rows in the attachment. Do not mix test protocols into specification excerpts. This is the permitted scope of the attachment body text. When pasting into the attachment, paste the words "approximately," "not included," and "optional accessory" along with the content.

Do not write. Do not write "one teleoperation kit, approximately 5 kg, with force feedback." Do not write 30 RPM and 110 RPM as a single rotational speed, and do not write DC24V and DC12V as a single voltage. This row consists of negative statements for review purposes. It does not describe what the equipment can do; it only prevents hours from an adjacent page, degrees of freedom, payload subjects, or cover slogans from being written in. If a negative statement is matched, revert to the original sentence on the product page; do not interpret it as "close enough." Do not write in success rates from external papers or total hours not published on this site. The last page of the attachment lists the negative statements to prevent signing off only the positive ones. If a manuscript search matches a negative statement, revert to the original sentence on the product page.

ProjectsPublic-Facing Positioning of This Page
Degrees of FreedomAll three columns have 7 degrees of freedom, but this does not mean they can be merged into a single unit. The column names are GLN-RX75, GLN-RX71, and local isomorphic kit.
Load and MassMain arm self-weight: GLN-RX75 is 7.8 kg, GLN-RX71 is 3.8 kg, the local isomorphic kit is approximately 1.5 kg (including the fixture). Self-weight is not the rated payload at the end-effector.
Form Factor and ScaleWorking radius: 709 mm, 474 mm, 599 mm. These are the dimensions of the main arm, not the outline of the end unit.
Operating RangeConfiguration: the first two columns are anthropomorphic configurations; the local column is the same as the follower arm. Gripping: the first two columns use handles; the local column uses a rail-mounted finger-ring fixture.
MotionMaximum operating speed: the first two columns are 30 RPM, the local column is 110 RPM. All three columns list zero-force gravity compensation. Zero-force gravity compensation is not force feedback.
PowerOperating voltage: the first two columns are DC24V, the local column is DC12V. Power: ≤200 W, ≤100 W, rated 84 W. The specification table has no battery row, so do not state battery life.
Perception & ComputeAngular resolution: the first two columns are ±0.003°, the local column is 0.088°. Motor: the first two columns use integrated joints, the local column uses bus servos. Communication: the first two columns use RJ45, the local column uses RJ45 / 10-pin aviation connector.
End EffectorThe fixture in the local column is a rail-type ring fixture used to hold the main arm; it is not the RMG22-65 end-effector. The end-effector gripper is ordered separately.
BoundaryForce feedback is listed as supported only for GLN-RX75 and GLN-RX71. The local isomorphic kit is listed as not supported. The main arm models are RX75, RX71, and YDS-DAP-75/65/RX75S.
Configuration PanelThe contract must specify column names. Purchasing the platform does not include the kit by default. For remote operation, refer to the first two columns; for local data capture, refer to the third column; in either case, order by the individual cell.
ExcerptableTranscribe the attachments column by column; do not merge. Example: GLN-RX75, force feedback supported, 709 mm, 7.8 kg, handle, ±0.003°, 30 RPM, integrated joint, RJ45, DC24V, ≤200 W.
Do not writeDo not write "one teleoperation kit, approximately 5 kg, with force feedback." Do not write 30 RPM and 110 RPM as a single speed, and do not write DC24V and DC12V as a single voltage.
Local isomorphic kit, working radius 599 mm, no force feedback support
Figure 2 | Local isomorphic kit. It forms three columns with GLN-RX75 and GLN-RX71; it does not support force feedback, and the grip is a rail-type ring fixture.

Relationship to Public Methods and Adjacent Pages

Acceptance attachments should replicate sentences that are already public on the product page and include units, and cite which page and which table they come from. Sentences that may be written are verifiable: model number, dimensions, mass, degrees of freedom and their locations, rated load, travel, speed, voltage capacity, communication, standard quantity. Sentences that may not be written are inferred statements: "equivalent to", "industry-leading", "six hours at full load", "includes gripper", "includes force feedback".

Even identical numbers get separate rows. ±0.05 mm appearing in both the arm's repeatability and the gripper's repeatability becomes two rows in the appendix. 5 kg appearing in single-arm rated load and gripper envelope load is also two rows. 48 V 20 Ah appearing in both the folding model and the lift model—whether hours follow it depends on each respective page.

Recommended attachment structure: 1. Excerpt from the standard quantity table; 2. Recommended items — if unchecked, they will not be delivered; 3. Optional items — state which column is selected or not selected for this order; 4. Explicitly excluded items, e.g., for the lift model do not list battery life in hours, do not list whole-machine degrees of freedom, and do not treat 8 kg as rated load.

This article lists the original sentences that this product may include in an appendix, along with a recommended exclusion statement.

Before handing off to a colleague

The binding order of the attachments is fixed: standard-row excerpts, recommended and optional checkmarks, not-included list, and synchronization and test booklets if any are bound separately. Test results do not appear in the specification excerpts. If test results are written into the same volume, they will be treated as specifications. The signature page repeats the product page path. If legal or procurement requires rewriting an original sentence, the rewritten draft must be traceable word by word back to the original sentence; words that cannot be traced are deleted. The words "approximately", "not included", "not specified", and "optional" are considered undeletable. Every page footer of the attachment contains the product page path and "an excerpt is not a rewrite". If a page is a checkmark page, the footer adds "unchecked equals not delivered". If a page is a not-included list, the footer adds "this page is an exclusion". If a test booklet exists, its cover uses a different color and states "tests are not specifications". When binding, the test booklet is not inserted in the middle of the specification excerpts. If inserted in the middle, it is returned for rebinding.

First, specification excerpts do not include test results.

Second, unchecked equals not delivered, written in the footer.

Third, the exclusions list gets its own page.

Fourth, the test booklet cover states that tests are not specifications.

Fifth, every rewrite must be traceable word by word.

Sixth, do not delete "approximately," "not included," "not provided," or "optional." Every line in a specification excerpt must be findable as continuous original text on the product page using the search function. If the continuous original text cannot be found, the line has been rewritten and must be returned. Keep the test log and the excerpt in separate volumes to avoid inserting the wrong one during binding. Write the product page path again in the footer; after binding, spot-check that the paths on the first and last pages are consistent.
