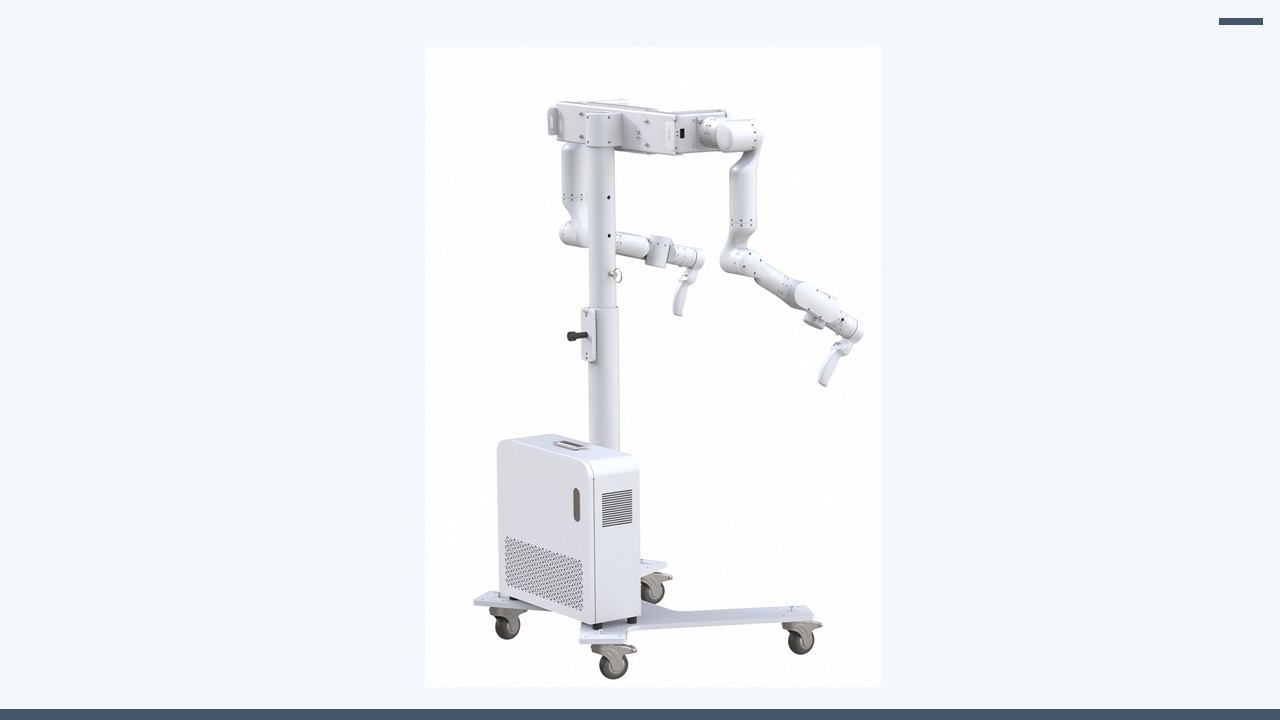

Degrees of freedom are counted only by the parts written on the page. All three columns show 7 degrees of freedom, but this does not mean they can be merged into one machine. The column names are GLN-RX75, GLN-RX71, and local isomorphic kit respectively. Waist, legs, neck, or whole-machine totals that do not appear remain unpublished. Filling in a degree of freedom to align with another machine's integer will make the action vector the wrong dimension from day one.
Degrees of Freedom
The action vector for imitation learning must be isomorphic to the degrees of freedom described in this sentence. A 7-axis leader arm to a 7-axis follower arm is one notation; a whole-machine total of 20 or 21 is another notation, which also includes joints that are not part of a single arm. The isomorphic teleoperation kit uses the sentence above, not the one on the adjacent page.
If lift, chassis speed, or gripper open/close are to enter the action vector, separate channel names must be provided. They are not implicit decimals "already included in the degrees of freedom." Where the page writes them as travel, speed, or time, record them in those units; do not convert them into degrees of freedom.
Recommended dataset fields: joint list, unit for each joint, and parts that were not recorded. Leave unrecorded items empty; do not write 0, because 0 will be treated as a real angle. Do not invent joint limits that are not given on /product-teleop-kit.html in the field descriptions either.

How to Use This Page in This Version
The degrees-of-freedom dimension does one thing only: it writes the action vector dimension of the isomorphic teleoperation kit into a table, where every row can be found on the product page. The degrees-of-freedom statement on this page is: all three columns have 7 degrees of freedom, and they cannot be merged into a single unit. The column names are GLN-RX75, GLN-RX71, and local isomorphic kit. If the statement already breaks down the body parts, the body parts are the grouping of the table—do not rearrange them. If the statement only gives a single arm, do not add waist, legs, neck, or a whole-machine total on your own.
Action vectors and mechanical degrees of freedom are not automatically equal. Chassis speed, lifting stroke, and gripper opening/closing can all be recorded channels, but their units are meters per second, millimeters, or open/closed state — not "an additional 0.5 degrees of freedom." Maximum operating speed: 30 RPM in the first two columns, 110 RPM in the local column. Zero-force gravity compensation is written in all three columns. Zero-force gravity compensation is not force feedback. Configuration: the first two columns are humanoid configurations; the local column is the same as the slave arm. Gripping: the first two columns use a handle; the local column uses a rail-type ring gripper. The gripper in the local column is a rail-type ring gripper used to grip the main arm, not the RMG22-65 at the slave end. The slave-end gripper is ordered separately. If these sentences are to be included in the vector, name them individually and write the units.
In a master–slave isomorphic setup, the leader side lists 7 degrees of freedom, and the follower arm is also commonly 7. Equality does not mean the mapping table can be omitted. The mapping table must specify: which leader joint corresponds to which follower joint, whether the direction is reversed, and whether the zero position uses the same reference. If the isomorphic teleoperation kit page does not provide the joint order, mark the mapping table as "joint order pending written configuration confirmation" and do not number them yourself.
Do not fill in unrecorded joints with 0. 0 is an angle. Leave it blank and write "not published on this page" in the data notes. Filling in 20 or 21 from another machine will make training scripts assume those joints exist. Do not write "one teleoperation kit, approximately 5 kg, with force feedback". Do not merge 30 RPM and 110 RPM into a single speed, or DC24V and DC12V into a single voltage.
The dataset version number should include the hash of the original sentence stating the degrees of freedom, or at least a verbatim transcription of it. If the product page is corrected later, old samples can still be matched to the sentence as it stood at the time, rather than silently becoming a new definition.
Line-by-Line Verification
Degrees of freedom. All three columns list 7 degrees of freedom, but this does not mean they can be merged into one machine. The column names are GLN-RX75, GLN-RX71, and the local isomorphic kit. This row only states the number and locations of joints that have already been made public. It does not evaluate intelligence, and it does not automatically include the waist, legs, neck, or whole-machine totals that are not named on the page. When writing the action vector, create channels only for the parts listed in this row; leave parts not listed blank. Do not write blank as 0, because 0 will be treated by the training script as a real angle. Do not fill in the degrees-of-freedom integer from another device to pad this row. If the master–slave joint order is not given on the page, mark it as pending written configuration confirmation and do not number it yourself. This is the direct basis for grouping the action vector. The action vector creates channels only for the parts named in this row; parts not named are left blank and not filled with 0.
Payload and mass. Main arm self-weight: GLN-RX75 is 7.8 kg, GLN-RX71 is 3.8 kg, the local isomorphic kit is approximately 1.5 kg (including fixtures). Self-weight is not the end-effector rated payload. The numbers in this line must be read aloud with their subject: rated, self-weight, overall machine mass, envelope, friction, or gripping force. If the subjects differ, they must not be merged into a single number, nor may any conversion not given on the page be performed. If field objects are heavier, the specifications must not be revised accordingly; larger specifications also do not prove that every grasping method reaches that limit. Tool mass is undetermined, so do not write the arm's rated payload as the graspable object mass. The acceptance table retains the original units. Payload does not change the degree-of-freedom count; do not add or remove joints based on payload size. During acceptance, read the subject first and then the number; if the subjects are inconsistent, split them into two lines.
Appearance and dimensions. Motion radius: 709 mm, 474 mm, 599 mm. These are leader-arm dimensions, not the appearance of the follower body. This row is an appearance or structural dimension, used to check doorways, elevators, tabletops, or transport; it is not operating height and not reach. Do not add it to the vertical range. If the figure shows protrusions, antennas, or a person's standing position that are not in this row, note separately that they are not part of the specification. If weight appears in an adjacent row, do not write it into the dimension sentence. Appearance does not include hidden joints; do not infer degrees of freedom from dimensions. Doorways, elevators, and transport are checked against appearance only; do not treat this row as operating height.
Operating range. Configuration: the first two columns are humanoid configuration; the local column is the same as the follower arm. Gripping: the first two columns use a handle; the local column uses a rail-type ring gripper. This row describes the range that the hand or lift can reach. The definition must follow the original wording: vertical working range, reach, motion radius, or stroke — these cannot be added together and cannot be renamed. If "excluding end effector" is stated, it must remain in the figure caption. When the original text does not specify units, keep the note "units not specified" and do not delete it for tidiness. Stroke and reach are length channels, not fractional degrees of freedom. The figure caption retains the range definition from the original wording, as well as the terms "excluding end" or "units not specified."
Motion. Maximum operating speed: 30 RPM for the first two columns, 110 RPM for the local column. All three columns list zero-force gravity compensation for dragging. Zero-force dragging is not force feedback. This row describes how the ground platform or leader arm moves. Four-wheel steering, four-wheel drive, differential drive, in-place rotation radius, and rotational speed are terms for different mechanisms and cannot be substituted for one another. Published speed is a capability, not a recommended teaching speed; teaching can be slower, but the slower speed is recorded under experimental conditions and is not written back as a specification. If the page does not mention slope climbing or positioning, do not borrow from another page. If the chassis is not included in the degrees-of-freedom sentence, name its channel separately. Teaching speed can be lower, but the lower speed is recorded under conditions and does not change the published capability in this row.
Power supply. Operating voltage: DC24V for the first two columns, DC12V for the local column. Power: ≤200 W, ≤100 W, rated 84 W. The specification table has no battery row, so do not write battery life. This row retains only the electrical terms that appear on the page: voltage, capacity, battery life, charging, current, or power. If there is no "hours," write that battery life is not given; do not fill in the blank with hours from an adjacent page. Do not rename charging time as battery life. Rated and maximum values must be listed in separate columns. Keep "approximately" for approximate values. Do not sum the ampere-hours of multiple devices and claim it as the battery of a single device. The power supply method does not provide the number of joints. Hours, charging, or current that do not appear remain as not given; do not copy them in from an adjacent page.
Perception and computing. Angular resolution: first two columns ±0.003°, local column 0.088°. Motors: first two columns integrated joints, local column bus servos. Communication: first two columns RJ45, local column RJ45 / 10-core aviation connector. This line inventories the items already specified in sensors, computing, or communications, and preserves the terms standard, included, optional, and selectable. Unchecked optional items do not count. When the cover conflicts with the list, cite the list while not pretending the cover statement does not exist. Headsets and gloves do not enter this line. Processors, hard drive capacity, or camera channel counts that are not written out should not be drawn into the system diagram. Camera channel count is not joint dimension. Optional sensors not purchased do not enter this data dictionary.
End effector. The fixture in the local column is a rail-type ring fixture, used to hold the main arm, not the RMG22-65 on the slave end. The slave-end gripper is ordered separately. This row indicates at which end contact or gripping occurs. Quick-change, compatible, and recommended are not models already in the box. The ring fixture on the main arm is not the slave-end gripper. Force, stroke, and payload remain as-is in their respective rows and are not merged into a single system metric just because they are mounted on a particular robotic platform. Flange and protocol mappings that are not provided should be marked as pending confirmation, not plug-and-play. Whether gripper open/close is encoded as one dimension must be declared in the recording scheme, not assumed from the degrees-of-freedom sentence. "Supports" or "compatible" without a model number cannot be treated as delivered.
Boundaries. Force feedback is listed as supported only for GLN-RX75 and GLN-RX71. The local isomorphic kit is listed as not supported. The leader arm models are RX75, RX71, and YDS-DAP-75/65/RX75S respectively. This row is a boundary deliberately separated on the page: another model, another column, another product page, or an interface that still requires project confirmation after modularization. The boundary is not a defect description; it prevents verbally treating two pages as one when purchasing. When writing a proposal, copy the boundary into "not included in this order." If a device that was not included is added later, open a new configuration sheet; do not go back and change the body name in the old sample. Unpublished whole-machine degrees of freedom remain unpublished. Devices within the boundary must be ordered separately; do not rename an old sample to claim it already includes them.
Configuration column. The contract must specify the column name. Purchasing the body does not by default include the kit. Remote operation refers to the first two columns; local data acquisition refers to the third column; ordering must still be done per cell. This row distinguishes standard, recommended, and optional. Recommended and optional items are not delivered unless checked. When the standard row and the parameter table row are inconsistent, keep both rows and use "locked for this order" to indicate which one is actually delivered, rather than erasing one row in the order without signing off. Prices and lead times are not written into the paraphrase of this row. After the model is locked, the degrees of freedom still follow the sentence for that model on the page. Unchecked recommended and optional items are written as not delivered on the order.
Excerptable. Copy accessories by column; do not merge. Example: GLN-RX75, force feedback supported, 709 mm, 7.8 kg, handle, ±0.003°, 30 RPM, integrated joint, RJ45, DC24V, ≤200 W. This row is the type that can be pasted into an appendix: it has a subject, has units, and can be traced back to the original sentence on the product page. When pasting, retain "approximately," "excluding," "not given," "optional," and "recommended." Do not convert and keep only the result. If the same number has different meanings on two pages, write it as two rows in the appendix. Do not mix test protocols into specification excerpts. Degrees of freedom in the appendix are copied from the original sentence, including any breakdown in parentheses. When pasting into the appendix, paste the words "approximately," "excluding," and "optional" along with the values.
Do not write. Do not write "one teleoperation kit, approximately 5 kg, with force feedback." Do not write 30 RPM and 110 RPM as a single rotational speed, and do not write DC24V and DC12V as a single voltage. This line is a negative sentence for editorial review. It does not describe what the equipment can do; it only prevents hours, degrees of freedom, load subjects, or cover slogans from adjacent pages from being written in. If the negative sentence is hit, revert to the original product page sentence — do not interpret it as "close enough." External paper success rates and total hours not published on this site are likewise not to be written in. Do not fill blanks on this page with 17, 20, or 21 from another device. If manuscript retrieval hits the negative sentence, revert to the original product page sentence.
| Projects | Public-Facing Positioning of This Page |
|---|---|
| Degrees of Freedom | All three columns have 7 degrees of freedom, but this does not mean they can be merged into a single unit. The column names are GLN-RX75, GLN-RX71, and local isomorphic kit. |
| Load and Mass | Main arm self-weight: GLN-RX75 is 7.8 kg, GLN-RX71 is 3.8 kg, the local isomorphic kit is approximately 1.5 kg (including the fixture). Self-weight is not the rated payload at the end-effector. |
| Form Factor and Scale | Working radius: 709 mm, 474 mm, 599 mm. These are the dimensions of the main arm, not the outline of the end unit. |
| Operating Range | Configuration: the first two columns are anthropomorphic configurations; the local column is the same as the follower arm. Gripping: the first two columns use handles; the local column uses a rail-mounted finger-ring fixture. |
| Motion | Maximum operating speed: the first two columns are 30 RPM, the local column is 110 RPM. All three columns list zero-force gravity compensation. Zero-force gravity compensation is not force feedback. |
| Power | Operating voltage: the first two columns are DC24V, the local column is DC12V. Power: ≤200 W, ≤100 W, rated 84 W. The specification table has no battery row, so do not state battery life. |
| Perception & Compute | Angular resolution: the first two columns are ±0.003°, the local column is 0.088°. Motor: the first two columns use integrated joints, the local column uses bus servos. Communication: the first two columns use RJ45, the local column uses RJ45 / 10-pin aviation connector. |
| End Effector | The fixture in the local column is a rail-type ring fixture used to hold the main arm; it is not the RMG22-65 end-effector. The end-effector gripper is ordered separately. |
| Boundary | Force feedback is listed as supported only for GLN-RX75 and GLN-RX71. The local isomorphic kit is listed as not supported. The main arm models are RX75, RX71, and YDS-DAP-75/65/RX75S. |
| Configuration Panel | The contract must specify column names. Purchasing the platform does not include the kit by default. For remote operation, refer to the first two columns; for local data capture, refer to the third column; in either case, order by the individual cell. |
| Excerptable | Transcribe the attachments column by column; do not merge. Example: GLN-RX75, force feedback supported, 709 mm, 7.8 kg, handle, ±0.003°, 30 RPM, integrated joint, RJ45, DC24V, ≤200 W. |
| Do not write | Do not write "one teleoperation kit, approximately 5 kg, with force feedback." Do not write 30 RPM and 110 RPM as a single speed, and do not write DC24V and DC12V as a single voltage. |

Relationship to Public Methods and Adjacent Pages
Degrees of freedom is the number of joints a mechanism can independently drive; it is not a measure of intelligence, nor a score of data quality. Degrees of freedom must always be written with the body part: single arm, waist, legs, neck, lift stroke. It must not be written as a body-part-free "full-body degrees of freedom" unless the product page itself publishes it that way.
Imitation learning cares about the dimensionality and semantics of the action vector. In ALOHA, the slave arm's actions correspond to the primary arm's joints; if the slave end has one fewer joint or one extra lift axis, the policy's action dimension changes. Therefore, the capture plan must first specify: which joints are recorded, whether lift is a separate dimension, and whether chassis velocity is part of the action. Joints not listed on the page must not be added just to reach a round number.
The folding model publishes 20 active degrees of freedom and specifies 7 axes for a single arm. The wheeled humanoid publishes 21 active degrees of freedom with a breakdown of arms 14, waist 3, legs 2, neck 2. The lift model does not publish overall machine degrees of freedom; what it publishes is 7 degrees of freedom for a single arm from the recommended arm sheet, plus a lift stroke of 900 mm. The three sentences cannot fill in for each other.
This article only explains the degrees of freedom or travel already made public for this product, and indicates which segment of the demonstration action vector it occupies. For parts not made public, write "not provided on the product page" rather than substituting numbers from another machine.
Before handing off to a colleague
Before handing the degrees-of-freedom table to the recording software, run an empty-table test: undisclosed parts should be blank, not 0; if the chassis and gripper are to be recorded, use their own units. When the master-slave mapping has no joint order, the joint names in the software should read "to be confirmed" rather than a guess of 1 through 7. Transcribe the original degrees-of-freedom sentence into the version number. If someone later merges integers from a different machine, the version mismatch will reveal it. Do not add or remove joints just to make the vector length match a network's input dimension. The network adapts to the vector, not the vector to the network. Before the recording software goes live, check it with a sample of fake data: leave undisclosed parts blank, export a training sample, and confirm that blank has not become 0. Then write the gripper opening in millimeters or as an open/closed state, and confirm that nobody calls it the 8th degree of freedom. Export a joint-name list from both the master and slave sides and compare them manually, rather than only checking whether both lengths equal 7. Equal length can still mean reversed order. When the order is unconfirmed, the sample directory name carries "order to be confirmed," and the training script skips it by default.
First, undisclosed parts remain blank.
Second, blank is not 0.
Third, grippers and chassis use their own units.
Fourth, do not number joints until the joint order is confirmed.
Fifth, vector length is not increased or decreased for network input.
Sixth, copy the version number from the original sentence.
