Isomorphic Teleoperation Kit | Is the end effector included in the box: supported and compatible do not mean already delivered
Product InsightsIsomorphic teleoperation kit2026-10-03

Whether the end effector is included in the box is determined by the quantity table and the configuration sheet, not by the words "supports" or "compatible." The fixture listed locally is a rail-type ring fixture, used to hold the master arm; it is not the slave-side RMG22-65. The slave-side gripper is ordered separately. Force feedback is listed as supported only for GLN-RX75 and GLN-RX71. The local isomorphic kit is listed as not supported. The master arm models are RX75, RX71, and YDS-DAP-75/65/RX75S respectively. Supporting quick-change, being compatible with certain hands, or recommending a certain model does not mean already delivered.

End-Effector Boundary

The gripper's own force, stroke, and payload are listed on separate lines on the gripper page. After being attached to the isomorphic teleoperation kit, the arm's rated values remain in the arm's rows; the gripper's 130 N or 5 kg envelope must not be written into the arm's rated cell. If both ±0.05 mm values appear, they are also listed on separate lines, because one is the arm's repeatability and the other is the gripper's positional repeatability.

The rail-mounted ring fixture on the local kit is held by the primary arm, not the slave-end gripper. When you see the word "fixture," ask whether it is on the primary end or the slave end.

The configuration sheet is recommended to have three lines: base unit model, end effector model and quantity, and explicitly excluded end effectors. The third line prevents disputes upon delivery. Both the end effector page and the base unit page are accessed from the Product Center; the base unit page is /product-teleop-kit.html.

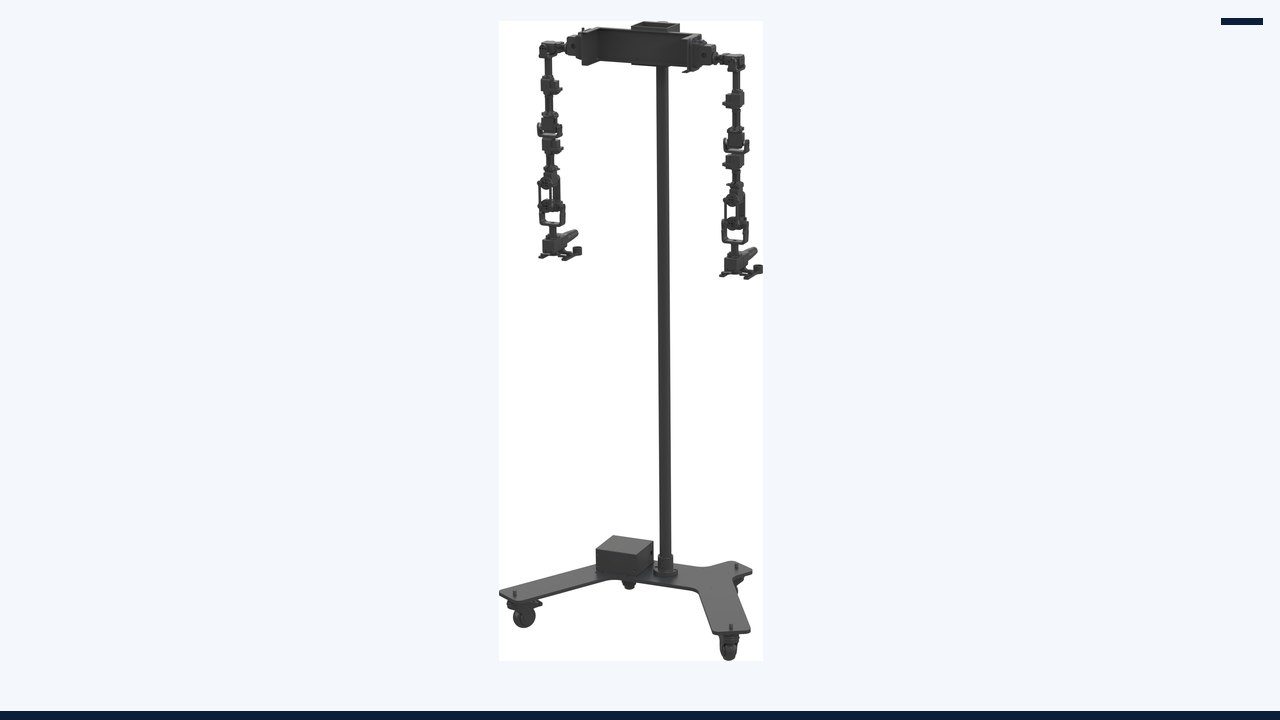

GLN-RX75 main arm, working radius 709 mm
Figure 1 | Isomorphic teleoperation kit. The caption only states that this is a device photo from the product page; the appearance is not interpreted as parameters not present in the table.

How to Use This Page in This Version

End-effector decision table with three columns: interface capability, model for this order, explicitly excluded. The fixture in the local column is a rail-mounted finger-ring fixture used to hold the main arm, not the end-effector RMG22-65. The end-effector gripper is ordered separately. Place it in the first column. The second column must be a model number, such as RMG22-65 or another model on the configuration sheet; "quick-change," "dexterous hand," and "compatible" cannot fill the second column. The third column lists what is not installed for this order, preventing the packing list from being verbally supplemented. Force feedback is marked as supported only for GLN-RX75 and GLN-RX71. The local isomorphic kit is marked as not supported. The main arm models are RX75, RX71, and YDS-DAP-75/65/RX75S.

Force, stroke, and load are not copied from the rig page to the gripper, nor from the gripper page to the rig. The gripper's envelope of 5 kg, friction of 2 kg, 130 N, and 65 mm appear only in the gripper row. The arm's rated 5 kg appears only in the arm row. When two 5 kg values are adjacent, the column headers must differ.

The rail-mounted ring fixture on the master arm is not the end effector. It solves how the human grips the master arm. When you see a fixture, first ask which end it is attached to. If it is on the master side, go to the kit page to match columns; if it is on the slave side, go to the gripper page to match the model.

Post-installation repeatability must not be merged. Both the arm's ±0.05 mm and the gripper's ±0.05 mm may appear. The fingertip error page does not provide a combined formula for the serial chain, so acceptance is still performed on separate lines, and "system repeatability ±0.05 mm" must not be written. If system-level error is to be measured, it is a project test, not a line on /product-teleop-kit.html.

Line-by-Line Verification

Degrees of freedom. All three columns list 7 degrees of freedom; they must not be merged into a single unit. The column names are GLN-RX75, GLN-RX71, and the local isomorphic kit. This line only states the number and locations of joints that have already been published. It does not evaluate intelligence, and it does not automatically include waist, legs, neck, or whole-body totals not named on the page. When writing the action vector, channels are created only for body parts listed in this row; body parts not listed remain blank. Blank must not be written as 0, because 0 would be treated by training scripts as a real angle. Do not fill in the integer degrees of freedom from another device to complete this row. If the master-slave joint order is not given on the page, mark it as pending written configuration confirmation; do not number it yourself. Degrees of freedom do not include the model of any specific gripper. The action vector creates channels only for the body parts named in this row; unnamed body parts are left blank and are not filled with 0.

Payload and mass. Master arm self-weight: GLN-RX75 is 7.8 kg, GLN-RX71 is 3.8 kg, and the local isomorphic kit is approximately 1.5 kg (including the fixture). Self-weight is not the slave-side rated payload. The numbers in this row must be read with their subject: rated, self-weight, whole-unit mass, envelope, friction, or gripping force. If the subjects differ, they must not be merged into a single number, and no conversion not given on the page may be performed. If objects on site are heavier, the specifications cannot be changed retroactively; conversely, larger specifications do not prove that every grasping method reaches that limit. The tool mass is undetermined; do not write the arm's rated payload as the graspable object mass. The acceptance table retains the original units. The arm's rated values and the gripper's envelope, friction, and gripping force are accepted on separate lines. During acceptance, read the subject first and then the number; if the subjects do not match, split them into two lines.

Dimensions and scale. Working radius: 709 mm, 474 mm, 599 mm. This is the master arm's scale, not the slave unit's outline. This line is an outline or structural dimension, used to check doors, elevators, tabletops, or transport; it is not an operating height and not an arm span. Do not add it to the vertical range. If the diagram shows protrusions, antennas, or a person's standing position not present in this line, note separately that these are not part of the specification. If weight appears in an adjacent row, do not write it into the dimension sentence. The gripper's outline is not written into the unit's outline unless this page is the gripper page. Doors, elevators, and transport are checked only against the outline; do not treat this line as an operating height.

Operating range. Configuration: the first two columns are humanoid configuration, and the local column is a slave arm. Holding method: the first two columns are handles, and the local column is a rail-type ring fixture. This line describes the range that the hand or lift can reach; the definition must follow the original sentence: vertical working range, arm span, working radius, or stroke. These cannot be added together and cannot be renamed. If "excluding end effector" is written, it must remain in the figure caption. When the original text does not specify units, retain the note "units not specified"; do not delete it for tidiness. A 65 mm stroke and an arm span are not the same length. The figure caption retains the range definition from the original sentence, as well as the terms "excluding end effector" or "units not specified."

Motion. Maximum operating speed: the first two columns are 30 RPM, the local column is 110 RPM. All three columns list zero-force drag for drag force. Zero-force drag is not force feedback. This row describes how the ground or the master arm moves. Four-wheel four-drive, differential drive, in-place rotation radius, and rotational speed are terms for different mechanisms and cannot be substituted for one another. Published speed is a capability, not a recommended teaching speed; teaching can be slower, but the slower speed is recorded under experimental conditions and is not written back as a specification. On pages that do not state slope climbing or positioning, do not borrow from other pages. An opening/closing time of 2 seconds is not a chassis speed. The teaching speed can be lower, but the lower speed is recorded under the operating conditions and does not change the published capability in this row.

Power supply. Operating voltage: the first two columns are DC24V, and the local column is DC12V. Power: ≤200 W, ≤100 W, rated 84 W. The specification table has no battery row, so do not write battery life. This line retains only the electrical terms that appear on the page: voltage, capacity, battery life, charging, current, or power. If there are no "hours," write that battery life is not given; do not fill in the blank with hours from an adjacent page. Charging time must not be renamed as battery life. Rated and maximum values must be listed in separate columns. Approximate values retain "approximately." Ampere-hours from multiple devices must not be summed and described as one device's battery. A 24 V gripper and a master arm at DC12V or DC24V are not automatically on the same power circuit. Hours, charging, or current that do not appear remain as not given and must not be copied in from an adjacent page.

Sensing and computation. Angular resolution: the first two columns are ±0.003°, and the local column is 0.088°. Motors: the first two columns are integrated joints, and the local column is bus servos. Communication: the first two columns are RJ45, and the local column is RJ45 / 10-pin aviation connector. This line takes inventory of the items already specified in sensing, computation, or communication, and retains the terms standard, included, optional, and selectable. An optional item that is not checked does not count. When the cover and the list conflict, cite the list, while not pretending the cover statement does not exist. Headsets and gloves do not enter this line. Processors, hard drive capacity, or camera channel counts not written out must not be drawn into the system diagram. Two rows with the same repeatability still belong to the arm and the gripper respectively. Optional sensors not purchased do not enter this data dictionary.

End effector. The fixture in the local column is a rail-type ring fixture, used to hold the master arm; it is not the slave-side RMG22-65. The slave-side gripper is ordered separately. This line states on which side contact or holding occurs. Quick-change, compatible, and recommended are not models already in the box. The ring fixture on the master arm is not the slave-side gripper. Force, stroke, and payload are still retained as-is in their respective rows and are not merged into a single system metric because they are mounted on a particular base unit. Flanges and protocol mappings not given are written as pending confirmation, not as plug-and-play. This line cannot replace the model column. "Supports" or "compatible" without a model cannot be treated as already delivered.

Boundaries. Force feedback is listed as supported only for GLN-RX75 and GLN-RX71. The local isomorphic kit is listed as not supported. The master arm models are RX75, RX71, and YDS-DAP-75/65/RX75S respectively. This line is a boundary deliberately separated on the page: another model, another column, another product page, or an interface that still requires project confirmation after modularization. The boundary is not a defect description; it prevents verbally buying two pages as one. When writing a proposal, copy the boundary into "not included in this order." If an excluded device is added later, open a new configuration sheet; do not go back and change the unit name in the old sample. If the recommended gripper model differs from this gripper model, their names cannot be substituted for each other. Devices within the boundary must be ordered separately; do not rename the old sample to say it already includes them.

Configuration column. The contract must specify the column name. Purchasing the base unit does not include the kit by default. Remote operation refers to the first two columns; local data acquisition refers to the third column; ordering is still done per cell. This line distinguishes standard, recommended, and optional. Recommended and optional items are not delivered unless checked. When the standard row and the parameter table row are inconsistent, keep both rows and use "locked for this order" to indicate which one is actually delivered, rather than blanking out one row in the order without signing off. Prices and lead times are not written into this line's restatement. The end effector row is a separate line in the order, with a quantity. Unchecked recommended and optional items are written as not delivered on the order.

Excerptable. Accessories are copied per column and must not be merged. Example: GLN-RX75, force feedback supported, 709 mm, 7.8 kg, handle, ±0.003°, 30 RPM, integrated joint, RJ45, DC24V, ≤200 W. This is the type of line that can be pasted into an appendix: it has a subject, has units, and can be traced back to the original sentence on the product page. When pasting, retain approximately, excluding, not given, optional, and recommended. Do not convert and keep only the result. If the same number has different meanings on two pages, write it as two lines in the appendix. Test protocols must not be mixed into specification excerpts. The end effector section of the appendix must contain at least the model or an explicit exclusion. When pasting into the appendix, paste the words approximately, excluding, and optional along with the values.

Do not write. Do not write "one teleoperation kit, approximately 5 kg, with force feedback." Do not write 30 RPM and 110 RPM as a single rotational speed, and do not write DC24V and DC12V as a single voltage. This line is a negative statement for review purposes. It does not describe what the equipment can do; it only prevents writing in hours, degrees of freedom, payload subjects, or cover slogans from adjacent pages. If a negative statement is hit, revert to the original product page sentence and do not interpret it as "close enough." External papers' success rates and total hours not publicly disclosed on this site must likewise not be written in. It is forbidden to write that the standard configuration already includes the main arm and gripper. If manuscript retrieval hits a negative statement, revert to the original product page sentence.

ProjectsPublic-Facing Positioning of This Page
Degrees of FreedomAll three columns have 7 degrees of freedom, but this does not mean they can be merged into a single unit. The column names are GLN-RX75, GLN-RX71, and local isomorphic kit.
Load and MassMain arm self-weight: GLN-RX75 is 7.8 kg, GLN-RX71 is 3.8 kg, the local isomorphic kit is approximately 1.5 kg (including the fixture). Self-weight is not the rated payload at the end-effector.
Form Factor and ScaleWorking radius: 709 mm, 474 mm, 599 mm. These are the dimensions of the main arm, not the outline of the end unit.
Operating RangeConfiguration: the first two columns are anthropomorphic configurations; the local column is the same as the follower arm. Gripping: the first two columns use handles; the local column uses a rail-mounted finger-ring fixture.
MotionMaximum operating speed: the first two columns are 30 RPM, the local column is 110 RPM. All three columns list zero-force gravity compensation. Zero-force gravity compensation is not force feedback.
PowerOperating voltage: the first two columns are DC24V, the local column is DC12V. Power: ≤200 W, ≤100 W, rated 84 W. The specification table has no battery row, so do not state battery life.
Perception & ComputeAngular resolution: the first two columns are ±0.003°, the local column is 0.088°. Motor: the first two columns use integrated joints, the local column uses bus servos. Communication: the first two columns use RJ45, the local column uses RJ45 / 10-pin aviation connector.
End EffectorThe fixture in the local column is a rail-type ring fixture used to hold the main arm; it is not the RMG22-65 end-effector. The end-effector gripper is ordered separately.
BoundaryForce feedback is listed as supported only for GLN-RX75 and GLN-RX71. The local isomorphic kit is listed as not supported. The main arm models are RX75, RX71, and YDS-DAP-75/65/RX75S.
Configuration PanelThe contract must specify column names. Purchasing the platform does not include the kit by default. For remote operation, refer to the first two columns; for local data capture, refer to the third column; in either case, order by the individual cell.
ExcerptableTranscribe the attachments column by column; do not merge. Example: GLN-RX75, force feedback supported, 709 mm, 7.8 kg, handle, ±0.003°, 30 RPM, integrated joint, RJ45, DC24V, ≤200 W.
Do not writeDo not write "one teleoperation kit, approximately 5 kg, with force feedback." Do not write 30 RPM and 110 RPM as a single speed, and do not write DC24V and DC12V as a single voltage.
Local isomorphic kit, working radius 599 mm, no force feedback support
Figure 2 | Local isomorphic kit. It forms three columns with GLN-RX75 and GLN-RX71; it does not support force feedback, and the grip is a rail-type ring fixture.

Relationship to Public Methods and Adjacent Pages

The end effector is the segment that makes contact, and it is often mistakenly written as "already included with the embodiment." A quick-change interface means it can be swapped; it does not mean a particular gripper or a particular five-finger hand is in the box. Delivery is governed by the configuration list.

The folding model's end effector supports quick tool changes between a two-finger gripper and a five-finger hand. The wheeled humanoid's upper body is modular. The lift model's standard quantity table does not include a gripper; two units of CTAG2F90-D are a recommended option. The two-finger gripper RMG22-65 has its own product page: envelope load 5 kg, recommended friction load 2 kg, 130 N, stroke 65 mm, self-weight 745 g, open/close time 2 s, repeatability ±0.05 mm, RS485 / Modbus-RTU. Writing these numbers into the base unit's standard configuration is incorrect unless the order explicitly includes that line item.

The gripper's repeatability and the arm's repeatability are not the same number. The recommended arm table for the lift type lists a repeatability of ±0.05 mm, and the RMG22-65's repeatability is also ±0.05 mm. Even though the numbers are identical, they must still be placed in two separate rows, because the sources of error differ, and when chained in series you cannot simply keep only one.

This article draws the line: whether the standard delivery of this product includes the end effector, how to write the recommended items, and when the numbers on a standalone gripper page may appear.

Before handing off to a colleague

The end-effector packing list comes in two copies. One copy lists the model and quantity for this order; the other lists the hand or gripper explicitly not included. Both copies must be signed. A photo of the quick-change interface cannot replace the model line. The gripper parameter label and the arm's rated-load label are affixed to opposite sides. If the ring fixture is on the master arm, the label reads "master-side grip" so the warehouse does not treat it as a slave-side spare. After installation, do not add a new "system repeatability" specification row; if the project needs to measure fingertip error, that is a project measurement, and the label still retains the original two-row accuracy. Warehouse bin locations are separated into three categories: master-side grip, slave-side gripper, and unspecified interface. Quick-change parts with unspecified interfaces are not issued to the capture team. Grippers issued to the capture team must carry a model label. If the model label does not match the packing list, return the item — do not alter the label with a marker pen on site. If two accuracy labels have the same numbers, they still use different headings: arm repeatability of positioning, and gripper position repeatability. Labels with lost headings are void.

First, the packing list is split into two: included and not included.

Second, a photo does not substitute for a model number.

Third, the primary-side fixture and the distal-side gripper get separate storage locations.

Fourth, if the label and the packing list do not match, return the item.

Fifth, even if two sets of precision have the same number, use different headings.

Sixth, do not add "system repeatability" as a specification.
