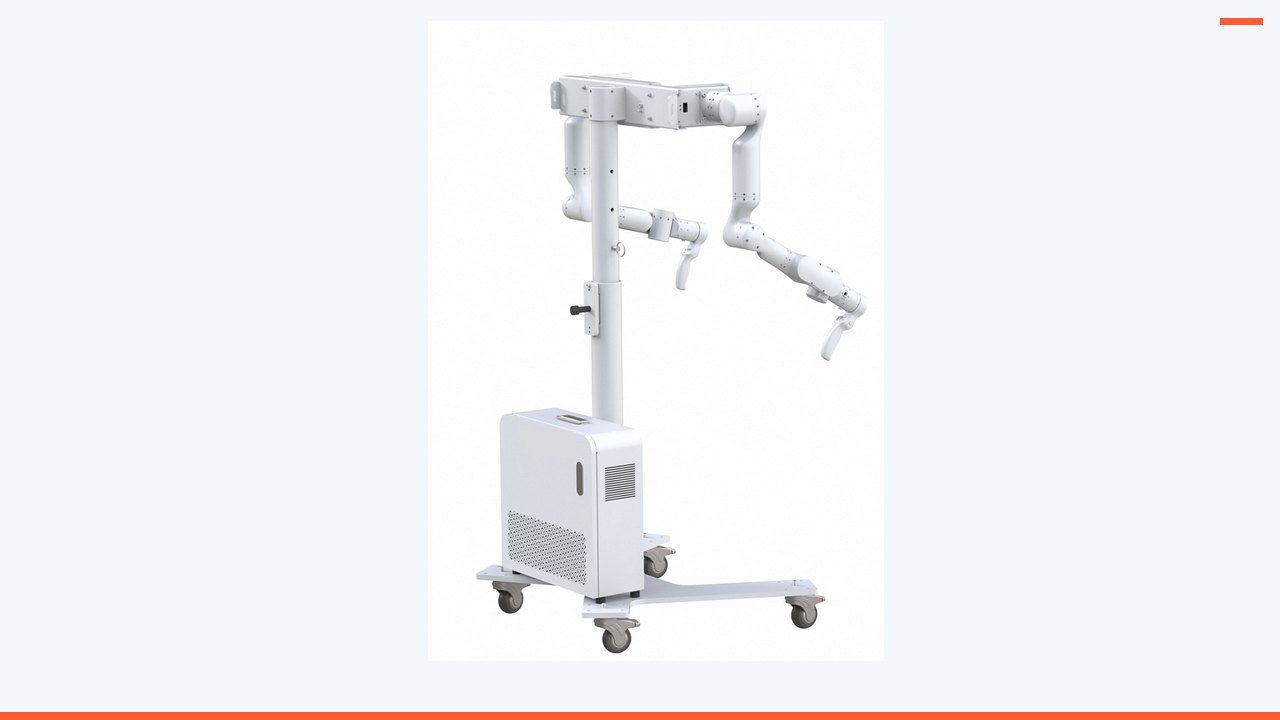

Count the number of channels for vision and computation based on the checklist, not the cover slogan. Angular resolution: the first two columns ±0.003°, the local column 0.088°. Motors: the first two columns use integrated joints, the local column uses bus servos. Communication: the first two columns use RJ45, the local column uses RJ45 / 10-pin aviation connectors. The three words standard, included, and optional must be retained. If an optional item is not checked, it must not be treated as already included.
Perception & Compute
Head-mounted E6 and E2 are a separate image stream on the person and are not in the sensor list of the isomorphic teleoperation kit. The person's first-person view and the unit's onboard cameras must be stored in separate files. E2 has no onboard SLAM; pose is reconstructed offline. E6 training reads the raw frame rate, not the preview. These constraints belong to the head-mounted page; here they only prevent being counted toward the unit's channel count.
The depth, lidar, and ultrasonic used for navigation are not the same set as the head or hand cameras. When writing them into a dataset, use different topic names. Identical names will cause the training script to treat the obstacle-avoidance image as an in-hand image.
The compute platform table only copies rows that exist. Having an Orin 64G does not mean having a 1 TB SSD, and having 1 TB does not mean every adjacent page has one. For products that do not list a processor, do not draw a default compute board in the system diagram. See the original text on the page at /product-teleop-kit.html.

How to Use This Page in This Version
The sensing list is archived into four categories: "standard / included / optional / cover." Angular resolution: ±0.003° for the first two columns, 0.088° for the local column. Motors: integrated joints for the first two columns, bus servos for the local column. Communication: RJ45 for the first two columns, RJ45 / 10-pin aviation connector for the local column. When archiving, remove optional and cover items from the standard category. Where the cover conflicts with the list, cite the list externally while retaining the note "the cover states it differently; it does not constitute delivery." Do not pretend the conflict does not exist, and do not let the cover win.
The computation row is archived separately. If "Orin 64G" is written, one must ask whether there is a solid-state drive capacity. Only if "1T" is written can "1T" be stated. For products where neither row is present, no computation board is drawn in the system block diagram. The processor in the head-mounted unit is not the processor of the embodiment itself.
Decide the camera topic names before capture begins: head, hand, wide-angle, depth, and LiDAR must not share a single name. Navigation depth and hand RGBD are two separate streams even though both are called depth. When the page for a homogeneous teleoperation kit does not provide topic strings, mark the topic names as "project-defined, but must match the number of streams in the manifest," and do not change the stream count to a number that is convenient for writing topic names.
Head-mounted devices and gloves do not enter this list. They may be present in the same experiment, but the list should say "parallel person-side devices" to prevent training scripts from treating the person's images as unit cameras. Synchronization is not resolved at this level; this level only prevents miscounting channels. Source: /product-teleop-kit.html.
Line-by-Line Verification
Degrees of freedom. All three columns have 7 degrees of freedom; this does not mean they can be merged into a single unit. The column names are GLN-RX75, GLN-RX71, and the local isomorphic kit. This row only states the number of joints and body parts that have already been publicly disclosed. It does not evaluate intelligence, and it does not automatically include waist, legs, neck, or a whole-machine total that is not named on the page. When writing the action vector, create channels only for body parts listed in this row; leave unlisted body parts blank. Do not write blanks as 0, because 0 would be treated by training scripts as a real angle. Do not fill in the degrees-of-freedom integer from another device to make the row add up. If the master–slave joint order is not given on the page, mark it as pending written configuration confirmation; do not number it yourself. Joint count is not camera channel count. The action vector creates channels only for body parts named in this row; unlisted body parts are left blank, not filled with 0.
Load and mass. Main arm self-weight: GLN-RX75 is 7.8 kg, GLN-RX71 is 3.8 kg, and the local isomorphic kit is approximately 1.5 kg (including fixtures). Self-weight is not the end-effector rated load. The numbers in this line must be read aloud with their subject: rated, self-weight, whole-machine mass, envelope, friction, or gripping force. If the subjects differ, they cannot be merged into a single number, nor can any conversion not given on the page be performed. If field objects are heavier, the specifications cannot be revised in reverse; a larger specification also does not prove that every grasping method reaches that limit. The tool mass is undetermined, so do not write the arm's rated value as the graspable object mass. The acceptance table retains the original units. Load does not determine the vision configuration. During acceptance, read the subject first and then the number; if the subjects are inconsistent, split them into two rows.
Dimensions and scale. Motion radius: 709 mm, 474 mm, 599 mm. This is the scale of the main arm, not the outline of the slave unit. This row is an outline or structural dimension, used to check doorways, elevators, tabletops, or transport; it is not operating height, nor is it arm reach. Do not add it to the vertical range. If the diagram shows protrusions, antennas, or a person's standing position not listed in this row, note separately that these are not part of the specification. If weight appears in an adjacent row, do not write it into the dimension sentence. The outline does not include the number of sensor mounts. Doorways, elevators, and transport are checked against the outline only; do not treat this row as operating height.
Operating range. Configuration: the first two columns are humanoid configurations, and the local column is a co-located arm. Grip: the first two columns are handles, and the local column is a rail-mounted finger ring fixture. This row describes the range that the hand or lift can reach; the definition must follow the original sentence: vertical working range, arm span, motion radius, or stroke — these cannot be added together or renamed. If "excluding end-effector" is written, it must remain in the figure caption. When the original text does not specify units, keep the note "units not specified" and do not delete it for the sake of tidiness. Field of view is not arm reach. The figure caption retains the range definition from the original sentence, as well as phrases such as "excluding end-effector" or "units not specified."
Motion. Maximum operating speed: 30 RPM for the first two columns, 110 RPM for the local column. The drag force column is written as zero-force dragging for all three columns. Zero-force dragging is not force feedback. This row describes how the ground or the main arm moves. Four-wheel steering with four-wheel drive, differential drive, in-place rotation radius, and rotational speed are terms for different mechanisms and cannot be substituted for one another. Published speed is a capability, not a recommended teaching speed; teaching can be slower, but the slower speed is recorded under experimental conditions and is not written back into the specifications. Do not borrow content from other pages for pages that do not mention slope climbing or positioning. Chassis speed is not a sampling rate. The teaching speed can be lower, but the lower speed is recorded under operating conditions and does not change the published capability in this row.
Power. Operating voltage: first two columns DC24V, local column DC12V. Power: ≤200 W, ≤100 W, rated 84 W. The specification table has no battery row, so do not write runtime. This row retains only the electrical terms that appear on the page: voltage, capacity, runtime, charging, current, or power. If there is no "hours" term, write runtime not given; do not fill in hours from an adjacent page. Do not rename charging time as runtime. Rated and maximum must be in separate columns. Preserve "approximately" for approximate values. Do not sum the ampere-hours of multiple devices and present them as the battery of a single device. The computing platform's power consumption does not belong in the battery row unless that row states it. Hours, charging, or current that do not appear remain not given; do not copy them from an adjacent page.
Perception and computing. Angular resolution: first two columns ±0.003°, local column 0.088°. Motors: first two columns integrated joints, local column bus servos. Communication: first two columns RJ45, local column RJ45 / 10-pin aviation connector. This row inventories the items already specified in sensors, computing, or communication, and preserves the terms standard, included by default, optional, and optional accessory. An optional item that is not checked does not count. When the cover conflicts with the list, cite the list while not pretending the cover statement does not exist. Head-mounted and glove items do not enter this row. Do not draw processors, storage capacity, or camera channel counts into the system diagram if they are not written. This is the primary row for channel counts and computing; standard and optional must be established as separate topics. Optional sensors that were not purchased do not enter this data dictionary.
End effector. The fixture in the local column is a rail-type finger-ring fixture used to hold the main arm; it is not the RMG22-65 from the remote end. The remote-end gripper is ordered separately. This row states at which end contact or gripping occurs. Quick-change, compatible, and recommended are not models already included in the box. The finger-ring fixture on the main arm is not the remote-end gripper. Force, stroke, and payload remain as-is in their respective rows and are not merged into a single system metric because they are installed on a particular body. For flange and protocol mapping that are not given, write pending confirmation, not plug-and-play. If the hand camera is standard or optional, do not write it as an attribute of the end-effector gripper. "Supports" or "compatible" without a model number cannot be treated as delivered.
Boundary. Force feedback is only listed as supported for GLN-RX75 and GLN-RX71. The local isomorphic kit is listed as not supported. The main arm models are RX75, RX71, YDS-DAP-75/65/RX75S respectively. This row is a boundary deliberately separated on the page: another model, another column, another product page, or an interface that still requires project confirmation after modularization. The boundary is not a defect note — it prevents verbally buying two pages as one. When writing a proposal, copy the boundary into "Not included in this order." If equipment not included is added later, open a new configuration sheet rather than going back to change the robotic platform name in the old sample. Extra paths on the cover go in the remarks, not into the standard topics. Equipment within the boundary must be ordered separately; do not rename the old sample to say it already includes it.
Configuration column. The contract must specify column names. Purchasing the robotic platform does not by default include the kit. For remote operation, look at the first two columns; for local data collection, look at the third column — orders must still be placed per cell. This row distinguishes standard, recommended, and optional. Unchecked recommended and optional items will not be delivered. When the standard row and the parameter table row are inconsistent, keep both rows and use "locked for this order" to indicate which one is actually delivered, rather than striking out one row in the order without a signature. Prices and lead times are not written into the paraphrase of this row. Optional depth camera versions or microphones: if unchecked, no topic is created. Unchecked recommended and optional items are written on the order as not delivered.
Excerptable. Copy attachments column by column; do not merge. Example: GLN-RX75, force feedback support, 709 mm, 7.8 kg, handle, ±0.003°, 30 RPM, integrated joint, RJ45, DC24V, ≤200 W. This row is the type that can be pasted into an attachment: it has a subject, has units, and can be traced back to the original sentence on the product page. When pasting, preserve approximately, excluding, not given, optional accessory, and recommended. Do not convert and keep only the result. If the same number has different meanings on two pages, write it as two rows in the attachment. Do not mix test protocols into specification excerpts. Attachments should quote the original sentence from the list, not write "several cameras." When pasting into an attachment, paste the words approximately, excluding, and optional accessory along with it.
Do not write. Do not write "one teleoperation kit, approximately 5 kg, with force feedback." Do not write 30 RPM and 110 RPM as a single rotational speed, and do not write DC24V and DC12V as a single voltage. This row is a negative statement for review purposes. It does not describe what the equipment can do; it only prevents hours, degrees of freedom, payload subjects, or cover slogans from adjacent pages from being written in. If a negative statement is matched, revert to the original sentence on the product page; do not interpret it as approximately the same. Success rates from external papers and total hours not published on this site likewise must not be written in. Do not write 3-channel depth as delivered unless the original sentence in the list says so. If manuscript retrieval matches a negative statement, revert to the original sentence on the product page.
| Projects | Public-Facing Positioning of This Page |
|---|---|
| Degrees of Freedom | All three columns have 7 degrees of freedom, but this does not mean they can be merged into a single unit. The column names are GLN-RX75, GLN-RX71, and local isomorphic kit. |
| Load and Mass | Main arm self-weight: GLN-RX75 is 7.8 kg, GLN-RX71 is 3.8 kg, the local isomorphic kit is approximately 1.5 kg (including the fixture). Self-weight is not the rated payload at the end-effector. |
| Form Factor and Scale | Working radius: 709 mm, 474 mm, 599 mm. These are the dimensions of the main arm, not the outline of the end unit. |
| Operating Range | Configuration: the first two columns are anthropomorphic configurations; the local column is the same as the follower arm. Gripping: the first two columns use handles; the local column uses a rail-mounted finger-ring fixture. |
| Motion | Maximum operating speed: the first two columns are 30 RPM, the local column is 110 RPM. All three columns list zero-force gravity compensation. Zero-force gravity compensation is not force feedback. |
| Power | Operating voltage: the first two columns are DC24V, the local column is DC12V. Power: ≤200 W, ≤100 W, rated 84 W. The specification table has no battery row, so do not state battery life. |
| Perception & Compute | Angular resolution: the first two columns are ±0.003°, the local column is 0.088°. Motor: the first two columns use integrated joints, the local column uses bus servos. Communication: the first two columns use RJ45, the local column uses RJ45 / 10-pin aviation connector. |
| End Effector | The fixture in the local column is a rail-type ring fixture used to hold the main arm; it is not the RMG22-65 end-effector. The end-effector gripper is ordered separately. |
| Boundary | Force feedback is listed as supported only for GLN-RX75 and GLN-RX71. The local isomorphic kit is listed as not supported. The main arm models are RX75, RX71, and YDS-DAP-75/65/RX75S. |
| Configuration Panel | The contract must specify column names. Purchasing the platform does not include the kit by default. For remote operation, refer to the first two columns; for local data capture, refer to the third column; in either case, order by the individual cell. |
| Excerptable | Transcribe the attachments column by column; do not merge. Example: GLN-RX75, force feedback supported, 709 mm, 7.8 kg, handle, ±0.003°, 30 RPM, integrated joint, RJ45, DC24V, ≤200 W. |
| Do not write | Do not write "one teleoperation kit, approximately 5 kg, with force feedback." Do not write 30 RPM and 110 RPM as a single speed, and do not write DC24V and DC12V as a single voltage. |

Relationship to Public Methods and Adjacent Pages
The perception configuration determines what the visuomotor policy can see, and also determines what the article cannot claim. The standard configuration, recommended configuration, and cover schematic are often not the same sentence. The lift model's cover once showed "3 depth + 2 wide-angle," while the standard configuration lists one D435 depth camera and two wide-angle cameras. In case of conflict, the standard configuration list prevails, and the conflict note is retained, to prevent sales from verbally presenting the cover number as delivered.
Chassis navigation sensing is a separate group: depth cameras, inertial measurement with encoders, LiDAR, safety bumpers, ultrasonic. They serve chassis obstacle avoidance and localization, not the in-hand camera at the wrist. If a wrist camera is included in the accessories, it must be listed on a separate line and must not be counted into the standard vision path. The compute platform likewise only lists what appears on the page. The folding model lists the core processor as Nvidia Jetson AGX Orin 64G, with no mention of a 1T solid-state drive. The lift model lists Nvidia Jetson AGX Orin 64G and explicitly states an additional 1T solid-state drive. The spec tables for the wheeled humanoid, kit, and gripper do not have this processor line; you cannot write "Orin across the entire series," nor copy the 1T solid-state drive to the folding model.
Head-mounted E6 and E2 are a separate visual pathway, worn on the human body, and are not part of the rig's standard checklist. The human-eye viewpoint and the rig camera viewpoint must be recorded in separate files. The nominal SLAM accuracy in the E6 spec sheet is not ground truth proven by public samples.
This article only inventories the sensing and compute listed on that product page, and points out which line is standard and which line is only a cover claim.
Before handing off to a colleague
Post the sensor list next to the capture computer. One topic name per channel, with "standard," "included," or "optional" copied next to each topic name. Optional topics that have not arrived should be removed from the capture configuration rather than left as empty topics. The extra channel count on the cover is written on a sticky note titled "not delivered." Next to the compute board, note whether the words "SSD capacity" exist; if not, do not attach a 1T label. If the head-mounted camera is recording at the same time, use a separate list to prevent the operator from inserting human images into the base unit topics. Run a diff between the topic configuration file and the product page list. Extra topics in the configuration file must be deleted or marked as project additions; they cannot remain under the standard list's name. Missing standard topics in the configuration file must either be added back or documented in the data notes as not captured, with the reason. Optional topics may only appear if they are checked off on the packing list. When the compute platform's disk capacity is not written on the page, the configuration file must not contain a capacity field, so it is not mistaken for a specification.
First, perform a gap check between the topic and the checklist.
Second, mark extra topics as additional or delete them.
Third, missing standard topics must be noted as not captured.
Fourth, do not create a topic for an unchecked optional item.
Fifth, do not write unavailable disk capacity into the configuration.
Sixth, use a separate checklist for head-mounted.
