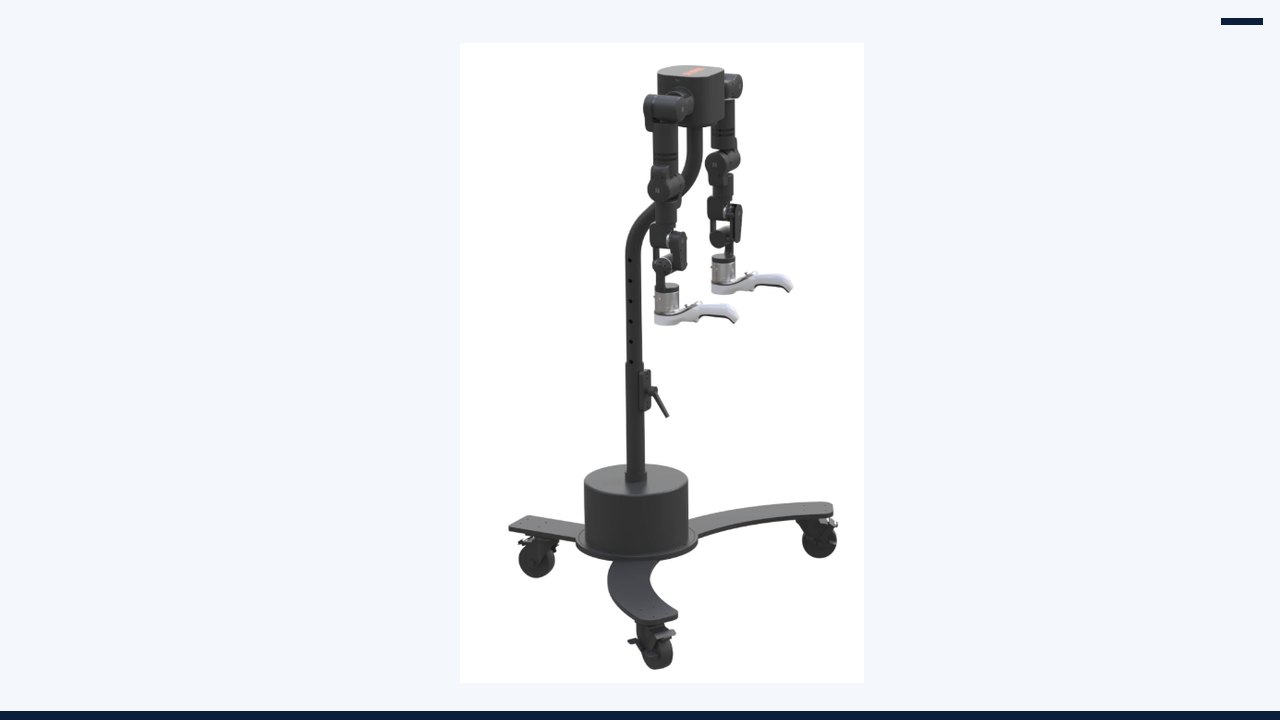

Envelope, vertical range, and reach are three sets of coordinates. Motion radius: 709 mm, 474 mm, 599 mm. This is the scale of the master arm, not the envelope of the slave unit. Configuration: the first two columns are humanoid configuration; the local column is the same as the slave arm. Grip: the first two columns use a handle; the local column uses a rail-type ring fixture. Use the envelope for doors and elevators; use vertical range or vertical reach for shelf height; use reach or horizontal overhang for shelf depth. Adding the three sets of numbers together has no physical meaning.
Workspace
The reach excluding the end-effector becomes shorter once a gripper is attached; the amount of reduction depends on the end-effector dimensions, and this reduction is usually not given on the page. The fixture in the local column is a rail-type ring fixture used to grip the master arm, not the slave's RMG22-65. The slave gripper is ordered separately. Therefore, the workspace diagram must be labeled "excluding end-effector" or "end-effector calculated separately," and the reach must not be drawn directly as the reachable domain of the gripper fingertips.
The ground projection of the isomorphic teleoperation kit must also account for the standing position of the operator or master arm. The master arm length is on the kit page, not in the envelope described in this section. If the workstation is drawn based only on the unit's dimensions, the operator will have nowhere to stand.
If a task cannot be mapped into these three coordinate frames, it is not a task for this device. Swapping in a different camera set cannot turn a 0.69 m arm reach into 2 m, nor can it copy the vertical range from one page to another. The verification page is /product-teleop-kit.html.

How to Use This Page in This Version
The workspace diagram uses three layers and is not drawn as a single sphere. The first layer is the envelope, which determines doors and elevators: motion radius 709 mm, 474 mm, 599 mm. This is the scale of the master arm, not the envelope of the slave unit. The second layer is the vertical and horizontal operating range: configuration — the first two columns are humanoid configuration, the local column is the same as the slave arm; grip — the first two columns use a handle, the local column uses a rail-type ring fixture. The third layer is the part not accounted for by the end-effector: the fixture in the local column is a rail-type ring fixture used to grip the master arm, not the slave's RMG22-65. The slave gripper is ordered separately. The three layers use different line styles. Tracing all three layers into a single "maximum radius" is the most common error in this dimension.
The arm span excluding the end effector is stated in the figure caption. Whether the fingertips can still reach that point after a gripper is installed must be measured on site with a gauge; do not automatically extend the arm span by a gripper length on the figure, nor automatically shorten it. The page does not provide a correction to the arm span for the gripper length.
Left/right overhang, shoulder width, and chassis width are used for passages, not for shelf height. If the original text does not specify a unit for one-sided overhang, the caption retains "the original text does not mark a unit; recorded in the millimeter context". Do not erase this note.
The operator's standing position and the master arm's tabletop form the fourth layer, but they do not belong to the envelope of the isomorphic teleoperation kit unless this page is the kit page. The kit's motion radius is the scale of the master arm and must not be drawn into the slave's reachable sphere. The slave's vertical range must not be drawn into the master arm's motion radius.
After completing the diagram, verify it with one sentence: every dimension on the diagram must point to a line in /product-teleop-kit.html. Delete any dimension that cannot be pointed to. Do not write "one teleoperation kit, approximately 5 kg, with force feedback." Do not write 30 RPM and 110 RPM as a single rotational speed, and do not write DC24V and DC12V as a single voltage. Dimensions from adjacent pages especially must be deleted.
Line-by-Line Verification
Degrees of freedom. All three columns have 7 degrees of freedom, but this does not mean they can be merged into one unit. The column names are GLN-RX75, GLN-RX71, and local isomorphic kit. This row only states the number and locations of joints that have been publicly disclosed. It does not evaluate intelligence, and it does not automatically include waist, legs, neck, or a whole-machine total that is not explicitly named on the page. When writing the action vector, create channels only for the body parts listed in this row; leave unlisted parts blank. Do not write blanks as 0, because 0 would be treated by training scripts as a real angle. Do not fill in degrees of freedom from another device to complete this row. If the master-slave joint order is not given on the page, mark it as pending written configuration confirmation; do not number it yourself. Degrees of freedom do not describe spatial size. The action vector creates channels only for the body parts named in this row; unlisted parts are left blank and not filled with 0.
Payload and mass. Master arm self-weight: GLN-RX75 is 7.8 kg, GLN-RX71 is 3.8 kg, and the local isomorphic kit is approximately 1.5 kg (including the fixture). Self-weight is not the slave's rated payload. The numbers in this row must be read with their subject: rated, self-weight, total unit mass, envelope, friction, or gripping force. If the subjects differ, they cannot be merged into a single number, nor can conversions not given on the page be performed. If an object in the field is heavier, this does not retroactively change the specification; a larger specification does not prove that every grasping method reaches that limit. The tool mass is undetermined; do not write the arm's rated value as the graspable object mass. The acceptance table retains the original units. Payload does not describe reachability. During acceptance, read the subject first and then the number; if the subjects differ, split them into two rows.
Envelope and dimensions. Motion radius: 709 mm, 474 mm, 599 mm. This is the scale of the master arm, not the envelope of the slave unit. This row is the envelope or structural dimension, used to verify doors, elevators, tabletops, or transport; it is not the operating height, nor is it the reach. Do not add it to the vertical range. If the diagram shows protrusions, antennas, or an operator's standing position not present in this row, note separately that they are not part of the specification. If weight appears in an adjacent row, do not write it into the dimension sentence. This row enters the envelope layer of the workstation diagram. Doors, elevators, and transport are verified only against the envelope; do not treat this row as the operating height.
Operating range. Configuration: the first two columns are humanoid configuration; the local column is the same as the slave arm. Grip: the first two columns use a handle; the local column uses a rail-type ring fixture. This row describes the range that the hand or lift can reach; the definition must follow the original sentence: vertical working range, reach, motion radius, or stroke — these cannot be added to each other or renamed. If "excluding end-effector" is written, it must remain in the diagram caption. If the original text does not specify units, retain the note "units not specified"; do not delete it for the sake of tidiness. This row enters the operating layer of the workstation diagram and is not added to the envelope layer. The diagram caption retains the range definition from the original sentence, as well as words like "excluding end-effector" or "units not specified."
Motion. Maximum operating speed: 30 RPM in the first two columns, 110 RPM in the local column. Traction force: all three columns state zero-force dragging. Zero-force dragging is not force feedback. This row describes how the ground or master arm moves. Four-wheel steering, four-wheel drive, differential drive, in-place rotation radius, and rotational speed are terms for different mechanisms and cannot be substituted for one another. Published speed is a capability, not a recommended teaching speed; teaching can be slower, but a slower speed is recorded under experimental conditions and is not written back as a specification. Do not borrow slope climbing or positioning data from another page for a page that does not state them. The chassis's range of motion is not the arm's workspace unless the original sentence is specifically about the chassis. Teaching speed can be lower, but a lower speed is recorded under operating conditions and does not change the published capability in this row.
Power supply. Operating voltage: DC24V in the first two columns, DC12V in the local column. Power: ≤200 W, ≤100 W, rated 84 W. The specification table has no battery row, so do not write battery life. This row retains only the electrical terms that appear on the page: voltage, capacity, battery life, charging, current, or power. If there is no "hours," write that battery life is not specified; do not fill in hours from an adjacent page. Do not rename charging time as battery life. Rated and maximum values must be in separate columns. Preserve "approximately" for approximate values. Do not sum the ampere-hours of multiple devices and attribute them to a single device's battery. The battery does not change the reachable domain. Hours, charging, or current that do not appear remain as not specified; do not copy them in from an adjacent page.
Sensing and computation. Angular resolution: ±0.003° in the first two columns, 0.088° in the local column. Motor: integrated joint in the first two columns, bus servo in the local column. Communication: RJ45 in the first two columns, RJ45 / 10-pin aviation connector in the local column. This row inventories the items explicitly stated in sensing, computation, or communication, and preserves the words standard, included, optional, and optional-order. Unchecked optional items do not count. If the cover conflicts with the list, cite the list while not pretending the cover statement does not exist. Headsets and gloves do not enter this row. Processors, hard drive capacity, or camera channel counts that are not written out must not be drawn into the system diagram. The camera's field of view is not the mechanical reachable domain. Optional sensors that were not purchased do not enter this data dictionary.
End-effector. The fixture in the local column is a rail-type ring fixture used to grip the master arm, not the slave's RMG22-65. The slave gripper is ordered separately. This row states at which end contact or gripping occurs. Quick-change, compatible, and recommended are not models already included in the box. The ring fixture on the master arm is not the slave gripper. Force, stroke, and payload are still retained as-is in their respective rows; they are not merged into a single system metric because they are mounted on a particular unit. Flange and protocol mappings that are not specified are marked as pending confirmation, not as plug-and-play. The page does not provide a formula for how end-effector length affects reachable points; do not automatically add or subtract in the diagram. "Supports" or "compatible" without a model number cannot be treated as already delivered.
Boundaries. Force feedback is listed as supported only for GLN-RX75 and GLN-RX71. The local isomorphic kit is listed as not supported. The master arm models are RX75, RX71, and YDS-DAP-75/65/RX75S respectively. This row is a boundary deliberately separated on the page: another model, another column, another product page, or an interface that still requires project confirmation after modularization. The boundary is not a defect description; it prevents verbally treating two pages as one page. When writing a proposal, copy the boundary into "Not included in this order." If equipment not included is added later, open a new configuration sheet; do not go back and change the unit name in the old sample. The master arm's motion radius is not drawn into the slave's reachable domain unless this page is the kit page. Equipment within the boundary must be ordered separately; do not rename the old sample to imply it is already included.
Configuration column. The contract must state the column names. Purchasing the base unit does not include the kit by default. For remote operation, refer to the first two columns; for local data acquisition, refer to the third column. Orders must still be placed per cell. This row distinguishes standard, recommended, and optional items. Recommended and optional items are not delivered unless checked. If the standard row conflicts with the parameter table row, keep both rows and use "Locked for this order" to indicate which one is actually delivered, rather than striking out one row in the order without sign-off. Prices and lead times are not written into this row's paraphrase. Unselected end-effectors are not drawn into the reachable diagram. Unchecked recommended and optional items are marked as not delivered on the order.
Excerptable. Copy attachments column by column; do not merge. Example: GLN-RX75, force feedback supported, 709 mm, 7.8 kg, handle, ±0.003°, 30 RPM, integrated joint, RJ45, DC24V, ≤200 W. This is the type of line that can be pasted into an attachment: with a subject, with units, and traceable back to the original sentence on the product page. When pasting, keep words such as approximately, excludes, not specified, optional, and recommended. Do not convert and keep only the result. If the same number has different meanings on two pages, write it as two lines in the attachment. Do not mix test protocols into specification excerpts. Every number in a caption must trace back to a table. When pasting into an attachment, paste words like approximately, excludes, and optional along with them.
Do not write. Do not write "one teleoperation kit, approximately 5 kg, with force feedback." Do not write 30 RPM and 110 RPM as a single rotational speed, and do not write DC24V and DC12V as a single voltage. This row is a negative statement for review purposes. It does not describe what the equipment can do; it only prevents hours, degrees of freedom, payload subjects, or cover slogans from an adjacent page from being written in. If a negative statement is hit, revert to the original sentence on the product page; do not interpret it as "close enough." External papers' success rates and total hours not publicly disclosed on this site must likewise not be written in. Meters from an adjacent page cannot be used to fill blanks in this diagram. If a manuscript search hits a negative statement, revert to the original sentence on the product page.
| Projects | Public-Facing Positioning of This Page |
|---|---|
| Degrees of Freedom | All three columns have 7 degrees of freedom, but this does not mean they can be merged into a single unit. The column names are GLN-RX75, GLN-RX71, and local isomorphic kit. |
| Load and Mass | Main arm self-weight: GLN-RX75 is 7.8 kg, GLN-RX71 is 3.8 kg, the local isomorphic kit is approximately 1.5 kg (including the fixture). Self-weight is not the rated payload at the end-effector. |
| Form Factor and Scale | Working radius: 709 mm, 474 mm, 599 mm. These are the dimensions of the main arm, not the outline of the end unit. |
| Operating Range | Configuration: the first two columns are anthropomorphic configurations; the local column is the same as the follower arm. Gripping: the first two columns use handles; the local column uses a rail-mounted finger-ring fixture. |
| Motion | Maximum operating speed: the first two columns are 30 RPM, the local column is 110 RPM. All three columns list zero-force gravity compensation. Zero-force gravity compensation is not force feedback. |
| Power | Operating voltage: the first two columns are DC24V, the local column is DC12V. Power: ≤200 W, ≤100 W, rated 84 W. The specification table has no battery row, so do not state battery life. |
| Perception & Compute | Angular resolution: the first two columns are ±0.003°, the local column is 0.088°. Motor: the first two columns use integrated joints, the local column uses bus servos. Communication: the first two columns use RJ45, the local column uses RJ45 / 10-pin aviation connector. |
| End Effector | The fixture in the local column is a rail-type ring fixture used to hold the main arm; it is not the RMG22-65 end-effector. The end-effector gripper is ordered separately. |
| Boundary | Force feedback is listed as supported only for GLN-RX75 and GLN-RX71. The local isomorphic kit is listed as not supported. The main arm models are RX75, RX71, and YDS-DAP-75/65/RX75S. |
| Configuration Panel | The contract must specify column names. Purchasing the platform does not include the kit by default. For remote operation, refer to the first two columns; for local data capture, refer to the third column; in either case, order by the individual cell. |
| Excerptable | Transcribe the attachments column by column; do not merge. Example: GLN-RX75, force feedback supported, 709 mm, 7.8 kg, handle, ±0.003°, 30 RPM, integrated joint, RJ45, DC24V, ≤200 W. |
| Do not write | Do not write "one teleoperation kit, approximately 5 kg, with force feedback." Do not write 30 RPM and 110 RPM as a single speed, and do not write DC24V and DC12V as a single voltage. |

Relationship to Public Methods and Adjacent Pages
A workspace typically has at least three coordinate frames; mixing them up will record the lab door width and operating height as the same number. The first is the overall machine envelope: length, width, and height, which determine whether it can fit through a door or an elevator. The second is the chassis footprint and obstacle traversal, which determine ground compatibility. The third is the operating envelope reachable by the arm or lift: vertical range, arm reach, and the distance the arm extends beyond the chassis on either side. The vertical range is the interval of heights the end-effector or platform can reach — it is not the overall machine height, nor is it the kinematic reach of the arm.
The folding model measures approximately 614×552×1700 mm, with a vertical operating range of 0–2.1 m. The lift model folds to 640×450×1780 mm, with a vertical range of 0–2.4 m and a lift stroke of 900 mm; the reach listed on the recommended arm sheet is 633 mm, which is the arm's working radius, not the overall machine height. The wheeled humanoid measures 570×465×1680 mm, with both shoulder width and chassis width falling within 465 mm. The "height" of the three units is therefore stated in three different sentences.
When writing an acquisition plan, mark the operating height in the task onto the vertical range, the shelf depth onto the arm reach or left-right overhang, and the door width onto the outline width. A task that cannot be marked in is not a task for this body — do not just round the spec to "approximately".
This article reads that product page using these three coordinate sets; if one set is missing, write that it is missing, and do not fill in with another device's numbers.
Before handing off to a colleague
Print out the workspace diagram and use a ruler to check each dimension in the figure caption one by one. Any dimension that cannot be found on the product page should be crossed out in red pen, including the dashed lines reserved for the operator's standing position, unless the dashed lines are explicitly labeled as not being specifications. Next to the reach that excludes the end effector, handwrite "end effector not included." If a one-sided overhang retains a note without units, the note text must not be cropped off by the figure frame. If the main arm's motion radius appears in the same figure, it must be given a different title and must not be called the slave-side reachable workspace. Write the product page path in the title block. Figures without a path do not enter the experimental record. Use the layer names from the original sentence for the figure layers; do not use the new term "maximum range." If the outline layer, operation layer, end-effector-not-included layer, and main arm layer all exist, all four legend rows must appear. If a layer is missing an explanation, do not draw that layer. The print scale does not need to be accurate to the millimeter, but the numbers in the figure caption must be exact to the original sentence. If someone edits numbers on the figure with a pen, the edited figure is void — go back to the product page and re-copy, rather than treating the pen edit as a new specification.
First, layer names use the words from the original sentence.
Second, do not draw layers without a source.
Third, "excludes end effector" must be written in the figure caption.
Fourth, notes without units are not cropped away.
Fifth, the primary arm radius is not the distal reachable workspace.
Sixth, any diagram altered by hand is void.
