Place orders separately for the master and slave ends. Force feedback is only listed as supported for GLN-RX75 and GLN-RX71. The local isomorphic kit is listed as not supported. The master arm models are RX75, RX71, and YDS-DAP-75/65/RX75S respectively. The contract must specify the column names. Purchasing the robotic platform does not include the kit by default. For remote operation, refer to the first two columns; for local data capture, refer to the third column — orders must still be placed per cell. The three kit columns differ in force feedback, voltage, rotational speed, resolution, and grip form. The local column has no force feedback, but all three columns list zero-force gravity compensation. Zero-force gravity compensation cannot be used as a synonym for force feedback.

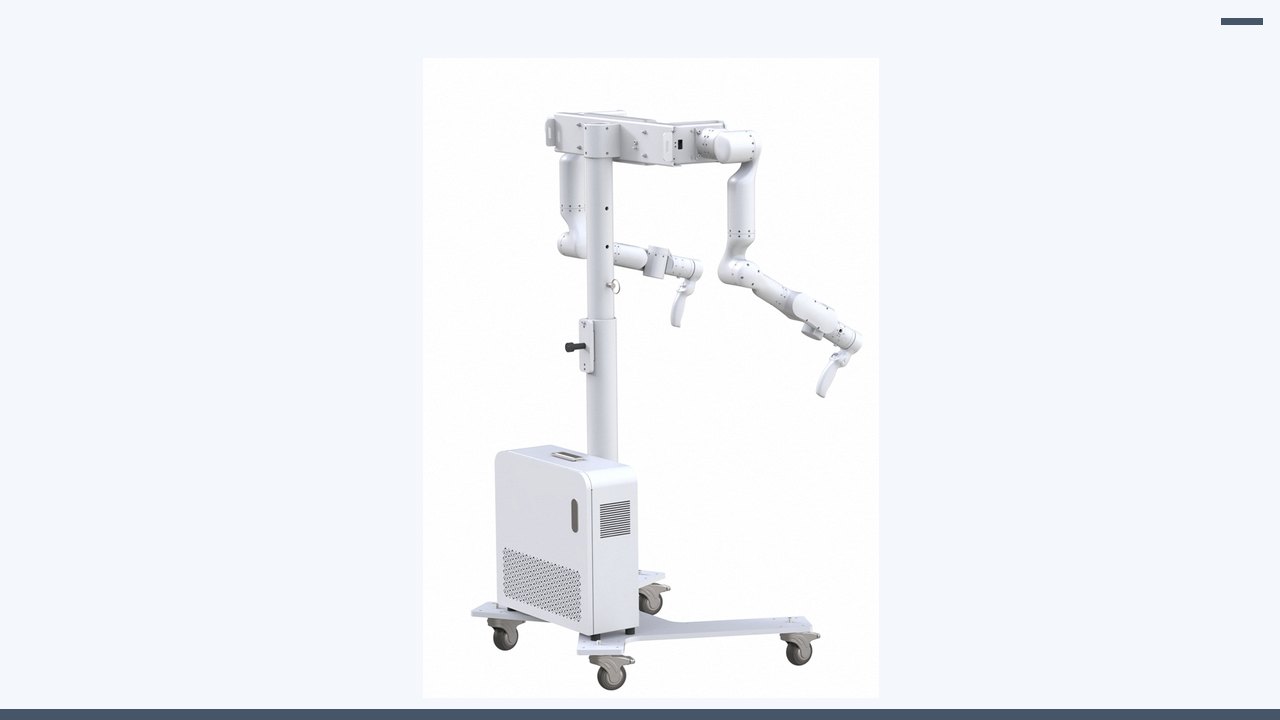

Master-slave workstation
If the slave end is a homogeneous teleoperation kit, the master-end column name must still be written separately. If servos, backpack, or mobile base appear in the optional add-ons for the lift model, that is an installation form, not a selection of GLN-RX75 or the local column.
The main arm's motion radius is a desktop scale. 709 mm, 474 mm, and 599 mm must not be written into the slave-side reach. The slave-side reach is still governed by the slave-side page.
The contract lists one line for the master unit, one for the slave unit, and one for the end-effector. All three lines point to specific URLs in the product center, not to “one teleoperation system set.” The isomorphic teleoperation kit corresponds to /product-teleop-kit.html.

How to Use This Page in This Version
Teleoperation procurement is always multiple rows. The homogeneous teleoperation kit occupies only one of them. The master end gets its own row, and it must be one of the three columns: GLN-RX75, GLN-RX71, or the local homogeneous kit. The first two columns support force feedback; the local column does not. All three columns list zero-force gravity compensation, so "can be dragged" cannot be used to prove force feedback exists.
Voltage, power, rotational speed, resolution, grip, motor, and interface are all copied column by column. The first two columns are DC24V, the local column is DC12V. The first two columns are 30 RPM, ±0.003°, handle, integrated joint, RJ45. The local column is 110 RPM, 0.088°, rail-type ring fixture, bus servo, RJ45 / 10-pin aviation connector, self-weight approximately 1.5 kg including the fixture. The motion radius of 709 / 474 / 599 mm is the primary arm, not the distal arm reach.
The slave-side arm reach, degrees of freedom, and rated load are still governed by the slave-side page. If the lift model is equipped with a servo, backpack, or mobile configuration, that is an optional installation and does not automatically equate to a particular column of the main arm. The folding model and wheeled humanoid do not include the kit in the standard row. The gripper is listed on a separate row.
When all three rows are blank, do not begin recording "teleoperation data." What is recorded is only the log of some device, and the action space is incomplete. Only after the rows are filled in can the data dictionary reference the column names. /product-teleop-kit.html is the source for the homogeneous teleoperation kit row. Do not write "one teleoperation kit, approximately 5 kg, with force feedback." Do not merge 30 RPM and 110 RPM into a single speed, and do not merge DC24V and DC12V into a single voltage.
Line-by-Line Verification
Degrees of freedom. All three columns show 7 degrees of freedom, but this does not mean they can be merged into one unit. The column names are GLN-RX75, GLN-RX71, and local isomorphic kit. This row only states the publicly disclosed joint counts and body parts. It does not evaluate intelligence, and it does not automatically include the waist, legs, neck, or whole-machine totals that are not named on the page. When writing the action vector, create channels only for the body parts listed in this row; body parts not listed remain blank. Do not write blanks as 0, because 0 would be treated by training scripts as a real angle. Do not fill in the integer degrees of freedom from another device to complete this row. If the master-slave joint order is not given on the page, mark it as pending written configuration confirmation; do not number it yourself. Whether the master end's 7 and the slave end's joints have the same count still requires a mapping to be written; do not omit it just because both are 7. The action vector creates channels only for the body parts named in this row; body parts not named remain blank and are not filled with 0.
Load and mass. Master arm self-weight: GLN-RX75 is 7.8 kg, GLN-RX71 is 3.8 kg, the local homogeneous kit is approximately 1.5 kg (including the fixture). Self-weight is not the slave-end rated load. The numbers in this row must be read aloud with their subject: rated, self-weight, total machine mass, envelope, friction, or gripping force. If the subjects differ, they cannot be merged into a single number, nor can conversions not given on the page be performed. If a field object is heavier, the specification cannot be changed retroactively; a larger specification also does not prove that every grasping method reaches that limit. If the tool mass is undetermined, do not write the arm's rated value as the graspable object mass. The acceptance table retains the original units. The master arm's self-weight is not the slave-end rated value. During acceptance, read the subject first and then the number; if the subjects do not match, split into two rows.
Form and scale. Motion radius: 709 mm, 474 mm, 599 mm. This is the scale of the main arm, not the form of the end-effector body. This row describes form or structural scale, used to verify doorways, elevators, tabletops, or transport clearance — it is not operating height, nor is it reach. Do not add it to the vertical range. If the figure depicts protrusions, antennas, or human standing positions not present in this row, note separately that they are not part of the specification. If weight appears in an adjacent row, do not include it in the dimension sentence. The main arm motion radius is not the form of the end effector. Doorways, elevators, and transport are verified only against form; this row is not treated as operating height.
Operating range. Configuration: the first two columns are humanoid configuration, the local column is a slave arm of the same type. Grip: the first two columns use a handle, the local column uses a rail-type ring fixture. This row describes the range the hand or lift can reach; the definition must follow the original sentence: vertical working range, arm span, motion radius, or stroke. These cannot be added together or renamed. If "excluding end effector" is written, it must remain in the figure caption. If the original text does not specify units, retain the note "units not specified"; do not delete it for tidiness. The slave arm's span is not written into the master arm column. The figure caption retains the range definition from the original sentence, as well as the words "excluding end effector" or "units not specified."
Motion. Maximum operating speed: 30 RPM for the first two columns, 110 RPM for the local column. The dragging force column reads "zero-force dragging" in all three columns. Zero-force dragging is not force feedback. This row describes how the ground or the primary arm moves. Four-wheel four-drive, differential drive, in-place rotation radius, and rotational speed are terms for different mechanisms and cannot be substituted for one another. Published speed is a capability, not a recommended teaching speed; teaching can be slower, but the slower speed is recorded under experimental conditions and is not written back into the spec. Do not borrow slope-climbing or positioning figures from other pages for a page that does not list them. Primary-arm rotational speed and slave-end chassis speed are listed in separate columns. Teaching speed can be lower, but the lower speed is recorded under the operating conditions and does not change the published capability in this row.
Power. Operating voltage: DC24V for the first two columns, DC12V for the local column. Power: ≤200 W, ≤100 W, rated 84 W. The specification table has no battery row, so do not state battery life. This row retains only the electrical terms that appear on the page: voltage, capacity, battery life, charging, current, or power. If there are no "hours," write that battery life is not given; do not fill in values from adjacent pages. Do not rename charging time as battery life. Rated and maximum values must be listed in separate columns. Preserve "approximately" where it appears. Do not sum the amp-hours of multiple devices and present them as the battery of a single unit. The main arm voltage follows its own column and must not be merged with the end-side battery into a single power source. Hours, charging, or current that do not appear should remain as not given and must not be copied in from adjacent pages.
Perception and computing. Angular resolution: ±0.003° for the first two columns, 0.088° for the local column. Motors: integrated joints for the first two columns, bus servos for the local column. Communication: RJ45 for the first two columns, RJ45 / 10-pin aviation connector for the local column. This row inventories items already specified under perception, computing, or communication, and preserves the terms standard, included by default, optional, and optional add-on. Unchecked optional items do not count. When the cover conflicts with the checklist, cite the checklist while not pretending the cover statement does not exist. Headsets and gloves do not belong in this row. Do not draw processors, hard-drive capacity, or camera channel counts into the system diagram if they are not written. Angular resolution is per column; 0.088° and ±0.003° cannot be averaged. Optional sensors that have not been purchased do not enter this data dictionary.
End effector. The fixture in the local column is a rail-type ring fixture used to grip the master arm; it is not the slave-end RMG22-65. The slave-end gripper is ordered separately. This row states at which end contact or gripping occurs. Quick-change, compatible, and recommended are not models already in the box. The ring fixture on the master arm is not the slave-end gripper. Force, stroke, and load are still retained as-is in their respective rows; they are not merged into a single system metric just because they are mounted on a particular body. Flange and protocol mappings that are not specified should be written as "to be confirmed," not "plug and play." The ring fixture and the slave-end gripper are two ends. "Supports" or "compatible" without a model number cannot be treated as delivered.
Boundary. Force feedback is written as supported only for GLN-RX75 and GLN-RX71. The local homogeneous kit is written as not supported. The master arm models are RX75, RX71, and YDS-DAP-75/65/RX75S respectively. This row is a boundary deliberately separated on the page: another model, another column, another product page, or an interface that still requires project confirmation after modularization. The boundary is not a defect statement; it prevents verbally merging two pages into one purchase. When writing a proposal, copy the boundary into "Not included in this order." If an excluded device is added later, open a new configuration sheet; do not go back and change the body name in the old sample. Force feedback exists only in the columns where it is written as supported. Zero-force gravity compensation appears in all three columns and cannot be treated as force feedback. Devices within the boundary must be ordered separately; do not rename an old sample to imply it already includes them.
Configuration column. The contract must specify the column names. Purchasing the robotic platform does not by default include the kit. Remote operation looks at the first two columns, local data collection looks at the third column, and ordering must still be done cell by cell. This line distinguishes standard, recommended, and optional. Recommended and optional items that are not checked will not be delivered. When the standard row and the parameter table row are inconsistent, keep both rows, and use "locked for this order" to indicate which one is actually delivered, rather than crossing out one of the rows in the order without signing off. Prices and lead times are not written into this line's paraphrase. The installation form selected at the end is not a column name for the main arm. Unchecked recommended and optional items are written as not delivered on the order.
Excerptable. Copy attachments column by column; do not merge. Example: GLN-RX75, force feedback supported, 709 mm, 7.8 kg, handle, ±0.003°, 30 RPM, integrated joint, RJ45, DC24V, ≤200 W. This is the type of line that can be pasted into an attachment: with a subject, with units, and traceable back to the original sentence on the product page. When pasting, retain words such as approximately, excludes, not specified, optional, and recommended. Do not convert and keep only the result. If the same number has different meanings on two pages, write it as two lines in the attachment. Do not mix test protocols into specification excerpts. Orders need at least two lines: the primary-side column name and the secondary-side page name. Add one more line at the end. When pasting into an attachment, paste the words approximately, excludes, and optional along with them.
Do not write. Do not write "one teleoperation kit, approximately 5 kg, with force feedback." Do not merge 30 RPM and 110 RPM into a single speed, and do not merge DC24V and DC12V into a single voltage. This row is a negative statement for review purposes. It does not describe what the equipment can do; it only prevents hours, degrees of freedom, load subjects, or cover slogans from the adjacent page from being written in. If a negative statement is hit, revert to the original sentence on the product page; do not interpret it as "close enough." External papers' success rates and total hours not published on this site must likewise not be written in. The merged sentence "one teleoperation kit, with force feedback" is prohibited. If manuscript retrieval hits a negative statement, revert to the original sentence on the product page.
| Projects | Public-Facing Positioning of This Page |
|---|---|
| Degrees of Freedom | All three columns have 7 degrees of freedom, but this does not mean they can be merged into a single unit. The column names are GLN-RX75, GLN-RX71, and local isomorphic kit. |
| Load and Mass | Main arm self-weight: GLN-RX75 is 7.8 kg, GLN-RX71 is 3.8 kg, the local isomorphic kit is approximately 1.5 kg (including the fixture). Self-weight is not the rated payload at the end-effector. |
| Form Factor and Scale | Working radius: 709 mm, 474 mm, 599 mm. These are the dimensions of the main arm, not the outline of the end unit. |
| Operating Range | Configuration: the first two columns are anthropomorphic configurations; the local column is the same as the follower arm. Gripping: the first two columns use handles; the local column uses a rail-mounted finger-ring fixture. |
| Motion | Maximum operating speed: the first two columns are 30 RPM, the local column is 110 RPM. All three columns list zero-force gravity compensation. Zero-force gravity compensation is not force feedback. |
| Power | Operating voltage: the first two columns are DC24V, the local column is DC12V. Power: ≤200 W, ≤100 W, rated 84 W. The specification table has no battery row, so do not state battery life. |
| Perception & Compute | Angular resolution: the first two columns are ±0.003°, the local column is 0.088°. Motor: the first two columns use integrated joints, the local column uses bus servos. Communication: the first two columns use RJ45, the local column uses RJ45 / 10-pin aviation connector. |
| End Effector | The fixture in the local column is a rail-type ring fixture used to hold the main arm; it is not the RMG22-65 end-effector. The end-effector gripper is ordered separately. |
| Boundary | Force feedback is listed as supported only for GLN-RX75 and GLN-RX71. The local isomorphic kit is listed as not supported. The main arm models are RX75, RX71, and YDS-DAP-75/65/RX75S. |
| Configuration Panel | The contract must specify column names. Purchasing the platform does not include the kit by default. For remote operation, refer to the first two columns; for local data capture, refer to the third column; in either case, order by the individual cell. |
| Excerptable | Transcribe the attachments column by column; do not merge. Example: GLN-RX75, force feedback supported, 709 mm, 7.8 kg, handle, ±0.003°, 30 RPM, integrated joint, RJ45, DC24V, ≤200 W. |
| Do not write | Do not write "one teleoperation kit, approximately 5 kg, with force feedback." Do not write 30 RPM and 110 RPM as a single speed, and do not write DC24V and DC12V as a single voltage. |

Relationship to Public Methods and Adjacent Pages
The master-slave isomorphic kit is the main end, and the base unit is the slave end. The page has two tables, and the order usually has two lines. The kit itself has three columns, and merging them into "one teleoperation kit" is prohibited.
GLN-RX75: Supports force feedback, main arm length 709 mm, self-weight 7.8 kg, grip is a handle, 7 degrees of freedom, joint angle resolution ±0.003 degrees, zero-force dragging, rated speed 30 rpm, integrated joints, RJ45, DC 24 V, total power consumption no more than 200 W, main arm model RX75 in the YDS series. GLN-RX71: Also supports force feedback, length 474 mm, self-weight 3.8 kg, power consumption no more than 100 W, main arm model RX71; other interaction forms and the 75's same-category items follow that column's cell. Local isomorphic kit: Does not support force feedback, isomorphic to the slave arm, length 599 mm, grip is a rail-type ring fixture, angular resolution 0.088 degrees, self-weight including fixture approximately 1.5 kg, speed 110 rpm, bus servos, RJ45 or 10-pin, DC 12 V, rated power 84 W, main arm model YDS-DAP-75/65/RX75S.
If the main unit page lists servos, backpack, and mobile base as optional teleoperation modes, that is an installation configuration, not a selection already made from one of the three columns above. Force feedback exists only in the first two columns.
This article explains the interface relationship between this product and the three-column kit: which includes which, and which must be ordered separately.
Before handing off to a colleague
The master-slave order is placed in the upper and lower columns of a single sheet, with no "one system set" allowed in between. The upper column is the column name of one of three columns; the lower column is the slave-side product page name. Force feedback is checked only in the upper column and only when the first two columns are selected. When the local column is selected, the force feedback checkbox prints as unsupported, even if zero-force dragging is supported. Voltage is filled in according to the upper column. If an end effector is needed, use the third sheet; do not cram it into the notes between the upper and lower columns. A horizontal line is printed between the upper and lower columns, with "not the same device" written on the line. Column names use a dropdown rather than free text; the dropdown has only three columns. Free text will produce statements like "teleoperation kit" that cannot be mapped to a cell. The force feedback checkbox automatically locks to unsupported when the local column is selected, and cannot be changed back. The voltage field is likewise locked by column. A form whose lock fails cannot be saved.
First, the upper and lower rows are not the same machine.
Second, column names can only be one of three options.
Third, the force-feedback column is fixed to "not supported."
Fourth, zero-force drag does not change the previous entry.
Fifth, voltage is locked to its column.
Sixth, the end effector uses the third sheet. The three sheets are filed separately: master side, slave side, end effector. If any one sheet is missing, do not create the collection directory. Once the directory is created, someone will start putting files into it.
