The path starts at the product center: first look at the five cards, then click into the wheeled humanoid teleoperation body. Do not place orders based on abbreviations from chat logs. Specs are visible before you leave your contact information — this article does not put specs behind a form.
Evaluation Path
The second step is a written three-column breakdown: standard, recommended, optional, plus an exclusion statement. The voice module and depth camera versions both have optional rows. Optional items are not written into the delivery unless checked. The end-effector brand must be named in the configuration sheet; do not write "compatible means included." Do not write charging approximately 2 hours as endurance 2 hours. Do not write the folding model's 20 DoF or approximately 6 hours onto this unit. Do not write the lifting model's 900 mm as this unit's lift stroke. The third step is making contact. Phone +86 137 5502 0164, email lk@langhuiai.com. Address: Beijing Langhui Technology Co., Ltd., 5th Floor, Room 501, Building F1, Lugu Enterprise Plaza, No. 27 Wenxuan Road, Yuelu District, Changsha.
The page you should open after reading this article is /product-body-humanoid.html. Open the corresponding card when you need an end effector or master arm; do not record two pages as one.
The evaluation response should be understood, at the pace published on the site, as a written configuration, not a verbal "we can do everything." Price and lead time are not covered in this article; they follow the written configuration.

How to Use This Page in This Version

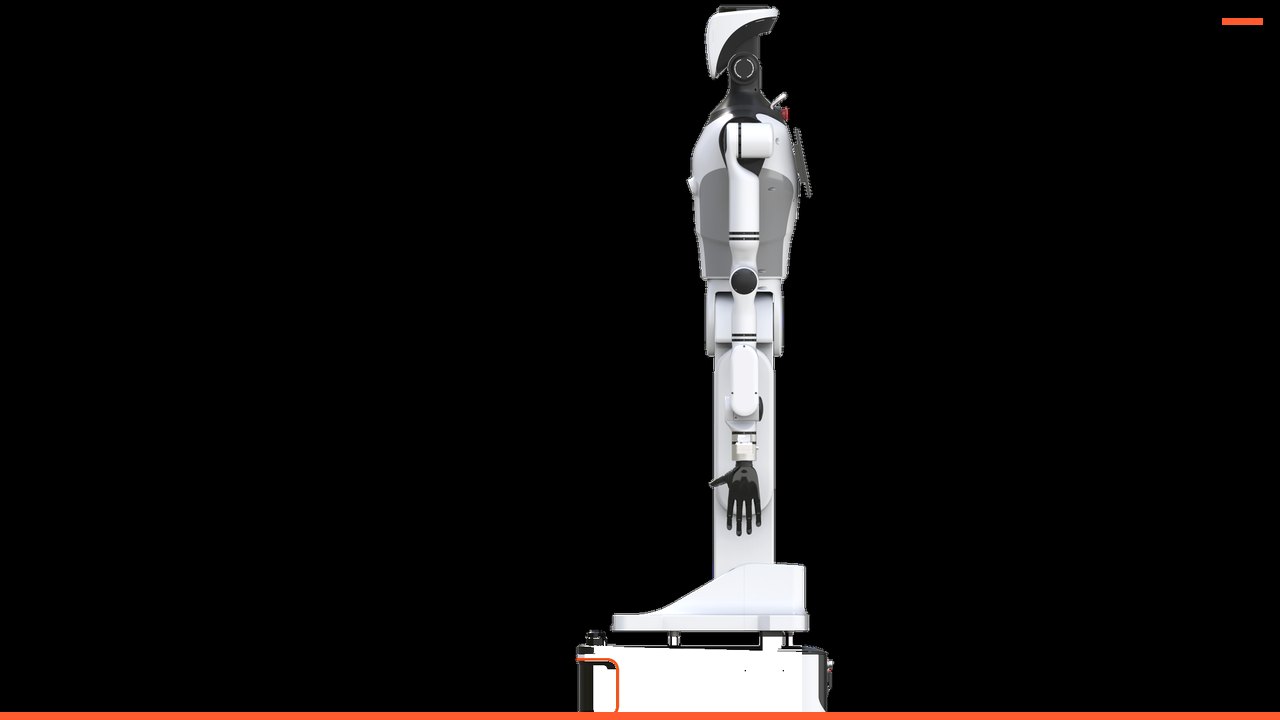

The reader's next step is not to bookmark this article, but to open the product page and verify the original wording. The path is: Product Center https://www.tobi.cn/products.html , then enter the wheeled humanoid teleoperation platform: /product-body-humanoid.html. Do not merge the five cards into a single note in the browser. Merging them into a single note is where mixed writing begins.
Do only three things on the product page. First, find the lines cited in this article and check whether they still match. Second, split standard, recommended, and optional into three columns. Both the voice module and the depth-camera version have optional lines. Optional items are not included in the delivery unless checked. The end-effector brand must be named in the configuration sheet; do not write "compatible means included." Third, put sentences that must not be written into the exclusion column. Do not write "charging approximately 2 hours" as "battery life 2 hours." Do not write the folding model's 20 DoF or approximately 6 hours onto this unit. Do not write the lift model's 900 mm as this unit's lift stroke. Only after completing these three things should you fill in the assessment requirements.
Contact information is used to confirm the written configuration, not to qualify access to specifications. Phone +86 137 5502 0164, email lk@langhuiai.com, address 5th Floor, Room 501, Building F1, Lugu Enterprise Plaza, No. 27 Wenxuan Road, Yuelu District, Changsha, Beijing Langhui Technology Co., Ltd. The specification table is readable before you submit anything.
In the evaluation request, state the task height, object mass, whether the platform moves, whether master-side column names are needed, and whether an end-effector model is needed. Do not write "build an embodied AI system." The closer the writing is to a table, the closer the reply will be to an orderable configuration, rather than a paragraph re-explaining the specs.
Line-by-Line Verification
Degrees of freedom. The full-body active degrees of freedom are 21, broken down as 14 for the dual arms, 3 for the waist, 2 for the legs, and 2 for the neck. This row only states the number of joints and body parts that have already been made public. It does not evaluate intelligence, and it does not automatically include the waist, legs, neck, or whole-machine total that are not explicitly named on the page. When writing the action vector, only build channels for the body parts named in this row; leave unnamed parts blank. Do not write blanks as 0, because 0 will be treated by the training script as a real angle. Do not fill in the degrees-of-freedom integer from another device to complete this row. If the master-slave joint order is not given on the page, mark it as pending written configuration confirmation rather than numbering it yourself. Find the original degrees-of-freedom sentence on the product page before deciding whether to inquire. The action vector only builds channels for the body parts named in this row; leave unnamed parts blank and do not fill in 0.
Load and mass. Single-arm payload: 5 kg. Overall unit mass: approximately 125 kg, which is not the single-arm payload. Every number on this line must be read aloud with its subject: rated, self-weight, overall unit mass, envelope, friction, or gripping force. If the subjects differ, they cannot be merged into a single number, nor can any conversion not given on the page be performed. If field objects are heavier, you cannot change the specification in reverse; a larger specification also does not prove that every grasping method reaches that limit. The tool mass is undetermined; do not write the arm's rated payload as the graspable object mass. The acceptance table retains the original units. Confirm the load subject on the product page before describing objects. During acceptance, read the subject first, then the number; if the subjects do not match, split into two lines.
Dimensions and scale. Overall unit dimensions: 570 × 465 × 1680 mm. Chassis width and shoulder width are within 465 mm. This line describes exterior or structural dimensions, used to check doors, elevators, tabletops, or transport; it is not operating height, nor is it arm reach. Do not add it to the vertical range. If the diagram shows protrusions, antennas, or a person's standing position not present on this line, note separately that they are not part of the specification. If mass appears in an adjacent line, do not write it into the dimension sentence. After comparing the site's door width with this line, write the numbers into the requirements; do not write "space is sufficient" without numbers. Doors, elevators, and transport are checked only against the exterior; do not treat this line as operating height.
Operating range. Vertical reach 2100 mm. Horizontal reach 1818 mm, excluding the end effector. This line describes the range that the hand or lift can reach; the definition must follow the original sentence: vertical working range, reach, motion radius, or stroke — these cannot be added together or renamed. If "excluding the end effector" is written, it must remain in the figure caption. When the original text does not specify units, keep the "units not specified" note and do not delete it for the sake of tidiness. Write the operating height and the definition from this line together into the requirements. The figure caption retains the range definition from the original sentence, as well as the phrases "excluding the end" or "units not specified."
Motion. Motion speed 0.1–1.5 m/s. Rotation radius 690 mm, the specification is in-place rotation. This line describes how the ground or the main arm moves. Four-wheel four-drive, differential drive, in-place rotation radius, and rotational speed are terms for different mechanisms and cannot be substituted for one another. Published speed is a capability, not a recommended teaching speed; teaching can be slower, but a slower speed is recorded under experimental conditions and is not written back into the specification. Do not borrow slope climbing or positioning from another page for a page that does not state them. Specify whether chassis movement or which column of the main arm is required. Teaching speed can be lower, but a lower speed is recorded under operating conditions and does not change the published capability on this line.
Power. Battery 40 Ah (BMS). Charging time is approximately 2 hours. Approximately 2 hours refers to charging, not runtime; the page does not state runtime in hours. This line retains only the electrical terms that appear on the page: voltage, capacity, runtime, charging, current, or power. If there is no "hours," write runtime not given; do not fill in the blank with hours from an adjacent page. Do not rename charging time as runtime. Rated and maximum values must be listed separately. Keep "approximately" for approximate values. Do not sum the ampere-hours of multiple devices and claim it as one device's battery. Do not request a runtime commitment that does not appear on the page. Hours, charging, or current that do not appear remain as not given and must not be copied from an adjacent page.
Perception and computation. The vision system specifies stereo depth / RGB as optional. Wide-angle cameras: 130° FOV × 3, positioned on the chest / back / chassis. The LiDAR is a single-line laser with a detection range greater than 40 m (90% reflectivity). The voice interaction module is a ring of 6 microphones, optional. Depth camera versions: data collection version Orbbec 335LG; standard version Intel RealSense D405; optional Intel RealSense D435. This line enumerates the items already specified in sensors, computation, or communication, and retains the terms standard, included as standard, optional, and optional add-on. An optional item that is not checked does not count. When the cover conflicts with the list, cite the list, while not pretending that the cover statement does not exist. Headsets and gloves do not belong on this line. Do not draw processors, hard drive capacity, or camera channel counts into the system diagram if they are not specified. State whether the standard list or a particular option is required. Optional sensors that have not been purchased do not enter this data dictionary.
End effector. A multi-DOF dexterous hand or gripper can be added to the end depending on the task. The page states compatibility with AOYI, Qiangnao, Zhixing, and other grippers and dexterous hands, as well as the RX75, RM75, RM65 robotic arm platforms. Compatibility is not a standard configuration list. This line describes where contact or gripping occurs. Quick-change, compatible, and recommended are not models already in the box. The ring fixture on the main arm is not a slave-side gripper. Force, stroke, and payload remain as written on their respective lines; they are not merged into a single system metric because they are mounted on a particular body. For flanges and protocol mappings not given, write "to be confirmed," not "plug and play." Specify the end-effector model or explicitly state that no end effector is needed. "Supports" or "compatible" without a model number cannot be treated as delivered.
Boundary. The upper body and wheeled chassis have a modular structure. How to connect to other chassis after separation is confirmed per the project interface; do not write it in the public table as already connected. This line is a boundary deliberately separated on the page: another model, another column, another product page, or an interface that still requires project confirmation after modularization. The boundary is not a defect note; it prevents verbally buying two pages as one. When writing a proposal, copy the boundary into "not included in this order." If equipment not included is added later, open a new configuration sheet; do not go back and change the body name in the old sample. If another card is needed at the same time, write it as a second line in the requirements. Equipment within the boundary must be ordered separately; do not rename the old sample to say it already includes it.
Configuration column. Both the voice module and the depth camera version have optional rows. Optional items are not included in the deliverables unless checked. The end-effector brand must be named explicitly in the configuration sheet; do not write "compatible means included." This row distinguishes standard, recommended, and optional. Recommended and optional items are not delivered unless checked. If the standard row conflicts with the parameter table row, keep both rows and use "locked for this order" to indicate which one is actually delivered, rather than striking out one row in the order without signing off. Price and lead time are not written into this row's restatement. Requirements are filled in across three columns: standard, recommended, and optional. Unchecked recommended and optional items are marked as not delivered on the order.
Excerptable. Attachable specs: 21 (14+3+2+2); 570×465×1680 mm; approximately 125 kg; 465 mm width limit; vertical reach 2100 mm; horizontal reach 1818 mm (excluding end effector); in-place rotation radius 690 mm; 0.1–1.5 m/s; single arm 5 kg; 40 Ah; charging approximately 2 hours. This is the type of line that can be pasted into an attachment: it has a subject, has units, and can be traced back to the original sentence on the product page. When pasting, preserve words like "approximately", "excluding", "not specified", "optional", and "recommended". Do not convert and leave only the result. If the same number has different meanings on two pages, write it as two lines in the attachment. Do not mix test protocols into specification excerpts. First verify the original sentence to be copied, then submit for evaluation. When pasting into the attachment, paste words like "approximately", "excluding", and "optional" along with it.
Do not write. Do not write "charging approximately 2 hours" as "battery life 2 hours." Do not write the folding model's 20 DoF or approximately 6 hours onto this unit. Do not write the lift model's 900 mm as this unit's lift stroke. This line is a negative statement for editorial review. It does not describe what the equipment can do; it only prevents hours, degrees of freedom, load subjects, or cover slogans from adjacent pages from being written in. If a negative statement is hit, revert to the original sentence on the product page; do not interpret it as "close enough." Do not write in success rates from external papers or total hours not published on this site. Do not include the phrasings prohibited by the negative statements in the requirements text. If a draft search hits a negative statement, revert to the original sentence on the product page.
| Projects | Public-Facing Positioning of This Page |
|---|---|
| Degrees of Freedom | Total active degrees of freedom: 21, broken down as dual arms 14, waist 3, legs 2, neck 2. |
| Load and Mass | Single-arm payload 5 kg. Total unit weight is approximately 125 kg, which is not the single-arm payload. |
| Form Factor and Scale | Overall dimensions 570 × 465 × 1680 mm. The chassis width and shoulder width are kept within 465 mm. |
| Operating Range | Vertical reach 2100 mm. Horizontal reach 1818 mm, excluding the end effector. |
| Motion | Motion speed 0.1–1.5 m/s. Turning radius 690 mm; the specification refers to in-place rotation. |
| Power | Battery 40 Ah (BMS). Charging time approximately 2 hours. The approximately 2 hours refers to charging, not runtime; the page does not state runtime in hours. |
| Perception & Compute | The vision system is listed as binocular depth / RGB optional. Wide-angle camera 130° FOV ×3, located on the chest / back / chassis. The LiDAR is a single-line laser with detection range greater than 40 m (90% reflectivity). The voice interaction module is a ring-shaped 6-microphone array, optional. Depth camera versions: data collection version Orbbec 335LG; standard version Intel RealSense D405; optional Intel RealSense D435. |
| End Effector | A multi-degree-of-freedom dexterous hand or gripper can be added to the end effector depending on the task. The page explicitly states compatibility with grippers and dexterous hands from Aoyi, Qiangnao, Zhixing, and others, as well as the RX75, RM75, and RM65 robotic arm platforms. Compatibility is not a standard configuration list. |
| Boundary | The upper body and wheeled chassis are modular. How to connect to other chassis after separation must be confirmed per the project interface; do not state in the public table that it is already connected. |
| Configuration Panel | Both the voice module and depth camera versions have optional rows. Optional items are not included in unchecked deliveries. The end-effector brand must be specified by name in the configuration sheet; do not write "compatible means already included." |
| Excerptable | Attachment copy: 21 (14+3+2+2); 570×465×1680 mm; approximately 125 kg; 465 mm maximum width; vertical reach 2100 mm; horizontal reach 1818 mm (excluding end-effector); in-place rotation radius 690 mm; 0.1–1.5 m/s; single arm 5 kg; 40 Ah; approximately 2 hours of charging. |
| Do not write | Do not write "approximately 2 hours of charging" as "2 hours of battery life." Do not attribute the folding model's 20 DoF or approximately 6 hours of battery life to this unit. Do not write the lifting model's 900 mm as this unit's lifting stroke. |

Relationship to Public Methods and Adjacent Pages
The evaluation path starts from the product center, not from a verbal model name in a chat log. The entry point is https://www.tobi.cn/products.html . Five cards are separate: folding dual-arm, lifting dual-arm, wheeled humanoid, isomorphic teleoperation kit, two-finger gripper. Click into the corresponding product page and read only the specification table and configuration column on that page. When a comparison is needed, open the second card; do not merge the two pages into one in memory.
The second step of the path is the written configuration: standard row, recommended row, optional row, plus sentences explicitly stating what is not included. The third step is contact. The phone number is +86 137 5502 0164, the email is lk@langhuiai.com, and the address is 5th Floor, Building F1, Lugu Enterprise Plaza, No. 27 Wenxuan Road, Yuelu District, Changsha City, Beijing Langhui Technology Co., Ltd. Specifications and examples should be viewable before leaving contact information. This article does not create a barrier of "you must leave your details to see the parameters".
Do not insert external brand site links into the path, and do not write the data market as having accumulated a certain number of hours. The site's homepage currently publishes browsing by scenario, sample verification, fields, quality notes, and licensing—not a total hour count.
This article places that product back at which step of this path, and writes out the one product page the reader should open after finishing.
Before handing off to a colleague
After reading, do not stop at the article. Open the product center, go to the corresponding product page, and re-check the rows cited in this article. If there is a discrepancy, the product page takes precedence; the article is considered a paraphrase that needs correction. Then fill in the three-column requirement: task height and load, whether the main-end column is needed, and the end-effector model or explicitly "none." The contact phone number and email are used only to confirm this written requirement. Do not request hours not present on the page in the requirement, and do not write the five cards as a single system. Before submitting the requirement, do a final check against the product page: height definition copied, load subject copied, mobility mechanism copied, main-end column name selected or explicitly "none," end-effector model written or explicitly "none," and no hours requested that do not exist on the page. If any of the six items is missing, do not submit. Submission channels are the assessment form on the page or the public phone number and email. Do not paste the parameters of the five cards into a single paragraph of one email.
First, all six items must be checked before submission.
Second, do not submit if anything is missing.
Third, the five cards are not written into the same paragraph.
Fourth, do not request hours that do not exist.
Fifth, the product page takes precedence over this article.
Sixth, contact information only confirms written requirements.
