The configuration sheet is divided into three columns. The voice module and depth camera version both have optional rows. Optional items are not included in the delivery if unchecked. The end-effector brand must be named in the configuration sheet; do not write "compatible, therefore included." The upper body and wheeled chassis are a modular structure. How to connect them to other chassis after separation is confirmed per the project interface; do not state in the public table that they are already connected. The first column contains rows that should be delivered even without additional notes; the second column is recommended; the third column is optional. Recommended and optional items are not delivered unless checked.

Configuration Sheet

When model numbers are listed side by side, both rows are kept. The RM65-B-V and RM75-B-V of the lifting model are examples; other products are the same: if the page gives a standard row and a parameter table row, do not collapse them into one sentence in the order such as "the standard row is void because the parameter table governs", unless a written confirmation explicitly voids it and is signed.

The kit must have a column name. The gripper must have a model number. The embodiment must have the name from its product page. If any of these three rows is missing, the purchase order is still just a verbal plan.

After completing the three columns of the wheeled humanoid teleoperation robotic platform, attach a one-page exclusion list with the following content: Do not write approximately 2 hours of charging time as 2 hours of battery life. Do not write the 20 DoF or approximately 6 hours of the folding model onto this unit. Do not write the 900 mm of the lift model as the lift travel of this unit. Place the exclusion list together with the ordering items to avoid looking only at the positive statements.

Wheeled humanoid teleoperation robot

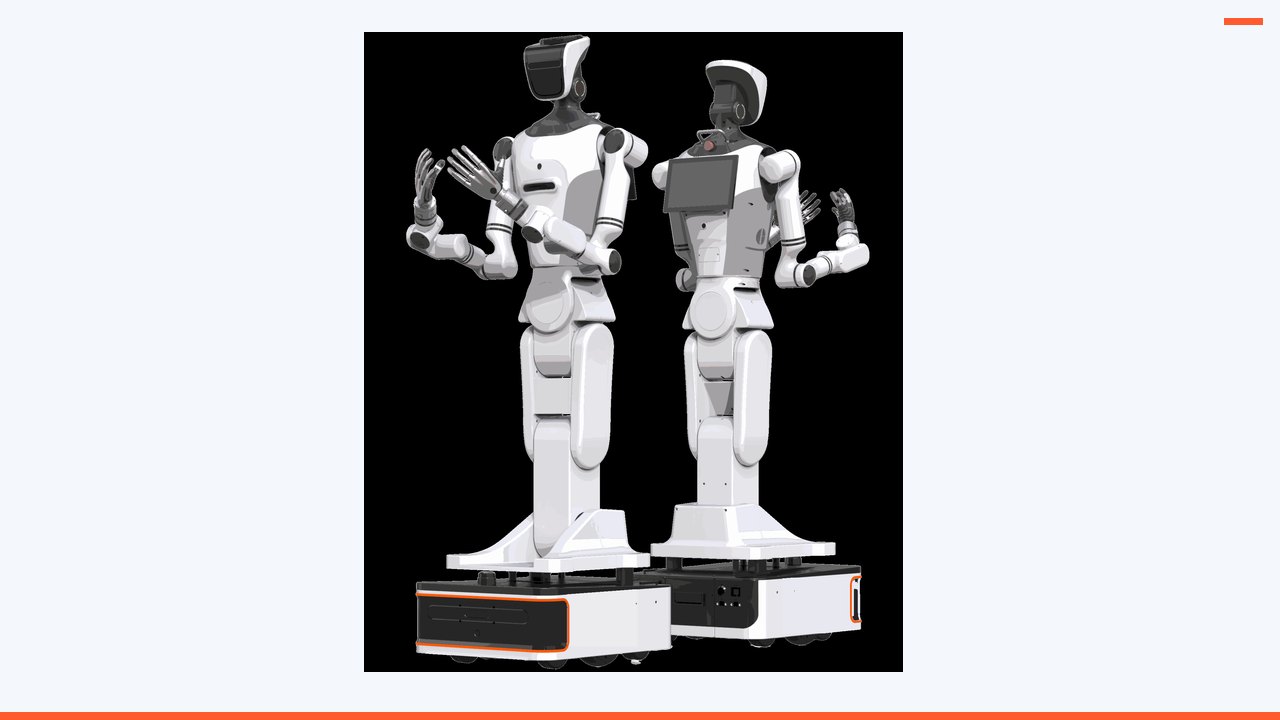

Figure 1 | Wheeled humanoid teleoperation platform. The caption only states that this is a device photo from the product page; the appearance is not interpreted as parameters not present in the table.

How to Use This Page in This Version

The order page is best formatted as a table rather than a paragraph. The table for a wheeled humanoid teleoperation robotic platform should include at least these rows: product page name, the model locked for this order, standard row, whether the recommended row is checked, whether the optional row is checked, end-effector model, primary-end column name, and exclusions. Both the voice module and the depth camera version have optional rows. Optional items are not included in the delivery unless checked. The end-effector brand must be named explicitly in the configuration sheet; do not write "compatible means included." The upper body and wheeled chassis are a modular structure. How the split connects to other chassis must be confirmed per the project interface; do not state in the public table that it is already connected. Fill empty cells with "not selected for this order" rather than leaving them blank.

Cells with conflicting model numbers may coexist, but there must be a "locked for this order" column. RM65-B-V and RM75-B-V on the lift model are exactly this kind of cell. For other products with only one model, the locked column simply copies that model, to prevent procurement from writing an abbreviation as a different one.

Price and lead time are not filled in this article's template. They change with the written configuration. If the template prints a price, it will be mistaken for a catalog price. What the site publishes is that specs can be reviewed first; price and lead time are discussed after the configuration is confirmed.

Data collection begins only after the table is signed. If an unsigned recommended item appears in the lab, the data dictionary must treat it as a temporary component and must not record it as a sample of the standard configuration. Samples from temporary components are stored in a separate directory from samples of standard components. The product page corresponding to this template is /product-body-humanoid.html.

Line-by-Line Verification

Degrees of freedom. The total active degrees of freedom for the whole body is 21, broken down as 14 for the two arms, 3 for the waist, 2 for the legs, and 2 for the neck. This row only states the number of joints and body parts that have been publicly disclosed. It does not evaluate intelligence, and it does not automatically include the waist, legs, neck, or whole-machine total that are not named on the page. When writing the action vector, create channels only for the body parts listed in this row; leave unlisted parts blank. Do not write blanks as 0, because 0 would be treated by training scripts as a real angle. Do not fill in degrees of freedom integers from another device to make this row add up. If the master-slave joint order is not given on the page, mark it as pending written configuration confirmation; do not number it yourself. Once the model is locked, the degrees of freedom follow the sentence for that model on the page, not the abbreviation. The action vector creates channels only for the body parts named in this row; unlisted parts are left blank, not filled with 0.

Payload and mass. Single-arm payload is 5 kg. The total machine weight is approximately 125 kg, which is not the single-arm payload. The numbers in this row must be read with their subject: rated, self-weight, total machine mass, envelope, friction, or gripping force. If the subjects differ, they cannot be merged into a single number, nor can conversions not given on the page be performed. If an on-site object is heavier, the specification cannot be changed retroactively; a larger specification does not prove that every grasping method reaches that limit. The tool mass is undetermined; do not write the arm's rated payload as the graspable object mass. The acceptance sheet retains the original units. Payload acceptance follows the arm or gripper model locked for this order. During acceptance, read the subject first, then the number; if the subjects differ, split into two rows.

Dimensions and scale. Overall dimensions are 570 × 465 × 1680 mm. The chassis width and shoulder width are kept within 465 mm. This row is an external or structural scale, used to check doors, elevators, tabletops, or transport; it is not an operating height, nor is it a reach. Do not add it to the vertical range. If the diagram shows protrusions, antennas, or a person's standing position not listed in this row, note separately that they are not part of the specification. If weight appears in an adjacent row, do not write it into the dimension sentence. The external dimensions follow the model on this page; do not substitute other dimensions from the series. Doors, elevators, and transport are checked only against the external dimensions; do not treat this row as an operating height.

Operating range. Vertical reach is 2100 mm. Horizontal reach is 1818 mm, excluding the end effector. This row describes the range that the hand or lift can reach; the definition must follow the original sentence: vertical working range, reach, motion radius, or stroke. These cannot be added together or renamed. If "excluding end effector" is written, it must remain in the figure caption. If the original text does not specify units, retain the note "units not specified"; do not delete it for tidiness. The range sentence follows the locked model; do not mix two sets of reach values. The figure caption retains the range definition from the original sentence, as well as the words "excluding end effector" or "units not specified."

Motion. Motion speed is 0.1–1.5 m/s. Rotation radius is 690 mm, specified as in-place rotation. This row describes how the ground platform or main arm moves. Four-wheel steering, four-wheel drive, differential drive, in-place rotation radius, and rotational speed are terms for different mechanisms and cannot be substituted for one another. The published speed is a capability, not a recommended teaching speed; teaching can be slower, but the slower speed is recorded in the experimental conditions and is not written back as a specification. If the page does not state slope climbing or positioning, do not borrow from another page. If the chassis type is in the recommended column, it is written into the order only after being checked. The teaching speed can be lower, but the lower speed is recorded in the conditions and does not change the published capability in this row.

Power. Battery 40 Ah (BMS). Charging time approximately 2 hours. Approximately 2 hours is charging, not endurance; the page does not give endurance in hours. This row retains only the electrical terms that appear on the page: voltage, capacity, endurance, charging, current, or power. If there are no "hours," write that endurance is not specified; do not fill in hours from an adjacent page. Do not rename charging time as endurance. Rated and maximum values are listed separately. Approximate values retain "approximately." Do not sum the ampere-hours of multiple devices and present the total as one device's battery. Whether the battery row is standard or informational follows the original text on this page; do not upgrade the capacity. Hours, charging, or current that do not appear remain not specified; do not copy them in from an adjacent page.

Perception and computation. The vision system specifies stereo depth / RGB as optional. Wide-angle cameras: 130° FOV × 3, positioned on the chest / back / chassis. The LiDAR is a single-line laser with a detection range greater than 40 m (90% reflectivity). The voice interaction module is a ring of 6 microphones, optional. Depth camera versions: data collection version Orbbec 335LG; standard version Intel RealSense D405; optional Intel RealSense D435. This line enumerates the items already specified in sensors, computation, or communication, and retains the terms standard, included as standard, optional, and optional add-on. An optional item that is not checked does not count. When the cover conflicts with the list, cite the list, while not pretending that the cover statement does not exist. Headsets and gloves do not belong on this line. Do not draw processors, hard drive capacity, or camera channel counts into the system diagram if they are not specified. Optional cameras and microphones use checkboxes. Optional sensors that have not been purchased do not enter this data dictionary.

End effector. A multi-degree-of-freedom dexterous hand or gripper can be added to the end effector depending on the task. The page states compatibility with grippers and dexterous hands from Aoyi, Qiangnao, Zhixing, and others, as well as the RX75, RM75, and RM65 robotic arm platforms. Compatibility is not a standard configuration list. This row states where contact or gripping occurs. Quick-change, compatible, and recommended are not models already in the box. The ring gripper on the main arm is not an end-effector gripper. Force, stroke, and payload are still retained as-is in their respective rows; they are not merged into a single system metric because they are installed on a particular platform. Flange and protocol mappings that are not specified are written as pending confirmation, not as plug-and-play. The number of grippers is written in the end-effector row, not vaguely included in parentheses in the platform row. "Supports" or "compatible" without a model name cannot be treated as delivered.

Boundary. The upper body and wheeled chassis are modular. How to connect to other chassis after separation is confirmed per the project interface; do not write it in the public table as already connected. This line is a deliberately separated boundary on the page: another model, another column, another product page, or an interface that still requires project confirmation after modularization. The boundary is not a defect description; it is to prevent verbally buying two pages as one. When writing a proposal, copy the boundary into "not included in this order." If equipment not included is added later, open a new configuration sheet; do not go back and change the robot name in old samples. When two arm models coexist, the locked column is required. Equipment within the boundary must be ordered separately; do not rename old samples to say it is already included.

Configuration column. The voice module and depth camera versions both have optional rows. Optional items are not written into unchecked deliverables. The end-effector brand must be named in the configuration sheet; do not write "compatible = already included." This row distinguishes standard, recommended, and optional. Recommended and optional items are not delivered unless checked. When the standard row and the parameter table row are inconsistent, keep both rows and use "locked for this order" to indicate which one is actually delivered, rather than crossing out one row in the order without signing off. Price and lead time are not written into the paraphrase of this row. This is the three-column structure itself; blank means not selected for this order. Unchecked recommended and optional items are written as not delivered on the order.

Excerptable. Values that may be copied into the appendix: 21 (14+3+2+2); 570×465×1680 mm; approximately 125 kg; 465 mm width limit; vertical reach 2100 mm; horizontal reach 1818 mm (excluding end effector); in-place rotation radius 690 mm; 0.1–1.5 m/s; single-arm payload 5 kg; 40 Ah; charging approximately 2 hours. This is the type of row that can be pasted into the appendix: it has a subject, has units, and can be traced back to the original sentence on the product page. When pasting, preserve "approximately," "excluding," "not specified," "optional," and "recommended." Do not convert and keep only the result. If the same number has different meanings on two pages, write it as two rows in the appendix. Do not mix test protocols into specification excerpts. Data collection is permitted only after the three columns are printed. When pasting into the appendix, paste the words "approximately," "excluding," and "optional" along with the values.

Do not write. Do not write charging approximately 2 hours as endurance 2 hours. Do not write the folding model's 20 DoF or approximately 6 hours onto this machine. Do not write the lifting model's 900 mm as this machine's lifting stroke. This row is a negative statement for editorial review. It does not describe what the equipment can do; it only prevents hours, degrees of freedom, payload subjects, or cover slogans from adjacent pages from being written in. If a negative statement is hit, revert to the original sentence on the product page; do not interpret it as "close enough." Do not write in success rates from external papers or total hours not published on this site. Do not use parameters of older models from negative statements as default values for any column. If a manuscript search hits a negative statement, revert to the original sentence on the product page.

ProjectsPublic-Facing Positioning of This Page
Degrees of FreedomTotal active degrees of freedom: 21, broken down as dual arms 14, waist 3, legs 2, neck 2.
Load and MassSingle-arm payload 5 kg. Total unit weight is approximately 125 kg, which is not the single-arm payload.
Form Factor and ScaleOverall dimensions 570 × 465 × 1680 mm. The chassis width and shoulder width are kept within 465 mm.
Operating RangeVertical reach 2100 mm. Horizontal reach 1818 mm, excluding the end effector.
MotionMotion speed 0.1–1.5 m/s. Turning radius 690 mm; the specification refers to in-place rotation.
PowerBattery 40 Ah (BMS). Charging time approximately 2 hours. The approximately 2 hours refers to charging, not runtime; the page does not state runtime in hours.
Perception & ComputeThe vision system is listed as binocular depth / RGB optional. Wide-angle camera 130° FOV ×3, located on the chest / back / chassis. The LiDAR is a single-line laser with detection range greater than 40 m (90% reflectivity). The voice interaction module is a ring-shaped 6-microphone array, optional. Depth camera versions: data collection version Orbbec 335LG; standard version Intel RealSense D405; optional Intel RealSense D435.
End EffectorA multi-degree-of-freedom dexterous hand or gripper can be added to the end effector depending on the task. The page explicitly states compatibility with grippers and dexterous hands from Aoyi, Qiangnao, Zhixing, and others, as well as the RX75, RM75, and RM65 robotic arm platforms. Compatibility is not a standard configuration list.
BoundaryThe upper body and wheeled chassis are modular. How to connect to other chassis after separation must be confirmed per the project interface; do not state in the public table that it is already connected.
Configuration PanelBoth the voice module and depth camera versions have optional rows. Optional items are not included in unchecked deliveries. The end-effector brand must be specified by name in the configuration sheet; do not write "compatible means already included."
ExcerptableAttachment copy: 21 (14+3+2+2); 570×465×1680 mm; approximately 125 kg; 465 mm maximum width; vertical reach 2100 mm; horizontal reach 1818 mm (excluding end-effector); in-place rotation radius 690 mm; 0.1–1.5 m/s; single arm 5 kg; 40 Ah; approximately 2 hours of charging.
Do not writeDo not write "approximately 2 hours of charging" as "2 hours of battery life." Do not attribute the folding model's 20 DoF or approximately 6 hours of battery life to this unit. Do not write the lifting model's 900 mm as this unit's lifting stroke.
Another image from the wheeled humanoid teleoperation platform image library
Figure 2 | Another image from the product page gallery. The page does not label this image as front view or side view, so no view name is added here.

Relationship to Public Methods and Adjacent Pages

The configuration sheet has three columns: standard quantity, recommended configuration, and optional teleoperation method. Standard quantity is the row that should be delivered without additional notes. Recommended configuration is the row suggested for the order; if not written, it will not arrive as recommended. Optional items are for selection, not free gifts.

The lift model most needs these three columns. The standard checklist lists the arm model as two units of RM65-B-V; the recommended configuration and arm parameter table list RM75-B-V. Both rows are accurate and must not be collapsed into "it's just 75" or "it's just 65." Two grippers CTAG2F90-D are in the recommended column. The three teleoperation methods—servo, backpack, and mobile—are in the optional column, not the standard quantity table. Compute is Jetson AGX Orin 64G plus a 1T solid-state drive. The vision standard is one D435 plus two wide-angle cameras. One voice module and two servo channels appear in the standard checklist; follow the checklist and do not merge them with the optional teleoperation methods into one sentence.

The foldable, wheeled humanoid, kit, and gripper each have their own table. The kit must specify the column name: GLN-RX75, GLN-RX71, or a locally isomorphic kit. Gripper orders are written as RMG22-65, not "gripper included with the base unit."

This article shows how to fill in the three columns when ordering this product, so that recommended sentences are not printed as already included.

Before handing off to a colleague

After the order form is printed, no blank cells are allowed. Every blank cell is either unfilled or means "not selected this time." Cells with model conflicts must be signed in the Lock column. An order with a conflict and no Lock column is returned. Recommended grippers, optional teleoperation configurations, and optional cameras that are not selected must be listed on the packing list as "not included this time." Capture personnel recognize only the packing list, not the union of all model numbers that have ever appeared on the product page. The packing list and the data dictionary must use the same configuration number. If the order system can only accept a single model field, do not stuff a second model into the remarks field — use an attachment spreadsheet instead. If the Lock column in the attachment spreadsheet is empty, the system should reject the submission. The default value for recommended items should be "not selected," not "select all." Select all would cause optional items that nobody deselected to be treated as purchased, and the action space in the samples would be larger than what is actually delivered.

First, the only value that can be filled in the blank is "not selected this time."

Second, if the conflicting model has no locked column, return it.

Third, recommended items are unchecked by default.

Fourth, remarks cannot substitute for a second model field.

Fifth, capture personnel only recognize the packing list.

Sixth, the packing-list number must match the data dictionary. The numbers on the order, packing list, and data dictionary must all be identical. Samples with different numbers do not enter the same training set, even if the content appears identical. The numbering rule is written in the header of the order template, not in verbal instructions.
