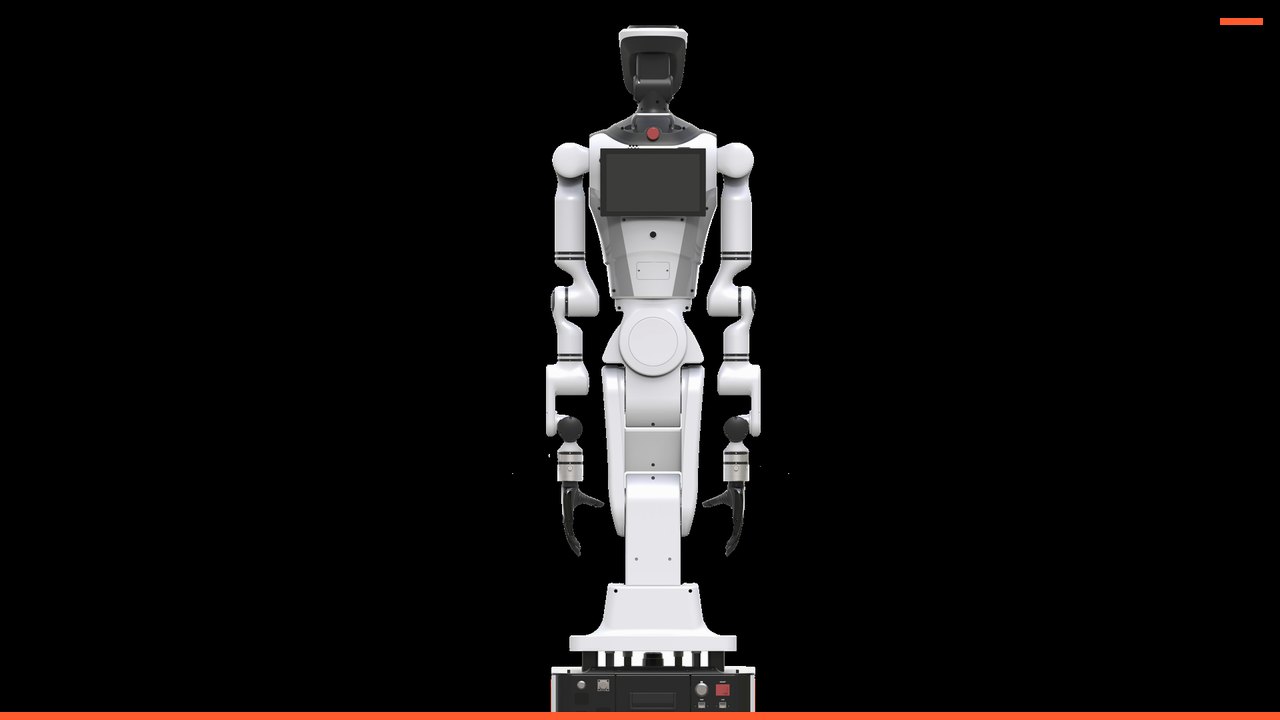

The locomotion mechanism determines how chassis motion is recorded. Travel speed 0.1–1.5 m/s. Rotation radius 690 mm, defined as in-place rotation. Four-wheel steering with drive, two-wheel differential, and in-place rotation radius are three different ground-level statements and cannot be rewritten into each other. A speed range and a single speed value are also not interchangeable.
Mobility method
If the demonstration includes cart pushing, line following, or workstation changes, the record must include a chassis channel: at least velocity or pose, plus a timestamp. Recording only the arm leaves the mobile-manipulation sample incomplete. Recording only the chassis leaves the arm missing from the tabletop-manipulation sample. Total active degrees of freedom: 21, split as 14 for the two arms, 3 for the waist, 2 for the legs, and 2 for the neck. How to split the channels is governed by this degrees-of-freedom statement or by the chassis description on this page.
Slope climbing, positioning error, ultrasonic sensing, and bumper edges become site conditions only on pages where they are explicitly stated. Do not infer on unstated pages that "since it can move, it has the same positioning accuracy." For the wheeled humanoid teleoperation body page, the ground-related sentences are exactly the ones quoted above.
Safe speed is not the maximum speed on the table. The 1.5 m/s or 0.1–1.5 m/s on the table is the publicly stated motion capability; teaching can be slower. Slower does not require changing the specification, but it must be written into the experiment record so that later readers do not assume the samples were collected at maximum speed.

How to Use This Page in This Version
How the chassis moves determines whether the demonstration is mobile manipulation. Motion velocity: 0.1–1.5 m/s. Turning radius: 690 mm, specified as in-place rotation. Copy this sentence into the ground column of the experiment plan; do not rewrite it as "omnidirectional" or "differential drive" unless the original sentence uses that term. Four-wheel steering with four-wheel drive is not colloquial for differential drive; an in-place rotation radius is not the turning radius of a differential-drive vehicle; a single 1.5 m/s is not a shorthand for 0.1–1.5 m/s.
The record format should contain at least: timestamp, chassis velocity or pose, whether rotation is permitted, and emergency-stop status. Recording only arm joint motion samples makes it impossible to distinguish "the arm is moving" from "the base is moving" after the fact. Recording only chassis desktop operation samples leaves out the operation itself. Total active degrees of freedom: 21, split as dual arms 14, waist 3, legs 2, neck 2. If the degrees of freedom on this page do not include the chassis, the chassis channel should be listed separately rather than folded into the degrees-of-freedom integer.
The upper limit of speed is not the capture speed. The capture speed is written in the operating-condition column of the experiment record and may be lower than the publicly stated motion capability. The operating-condition column is not written back to the product page, nor is a single slow experiment described as a specification limited to that slow speed.
Slope grade, positioning accuracy, bumper edges, and ultrasonics become mobility conditions only on pages where they appear. The wheeled humanoid teleoperation body page does not have these rows, so do not borrow 5° or ±10 mm from the lift-equipped model. If these rows exist, record them in the site confirmation, not in the algorithm advantages. Use /product-body-humanoid.html to verify whether these rows are actually present.
Line-by-Line Verification
Degrees of freedom. Total active degrees of freedom: 21, broken down as 14 for the dual arms, 3 for the waist, 2 for the legs, and 2 for the neck. This line only states the number of joints and body parts that have been publicly disclosed. It does not evaluate intelligence, and it does not automatically include the waist, legs, neck, or whole-machine total that are not explicitly named on the page. When writing the action vector, create channels only for the body parts listed on this line; leave unlisted body parts blank. Do not write blanks as 0, because 0 would be treated by the training script as a real angle. Do not fill in the degrees-of-freedom integer from another device to make this line add up. If the master–slave joint order is not given on the page, mark it as pending written configuration confirmation; do not number it yourself. The chassis, which is not part of the degrees of freedom, should be recorded as a separate channel. The action vector creates channels only for the body parts named on this line; unlisted body parts are left blank, not filled with 0.
Load and mass. Single-arm payload: 5 kg. Total unit weight: approximately 125 kg — this is not the single-arm payload. Every number in this row must be read together with its subject: rated, self-weight, total unit mass, envelope, friction, or gripping force. Numbers with different subjects must not be merged into a single figure, nor converted using any conversion not provided on the page. If field objects are heavier, do not retroactively change the specification; a larger specification also does not prove that every grasping method reaches that limit. Tool mass is undetermined — do not write the arm's rated payload as the graspable object mass. The acceptance sheet retains the original units. Load does not determine the steering method. During acceptance, read the subject first and then the number; if the subjects differ, split into two rows.
Dimensions and scale. Overall dimensions: 570 × 465 × 1680 mm. Chassis width and shoulder width are within 465 mm. This row describes form factor or structural scale, used to verify doorways, elevators, tabletops, or transport — it is not operating height, nor is it arm reach. Do not add it to the vertical range. If the diagram shows protrusions, antennas, or a human standing position not present in this row, note separately that these are not part of the specification. If weight appears in an adjacent row, do not write it into the dimension sentence. Overall width is used for doorway clearance, not for calculating turning radius. Doorways, elevators, and transport are verified against form factor only; do not treat this row as operating height.
Operating range. Vertical reach: 2100 mm. Horizontal reach: 1818 mm, excluding the end effector. This row describes the range the hand or lift can reach; the definition must follow the original wording: vertical working range, arm reach, motion radius, or stroke — these cannot be added together or renamed. If "excluding the end effector" is stated, it must remain in the figure caption. If the original text does not specify units, retain the "units not specified" note; do not delete it for tidiness. Operating height does not substitute for ground mobility. The figure caption retains the range definition from the original sentence, as well as the phrases "excluding the end" or "units not specified."
Motion. Motion velocity: 0.1–1.5 m/s. Turning radius: 690 mm, specified as in-place rotation. This row describes how the ground base or main arm moves. Four-wheel steering with four-wheel drive, differential drive, in-place rotation radius, and rotational speed are terms for different mechanisms and cannot be substituted for one another. The published velocity is a capability, not a recommended demonstration speed; demonstrations may be slower, but a slower speed is recorded in the experimental conditions, not written back as a specification. Do not borrow slope or positioning data from other pages for pages that do not state them. This is the primary row for ground motion or rotational speed; mechanism terms must not be substituted. Demonstration speed may be lower, but a lower speed is recorded in the conditions and does not change the published capability in this row.
Power. Battery 40 Ah (BMS). Charging time approximately 2 hours. Approximately 2 hours refers to charging, not runtime; no runtime hours are given on the page. This line retains only the electrical terms that appear on the page: voltage, capacity, runtime, charging, current, or power. If there are no "hours," write that runtime is not specified — do not fill in hours from an adjacent page. Do not rename charging time as runtime. Rated and maximum values must be listed separately. Keep "approximately" for approximate values. Do not sum amp-hours across multiple devices and present the total as a single device's battery. Runtime does not prove the device can operate continuously at the tabled speed for that duration. Hours, charging, or current that do not appear should remain as not specified — do not copy them in from adjacent pages.
Perception and computing. Vision system: binocular depth / RGB, optional. Wide-angle cameras: 130° FOV × 3, located at the chest / back / chassis. LiDAR: single-line laser, detection range greater than 40 m (at 90% reflectivity). Voice interaction module: ring of 6 microphones, optional. Depth camera versions: data-acquisition edition Aobi 335LG; standard edition Intel RealSense D405; optional Intel RealSense D435. This row inventories the items explicitly stated in sensing, computing, or communications, and retains the terms standard, included as standard, optional, and optional configuration. An optional item that is not selected does not count. If the cover conflicts with the list, cite the list, while not pretending the cover statement does not exist. Head-mounted devices and gloves do not belong in this row. Processors, storage capacity, or camera channel counts not stated must not be drawn into the system diagram. LiDAR and ultrasonics, if present in the list, are navigation conditions, not velocity values. Optional sensors not purchased do not enter this data dictionary.
End effector. A multi-degree-of-freedom dexterous hand or gripper can be added to the end effector depending on the task. The page states compatibility with grippers and dexterous hands from Aoyi, Qiangnao, Zhixing, and others, as well as the RX75, RM75, and RM65 robotic arm platforms. Compatibility is not a standard-configuration list. This row specifies where contact or grasping occurs. Quick-change, compatible, and recommended are not models included in the box. The ring fixture on the main arm is not an end-effector gripper. Force, stroke, and payload remain as written in their respective rows and are not merged into a single system metric because they are installed on a particular body. Flange and protocol mappings not provided should be marked as to be confirmed, not as plug-and-play. The end effector does not change the chassis drive type. "Supports" or "compatible" without a model number cannot be treated as delivered.
Boundary. The upper body and wheeled chassis are a modular structure. How to connect to other chassis after separation is confirmed per the project interface; do not write it in the public table as already connected. This row is a boundary deliberately separated on the page: another model, another column, another product page, or an interface that still requires project confirmation after modularization. The boundary is not a defect note — it prevents verbally buying two pages as one. When writing a proposal, copy the boundary into "not included in this order." If equipment not included is added later, open a new configuration sheet; do not go back and change the body name in old samples. Do not borrow slope or positioning data from another unit. Equipment within the boundary must be ordered separately; do not rename old samples to say it is already included.
Configuration column. Both the voice module and the depth camera version have optional rows. Optional items are not written into unchecked deliverables. The end-effector brand must be named in the configuration sheet; do not write "compatible means included". This row distinguishes standard, recommended, and optional. Recommended and optional items are not delivered unless checked. When the standard row and the parameter table row are inconsistent, keep both rows and use "locked for this order" to indicate which one is actually delivered, rather than crossing out one row in the order without signing off. Price and lead time are not written into this row's paraphrase. If the mobile base is a recommended chassis, the order must specify whether this order is for that chassis. Unchecked recommended and optional items are written as not delivered on the order.
Excerptable. Attachable figures: 21 (14+3+2+2); 570×465×1680 mm; approximately 125 kg; 465 mm width limit; vertical arm span 2100 mm; horizontal arm span 1818 mm (excluding the end effector); turning radius in place 690 mm; 0.1–1.5 m/s; single arm 5 kg; 40 Ah; approximately 2 hours to charge. This is the type of line that can be pasted into an attachment: it has a subject, includes units, and can be traced back to the original sentence on the product page. When pasting, retain words like "approximately," "excluding," "not specified," "optional," and "recommended." Do not convert units and leave only the result. If the same number has different meanings on two pages, write it as two lines in the attachment. Do not mix test protocols into specification excerpts. Write speeds as the original range or single value, not as "up to." When pasting into an attachment, include words like "approximately," "excluding," and "optional" along with the figures.
Do not write. Do not describe an approximately 2-hour charge time as 2 hours of battery life. Do not attribute the foldable model's 20 DoF or approximately 6 hours to this unit. Do not write the lift model's 900 mm as this unit's lift stroke. This row is a negative statement for review purposes. It does not describe what the device can do; it only prevents hours, degrees of freedom, payload subject, or cover slogans from adjacent pages from being written in. If a negative statement is triggered, revert to the original product page wording and do not interpret it as approximately correct. External papers' success rates and total hours not published on this site likewise must not be written in. Do not conflate 0.1–1.5 m/s, 1.5 m/s, and rotational speed in RPM as the same speed. If manuscript retrieval triggers a negative statement, revert to the original product page wording.
| Projects | Public-Facing Positioning of This Page |
|---|---|
| Degrees of Freedom | Total active degrees of freedom: 21, broken down as dual arms 14, waist 3, legs 2, neck 2. |
| Load and Mass | Single-arm payload 5 kg. Total unit weight is approximately 125 kg, which is not the single-arm payload. |
| Form Factor and Scale | Overall dimensions 570 × 465 × 1680 mm. The chassis width and shoulder width are kept within 465 mm. |
| Operating Range | Vertical reach 2100 mm. Horizontal reach 1818 mm, excluding the end effector. |
| Motion | Motion speed 0.1–1.5 m/s. Turning radius 690 mm; the specification refers to in-place rotation. |
| Power | Battery 40 Ah (BMS). Charging time approximately 2 hours. The approximately 2 hours refers to charging, not runtime; the page does not state runtime in hours. |
| Perception & Compute | The vision system is listed as binocular depth / RGB optional. Wide-angle camera 130° FOV ×3, located on the chest / back / chassis. The LiDAR is a single-line laser with detection range greater than 40 m (90% reflectivity). The voice interaction module is a ring-shaped 6-microphone array, optional. Depth camera versions: data collection version Orbbec 335LG; standard version Intel RealSense D405; optional Intel RealSense D435. |
| End Effector | A multi-degree-of-freedom dexterous hand or gripper can be added to the end effector depending on the task. The page explicitly states compatibility with grippers and dexterous hands from Aoyi, Qiangnao, Zhixing, and others, as well as the RX75, RM75, and RM65 robotic arm platforms. Compatibility is not a standard configuration list. |
| Boundary | The upper body and wheeled chassis are modular. How to connect to other chassis after separation must be confirmed per the project interface; do not state in the public table that it is already connected. |
| Configuration Panel | Both the voice module and depth camera versions have optional rows. Optional items are not included in unchecked deliveries. The end-effector brand must be specified by name in the configuration sheet; do not write "compatible means already included." |
| Excerptable | Attachment copy: 21 (14+3+2+2); 570×465×1680 mm; approximately 125 kg; 465 mm maximum width; vertical reach 2100 mm; horizontal reach 1818 mm (excluding end-effector); in-place rotation radius 690 mm; 0.1–1.5 m/s; single arm 5 kg; 40 Ah; approximately 2 hours of charging. |
| Do not write | Do not write "approximately 2 hours of charging" as "2 hours of battery life." Do not attribute the folding model's 20 DoF or approximately 6 hours of battery life to this unit. Do not write the lifting model's 900 mm as this unit's lifting stroke. |

Relationship to Public Methods and Adjacent Pages
The locomotion type determines what "chassis motion" means in teleoperation. Four-wheel independent steering with drive can adjust heading laterally and in place, suitable for repositioning between narrow lab benches. A differential chassis steers by varying left and right wheel speeds; its structure differs, and speed and gradeability must be cited separately. The wheeled humanoid's turning radius is a ground-scale measurement of turning around its own axis; it cannot be written as the minimum turning radius of a differential vehicle unless the page defines it that way.
The folding model is specified as four-wheel steering and four-wheel drive. The lift model's chassis is differential drive, speed 1.5 m/s, climbing grade 5 degrees, positioning accuracy ±10 mm / ±3 degrees. The wheeled humanoid gives a turning radius of 690 mm, and both the shoulders and the chassis fit within a 465 mm width. Three sentences describe three ground strategies. Writing 1.5 m/s onto the folding model or the wheeled humanoid is cross-page copying.
For data, chassis speed, angular speed, and the joint angles of the manipulator are different channels. Recording only the arm and not the chassis makes the mobile manipulation demonstration incomplete. Recording only the chassis and not the arm makes the tabletop manipulation demonstration incomplete. When the product page does not provide details of the chassis control interface, the interface is governed by the written configuration; do not invent a topic name in the article.
This article explains the product's publicly disclosed motion parameters and the type of chassis quantities it requires to be retained in the dataset.
Before handing off to a colleague
Mobile testing is carried out in two steps.
The first step is to confirm only the mechanism terms: whether the on-site chassis or main arm is the type described in the original sentence — if not, stop.
Only in the second step do you record velocity, and the recorded value may be below the publicly stated capability, as long as it is noted in the operating conditions column. Do not backfill the speed of a single slow demonstration as a specification. Positioning, slope climbing, ultrasonic, and edge contact: if they are not on the page, do not test whether these items "meet the standard"; you may use the project's own safety requirements, but do not write those requirements as product specifications. The emergency stop test comes before any mobile capture. Mechanism confirmation uses photos plus the original sentence, not a verbal "you know, that kind of wheel." Photos cannot replace the original sentence; the original sentence goes in the photo caption. If the velocity logger shows a higher or lower value, do not modify the product page. If higher and it exceeds the publicly stated capability, stop and check whether the wrong device was recorded; if lower, write it into the operating conditions. Samples after the emergency stop and samples before it go in separate directories. Do not automatically append the first segment after emergency stop recovery to the previous segment.
First, confirm the mechanism terms before recording the speed.
Second, a lower demonstration speed is written into the operating conditions.
Third, do not write operating conditions back into specifications.
Fourth, gradeability and positioning not on the page must not be tested as specifications.
Fifth, emergency stop comes before capture.
Sixth, separate directories before and after emergency stops.
