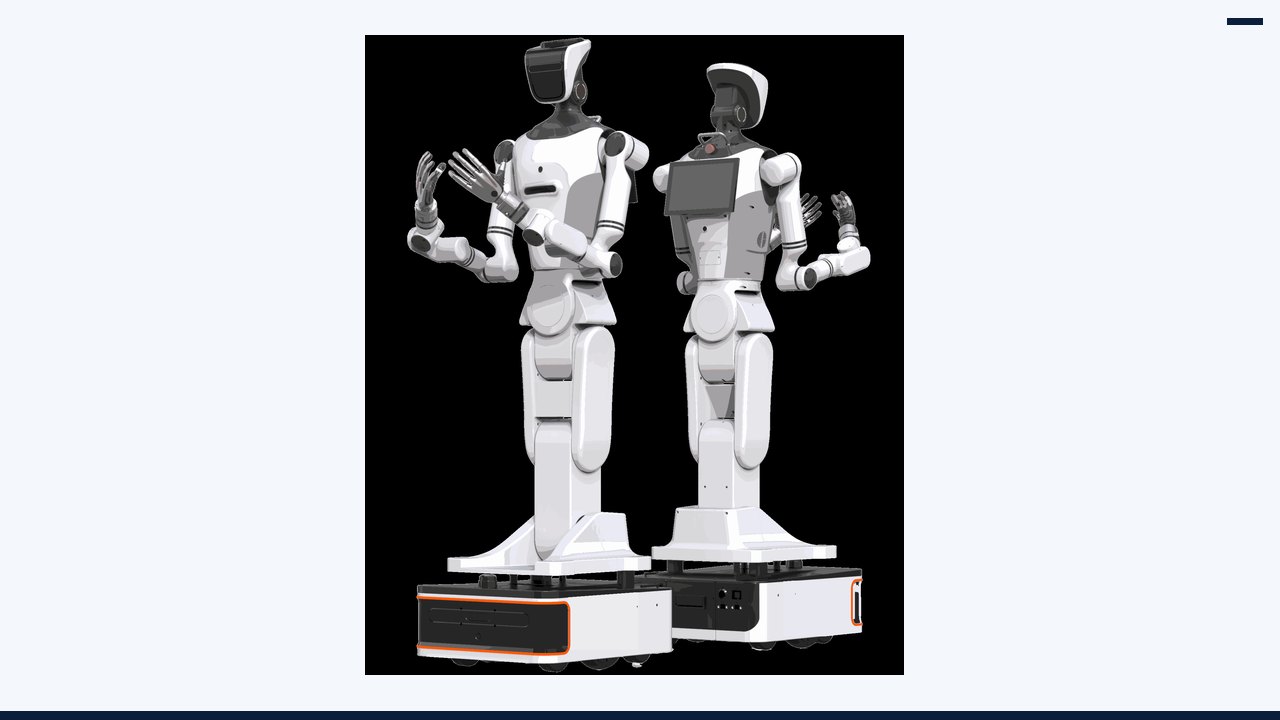

Degrees of freedom are counted only by the body parts written on the page. Total active degrees of freedom for the whole body is 21, broken down as arms 14, waist 3, legs 2, neck 2. Any waist, legs, neck, or whole-machine total that does not appear remains unpublished. Adding a degree of freedom to align an integer with another machine will make the action vector dimensionally wrong from day one.
Degrees of Freedom
The action vector for imitation learning must be isomorphic to this degrees-of-freedom statement. Main arm 7 axes versus follower arm 7 axes is one recording convention; whole-machine 20 or 21 is another, and it includes joints that are not part of a single arm. The wheeled humanoid teleoperation body uses the statement above, not the one from the adjacent page.
If lift, chassis speed, or gripper open/close are to enter the action vector, separate channel names must be provided. They are not implicit decimals "already included in the degrees of freedom." Where the page writes them as travel, speed, or time, record them in those units; do not convert them into degrees of freedom.
Recommended dataset fields: joint list, unit for each joint, and body parts that were not recorded. Leave unrecorded items empty; do not write 0, because 0 will be treated as a real angle. Do not invent joint limits that are not given on /product-body-humanoid.html in the field descriptions.

How to Use This Page in This Version
The degrees-of-freedom dimension does one thing only: it records the action-vector dimensionality of the wheeled humanoid teleoperation body as a table, where every row can be found on the product page. The DoF statement on this page is: 21 total active DoF, broken down as 14 for both arms, 3 for the waist, 2 for the legs, and 2 for the neck. If the statement already breaks down body parts, those parts are the table's groupings — do not rearrange them. If the statement only gives a single arm, do not add waist, legs, neck, or a whole-machine total on your own.
Action-vector dimensions and mechanical DoF are not automatically equal. Chassis speed, lift travel, and gripper open/close can all be recorded channels, but their units are meters per second, millimeters, or open/close state — not "an extra 0.5 degrees of freedom." Locomotion speed 0.1–1.5 m/s. Turning radius 690 mm, specified as in-place rotation. Vertical reach 2100 mm. Horizontal reach 1818 mm, excluding the end effector. A multi-DoF dexterous hand or gripper can be added to the end effector depending on the task. The page states compatibility with grippers and dexterous hands from Aoyi, Qiangnao, Zhixing, and others, as well as the RX75, RM75, and RM65 robotic-arm platforms. Compatibility is not a standard-included list. If any of these statements are to be included in the vector, name them individually and include their units.
In a master–slave isomorphic setup, the master side has 7 DoF and the slave side often also has 7 DoF per arm. Equality does not mean the mapping table can be omitted. The mapping table must specify: which master joint corresponds to which slave joint, whether the direction is reversed, and whether the zero position is the same. If the wheeled humanoid teleoperation body's page does not give the joint order, mark the mapping table as "joint order pending written configuration confirmation" — do not number them yourself.
Do not fill unrecorded joints with 0. 0 is an angle. Leave them blank and write "not published on this page" in the data description. Filling in 20 or 21 from another machine will make training scripts assume those joints exist. Do not write the approximately 2-hour charging time as 2 hours of battery life. Do not write the foldable model's 20 DoF or approximately 6 hours onto this machine. Do not write the lift model's 900 mm as this machine's lift travel.
The dataset version number should include the hash of the original sentence stating the degrees of freedom, or at least a verbatim transcription of it. If the product page is corrected later, old samples can still be matched to the sentence as it stood at the time, rather than silently becoming a new definition.
Line-by-Line Verification
Degrees of freedom. 21 total active DoF, broken down as 14 for both arms, 3 for the waist, 2 for the legs, and 2 for the neck. This row only states the number of joints and body parts that have already been published. It does not evaluate intelligence, and it does not automatically include waist, legs, neck, or a whole-machine total that the page does not name. When writing into the action vector, create channels only for body parts listed in this row; body parts not listed remain blank. Do not write blanks as 0, because 0 will be treated by training scripts as a real angle. Do not fill in the integer DoF count from another device to make this row add up. If the master–slave joint order is not given on the page, mark it as pending written configuration confirmation — do not number them yourself. This is the direct basis for action-vector grouping. The action vector creates channels only for body parts named in this row; unnamed body parts are left blank, not filled with 0.
Payload and mass. Single-arm payload 5 kg. Whole-machine weight approximately 125 kg — this is not the single-arm payload. The numbers in this row must be read with their subject: rated, self-weight, whole-machine mass, envelope, friction, or gripping force. If the subjects differ, the numbers cannot be merged into one figure, nor can conversions not given on the page be performed. If an object in the field is heavier, that does not change the specification in reverse; a larger specification also does not prove that every grasping method reaches that limit. Tool mass is undetermined — do not write the arm's rated payload as the graspable object mass. Keep original units in the acceptance table. Payload does not change the DoF count; do not add or remove joints based on payload size. During acceptance, read the subject first and then the number; if the subjects differ, split into two rows.
Dimensions and scale. Whole-machine dimensions 570 × 465 × 1680 mm. Chassis width and shoulder width are kept within 465 mm. This row is an exterior or structural scale, used to check doors, elevators, tabletops, or transport — it is not an operating height and not a reach. Do not add it to the vertical range. If a figure shows protrusions, antennas, or a person's standing position not listed in this row, note separately that they are not part of the specification. If weight appears in an adjacent row, do not write it into the dimension sentence. The exterior does not include hidden joints; do not infer DoF from dimensions. Doors, elevators, and transport are checked against the exterior only — do not treat this row as an operating height.
Operating range. Vertical reach 2100 mm. Horizontal reach 1818 mm, excluding the end effector. This line describes the range that the hand or lift can reach; the definition must follow the original sentence — vertical working range, reach, motion radius, or stroke — these cannot be added together or renamed. If "excluding the end effector" is written, it must remain in the figure caption. If the original text does not specify units, keep the note "units not specified"; do not delete it for the sake of tidiness. Stroke and reach are length channels, not fractional degrees of freedom. The figure caption should retain the range definition from the original sentence, as well as words like "excluding the end" or "units not specified".
Locomotion. Locomotion speed 0.1–1.5 m/s. Turning radius 690 mm, specified as in-place rotation. This row describes how the ground base or main arm moves. Four-wheel steering, four-wheel drive, differential drive, in-place turning radius, and rotational speed are terms for different mechanisms and cannot be substituted for one another. Published speed is a capability, not a recommended teaching speed; teaching can be slower, but slower speeds are recorded under experimental conditions and are not written back as specifications. If the page does not state slope climbing or positioning, do not borrow from another page. If the chassis is not counted in the DoF statement, name its channel separately. Teaching speed can be lower, but lower speeds are recorded under operating conditions and do not change the published capability in this row.
Power. Battery 40 Ah (BMS). Charging time approximately 2 hours. Approximately 2 hours is charging, not battery life — the page does not give battery life in hours. This row retains only the electrical terms that appear on the page: voltage, capacity, battery life, charging, current, or power. If there are no "hours," write that battery life is not given; do not fill in hours from a neighboring page. Do not rename charging time as battery life. Rated and maximum values must be listed separately. Keep "approximately" for approximate values. Do not sum the ampere-hours of multiple devices and present the total as one device's battery. The power supply method does not provide a joint count. Hours, charging, or current that do not appear remain not given — do not copy them in from a neighboring page.
Perception and computing. The vision system lists binocular depth / RGB as optional. Wide-angle cameras: 130° FOV × 3, located on the chest / back / chassis. The LiDAR is a single-line laser with a detection range greater than 40 m (90% reflectivity). The voice interaction module is a ring of 6 microphones, optional. Depth camera versions: data capture version Orbbec 335LG; standard version Intel RealSense D405; optional Intel RealSense D435. This row inventories the items already specified in sensors, computing, or communications, and preserves the terms standard, standard-equipped, optional, and optional-order. Optional items not selected do not count. When the cover conflicts with the list, cite the list, while not pretending the cover statement does not exist. Headsets and gloves do not enter this row. Processors, hard drive capacity, or camera channel counts that are not written out should not be drawn into the system diagram. Camera channel count is not joint dimension. Optional sensors not purchased do not enter this data dictionary.
End effector. A multi-DoF dexterous hand or gripper can be added to the end effector depending on the task. The page states compatibility with grippers and dexterous hands from Aoyi, Qiangnao, Zhixing, and others, as well as the RX75, RM75, and RM65 robotic-arm platforms. Compatibility is not a standard-included list. This row states where contact or gripping occurs. Quick-change, compatible, and recommended are not models already in the box. The ring fixture on the main arm is not a slave-side gripper. Force, travel, and payload remain as-is in their respective rows; they are not merged into a single system metric because they are installed on a particular body. Flange and protocol mappings that are not given should be marked as pending confirmation, not as plug-and-play. Whether gripper open/close is encoded as one dimension must be declared in the recording scheme, not assumed from the DoF statement. "Supports" or "compatible" without a model number cannot be treated as already delivered.
Boundary. The upper body and wheeled chassis are a modular structure. How the split connects to other chassis is confirmed per the project interface — do not write it in the public table as already connected. This row is a boundary deliberately separated on the page: another model, another column, another product page, or an interface that still requires project confirmation after modularization. The boundary is not a defect note; it prevents verbally merging two pages into one. When writing a proposal, copy the boundary into "not included in this order." If a device not included is added later, open a new configuration sheet — do not go back and change the body name in old samples. An unpublished whole-machine DoF count remains unpublished. Devices within the boundary require a separate order; do not rename old samples to say they already include it.
Configuration column. The voice module and depth-camera version both have optional rows. Optional items are not written into the delivery for unchecked selections. The end-effector brand must be named in the configuration sheet — do not write "compatible means included." This row distinguishes standard, recommended, and optional. Recommended and optional items are not delivered unless checked. If the standard row and the parameter-table row disagree, keep both rows and use "locked for this order" to indicate which one is actually delivered — rather than striking out one row in the order without signing off. Prices and lead times are not written into this row's restatement. After the model is locked, DoF still follows the statement for that model on the page. Unchecked recommended and optional items are written as not delivered on the order.
Excerptable. The following can be copied into an appendix: 21 (14+3+2+2); 570×465×1680 mm; approximately 125 kg; 465 mm width limit; vertical reach 2100 mm; horizontal reach 1818 mm (excluding end effector); in-place turning radius 690 mm; 0.1–1.5 m/s; single arm 5 kg; 40 Ah; charging approximately 2 hours. This row is the type of content that can be pasted into an appendix: it has a subject, has units, and can be traced back to the original sentence on the product page. When pasting, preserve "approximately," "excluding," "not given," "optional," and "recommended." Do not convert and keep only the result. If the same number has different meanings on two pages, write it as two rows in the appendix. Do not mix test protocols into specification excerpts. In the appendix, copy the DoF statement verbatim, including the breakdown in parentheses. When pasting into the appendix, paste the words "approximately," "excluding," and "optional" along with the numbers.
Do not write. Do not write the approximately 2-hour charging time as 2 hours of battery life. Do not write the foldable model's 20 DoF or approximately 6 hours onto this machine. Do not write the lift model's 900 mm as this machine's lift travel. This row is a negative statement for review purposes. It does not describe what the device can do; it only prevents hours, DoF, payload subjects, or cover slogans from a neighboring page from being written in. If a negative statement is triggered, revert to the original sentence on the product page — do not interpret it as "close enough." External papers' success rates and total hours not published on this site are likewise not to be written in. Filling this page's blanks with 17, 20, or 21 from another machine is prohibited. If a manuscript search triggers a negative statement, revert to the original sentence on the product page.
| Projects | Public-Facing Positioning of This Page |
|---|---|
| Degrees of Freedom | Total active degrees of freedom: 21, broken down as dual arms 14, waist 3, legs 2, neck 2. |
| Load and Mass | Single-arm payload 5 kg. Total unit weight is approximately 125 kg, which is not the single-arm payload. |
| Form Factor and Scale | Overall dimensions 570 × 465 × 1680 mm. The chassis width and shoulder width are kept within 465 mm. |
| Operating Range | Vertical reach 2100 mm. Horizontal reach 1818 mm, excluding the end effector. |
| Motion | Motion speed 0.1–1.5 m/s. Turning radius 690 mm; the specification refers to in-place rotation. |
| Power | Battery 40 Ah (BMS). Charging time approximately 2 hours. The approximately 2 hours refers to charging, not runtime; the page does not state runtime in hours. |
| Perception & Compute | The vision system is listed as binocular depth / RGB optional. Wide-angle camera 130° FOV ×3, located on the chest / back / chassis. The LiDAR is a single-line laser with detection range greater than 40 m (90% reflectivity). The voice interaction module is a ring-shaped 6-microphone array, optional. Depth camera versions: data collection version Orbbec 335LG; standard version Intel RealSense D405; optional Intel RealSense D435. |
| End Effector | A multi-degree-of-freedom dexterous hand or gripper can be added to the end effector depending on the task. The page explicitly states compatibility with grippers and dexterous hands from Aoyi, Qiangnao, Zhixing, and others, as well as the RX75, RM75, and RM65 robotic arm platforms. Compatibility is not a standard configuration list. |
| Boundary | The upper body and wheeled chassis are modular. How to connect to other chassis after separation must be confirmed per the project interface; do not state in the public table that it is already connected. |
| Configuration Panel | Both the voice module and depth camera versions have optional rows. Optional items are not included in unchecked deliveries. The end-effector brand must be specified by name in the configuration sheet; do not write "compatible means already included." |
| Excerptable | Attachment copy: 21 (14+3+2+2); 570×465×1680 mm; approximately 125 kg; 465 mm maximum width; vertical reach 2100 mm; horizontal reach 1818 mm (excluding end-effector); in-place rotation radius 690 mm; 0.1–1.5 m/s; single arm 5 kg; 40 Ah; approximately 2 hours of charging. |
| Do not write | Do not write "approximately 2 hours of charging" as "2 hours of battery life." Do not attribute the folding model's 20 DoF or approximately 6 hours of battery life to this unit. Do not write the lifting model's 900 mm as this unit's lifting stroke. |

Relationship to Public Methods and Adjacent Pages
Degrees of freedom is the number of joints a mechanism can independently drive; it is not a measure of intelligence, nor a score of data quality. Degrees of freedom must always be written with the body part: single arm, waist, legs, neck, lift stroke. It must not be written as a body-part-free "full-body degrees of freedom" unless the product page itself publishes it that way.
Imitation learning cares about the dimensionality and semantics of the action vector. In ALOHA, the slave arm's actions correspond to the primary arm's joints; if the slave end has one fewer joint or one extra lift axis, the policy's action dimension changes. Therefore, the capture plan must first specify: which joints are recorded, whether lift is a separate dimension, and whether chassis velocity is part of the action. Joints not listed on the page must not be added just to reach a round number.
The folding model publishes 20 active degrees of freedom and specifies 7 axes for a single arm. The wheeled humanoid publishes 21 active degrees of freedom with a breakdown of arms 14, waist 3, legs 2, neck 2. The lift model does not publish overall machine degrees of freedom; what it publishes is 7 degrees of freedom for a single arm from the recommended arm sheet, plus a lift stroke of 900 mm. The three sentences cannot fill in for each other.
This article only explains the degrees of freedom or travel already made public for this product, and indicates which segment of the demonstration action vector it occupies. For parts not made public, write "not provided on the product page" rather than substituting numbers from another machine.
Before handing off to a colleague
Before handing the degrees-of-freedom table to the recording software, run an empty-table test: undisclosed parts should be blank, not 0; if the chassis and gripper are to be recorded, use their own units. When the master-slave mapping has no joint order, the joint names in the software should read "to be confirmed" rather than a guess of 1 through 7. Transcribe the original degrees-of-freedom sentence into the version number. If someone later merges integers from a different machine, the version mismatch will reveal it. Do not add or remove joints just to make the vector length match a network's input dimension. The network adapts to the vector, not the vector to the network. Before the recording software goes live, check it with a sample of fake data: leave undisclosed parts blank, export a training sample, and confirm that blank has not become 0. Then write the gripper opening in millimeters or as an open/closed state, and confirm that nobody calls it the 8th degree of freedom. Export a joint-name list from both the master and slave sides and compare them manually, rather than only checking whether both lengths equal 7. Equal length can still mean reversed order. When the order is unconfirmed, the sample directory name carries "order to be confirmed," and the training script skips it by default.
First, undisclosed parts remain blank.
Second, blank is not 0.
Third, grippers and chassis use their own units.
Fourth, do not number joints until the joint order is confirmed.
Fifth, vector length is not increased or decreased for network input.
Sixth, copy the version number from the original sentence.
