Wheeled humanoid teleoperation platform | Is the end-effector in the box: supported and compatible does not mean already delivered

Whether the end effector is included in the box is determined by the quantity table and configuration sheet, not by the words "supports" or "compatible." The end effector can be fitted with a multi-DoF dexterous hand or gripper depending on the task. The page states compatibility with Aoyi, Qiangnao, Zhixing, and other grippers and dexterous hands, as well as RX75, RM75, and RM65 robotic arm platforms. Compatibility is not a standard configuration list. Up…

2026-10-03
TOBI
Product Insights
Wheeled humanoid teleoperation platform | Is the end-effector in the box: supported and compatible does not mean already delivered
Product InsightsWheeled humanoid teleoperation robot2026-10-03

Whether the end-effector is in the box is determined by the quantity table and configuration sheet, not by the words "supports" or "compatible." A multi-degree-of-freedom dexterous hand or gripper can be added to the end according to the task. The page states compatibility with Aoyi, BrainCo, Zhixing, and other grippers and dexterous hands, as well as the RX75, RM75, RM65 robotic arm platforms. Compatibility is not the standard configuration list. The upper body and wheeled chassis are a modular structure. How the split modules connect to other chassis must be confirmed per the project interface; do not write them as already connected in the public table. Supports quick-change, compatible with certain hands, or recommends a certain model — none of these mean already delivered.

End-Effector Boundary

The gripper's own force, stroke, and payload are listed row by row on the gripper page. After being connected to the wheeled humanoid teleoperation body, the arm's rated values remain in the arm's rows; the gripper's 130 N or 5 kg envelope must not be written into the arm's rated cell. If two sets of ±0.05 mm appear at the same time, list them in separate rows, because one is the arm's repeatability and the other is the gripper's positional repeatability.

The rail-mounted ring fixture on the local kit is held by the primary arm, not the slave-end gripper. When you see the word "fixture," ask whether it is on the primary end or the slave end.

The configuration sheet recommends three rows: body model, end-effector model and quantity, and explicitly excluded end-effectors. The third row can prevent disputes upon delivery. Both the end-effector page and the body page are accessed from the product center; the body page is /product-body-humanoid.html.

Wheeled humanoid teleoperation robot

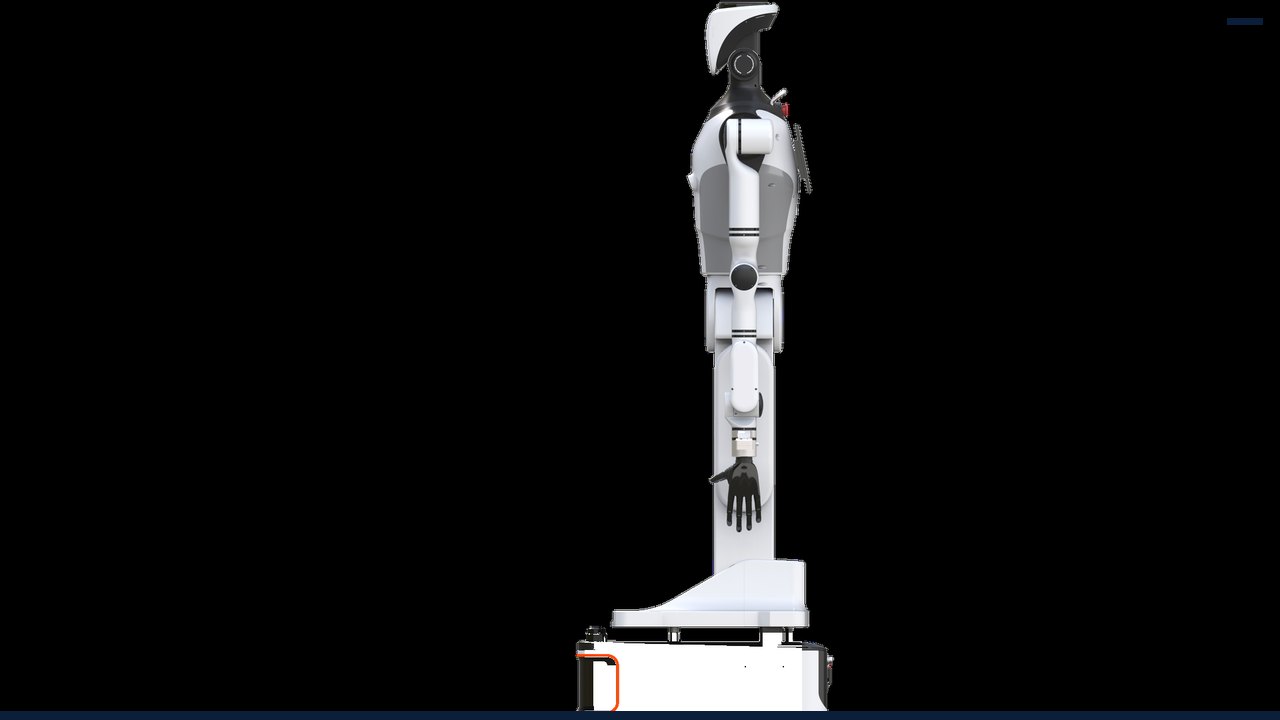

Figure 1 | Wheeled humanoid teleoperation platform. The caption only states that this is a device photo from the product page; the appearance is not interpreted as parameters not present in the table.

How to Use This Page in This Version

End-effector decision table, three columns: interface capability, model for this order, explicitly excluded. A multi-degree-of-freedom dexterous hand or gripper can be added to the end according to the task. The page states compatibility with Aoyi, BrainCo, Zhixing, and other grippers and dexterous hands, as well as the RX75, RM75, RM65 robotic arm platforms. Compatibility is not the standard configuration list. Put these in the first column. The second column must be a model number, such as RMG22-65 or another model on the configuration sheet; "quick-change," "dexterous hand," and "compatible" cannot fill the second column. The third column lists what is not installed this time, to prevent the packing list from being verbally completed. The upper body and wheeled chassis are a modular structure. How the split modules connect to other chassis must be confirmed per the project interface; do not write them as already connected in the public table.

Force, stroke, and load are not copied from the rig page to the gripper, nor from the gripper page to the rig. The gripper's envelope of 5 kg, friction of 2 kg, 130 N, and 65 mm appear only in the gripper row. The arm's rated 5 kg appears only in the arm row. When two 5 kg values are adjacent, the column headers must differ.

The rail-mounted ring fixture on the master arm is not the end effector. It solves how the human grips the master arm. When you see a fixture, first ask which end it is attached to. If it is on the master side, go to the kit page to match columns; if it is on the slave side, go to the gripper page to match the model.

Repeatability after installation must not be merged. Both the arm's ±0.05 mm and the gripper's ±0.05 mm may appear; the page does not provide a combined formula for the serial fingertip error, so acceptance is still listed row by row, not written as "system repeatability ±0.05 mm." If system-level error is to be measured, it is a project test, not a line on /product-body-humanoid.html.

Line-by-Line Verification

Degrees of freedom. Total active degrees of freedom: 21, split as 14 for the two arms, 3 for the waist, 2 for the legs, and 2 for the neck. This row only states the number of joints and body parts that have been publicly disclosed. It does not evaluate intelligence, and it does not automatically include the waist, legs, neck, or whole-machine total that are not named on the page. When writing the action vector, create channels only for the body parts listed in this row; body parts not listed remain blank. Do not write blanks as 0, because 0 would be treated by the training script as a real angle. Do not fill in the degrees-of-freedom integer from another device to make this row add up. If the master–slave joint order is not given on the page, mark it as pending written configuration confirmation; do not number it yourself. The degrees of freedom do not include the model of any specific gripper. The action vector creates channels only for the body parts named in this row; body parts not named remain blank and are not filled with 0.

Payload and mass. Single-arm payload: 5 kg. Whole-machine weight: approximately 125 kg, which is not the single-arm payload. The numbers in this row must be read with their subject: rated, self-weight, whole-machine mass, envelope, friction, or gripping force. If the subjects differ, they cannot be merged into a single number, nor can any conversion not given on the page be performed. If an object on site is heavier, the specification cannot be changed retroactively; a larger specification also does not prove that every grasping method reaches that limit. The tool mass is undetermined; do not write the arm's rated value as the graspable object mass. The acceptance sheet retains the original units. The arm's rating and the gripper's envelope, friction, and gripping force are accepted on separate rows. During acceptance, read the subject first and then the number; if the subjects do not match, split them into two rows.

Dimensions and scale. Whole-machine dimensions: 570 × 465 × 1680 mm. The chassis width and shoulder width are kept within 465 mm. This row describes the external or structural dimensions, used to check doors, elevators, tabletops, or transport; it is not the operating height, nor the arm reach. Do not add it to the vertical range. If the diagram shows protrusions, antennas, or a person's standing position that are not in this row, note separately that they are not part of the specification. If weight appears in an adjacent row, do not write it into the dimension sentence. The gripper's external dimensions are not written into the body's external dimensions, unless this page is about the gripper. Doors, elevators, and transport are checked only against the external dimensions; do not treat this row as the operating height.

Operating range. Vertical arm reach: 2100 mm. Horizontal arm reach: 1818 mm, excluding the end effector. This row describes the range that the hand or lift can reach; the definition must follow the original wording: vertical working range, arm reach, motion radius, or stroke. These cannot be added together or renamed. If "excluding the end effector" is written, it must remain in the figure caption. If the original text does not specify units, retain the note "units not specified"; do not delete it for tidiness. A stroke of 65 mm is not the same length as an arm reach. The figure caption retains the range definition from the original wording, as well as the terms "excluding the end" or "units not specified".

Motion. Motion speed: 0.1–1.5 m/s. Turning radius: 690 mm, specified as in-place rotation. This row describes how the ground platform or main arm moves. Four-wheel steering, four-wheel drive, differential drive, in-place turning radius, and rotational speed are terms for different mechanisms and cannot be substituted for one another. The published speed is a capability, not a recommended teaching speed; teaching can be slower, but a slower speed is recorded under experimental conditions and is not written back into the specification. If the page does not state slope climbing or positioning, do not borrow from another page. An opening/closing time of 2 seconds is not the chassis speed. The teaching speed can be lower, but a lower speed is recorded under operating conditions and does not change the published capability in this row.

Power. Battery 40 Ah (BMS). Charging time is approximately 2 hours. Approximately 2 hours refers to charging, not runtime; the page does not state runtime in hours. This line should retain only the electrical terms that appear on the page: voltage, capacity, runtime, charging, current, or power. If there is no "hours," write that runtime is not given; do not fill in hours from an adjacent page. Do not rename charging time as runtime. Rated and maximum values must be listed separately. Keep "approximately" for approximate values. Do not sum the amp-hours of multiple devices and present the total as the battery of a single device. The 24 V gripper and the main arm's DC12V or DC24V are not automatically on the same power rail. If hours, charging, or current do not appear, keep them as not given; do not copy them in from an adjacent page.

Perception and computation. The vision system lists stereo depth / RGB as optional. Wide-angle cameras: 130° FOV × 3, positioned on the chest / back / chassis. The LiDAR is a single-line laser with a detection range greater than 40 m (90% reflectivity). The voice interaction module is a ring of 6 microphones, optional. Depth camera versions: data collection version Orbbec 335LG; standard version Intel RealSense D405; optional Intel RealSense D435. This line inventories items already specified in sensors, computation, or communication, and retains the terms standard, standard-equipped, optional, and optional-order. Optional items not selected do not count. When the cover conflicts with the list, cite the list, while not pretending the cover statement does not exist. Headsets and gloves do not enter this line. Processors, hard drive capacity, or camera channel counts not written out should not be drawn into the system diagram. Two lines with the same repeatability still belong to the arm and the gripper respectively. Optional sensors not purchased do not enter this data dictionary.

End effector. The end can be fitted with a multi-degree-of-freedom dexterous hand or gripper depending on the task. The page specifies compatibility with grippers and dexterous hands from Aoyi, Qiangnao, Zhixing, and others, as well as the RX75, RM75, and RM65 robotic arm platforms. Compatibility is not a standard-included list. This row describes where contact or grasping occurs. Quick-change, compatible, and recommended are not models already included in the box. A ring fixture on the main arm is not an end-side gripper. Force, stroke, and payload remain as-is in their respective rows and must not be merged into a single system metric because they are installed on a particular platform. For flange and protocol mappings that are not given, write "to be confirmed," not "plug and play." This row cannot substitute for the model column. "Supports" or "compatible" without a model number cannot be treated as already delivered.

Boundary. The upper body and wheeled chassis are a modular structure. How to connect after splitting to other chassis must be confirmed per project interface — do not write it as already connected in the public table. This row is a deliberately separated boundary on the page: another model, another column, another product page, or an interface that still requires project confirmation after modularization. The boundary is not a defect note; it prevents verbally buying two pages as one. When writing a plan, transcribe the boundary into "not included in this order." If equipment not included is later added, open a new configuration sheet — do not go back and change the robot name in old samples. The recommended gripper model differs from this gripper model and the names cannot be swapped. Equipment within the boundary must be ordered separately; do not rename old samples to say it is already included.

Configuration column. The voice module and depth camera version both have optional rows. Optional items are not written into the delivery unless checked. The end-effector brand must be named in the configuration sheet; do not write "compatible means included." This row distinguishes standard, recommended, and optional. Recommended and optional items are not delivered unless checked. If the standard row and the parameter table row are inconsistent, keep both rows and use "locked for this order" to indicate which one is actually delivered, rather than striking out one row in the order without signing off. Price and lead time are not written into this row's restatement. The end-effector row is a separate line in the order, with a quantity. Unchecked recommended and optional items are written as not delivered in the order.

Excerptable. The following can be copied into an appendix: 21 (14+3+2+2); 570×465×1680 mm; approximately 125 kg; 465 mm width limit; vertical arm reach 2100 mm; horizontal arm reach 1818 mm (excluding the end); in-place turning radius 690 mm; 0.1–1.5 m/s; single arm 5 kg; 40 Ah; charging approximately 2 hours. This row is the type of content that can be pasted into an appendix: it carries its subject, carries units, and can be traced back to the original sentence on the product page. When pasting, retain "approximately," "excluding," "not given," "optional," and "recommended." Do not convert and keep only the result. If the same number has different meanings on two pages, write it as two rows in the appendix. Test protocols are not mixed into specification excerpts. The appendix's end-effector section must include at least the model or an explicit statement that it is not included. When pasting into the appendix, paste the words "approximately," "excluding," and "optional" along with the numbers.

Do not write. Do not write "charging approximately 2 hours" as "battery life 2 hours." Do not write the folding model's 20 DoF or approximately 6 hours onto this machine. Do not write the lift model's 900 mm as this machine's lift stroke. This row is a negative statement for review purposes. It does not describe what the equipment can do; it only prevents hours, degrees of freedom, payload subjects, or cover slogans from neighboring pages from being written in. If a negative statement is hit, revert to the original sentence on the product page; do not interpret it as "close enough." External papers' success rates and total hours not published on this site are likewise not to be written in. It is forbidden to write "standard configuration includes the main arm and gripper." If a manuscript search hits a negative statement, revert to the original sentence on the product page.

ProjectsPublic-Facing Positioning of This Page
Degrees of FreedomTotal active degrees of freedom: 21, broken down as dual arms 14, waist 3, legs 2, neck 2.
Load and MassSingle-arm payload 5 kg. Total unit weight is approximately 125 kg, which is not the single-arm payload.
Form Factor and ScaleOverall dimensions 570 × 465 × 1680 mm. The chassis width and shoulder width are kept within 465 mm.
Operating RangeVertical reach 2100 mm. Horizontal reach 1818 mm, excluding the end effector.
MotionMotion speed 0.1–1.5 m/s. Turning radius 690 mm; the specification refers to in-place rotation.
PowerBattery 40 Ah (BMS). Charging time approximately 2 hours. The approximately 2 hours refers to charging, not runtime; the page does not state runtime in hours.
Perception & ComputeThe vision system is listed as binocular depth / RGB optional. Wide-angle camera 130° FOV ×3, located on the chest / back / chassis. The LiDAR is a single-line laser with detection range greater than 40 m (90% reflectivity). The voice interaction module is a ring-shaped 6-microphone array, optional. Depth camera versions: data collection version Orbbec 335LG; standard version Intel RealSense D405; optional Intel RealSense D435.
End EffectorA multi-degree-of-freedom dexterous hand or gripper can be added to the end effector depending on the task. The page explicitly states compatibility with grippers and dexterous hands from Aoyi, Qiangnao, Zhixing, and others, as well as the RX75, RM75, and RM65 robotic arm platforms. Compatibility is not a standard configuration list.
BoundaryThe upper body and wheeled chassis are modular. How to connect to other chassis after separation must be confirmed per the project interface; do not state in the public table that it is already connected.
Configuration PanelBoth the voice module and depth camera versions have optional rows. Optional items are not included in unchecked deliveries. The end-effector brand must be specified by name in the configuration sheet; do not write "compatible means already included."
ExcerptableAttachment copy: 21 (14+3+2+2); 570×465×1680 mm; approximately 125 kg; 465 mm maximum width; vertical reach 2100 mm; horizontal reach 1818 mm (excluding end-effector); in-place rotation radius 690 mm; 0.1–1.5 m/s; single arm 5 kg; 40 Ah; approximately 2 hours of charging.
Do not writeDo not write "approximately 2 hours of charging" as "2 hours of battery life." Do not attribute the folding model's 20 DoF or approximately 6 hours of battery life to this unit. Do not write the lifting model's 900 mm as this unit's lifting stroke.
Another image from the wheeled humanoid teleoperation platform image library
Figure 2 | Another image from the product page gallery. The page does not label this image as front view or side view, so no view name is added here.

Relationship to Public Methods and Adjacent Pages

The end effector is the segment that makes contact, and it is often mistakenly written as "already included with the embodiment." A quick-change interface means it can be swapped; it does not mean a particular gripper or a particular five-finger hand is in the box. Delivery is governed by the configuration list.

The folding model's end effector supports quick tool changes between a two-finger gripper and a five-finger hand. The wheeled humanoid's upper body is modular. The lift model's standard quantity table does not include a gripper; two units of CTAG2F90-D are a recommended option. The two-finger gripper RMG22-65 has its own product page: envelope load 5 kg, recommended friction load 2 kg, 130 N, stroke 65 mm, self-weight 745 g, open/close time 2 s, repeatability ±0.05 mm, RS485 / Modbus-RTU. Writing these numbers into the base unit's standard configuration is incorrect unless the order explicitly includes that line item.

The gripper's repeatability and the arm's repeatability are not the same number. The recommended arm table for the lift type lists a repeatability of ±0.05 mm, and the RMG22-65's repeatability is also ±0.05 mm. Even though the numbers are identical, they must still be placed in two separate rows, because the sources of error differ, and when chained in series you cannot simply keep only one.

This article draws the line: whether the standard delivery of this product includes the end effector, how to write the recommended items, and when the numbers on a standalone gripper page may appear.

Before handing off to a colleague

The end-effector packing list comes in two copies. One copy lists the model and quantity for this order; the other lists the hand or gripper explicitly not included. Both copies must be signed. A photo of the quick-change interface cannot replace the model line. The gripper parameter label and the arm's rated-load label are affixed to opposite sides. If the ring fixture is on the master arm, the label reads "master-side grip" so the warehouse does not treat it as a slave-side spare. After installation, do not add a new "system repeatability" specification row; if the project needs to measure fingertip error, that is a project measurement, and the label still retains the original two-row accuracy. Warehouse bin locations are separated into three categories: master-side grip, slave-side gripper, and unspecified interface. Quick-change parts with unspecified interfaces are not issued to the capture team. Grippers issued to the capture team must carry a model label. If the model label does not match the packing list, return the item — do not alter the label with a marker pen on site. If two accuracy labels have the same numbers, they still use different headings: arm repeatability of positioning, and gripper position repeatability. Labels with lost headings are void.

First, the packing list is split into two: included and not included.

Second, a photo does not substitute for a model number.

Third, the primary-side fixture and the distal-side gripper get separate storage locations.

Fourth, if the label and the packing list do not match, return the item.

Fifth, even if two sets of precision have the same number, use different headings.

Sixth, do not add "system repeatability" as a specification.
