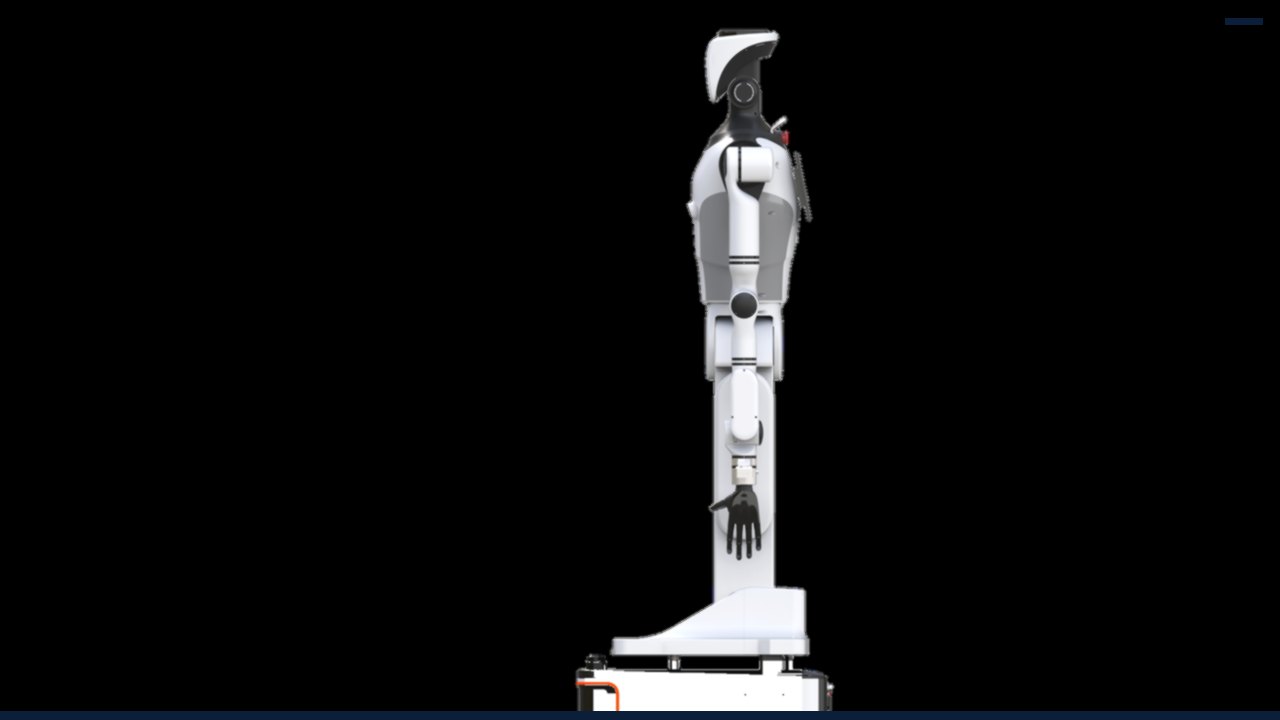

Form, vertical range and arm reach are three sets of coordinates. Overall dimensions 570 × 465 × 1680 mm. Chassis width and shoulder width are within 465 mm. Vertical arm reach 2100 mm. Horizontal arm reach 1818 mm, excluding the end effector. Use form for doors and elevators, vertical range or vertical arm reach for shelf height, and arm reach or horizontal overhang for shelf depth. Adding the three sets of numbers together has no physical meaning.
Workspace
Arm reach excluding the end effector becomes shorter once a gripper is attached; the amount of reduction depends on the end-effector dimensions, and the page usually does not specify this reduction. The end effector can be fitted with a multi-degree-of-freedom dexterous hand or a gripper depending on the task. The page states compatibility with grippers and dexterous hands from Aoyi, BrainCo, Zhixing, and others, as well as the RX75, RM75, and RM65 robotic arm platforms. Compatibility is not a standard configuration list. Therefore, workspace diagrams should be labeled "excluding end effector" or "end effector not included," and arm reach should not be drawn directly as the reachable workspace of the gripper fingertips.
The ground footprint of the wheeled humanoid teleoperation body must also include the standing position of the person or main arm. The main arm length is on the kit page, not in the form described in this section. If the workstation is drawn only to the body dimensions, the operator will have nowhere to stand.
Tasks that cannot be drawn into these three coordinate systems are not tasks for this device. Changing cameras cannot turn a 0.69 m arm span into 2 m, nor can it copy vertical range from one page to another. The verification page is /product-body-humanoid.html.

How to Use This Page in This Version
The workspace diagram uses three layers and is not drawn as a single sphere. The first layer is the form, which determines doors and elevators: overall dimensions 570 × 465 × 1680 mm. Chassis width and shoulder width are within 465 mm. The second layer is the vertical and horizontal operating range: vertical arm reach 2100 mm. Horizontal arm reach 1818 mm, excluding the end effector. The third layer is the part not included at the end: a multi-degree-of-freedom dexterous hand or gripper can be added to the end according to the task. The page states compatibility with grippers and dexterous hands from Aoyi, Qiangnao, Zhixing, etc., as well as the RX75, RM75, RM65 robotic arm platforms. Compatibility is not a standard configuration list. The three layers use different line styles. Tracing the three layers into a single "maximum radius" is the most common wrong diagram for this dimension.
The arm span excluding the end effector is stated in the figure caption. Whether the fingertips can still reach that point after a gripper is installed must be measured on site with a gauge; do not automatically extend the arm span by a gripper length on the figure, nor automatically shorten it. The page does not provide a correction to the arm span for the gripper length.
Left/right overhang, shoulder width, and chassis width are used for passages, not for shelf height. If the original text does not specify a unit for one-sided overhang, the caption retains "the original text does not mark a unit; recorded in the millimeter context". Do not erase this note.
The person's standing position and the main arm's tabletop are the fourth layer, but they are not part of the form of the wheeled humanoid teleoperation body, unless this page is the kit page. The kit's motion radius is a main arm dimension and must not be drawn into the end-side reachable sphere. The end-side vertical range must likewise not be drawn into the main arm's motion radius.
After completing the diagram, verify with one sentence: every dimension on the diagram can point to a row on /product-body-humanoid.html. Delete any dimension that cannot be pointed to. Do not write charging approximately 2 hours as endurance 2 hours. Do not write the folding version's 20 DoF or approximately 6 hours onto this unit. Do not write the lift version's 900 mm as this unit's lift stroke. Dimensions from adjacent pages especially must be deleted.
Line-by-Line Verification
Degrees of freedom. Total active degrees of freedom for the whole body 21, broken down as arms 14, waist 3, legs 2, neck 2. This line only states the number of joints and body parts that have been made public. It does not evaluate intelligence, and it does not automatically include the waist, legs, neck or whole-body total that are not named on the page. When writing into the action vector, only build channels for the body parts present in this row; body parts not present remain blank. Do not write blank as 0, because 0 will be treated by the training script as a real angle. Do not fill in the integer degrees of freedom of another device after this row to make the total add up. If the master-slave joint order is not given on the page, mark it as pending written configuration confirmation and do not number it yourself. Degrees of freedom do not describe spatial size. The action vector builds channels only for the body parts named in this row; unnamed body parts are left blank and not filled with 0.
Load and mass. Single-arm payload 5 kg. Total machine weight is approximately 125 kg, which is not the single-arm payload. The numbers in this row must be read aloud with their subject: rated, self-weight, total machine mass, envelope, friction or gripping force. If the subjects differ, they cannot be merged into a single number, nor can conversions be made that are not given on the page. If objects on site are heavier, the specification cannot be changed in reverse; a larger specification also does not prove that every grasping method reaches that limit. Tool mass is undetermined — do not write the arm's rated value as the graspable object mass. The acceptance checklist retains the original units. Load does not describe reachability. During acceptance, read the subject first and then the number; if the subjects are inconsistent, split into two rows.
Form and dimensions. Overall dimensions 570 × 465 × 1680 mm. Chassis width and shoulder width are within 465 mm. This line is for form or structural dimensions, used to check doors, elevators, tabletops or transport; it is not operating height, nor is it arm reach. Do not add it to the vertical range. If the diagram shows protrusions, antennas or a person's standing position that are not on this line, note separately that they are not part of the specification. If weight appears in an adjacent row, do not write it into the dimension sentence. This line enters the form layer of the workstation diagram. Doors, elevators and transport are checked only against the form; do not treat this line as operating height.
Operating range. Vertical arm reach 2100 mm. Horizontal arm reach 1818 mm, excluding the end effector. This line describes the range the hand or lift can reach; the definition must follow the original sentence: vertical working range, arm reach, motion radius or stroke — these cannot be added to each other or renamed. If "excluding the end effector" is written, it must remain in the figure caption. If the original text does not specify units, retain the "units not specified" note and do not delete it for tidiness. This line enters the operating layer of the workstation diagram and is not added to the form layer. The figure caption retains the range definition from the original sentence, as well as the words "excluding end" or "units not specified".
Motion. Motion speed 0.1–1.5 m/s. Turning radius 690 mm, specified as in-place rotation. This line describes how the ground or main arm moves. Four-wheel steering, four-wheel drive, differential drive, in-place turning radius and rotational speed are terms for different mechanisms and cannot be substituted for one another. The published speed is a capability, not a recommended teaching speed; teaching can be slower, but slower is written under experimental conditions and is not written back as a specification. On a page that does not state slope climbing or positioning, do not borrow from another page. The chassis range of motion is not the arm's workspace, unless the original sentence is indeed talking about the chassis. Teaching speed can be lower, but lower is written under the operating conditions and does not change the published capability in this row.
Power supply. Battery 40 Ah (BMS). Charging time approximately 2 hours. Approximately 2 hours is charging, not endurance; the page does not give endurance in hours. This line retains only the electrical terms that appear on the page: voltage, capacity, endurance, charging, current or power. If there are no "hours", write that endurance is not given; do not fill in the blank with hours from an adjacent page. Do not rename charging time as endurance. Rated and maximum values must be listed separately. Approximate values retain "approximately". Do not sum the ampere-hours of multiple devices and claim it as one device's battery. The battery does not change the reachable domain. Hours, charging or current that do not appear remain as not given, and are not copied in from an adjacent page.
Perception and computation. The vision system specifies stereo depth / RGB as optional. Wide-angle cameras: 130° FOV × 3, positioned on the chest / back / chassis. The LiDAR is a single-line laser with a detection range greater than 40 m (90% reflectivity). The voice interaction module is a ring of 6 microphones, optional. Depth camera versions: data collection version Orbbec 335LG; standard version Intel RealSense D405; optional Intel RealSense D435. This line enumerates the items already specified in sensors, computation, or communication, and retains the terms standard, included as standard, optional, and optional add-on. An optional item that is not checked does not count. When the cover conflicts with the list, cite the list, while not pretending that the cover statement does not exist. Headsets and gloves do not belong on this line. Do not draw processors, hard drive capacity, or camera channel counts into the system diagram if they are not specified. The camera field of view is not the mechanically reachable workspace. Optional sensors that have not been purchased do not enter this data dictionary.
End effector. The end effector can be fitted with a multi-degree-of-freedom dexterous hand or gripper depending on the task. The page states compatibility with grippers and dexterous hands from Aoyi, Qiangnao, Zhixing, and others, as well as the RX75, RM75, RM65 robotic arm platforms. Compatibility is not a standard-configuration list. This line describes where contact or grasping occurs. Quick-change, compatible, and recommended are not models already included in the box. The ring fixture on the main arm is not an end-effector gripper. Force, stroke, and payload remain as-is in their respective rows and are not merged into a single system metric because they are mounted on a particular robotic platform. For flange and protocol mappings that are not specified, write "to be confirmed," not "plug and play." The page does not provide a formula for the effect of end-effector length on reachable points; do not automatically add or subtract on diagrams. "Supports" or "compatible" without a model number cannot be treated as delivered.
Boundary. The upper body and wheeled chassis are a modular structure. How the split connects to other chassis is confirmed per the project interface and is not written in the public table as already connected. This line is a boundary deliberately separated on the page: another model, another column, another product page, or an interface that still requires project confirmation after modularization. The boundary is not a defect note; it prevents verbally buying two pages as one. When writing a proposal, copy the boundary into "not included in this order". If equipment not included is later added, open a new configuration sheet and do not go back and change the body name in the old sample. The main arm's motion radius is not drawn into the end-side reachable domain, unless this page is the kit. Equipment within the boundary must be ordered separately; do not rename the old sample to say it already includes it.
Configuration column. Voice module and depth camera versions both have optional rows. Optional items are not written into unchecked deliveries. The end-effector brand must be named explicitly in the configuration sheet; do not write "compatible means included." This row distinguishes standard, recommended, and optional. Recommended and optional items are not delivered unless checked. When the standard row conflicts with the parameter table row, keep both rows and use "locked for this order" to indicate which one is actually delivered, rather than striking out one row in the order without signing off. Price and lead time are not written into this row's paraphrase. Unselected end-effectors are not drawn into the reachability graph. Unchecked recommended and optional items are written on the order as not delivered.
Excerptable. Attachments may copy: 21 (14+3+2+2); 570×465×1680 mm; approximately 125 kg; 465 mm width limit; vertical arm reach 2100 mm; horizontal arm reach 1818 mm (excluding end); in-place turning radius 690 mm; 0.1–1.5 m/s; single arm 5 kg; 40 Ah; charging approximately 2 hours. This line is the type that can be pasted into an attachment: it has a subject, has units, and can be pointed back to the original sentence on the product page. When pasting, retain approximately, excluding, not given, optional and recommended. Do not convert and keep only the result. If the same number has different meanings on two pages, write it as two rows in the attachment. Test protocols must not be mixed into specification excerpts. Every number in a figure caption can be pointed back to the table. When pasting into an attachment, paste the words approximately, excluding and optional along with it.
Do not write. Do not write charging approximately 2 hours as endurance 2 hours. Do not write the folding version's 20 DoF or approximately 6 hours onto this unit. Do not write the lift version's 900 mm as this unit's lift stroke. This line is a negative statement for review. It does not describe what the equipment can do; it only prevents hours, degrees of freedom, load subjects or cover slogans from adjacent pages from being written in. If a negative statement is hit, revert to the original sentence on the product page and do not interpret it as approximately the same. Success rates from external papers and total hours not published on this site are likewise not to be written in. Meters from an adjacent page cannot be used to fill blanks in this diagram. If manuscript retrieval hits a negative statement, revert to the original sentence on the product page.
| Projects | Public-Facing Positioning of This Page |
|---|---|
| Degrees of Freedom | Total active degrees of freedom: 21, broken down as dual arms 14, waist 3, legs 2, neck 2. |
| Load and Mass | Single-arm payload 5 kg. Total unit weight is approximately 125 kg, which is not the single-arm payload. |
| Form Factor and Scale | Overall dimensions 570 × 465 × 1680 mm. The chassis width and shoulder width are kept within 465 mm. |
| Operating Range | Vertical reach 2100 mm. Horizontal reach 1818 mm, excluding the end effector. |
| Motion | Motion speed 0.1–1.5 m/s. Turning radius 690 mm; the specification refers to in-place rotation. |
| Power | Battery 40 Ah (BMS). Charging time approximately 2 hours. The approximately 2 hours refers to charging, not runtime; the page does not state runtime in hours. |
| Perception & Compute | The vision system is listed as binocular depth / RGB optional. Wide-angle camera 130° FOV ×3, located on the chest / back / chassis. The LiDAR is a single-line laser with detection range greater than 40 m (90% reflectivity). The voice interaction module is a ring-shaped 6-microphone array, optional. Depth camera versions: data collection version Orbbec 335LG; standard version Intel RealSense D405; optional Intel RealSense D435. |
| End Effector | A multi-degree-of-freedom dexterous hand or gripper can be added to the end effector depending on the task. The page explicitly states compatibility with grippers and dexterous hands from Aoyi, Qiangnao, Zhixing, and others, as well as the RX75, RM75, and RM65 robotic arm platforms. Compatibility is not a standard configuration list. |
| Boundary | The upper body and wheeled chassis are modular. How to connect to other chassis after separation must be confirmed per the project interface; do not state in the public table that it is already connected. |
| Configuration Panel | Both the voice module and depth camera versions have optional rows. Optional items are not included in unchecked deliveries. The end-effector brand must be specified by name in the configuration sheet; do not write "compatible means already included." |
| Excerptable | Attachment copy: 21 (14+3+2+2); 570×465×1680 mm; approximately 125 kg; 465 mm maximum width; vertical reach 2100 mm; horizontal reach 1818 mm (excluding end-effector); in-place rotation radius 690 mm; 0.1–1.5 m/s; single arm 5 kg; 40 Ah; approximately 2 hours of charging. |
| Do not write | Do not write "approximately 2 hours of charging" as "2 hours of battery life." Do not attribute the folding model's 20 DoF or approximately 6 hours of battery life to this unit. Do not write the lifting model's 900 mm as this unit's lifting stroke. |

Relationship to Public Methods and Adjacent Pages
A workspace typically has at least three coordinate frames; mixing them up will record the lab door width and operating height as the same number. The first is the overall machine envelope: length, width, and height, which determine whether it can fit through a door or an elevator. The second is the chassis footprint and obstacle traversal, which determine ground compatibility. The third is the operating envelope reachable by the arm or lift: vertical range, arm reach, and the distance the arm extends beyond the chassis on either side. The vertical range is the interval of heights the end-effector or platform can reach — it is not the overall machine height, nor is it the kinematic reach of the arm.
The folding model measures approximately 614×552×1700 mm, with a vertical operating range of 0–2.1 m. The lift model folds to 640×450×1780 mm, with a vertical range of 0–2.4 m and a lift stroke of 900 mm; the reach listed on the recommended arm sheet is 633 mm, which is the arm's working radius, not the overall machine height. The wheeled humanoid measures 570×465×1680 mm, with both shoulder width and chassis width falling within 465 mm. The "height" of the three units is therefore stated in three different sentences.
When writing an acquisition plan, mark the operating height in the task onto the vertical range, the shelf depth onto the arm reach or left-right overhang, and the door width onto the outline width. A task that cannot be marked in is not a task for this body — do not just round the spec to "approximately".
This article reads that product page using these three coordinate sets; if one set is missing, write that it is missing, and do not fill in with another device's numbers.
Before handing off to a colleague
Print out the workspace diagram and use a ruler to check each dimension in the figure caption one by one. Any dimension that cannot be found on the product page should be crossed out in red pen, including the dashed lines reserved for the operator's standing position, unless the dashed lines are explicitly labeled as not being specifications. Next to the reach that excludes the end effector, handwrite "end effector not included." If a one-sided overhang retains a note without units, the note text must not be cropped off by the figure frame. If the main arm's motion radius appears in the same figure, it must be given a different title and must not be called the slave-side reachable workspace. Write the product page path in the title block. Figures without a path do not enter the experimental record. Use the layer names from the original sentence for the figure layers; do not use the new term "maximum range." If the outline layer, operation layer, end-effector-not-included layer, and main arm layer all exist, all four legend rows must appear. If a layer is missing an explanation, do not draw that layer. The print scale does not need to be accurate to the millimeter, but the numbers in the figure caption must be exact to the original sentence. If someone edits numbers on the figure with a pen, the edited figure is void — go back to the product page and re-copy, rather than treating the pen edit as a new specification.
First, layer names use the words from the original sentence.
Second, do not draw layers without a source.
Third, "excludes end effector" must be written in the figure caption.
Fourth, notes without units are not cropped away.
Fifth, the primary arm radius is not the distal reachable workspace.
Sixth, any diagram altered by hand is void.
