Master and slave units are ordered separately. The upper body and wheeled chassis have a modular structure. How to connect after disassembly to other chassis must be confirmed per project interface; do not write it in the public table as already connected. Both the voice module and depth camera versions have optional rows. Options are not written into unchecked deliverables. The end-effector brand must be named on the configuration sheet; do not write "compatible means already included." The three kit columns differ in force feedback, voltage, rotational speed, resolution, and grip form. The local column has no force feedback, but all three columns list zero-force gravity compensation. Zero-force gravity compensation must not be treated as a synonym for force feedback.
Master-slave workstation
If the slave end is the wheeled humanoid teleoperation body, the master-end column name must still be written separately. If servos, backpack, or mobility appear in the lift model's optional items, that is an installation form, not a selection of GLN-RX75 or a local column.
The main arm's motion radius is a desktop scale. 709 mm, 474 mm, and 599 mm must not be written into the slave-side reach. The slave-side reach is still governed by the slave-side page.
In the contract, one row for the master end, one row for the slave end, and one row for the end effector. All three rows point to specific URLs in the product center, not to "one teleoperation system." The wheeled humanoid teleoperation body corresponds to /product-body-humanoid.html.

How to Use This Page in This Version
Teleoperation procurement is always multiple rows. The wheeled humanoid teleoperation body occupies only one of them. The master end gets its own row, and it must be one of three columns: GLN-RX75, GLN-RX71, or a local isomorphic kit. The first two columns support force feedback; the local column does not. All three columns list zero-force gravity compensation, so "can be dragged" cannot be used to prove force feedback exists.
Voltage, power, rotational speed, resolution, grip, motor, and interface are all copied column by column. The first two columns are DC24V, the local column is DC12V. The first two columns are 30 RPM, ±0.003°, handle, integrated joint, RJ45. The local column is 110 RPM, 0.088°, rail-type ring fixture, bus servo, RJ45 / 10-pin aviation connector, self-weight approximately 1.5 kg including the fixture. The motion radius of 709 / 474 / 599 mm is the primary arm, not the distal arm reach.
The slave-side arm reach, degrees of freedom, and rated load are still governed by the slave-side page. If the lift model is equipped with a servo, backpack, or mobile configuration, that is an optional installation and does not automatically equate to a particular column of the main arm. The folding model and wheeled humanoid do not include the kit in the standard row. The gripper is listed on a separate row.
When all three rows are blank, do not start recording "teleoperation data." What is recorded is only the log of some device, and the action space is incomplete. Only after the rows are filled in can the data dictionary reference the column names. /product-body-humanoid.html is the source for the wheeled humanoid teleoperation body row. Do not write "charging approximately 2 hours" as "battery life 2 hours." Do not write the folding model's 20 DoF or approximately 6 hours onto this unit. Do not write the lift model's 900 mm as this unit's lift stroke.
Line-by-Line Verification

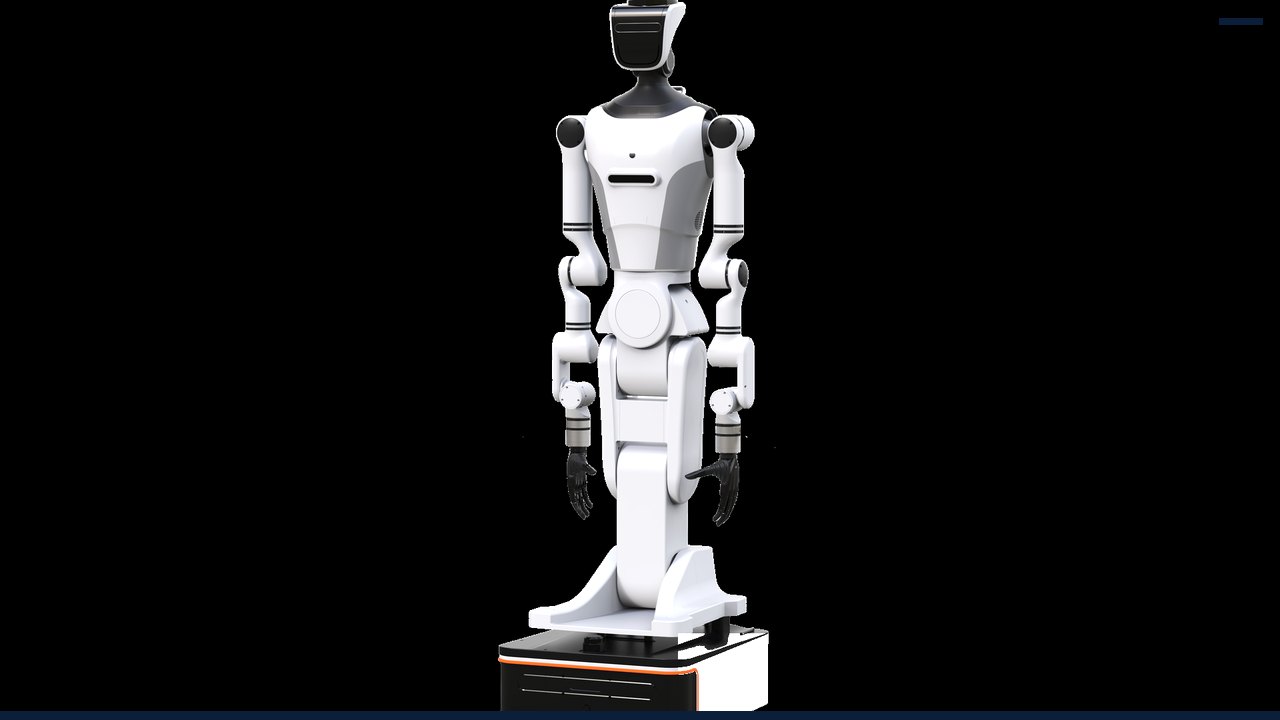

Degrees of freedom. Total active degrees of freedom for the full body is 21, broken down as 14 for both arms, 3 for the waist, 2 for the legs, and 2 for the neck. This row only states the number of joints and body parts that have been publicly disclosed. It does not evaluate intelligence, and it does not automatically include the waist, legs, neck, or whole-machine total that are not named on the page. When writing the action vector, create channels only for the body parts listed in this row; body parts not listed remain blank. Do not write blanks as 0, because 0 would be treated by the training script as a real angle. Also do not fill in the degrees-of-freedom integer from another device after this row just to make the numbers add up. If the master-slave joint order is not given on the page, mark it as pending written configuration confirmation rather than numbering it yourself. Whether the master end 7 and the slave-side joints have the same count, the mapping must still be written out; do not omit it just because both are 7. The action vector creates channels only for the body parts named in this row; body parts not named are left blank, not filled with 0.
Load and mass. Single-arm payload: 5 kg. Overall weight: approximately 125 kg, which is not the single-arm payload. Every number in this row must be read together with its subject: rated, self-weight, overall mass, envelope, friction, or gripping force. Numbers with different subjects must not be merged into a single figure, and no conversion not given on the page may be performed. If objects in the field are heavier, the specification must not be revised accordingly; a higher specification does not prove that every grasping method reaches that limit. The tool mass is undetermined, so the arm's rated value must not be written as the graspable object mass. The acceptance table retains the original units. The main arm's self-weight is not the end-effector rated value. During acceptance, read the subject first and then the number; if the subjects differ, split them into two rows.
Dimensions and scale. Overall dimensions: 570 × 465 × 1680 mm. The chassis width and shoulder width are kept within 465 mm. This row describes exterior or structural dimensions, used to check doorways, elevators, tabletops, or transport; it is not an operating height and not an arm reach. Do not add it to the vertical range. If the diagram shows protrusions, antennas, or a person's standing position not listed in this row, note separately that they are not part of the specification. If weight appears in an adjacent row, do not write it into the dimension sentence. The main arm's motion radius is not the end-effector exterior. Doorways, elevators, and transport are checked against the exterior only; do not treat this row as an operating height.
Operating range. Vertical arm reach: 2100 mm. Horizontal arm reach: 1818 mm, excluding the end effector. This row describes the range the hand or lift can reach; the definition must follow the original wording: vertical working range, arm reach, motion radius, or stroke. These terms must not be added together or renamed. If "excluding the end effector" is stated, it must remain in the figure caption. If the original text does not specify units, retain the "units not specified" note and do not remove it for tidiness. The end-effector reach is not written into the main arm column. The figure caption retains the range definition from the original sentence, as well as the terms "excluding the end effector" or "units not specified."
Motion. Motion speed 0.1–1.5 m/s. Turning radius 690 mm, defined as in-place rotation. This line describes how the ground platform or main arm moves. Four-wheel steering, four-wheel drive, differential drive, in-place turning radius, and rotational speed are terms for different mechanisms and cannot be substituted for one another. Published speed is a capability, not a recommended demonstration speed; demonstrations can be slower, but slower speeds are recorded under experimental conditions and are not written back into the specification. Pages that do not mention slope climbing or positioning should not borrow from other pages. Main arm rotational speed and follower chassis speed are listed separately. Demonstration speed can be lower, but lower speeds are recorded under operating conditions and do not change the published capability in this line.
Power supply. Battery 40 Ah (BMS). Charging time approximately 2 hours. Approximately 2 hours refers to charging, not runtime; the page does not state runtime in hours. This row retains only the electrical terms that appear on the page: voltage, capacity, runtime, charging, current, or power. If there is no "hours" value, state that runtime is not given; do not fill in hours from an adjacent page. Do not rename charging time as runtime. Rated and maximum values must be listed in separate columns. Preserve "approximately" for approximate values. Do not sum the ampere-hours of multiple devices and present the total as the battery of a single unit. The main arm voltage is listed by column and must not be merged with the slave-side battery into a single power source. Hours, charging, or current values that do not appear must remain as not given and must not be copied in from an adjacent page.
Perception and computing. The vision system is listed as binocular depth / RGB, optional. Wide-angle cameras: 130° FOV × 3, located at the chest / back / chassis. The LiDAR is a single-line laser with detection range greater than 40 m (reflectivity 90%). The voice interaction module is a ring of 6 microphones, optional. Depth camera versions: data acquisition version Aobi 335LG; standard version Intel RealSense D405; optional Intel RealSense D435. This row lists the items explicitly stated in sensing, computing, or communications, and retains the terms standard, included as standard, optional, and optional accessory. An optional item that is not checked does not count. If the cover conflicts with the list, cite the list while not pretending the cover statement does not exist. Headsets and gloves do not belong in this row. Processors, storage capacity, or camera channel counts not written out must not be drawn into the system diagram. Angular resolution is listed per column; 0.088° and ±0.003° must not be averaged. Optional sensors not purchased do not enter this data dictionary.
End effector. The end effector can be fitted with a multi-DOF dexterous hand or gripper depending on the task. The page states compatibility with grippers and dexterous hands from AYI, BrainCo, Zhixing, and others, as well as RX75, RM75, and RM65 robotic arm platforms. Compatibility is not a standard configuration list. This line refers to where contact or grasping occurs. Quick-change, compatible, and recommended are not models already included in the box. The ring fixture on the main arm is not an end-effector gripper. Force, stroke, and payload remain as originally stated for each item and are not merged into a single system metric because they are mounted on a particular platform. Flange and protocol mappings that have not been provided should be marked as "to be confirmed," not "plug and play." The ring fixture and the end-effector gripper are two different ends. "Supports" or "compatible" without a specified model cannot be treated as delivered.
Boundary. The upper body and wheeled chassis are a modular structure. How the split modules connect to other chassis must be confirmed through the project interface; do not write it in the public table as already connected. This row is a boundary deliberately separated on the page: another model, another column, another product page, or an interface that still requires project confirmation after modularization. The boundary is not a defect statement; it prevents verbally buying two pages as one. When writing a proposal, copy the boundary into "not included in this order." If equipment not included is added later, open a new configuration sheet; do not go back and change the body name in the old sample. Force feedback exists only in columns where it is stated as supported. Zero-force dragging appears in all three columns and must not be treated as force feedback. Equipment within the boundary must be ordered separately; do not rename the old sample to say it already includes it.
Configuration column. The voice module and depth camera versions both have optional rows. Optional items are not written into the delivery for unchecked boxes. The end-effector brand must be named in the configuration sheet; do not write "compatible, therefore included." This row distinguishes standard, recommended, and optional. Recommended and optional items are not delivered unless checked. If the standard row conflicts with the parameter table row, keep both rows and use "locked for this order" to indicate which one is actually delivered, rather than striking out one row in the order without signing off. Price and lead time are not written into this row's restatement. The optional installation form of the end effector is not a main arm column name. Unchecked recommended and optional items are written as not delivered on the order.
Excerptable. The following may be copied into an appendix: 21 (14+3+2+2); 570×465×1680 mm; approximately 125 kg; 465 mm width limit; vertical arm reach 2100 mm; horizontal arm reach 1818 mm (excluding the end effector); in-place rotation radius 690 mm; 0.1–1.5 m/s; single arm 5 kg; 40 Ah; charging approximately 2 hours. This row is the type that can be pasted into an appendix: it carries a subject, carries units, and can be traced back to the original sentence on the product page. When pasting, retain "approximately," "excluding," "not given," "optional accessory," and "recommended." Do not convert and keep only the result. If the same number has different meanings on two pages, write it as two rows in the appendix. Test protocols must not be mixed into specification excerpts. The order needs at least two rows: the main end column name and the secondary end page name. Add one more row for the end effector. When pasting into the appendix, paste the words "approximately," "excluding," and "optional accessory" along with the numbers.
Do not write. Do not write the approximately 2-hour charging time as 2 hours of battery life. Do not write the folding model's 20 DoF or approximately 6 hours onto this unit. Do not write the lift model's 900 mm as this unit's lift travel. This row is a negative statement for review purposes. It does not describe what the device can do; it only prevents writing in hours, degrees of freedom, payload subject, or cover slogans from adjacent pages. If a negative statement is hit, revert to the original sentence from the product page—do not interpret it as "close enough." Do not write in success rates from external papers or total hours not published on this site. Merged sentences such as "one teleoperation kit with force feedback" are prohibited. If the manuscript retrieval hits a negative statement, revert to the original sentence from the product page.
| Projects | Public-Facing Positioning of This Page |
|---|---|
| Degrees of Freedom | Total active degrees of freedom: 21, broken down as dual arms 14, waist 3, legs 2, neck 2. |
| Load and Mass | Single-arm payload 5 kg. Total unit weight is approximately 125 kg, which is not the single-arm payload. |
| Form Factor and Scale | Overall dimensions 570 × 465 × 1680 mm. The chassis width and shoulder width are kept within 465 mm. |
| Operating Range | Vertical reach 2100 mm. Horizontal reach 1818 mm, excluding the end effector. |
| Motion | Motion speed 0.1–1.5 m/s. Turning radius 690 mm; the specification refers to in-place rotation. |
| Power | Battery 40 Ah (BMS). Charging time approximately 2 hours. The approximately 2 hours refers to charging, not runtime; the page does not state runtime in hours. |
| Perception & Compute | The vision system is listed as binocular depth / RGB optional. Wide-angle camera 130° FOV ×3, located on the chest / back / chassis. The LiDAR is a single-line laser with detection range greater than 40 m (90% reflectivity). The voice interaction module is a ring-shaped 6-microphone array, optional. Depth camera versions: data collection version Orbbec 335LG; standard version Intel RealSense D405; optional Intel RealSense D435. |
| End Effector | A multi-degree-of-freedom dexterous hand or gripper can be added to the end effector depending on the task. The page explicitly states compatibility with grippers and dexterous hands from Aoyi, Qiangnao, Zhixing, and others, as well as the RX75, RM75, and RM65 robotic arm platforms. Compatibility is not a standard configuration list. |
| Boundary | The upper body and wheeled chassis are modular. How to connect to other chassis after separation must be confirmed per the project interface; do not state in the public table that it is already connected. |
| Configuration Panel | Both the voice module and depth camera versions have optional rows. Optional items are not included in unchecked deliveries. The end-effector brand must be specified by name in the configuration sheet; do not write "compatible means already included." |
| Excerptable | Attachment copy: 21 (14+3+2+2); 570×465×1680 mm; approximately 125 kg; 465 mm maximum width; vertical reach 2100 mm; horizontal reach 1818 mm (excluding end-effector); in-place rotation radius 690 mm; 0.1–1.5 m/s; single arm 5 kg; 40 Ah; approximately 2 hours of charging. |
| Do not write | Do not write "approximately 2 hours of charging" as "2 hours of battery life." Do not attribute the folding model's 20 DoF or approximately 6 hours of battery life to this unit. Do not write the lifting model's 900 mm as this unit's lifting stroke. |

Relationship to Public Methods and Adjacent Pages
The master-slave isomorphic kit is the main end, and the base unit is the slave end. The page has two tables, and the order usually has two lines. The kit itself has three columns, and merging them into "one teleoperation kit" is prohibited.
GLN-RX75: Supports force feedback, main arm length 709 mm, self-weight 7.8 kg, grip is a handle, 7 degrees of freedom, joint angle resolution ±0.003 degrees, zero-force dragging, rated speed 30 rpm, integrated joints, RJ45, DC 24 V, total power consumption no more than 200 W, main arm model RX75 in the YDS series. GLN-RX71: Also supports force feedback, length 474 mm, self-weight 3.8 kg, power consumption no more than 100 W, main arm model RX71; other interaction forms and the 75's same-category items follow that column's cell. Local isomorphic kit: Does not support force feedback, isomorphic to the slave arm, length 599 mm, grip is a rail-type ring fixture, angular resolution 0.088 degrees, self-weight including fixture approximately 1.5 kg, speed 110 rpm, bus servos, RJ45 or 10-pin, DC 12 V, rated power 84 W, main arm model YDS-DAP-75/65/RX75S.
If the main unit page lists servos, backpack, and mobile base as optional teleoperation modes, that is an installation configuration, not a selection already made from one of the three columns above. Force feedback exists only in the first two columns.
This article explains the interface relationship between this product and the three-column kit: which includes which, and which must be ordered separately.
Before handing off to a colleague
The master-slave order is placed in the upper and lower columns of a single sheet, with no "one system set" allowed in between. The upper column is the column name of one of three columns; the lower column is the slave-side product page name. Force feedback is checked only in the upper column and only when the first two columns are selected. When the local column is selected, the force feedback checkbox prints as unsupported, even if zero-force dragging is supported. Voltage is filled in according to the upper column. If an end effector is needed, use the third sheet; do not cram it into the notes between the upper and lower columns. A horizontal line is printed between the upper and lower columns, with "not the same device" written on the line. Column names use a dropdown rather than free text; the dropdown has only three columns. Free text will produce statements like "teleoperation kit" that cannot be mapped to a cell. The force feedback checkbox automatically locks to unsupported when the local column is selected, and cannot be changed back. The voltage field is likewise locked by column. A form whose lock fails cannot be saved.
First, the upper and lower rows are not the same machine.
Second, column names can only be one of three options.
Third, the force-feedback column is fixed to "not supported."
Fourth, zero-force drag does not change the previous entry.
Fifth, voltage is locked to its column.
Sixth, the end effector uses the third sheet. The three sheets are filed separately: master side, slave side, end effector. If any one sheet is missing, do not create the collection directory. Once the directory is created, someone will start putting files into it.
