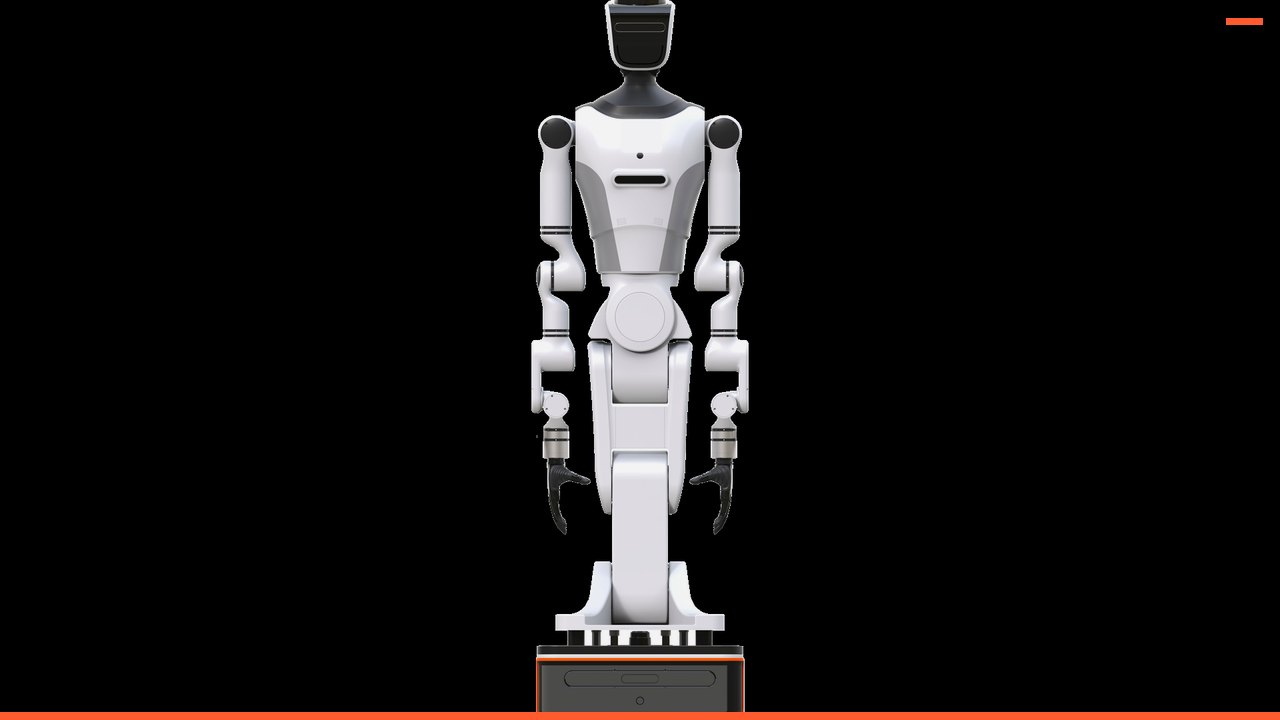

Rated payload, self-weight, whole-machine mass, and gripping force are four separate ledgers. Single-arm payload 5 kg. Whole-machine weight approximately 125 kg — this is not the single-arm payload. When reading, first circle the unit and the subject: whose 5 kg, whose 8 kg, whose 125 kg or 80 kg or 745 g. If the subject changes, the number cannot be inherited.
Payload and self-weight
During teaching, the mass of the tool itself must also be added to the end effector. If the tool has not been selected, the arm's rated capacity cannot be written as "graspable object mass." A multi-degree-of-freedom dexterous hand or gripper can be mounted at the end depending on the task. The page states compatibility with grippers and dexterous hands from Aoyi, Qiangnao, Zhixing, and others, as well as with the RX75, RM75, and RM65 robotic arm platforms. Compatibility is not a standard configuration list. The envelope load and friction load on the gripper page are also not the arm's rating; when both pages appear, transcribe each row from its respective page.
Overload does not necessarily appear in the data as a failed grasp. It manifests as increased current, decreased speed, or changed resistance on the master side. If the recording has no current or no object mass, it will later be impossible to explain why the same trajectory is not comparable. The wheeled humanoid teleoperation body's page does not provide current curves; if current is needed, list it separately in the experimental record — do not pretend the specification table already provides it.
Acceptance only checks the definition on that one line of the page. Friction load cannot be substituted with envelope load; self-weight cannot be substituted with rated load. Get one line wrong, and the quality labels for the entire batch of teaching data will be off.

How to Use This Page in This Version
Load figures must be read aloud row by row. Single-arm load 5 kg. Total system mass approximately 125 kg, which is not the single-arm load. When reading aloud, add the subject before each number: single-arm rated, single-arm self-weight, total system mass, envelope grasp, friction recommendation, gripping force. Any number whose subject cannot be stated should be deleted from the sentence.
The object side must also be listed separately. Object mass, end-effector tool mass, and the arm's rated payload — the page does not give a general formula for summing these three, so do not write "rated minus tool equals graspable object." When the tool is unknown, the object-mass column in the record may be filled with a measured value, but the rated payload must not be rewritten as that measured value. A multi-DoF dexterous hand or gripper can be added to the end effector depending on the task. The page states compatibility with grippers and dexterous hands from Aoyi, Qiangnao, Zhixing, and others, as well as the RX75, RM75, and RM65 robotic-arm platforms. Compatibility is not a standard-included list.
When a gripper and an arm appear together, the gripper's 5 kg is an envelope figure, 2 kg is a friction-based recommendation, and 130 N is a force. None of these rewrite the arm's 5 kg rated payload, and the arm's 5 kg does not prove the gripper can hold up 5 kg by friction. If the wheeled humanoid teleoperation body is itself a gripper, do not introduce an arm's rated payload to "explain" the gripper.
Self-weight affects carrying and the desktop, not grasping capability. A main arm of 7.8 kg, 3.8 kg, or approximately 1.5 kg determines whether a person can hold the main arm for long periods — it does not determine how much the slave end can grasp. A whole-machine weight of approximately 125 kg or approximately 80 kg determines the floor and carrying requirements — it does not determine the single-arm rated load.
Recommended acceptance record with three columns: specification subject, specification value, on-site measured value. The measured value can be stricter, but it cannot be written as a value the specification has already promised. /product-body-humanoid.html is the source for the specification column.
Line-by-Line Verification
Degrees of freedom. 21 total active DoF, broken down as 14 for both arms, 3 for the waist, 2 for the legs, and 2 for the neck. This row only states the number of joints and body parts that have already been published. It does not evaluate intelligence, and it does not automatically include waist, legs, neck, or a whole-machine total that the page does not name. When writing into the action vector, create channels only for body parts listed in this row; body parts not listed remain blank. Do not write blanks as 0, because 0 will be treated by training scripts as a real angle. Do not fill in the integer DoF count from another device to make this row add up. If the master–slave joint order is not given on the page, mark it as pending written configuration confirmation — do not number them yourself. Joint count does not prove payload capability. The action vector creates channels only for body parts named in this row; unnamed body parts are left blank, not filled with 0.
Load and mass. Single-arm load 5 kg. Total unit weight approximately 125 kg, which is not the single-arm load. The subject must be read aloud with the number on this line: rated, self-weight, total unit mass, envelope, friction or gripping force. If the subject differs, the values must not be merged into a single number, nor converted using any conversion not given on the page. If field objects are heavier, the specification must not be changed retroactively; a larger specification also does not prove that every grasping method reaches that limit. The tool mass is undetermined, so do not write the arm's rated value as the graspable object mass. The acceptance table retains the original units. This is the primary row for the load dimension, and the subject must enter the dataset's mass field description verbatim. During acceptance, read the subject first and then the number; if the subjects are inconsistent, split them into two rows.
Form and dimensions. Overall dimensions 570 × 465 × 1680 mm. Chassis width and shoulder width are within 465 mm. This line is for form or structural dimensions, used to check doors, elevators, tabletops or transport; it is not operating height, nor is it arm reach. Do not add it to the vertical range. If the diagram shows protrusions, antennas or a person's standing position that are not on this line, note separately that they are not part of the specification. If weight appears in an adjacent row, do not write it into the dimension sentence. If total unit mass appears near the dimensions, still do not write it as grasping load. Doors, elevators and transport are checked only against the form; do not treat this line as operating height.
Operating range. Vertical arm reach 2100 mm. Horizontal arm reach 1818 mm, excluding the end effector. This line describes the range the hand or lift can reach; the definition must follow the original sentence: vertical working range, arm reach, motion radius or stroke — these cannot be added to each other or renamed. If "excluding the end effector" is written, it must remain in the figure caption. If the original text does not specify units, retain the "units not specified" note and do not delete it for tidiness. Arm reach length is not converted into graspable mass. The figure caption retains the range definition from the original sentence, as well as the words "excluding end" or "units not specified".
Motion. Motion speed 0.1–1.5 m/s. Turning radius 690 mm, the specification refers to in-place rotation. This row describes how the ground platform or main arm moves. Four-wheel four-drive, differential drive, in-place turning radius, and rotational speed are terms for different mechanisms and cannot be substituted for one another. Published speed is a capability, not a recommended demonstration speed; demonstrations may be slower, but the slower speed is recorded in the experimental conditions and is not written back into the specification. Pages that do not mention slope climbing or positioning should not borrow from other pages. High or low speed does not translate into load-bearing mass. Demonstration speed may be lower, but the lower speed is recorded in the operating conditions and does not change the published capability in this row.
Power supply. Battery 40 Ah (BMS). Charging time approximately 2 hours. Approximately 2 hours is charging, not endurance; the page does not give endurance in hours. This line retains only the electrical terms that appear on the page: voltage, capacity, endurance, charging, current or power. If there are no "hours", write that endurance is not given; do not fill in the blank with hours from an adjacent page. Do not rename charging time as endurance. Rated and maximum values must be listed separately. Approximate values retain "approximately". Do not sum the ampere-hours of multiple devices and claim it as one device's battery. Current and power are not substitute units for load. Hours, charging or current that do not appear remain as not given, and are not copied in from an adjacent page.
Perception and computing. The vision system lists binocular depth / RGB as optional. Wide-angle cameras: 130° FOV × 3, positioned on the chest / back / chassis. The LiDAR is a single-line laser with a detection range greater than 40 m (at 90% reflectivity). The voice interaction module is an optional ring of 6 microphones. Depth camera versions: data-capture version Orbbec 335LG; standard version Intel RealSense D405; optional Intel RealSense D435. This row inventories the items already specified under sensors, computing, or communications, and retains the terms standard, included, optional, and optional add-on. An unchecked optional item does not count. If the cover conflicts with the checklist, cite the checklist, while not pretending the cover statement does not exist. Head-mounted devices and gloves do not belong in this row. Do not draw processors, storage capacity, or camera channel counts into the system diagram if they are not written out. Cameras do not change the rated values. Optional sensors that were not purchased do not enter this data dictionary.
End effector. A multi-degree-of-freedom dexterous hand or gripper can be added to the end according to the task. The page states compatibility with grippers and dexterous hands from Aoyi, Qiangnao, Zhixing, etc., as well as the RX75, RM75, RM65 robotic arm platforms. Compatibility is not a standard configuration list. This line states where contact or gripping occurs. Quick-change, compatible and recommended are not models already in the box. The finger-ring fixture on the main arm is not an end gripper. Force, stroke and load are still retained verbatim in their respective rows and are not merged into a single system metric because they are installed on a particular body. Flange and protocol mappings that are not given are written as pending confirmation, not as plug-and-play. The end effector's own force and load are recorded in a separate table and do not override the original rows for the arm or gripper. "Supports" or "compatible" without a model number cannot be treated as delivered.
Boundary. The upper body and wheeled chassis are modular structures. How to connect them to other chassis after separation is confirmed per project interface, and must not be written in the public table as already connected. This line is a deliberately separated boundary on the page: another model, another column, another product page, or an interface that still requires project confirmation after modularity. The boundary is not a defect statement; it is to prevent verbally buying two pages as one. When writing a solution, copy the boundary into "not included in this order." If equipment not included is later added, open a new configuration sheet and do not go back to change the platform name in old samples. The payload of another model is not automatically inherited. Equipment within the boundary must be ordered separately; do not rename old samples to say it is already included.
Configuration column. The voice module and depth camera versions both have optional rows. Optional items are not written into the delivery for unchecked items. The end effector brand must be named in the configuration sheet; do not write "compatible means included". This line distinguishes standard, recommended and optional. Recommended and optional items are not delivered unless checked. If the standard row and the parameter table row are inconsistent, keep both rows and use "locked for this order" to indicate which one is actually delivered, rather than crossing out one row in the order without signing off. Price and lead time are not written into this line's restatement. If the end effector is a recommended item, the load column must specify which model's row is used for acceptance. Unchecked recommended and optional items are written as not delivered on the order.
Excerptable. Attachment can copy: 21 (14+3+2+2); 570×465×1680 mm; approximately 125 kg; 465 mm width limit; vertical reach 2100 mm; horizontal reach 1818 mm (excluding end effector); in-place rotation radius 690 mm; 0.1–1.5 m/s; single arm 5 kg; 40 Ah; approximately 2 hours charging. This is the type of line that can be pasted into an attachment: with a subject, with units, and traceable back to the original sentence on the product page. When pasting, retain words like approximately, excluding, not specified, optional, and recommended. Do not convert and keep only the result. If the same number has different meanings on two pages, write it as two lines in the attachment. Do not mix test protocols into specification excerpts. In the attachment, 5 kg, 8 kg, 2 kg, and 130 N must be listed in separate columns when they appear together. When pasting into the attachment, paste together with words like approximately, excluding, and optional.
Do not write. Do not write charging approximately 2 hours as endurance 2 hours. Do not write the folding version's 20 DoF or approximately 6 hours onto this unit. Do not write the lift version's 900 mm as this unit's lift stroke. This line is a negative statement for review. It does not describe what the equipment can do; it only prevents hours, degrees of freedom, load subjects or cover slogans from adjacent pages from being written in. If a negative statement is hit, revert to the original sentence on the product page and do not interpret it as approximately the same. Success rates from external papers and total hours not published on this site are likewise not to be written in. Do not write self-weight as rated, or write newtons as kilograms and then delete the newtons. If manuscript retrieval hits a negative statement, revert to the original sentence on the product page.
| Projects | Public-Facing Positioning of This Page |
|---|---|
| Degrees of Freedom | Total active degrees of freedom: 21, broken down as dual arms 14, waist 3, legs 2, neck 2. |
| Load and Mass | Single-arm payload 5 kg. Total unit weight is approximately 125 kg, which is not the single-arm payload. |
| Form Factor and Scale | Overall dimensions 570 × 465 × 1680 mm. The chassis width and shoulder width are kept within 465 mm. |
| Operating Range | Vertical reach 2100 mm. Horizontal reach 1818 mm, excluding the end effector. |
| Motion | Motion speed 0.1–1.5 m/s. Turning radius 690 mm; the specification refers to in-place rotation. |
| Power | Battery 40 Ah (BMS). Charging time approximately 2 hours. The approximately 2 hours refers to charging, not runtime; the page does not state runtime in hours. |
| Perception & Compute | The vision system is listed as binocular depth / RGB optional. Wide-angle camera 130° FOV ×3, located on the chest / back / chassis. The LiDAR is a single-line laser with detection range greater than 40 m (90% reflectivity). The voice interaction module is a ring-shaped 6-microphone array, optional. Depth camera versions: data collection version Orbbec 335LG; standard version Intel RealSense D405; optional Intel RealSense D435. |
| End Effector | A multi-degree-of-freedom dexterous hand or gripper can be added to the end effector depending on the task. The page explicitly states compatibility with grippers and dexterous hands from Aoyi, Qiangnao, Zhixing, and others, as well as the RX75, RM75, and RM65 robotic arm platforms. Compatibility is not a standard configuration list. |
| Boundary | The upper body and wheeled chassis are modular. How to connect to other chassis after separation must be confirmed per the project interface; do not state in the public table that it is already connected. |
| Configuration Panel | Both the voice module and depth camera versions have optional rows. Optional items are not included in unchecked deliveries. The end-effector brand must be specified by name in the configuration sheet; do not write "compatible means already included." |
| Excerptable | Attachment copy: 21 (14+3+2+2); 570×465×1680 mm; approximately 125 kg; 465 mm maximum width; vertical reach 2100 mm; horizontal reach 1818 mm (excluding end-effector); in-place rotation radius 690 mm; 0.1–1.5 m/s; single arm 5 kg; 40 Ah; approximately 2 hours of charging. |
| Do not write | Do not write "approximately 2 hours of charging" as "2 hours of battery life." Do not attribute the folding model's 20 DoF or approximately 6 hours of battery life to this unit. Do not write the lifting model's 900 mm as this unit's lifting stroke. |

Relationship to Public Methods and Adjacent Pages
The most common failure in payload language is writing three quantities as one number. Rated payload is the working load the end effector may continuously carry. Self-weight is the mass of the arm or the whole machine. Gripping force is the force output by the gripper, measured in newtons, not kilograms. Envelope load and recommended friction load are also not the same number: envelope load relies on form closure, friction load relies on the contact surface, and the latter is usually smaller and depends on the material.
In teleoperation demonstrations, overload does not only manifest as "it didn't pick it up." It manifests as increased current, decreased speed, changed resistance felt by the operator at the main end, and demonstration trajectories that are not comparable to no-load calibration trajectories. Therefore, the dataset fields must at least distinguish: the arm's rated load, the actual mass of the tool mounted at the end effector, and the object mass. If the tool mass has not yet been selected, the arm's rated load cannot be written as "graspable object mass."
The lift-type arm table places the rated 5 kg and the self-weight 8 kg in adjacent rows. The 8 kg is the mass of a single arm, not the dual-arm rated load, and certainly not the "dual-arm rated 8 kg" that once appeared on the cover. The single-arm rated load of the folding type and the wheeled humanoid is also 5 kg, and likewise must not be conflated with the whole-machine mass of approximately 125 kg. The two-finger gripper RMG22-65 lists the envelope 5 kg, the recommended friction load 2 kg, the gripping force 130 N, and the stroke 65 mm in separate rows.
This article uses only the payload line on the product page and states which line it cannot replace.
Before handing off to a colleague
Load acceptance is done as a separate round, not mixed into the same checklist as appearance acceptance. Prepare three labels: rated or envelope, friction recommendation or self-weight, and on-site object mass. Label paper colors differ. Object mass is measured with a scale, not borrowed from the rated value. When the tool is undetermined, the label reads "Tool undetermined; do not substitute rated value for graspable mass." When both the gripper and the arm are present, both sets of labels must be attached; it is forbidden to attach only one label reading 5 kg. The 130 N label remains in Newtons. In acceptance photos, the full text of the label must be visible, to avoid only a number remaining afterward. The scale and the specification sheet must not be placed in the same grid. On the on-site record sheet, the left side is the scale reading and unit, and the right side is the original specification sentence. When the numbers on both sides are close, extra care is needed to prevent copying into the wrong column. Close is not equal. When 5 kg appears twice, the column names must differ, for example, single-arm rated and envelope grip. When archiving photos, capture the column names. Photos showing only numbers are non-compliant. If the gripping force is given in Newtons, the record sheet does not provide a kilogram conversion column, to avoid on-site personnel mentally overwriting the original value.
First, the scale reading and the original specification sentence are listed separately.
Second, do not merge even if the numbers are close.
Third, if 5 kg appears twice, the column names must differ.
Fourth, delete after converting Newtons to kilograms.
Fifth, if the tool is undetermined, do not substitute rated load for graspable mass.
Sixth, the photo must show the column name.
