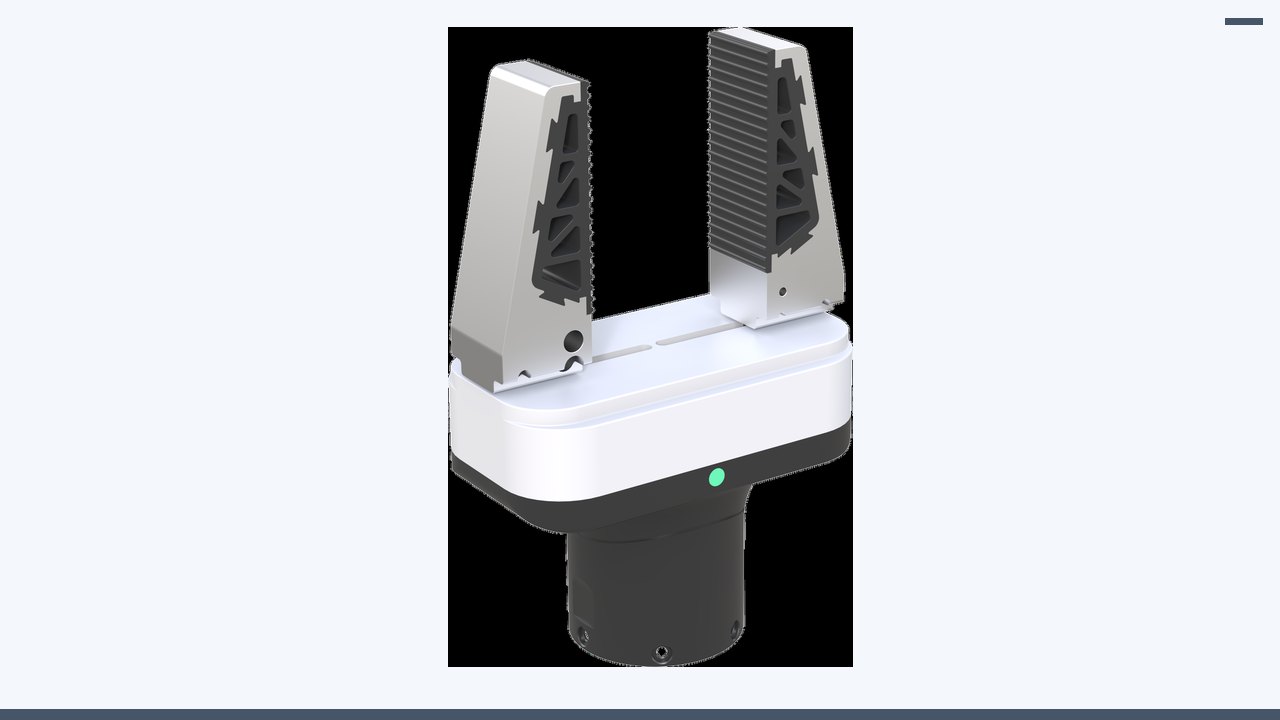

The path starts from the product center: first look at the five cards, then click into the two-finger parallel gripper RMG22-65. Do not place an order using the abbreviation from a chat log. The parameters can be viewed before leaving your contact information; this article does not put specifications behind a form.
Evaluation Path
Step two is a written three-column breakdown: standard, recommended, and optional, plus an exclusion sentence. The order should specify model RMG22-65, and state which robotic platform it is mounted on, the quantity, and whether it replaces other gripper models listed in the recommended column for that platform. Do not convert 130 N into 5 kg and then delete the original line. Do not write ±0.05 mm as the repeatability of the robotic arm it is attached to. Do not write battery life. Step three is making contact. Phone +86 137 5502 0164, email lk@langhuiai.com. Address: Beijing Langhui Technology Co., Ltd., 5th Floor, Room 501, Building F, Lugu Enterprise Plaza, No. 27 Wenxuan Road, Yuelu District, Changsha.
The page to open after reading this article is /product-gripper-2f.html. Open the corresponding card only when an end effector or main end is needed; do not record the two pages as one.
The evaluation response should be understood, at the pace published on the site, as a written configuration, not a verbal "we can do everything." Price and lead time are not covered in this article; they follow the written configuration.

How to Use This Page in This Version
The reader's next step is not to bookmark this article, but to open the product page and verify the original sentences. The path is: Product Center https://www.tobi.cn/products.html, then enter the two-finger parallel gripper RMG22-65: /product-gripper-2f.html. Do not merge the five cards into a single note in the browser. Merging them into a single note is where mixed writing begins.
Do only three things on the product page. First, find the lines cited in this article and check whether they still match this article. Second, split standards, recommendations, and options into three columns. For the order, write model RMG22-65, and specify which robotic platform it mounts to, the quantity, and whether it replaces other gripper models in that platform's recommendation column. Third, put sentences that must not be written into the exclusion column. Do not convert 130 N into 5 kg and then delete the original line. Do not write ±0.05 mm as the repeat positioning accuracy of the mounted robotic arm. Do not write battery life. Only after the three tasks are complete should you fill in the evaluation requirements.
Contact information is used to confirm the written configuration, not to qualify access to specifications. Phone +86 137 5502 0164, email lk@langhuiai.com, address 5th Floor, Room 501, Building F1, Lugu Enterprise Plaza, No. 27 Wenxuan Road, Yuelu District, Changsha, Beijing Langhui Technology Co., Ltd. The specification table is readable before you submit anything.
In the evaluation request, state the task height, object mass, whether the platform moves, whether master-side column names are needed, and whether an end-effector model is needed. Do not write "build an embodied AI system." The closer the writing is to a table, the closer the reply will be to an orderable configuration, rather than a paragraph re-explaining the specs.
Line-by-Line Verification
Degrees of freedom. This is an end-effector gripper, not a multi-joint arm. The public table does not give the gripper an integer "degrees of freedom" value; do not invent one to align with other main bodies. This row only states the number and locations of joints that have already been published. It does not evaluate intelligence, and it does not automatically include the waist, legs, neck, or whole-machine totals that are not named on the page. When writing into the action vector, create channels only for the body parts listed in this row; body parts not listed remain blank. Do not write blank as 0, because 0 would be treated by the training script as a real angle. Do not fill in the degrees-of-freedom integer from another device to complete this row. If the master–slave joint order is not given on the page, mark it as "to be confirmed in written configuration"; do not number it yourself. Find the original degrees-of-freedom sentence on the product page before deciding whether to inquire. The action vector creates channels only for the body parts named in this row; body parts not named remain blank, not 0.
Payload and mass. Maximum envelope gripping payload 5 kg. Recommended maximum friction payload 2 kg. Maximum gripping force 130 N. These three numbers must not all be written as the same 5. The numbers in this row must be read aloud with their subjects: rated, self-weight, whole-machine mass, envelope, friction, or gripping force. If the subjects differ, they cannot be merged into a single number, nor can conversions not given on the page be performed. If an object on site is heavier, do not change the specification retroactively; a larger specification does not prove that every grasping method reaches that limit. If the tool mass is undetermined, do not write the arm's rated value as the graspable object mass. The acceptance sheet retains the original units. Confirm the payload subject on the product page before describing the object. During acceptance, read the subject first and then the number; if the subjects differ, split into two rows.
Dimensions and scale. Overall dimensions 112 × 60 × 167 mm. Stroke 65 mm. Finger height 80 mm. Body weight 745 g. This row describes form factor or structural scale, used to check doors, elevators, tabletops, or transport; it is not operating height, nor is it arm reach. Do not add it to the vertical range. If the diagram shows protrusions, antennas, or a person's standing position that are not in this row, note separately that they are not part of the specification. If weight appears in an adjacent row, do not write it into the dimension sentence. After comparing the site's door width with this row, write the numbers into the requirements; do not write "space is sufficient" without giving numbers. Doors, elevators, and transport are checked only against the form factor; do not treat this row as operating height.
Operating range. Stroke 65 mm is the finger opening distance, not the robotic arm's reach, nor the main body's vertical working range. This row describes the range that the hand or lift can reach; the definition must follow the original sentence: vertical working range, arm reach, motion radius, or stroke — these cannot be added together or renamed. If "excluding end effector" is written, it must remain in the figure caption. If the original text does not mark units, retain the note "units not marked"; do not delete it for tidiness. Write the operating height together with this row's definition into the requirements. The figure caption retains the range definition from the original sentence, as well as the words "excluding end effector" or "units not marked."
Motion. Open / close time: 2 s. Positional repeatability: ±0.05 mm. The 2 seconds is the timing specification for opening or closing, not the control frequency. This line describes how the ground platform or the primary arm moves. Four-wheel four-drive, differential drive, in-place rotation radius, and rotational speed are terms for different mechanisms and cannot be substituted for one another. Published speed is a capability, not a recommended teaching speed; teaching may be slower, but a slower value belongs to experimental conditions and must not be written back as a specification. If the page does not state climbing grade or positioning, do not borrow it from another page. State whether base movement is required or which column of the primary arm. The teaching speed may be lower, but the lower value is recorded under operating conditions and does not change the published capability on this line.
Power supply. Rated voltage 24 V. Rated / maximum current 1.9 / 5.7 A. Rated / maximum power 45.6 / 136.8 W. There is no battery capacity, no battery life in hours. This line only retains the electrical terms that appear on the page: voltage, capacity, battery life, charging, current, or power. If there are no "hours," write "battery life not specified"; do not fill in from hours on an adjacent page. Do not rename charging time as battery life. Rated and maximum must be listed in separate columns. Keep "approximately" where it appears. Do not sum the amp-hours of multiple devices and present the total as one device's battery. Do not request battery life commitments that are not on the page. Hours, charging, or current that do not appear should remain as not specified; do not copy them in from an adjacent page.
Perception and computing. Communication interface: 6-pin aviation connector. Communication protocol: RS485 / Modbus-RTU. Operating environment: 0–50 ℃, relative humidity ≤85%. There is no camera on the page. This row lists items already specified under sensors, computing, or communication, and retains the words standard, included, optional, and optional-order. Unchecked optional items do not count. When the cover conflicts with the checklist, cite the checklist, while not pretending the cover statement does not exist. Headsets and gloves do not enter this row. Processors, storage capacity, or camera channel counts that are not written out must not be drawn into the system diagram. Specify whether the standard checklist or a particular optional item is required. Optional sensors not purchased do not enter this data dictionary.
End effector. It is itself the end effector. Whether it directly matches the flange, wiring harness, and protocol of the main body must be confirmed in the configuration sheet; the page states that plug-and-play is not assumed. This row describes at which end contact or gripping occurs. Quick-change, compatible, and recommended are not models included in the box. A ring fixture on the main arm is not an end-effector gripper. Force, stroke, and payload must each remain as written in their respective rows and must not be merged into a single system metric because they are mounted on a particular main body. For flange and protocol mappings that are not given, write "to be confirmed"; do not write "plug-and-play." Specify the end-effector model or explicitly state that no end effector is needed. "Supports" or "compatible" without a model number cannot be treated as delivered.
Boundary. The standard quantity table for the lift model does not include this gripper. The folding model lists quick-change capability, not that the RMG22-65 is already in the box. The recommended item CTAG2F90-D is also not this model. This row is a boundary deliberately separated on the page: another model, another column, another product page, or an interface that still requires project confirmation after modularization. The boundary is not a defect note; it prevents verbally buying two pages as one. When writing a proposal, copy the boundary into "not included in this order." If excluded equipment is added later, open a new configuration sheet rather than retroactively changing the robot name in old samples. If another card is needed at the same time, write it as a second line in the requirements. Equipment within the boundary must be ordered separately; do not rename old samples to say it is already included.
Configuration column. The order should specify the model RMG22-65, and state which robotic platform it is installed on, the quantity, and whether it replaces other gripper models in that platform's recommended column. This row distinguishes standard, recommended, and optional. Unchecked recommended and optional items will not be delivered. When the standard row and the parameter table row are inconsistent, both rows should be retained, and "locked for this order" should indicate which one is actually delivered, rather than striking out one row in the order without sign-off. Price and lead time are not written into this row's description. Requirements are filled in across three columns: standard, recommended, and optional. Unchecked recommended and optional items are marked as not delivered on the order.
Excerptable. Copy attachments row by row: envelope 5 kg; friction recommendation 2 kg; maximum gripping force 130 N; stroke 65 mm; finger height 80 mm; 745 g; opening/closing 2 s; repeatability ±0.05 mm; 24 V; 1.9/5.7 A; 45.6/136.8 W; RS485 / Modbus-RTU. This row is the type that can be pasted into an attachment: it has a subject, has units, and can be traced back to the original sentence on the product page. When pasting, preserve "approximately," "excluding," "not given," "optional," and "recommended." Do not convert and keep only the result. If the same number has different meanings on two pages, write it as two rows in the attachment. Do not mix test protocols into specification excerpts. First verify the original sentences that can be copied, then submit the evaluation. When pasting into an attachment, paste the words "approximately," "excluding," and "optional" along with the values.
Do not write. Do not convert 130 N to 5 kg and delete the original line. Do not write ±0.05 mm as the repeatability of the attached robotic arm. Do not write battery life. This line is a negative statement for review purposes. It does not describe what the device can do; it only prevents bringing in hours, degrees of freedom, payload subject, or cover slogans from adjacent pages. If a negative statement is triggered, revert to the original product page sentence and do not interpret it as "close enough." Do not bring in success rates from external papers or total hours not publicly disclosed on this site. Do not include in requirement text the statements prohibited by the negative statement. If a draft search hits a negative statement, revert to the original product page sentence.
| Projects | Public-Facing Positioning of This Page |
|---|---|
| Degrees of Freedom | This is an end-effector gripper, not a multi-joint arm. The public table does not give the gripper a "degree of freedom" integer; do not fabricate one to align with other platforms. |
| Load and Mass | Maximum envelope grasp payload 5 kg. Recommended maximum friction payload 2 kg. Maximum clamping force 130 N. These three numbers cannot all be written as the same 5. |
| Form Factor and Scale | Overall dimensions 112 × 60 × 167 mm. Stroke 65 mm. Finger height 80 mm. Body weight 745 g. |
| Operating Range | The 65 mm stroke is the finger opening distance, not the robotic arm reach, nor the platform's vertical working range. |
| Motion | Open / close time 2 s. Positional repeatability ±0.05 mm. The 2 seconds is the specification for the open or close time, not the control frequency. |
| Power | Rated voltage 24 V. Rated / maximum current 1.9 / 5.7 A. Rated / maximum power 45.6 / 136.8 W. No battery capacity, no battery life in hours. |
| Perception & Compute | Communication interface: 6-pin aviation connector. Communication protocol: RS485 / Modbus-RTU. Operating environment: 0–50 °C, relative humidity ≤85%. There is no camera on the page. |
| End Effector | It is itself the end-effector. Whether it directly matches the flange, wiring harness, and protocols of the platform must be confirmed on the configuration sheet; the page states that plug-and-play is not the default. |
| Boundary | The standard quantity table for the lift model does not include this gripper. The folding model lists quick-change capability, not that the RMG22-65 is already in the box. The recommended item CTAG2F90-D is also not this model. |
| Configuration Panel | The order should specify model RMG22-65, and state which platform it is mounted on, the quantity, and whether it replaces other gripper models listed in that platform's recommended column. |
| Excerptable | Attachment specifications listed line by line: envelope 5 kg; recommended friction 2 kg; maximum gripping force 130 N; stroke 65 mm; finger height 80 mm; 745 g; open/close time 2 s; repeatability ±0.05 mm; 24 V; 1.9/5.7 A; 45.6/136.8 W; RS485 / Modbus-RTU. |
| Do not write | Do not convert 130 N to 5 kg and then delete the original row. Do not write ±0.05 mm as the repeatability of the attached robotic arm. Do not state battery life. |

Relationship to Public Methods and Adjacent Pages
The evaluation path starts from the product center, not from a verbal model name in a chat log. The entry point is https://www.tobi.cn/products.html . Five cards are separate: folding dual-arm, lifting dual-arm, wheeled humanoid, isomorphic teleoperation kit, two-finger gripper. Click into the corresponding product page and read only the specification table and configuration column on that page. When a comparison is needed, open the second card; do not merge the two pages into one in memory.
The second step of the path is the written configuration: standard row, recommended row, optional row, plus sentences explicitly stating what is not included. The third step is contact. The phone number is +86 137 5502 0164, the email is lk@langhuiai.com, and the address is 5th Floor, Building F1, Lugu Enterprise Plaza, No. 27 Wenxuan Road, Yuelu District, Changsha City, Beijing Langhui Technology Co., Ltd. Specifications and examples should be viewable before leaving contact information. This article does not create a barrier of "you must leave your details to see the parameters".
Do not insert external brand site links into the path, and do not write the data market as having accumulated a certain number of hours. The site's homepage currently publishes browsing by scenario, sample verification, fields, quality notes, and licensing—not a total hour count.
This article places that product back at which step of this path, and writes out the one product page the reader should open after finishing.
Before handing off to a colleague
After reading, do not stop at the article. Open the product center, go to the corresponding product page, and re-check the rows cited in this article. If there is a discrepancy, the product page takes precedence; the article is considered a paraphrase that needs correction. Then fill in the three-column requirement: task height and load, whether the main-end column is needed, and the end-effector model or explicitly "none." The contact phone number and email are used only to confirm this written requirement. Do not request hours not present on the page in the requirement, and do not write the five cards as a single system. Before submitting the requirement, do a final check against the product page: height definition copied, load subject copied, mobility mechanism copied, main-end column name selected or explicitly "none," end-effector model written or explicitly "none," and no hours requested that do not exist on the page. If any of the six items is missing, do not submit. Submission channels are the assessment form on the page or the public phone number and email. Do not paste the parameters of the five cards into a single paragraph of one email.
First, all six items must be checked before submission.
Second, do not submit if anything is missing.
Third, the five cards are not written into the same paragraph.
Fourth, do not request hours that do not exist.
Fifth, the product page takes precedence over this article.
Sixth, contact information only confirms written requirements.
