Two-finger gripper RMG22-65 | Is the end effector in the box: supported and compatible does not mean already delivered

Whether the end effector is included in the package: check the quantity table and the configuration sheet, not the words "supports" or "compatible." It is itself the end effector. Whether it directly matches the body's flange, wiring harness, and protocol must be confirmed in the configuration sheet; the page states that plug-and-play is not the default. The standard quantity table for the lift version does not include this gripper. The folding version states quick-change capability, not...

2026-10-03
TOBI
Product Insights
Two-finger gripper RMG22-65 | Is the end effector in the box: supported and compatible does not mean already delivered
Product InsightsTwo-Finger Parallel Gripper RMG22-652026-10-03

Whether the end effector is in the box is determined by the quantity table and the configuration sheet, not by the words "supports" or "compatible". It is itself the end effector. Whether it directly matches the flange, wiring harness, and protocol of the main body must be confirmed in the configuration sheet; the page states that plug-and-play is not the default. The standard quantity table for the lift model does not include this gripper. The folding model states quick-change capability, not that RMG22-65 is already in the box. The recommended item CTAG2F90-D is also not this model. Supporting quick-change, being compatible with certain hands, or recommending a model number does not mean it has been delivered.

End-Effector Boundary

The gripper's own force, stroke, and payload are listed on separate lines on the gripper page. After connecting a two-finger parallel gripper RMG22-65, the arm's rated values remain on the arm's line; the gripper's 130 N or 5 kg envelope must not be written into the arm's rated field. If two sets of ±0.05 mm appear at the same time, list them on separate lines as well, because one is the arm's repeatability and the other is the gripper's position repeatability.

The rail-mounted ring fixture on the local kit is held by the primary arm, not the slave-end gripper. When you see the word "fixture," ask whether it is on the primary end or the slave end.

The configuration sheet is recommended to have three lines: main body model, end effector model and quantity, and explicitly excluded end effectors. The third line can prevent disputes upon delivery. Both the end effector page and the main body page are accessed from the Product Center; the main body page is /product-gripper-2f.html.

Two-Finger Parallel Gripper RMG22-65

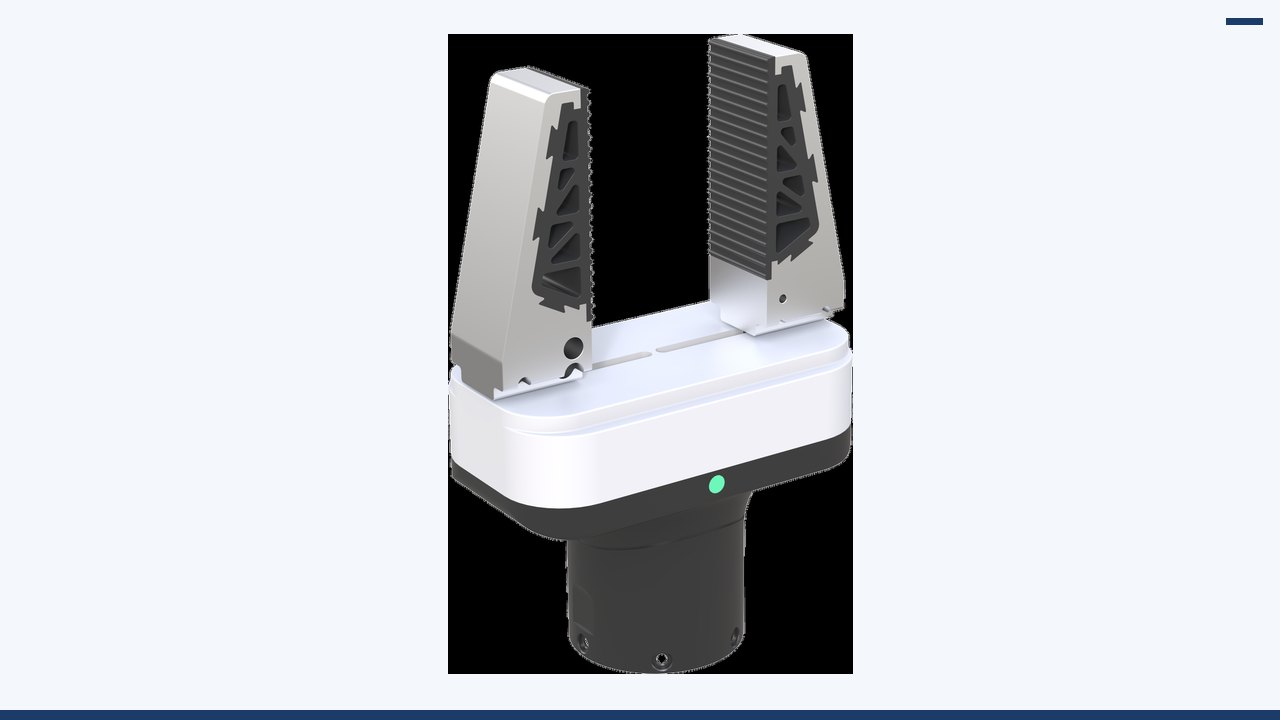

Figure 1 | Two-finger parallel gripper RMG22-65. The caption only states that this is a device photo from the product page; the appearance is not interpreted as parameters not present in the table.

How to Use This Page in This Version

The end-effector decision table has three columns: interface capability, model in this order, and explicitly excluded. It is the end-effector itself. Whether it directly matches the flange, wiring harness, and protocol of the robotic platform must be confirmed on the configuration sheet; the page states that it is not plug-and-play by default. Put it in the first column. The second column must be a model number, such as RMG22-65 or another model on the configuration sheet; "quick-change," "dexterous hand," and "compatible" cannot fill the second column. The third column lists what is not installed in this order, to prevent the packing list from being verbally supplemented. The standard quantity table for the lift model does not include this gripper. The folding model lists quick-change capability, not that the RMG22-65 is already in the box. The recommended item CTAG2F90-D is also not this model.

Force, stroke, and load are not copied from the rig page to the gripper, nor from the gripper page to the rig. The gripper's envelope of 5 kg, friction of 2 kg, 130 N, and 65 mm appear only in the gripper row. The arm's rated 5 kg appears only in the arm row. When two 5 kg values are adjacent, the column headers must differ.

The rail-mounted ring fixture on the master arm is not the end effector. It solves how the human grips the master arm. When you see a fixture, first ask which end it is attached to. If it is on the master side, go to the kit page to match columns; if it is on the slave side, go to the gripper page to match the model.

Repeatability after installation must not be merged. Both the arm's ±0.05 mm and the gripper's ±0.05 mm may occur; no composition formula is given on the fingertip error page for the serial chain, so acceptance remains itemized by row, and "system repeatability ±0.05 mm" is not written. If system-level error is to be measured, it is a project-level test, not a single line on /product-gripper-2f.html.

Line-by-Line Verification

Degrees of freedom. This is an end-effector gripper, not a multi-joint arm. The public table does not give the gripper an integer "degrees of freedom" value; do not invent one to align with other main bodies. This line only states the number and locations of joints that have already been made public. It does not evaluate intelligence, and does not automatically include the waist, legs, neck, or whole-machine total that are not named on the page. When writing the action vector, only build channels for the body parts listed in this line; body parts not listed remain blank. Do not write blank as 0, because 0 would be treated by training scripts as a real angle. Do not fill in the degrees-of-freedom integer from another device to complete this line. If the master-slave joint order is not given on the page, mark it as "pending written configuration confirmation"; do not number it yourself. Degrees of freedom do not include the model number of any specific gripper. The action vector only builds channels for the body parts named in this line; body parts not named remain blank, not filled with 0.

Load and mass. Maximum envelope gripping load 5 kg. Recommended maximum friction load 2 kg. Maximum gripping force 130 N. These three numbers cannot all be written as the same 5. The numbers in this line must be read with their subjects: rated, self-weight, whole-machine mass, envelope, friction, or gripping force. If the subjects differ, they cannot be merged into one number, nor can conversions not given on the page be performed. If an object in the field is heavier, the specification cannot be changed retroactively; a larger specification does not prove that every grasping method reaches that limit. The tool mass is undetermined; do not write the arm's rated value as the graspable object mass. The acceptance table retains the original units. The arm's rated value and the gripper's envelope, friction, and gripping force are accepted on separate lines. During acceptance, read the subject first, then the number; if the subjects do not match, split into two lines.

Dimensions and scale. Overall dimensions 112 × 60 × 167 mm. Stroke 65 mm. Finger height 80 mm. Body weight 745 g. This line is about external or structural dimensions, used to check doors, elevators, tabletops, or transport; it is not operating height, nor is it arm reach. Do not add it to the vertical range. If the diagram shows protrusions, antennas, or a person's standing position not present in this line, note separately that they are not part of the specification. If weight appears in an adjacent line, do not write it into the dimension sentence. The gripper's external dimensions are not written into the body's external dimensions unless this page is the gripper's page. Doors, elevators, and transport only check external dimensions; do not treat this line as operating height.

Operating range. The stroke 65 mm is the finger opening and closing distance, not the robotic arm's reach, nor the robotic platform's vertical working range. This row describes the range that the hand or lift can reach; the definition must follow the original sentence: vertical working range, reach, motion radius, or stroke—these cannot be added together or renamed. If "excluding end effector" is written, it must remain in the figure caption. When the original text does not specify units, keep the note "units not specified" and do not delete it for the sake of tidiness. The stroke 65 mm is not the same length as the reach. The figure caption retains the range definition from the original sentence, as well as the phrases "excluding end" or "units not specified."

Motion. Open / close time 2 s. Positional repeatability ±0.05 mm. The 2 seconds is the open-or-close time metric, not the control frequency. This line describes how the ground base or main arm moves. Four-wheel four-drive, differential drive, in-place turning radius, and rotational speed are terms for different mechanisms and cannot be substituted for one another. Published speed is a capability, not a recommended teaching speed; teaching may be slower, but the slower speed is recorded under experimental conditions and is not written back as a specification. For pages that do not state slope climbing or positioning, do not borrow from other pages. An open/close time of 2 seconds is not a chassis speed. Teaching speed may be lower, but the lower speed is recorded under operating conditions and does not change the published capability in this line.

Power. Rated voltage 24 V. Rated / maximum current 1.9 / 5.7 A. Rated / maximum power 45.6 / 136.8 W. No battery capacity, no endurance in hours. This line retains only the electrical terms that appear on the page: voltage, capacity, endurance, charging, current, or power. If there are no "hours," write that endurance is not given; do not fill in hours from an adjacent page. Do not rename charging time as endurance. Rated and maximum must be listed separately. Keep "approximately" for approximate values. Do not sum amp-hours across multiple devices and present them as one device's battery. The gripper's 24 V and the main arm's DC12V or DC24V are not automatically on the same power circuit. Hours, charging, or current that do not appear should remain as not given and must not be copied from an adjacent page.

Perception and computing. Communication interface: 6-pin aviation connector. Communication protocol: RS485 / Modbus-RTU. Operating environment: 0–50 ℃, relative humidity ≤85%. There is no camera on the page. This line inventories the items already specified in sensors, computing, or communications, and retains the words "standard", "standard-equipped", "optional", and "selectable". An optional item that is not checked does not count. If the cover and the list conflict, cite the list, while not pretending the cover statement does not exist. Head-mounted devices and gloves do not enter this line. Processors, hard drive capacity, or camera channel counts that are not written out must not be drawn into the system diagram. Two lines with the same repeatability still belong separately to the arm and the gripper. Optional sensors that are not purchased do not enter this data dictionary.

End effector. It is itself the end effector. Whether it directly matches the flange, wiring harness, and protocol of the main body must be confirmed in the configuration sheet; the page states that plug-and-play is not the default. This line states at which end contact or gripping occurs. Quick-change, compatible, and recommended are not models already in the box. The finger-ring fixture on the main arm is not an end-effector gripper. Force, stroke, and load are still retained as-is on their respective lines; they are not merged into a single system metric because they are mounted on a particular main body. Flange and protocol mappings that are not specified should be written as "pending confirmation", not "plug-and-play". This line cannot replace the model number column. "Supports" or "compatible" without a model number cannot be treated as delivered.

Boundaries. The standard quantity table for the lift model does not include this gripper. The folding model states quick-change capability, not that RMG22-65 is already in the box. The recommended item CTAG2F90-D is also not this model. This line is a boundary deliberately separated on the page: another model, another column, another product page, or an interface that still requires project confirmation after modularization. The boundary is not a defect note; it prevents verbally buying two pages as one. When writing a proposal, copy the boundary into "not included in this order". If an excluded device is added later, open a new configuration sheet; do not go back and change the body name in the old sample. The recommended gripper and this gripper have different model numbers and cannot substitute for each other's names. Devices within the boundary must be ordered separately; do not rename the old sample to say it already includes them.

Configuration column. The order specifies model RMG22-65, and states which main body it is mounted on, the quantity, and whether it replaces other gripper models in that main body's recommended column. This line distinguishes standard, recommended, and optional. Recommended and optional items are not delivered unless checked. If the standard line and the parameter table line are inconsistent, keep both lines and use "locked for this order" to indicate which one is actually delivered, rather than striking out one line in the order without signing off. Price and lead time are not written into this line's restatement. The end-effector line is a separate line in the order, with a quantity. Unchecked recommended and optional items are written as "not delivered" in the order.

May be excerpted. Copy into the appendix on separate lines: envelope 5 kg; recommended friction load 2 kg; maximum gripping force 130 N; stroke 65 mm; finger height 80 mm; 745 g; open/close time 2 s; repeatability ±0.05 mm; 24 V; 1.9/5.7 A; 45.6/136.8 W; RS485 / Modbus-RTU. This is the type of line that can be pasted into the appendix: it has a subject, has units, and can be traced back to the original sentence on the product page. When pasting, retain words such as "approximately", "not included", "not specified", "optional", and "recommended". Do not convert and keep only the result. If the same number has different meanings on two pages, write it as two lines in the appendix. Do not mix test protocols into the specification excerpt. The end-effector section of the appendix must contain at least the model number or an explicit "not included". When pasting into the appendix, paste the words "approximately", "not included", "optional", etc. together with the values.

Do not write. Do not convert 130 N to 5 kg and then delete the original line. Do not write ±0.05 mm as the repeatability of the attached robotic arm. Do not write battery life. This line is a negative statement for review purposes. It does not describe what the device can do; it only prevents hours, degrees of freedom, load subjects, or cover slogans from adjacent pages from being written in. If a manuscript search hits this negative statement, revert to the original sentence on the product page; do not interpret it as "approximately". Success rates from external papers and total hours not published on this site likewise must not be written in. It is prohibited to write that the standard package already includes the main arm and gripper. If a manuscript search hits this negative statement, revert to the original sentence on the product page.

ProjectsPublic-Facing Positioning of This Page
Degrees of FreedomThis is an end-effector gripper, not a multi-joint arm. The public table does not give the gripper a "degree of freedom" integer; do not fabricate one to align with other platforms.
Load and MassMaximum envelope grasp payload 5 kg. Recommended maximum friction payload 2 kg. Maximum clamping force 130 N. These three numbers cannot all be written as the same 5.
Form Factor and ScaleOverall dimensions 112 × 60 × 167 mm. Stroke 65 mm. Finger height 80 mm. Body weight 745 g.
Operating RangeThe 65 mm stroke is the finger opening distance, not the robotic arm reach, nor the platform's vertical working range.
MotionOpen / close time 2 s. Positional repeatability ±0.05 mm. The 2 seconds is the specification for the open or close time, not the control frequency.
PowerRated voltage 24 V. Rated / maximum current 1.9 / 5.7 A. Rated / maximum power 45.6 / 136.8 W. No battery capacity, no battery life in hours.
Perception & ComputeCommunication interface: 6-pin aviation connector. Communication protocol: RS485 / Modbus-RTU. Operating environment: 0–50 °C, relative humidity ≤85%. There is no camera on the page.
End EffectorIt is itself the end-effector. Whether it directly matches the flange, wiring harness, and protocols of the platform must be confirmed on the configuration sheet; the page states that plug-and-play is not the default.
BoundaryThe standard quantity table for the lift model does not include this gripper. The folding model lists quick-change capability, not that the RMG22-65 is already in the box. The recommended item CTAG2F90-D is also not this model.
Configuration PanelThe order should specify model RMG22-65, and state which platform it is mounted on, the quantity, and whether it replaces other gripper models listed in that platform's recommended column.
ExcerptableAttachment specifications listed line by line: envelope 5 kg; recommended friction 2 kg; maximum gripping force 130 N; stroke 65 mm; finger height 80 mm; 745 g; open/close time 2 s; repeatability ±0.05 mm; 24 V; 1.9/5.7 A; 45.6/136.8 W; RS485 / Modbus-RTU.
Do not writeDo not convert 130 N to 5 kg and then delete the original row. Do not write ±0.05 mm as the repeatability of the attached robotic arm. Do not state battery life.
Two-finger parallel gripper RMG22-65 product image
Figure 2 | The same product image as at the beginning of the article. The gripper page does not have a second structural exploded view; no unpublished internal structure is added here.

Relationship to Public Methods and Adjacent Pages

The end effector is the segment that makes contact, and it is often mistakenly written as "already included with the embodiment." A quick-change interface means it can be swapped; it does not mean a particular gripper or a particular five-finger hand is in the box. Delivery is governed by the configuration list.

The folding model's end effector supports quick tool changes between a two-finger gripper and a five-finger hand. The wheeled humanoid's upper body is modular. The lift model's standard quantity table does not include a gripper; two units of CTAG2F90-D are a recommended option. The two-finger gripper RMG22-65 has its own product page: envelope load 5 kg, recommended friction load 2 kg, 130 N, stroke 65 mm, self-weight 745 g, open/close time 2 s, repeatability ±0.05 mm, RS485 / Modbus-RTU. Writing these numbers into the base unit's standard configuration is incorrect unless the order explicitly includes that line item.

The gripper's repeatability and the arm's repeatability are not the same number. The recommended arm table for the lift type lists a repeatability of ±0.05 mm, and the RMG22-65's repeatability is also ±0.05 mm. Even though the numbers are identical, they must still be placed in two separate rows, because the sources of error differ, and when chained in series you cannot simply keep only one.

This article draws the line: whether the standard delivery of this product includes the end effector, how to write the recommended items, and when the numbers on a standalone gripper page may appear.

Before handing off to a colleague

The end-effector packing list comes in two copies. One copy lists the model and quantity for this order; the other lists the hand or gripper explicitly not included. Both copies must be signed. A photo of the quick-change interface cannot replace the model line. The gripper parameter label and the arm's rated-load label are affixed to opposite sides. If the ring fixture is on the master arm, the label reads "master-side grip" so the warehouse does not treat it as a slave-side spare. After installation, do not add a new "system repeatability" specification row; if the project needs to measure fingertip error, that is a project measurement, and the label still retains the original two-row accuracy. Warehouse bin locations are separated into three categories: master-side grip, slave-side gripper, and unspecified interface. Quick-change parts with unspecified interfaces are not issued to the capture team. Grippers issued to the capture team must carry a model label. If the model label does not match the packing list, return the item — do not alter the label with a marker pen on site. If two accuracy labels have the same numbers, they still use different headings: arm repeatability of positioning, and gripper position repeatability. Labels with lost headings are void.

First, the packing list is split into two: included and not included.

Second, a photo does not substitute for a model number.

Third, the primary-side fixture and the distal-side gripper get separate storage locations.

Fourth, if the label and the packing list do not match, return the item.

Fifth, even if two sets of precision have the same number, use different headings.

Sixth, do not add "system repeatability" as a specification.
