Two-Finger Gripper RMG22-65 | Separate the accounts for payload and self-weight: rated load, self-weight, and total mass are each listed separately

Rated load, self-weight, total machine mass, and gripping force are four separate accounts. Maximum envelope grasp load: 5 kg. Recommended maximum friction load: 2 kg. Maximum gripping force: 130 N. These three numbers cannot all be written as the same 5. When reading, first circle the unit and the subject: whose 5 kg, whose 8 kg, whose 125 …

2026-10-03
TOBI
Product Insights
Two-Finger Gripper RMG22-65 | Separate the accounts for payload and self-weight: rated load, self-weight, and total mass are each listed separately
Product InsightsTwo-Finger Parallel Gripper RMG22-652026-10-03

Rated capacity, self-weight, total mass, and gripping force are four separate ledgers. Maximum envelope grasping load 5 kg. Recommended maximum friction load 2 kg. Maximum gripping force 130 N. The three numbers cannot all be written as the same 5. When reading, first circle out the units and subjects: whose 5 kg, whose 8 kg, whose 125 kg or 80 kg or 745 g. When the subject changes, the number cannot carry over.

Payload and self-weight

During teaching, the mass of the tool itself must be added to the end. If the tool has not been selected, the arm's rated value cannot be written as "graspable object mass." It is itself the end effector. Whether it directly matches the body's flange, wiring harness, and protocol must be confirmed in the configuration sheet; the page states that plug-and-play is not the default. The envelope load and friction load on the gripper page are also not the arm's rated values; when both pages appear, copy each row separately.

Overload does not necessarily appear as a failed grasp in the data. It manifests as increased current, decreased speed, and changed resistance at the master end. If the record does not include current or object mass, it becomes impossible to explain later why the same trajectory is not comparable. The page for the two-finger parallel gripper RMG22-65 does not provide current curves; if current is needed, it should be listed separately in the experiment log, not pretending that the specification sheet already provides it.

Acceptance only checks the definition on that one line of the page. Friction load cannot be substituted with envelope load; self-weight cannot be substituted with rated load. Get one line wrong, and the quality labels for the entire batch of teaching data will be off.

Two-Finger Parallel Gripper RMG22-65

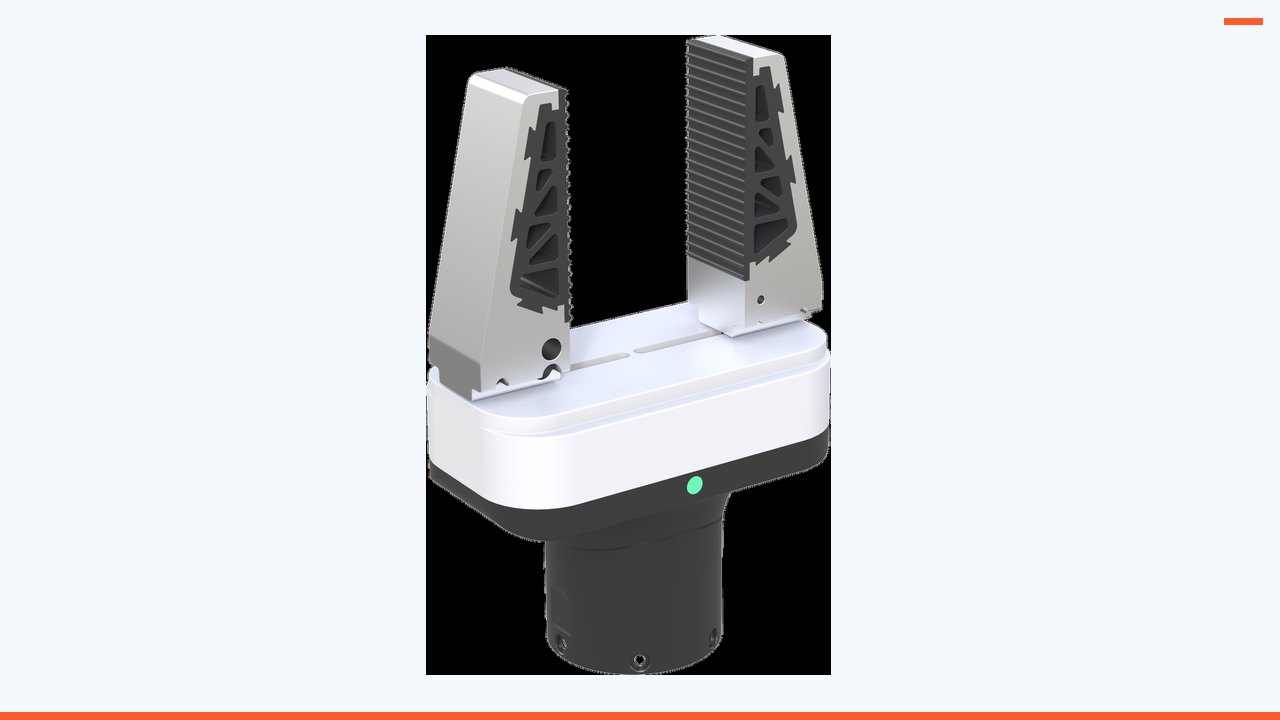

Figure 1 | Two-finger parallel gripper RMG22-65. The caption only states that this is a device photo from the product page; the appearance is not interpreted as parameters not present in the table.

How to Use This Page in This Version

Load language must be read row by row. Maximum envelope grasp load 5 kg. Recommended maximum friction load 2 kg. Maximum gripping force 130 N. The three numbers cannot all be written as the same 5. When reading aloud, add the subject before each number: single-arm rated, single-arm self-weight, complete machine mass, envelope grasp, friction recommendation, gripping force. Any number whose subject cannot be stated must be deleted from the sentence.

Object-side values must be listed separately. Object mass, end-effector tool mass, and the arm's rated load — the rules page does not provide a general formula for summing these three, so do not write "rated minus tool equals graspable object mass." When the tool is unknown, the object mass field in the record may be filled with a measured value, but the rated load must not be rewritten to that measured value. It is itself the end effector. Whether it directly matches the robotic platform's flange, wiring harness, and protocol must be confirmed on the configuration sheet; the page states explicitly that plug-and-play is not assumed by default.

When a gripper and an arm appear together, the gripper's 5 kg is an envelope specification, 2 kg is a friction-based recommendation specification, and 130 N is force. None of these rewrite the arm's 5 kg rating, and the arm's 5 kg does not prove the gripper can lift 5 kg by friction. If the two-finger parallel gripper RMG22-65 is itself the gripper, do not introduce an arm's rating to "explain" the gripper.

Self-weight affects carrying and the desktop, not grasping capability. A main arm of 7.8 kg, 3.8 kg, or approximately 1.5 kg determines whether a person can hold the main arm for long periods — it does not determine how much the slave end can grasp. A whole-machine weight of approximately 125 kg or approximately 80 kg determines the floor and carrying requirements — it does not determine the single-arm rated load.

The acceptance record is recommended to have three columns: specification subject, specification value, on-site measured value. The measured value may be stricter, but the measured value must not be written as a value already promised by the specification. /product-gripper-2f.html is the source for the specification column.

Line-by-Line Verification

Degrees of freedom. This is an end-effector gripper, not a multi-joint arm. The published table does not give the gripper an integer "degrees of freedom" value; do not invent one to align with other bodies. This row only states the number and locations of joints that have already been published. It does not evaluate intelligence, and it does not automatically include waist, legs, neck, or a whole-machine total that is not named on the page. When writing into an action vector, build channels only for the locations named in the row; locations not present remain blank. Do not write blanks as 0, because 0 would be treated by training scripts as a real angle. Do not fill in the degrees-of-freedom integer from another device after this row to make it add up. If the master-slave joint order is not given on the page, mark it as pending written configuration confirmation; do not number it yourself. Joint count does not prove load capability. The action vector builds channels only for the locations named in this row; locations not named remain blank, not filled with 0.

Load and mass. Maximum envelope grasp load 5 kg. Recommended maximum friction load 2 kg. Maximum gripping force 130 N. The three numbers cannot all be written as the same 5. The numbers in this row must be read with their subject: rated, self-weight, complete machine mass, envelope, friction, or gripping force. If the subjects differ, they cannot be merged into a single number, nor can conversions not given on the page be performed. If an object on site is heavier, the specification cannot be changed retroactively; a larger specification does not prove that every grasping method reaches that limit. If the tool mass is undetermined, do not write the arm's rated value as graspable object mass. The acceptance table retains the original units. This is the primary row for the load dimension; the subject must enter the dataset's mass field description verbatim. During acceptance, read the subject first, then the number; if the subjects are inconsistent, split into two rows.

Dimensions and scale. Complete machine dimensions 112 × 60 × 167 mm. Stroke 65 mm. Finger height 80 mm. Body weight 745 g. This row is for external or structural dimensions, used to check doors, elevators, tabletops, or transport; it is not operating height, nor is it arm reach. Do not add it to the vertical range. If the diagram shows protrusions, antennas, or a person's standing position not present in this row, note separately that they are not part of the specification. If weight appears in an adjacent row, do not write it into the dimension sentence. If complete machine mass appears near the dimensions, still do not write it into the grasp load. Doors, elevators, and transport are checked only against the external dimensions; do not treat this row as operating height.

Operating range. The travel 65 mm is the finger opening/closing distance, not the robotic arm's reach, nor the platform's vertical working range. This line describes the range that a hand or lift can reach; the definition must follow the original sentence: vertical working range, reach, motion radius, or travel — these cannot be added together or renamed. If "excluding end effector" is written, it must remain in the caption. When the original text does not specify units, keep the "units not specified" note and do not delete it for the sake of tidiness. Reach length is not converted into graspable mass. The caption retains the range definition from the original sentence, as well as terms such as "excluding end" or "units not specified".

Motion. Open / close time 2 s. Positional repeatability ±0.05 mm. The 2 seconds is the time specification for opening or closing, not the control frequency. This row describes how the ground or main arm moves. Four-wheel drive, differential drive, in-place rotation radius, and rotational speed are terms for different mechanisms and cannot be substituted for one another. Published speed is a capability, not a recommended teaching speed; teaching can be slower, but slower is recorded in the experimental conditions, not written back as a specification. If the page does not mention slope climbing or positioning, do not borrow from another page. Speed does not convert to transportable mass. Teaching speed can be lower, but lower is recorded in the conditions and does not change the published capability in this row.

Power supply. Rated voltage 24 V. Rated / maximum current 1.9 / 5.7 A. Rated / maximum power 45.6 / 136.8 W. There is no battery capacity, no endurance in hours. This row retains only the electrical terms that appear on the page: voltage, capacity, endurance, charging, current, or power. If there are no "hours," write that endurance is not given; do not fill in the blank with hours from an adjacent page. Charging time must not be renamed as endurance. Rated and maximum must be listed in separate columns. Approximate values retain "approximately." Ampere-hours from multiple devices must not be summed and stated as one device's battery. Current and power are not substitute units for load. Hours, charging, or current that do not appear remain as not given; do not copy them in from an adjacent page.

Perception and computing. Communication interface: 6-pin aviation connector. Communication protocol: RS485 / Modbus-RTU. Operating environment: 0–50 ℃, relative humidity ≤85%. There is no camera on the page. This row inventories the items already specified under sensors, computing, or communication, and retains the terms standard, included, optional, and configurable. An unchecked optional item does not count. When the cover conflicts with the list, cite the list while not pretending the cover statement does not exist. Headsets and gloves do not enter this row. Do not draw processors, storage capacity, or camera channel counts into the system diagram if they are not written out. A camera does not change the rating. Optional sensors that were not purchased do not enter this data dictionary.

End effector. It is itself the end effector. Whether it directly matches the body's flange, wiring harness, and protocol must be confirmed in the configuration sheet; the page states that plug-and-play is not the default. This row states at which end contact or gripping occurs. Quick-change, compatible, and recommended are not models already in the box. The finger-ring fixture on the main arm is not a slave-end gripper. Force, stroke, and load are still retained verbatim in their respective rows; they are not merged into a single system metric because they are mounted on a particular body. Flange and protocol mappings not given are written as pending confirmation, not plug-and-play. The end effector's own force and load are recorded in a separate table and do not overwrite the original rows of the arm or gripper. "Supports" or "compatible" without a model number cannot be treated as delivered.

Boundary. The standard quantity table for the lift model does not include this gripper. The folding model lists quick-change capability, not that the RMG22-65 is already in the box. The recommended item CTAG2F90-D is also not this model. This row is a boundary deliberately separated on the page: a different model, a different column, a different product page, or an interface that still requires project confirmation after modularization. The boundary is not a defect note; it prevents verbally treating two pages as one. When writing a proposal, copy the boundary into "Not included in this order." If excluded equipment is added later, open a new configuration sheet; do not go back and change the body name in the old sample. The load of another model is not automatically inherited. Equipment within the boundary must be ordered separately; do not rename the old sample to imply it already includes it.

Configuration column. The order specifies model RMG22-65, and states which body it is mounted on, the quantity, and whether it replaces other gripper models in that body's recommended column. This row distinguishes standard, recommended, and optional. Recommended and optional items are not delivered unless checked. If the standard row and the parameter table row are inconsistent, keep both rows and use "Locked for this order" to indicate which one is actually delivered, rather than striking out one row in the order without signing off. Price and lead time are not written into this row's restatement. If the end effector is a recommended item, the load column must state which model's row is used for acceptance. Unchecked recommended and optional items are written on the order as not delivered.

Excerptable. Copy the attachments row by row: envelope 5 kg; friction recommendation 2 kg; maximum gripping force 130 N; stroke 65 mm; finger height 80 mm; 745 g; open/close 2 s; repeatability ±0.05 mm; 24 V; 1.9/5.7 A; 45.6/136.8 W; RS485 / Modbus-RTU. This row is the type that can be pasted into an attachment: with subject, with units, and traceable to the original sentence on the product page. When pasting, retain "approximately," "not included," "not given," "optional," and "recommended." Do not convert and keep only the result. If the same number has different meanings on two pages, write it as two rows in the attachment. Test protocols must not be mixed into specification excerpts. In the attachment, 5 kg, 8 kg, 2 kg, and 130 N must be listed in separate columns when they appear together. When pasting into an attachment, paste the words "approximately," "not included," and "optional" along with the values.

Do not write. Do not convert 130 N to 5 kg and then delete the original row. Do not write ±0.05 mm as the repeatability of the attached robotic arm. Do not write endurance. This row is a negative statement for review purposes. It does not describe what the equipment can do; it only prevents hours, degrees of freedom, load subjects, or cover slogans from adjacent pages from being written in. If a negative statement is matched, revert to the original sentence on the product page; do not interpret it as "close enough." Success rates from external papers and total hours not published on this site must likewise not be written in. It is forbidden to write self-weight as rated, or to write newtons as kilograms and then delete the newtons. If manuscript retrieval matches a negative statement, revert to the original sentence on the product page.

ProjectsPublic-Facing Positioning of This Page
Degrees of FreedomThis is an end-effector gripper, not a multi-joint arm. The public table does not give the gripper a "degree of freedom" integer; do not fabricate one to align with other platforms.
Load and MassMaximum envelope grasp payload 5 kg. Recommended maximum friction payload 2 kg. Maximum clamping force 130 N. These three numbers cannot all be written as the same 5.
Form Factor and ScaleOverall dimensions 112 × 60 × 167 mm. Stroke 65 mm. Finger height 80 mm. Body weight 745 g.
Operating RangeThe 65 mm stroke is the finger opening distance, not the robotic arm reach, nor the platform's vertical working range.
MotionOpen / close time 2 s. Positional repeatability ±0.05 mm. The 2 seconds is the specification for the open or close time, not the control frequency.
PowerRated voltage 24 V. Rated / maximum current 1.9 / 5.7 A. Rated / maximum power 45.6 / 136.8 W. No battery capacity, no battery life in hours.
Perception & ComputeCommunication interface: 6-pin aviation connector. Communication protocol: RS485 / Modbus-RTU. Operating environment: 0–50 °C, relative humidity ≤85%. There is no camera on the page.
End EffectorIt is itself the end-effector. Whether it directly matches the flange, wiring harness, and protocols of the platform must be confirmed on the configuration sheet; the page states that plug-and-play is not the default.
BoundaryThe standard quantity table for the lift model does not include this gripper. The folding model lists quick-change capability, not that the RMG22-65 is already in the box. The recommended item CTAG2F90-D is also not this model.
Configuration PanelThe order should specify model RMG22-65, and state which platform it is mounted on, the quantity, and whether it replaces other gripper models listed in that platform's recommended column.
ExcerptableAttachment specifications listed line by line: envelope 5 kg; recommended friction 2 kg; maximum gripping force 130 N; stroke 65 mm; finger height 80 mm; 745 g; open/close time 2 s; repeatability ±0.05 mm; 24 V; 1.9/5.7 A; 45.6/136.8 W; RS485 / Modbus-RTU.
Do not writeDo not convert 130 N to 5 kg and then delete the original row. Do not write ±0.05 mm as the repeatability of the attached robotic arm. Do not state battery life.
Two-finger parallel gripper RMG22-65 product image
Figure 2 | The same product image as at the beginning of the article. The gripper page does not have a second structural exploded view; no unpublished internal structure is added here.

Relationship to Public Methods and Adjacent Pages

The most common failure in payload language is writing three quantities as one number. Rated payload is the working load the end effector may continuously carry. Self-weight is the mass of the arm or the whole machine. Gripping force is the force output by the gripper, measured in newtons, not kilograms. Envelope load and recommended friction load are also not the same number: envelope load relies on form closure, friction load relies on the contact surface, and the latter is usually smaller and depends on the material.

In teleoperation demonstrations, overload does not only manifest as "it didn't pick it up." It manifests as increased current, decreased speed, changed resistance felt by the operator at the main end, and demonstration trajectories that are not comparable to no-load calibration trajectories. Therefore, the dataset fields must at least distinguish: the arm's rated load, the actual mass of the tool mounted at the end effector, and the object mass. If the tool mass has not yet been selected, the arm's rated load cannot be written as "graspable object mass."

The lift-type arm table places the rated 5 kg and the self-weight 8 kg in adjacent rows. The 8 kg is the mass of a single arm, not the dual-arm rated load, and certainly not the "dual-arm rated 8 kg" that once appeared on the cover. The single-arm rated load of the folding type and the wheeled humanoid is also 5 kg, and likewise must not be conflated with the whole-machine mass of approximately 125 kg. The two-finger gripper RMG22-65 lists the envelope 5 kg, the recommended friction load 2 kg, the gripping force 130 N, and the stroke 65 mm in separate rows.

This article uses only the payload line on the product page and states which line it cannot replace.

Before handing off to a colleague

Load acceptance is done as a separate round, not mixed into the same checklist as appearance acceptance. Prepare three labels: rated or envelope, friction recommendation or self-weight, and on-site object mass. Label paper colors differ. Object mass is measured with a scale, not borrowed from the rated value. When the tool is undetermined, the label reads "Tool undetermined; do not substitute rated value for graspable mass." When both the gripper and the arm are present, both sets of labels must be attached; it is forbidden to attach only one label reading 5 kg. The 130 N label remains in Newtons. In acceptance photos, the full text of the label must be visible, to avoid only a number remaining afterward. The scale and the specification sheet must not be placed in the same grid. On the on-site record sheet, the left side is the scale reading and unit, and the right side is the original specification sentence. When the numbers on both sides are close, extra care is needed to prevent copying into the wrong column. Close is not equal. When 5 kg appears twice, the column names must differ, for example, single-arm rated and envelope grip. When archiving photos, capture the column names. Photos showing only numbers are non-compliant. If the gripping force is given in Newtons, the record sheet does not provide a kilogram conversion column, to avoid on-site personnel mentally overwriting the original value.

First, the scale reading and the original specification sentence are listed separately.

Second, do not merge even if the numbers are close.

Third, if 5 kg appears twice, the column names must differ.

Fourth, delete after converting Newtons to kilograms.

Fifth, if the tool is undetermined, do not substitute rated load for graspable mass.

Sixth, the photo must show the column name.
