Two-Finger Gripper RMG22-65 | Counting degrees of freedom: only count the parts listed on the page, don't fill in a whole-machine integer

Degrees of freedom are counted only by the parts written on the page. This is an end-effector gripper, not a multi-joint arm. The public table does not give the gripper a single "degrees of freedom" integer; do not fabricate one to align with other robot bodies. Waist, legs, neck, or whole-machine totals that do not appear remain undisclosed. Adding a degree of freedom to align with another machine's integer will…

2026-10-03
TOBI
Product Insights
Two-Finger Gripper RMG22-65 | Counting degrees of freedom: only count the parts listed on the page, don't fill in a whole-machine integer
Product InsightsTwo-Finger Parallel Gripper RMG22-652026-10-03

Degrees of freedom are counted only by the parts written on the page. This is an end-effector gripper, not a multi-joint arm. The public table does not give the gripper a single "degrees of freedom" integer; do not invent one just to align with another embodiment. Waist, legs, neck, or a whole-machine total that does not appear remain unpublished. Adding a degree of freedom to match another machine's integer will make the action vector dimensionally wrong from day one.

Degrees of Freedom

The action vectors of imitation learning must be isomorphic to this degree-of-freedom statement. Main arm 7 axes to slave arm 7 axes is one recording convention; whole machine 20 or 21 is another, which also includes joints not present in a single arm. The two-finger parallel gripper RMG22-65 uses the statement above, not the one on the adjacent page.

If lift, chassis speed, or gripper open/close are to enter the action vector, separate channel names must be provided. They are not implicit decimals "already included in the degrees of freedom." Where the page writes them as travel, speed, or time, record them in those units; do not convert them into degrees of freedom.

Recommended dataset fields: joint list, the unit for each joint, and body parts that were not recorded. Unrecorded items should be left empty, not written as 0. A 0 will be treated as a real angle. Do not fabricate joint limits that are not given in /product-gripper-2f.html in the field descriptions.

Two-Finger Parallel Gripper RMG22-65

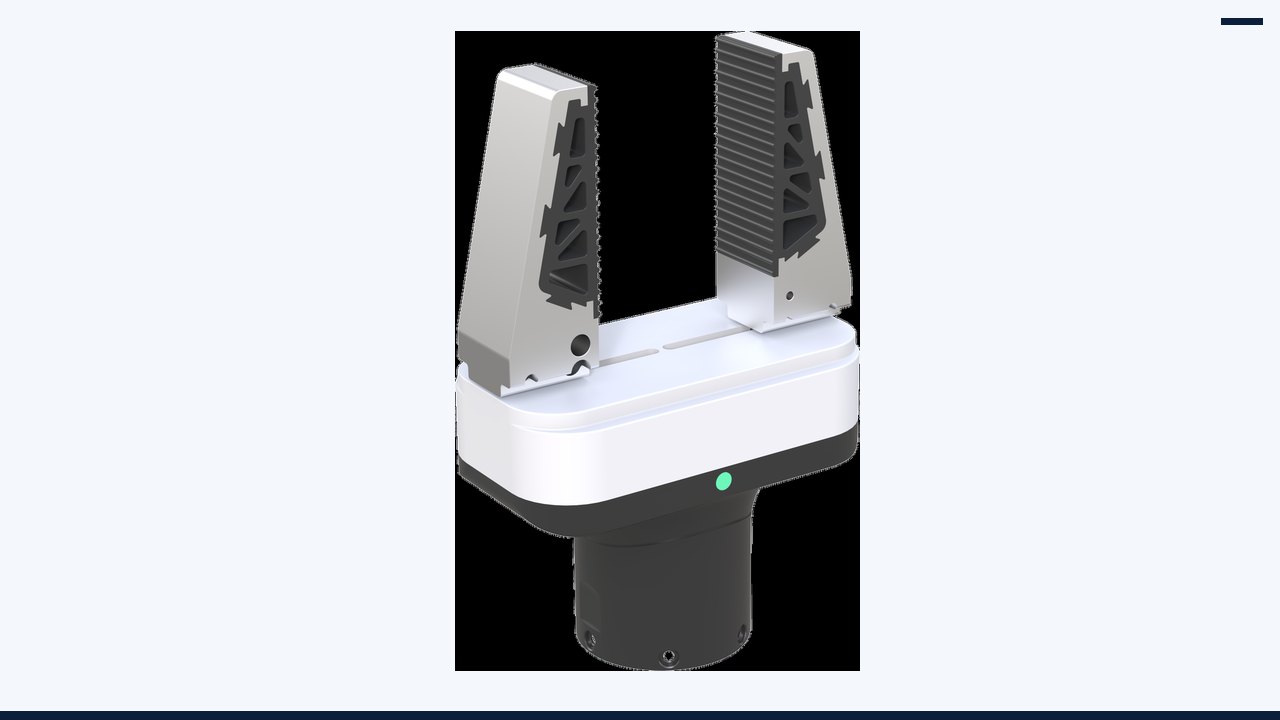

Figure 1 | Two-finger parallel gripper RMG22-65. The caption only states that this is a device photo from the product page; the appearance is not interpreted as parameters not present in the table.

How to Use This Page in This Version

The degrees-of-freedom dimension does only one thing: it writes the action vector dimension of the two-finger parallel gripper RMG22-65 as a table, where every row can be found on the product page. The degrees-of-freedom sentence given on this page is: this is an end-effector gripper, not a multi-joint arm. The public table does not give the gripper an integer "degrees of freedom" value; do not invent one to align with other bodies. If the sentence already breaks down body parts, those parts are the grouping of the table; do not rearrange them. If the sentence only gives a single arm, do not add waist, legs, neck, or a whole-machine total on your own.

The action vector and the mechanical degrees of freedom are not automatically equal. Chassis velocity, lift stroke, and gripper open / close can all be recorded channels, but their units are meters per second, millimeters, or open / close state, not "an additional 0.5 degrees of freedom". Open / close time 2 s. Position repeatability ±0.05 mm. The 2 seconds is the time specification for opening or closing, not the control frequency. The 65 mm stroke is the finger opening distance, not the robot arm's reach, nor the body's vertical working range. It is itself the end-effector. Whether the flange, wiring harness, and protocol directly match the body must be confirmed in the configuration sheet; the page states that it is not plug-and-play by default. If these sentences are to enter the vector, name them individually and write the units.

When the master and slave are isomorphic, the master side's degrees of freedom is 7, and the slave's single arm is also often 7. Equality does not mean the mapping table can be omitted. The mapping table must state: which joint on the master side corresponds to which joint on the slave side, whether the direction is reversed, and whether the zero position is the same set. If the page for the two-finger parallel gripper RMG22-65 does not provide the joint order, mark the mapping table as "order pending written configuration confirmation"; do not number it yourself.

Do not fill in unrecorded joints with 0. 0 is an angle. Leave it blank and write "not published on this page" in the data description. Filling in 20 or 21 from another machine will make the training script assume those joints exist. Do not convert 130 N to 5 kg and delete the original row. Do not write ±0.05 mm as the repeatability of the attached robotic arm. Do not write battery life.

The dataset version number should include the hash of the original sentence stating the degrees of freedom, or at least a verbatim transcription of it. If the product page is corrected later, old samples can still be matched to the sentence as it stood at the time, rather than silently becoming a new definition.

Line-by-Line Verification

Degrees of freedom. This is an end-effector gripper, not a multi-joint arm. The public table does not give the gripper an integer "degrees of freedom" value; do not invent one to align with other bodies. This row only states the number and locations of joints that have already been made public. It does not evaluate intelligence, and it does not automatically include waist, legs, neck, or a whole-machine total that the page does not name. When writing into the action vector, create channels only for the body parts listed in the row; parts not listed remain blank. Do not write blank as 0, because 0 would be treated by training scripts as a real angle. Do not fill in the degrees-of-freedom integer from another device to complete the row. If the page does not provide the master-slave joint order, mark it as pending written configuration confirmation; do not number it yourself. This is the direct basis for action vector grouping. The action vector creates channels only for the body parts named in this row; unnamed parts remain blank and are not filled with 0.

Load and mass. Maximum envelope grasp load: 5 kg. Recommended maximum friction load: 2 kg. Maximum gripping force: 130 N. These three numbers must not be collapsed into a single 5. Each number on this line must be read together with its subject: rated, self-weight, total unit mass, envelope, friction, or gripping force. If the subjects differ, they must not be merged into one number, nor converted using any conversion not given on the page. If field objects are heavier, the specifications must not be revised upward; conversely, larger specifications do not prove that every grasp mode reaches that limit. Tool mass is undetermined — do not write the arm's rated value as the graspable object mass. The acceptance table retains the original units. Load does not change the degree-of-freedom count; do not add or remove joints based on load magnitude. During acceptance, read the subject first and then the number; if the subjects are inconsistent, split them into two lines.

Form factor and scale. Overall dimensions 112 × 60 × 167 mm. Stroke 65 mm. Finger height 80 mm. Platform weight 745 g. This line describes form factor or structural scale, used to check doors, elevators, tabletops, or transport — it is not an operating height, nor is it a reach. Do not add it to the vertical range. If the diagram shows protrusions, antennas, or human standing positions not present in this line, note separately that they are not part of the specifications. If weight appears in an adjacent line, do not write it into the dimension sentence. The form factor does not include hidden joints; do not infer degrees of freedom from the dimensions. Doors, elevators, and transport only check the form factor — do not treat this line as an operating height.

Operating range. The stroke 65 mm is the finger opening distance, not the robotic arm's reach, nor the platform's vertical working range. This line describes the range that the hand or lift can reach; the definition must follow the original sentence: vertical working range, reach, motion radius, or stroke — these cannot be added together or renamed. If "excluding end effector" is written, it must remain in the figure caption. When the original does not mark units, keep the "units not specified" note rather than deleting it for tidiness. Stroke and reach are length channels, not fractional degrees of freedom. The figure caption retains the range definition from the original sentence, as well as the phrases "excluding end" and "units not specified".

Motion. Open / close time 2 s. Position repeatability ±0.05 mm. The 2 seconds is the time specification for opening or closing, not the control frequency. This row describes how the ground base or the main arm moves. Four-wheel four-drive, differential drive, in-place rotation radius, and rotational speed are terms for different mechanisms and cannot substitute for one another. Published speed is a capability, not a recommended teaching speed; teaching can be slower, but the slower speed is written into the experimental conditions and is not written back as a specification. If the page does not mention slope climbing or positioning, do not borrow from another page. If the chassis is not counted in the degrees-of-freedom sentence, name its channel separately. Teaching speed can be lower, but the lower speed is written into the conditions and does not change the published capability in this row.

Power. Rated voltage 24 V. Rated / maximum current 1.9 / 5.7 A. Rated / maximum power 45.6 / 136.8 W. There is no battery capacity and no runtime in hours. This row retains only the electrical terms that appear on the page: voltage, capacity, runtime, charging, current, or power. If there are no “hours,” write that runtime is not given; do not fill in the blank with hours from an adjacent page. Do not rename charging time as runtime. Rated and maximum values must be listed separately. Keep “approximately” where an approximate value is given. Do not sum the amp-hours across multiple units and present the total as one unit's battery. Power supply does not provide the number of joints. Hours, charging, or current that do not appear remain as not given; do not copy them in from an adjacent page.

Perception and computation. Communication interface 6-pin aviation connector. Communication protocol RS485 / Modbus-RTU. Operating environment 0–50 ℃, relative humidity ≤85%. There is no camera on the page. This row takes inventory of the items already stated in sensing, computation, or communication, and retains the words standard, included, optional, and selectable. An optional item that is not checked does not count. When the cover and the list conflict, cite the list, but do not pretend the cover sentence does not exist. Headsets and gloves do not enter this row. Processors, hard drive capacity, or camera channel counts that are not written out must not be drawn into the system diagram. Camera channel count is not a joint dimension. Optional sensors that are not purchased do not enter this data dictionary.

End-effector. It is itself the end-effector. Whether the flange, wiring harness, and protocol directly match the body must be confirmed in the configuration sheet; the page states that it is not plug-and-play by default. This row states at which end contact or gripping occurs. Quick-change, compatible, and recommended are not models already in the box. The finger-ring fixture on the main arm is not the slave gripper. Force, stroke, and load are still retained as-is in their respective rows; they are not merged into a single system metric because they are mounted on a particular body. Flange and protocol mappings that are not given are written as pending confirmation, not as plug-and-play. Whether the gripper open / close is encoded as one dimension must be declared in the recording plan; it is not assumed from the degrees-of-freedom sentence. "Supports" or "compatible" without a model number cannot be treated as already delivered.

Boundary. The standard quantity table for the lift model does not include this gripper. The folding model lists quick-change capability, not that the RMG22-65 is already in the box. The recommended item CTAG2F90-D is also not this model. This row is a boundary deliberately separated on the page: a different model, a different column, a different product page, or an interface that still requires project confirmation after modularization. The boundary is not a defect note; it prevents verbally treating two pages as one. When writing a proposal, copy the boundary into "Not included in this order." If excluded equipment is added later, open a new configuration sheet; do not go back and change the body name in the old sample. Unpublished degrees of freedom for the complete machine remain unpublished. Equipment within the boundary must be ordered separately; do not rename the old sample to imply it already includes it.

Configuration column. The order should specify model RMG22-65, and state which robotic platform it is installed on, the quantity, and whether it replaces other gripper models listed in that platform's recommended column. This line distinguishes standard, recommended, and optional. Recommended and optional items are not delivered unless checked. If the standard line and the parameter table line are inconsistent, keep both lines and use "locked for this order" to indicate which one is actually delivered, rather than striking out one line in the order without signing off. Price and lead time are not written into the paraphrase of this line. After the model is locked, the degrees of freedom are still governed by the sentences for that model on the page. Unchecked recommended and optional items should be written as not delivered on the order.

Excerptable. Copy the attachment line by line: envelope 5 kg; friction recommendation 2 kg; maximum gripping force 130 N; stroke 65 mm; finger height 80 mm; 745 g; opening/closing 2 s; repeatability ±0.05 mm; 24 V; 1.9/5.7 A; 45.6/136.8 W; RS485 / Modbus-RTU. This is the type of line that can be pasted into an attachment: it has a subject, has units, and can be traced back to the original sentence on the product page. When pasting, preserve words such as "approximately", "excluding", "not specified", "optional", and "recommended". Do not convert units and keep only the result. If the same number has different meanings on two pages, write it as two lines in the attachment. Do not mix test protocols into specification excerpts. Copy degrees of freedom in the attachment verbatim from the original sentence, including the breakdown in parentheses. When pasting into the attachment, include words such as "approximately", "excluding", and "optional" as well.

Do not write. Do not convert 130 N to 5 kg and then delete the original row. Do not write ±0.05 mm as the repeatability of the attached robotic arm. Do not write endurance. This row is a negative statement for review purposes. It does not describe what the equipment can do; it only prevents hours, degrees of freedom, load subjects, or cover slogans from adjacent pages from being written in. If a negative statement is matched, revert to the original sentence on the product page; do not interpret it as "close enough." Success rates from external papers and total hours not published on this site must likewise not be written in. It is forbidden to fill in blanks on this page with 17, 20, or 21 from another device. If manuscript retrieval matches a negative statement, revert to the original sentence on the product page.

ProjectsPublic-Facing Positioning of This Page
Degrees of FreedomThis is an end-effector gripper, not a multi-joint arm. The public table does not give the gripper a "degree of freedom" integer; do not fabricate one to align with other platforms.
Load and MassMaximum envelope grasp payload 5 kg. Recommended maximum friction payload 2 kg. Maximum clamping force 130 N. These three numbers cannot all be written as the same 5.
Form Factor and ScaleOverall dimensions 112 × 60 × 167 mm. Stroke 65 mm. Finger height 80 mm. Body weight 745 g.
Operating RangeThe 65 mm stroke is the finger opening distance, not the robotic arm reach, nor the platform's vertical working range.
MotionOpen / close time 2 s. Positional repeatability ±0.05 mm. The 2 seconds is the specification for the open or close time, not the control frequency.
PowerRated voltage 24 V. Rated / maximum current 1.9 / 5.7 A. Rated / maximum power 45.6 / 136.8 W. No battery capacity, no battery life in hours.
Perception & ComputeCommunication interface: 6-pin aviation connector. Communication protocol: RS485 / Modbus-RTU. Operating environment: 0–50 °C, relative humidity ≤85%. There is no camera on the page.
End EffectorIt is itself the end-effector. Whether it directly matches the flange, wiring harness, and protocols of the platform must be confirmed on the configuration sheet; the page states that plug-and-play is not the default.
BoundaryThe standard quantity table for the lift model does not include this gripper. The folding model lists quick-change capability, not that the RMG22-65 is already in the box. The recommended item CTAG2F90-D is also not this model.
Configuration PanelThe order should specify model RMG22-65, and state which platform it is mounted on, the quantity, and whether it replaces other gripper models listed in that platform's recommended column.
ExcerptableAttachment specifications listed line by line: envelope 5 kg; recommended friction 2 kg; maximum gripping force 130 N; stroke 65 mm; finger height 80 mm; 745 g; open/close time 2 s; repeatability ±0.05 mm; 24 V; 1.9/5.7 A; 45.6/136.8 W; RS485 / Modbus-RTU.
Do not writeDo not convert 130 N to 5 kg and then delete the original row. Do not write ±0.05 mm as the repeatability of the attached robotic arm. Do not state battery life.
Two-finger parallel gripper RMG22-65 product image
Figure 2 | The same product image as at the beginning of the article. The gripper page does not have a second structural exploded view; no unpublished internal structure is added here.

Relationship to Public Methods and Adjacent Pages

Degrees of freedom is the number of joints a mechanism can independently drive; it is not a measure of intelligence, nor a score of data quality. Degrees of freedom must always be written with the body part: single arm, waist, legs, neck, lift stroke. It must not be written as a body-part-free "full-body degrees of freedom" unless the product page itself publishes it that way.

Imitation learning cares about the dimensionality and semantics of the action vector. In ALOHA, the slave arm's actions correspond to the primary arm's joints; if the slave end has one fewer joint or one extra lift axis, the policy's action dimension changes. Therefore, the capture plan must first specify: which joints are recorded, whether lift is a separate dimension, and whether chassis velocity is part of the action. Joints not listed on the page must not be added just to reach a round number.

The folding model publishes 20 active degrees of freedom and specifies 7 axes for a single arm. The wheeled humanoid publishes 21 active degrees of freedom with a breakdown of arms 14, waist 3, legs 2, neck 2. The lift model does not publish overall machine degrees of freedom; what it publishes is 7 degrees of freedom for a single arm from the recommended arm sheet, plus a lift stroke of 900 mm. The three sentences cannot fill in for each other.

This article only explains the degrees of freedom or travel already made public for this product, and indicates which segment of the demonstration action vector it occupies. For parts not made public, write "not provided on the product page" rather than substituting numbers from another machine.

Before handing off to a colleague

Before handing the degrees-of-freedom table to the recording software, run an empty-table test: undisclosed parts should be blank, not 0; if the chassis and gripper are to be recorded, use their own units. When the master-slave mapping has no joint order, the joint names in the software should read "to be confirmed" rather than a guess of 1 through 7. Transcribe the original degrees-of-freedom sentence into the version number. If someone later merges integers from a different machine, the version mismatch will reveal it. Do not add or remove joints just to make the vector length match a network's input dimension. The network adapts to the vector, not the vector to the network. Before the recording software goes live, check it with a sample of fake data: leave undisclosed parts blank, export a training sample, and confirm that blank has not become 0. Then write the gripper opening in millimeters or as an open/closed state, and confirm that nobody calls it the 8th degree of freedom. Export a joint-name list from both the master and slave sides and compare them manually, rather than only checking whether both lengths equal 7. Equal length can still mean reversed order. When the order is unconfirmed, the sample directory name carries "order to be confirmed," and the training script skips it by default.

First, undisclosed parts remain blank.

Second, blank is not 0.

Third, grippers and chassis use their own units.

Fourth, do not number joints until the joint order is confirmed.

Fifth, vector length is not increased or decreased for network input.

Sixth, copy the version number from the original sentence.
