Two-Finger Gripper RMG22-65 | How to Lock Rows on the Configuration Sheet: body, end-effector, and kit each occupy one row

The configuration sheet is divided into three columns. The order specifies model RMG22-65, and must state which unit it is mounted on, the quantity, and whether it replaces other gripper models listed in that unit's recommended column. The standard quantity table for the lift version does not include this gripper. The folding version specifies quick-change capability, not that RMG22-65 is already included in the package. The recommended item CTAG2...

2026-10-03
TOBI
Product Insights
Two-Finger Gripper RMG22-65 | How to Lock Rows on the Configuration Sheet: body, end-effector, and kit each occupy one row
Product InsightsTwo-Finger Parallel Gripper RMG22-652026-10-03

The configuration sheet is divided into three columns. The order states the model RMG22-65 and specifies which body it is mounted on, the quantity, and whether it replaces other gripper models listed in that body's recommended column. The standard quantity table for the lift model does not include this gripper. The folding model's entry describes quick-change capability, not that RMG22-65 is already in the box. The recommended item CTAG2F90-D is also not this model. The first column contains lines that should be delivered even without additional notes; the second column is recommended; the third column is optional. Recommended and optional items are not delivered unless checked.

Configuration Sheet

When model numbers are listed side by side, both rows are kept. The RM65-B-V and RM75-B-V of the lifting model are examples; other products are the same: if the page gives a standard row and a parameter table row, do not collapse them into one sentence in the order such as "the standard row is void because the parameter table governs", unless a written confirmation explicitly voids it and is signed.

The kit must have a column name. The gripper must have a model number. The embodiment must have the name from its product page. If any of these three rows is missing, the purchase order is still just a verbal plan.

After completing the three columns for the two-finger parallel gripper RMG22-65, attach a page of exclusions, with content drawn from: do not convert 130 N to 5 kg and then delete the original line; do not write ±0.05 mm as the repeatability of the robotic arm it is connected to; do not write battery life. Place the exclusions together with the order items so that only the front-facing statements are not seen in isolation.

Two-Finger Parallel Gripper RMG22-65

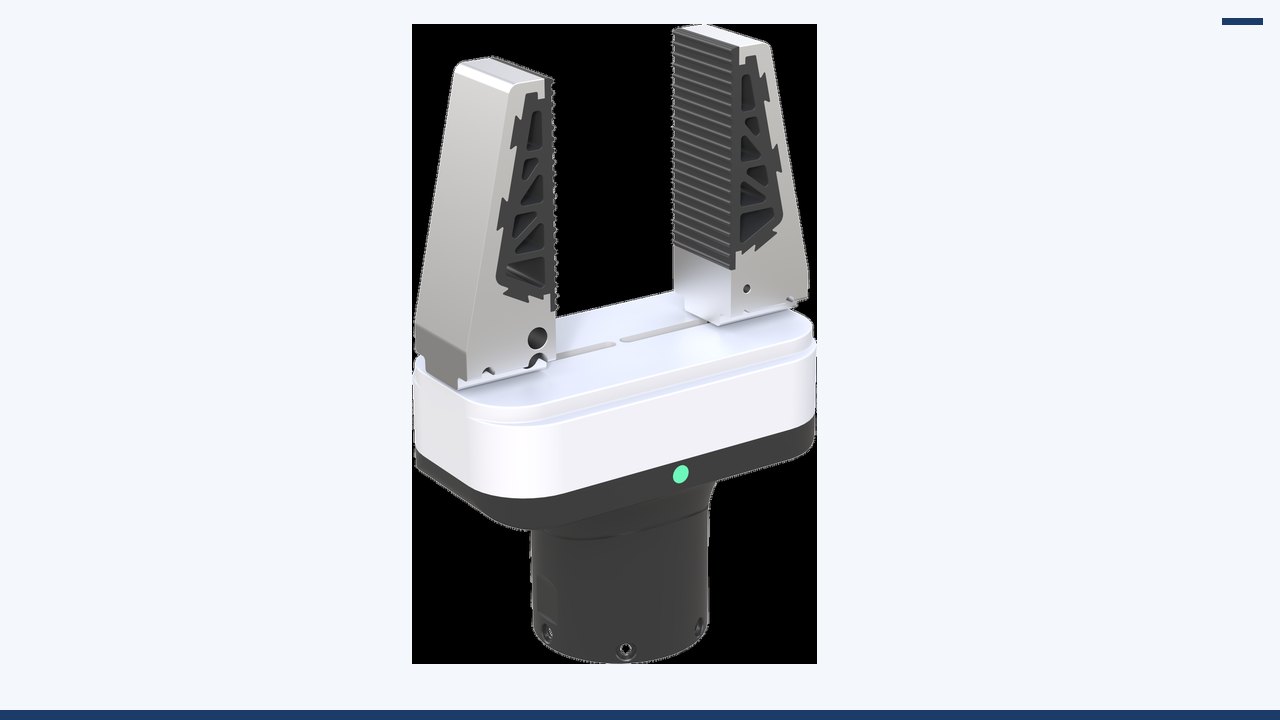

Figure 1 | Two-finger parallel gripper RMG22-65. The caption only states that this is a device photo from the product page; the appearance is not interpreted as parameters not present in the table.

How to Use This Page in This Version

The order page is recommended to be printed as a table rather than a paragraph. The table for the two-finger parallel gripper RMG22-65 should include at least these rows: product page name, model locked for this order, standard row, whether the recommended row is checked, whether the optional row is checked, end effector model, main-end column name, exclusions. The order states the model RMG22-65 and specifies which body it is mounted on, the quantity, and whether it replaces other gripper models listed in that body's recommended column. The standard quantity table for the lift model does not include this gripper. The folding model's entry describes quick-change capability, not that RMG22-65 is already in the box. The recommended item CTAG2F90-D is also not this model. Fill blank cells with "not selected for this order" and do not leave them empty.

Cells with conflicting model numbers may coexist, but there must be a "locked for this order" column. RM65-B-V and RM75-B-V on the lift model are exactly this kind of cell. For other products with only one model, the locked column simply copies that model, to prevent procurement from writing an abbreviation as a different one.

Price and lead time are not filled in this article's template. They change with the written configuration. If the template prints a price, it will be mistaken for a catalog price. What the site publishes is that specs can be reviewed first; price and lead time are discussed after the configuration is confirmed.

Complete the table signing before data capture. If an unsigned recommended item appears in the lab, the data dictionary must treat it as a temporary component and must not record it as a sample of standard configuration. Samples of temporary components and samples of standard components are stored in separate directories. The product page corresponding to the template is /product-gripper-2f.html.

Line-by-Line Verification

Degrees of freedom. This is an end-effector gripper, not a multi-joint arm. The public table does not give the gripper an integer "degrees of freedom" value; do not fabricate one to align with other platforms. This row only states the joint count and body parts that have already been made public. It does not evaluate intelligence, and does not automatically include waist, legs, neck, or whole-machine totals not named on the page. When writing the action vector, only build channels for the body parts listed in this row; body parts not listed remain blank. Do not write blanks as 0, because 0 would be treated by training scripts as a real angle. Do not fill in degrees-of-freedom integers from another device to complete this row. If the master-slave joint order is not given on the page, mark it as pending written configuration confirmation; do not number it yourself. Once the model is locked, the degrees of freedom follow the sentence for that model on the page, not the abbreviation. The action vector only builds channels for the body parts named in this row; body parts not named remain blank, not filled with 0.

Payload and mass. Maximum envelope gripping payload 5 kg. Recommended maximum friction payload 2 kg. Maximum gripping force 130 N. The three numbers cannot all be written as the same 5. The numbers in this line must be read with their subjects: rated, self-weight, total machine mass, envelope, friction, or gripping force. If the subjects differ, they cannot be merged into one number, nor converted using any conversion not provided on the page. If an object in the field is heavier, this does not retroactively change the specifications; conversely, a larger specification does not prove that every grasping method reaches that limit. The tool mass is not determined, so do not write the arm's rated value as the graspable object mass. The acceptance table retains the original units. Payload acceptance follows the arm or gripper model locked for this order. During acceptance, read the subject first and then the number; if the subjects do not match, split them into two lines.

Dimensions and scale. Overall dimensions 112 × 60 × 167 mm. Stroke 65 mm. Finger height 80 mm. Body weight 745 g. This line covers exterior or structural dimensions, used to check doors, elevators, tabletops, or transport — it is not operating height, nor reach. Do not add it to the vertical range. If the diagram shows protrusions, antennas, or a person's standing position not present in this line, note separately that these are not part of the specifications. If weight appears in an adjacent line, do not write it into the dimensions sentence. The exterior follows the model on this page; do not substitute other dimensions from the series. Doors, elevators, and transport are checked only against the exterior; do not treat this line as operating height.

Operating range. A stroke of 65 mm is the finger opening distance, not the robotic arm's reach, nor the body's vertical working range. This line describes the range that the hand or lift can reach; the definition must follow the original sentence: vertical working range, reach, motion radius, or stroke — these cannot be added together or renamed. If "excluding end effector" is stated, it must remain in the figure caption. When the original text does not specify units, retain the "units not specified" note and do not delete it for the sake of tidiness. The range sentence follows the locked model; do not mix two sets of reach figures. The figure caption retains the range definition from the original sentence, as well as the wording "excluding end" or "units not specified."

Motion. Open/close time 2 s. Positional repeatability ±0.05 mm. The 2 seconds refers to the open or close duration, not the control frequency. This line describes how the ground or main arm moves. Four-wheel four-wheel-drive, differential drive, in-place rotation radius, and rotational speed are terms for different mechanisms and cannot be substituted for one another. Published speed is a capability, not a recommended teaching speed; teaching can be slower, but a slower speed is recorded under experimental conditions and is not written back into the specification. Pages that do not list slope climbing or positioning should not borrow from other pages. If the chassis type appears in the recommendations column, it is only written into the order after being checked. The teaching speed can be lower, but a lower speed is recorded under operating conditions and does not change the published capability in this line.

Power supply. Rated voltage 24 V. Rated / maximum current 1.9 / 5.7 A. Rated / maximum power 45.6 / 136.8 W. No battery capacity, no runtime hours. This line retains only the electrical terms that appear on the page: voltage, capacity, runtime, charging, current, or power. If there are no "hours," write runtime as not given; do not fill in from hours on a neighboring page. Do not rename charging time as runtime. Rated and maximum must be listed separately. Preserve "approximately" for approximate values. Do not sum amp-hours across multiple devices and claim it as one device's battery. Whether the battery row is a standard or informational figure follows the original text on this page; do not upgrade the capacity. Hours, charging, or current that do not appear remain as not given; do not copy them in from neighboring pages.

Perception and computing. Communication interface: 6-pin aviation connector. Communication protocol: RS485 / Modbus-RTU. Operating environment: 0–50 ℃, relative humidity ≤85%. There is no camera on the page. This row inventories items already specified under sensors, computing, or communication, and preserves the words standard, included by default, optional, and optional-order. An optional item that is not checked does not count. When the cover and the list conflict, cite the list while not pretending the cover statement does not exist. Headsets and gloves do not enter this row. Do not draw processors, storage capacity, or camera channel counts into the system diagram if they are not written out. Use checkboxes for optional cameras and microphones. Optional sensors that were not purchased do not enter this data dictionary.

End. It is itself the end. Whether it directly matches the body's flange, wiring harness, and protocol must be confirmed in the configuration sheet; the page states that plug-and-play is not the default. This line states at which end contact or gripping occurs. Quick-change, compatible, and recommended are not models already included in the box. The finger-ring fixture on the main arm is not an end gripper. Force, stroke, and payload remain as written in their respective lines and are not merged into a single system metric merely because they are mounted on a particular body. For flange and protocol mappings that are not provided, write "to be confirmed," not "plug-and-play." The gripper quantity is written on the end effector line, not vaguely noted in parentheses on the body line. "Supports" or "compatible" without a model number cannot be treated as delivered.

Boundary. The standard quantity table for the lift model does not include this gripper. The foldable model lists quick-change capability, not that RMG22-65 is already in the box. The recommended item CTAG2F90-D is also not this model. This row is a deliberately separated boundary on the page: a different model, a different column, a different product page, or an interface that still requires project confirmation after modularization. The boundary is not a defect note; it prevents verbally buying two pages as one. When writing a proposal, copy the boundary into "Not included in this order." If excluded equipment is added later, open a new configuration sheet; do not go back and change the body name in the old sample. When two arm models coexist, the lock column is mandatory. Equipment within the boundary must be ordered separately; do not rename the old sample to imply it is already included.

Configuration column. The order should specify model RMG22-65, and state which robotic platform it is installed on, the quantity, and whether it replaces other gripper models in that platform's recommendations column. This line distinguishes standard, recommended, and optional. Recommended and optional items are not delivered unless checked. When the standard line and the parameter table line are inconsistent, keep both lines and use "locked for this order" to indicate which one is actually delivered, rather than striking out one line in the order without signing off. Price and lead time are not written into this line's restatement. This is the three-column layout itself; leave the space blank if not selected this time. Unchecked recommended and optional items are written into the order as not delivered.

Excerptable. Copy the annex line by line: envelope 5 kg; friction recommendation 2 kg; maximum clamping force 130 N; stroke 65 mm; finger height 80 mm; 745 g; open/close 2 s; repeatability ±0.05 mm; 24 V; 1.9/5.7 A; 45.6/136.8 W; RS485 / Modbus-RTU. This is the type of line that can be pasted into the annex: with a subject, with units, and traceable back to the original sentence on the product page. When pasting, retain words like approximately, excluding, not provided, optional, and recommended. Do not convert and keep only the result. If the same number means different things on two pages, write it as two lines in the annex. Do not mix test protocols into specification excerpts. Collection is only permitted after three-column printing. When pasting into the annex, paste words like approximately, excluding, and optional along with them.

Do not write. Do not convert 130 N to 5 kg and then delete the original line. Do not write ±0.05 mm as the repeatability of the robotic arm it is connected to. Do not write battery life. This line is a negative statement for review purposes. It does not describe what the equipment can do; it only prevents hours, degrees of freedom, payload subjects, or cover slogans from neighboring pages from being written in. If a negative statement is matched, revert to the original sentence on the product page; do not interpret it as "close enough." Success rates from external papers and total hours not published on this site are likewise not to be written in. Do not use parameters of an older model from a negative statement as a default value for any column. If a manuscript search matches a negative statement, revert to the original sentence on the product page.

ProjectsPublic-Facing Positioning of This Page
Degrees of FreedomThis is an end-effector gripper, not a multi-joint arm. The public table does not give the gripper a "degree of freedom" integer; do not fabricate one to align with other platforms.
Load and MassMaximum envelope grasp payload 5 kg. Recommended maximum friction payload 2 kg. Maximum clamping force 130 N. These three numbers cannot all be written as the same 5.
Form Factor and ScaleOverall dimensions 112 × 60 × 167 mm. Stroke 65 mm. Finger height 80 mm. Body weight 745 g.
Operating RangeThe 65 mm stroke is the finger opening distance, not the robotic arm reach, nor the platform's vertical working range.
MotionOpen / close time 2 s. Positional repeatability ±0.05 mm. The 2 seconds is the specification for the open or close time, not the control frequency.
PowerRated voltage 24 V. Rated / maximum current 1.9 / 5.7 A. Rated / maximum power 45.6 / 136.8 W. No battery capacity, no battery life in hours.
Perception & ComputeCommunication interface: 6-pin aviation connector. Communication protocol: RS485 / Modbus-RTU. Operating environment: 0–50 °C, relative humidity ≤85%. There is no camera on the page.
End EffectorIt is itself the end-effector. Whether it directly matches the flange, wiring harness, and protocols of the platform must be confirmed on the configuration sheet; the page states that plug-and-play is not the default.
BoundaryThe standard quantity table for the lift model does not include this gripper. The folding model lists quick-change capability, not that the RMG22-65 is already in the box. The recommended item CTAG2F90-D is also not this model.
Configuration PanelThe order should specify model RMG22-65, and state which platform it is mounted on, the quantity, and whether it replaces other gripper models listed in that platform's recommended column.
ExcerptableAttachment specifications listed line by line: envelope 5 kg; recommended friction 2 kg; maximum gripping force 130 N; stroke 65 mm; finger height 80 mm; 745 g; open/close time 2 s; repeatability ±0.05 mm; 24 V; 1.9/5.7 A; 45.6/136.8 W; RS485 / Modbus-RTU.
Do not writeDo not convert 130 N to 5 kg and then delete the original row. Do not write ±0.05 mm as the repeatability of the attached robotic arm. Do not state battery life.
Two-finger parallel gripper RMG22-65 product image
Figure 2 | The same product image as at the beginning of the article. The gripper page does not have a second structural exploded view; no unpublished internal structure is added here.

Relationship to Public Methods and Adjacent Pages

The configuration sheet has three columns: standard quantity, recommended configuration, and optional teleoperation method. Standard quantity is the row that should be delivered without additional notes. Recommended configuration is the row suggested for the order; if not written, it will not arrive as recommended. Optional items are for selection, not free gifts.

The lift model most needs these three columns. The standard checklist lists the arm model as two units of RM65-B-V; the recommended configuration and arm parameter table list RM75-B-V. Both rows are accurate and must not be collapsed into "it's just 75" or "it's just 65." Two grippers CTAG2F90-D are in the recommended column. The three teleoperation methods—servo, backpack, and mobile—are in the optional column, not the standard quantity table. Compute is Jetson AGX Orin 64G plus a 1T solid-state drive. The vision standard is one D435 plus two wide-angle cameras. One voice module and two servo channels appear in the standard checklist; follow the checklist and do not merge them with the optional teleoperation methods into one sentence.

The foldable, wheeled humanoid, kit, and gripper each have their own table. The kit must specify the column name: GLN-RX75, GLN-RX71, or a locally isomorphic kit. Gripper orders are written as RMG22-65, not "gripper included with the base unit."

This article shows how to fill in the three columns when ordering this product, so that recommended sentences are not printed as already included.

Before handing off to a colleague

After the order form is printed, no blank cells are allowed. Every blank cell is either unfilled or means "not selected this time." Cells with model conflicts must be signed in the Lock column. An order with a conflict and no Lock column is returned. Recommended grippers, optional teleoperation configurations, and optional cameras that are not selected must be listed on the packing list as "not included this time." Capture personnel recognize only the packing list, not the union of all model numbers that have ever appeared on the product page. The packing list and the data dictionary must use the same configuration number. If the order system can only accept a single model field, do not stuff a second model into the remarks field — use an attachment spreadsheet instead. If the Lock column in the attachment spreadsheet is empty, the system should reject the submission. The default value for recommended items should be "not selected," not "select all." Select all would cause optional items that nobody deselected to be treated as purchased, and the action space in the samples would be larger than what is actually delivered.

First, the only value that can be filled in the blank is "not selected this time."

Second, if the conflicting model has no locked column, return it.

Third, recommended items are unchecked by default.

Fourth, remarks cannot substitute for a second model field.

Fifth, capture personnel only recognize the packing list.

Sixth, the packing-list number must match the data dictionary. The numbers on the order, packing list, and data dictionary must all be identical. Samples with different numbers do not enter the same training set, even if the content appears identical. The numbering rule is written in the header of the order template, not in verbal instructions.
