The attachment only pastes sentences that have units, have a subject, and can be found at /product-gripper-2f.html. Copy into the attachment line by line: envelope 5 kg; recommended friction load 2 kg; maximum gripping force 130 N; stroke 65 mm; finger height 80 mm; 745 g; opening/closing 2 s; repeatability ±0.05 mm; 24 V; 1.9/5.7 A; 45.6/136.8 W; RS485 / Modbus-RTU. When pasting, retain the model and the qualifiers, such as "approximately", "excluding end effector", "hours not specified", and "unit not specified in the original text". These words are part of the sentence.
Acceptable Statements
If the same number appears twice, write two rows. 5 kg can be a single-arm rated load or a gripper envelope. ±0.05 mm can be the arm's repeatability or the gripper's position repeatability. Whether 48V 20Ah is followed by hours depends on which page it comes from.
Recommended and optional sentences go in the latter half of the attachment, each line with a checkbox. Printing unchecked items is safer than not printing them. The order must state the model RMG22-65, and specify which body it is mounted on, the quantity, and whether it replaces other gripper models in that body's recommended column.
Place the exclusion statement at the end of the appendix. Do not convert 130 N to 5 kg and delete the original line. Do not write ±0.05 mm as the repeatability accuracy of the attached robotic arm. Do not state battery life. A contract without an exclusion statement will by default be filled in with verbal supplements.

How to Use This Page in This Version
Contract attachments use excerpts, not rewrites. Excerpt format: table header, original sentence, source path. Copy attachments line by line: envelope 5 kg; friction recommendation 2 kg; maximum gripping force 130 N; stroke 65 mm; finger height 80 mm; 745 g; opening / closing 2 s; repeatability ±0.05 mm; 24 V; 1.9/5.7 A; 45.6/136.8 W; RS485 / Modbus-RTU. Keep all words in the original sentence such as approximately, excludes, no hours given, unit not specified in the original text, optional, and recommended. Removing these words will change the legal meaning of the sentence.
When the same number appears on multiple rows, the appendix also has multiple rows, and the subject is written in the header. Do not perform a unit conversion and keep only the converted result. 130 N is not converted to kilograms to replace the original row. Millimeters are not changed to meters to make the number look smaller, unless both rows are kept.
Checkboxes are used for recommended and optional items. The order should specify model RMG22-65, state which robotic platform it is mounted on, the quantity, and whether it replaces other gripper models in that platform's recommended column. Unchecked rows are printed as "not delivered." Exclusions use affirmative negative statements, sourced from: do not convert 130 N into 5 kg and then delete the original row; do not write ±0.05 mm as the repeatability of the connected robotic arm; do not write endurance. Exclusions and ordered items are printed on separate pages to avoid signing only the front side.
The attachment does not write a price formula, does not write "equivalent to the platform in a certain paper", and does not write brand logos that do not appear on /product-gripper-2f.html. Additional tests that are needed, such as actual battery life or system repeatability, are written as a separate test protocol and are not written into the specification excerpt.
Line-by-Line Verification
Degrees of freedom. This is an end-effector gripper, not a multi-joint arm. The public table does not give the gripper an integer "degrees of freedom" value; do not invent one to align with other bodies. This line only states the number and locations of joints that have already been made public. It does not evaluate intelligence, and does not automatically include waist, legs, neck, or a whole-machine total that are not named on the page. When writing the action vector, create channels only for the body parts listed in this line; body parts not listed remain blank. Do not write blanks as 0, because 0 would be treated by training scripts as a real angle. Do not fill in the degrees-of-freedom integer from another device to complete this line. If the main–slave joint order is not given on the page, mark it as pending written configuration confirmation; do not number it yourself. In the attachment's degrees-of-freedom column, paste the original sentence. The action vector creates channels only for the body parts named in this line; unnamed body parts remain blank, not 0.

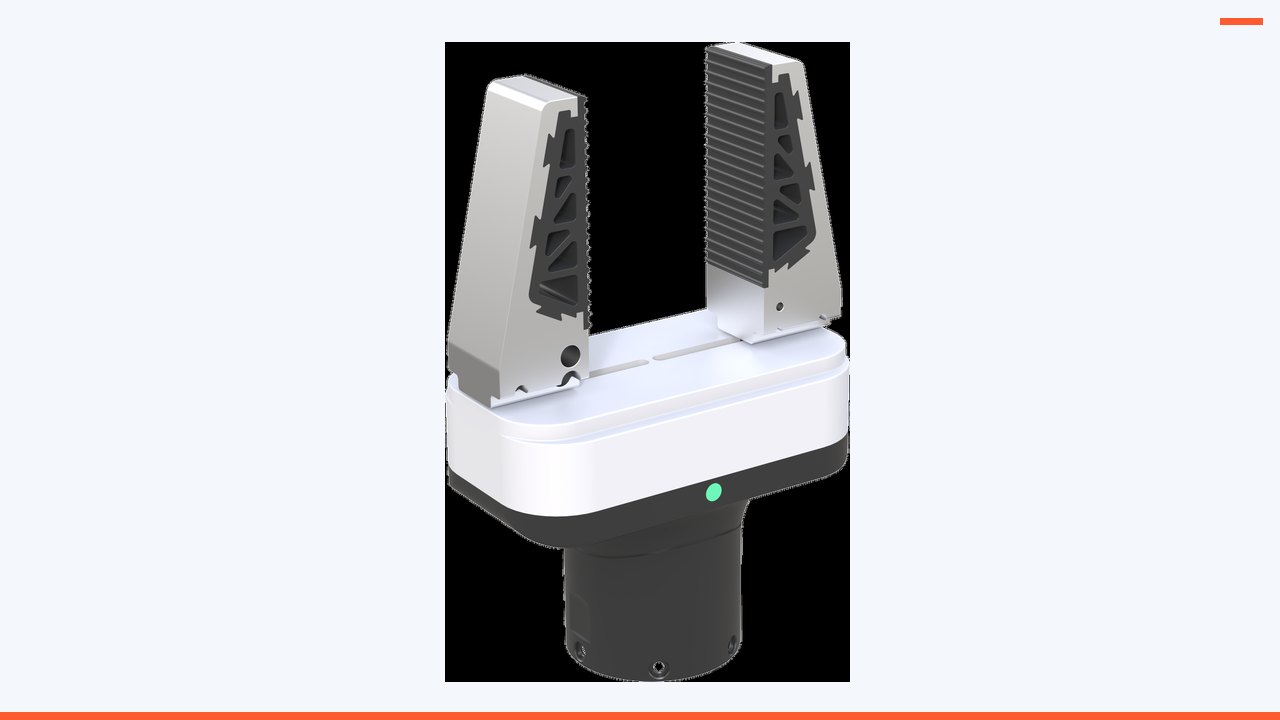

Load and mass. Maximum envelope grasp load 5 kg. Recommended maximum friction load 2 kg. Maximum gripping force 130 N. These three numbers must not all be written as the same 5. The numbers in this row must be read aloud with their subjects: rated, self-weight, overall machine mass, envelope, friction, or gripping force. If the subjects differ, they cannot be merged into a single number, nor can conversions be made that are not given on the page. If field objects are heavier, the specifications cannot be changed in reverse; larger specifications also do not prove that every grasp method reaches that limit. The tool mass is undetermined, so do not write the arm's rated value as the graspable object mass. The acceptance form retains the original units. The attachment load column is split into rows by subject. During acceptance, read the subject first and then the number; if the subjects are inconsistent, split them into two rows.
Dimensions and scale. Overall dimensions 112 × 60 × 167 mm. Stroke 65 mm. Finger height 80 mm. Body weight 745 g. This line is about external or structural dimensions, used to check doors, elevators, tabletops, or transport; it is not operating height, nor is it arm reach. Do not add it to the vertical range. If a diagram shows protrusions, antennas, or a person's standing position not listed in this line, note separately that they are not part of the specification. If weight appears in an adjacent line, do not write it into the dimension sentence. In the attachment's dimensions column, retain the multiplication sign and millimeters. Doors, elevators, and transport are checked only against external dimensions; do not treat this line as operating height.
Operating range. The stroke of 65 mm is the finger opening distance, not the robotic arm's reach, nor the body's vertical working range. This line describes the range that the hand or lift can reach; the definition must follow the original sentence: vertical working range, arm reach, motion radius, or stroke—these cannot be added to each other or renamed. If "excluding end effector" is written, it must remain in the figure caption. If the original text does not specify a unit, retain the note "unit not specified"; do not delete it for the sake of tidiness. In the attachment's range column, retain the "excluding end effector" or "unit not specified" note. The figure caption retains the range definition from the original sentence, as well as the words "excluding end effector" or "unit not specified".
Motion. Opening / closing time 2 s. Positional repeatability ±0.05 mm. The 2 seconds refers to the opening or closing duration, not the control frequency. This row describes how the ground or the main arm moves. Four-wheel four-drive, differential drive, in-place rotation radius, and rotational speed are terms for different mechanisms and cannot be substituted for one another. Published speed is a capability, not a recommended teaching speed; teaching may be slower, but a slower speed is recorded under experimental conditions and is not written back into the specification. Do not borrow slope-climbing or positioning figures from other pages for pages that do not list them. The mechanism terms are retained in the motion column of the attachment. Teaching speed may be lower, but a lower speed is recorded under the operating conditions and does not change the published capability in this row.
Power supply. Rated voltage 24 V. Rated / maximum current 1.9 / 5.7 A. Rated / maximum power 45.6 / 136.8 W. No battery capacity, no endurance in hours. This row retains only the electrical terms that appear on the page: voltage, capacity, endurance, charging, current, or power. If there is no "hours," write that endurance is not specified—do not fill in hours from an adjacent page. Charging time must not be renamed as endurance. Rated and maximum values must be listed in separate columns. Approximate values retain "approximately." Ampere-hours from multiple devices must not be summed and presented as one unit's battery. The attachment's electrical column does not add hours. Hours, charging, or current values that do not appear must remain as not specified and must not be copied in from adjacent pages.
Sensing and computing. Communication interface: 6-pin aviation connector. Communication protocol: RS485 / Modbus-RTU. Operating environment: 0–50 °C, relative humidity ≤85%. There is no camera on the page. This line takes inventory of the items already specified in sensing, computing, or communication, and retains the words standard, included, optional, and optional-order. Unchecked optional items do not count. If the cover conflicts with the list, cite the list, while not pretending the cover sentence does not exist. Headsets and gloves do not enter this line. Processors, hard-drive capacity, or camera channel counts that are not written must not be drawn into the system diagram. In the attachment's sensor column, distinguish standard from optional. Optional sensors that are not purchased do not enter this data dictionary.
End effector. It is the end effector itself. Whether it directly matches the flange, wiring harness, and protocol of the host body must be confirmed in the configuration sheet; the page states that plug-and-play is not included by default. This line indicates at which end contact or gripping occurs. Quick-change, compatible, and recommended are not models included in the box. The finger-ring fixture on the main arm is not an end-mounted gripper. Force, stroke, and load remain as-is on their respective lines and are not merged into a single system metric because they are mounted on a particular host body. Flange and protocol mappings that are not provided should be marked as "to be confirmed," not as plug-and-play. The accessory end-effector field must list either a model and quantity, or "not included." "Supports" or "compatible" without a model number cannot be treated as delivered.
Boundary. The lift-model standard quantity table does not include this gripper. The folding model states quick-change capability, not that RMG22-65 is already in the box. The recommended item CTAG2F90-D is also not this model. This row is a boundary deliberately separated on the page: another model, another column, another product page, or an interface that still requires project confirmation after modularization. The boundary is not a defect note — it prevents verbally buying two pages as one. When writing a proposal, copy the boundary into "Not included in this order." If equipment not included is added later, open a new configuration sheet rather than going back to change the robotic platform name in the old sample. The attachment has a "not included" column, whose content comes from the boundary row. Equipment within the boundary must be ordered separately; do not rename the old sample to say it already includes it.
Configuration column. The order specifies model RMG22-65, and states which robotic platform it is installed on, the quantity, and whether it replaces other gripper models listed in that platform's recommended column. This row distinguishes standard, recommended, and optional. Recommended and optional items are not delivered unless checked. When the standard row conflicts with the parameter table row, keep both rows and use "locked for this order" to indicate which one is actually delivered, rather than striking out one row in the order without signing off. Price and lead time are not written into the paraphrase of this row. The latter half of the attachment contains checkboxes; unchecked items are printed as not delivered. Unchecked recommended and optional items are written as not delivered on the order.
Excerptable. Copy into the attachment line by line: envelope 5 kg; friction recommended 2 kg; maximum gripping force 130 N; stroke 65 mm; finger height 80 mm; 745 g; open/close 2 s; repeatability ±0.05 mm; 24 V; 1.9/5.7 A; 45.6/136.8 W; RS485 / Modbus-RTU. This is the type of line that can be pasted into the attachment: it has a subject, has units, and can be traced back to the original sentence on the product page. When pasting, keep the words "approximately", "excluding", "not specified", "optional", and "recommended". Do not convert units and keep only the result. If the same number has different meanings on two pages, write it as two separate lines in the attachment. Do not mix test protocols into the specification excerpt. This is the permitted scope for the attachment body. When pasting into the attachment, paste the words "approximately", "excluding", and "optional" along with the values.
Do not write. Do not convert 130 N into 5 kg and delete the original line. Do not write ±0.05 mm as the repeatability accuracy of the attached robotic arm. Do not write battery life. This line is a negative sentence for review purposes. It does not describe what the device can do; it only prevents hours, degrees of freedom, payload subjects, or cover slogans from adjacent pages from being written in. If a negative sentence is hit, revert to the original product page sentence; do not interpret it as "close enough." Do not write in external papers' success rates or total hours not published on this site. The last page of the attachment lists the negative sentences, to prevent only signing off on the positive ones. If manuscript retrieval hits a negative sentence, revert to the original product page sentence.
| Projects | Public-Facing Positioning of This Page |
|---|---|
| Degrees of Freedom | This is an end-effector gripper, not a multi-joint arm. The public table does not give the gripper a "degree of freedom" integer; do not fabricate one to align with other platforms. |
| Load and Mass | Maximum envelope grasp payload 5 kg. Recommended maximum friction payload 2 kg. Maximum clamping force 130 N. These three numbers cannot all be written as the same 5. |
| Form Factor and Scale | Overall dimensions 112 × 60 × 167 mm. Stroke 65 mm. Finger height 80 mm. Body weight 745 g. |
| Operating Range | The 65 mm stroke is the finger opening distance, not the robotic arm reach, nor the platform's vertical working range. |
| Motion | Open / close time 2 s. Positional repeatability ±0.05 mm. The 2 seconds is the specification for the open or close time, not the control frequency. |
| Power | Rated voltage 24 V. Rated / maximum current 1.9 / 5.7 A. Rated / maximum power 45.6 / 136.8 W. No battery capacity, no battery life in hours. |
| Perception & Compute | Communication interface: 6-pin aviation connector. Communication protocol: RS485 / Modbus-RTU. Operating environment: 0–50 °C, relative humidity ≤85%. There is no camera on the page. |
| End Effector | It is itself the end-effector. Whether it directly matches the flange, wiring harness, and protocols of the platform must be confirmed on the configuration sheet; the page states that plug-and-play is not the default. |
| Boundary | The standard quantity table for the lift model does not include this gripper. The folding model lists quick-change capability, not that the RMG22-65 is already in the box. The recommended item CTAG2F90-D is also not this model. |
| Configuration Panel | The order should specify model RMG22-65, and state which platform it is mounted on, the quantity, and whether it replaces other gripper models listed in that platform's recommended column. |
| Excerptable | Attachment specifications listed line by line: envelope 5 kg; recommended friction 2 kg; maximum gripping force 130 N; stroke 65 mm; finger height 80 mm; 745 g; open/close time 2 s; repeatability ±0.05 mm; 24 V; 1.9/5.7 A; 45.6/136.8 W; RS485 / Modbus-RTU. |
| Do not write | Do not convert 130 N to 5 kg and then delete the original row. Do not write ±0.05 mm as the repeatability of the attached robotic arm. Do not state battery life. |

Relationship to Public Methods and Adjacent Pages
Acceptance attachments should replicate sentences that are already public on the product page and include units, and cite which page and which table they come from. Sentences that may be written are verifiable: model number, dimensions, mass, degrees of freedom and their locations, rated load, travel, speed, voltage capacity, communication, standard quantity. Sentences that may not be written are inferred statements: "equivalent to", "industry-leading", "six hours at full load", "includes gripper", "includes force feedback".
Even identical numbers get separate rows. ±0.05 mm appearing in both the arm's repeatability and the gripper's repeatability becomes two rows in the appendix. 5 kg appearing in single-arm rated load and gripper envelope load is also two rows. 48 V 20 Ah appearing in both the folding model and the lift model—whether hours follow it depends on each respective page.
Recommended attachment structure: 1. Excerpt from the standard quantity table; 2. Recommended items — if unchecked, they will not be delivered; 3. Optional items — state which column is selected or not selected for this order; 4. Explicitly excluded items, e.g., for the lift model do not list battery life in hours, do not list whole-machine degrees of freedom, and do not treat 8 kg as rated load.
This article lists the original sentences that this product may include in an appendix, along with a recommended exclusion statement.
Before handing off to a colleague
The binding order of the attachments is fixed: standard-row excerpts, recommended and optional checkmarks, not-included list, and synchronization and test booklets if any are bound separately. Test results do not appear in the specification excerpts. If test results are written into the same volume, they will be treated as specifications. The signature page repeats the product page path. If legal or procurement requires rewriting an original sentence, the rewritten draft must be traceable word by word back to the original sentence; words that cannot be traced are deleted. The words "approximately", "not included", "not specified", and "optional" are considered undeletable. Every page footer of the attachment contains the product page path and "an excerpt is not a rewrite". If a page is a checkmark page, the footer adds "unchecked equals not delivered". If a page is a not-included list, the footer adds "this page is an exclusion". If a test booklet exists, its cover uses a different color and states "tests are not specifications". When binding, the test booklet is not inserted in the middle of the specification excerpts. If inserted in the middle, it is returned for rebinding.
First, specification excerpts do not include test results.
Second, unchecked equals not delivered, written in the footer.
Third, the exclusions list gets its own page.
Fourth, the test booklet cover states that tests are not specifications.
Fifth, every rewrite must be traceable word by word.
Sixth, do not delete "approximately," "not included," "not provided," or "optional." Every line in a specification excerpt must be findable as continuous original text on the product page using the search function. If the continuous original text cannot be found, the line has been rewritten and must be returned. Keep the test log and the excerpt in separate volumes to avoid inserting the wrong one during binding. Write the product page path again in the footer; after binding, spot-check that the paths on the first and last pages are consistent.
