Two-Finger Gripper RMG22-65 | Map out site constraints first: charging spots, network, and protection are drawn per model

Measure doors, elevators, floors, and slopes before discussing models. Overall dimensions 112 × 60 × 167 mm. Stroke 65 mm. Finger height 80 mm. Body weight 745 g. Open/close time 2 s. Positional repeatability ±0.05 mm. 2 seconds is either open or…

2026-10-03
TOBI
Product Insights
Two-Finger Gripper RMG22-65 | Map out site constraints first: charging spots, network, and protection are drawn per model
Product InsightsTwo-Finger Parallel Gripper RMG22-652026-10-03

Before entry, measure the doors, elevators, floor, and slope first, then discuss models. Overall dimensions 112 × 60 × 167 mm. Stroke 65 mm. Finger height 80 mm. Body weight 745 g. Open / close time 2 s. Positional repeatability ±0.05 mm. The 2 seconds is the open-or-close time metric, not the control frequency. Stroke 65 mm is the finger opening distance, not the robotic arm's reach, nor the body's vertical working range. These three sentences are the field language already published for the two-finger parallel gripper RMG22-65. Where load-bearing capacity is not stated, do not invent a floor load rating.

Site Constraints

Speed capability is not the speed allowed on site. The space occupied by people, cables, and the emergency stop is not included in the external dimensions. The desktop occupied by the primary arm workstation is within the motion radius on the kit page, not in the robot's external dimensions.

Positioning accuracy, slope climbing, ultrasonic, and edge-touching only become check items on pages where they are written. If written, they must go into the checklist; if not written, do not borrow from neighboring pages. Do not convert 130 N into 5 kg and then delete the original line. Do not write ±0.05 mm as the repeatability accuracy of the robotic arm it is connected to. Do not write battery life. Dimensions and hours from neighboring pages likewise cannot be borrowed to fill gaps in this session.

The first on-site visit performs action verification: direction, emergency stop, open/close, chassis forward/backward. Capture proceeds only after verification passes. The verification record is not a training sample.

Two-Finger Parallel Gripper RMG22-65

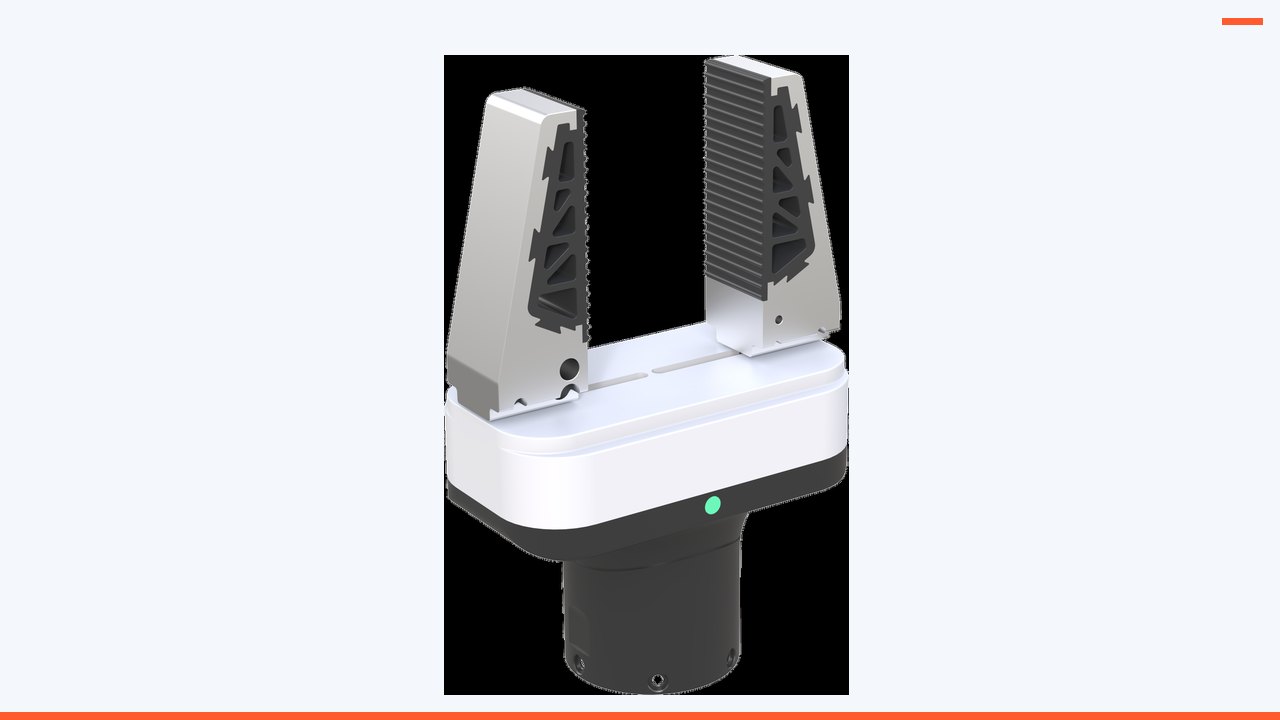

Figure 1 | Two-finger parallel gripper RMG22-65. The caption only states that this is a device photo from the product page; the appearance is not interpreted as parameters not present in the table.

How to Use This Page in This Version

The site confirmation form is filled in before data collection, not after. Copy into the dimensions column: overall dimensions 112 × 60 × 167 mm. Stroke 65 mm. Finger height 80 mm. Body weight 745 g. Copy into the height or reach column: stroke 65 mm is the finger opening distance, not the robotic arm's reach, nor the body's vertical working range. Copy into the mobility column: open / close time 2 s. Positional repeatability ±0.05 mm. The 2 seconds is the open-or-close time metric, not the control frequency. Copy into the power column: rated voltage 24 V. Rated / maximum current 1.9 / 5.7 A. Rated / maximum power 45.6 / 136.8 W. There is no battery capacity and no battery life in hours. Next to each column, leave space for "field-measured" and "pass/fail". A field measurement stricter than the published value may pass; if the field measurement does not meet the premise of the published value—for example, a door narrower than the external dimensions—it does not pass.

Personnel space is listed separately. The operator, the master-arm desk, cables, and the emergency stop are not included in the external dimensions. The kit's motion radius appears only when the kit is purchased. Drawing the master-arm footprint on the site plan without buying the kit will reserve desk space while the equipment never arrives.

Only copy safety-related rows that exist. Slope climbing, localization, edge contact, ultrasonic, speed limits — check them if present, and write "not given on this page" if absent; do not fill in from another machine. Do not convert 130 N into 5 kg and delete the original row. Do not write ±0.05 mm as the repeatability of the attached robotic arm. Do not write battery life. This negative statement is the anti-mix-up column of the site sheet.

The first release authorizes only motion verification, not a training set. The verification items are direction, emergency stop, open/close, and chassis forward/backward. The file name of the verification record must not be written as "demo" or "episode", so that it is not swept in by training scripts. The source of the site form for the two-finger parallel gripper RMG22-65 is /product-gripper-2f.html.

Line-by-Line Verification

Degrees of freedom. This is an end-effector gripper, not a multi-joint arm. The public table does not give the gripper an integer "degrees of freedom" value; do not invent one to align with other main bodies. This line only states the number and locations of joints that have already been made public. It does not evaluate intelligence, and does not automatically include the waist, legs, neck, or whole-machine total that are not named on the page. When writing the action vector, only build channels for the body parts listed in this line; body parts not listed remain blank. Do not write blank as 0, because 0 would be treated by training scripts as a real angle. Do not fill in the degrees-of-freedom integer from another device to complete this line. If the master-slave joint order is not given on the page, mark it as "pending written configuration confirmation"; do not number it yourself. The number of joints does not determine whether it can enter an elevator. The action vector only builds channels for the body parts named in this line; body parts not named remain blank, not filled with 0.

Load and quality. Maximum envelope grasp load 5 kg. Recommended maximum friction load 2 kg. Maximum gripping force 130 N. These three numbers must not be written as the same 5. The numbers in this row must be read aloud with their subject: rated load, self-weight, total unit mass, envelope, friction, or gripping force. If the subjects differ, they must not be merged into a single number, nor converted using any conversion not given on the page. If field objects are heavier, the specification must not be revised accordingly; conversely, a larger specification does not prove that every grasp mode reaches that limit. Tool mass is undetermined — do not write the arm's rated load as the graspable object mass. The acceptance checklist retains the original units. Only the total unit mass relates to transport; rated load is not total unit mass. During acceptance, read the subject first and then the number; if the subjects are inconsistent, split into two rows.

Dimensions and scale. Overall dimensions 112 × 60 × 167 mm. Stroke 65 mm. Finger height 80 mm. Platform weight 745 g. This line describes form factor or structural dimensions, used to verify doorways, elevators, tabletops, or transport clearance — it is not an operating height, nor is it a reach. Do not add it to the vertical range. If the diagram shows protrusions, antennas, or human standing positions not present in this line, note separately that they are not part of the specification. If weight appears in an adjacent row, do not include it in the dimensions sentence. Use this line as the reference for doorway clearance. Doorways, elevators, and transport are checked against form factor only; do not treat this line as an operating height.

Operating range. A stroke of 65 mm is the finger opening distance, not the robotic arm's reach, nor the body's vertical working range. This line describes the range that the hand or lift can reach; the definition must follow the original sentence: vertical working range, reach, motion radius, or stroke — these cannot be added together or renamed. If "excluding end effector" is stated, it must remain in the figure caption. When the original text does not specify units, retain the "units not specified" note and do not delete it for the sake of tidiness. Compare indoor clear height against the operating range, not against the packaging box, unless the box is what was measured. The figure caption retains the range definition from the original sentence, as well as the wording "excluding end" or "units not specified".

Motion. Open / close time 2 s. Position repeatability ±0.05 mm. The 2 seconds is the time basis for opening or closing, not the control frequency. This line describes how the ground unit or main arm moves. Four-wheel steering with four-wheel drive, differential drive, in-place rotation radius, and rotational speed are terms for different mechanisms and cannot be substituted for one another. Published speed is a capability, not a recommended teaching speed; teaching may be slower, but the slower value is recorded under experimental conditions and is not written back into the specifications. Do not borrow slope-climbing or positioning figures from other pages for a page that does not state them. Ground slope and speed limits use only the values written in this line. The teaching speed may be lower, but the lower value is recorded under operating conditions and does not change the published capability in this line.

Power supply. Rated voltage 24 V. Rated / maximum current 1.9 / 5.7 A. Rated / maximum power 45.6 / 136.8 W. No battery capacity, no endurance in hours. This row retains only the electrical terms that appear on the page: voltage, capacity, endurance, charging, current, or power. If there is no "hours," write that endurance is not specified—do not fill in hours from an adjacent page. Charging time must not be renamed as endurance. Rated and maximum values must be listed in separate columns. Approximate values retain "approximately." Ampere-hours from multiple devices must not be summed and presented as one unit's battery. On-site AC outlets or DC power must match this row; if they cannot match, do not power on for data capture. Hours, charging, or current values that do not appear must remain as not specified and must not be copied in from adjacent pages.

Perception and computing. Communication interface: 6-pin aviation connector. Communication protocol: RS485 / Modbus-RTU. Operating environment: 0–50 ℃, relative humidity ≤85%. There is no camera on the page. This line inventories items already specified in sensors, computing, or communication, and preserves words like standard, included, optional, and selectable. An unselected option does not count. When the cover conflicts with the list, cite the list while not pretending the cover sentence does not exist. Head-mounted devices and gloves do not enter this line. Processors, hard drive capacity, or camera channel counts that are not written out should not be drawn into the system diagram. A sensor bracket does not change the door width requirement. Optional sensors not purchased do not enter this data dictionary.

End. It is itself the end. Whether it directly matches the body's flange, wiring harness, and protocol must be confirmed in the configuration sheet; the page states that plug-and-play is not the default. This line states at which end contact or gripping occurs. Quick-change, compatible, and recommended are not models already included in the box. The finger-ring fixture on the main arm is not an end gripper. Force, stroke, and payload remain as written in their respective lines and are not merged into a single system metric merely because they are mounted on a particular body. For flange and protocol mappings that are not provided, write "to be confirmed," not "plug-and-play." When the end effector has not arrived, a no-load check may be performed, but the site sheet must note this. "Supports" or "compatible" without a model number cannot be treated as delivered.

Boundary. The standard quantity table for the lift model does not include this gripper. The folding model states a quick-change capability, not that the RMG22-65 is already in the box. The recommended item CTAG2F90-D is also not this model. This line is a boundary deliberately separated on the page: another model, another column, another product page, or an interface that still requires project confirmation after modularization. The boundary is not a defect note; it is there to prevent verbally buying two pages as one. When writing a proposal, copy the boundary into "Not included in this order." If equipment not included is added later, open a new configuration sheet; do not go back and change the robot name in the old sample. The desktop main arm only occupies floor space after the purchase kit is bought. Equipment within the boundary must be ordered separately; do not rename the old sample to say it already includes it.

Configuration column. The order specifies model RMG22-65, and states which robotic platform it is mounted on, the quantity, and whether it replaces other gripper models in that platform's recommended column. This line distinguishes standard, recommended, and optional. Recommended and optional items are not delivered unless checked. When the standard line and the parameter table line conflict, keep both lines and use "locked for this order" to indicate which one is actually delivered, rather than striking out one line in the order without signing off. Price and lead time are not written into this line's restatement. 5G, if not selected, is not a prerequisite for on-site networking. Unchecked recommended and optional items are written as not delivered on the order.

Excerptable. List the attachments line by line: envelope 5 kg; friction recommendation 2 kg; maximum gripping force 130 N; stroke 65 mm; finger height 80 mm; 745 g; open/close 2 s; repeatability ±0.05 mm; 24 V; 1.9/5.7 A; 45.6/136.8 W; RS485 / Modbus-RTU. This is the type of line that can be pasted into an attachment: it has a subject, has units, and can be traced back to the original sentence on the product page. When pasting, retain "approximately," "excluding," "not provided," "optional," and "recommended." Do not convert and keep only the result. If the same number has different meanings on two pages, write it as two lines in the attachment. Do not mix test protocols into specification excerpts. Every limit on the site sheet must be traceable back to the product page. When pasting into an attachment, paste the words "approximately," "excluding," and "optional" along with the values.

Do not write. Do not convert 130 N into 5 kg and delete the original line. Do not write ±0.05 mm as the repeatability accuracy of the robotic arm it is attached to. Do not write battery life. This line is a negative sentence for review purposes. It does not describe what the device can do; it only prevents hours, degrees of freedom, payload subjects, or cover slogans from the neighboring page from being written in. If a negative sentence is hit, revert to the original product page sentence; do not interpret it as "approximately." Do not write in success rates from external papers or total hours not published on this site. Do not write in the appearance or slope-climbing capability of another unit into this context. If manuscript retrieval hits a negative sentence, revert to the original product page sentence.

ProjectsPublic-Facing Positioning of This Page
Degrees of FreedomThis is an end-effector gripper, not a multi-joint arm. The public table does not give the gripper a "degree of freedom" integer; do not fabricate one to align with other platforms.
Load and MassMaximum envelope grasp payload 5 kg. Recommended maximum friction payload 2 kg. Maximum clamping force 130 N. These three numbers cannot all be written as the same 5.
Form Factor and ScaleOverall dimensions 112 × 60 × 167 mm. Stroke 65 mm. Finger height 80 mm. Body weight 745 g.
Operating RangeThe 65 mm stroke is the finger opening distance, not the robotic arm reach, nor the platform's vertical working range.
MotionOpen / close time 2 s. Positional repeatability ±0.05 mm. The 2 seconds is the specification for the open or close time, not the control frequency.
PowerRated voltage 24 V. Rated / maximum current 1.9 / 5.7 A. Rated / maximum power 45.6 / 136.8 W. No battery capacity, no battery life in hours.
Perception & ComputeCommunication interface: 6-pin aviation connector. Communication protocol: RS485 / Modbus-RTU. Operating environment: 0–50 °C, relative humidity ≤85%. There is no camera on the page.
End EffectorIt is itself the end-effector. Whether it directly matches the flange, wiring harness, and protocols of the platform must be confirmed on the configuration sheet; the page states that plug-and-play is not the default.
BoundaryThe standard quantity table for the lift model does not include this gripper. The folding model lists quick-change capability, not that the RMG22-65 is already in the box. The recommended item CTAG2F90-D is also not this model.
Configuration PanelThe order should specify model RMG22-65, and state which platform it is mounted on, the quantity, and whether it replaces other gripper models listed in that platform's recommended column.
ExcerptableAttachment specifications listed line by line: envelope 5 kg; recommended friction 2 kg; maximum gripping force 130 N; stroke 65 mm; finger height 80 mm; 745 g; open/close time 2 s; repeatability ±0.05 mm; 24 V; 1.9/5.7 A; 45.6/136.8 W; RS485 / Modbus-RTU.
Do not writeDo not convert 130 N to 5 kg and then delete the original row. Do not write ±0.05 mm as the repeatability of the attached robotic arm. Do not state battery life.
Two-finger parallel gripper RMG22-65 product image
Figure 2 | The same product image as at the beginning of the article. The gripper page does not have a second structural exploded view; no unpublished internal structure is added here.

Relationship to Public Methods and Adjacent Pages

Site constraints come before algorithms. Door widths, elevators, floor slopes, aisles, and personnel safety distances determine whether this unit can enter the site; the model architecture does not. Speed is a safety parameter, not a "faster is better" marketing claim. Gradeability, positioning error, ultrasonic sensors, and bump strips are the conditions for whether the chassis can operate on that floor.

The lift model's publicly disclosed differential-drive speed is 1.5 m/s, slope climbing is 5°, positioning accuracy is ±10 mm / ±3°, and it lists one safety edge-sensor channel and two ultrasonic channels. The left and right single-side overhang beyond the chassis is written as 790 in the source material; the sentence is in a millimeter context but the original does not state the unit. Externally, write it as 790 mm and retain this note. The folding model's overall width is approximately 552 mm; the wheeled humanoid's shoulder and chassis are within 465 mm, with a turning radius of 690 mm. Using the wrong width to measure a door will only reveal the problem on installation day when the device cannot fit through.

The demonstration site must also leave room for people. The primary arm workstation, operator, cables, and emergency stop are not included in the robot's external dimensions. The primary arm's self-weight and length on the kit page determine the desktop, not whether the slave end can pass through a door.

This article turns the product's publicly disclosed ground clearance and dimensional constraints into site-entry checklist items. Safety ratings and protection ratings that are not disclosed are not supplemented.

Before handing off to a colleague

The site form is filled out before the equipment enters the door, not after. The measurement column and the specification column are placed side by side. If the measurement does not meet the door width or power supply requirements, unboxing for capture does not proceed. Personnel positions are marked on the floor with tape; the tape dimensions are not written into the specifications.

The title of the first release form is "Action Verification"; the file name does not use "episode". Items that fail verification are marked as "failed", not as "to be handled later in the data". The product page path is written in the header of the site form for easy comparison with the day's table. Pre-entry measurements are taken with a tape measure and a voltmeter, not by eye. Visual estimates of "close enough" are not entered in the measurement column. If the measurement column is left blank, unboxing is not permitted. If an end-effector is found to be missing after unboxing, the action verification may continue, but the release form is changed to "No End-Effector Verification", and this title is printed in the header of every record for that day. Records without the header are not archived into the formal experiment.

First, use a tape measure and a voltmeter before entering the site.

Second, visual estimates are not written in as measured values.

Third, test empty without unboxing.

Fourth, when the end effector is missing, write "no end effector" in the header.

Fifth, personnel tape is not written into the spec.

Sixth, records missing a header do not enter formal experiments.

Continue Reading

Back to Product Center View this product page

This article was written on October 3, 2026, for selection and specification verification purposes. Device parameters are subject to the product page tables and do not constitute a supply commitment. External papers only illustrate how problems are framed in the industry; their success rates and data scales belong to the original authors' experiments and are not TOBI's measured results. Phone: +86 137 5502 0164.
