Two-finger gripper RMG22-65 | Locomotion defines the chassis sentence: differential drive, four-wheel steering, and in-place rotation are not interchangeable

The mobile mechanism determines how chassis actions are recorded. Open / close time 2 s. Positional repeatability ±0.05 mm. 2 seconds is the open or close time specification, not the control frequency. Four-wheel drive, two-wheel differential drive, and in-place rotation radius are three different ground-level statements and cannot be rewritten into each other. Speed range and single speed…

2026-10-03
TOBI
Product Insights
Two-finger gripper RMG22-65 | Locomotion defines the chassis sentence: differential drive, four-wheel steering, and in-place rotation are not interchangeable
Product InsightsTwo-Finger Parallel Gripper RMG22-652026-10-03

The locomotion mechanism determines how chassis motion is recorded. Open/close time is 2 s. Position repeatability is ±0.05 mm. The 2 seconds refers to the open or close time, not the control frequency. Four-wheel four-drive, two-wheel differential, and in-place rotation radius are three different ground-motion descriptions and cannot be rewritten into each other. A speed range and a single speed value are not interchangeable.

Mobility method

If teaching includes pushing a cart, line following, or changing workstations, the record must include a chassis channel: at least velocity or pose, plus a timestamp. Recording only the arm makes a mobile-manipulation sample incomplete. Recording only the chassis makes a tabletop-manipulation sample missing the arm. This is an end-mounted gripper, not a multi-joint arm. The published table does not give the gripper an integer "degrees of freedom"; do not invent one to align with other main bodies. How channels are split follows the degrees-of-freedom statement or the page's description of the chassis.

Slope climbing, positioning error, ultrasonic sensing, and bumper edges become site conditions only on pages where they are stated. Pages that do not state them must not infer "since it can move, it has the same positioning accuracy." The ground-related sentences on the page for the two-finger parallel gripper RMG22-65 are the sentences quoted above.

Safe speed is not the maximum speed on the table. The 1.5 m/s or 0.1–1.5 m/s on the table is the publicly stated motion capability; teaching can be slower. Slower does not require changing the specification, but it must be written into the experiment record so that later readers do not assume the samples were collected at maximum speed.

Two-Finger Parallel Gripper RMG22-65

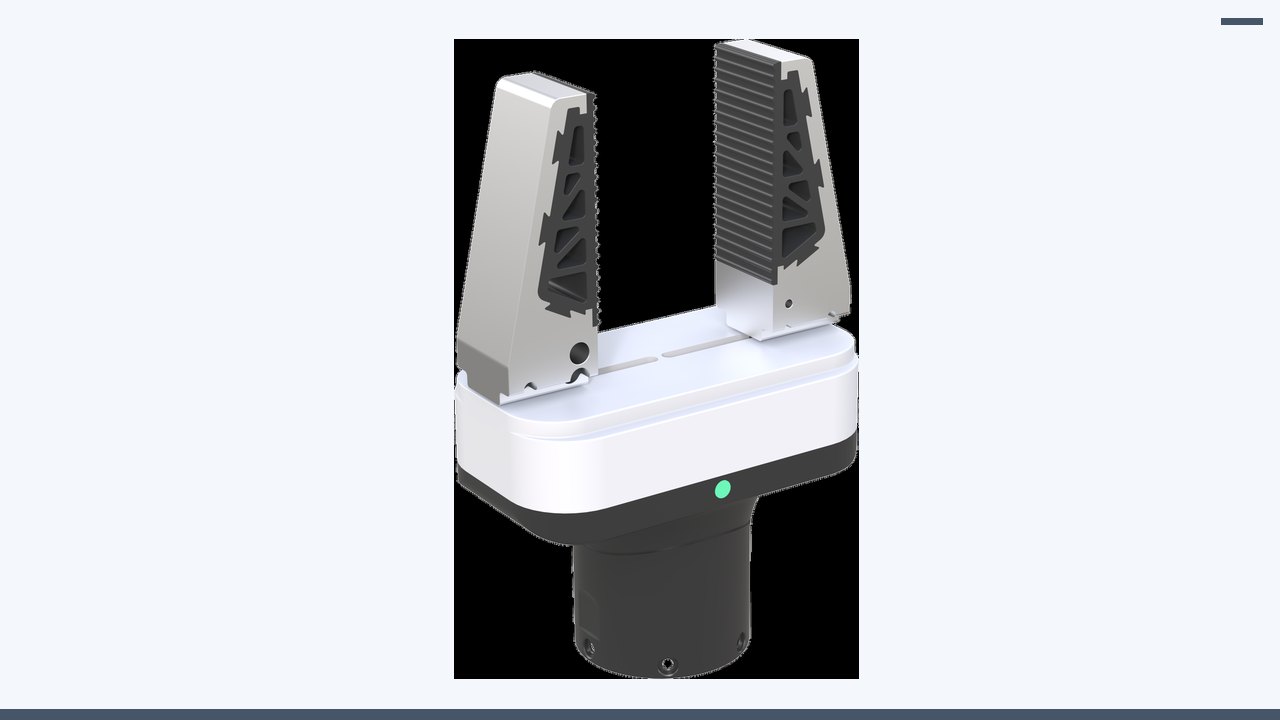

Figure 1 | Two-finger parallel gripper RMG22-65. The caption only states that this is a device photo from the product page; the appearance is not interpreted as parameters not present in the table.

How to Use This Page in This Version

How the chassis moves determines whether teaching is mobile manipulation. Open / close time 2 s. Position repeatability ±0.05 mm. The 2 s figure is the time basis for opening or closing, not the control frequency. Copy this sentence into the ground section of the experimental plan; do not rewrite it as "omnidirectional" or "differential" unless the original sentence uses that term. Four-wheel steering and four-wheel drive is not colloquial for differential drive; in-place rotation radius is not the turning radius of a differential-drive vehicle; a single 1.5 m/s is not shorthand for 0.1–1.5 m/s.

The recording format should include at least: timestamp, chassis velocity or pose, whether rotation is permitted, and emergency-stop state. A mobile-manipulation sample that records only the arm's joints cannot afterward distinguish "the arm is moving" from "the vehicle is moving." A tabletop-manipulation sample that records only the chassis lacks the manipulation itself. This is an end-mounted gripper, not a multi-joint arm. The published table does not give the gripper an integer "degrees of freedom"; do not invent one to align with other main bodies. If the degrees of freedom on this page do not include the chassis, the chassis channel must be listed separately rather than folded into the degrees-of-freedom integer.

The upper limit of speed is not the capture speed. The capture speed is written in the operating-condition column of the experiment record and may be lower than the publicly stated motion capability. The operating-condition column is not written back to the product page, nor is a single slow experiment described as a specification limited to that slow speed.

Slope grade, positioning accuracy, bumper edges, and ultrasonic sensing become mobility conditions only on pages where they appear. The two-finger parallel gripper RMG22-65 does not have these rows, so do not borrow 5° or ±10 mm from the lifting version. If these rows exist, write them into site confirmation, not into algorithm advantages. /product-gripper-2f.html is used to verify whether these rows actually exist.

Line-by-Line Verification

Degrees of freedom. This is an end-mounted gripper, not a multi-joint arm. The published table does not give the gripper an integer "degrees of freedom"; do not invent one to align with other main bodies. This row only states the number and locations of joints that have been published. It does not evaluate intelligence, and it does not automatically include waist, legs, neck, or a whole-machine total that the page does not name. When writing the action vector, create channels only for the body parts listed in this row; body parts not listed remain blank. Do not write blanks as 0, because 0 would be treated by training scripts as a real angle. Do not fill in the degrees-of-freedom integer from another device to make the row add up. If the master–slave joint order is not given on the page, mark it as pending written configuration confirmation; do not number it yourself. A chassis not included in the degrees of freedom is recorded as a separate channel. The action vector creates channels only for the body parts named in this row; unnamed body parts remain blank and are not filled with 0.

Load and mass. Maximum envelope grasping load 5 kg. Recommended maximum friction load 2 kg. Maximum gripping force 130 N. The three numbers cannot all be written as the same 5. The numbers in this line must be read aloud with their subject: rated, self-weight, whole-machine mass, envelope, friction, or gripping force. If the subjects differ, they cannot be merged into a single number, nor can conversions not given on the page be performed. If the real-world object is heavier, the specification cannot be changed retroactively; conversely, a larger specification does not prove that every grasping method reaches that limit. The tool mass is undetermined; do not write the arm's rated value as the graspable object mass. The acceptance sheet retains the original units. Load does not determine the steering method. During acceptance, read the subject first and then the number; if the subjects do not match, split into two lines.

Dimensions and scale. Overall dimensions 112 × 60 × 167 mm. Stroke 65 mm. Finger height 80 mm. Body weight 745 g. This row is about external form or structural scale, used to check doorways, elevators, tabletops, or transport; it is not operating height and not arm reach. Do not add it to the vertical range. If the diagram shows protrusions, antennas, or a person's standing position that are not in this row, note separately that they are not part of the specification. If weight appears in an adjacent row, do not write it into the dimension sentence. External width is for passing through doorways, not for calculating rotation radius. Doorways, elevators, and transport are checked against external form only; this row is not treated as operating height.

Operating range. Stroke 65 mm is the finger opening distance, not the robotic arm's reach, and not the body's vertical workspace. This row describes the range the hand or lift can reach; the definition must follow the original sentence: vertical workspace, arm reach, motion radius, and stroke cannot be added to one another and cannot be renamed. If "excluding end effector" is stated, it must remain in the figure caption. If the source does not mark units, retain the note "units not specified"; do not delete it for tidiness. Operating height does not substitute for ground mobility. The figure caption retains the range definition from the original sentence, as well as the phrases "excluding end effector" and "units not specified."

Motion. Open / close time 2 s. Position repeatability ±0.05 mm. The 2 s figure is the time basis for opening or closing, not the control frequency. This row describes how the ground platform or main arm moves. Four-wheel steering and four-wheel drive, differential drive, in-place rotation radius, and rotational speed are terms for different mechanisms and must not be substituted for one another. Published speed is a capability, not a recommended teaching speed; teaching may be slower, but the slower speed is recorded under experimental conditions and is not written back into the specification. Pages that do not state slope climbing or positioning must not borrow those figures from other pages. This is the primary row for ground motion or rotational speed; mechanism terms must not be substituted. Teaching speed may be lower, but the lower speed is recorded under conditions and does not change the published capability in this row.

Power supply. Rated voltage 24 V. Rated / maximum current 1.9 / 5.7 A. Rated / maximum power 45.6 / 136.8 W. No battery capacity, no runtime in hours. This row retains only the electrical terms that appear on the page: voltage, capacity, runtime, charging, current, or power. If there are no "hours," state that runtime is not given; do not fill in hours from an adjacent page. Do not rename charging time as runtime. Rated and maximum values must be listed separately. Preserve "approximately" where the source uses it. Do not sum the ampere-hours of multiple devices and present the total as one device's battery. Runtime does not prove that the device can run continuously at the tabled speed for that duration. Hours, charging, or current that do not appear must remain as not given and must not be copied in from an adjacent page.

Sensing and computing. Communication interface: 6-pin aviation connector. Communication protocol: RS485 / Modbus-RTU. Operating environment: 0–50 ℃, relative humidity ≤85%. There is no camera on the page. This row inventories the items already stated for sensing, computing, or communication, and preserves the terms standard, included by default, optional, and optional accessory. An optional item that is not checked does not count. When the cover conflicts with the list, cite the list while not pretending the cover statement does not exist. Head-mounted devices and gloves do not enter this row. Processors, storage capacity, or camera channel counts that are not written must not be drawn into the system diagram. If radar and ultrasonic sensing appear in the list, they are navigation conditions, not speed values. Optional sensors that were not purchased do not enter this data dictionary.

End effector. It is the end effector itself. Whether it directly matches the flange, wiring harness, and protocol of the robotic platform must be confirmed on the configuration sheet; the page states explicitly that plug-and-play is not the default. This line specifies at which end contact or grasping occurs. Quick-change, compatible, and recommended are not models already included in the box. The finger-ring fixture on the main arm is not an end-of-arm gripper. Force, stroke, and payload remain as originally listed on their respective rows and are not merged into a single system-level metric merely because they are mounted on a particular robotic platform. Flange and protocol mappings that have not been specified should be marked as "to be confirmed," not "plug-and-play." The end effector does not change the chassis drive type. "Supports" or "compatible" without a specific model number cannot be treated as delivered.

Boundary. The standard quantity table for the lifting version does not include this gripper. The folding version states quick-change capability, not that RMG22-65 is already in the box. The recommended item CTAG2F90-D is also not this model. This row is a boundary deliberately kept on the page: another model, another column, another product page, or an interface that still requires project confirmation after modularization. The boundary is not a defect note; it prevents two pages from being verbally merged into one when placing an order. When writing a proposal, copy the boundary into "not included in this order." If an excluded device is added later, open a new configuration sheet; do not go back and change the body name in old samples. Do not borrow slope climbing or positioning figures from another device. Devices within the boundary must be ordered separately; do not rename old samples to say they already include it.

Configuration column. The order should specify the model RMG22-65, state which robotic platform it is to be mounted on, the quantity, and whether it replaces other gripper models listed in that platform's recommended column. This row distinguishes standard, recommended, and optional. Unchecked recommended and optional items will not be delivered. If the standard row conflicts with the parameter table row, keep both rows and use "locked for this order" to indicate which one is actually delivered, rather than striking out one row in the order without a signature. Price and lead time are not written into this row's summary. If the mobile mechanism is a recommended chassis, the order must state whether this order is for that chassis. Unchecked recommended and optional items should be written in the order as not delivered.

Excerptable. Copy the attachment line by line: envelope 5 kg; friction recommendation 2 kg; maximum gripping force 130 N; stroke 65 mm; finger height 80 mm; 745 g; opening/closing 2 s; repeatability ±0.05 mm; 24 V; 1.9/5.7 A; 45.6/136.8 W; RS485 / Modbus-RTU. This is the type of line that can be pasted into an attachment: with a subject, with units, and traceable back to the original sentence on the product page. When pasting, keep words like approximately, excluding, not specified, optional, and recommended. Do not convert and leave only the result. If the same number has different meanings on two pages, write it as two lines in the attachment. Do not mix test protocols into specification excerpts. Write speed as the range or single value from the original sentence, not changed to "fastest". When pasting into an attachment, paste words like approximately, excluding, and optional along with them.

Do not write. Do not convert 130 N to 5 kg and then delete the original row. Do not write ±0.05 mm as the repeatability of the connected robotic arm. Do not write runtime. This row is a negative statement for review purposes. It does not describe what the equipment can do; it only prevents hours, degrees of freedom, payload subject, or cover slogans from adjacent pages from being written in. If a negative statement is matched, revert to the original sentence from the product page; do not interpret it as "close enough." Success rates from external papers and total hours not published on this site must likewise not be written in. Do not write 0.1–1.5 m/s, 1.5 m/s, and rotational speed in RPM as the same speed. If manuscript retrieval matches a negative statement, revert to the original sentence from the product page.

ProjectsPublic-Facing Positioning of This Page
Degrees of FreedomThis is an end-effector gripper, not a multi-joint arm. The public table does not give the gripper a "degree of freedom" integer; do not fabricate one to align with other platforms.
Load and MassMaximum envelope grasp payload 5 kg. Recommended maximum friction payload 2 kg. Maximum clamping force 130 N. These three numbers cannot all be written as the same 5.
Form Factor and ScaleOverall dimensions 112 × 60 × 167 mm. Stroke 65 mm. Finger height 80 mm. Body weight 745 g.
Operating RangeThe 65 mm stroke is the finger opening distance, not the robotic arm reach, nor the platform's vertical working range.
MotionOpen / close time 2 s. Positional repeatability ±0.05 mm. The 2 seconds is the specification for the open or close time, not the control frequency.
PowerRated voltage 24 V. Rated / maximum current 1.9 / 5.7 A. Rated / maximum power 45.6 / 136.8 W. No battery capacity, no battery life in hours.
Perception & ComputeCommunication interface: 6-pin aviation connector. Communication protocol: RS485 / Modbus-RTU. Operating environment: 0–50 °C, relative humidity ≤85%. There is no camera on the page.
End EffectorIt is itself the end-effector. Whether it directly matches the flange, wiring harness, and protocols of the platform must be confirmed on the configuration sheet; the page states that plug-and-play is not the default.
BoundaryThe standard quantity table for the lift model does not include this gripper. The folding model lists quick-change capability, not that the RMG22-65 is already in the box. The recommended item CTAG2F90-D is also not this model.
Configuration PanelThe order should specify model RMG22-65, and state which platform it is mounted on, the quantity, and whether it replaces other gripper models listed in that platform's recommended column.
ExcerptableAttachment specifications listed line by line: envelope 5 kg; recommended friction 2 kg; maximum gripping force 130 N; stroke 65 mm; finger height 80 mm; 745 g; open/close time 2 s; repeatability ±0.05 mm; 24 V; 1.9/5.7 A; 45.6/136.8 W; RS485 / Modbus-RTU.
Do not writeDo not convert 130 N to 5 kg and then delete the original row. Do not write ±0.05 mm as the repeatability of the attached robotic arm. Do not state battery life.
Two-finger parallel gripper RMG22-65 product image
Figure 2 | The same product image as at the beginning of the article. The gripper page does not have a second structural exploded view; no unpublished internal structure is added here.

Relationship to Public Methods and Adjacent Pages

The locomotion type determines what "chassis motion" means in teleoperation. Four-wheel independent steering with drive can adjust heading laterally and in place, suitable for repositioning between narrow lab benches. A differential chassis steers by varying left and right wheel speeds; its structure differs, and speed and gradeability must be cited separately. The wheeled humanoid's turning radius is a ground-scale measurement of turning around its own axis; it cannot be written as the minimum turning radius of a differential vehicle unless the page defines it that way.

The folding model is specified as four-wheel steering and four-wheel drive. The lift model's chassis is differential drive, speed 1.5 m/s, climbing grade 5 degrees, positioning accuracy ±10 mm / ±3 degrees. The wheeled humanoid gives a turning radius of 690 mm, and both the shoulders and the chassis fit within a 465 mm width. Three sentences describe three ground strategies. Writing 1.5 m/s onto the folding model or the wheeled humanoid is cross-page copying.

For data, chassis speed, angular speed, and the joint angles of the manipulator are different channels. Recording only the arm and not the chassis makes the mobile manipulation demonstration incomplete. Recording only the chassis and not the arm makes the tabletop manipulation demonstration incomplete. When the product page does not provide details of the chassis control interface, the interface is governed by the written configuration; do not invent a topic name in the article.

This article explains the product's publicly disclosed motion parameters and the type of chassis quantities it requires to be retained in the dataset.

Before handing off to a colleague

Mobile testing is carried out in two steps.

The first step is to confirm only the mechanism terms: whether the on-site chassis or main arm is the type described in the original sentence — if not, stop.

Only in the second step do you record velocity, and the recorded value may be below the publicly stated capability, as long as it is noted in the operating conditions column. Do not backfill the speed of a single slow demonstration as a specification. Positioning, slope climbing, ultrasonic, and edge contact: if they are not on the page, do not test whether these items "meet the standard"; you may use the project's own safety requirements, but do not write those requirements as product specifications. The emergency stop test comes before any mobile capture. Mechanism confirmation uses photos plus the original sentence, not a verbal "you know, that kind of wheel." Photos cannot replace the original sentence; the original sentence goes in the photo caption. If the velocity logger shows a higher or lower value, do not modify the product page. If higher and it exceeds the publicly stated capability, stop and check whether the wrong device was recorded; if lower, write it into the operating conditions. Samples after the emergency stop and samples before it go in separate directories. Do not automatically append the first segment after emergency stop recovery to the previous segment.

First, confirm the mechanism terms before recording the speed.

Second, a lower demonstration speed is written into the operating conditions.

Third, do not write operating conditions back into specifications.

Fourth, gradeability and positioning not on the page must not be tested as specifications.

Fifth, emergency stop comes before capture.

Sixth, separate directories before and after emergency stops.
