The power row retains only the terms that appear on the page. Rated voltage 24 V. Rated / maximum current 1.9 / 5.7 A. Rated / maximum power 45.6 / 136.8 W. There is no battery capacity and no runtime in hours. Only if runtime hours are given may hours be written; if charging time is given, write charging; if voltage, current, and power are given, list them in separate columns. Items that are not present remain as not present.
Power Supply Criteria
The approximately 6 hours of the folding model cannot be lent out. The 48V 20Ah of the lift model is not followed by any hours figure. The approximately 2 hours of the wheeled humanoid is charging. The kits and grippers have no battery capacity. When all five sentences appear in one solution, each device follows its own row; they are not averaged into a single endurance figure.
Even if "approximately 6 hours" is stated, it is an order-of-magnitude figure from the product page, not the working hours measured in this article under simultaneous full-load teleoperation, multi-camera operation, and continuous movement. On-site working hours must be tested separately in writing, with test conditions recorded in the log, not written back into the specification table as if they were a factory commitment.

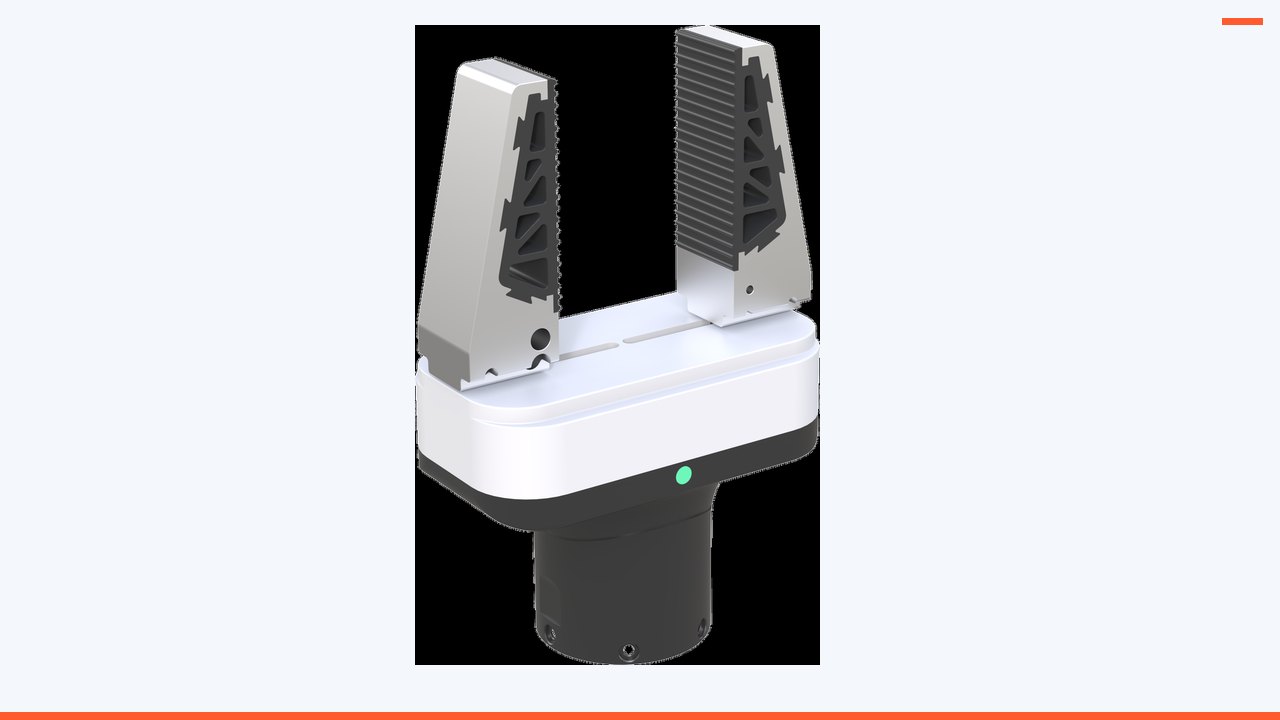

Power interface, circuit breaker, and wire gauge for the two-finger parallel gripper RMG22-65: if not stated on the page, request the written configuration at deployment; do not fill in an ampere figure in the article. Existing voltage and current values are given in the citation above.

How to Use This Page in This Version
The power column copies only fields that exist. Rated voltage 24 V. Rated / maximum current 1.9 / 5.7 A. Rated / maximum power 45.6 / 136.8 W. There is no battery capacity and no runtime in hours. After copying, check whether the word "hours" appears. If there are no hours, write "runtime not given" in the column rather than leaving it blank for someone else to fill in. If "charging approximately 2 hours" is present, the column name is charging, not runtime. If "approximately 6 h" is present, the column name should note that it applies only to the folding model, and it must not be copied into other devices' columns.
If the kit and gripper only have voltage, current, and power, list the column header as power supply, not battery. Writing DC12V and DC24V on the same device is wrong; they belong to different columns. Writing rated power and maximum power as a single wattage is also wrong.
Approximately 6 hours, even if it exists, does not mean 6 hours under all operating conditions. If an experiment is to claim continuous operating time, write out the test conditions separately: load, speed, number of camera channels, and whether the unit is moving. Test results go in the experiment report and do not change the "approximately" on the product page. The "approximately" on the product page remains as a public order-of-magnitude figure.
When multiple devices are powered on simultaneously, do not aggregate their respective voltages into a single total ampere-hour figure. If a total power-consumption estimate is needed, note that it is a project estimate, not a specification of the two-finger parallel gripper RMG22-65. The specification source goes no further than /product-gripper-2f.html. Do not convert 130 N to 5 kg and then delete the original row. Do not write ±0.05 mm as the repeatability of the connected robotic arm. Do not write runtime.
Line-by-Line Verification
Degrees of freedom. This is an end-effector gripper, not a multi-joint arm. The public table does not give the gripper a single "degrees of freedom" integer; do not invent one to align with other embodiments. This row only states the number and locations of joints that have been made public. It does not evaluate intelligence, and it does not automatically include waist, legs, neck, or whole-machine totals that are not named on the page. When writing the action vector, create channels only for the parts listed in this row; parts not listed remain blank. Do not write blank as 0, because 0 would be treated by training scripts as a real angle. Do not fill in a degrees-of-freedom integer from another device to complete this row. If the master–slave joint order is not given on the page, mark it as pending written configuration confirmation; do not number it yourself. Joint count does not provide runtime. The action vector creates channels only for the parts named in this row; parts not named remain blank and are not filled with 0.
Payload and mass. Maximum envelope grasping payload 5 kg. Recommended maximum friction payload 2 kg. Maximum gripping force 130 N. These three numbers must not all be written as the same 5. The numbers in this row must be read aloud with their subject: rated, self-weight, overall mass, envelope, friction, or gripping force. If the subjects differ, they cannot be merged into one number, nor can conversions be performed that the page does not provide. If an object in the field is heavier, that does not reverse-change the specification; a larger specification does not prove that every grasping method reaches that limit. The tool mass is undetermined; do not write the arm's rated value as the graspable object mass. The acceptance sheet retains the original units. Payload conditions will change actual power consumption but do not rewrite the battery row. During acceptance, read the subject first and then the number; if the subjects do not match, split into two rows.
Dimensions and scale. Overall dimensions 112 × 60 × 167 mm. Stroke 65 mm. Finger height 80 mm. Body weight 745 g. This row describes form-factor or structural scale, used to check doorways, elevators, tabletops, or transport; it is not operating height and not reach. Do not add it to vertical range. If the figure shows protrusions, antennas, or a human standing position that are not in this row, note separately that they are not part of the specification. If weight appears in an adjacent row, do not write it into the dimension sentence. The form factor does not include battery compartment capacity. Doorways, elevators, and transport are checked against form factor only; do not treat this row as operating height.
Operating range. The 65 mm stroke is the finger opening distance, not the robotic arm's reach, and not the body's vertical working range. This row describes the range the hand or lift can reach; the definition must follow the original sentence: vertical working range, reach, motion radius, or stroke — these cannot be added together or renamed. If "excluding end-effector" is written, it must remain in the figure caption. If the original text does not mark units, retain the note "units not specified"; do not delete it for tidiness. Lift stroke is not converted into power-consumption time. The figure caption retains the range definition from the original sentence, as well as the terms "excluding end" or "units not specified."
Motion. Opening / closing time 2 s. Positional repeatability ±0.05 mm. The 2 seconds is the time specification for opening or closing, not the control frequency. This row describes how the ground or the main arm moves. Four-wheel four-drive, differential drive, in-place rotation radius, and rotational speed are terms for different mechanisms and cannot be substituted for one another. Published speed is a capability, not a recommended teaching speed; teaching can be slower, but the slower speed is recorded under experimental conditions and is not written back into the specification. For pages that do not state gradeability or positioning, do not borrow from other pages. Speed capability is not converted into battery life. Teaching speed can be lower, but the lower speed is recorded under the operating conditions and does not change the published capability in this row.
Power. Rated voltage 24 V. Rated / maximum current 1.9 / 5.7 A. Rated / maximum power 45.6 / 136.8 W. There is no battery capacity and no battery life in hours. This row retains only the electrical terms that appear on the page: voltage, capacity, battery life, charging, current, or power. If there are no hours, write that battery life is not specified; do not fill in with hours from adjacent pages. Charging time must not be renamed as battery life. Rated and maximum must be listed in separate columns. Approximate values retain the word approximately. Amp-hours from multiple devices must not be summed and stated as the battery of a single device. This is the main electrical row. Write hours only if hours are given; write charging only if charging is given. Hours, charging, or current that do not appear remain unspecified and must not be copied in from adjacent pages.
Perception and computation. Communication interface: 6-pin aviation connector. Communication protocol: RS485 / Modbus-RTU. Operating environment: 0–50 °C, relative humidity ≤85%. No camera on the page. This line itemizes the items already stated under sensors, computation, or communication, and retains the terms standard, included, optional, and configurable. An unchecked optional item does not count. When the cover conflicts with the list, cite the list while not pretending the cover statement does not exist. Head-mounted devices and gloves do not enter this line. Processors, storage capacity, or camera channel counts that are not written out must not be drawn into the system diagram. Simultaneously opening multiple cameras does not mean the specification already includes the hours for that operating condition. Optional sensors that have not been purchased do not enter this data dictionary.
End effector. It is the end effector itself. Whether it directly matches the flange, wiring harness, and protocol of the robotic platform must be confirmed on the configuration sheet, and the page should state that it is not plug-and-play by default. This line describes at which end contact or gripping occurs. Quick-change, compatible, and recommended are not models already included in the box. The finger ring fixture on the main arm is not an end-effector gripper. Force, stroke, and payload remain as-is in their respective lines and must not be merged into a single system metric because they are mounted on a particular robotic platform. For flange and protocol mappings that are not specified, write "to be confirmed," not "plug-and-play." The gripper's 24 V does not automatically equal the robotic platform's battery voltage. "Supports" or "compatible" without a model number cannot be treated as delivered.
Boundary. The standard quantity table for the lift model does not include this gripper. The folding model states quick-change capability, not that RMG22-65 is already in the case. The recommended item CTAG2F90-D is also not this model. This row is a boundary deliberately separated on the page: another model, another column, another product page, or an interface that still requires project confirmation after modularization. The boundary is not a defect note; it prevents verbally buying two pages as one. When writing a proposal, copy the boundary into "not included in this order." If a device not included is added later, open a new configuration sheet; do not go back and change the body name in old samples. Kit voltages follow their respective columns and are not merged into a single power supply. Devices within the boundary must be ordered separately; do not rename old samples to say they already include it.
Configuration column. The order should state the model RMG22-65, and specify which body it is mounted on, the quantity, and whether it replaces other gripper models in that body's recommended column. This row distinguishes standard, recommended, and optional. Recommended and optional items are not delivered unless checked. If the standard row and the parameter table row disagree, keep both rows and use "locked for this order" to indicate which one is actually delivered, rather than crossing out one row in the order without signing off. Price and lead time are not written into this row's restatement. If the optional 5G or wireless module has power consumption, it is not counted in when not selected. Unchecked recommended and optional items are written on the order as not delivered.
Excerptable. Copy the attachment line by line: envelope 5 kg; friction recommendation 2 kg; maximum gripping force 130 N; stroke 65 mm; finger height 80 mm; 745 g; opening/closing 2 s; repeatability ±0.05 mm; 24 V; 1.9/5.7 A; 45.6/136.8 W; RS485 / Modbus-RTU. This line is the type that can be pasted into the attachment: with a subject, with units, and traceable back to the original sentence on the product page. When pasting, keep "approximately", "excluding", "not provided", "optional", and "recommended". Do not convert and keep only the result. If the same number has different meanings on two pages, write it as two lines in the attachment. Do not mix test protocols into specification excerpts. The attachment electrical line must not add hours that do not appear. When pasting into the attachment, paste the words "approximately", "excluding", and "optional" along with them.
Do not write. Do not convert 130 N to 5 kg and then delete the original row. Do not write ±0.05 mm as the repeatability of the connected robotic arm. Do not write runtime. This row is a negative statement for review purposes. It does not describe what the device can do; it only prevents hours, degrees-of-freedom, payload subjects, or cover slogans from an adjacent page from being written in. If a negative statement is hit, revert to the original sentence from the product page; do not interpret it as "close enough." Success rates from external papers and total hours not published on this site likewise must not be written in. Approximately 6 hours, charging approximately 2 hours, and hours not given — these three must not be substituted for one another. If a manuscript search hits a negative statement, revert to the original sentence from the product page.
| Projects | Public-Facing Positioning of This Page |
|---|---|
| Degrees of Freedom | This is an end-effector gripper, not a multi-joint arm. The public table does not give the gripper a "degree of freedom" integer; do not fabricate one to align with other platforms. |
| Load and Mass | Maximum envelope grasp payload 5 kg. Recommended maximum friction payload 2 kg. Maximum clamping force 130 N. These three numbers cannot all be written as the same 5. |
| Form Factor and Scale | Overall dimensions 112 × 60 × 167 mm. Stroke 65 mm. Finger height 80 mm. Body weight 745 g. |
| Operating Range | The 65 mm stroke is the finger opening distance, not the robotic arm reach, nor the platform's vertical working range. |
| Motion | Open / close time 2 s. Positional repeatability ±0.05 mm. The 2 seconds is the specification for the open or close time, not the control frequency. |
| Power | Rated voltage 24 V. Rated / maximum current 1.9 / 5.7 A. Rated / maximum power 45.6 / 136.8 W. No battery capacity, no battery life in hours. |
| Perception & Compute | Communication interface: 6-pin aviation connector. Communication protocol: RS485 / Modbus-RTU. Operating environment: 0–50 °C, relative humidity ≤85%. There is no camera on the page. |
| End Effector | It is itself the end-effector. Whether it directly matches the flange, wiring harness, and protocols of the platform must be confirmed on the configuration sheet; the page states that plug-and-play is not the default. |
| Boundary | The standard quantity table for the lift model does not include this gripper. The folding model lists quick-change capability, not that the RMG22-65 is already in the box. The recommended item CTAG2F90-D is also not this model. |
| Configuration Panel | The order should specify model RMG22-65, and state which platform it is mounted on, the quantity, and whether it replaces other gripper models listed in that platform's recommended column. |
| Excerptable | Attachment specifications listed line by line: envelope 5 kg; recommended friction 2 kg; maximum gripping force 130 N; stroke 65 mm; finger height 80 mm; 745 g; open/close time 2 s; repeatability ±0.05 mm; 24 V; 1.9/5.7 A; 45.6/136.8 W; RS485 / Modbus-RTU. |
| Do not write | Do not convert 130 N to 5 kg and then delete the original row. Do not write ±0.05 mm as the repeatability of the attached robotic arm. Do not state battery life. |

Relationship to Public Methods and Adjacent Pages
The battery row only states the chemistry, voltage, and capacity written on the page, and—only when stated—endurance or charging time. A table without an hour figure cannot be filled in with "same voltage, so roughly six hours." The folding model lists lithium iron phosphate, DC 48 V, 20 Ah, endurance approximately 6 hours; this sentence belongs only to the folding model. The lift model also lists lithium iron phosphate, DC 48 V, 20 Ah, but the documentation does not give an endurance figure in hours; the approximately 6 hours cannot be added in articles, contracts, or verbally. The wheeled humanoid states 40 Ah and charging approximately 2 hours; charging time is not endurance time.
The specification table for the isomorphic teleoperation kit has no battery row. Neither the kit page nor the gripper page uses empty sentences such as "battery or battery life: see table below." The master arm supply voltage is read by column: the two remote force-feedback master arms are DC 24 V, and the local isomorphic kit is DC 12 V.
Endurance also depends on operating conditions. Even though the folding type has published approximately 6 hours, that is a magnitude from the product page, not the working hours measured in this article under full-load teleoperation, continuous lifting, and multiple camera streams running simultaneously. On-site working hours are governed by the written test conditions.
This article only restates the fields present in this product's power row, and names the sentence it refuses to inherit.
Before handing off to a colleague
The power column is made into a single-line physical label affixed to the device. The label contains only the words from the original sentence. If there is no hour figure, it is printed as "No endurance given", to prevent someone from filling in 6 hours on the duty roster. The label for charging time is printed as "Charging", not "Endurance". Devices with different voltages are affixed with different labels, to prevent the claim that a DC12V device is connected to DC24V from being treated as already verified. When multiple devices are used simultaneously, labels are not merged. If an operating-condition duration test is to be performed, the test record is kept in a separate book and does not overwrite the label. Two copies of the label are printed: one affixed to the device and one to the duty roster. The text of both copies must be identical. If someone hand-writes an hour figure on the duty roster with a pen, the pen mark is erased in favor of the label, and a note is made on the duty roster: "Not given on the page; hours must not be handwritten." Devices with different voltages do not share a single power description. If an operating-condition test yields a duration, the report title reads "Project Test", and the first line reads "Not a product specification."
First, labels contain only the original sentence.
Second, if there are no hours, print that battery life is not specified.
Third, charging is not renamed as runtime.
Fourth, different voltages do not share documentation.
Fifth, handwritten hours are erased and the label takes precedence.
Sixth, the operating-condition duration title reads project test.
