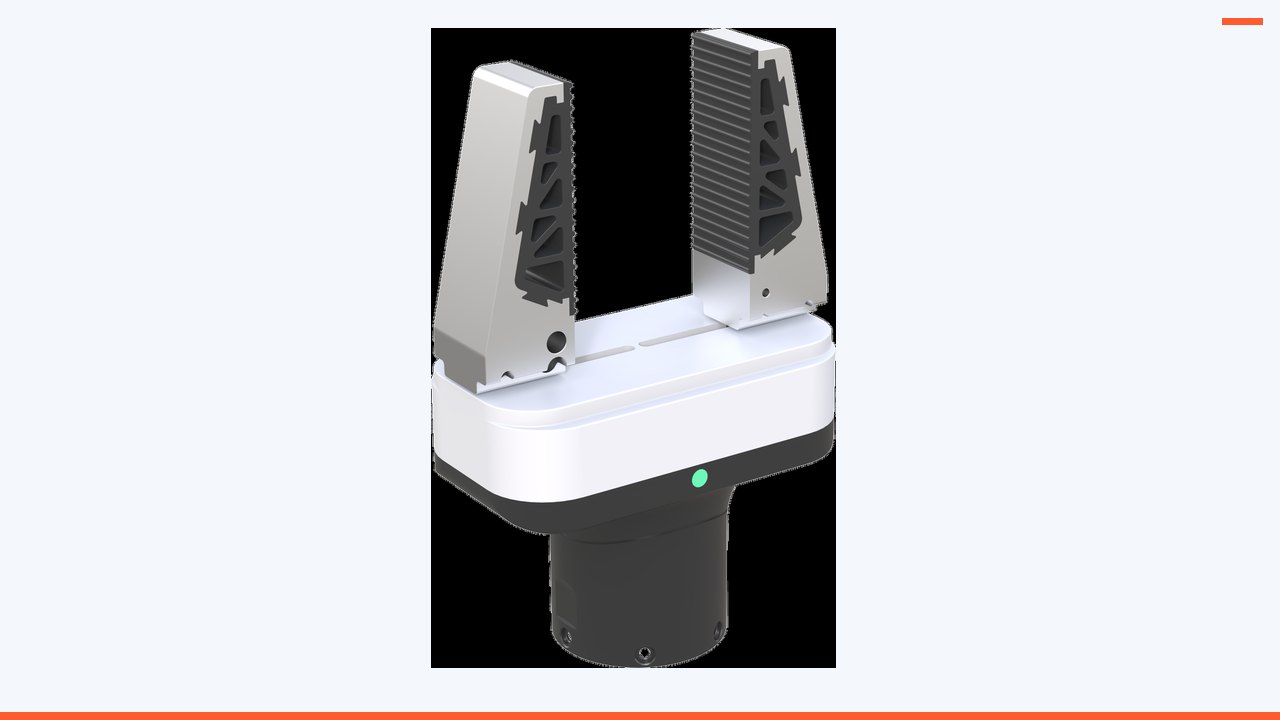

Three bodies plus one kit plus one gripper make five cards, not a single averaged parameter. When comparing, place only that page's own sentence in each row. The reason the two-finger parallel gripper RMG22-65 is selected in this article can only come from its own statements: this is an end gripper, not a multi-joint arm. The published table does not give the gripper an integer "degrees of freedom"; do not invent one to align with other bodies. A stroke of 65 mm is the finger opening distance, not the robotic arm's reach, nor the body's vertical working range. Open / close time 2 s. Position repeatability ±0.05 mm. The 2 seconds is the time basis for opening or closing, not the control frequency. Rated voltage 24 V. Rated / maximum current 1.9 / 5.7 A. Rated / maximum power 45.6 / 136.8 W. There is no battery capacity and no battery life in hours.
Three-way comparison
Quantities that cannot be used for ranking include: degree-of-freedom integers, whole-machine mass, battery amp-hours, and whether force feedback is present. Their definitions differ. Force feedback belongs to the kit's column, not to the three base units' default configurations. Endurance hours are only stated for the folding model.
The two-finger parallel gripper RMG22-65 is usually selected because the item cited above happens to be the task's constraint: height, door width, differential drive or four-wheel steering with four-wheel drive, in-place rotation, main-arm column, or the gripper's force and stroke. Not because a number in some line is larger.
The other two units in the comparison table follow their respective product pages. This article does not write their numbers into the order for the two-finger parallel gripper RMG22-65. The product center separates the five cards precisely for this procedure.

How to Use This Page in This Version
Each cell of the selection comparison table contains only that page's original sentence, not adjectives. The column for the two-finger parallel gripper RMG22-65 should contain at least: this is an end gripper, not a multi-joint arm; the published table does not give the gripper an integer "degrees of freedom" — do not invent one to align with other bodies; overall dimensions 112 × 60 × 167 mm; stroke 65 mm; finger height 80 mm; body weight 745 g; a stroke of 65 mm is the finger opening distance, not the robotic arm's reach, nor the body's vertical working range; open / close time 2 s; position repeatability ±0.05 mm; the 2 seconds is the time basis for opening or closing, not the control frequency; rated voltage 24 V; rated / maximum current 1.9 / 5.7 A; rated / maximum power 45.6 / 136.8 W; no battery capacity, no battery life in hours; maximum envelope gripping payload 5 kg; recommended maximum friction payload 2 kg; maximum gripping force 130 N; the three numbers cannot all be written as the same 5. Other columns are copied from the corresponding product pages, not filled in from memory in this article. Memory is most likely to fill in approximately 6 hours, 900 mm, 690 mm, and 21 degrees of freedom in the wrong columns.
Do not rank. Do not rank degrees of freedom, mass, amp-hours, or speed as "higher is better." If the task involves a narrow doorway, a width limit of 465 mm may be more relevant than larger dimensions; if the task involves overhead work, vertical range or vertical reach is what matters; if the task involves master-slave force feedback, leave the embodiment column and look at the first two columns of the kit.
Kits and grippers do not go into the three-column rig table. Each occupies its own row. Writing force feedback into the folding-model cell, or writing 130 N into the wheeled-humanoid cell, is a column violation.
Write the conclusion of the comparison as "because a certain cell matches the task," not as "overall stronger." The matching cell must be clickable at /product-gripper-2f.html. If it cannot be clicked, the selection is not complete. Do not convert 130 N to 5 kg and then delete the original line. Do not write ±0.05 mm as the repeatability of the robotic arm it is connected to. Do not write battery life.
Line-by-Line Verification
Degrees of freedom. This is an end gripper, not a multi-joint arm. The published table does not give the gripper an integer "degrees of freedom"; do not invent one to align with other bodies. This line only states the number and locations of joints that have already been published. It does not evaluate intelligence, and it does not automatically include the waist, legs, neck, or a whole-machine total that the page does not name. When writing into an action vector, create channels only for the locations present in the line; locations not present remain blank. Do not write blanks as 0, because 0 would be treated by training scripts as a real angle. Do not fill in another device's degrees-of-freedom integer after this line to make it add up. If the page does not provide the master-slave joint order, mark it as pending written configuration confirmation; do not number it yourself. This cell of the comparison table contains only this page's original degrees-of-freedom sentence. The action vector creates channels only for the locations named in this line; unnamed locations remain blank and are not filled with 0.
Load and mass. Maximum envelope grasp load 5 kg. Recommended maximum friction load 2 kg. Maximum clamping force 130 N. These three numbers must not be written as the same 5. Every number on this line must be read with its subject: rated, self-weight, full-machine mass, envelope, friction, or clamping force. If the subjects differ, they must not be merged into one number, nor converted using any conversion not given on the page. If the object in the field is heavier, the specification cannot be revised retroactively; a larger specification does not prove that every grasp type reaches that limit. The tool mass is undetermined; do not write the arm's rated value as the graspable object mass. The acceptance table retains the original units. The comparison table does not place the masses of the three units into the same "load" cell. During acceptance, read the subject first, then the number; if the subjects differ, split into two rows.
Dimensions and scale. Full-machine dimensions 112 × 60 × 167 mm. Stroke 65 mm. Finger height 80 mm. Body weight 745 g. This line is for external or structural dimensions, used to check doorways, elevators, tabletops, or transport; it is not operating height, nor is it arm reach. Do not add it to the vertical range. If the figure shows protrusions, antennas, or a person's standing position not present in this line, note separately that they are not part of the specification. If weight appears in an adjacent row, do not write it into the dimension sentence. Each of the three units occupies its own cell for dimensions. Doorways, elevators, and transport are checked only against external dimensions; do not treat this line as operating height.
Operating range. Stroke 65 mm is the finger opening distance, not the robotic arm's reach, nor the body's vertical working range. This line describes the range the hand or lift can reach; the definition must follow the original sentence: vertical working range, reach, motion radius, or stroke — these cannot be added together or renamed. If "excluding end effector" is written, it must remain in the figure caption. When the original text does not specify units, retain the note "units not specified"; do not delete it for tidiness. Vertical range, lift stroke, and vertical reach are not merged into a company standard height. The figure caption retains the range definition from the original sentence, as well as the terms "excluding end" or "units not specified."
Motion. Open/close time 2 s. Positional repeatability ±0.05 mm. The 2 s refers to the open or close time, not the control frequency. This row describes how the ground base or primary arm moves. Four-wheel four-drive, differential drive, in-place rotation radius, and rotational speed are terms for different mechanisms and cannot be substituted for one another. Published speed is a capability, not a recommended teaching speed; teaching can be slower, but the slower speed is recorded in the experimental conditions and is not written back into the specification. Pages that do not mention slope climbing or positioning should not borrow from other pages. Each of the three motion terms occupies its own field. Teaching speed can be lower, but the lower speed is recorded in the operating conditions and does not change the published capability in this row.
Power supply. Rated voltage 24 V. Rated / maximum current 1.9 / 5.7 A. Rated / maximum power 45.6 / 136.8 W. There is no battery capacity, no runtime in hours. This line retains only the electrical terms that appear on the page: voltage, capacity, runtime, charging, current, or power. If there is no "hours," write that runtime is not given; do not fill in hours from an adjacent page. Do not rename charging time as runtime. Rated and maximum must be listed in separate columns. Approximate values retain "approximately." Do not sum the ampere-hours of multiple devices and claim it as one device's battery. Hours appear only in cells where hours are written. Hours, charging, or current that do not appear remain as not given; do not copy them in from an adjacent page.
Perception and computing. Communication interface: 6-pin aviation connector. Communication protocol: RS485 / Modbus-RTU. Operating environment: 0–50 ℃, relative humidity ≤85%. There is no camera on the page. This row inventories the items already specified in sensors, computing, or communications, and preserves the terms standard, standard-equipped, optional, and optional-order. An optional item that is not checked does not count. When the cover and the list conflict, cite the list, while not pretending the cover statement does not exist. Headsets and gloves do not enter this row. Processors, hard-drive capacity, or camera channel counts that are not written out must not be drawn into the system diagram. Camera configuration does not participate in platform ranking. Optional sensors that were not purchased do not enter this data dictionary.
End effector. It is itself the end effector. Whether it directly matches the body's flange, wiring harness, and protocol must be confirmed on the configuration sheet; the page states that plug-and-play is not the default. This line describes which end contact or gripping occurs at. Quick-change, compatible, and recommended are not models already included in the box. The finger-ring fixture on the main arm is not a distal gripper. Force, stroke, and load remain as written in their respective rows; they are not merged into a single system metric because they are mounted on a particular body. Flange and protocol mappings that are not given should be written as "to be confirmed," not as plug-and-play. The end effector is not included in the capability score of the body comparison. "Supports" or "compatible" without a model number cannot be treated as delivered.
Boundary. The standard quantity table for the lift model does not include this gripper. The folding model's entry states quick-change capability, not that RMG22-65 is already in the box. The recommended item CTAG2F90-D is also not this model. This line is a boundary deliberately kept separate on the page: another model, another column, another product page, or an interface that still requires project confirmation after modularization. The boundary is not a defect note; it prevents verbally merging two pages into one purchase. When writing a proposal, copy the boundary into "not included in this order." If an excluded device is added later, open a new configuration sheet; do not go back and change the body name in the old sample. The kit column and the gripper row are not mixed into the three body columns. Devices within the boundary must be ordered separately; do not rename the old sample to say it already includes them.
Configuration column. The order specifies model RMG22-65 and states which body it is mounted on, the quantity, and whether it replaces other gripper models in that body's recommended column. This line distinguishes standard, recommended, and optional. Recommended and optional items are not delivered unless checked. If the standard row conflicts with the parameter table row, keep both rows and use "locked for this order" to indicate which one is actually delivered, rather than striking out one row in the order without signing. Prices and lead times are not written into this line's restatement. Recommended items are not written as standard on all three units. Unchecked recommended and optional items are written on the order as not delivered.
Excerptable. Copy into separate lines in the attachment: envelope 5 kg; friction recommendation 2 kg; maximum clamping force 130 N; stroke 65 mm; finger height 80 mm; 745 g; opening / closing 2 s; repeatability ±0.05 mm; 24 V; 1.9/5.7 A; 45.6/136.8 W; RS485 / Modbus-RTU. This line is the type that can be pasted into an attachment: with subject, with units, and traceable to the original sentence on the product page. When pasting, retain "approximately," "excluding," "not given," "optional," and "recommended." Do not convert and keep only the result. If the same number has different meanings on two pages, write it as two lines in the attachment. Test protocols are not mixed into specification excerpts. Selection conclusions cite the matching cell; do not write "overall stronger." When pasting into the attachment, paste the words "approximately," "excluding," and "optional" along with the values.
Do not write. Do not convert 130 N to 5 kg and delete the original line. Do not write ±0.05 mm as the repeatability accuracy of the attached robotic arm. Do not write battery life. This line is a negative statement for review purposes. It does not describe what the device can do; it only prevents hours, degrees of freedom, load subjects, or cover slogans from neighboring pages from being written in. If a negative statement is hit, revert to the original sentence from the product page; do not interpret it as "close enough". Do not write in success rates from external papers or total hours not published on this site. Remove serially listed numbers from the comparison table. If manuscript retrieval hits a negative statement, revert to the original sentence from the product page.
| Projects | Public-Facing Positioning of This Page |
|---|---|
| Degrees of Freedom | This is an end-effector gripper, not a multi-joint arm. The public table does not give the gripper a "degree of freedom" integer; do not fabricate one to align with other platforms. |
| Load and Mass | Maximum envelope grasp payload 5 kg. Recommended maximum friction payload 2 kg. Maximum clamping force 130 N. These three numbers cannot all be written as the same 5. |
| Form Factor and Scale | Overall dimensions 112 × 60 × 167 mm. Stroke 65 mm. Finger height 80 mm. Body weight 745 g. |
| Operating Range | The 65 mm stroke is the finger opening distance, not the robotic arm reach, nor the platform's vertical working range. |
| Motion | Open / close time 2 s. Positional repeatability ±0.05 mm. The 2 seconds is the specification for the open or close time, not the control frequency. |
| Power | Rated voltage 24 V. Rated / maximum current 1.9 / 5.7 A. Rated / maximum power 45.6 / 136.8 W. No battery capacity, no battery life in hours. |
| Perception & Compute | Communication interface: 6-pin aviation connector. Communication protocol: RS485 / Modbus-RTU. Operating environment: 0–50 °C, relative humidity ≤85%. There is no camera on the page. |
| End Effector | It is itself the end-effector. Whether it directly matches the flange, wiring harness, and protocols of the platform must be confirmed on the configuration sheet; the page states that plug-and-play is not the default. |
| Boundary | The standard quantity table for the lift model does not include this gripper. The folding model lists quick-change capability, not that the RMG22-65 is already in the box. The recommended item CTAG2F90-D is also not this model. |
| Configuration Panel | The order should specify model RMG22-65, and state which platform it is mounted on, the quantity, and whether it replaces other gripper models listed in that platform's recommended column. |
| Excerptable | Attachment specifications listed line by line: envelope 5 kg; recommended friction 2 kg; maximum gripping force 130 N; stroke 65 mm; finger height 80 mm; 745 g; open/close time 2 s; repeatability ±0.05 mm; 24 V; 1.9/5.7 A; 45.6/136.8 W; RS485 / Modbus-RTU. |
| Do not write | Do not convert 130 N to 5 kg and then delete the original row. Do not write ±0.05 mm as the repeatability of the attached robotic arm. Do not state battery life. |

Relationship to Public Methods and Adjacent Pages
Do not merge the three platforms into a single product-line spec. The folding dual-arm, lift dual-arm, and wheeled humanoid platforms solve different ground and manipulation-height problems. The purpose of comparison is selection, not proving that one unit is "more advanced." Degrees of freedom count, total mass, and battery capacity cannot be ranked, because their definitions differ.
Folding type: 20 active degrees of freedom, four-wheel steering with drive, vertical 0–2.1 m, dimensions approximately 614×552×1700 mm, mass approximately 125 kg, 48 V 20 Ah, endurance approximately 6 hours, single-arm rated load 5 kg. Lift type: model RMC-AIDAL, folded dimensions 640×450×1780 mm, mass approximately 80 kg, vertical 0–2.4 m, lift stroke 900 mm, differential drive, single-arm rated load per the arm table is 5 kg, the self-weight 8 kg is the arm mass; battery 48 V 20 Ah but no endurance in hours; whole-machine degrees of freedom not published. Wheeled humanoid: 21 active degrees of freedom (arms 14, waist 3, legs 2, neck 2), dimensions 570×465×1680 mm, mass approximately 125 kg, turning radius 690 mm, 40 Ah, charging approximately 2 hours, single-arm rated load 5 kg.
Kits and grippers do not participate in this base-unit comparison. They are separate line items.
This article uses comparison to help choose that product, and specifies on which point it cannot be interchanged with the other two.
Before handing off to a colleague
After completing the comparison table, cover the other columns, read only the selected column, and ask yourself: is the task constraint one of the cells in this column? If you cannot name that cell, you have not finished selecting. Do not add or average numbers across several columns before selecting. If kits and grippers are written into the embodiment column, the entire table is void and must be rewritten. The conclusion sentence uses only "because a certain cell matches," never "composite score." Every cell in the table can point to the corresponding product page. The comparison table uses paper or a spreadsheet, not a paragraph. A paragraph will inevitably use "and" to link the numbers of two devices, and readers will remember them as one device. Each cell holds only one original sentence. If it does not fit, wrap to a new line; do not abbreviate it into a new number. After selecting, fold the unselected columns and clip only the selected column into the experiment plan. Unselected columns remain in the selection archive and do not appear on the wall at the capture site, to prevent on-site personnel from mixing them up.
First, use a table, not a paragraph.
Second, one original sentence per cell.
Third, do not average, do not add.
Fourth, kits and grippers do not go in the main unit column.
Fifth, the conclusion should only state that a particular cell matches.
Sixth, unselected columns are not posted at the capture site. After selection, copy the original sentence from that cell into the first page of the experiment plan and write the product page path. If the first page does not contain the original sentence, on-site personnel will fall back on memory — and memory is the source of column violations.
