Order the main end and the slave end separately. The standard quantity table for the lift model does not include this gripper. The folding model states quick-change capability, not that the RMG22-65 is already in the case. The recommended item CTAG2F90-D is also not this model. The order must state the model RMG22-65, and specify which body it is mounted on, the quantity, and whether it replaces other gripper models in that body's recommended column. The three kit columns differ in force feedback, voltage, speed, resolution, and grip form. The local column has no force feedback, but all three columns list zero-force drag. Zero-force drag cannot be treated as a synonym for force feedback.
Master-slave workstation
If the slave end is the two-finger parallel gripper RMG22-65, the main-end column name must still be written separately. Servo, backpack, and mobile—if they appear in the lift model's options—are mounting configurations, not a selection of GLN-RX75 or the local column.
The main arm's motion radius is a desktop scale. 709 mm, 474 mm, and 599 mm must not be written into the slave-side reach. The slave-side reach is still governed by the slave-side page.
In the contract, one line for the main end, one line for the slave end, and one line for the end effector. All three lines must point to a specific URL in the product center, not "one teleoperation system". The two-finger parallel gripper RMG22-65 corresponds to /product-gripper-2f.html.

How to Use This Page in This Version
Teleoperation procurement is always multi-line. The two-finger parallel gripper RMG22-65 occupies only one line. The master end opens a separate line, and it must be one of three columns: GLN-RX75, GLN-RX71, or a local isomorphic kit. The first two columns support force feedback; the local column does not. All three columns list zero-force gravity compensation, so "can be dragged" cannot be used to prove force feedback.
Voltage, power, rotational speed, resolution, grip, motor, and interface are all copied column by column. The first two columns are DC24V, the local column is DC12V. The first two columns are 30 RPM, ±0.003°, handle, integrated joint, RJ45. The local column is 110 RPM, 0.088°, rail-type ring fixture, bus servo, RJ45 / 10-pin aviation connector, self-weight approximately 1.5 kg including the fixture. The motion radius of 709 / 474 / 599 mm is the primary arm, not the distal arm reach.
The slave-side arm reach, degrees of freedom, and rated load are still governed by the slave-side page. If the lift model is equipped with a servo, backpack, or mobile configuration, that is an optional installation and does not automatically equate to a particular column of the main arm. The folding model and wheeled humanoid do not include the kit in the standard row. The gripper is listed on a separate row.
When all three rows are empty, do not start recording "teleoperation data." What is recorded is only the log of some device, and the action space is incomplete. Only after the rows are fully filled in can the data dictionary reference the column names. /product-gripper-2f.html is the source for the row on the two-finger parallel gripper RMG22-65. Do not convert 130 N to 5 kg and delete the original row. Do not write ±0.05 mm as the repeatability of the connected robotic arm. Do not write battery life.
Line-by-Line Verification

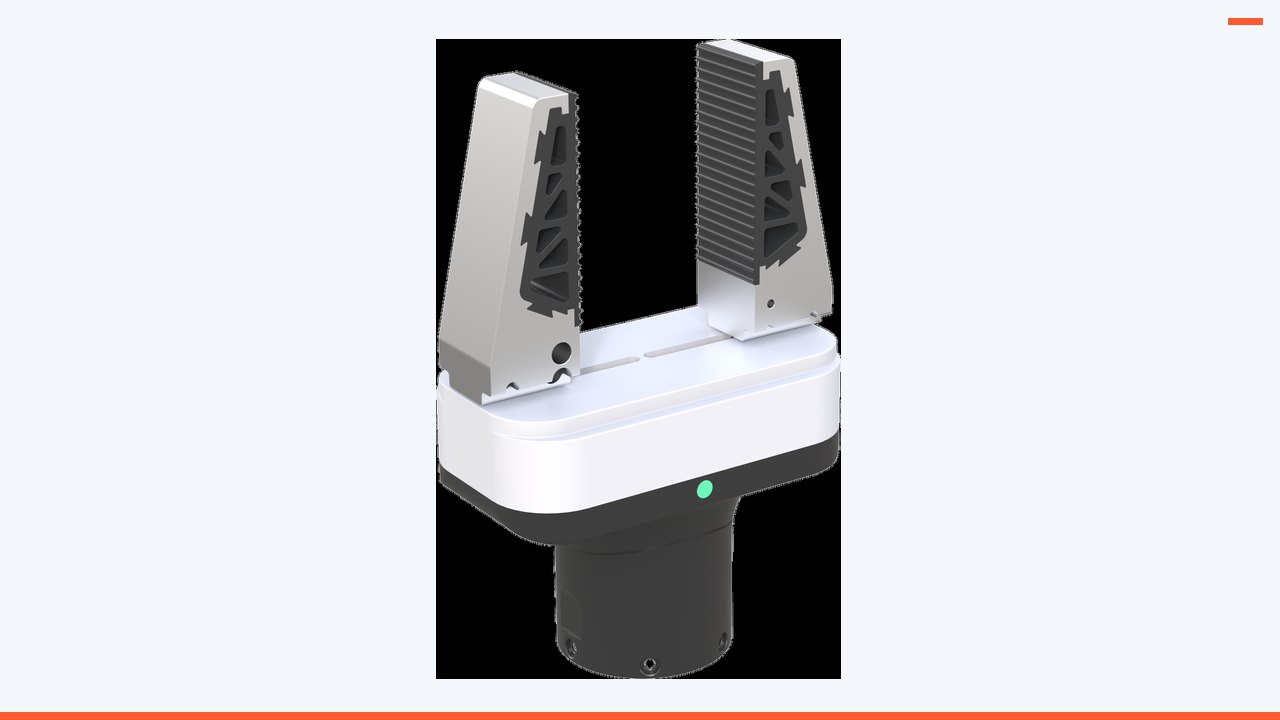

Degrees of freedom. This is an end-effector gripper, not a multi-joint arm. The public table does not give the gripper an integer "degrees of freedom" value; do not invent one to align with other bodies. This line only states the number and locations of joints that have already been made public. It does not evaluate intelligence, and does not automatically include waist, legs, neck, or a whole-machine total that are not named on the page. When writing the action vector, create channels only for the body parts listed in this line; body parts not listed remain blank. Do not write blanks as 0, because 0 would be treated by training scripts as a real angle. Do not fill in the degrees-of-freedom integer from another device to complete this line. If the main–slave joint order is not given on the page, mark it as pending written configuration confirmation; do not number it yourself. Whether the main end has 7 joints and whether the slave end has the same number still requires a mapping; do not omit it just because both are 7. The action vector creates channels only for the body parts named in this line; unnamed body parts remain blank, not 0.
Load and mass. Maximum envelope gripping load 5 kg. Recommended maximum friction load 2 kg. Maximum gripping force 130 N. These three numbers cannot all be written as the same 5. The numbers in this line must be read aloud with their subjects: rated, self-weight, whole-machine mass, envelope, friction, or gripping force. If the subjects differ, they cannot be merged into one number, nor can conversions not given on the page be performed. If an object in the field is heavier, the specification cannot be changed retroactively; a larger specification does not prove that every grasping method reaches that limit. The tool mass is undetermined; do not write the arm's rated load as the graspable object mass. The acceptance table retains the original units. The main arm's self-weight is not the slave end's rated value. During acceptance, read the subject first, then the number; if the subjects do not match, split into two lines.
Dimensions and scale. Overall dimensions 112 × 60 × 167 mm. Stroke 65 mm. Finger height 80 mm. Body weight 745 g. This line is about external or structural dimensions, used to check doors, elevators, tabletops, or transport; it is not operating height, nor is it arm reach. Do not add it to the vertical range. If a diagram shows protrusions, antennas, or a person's standing position not listed in this line, note separately that they are not part of the specification. If weight appears in an adjacent line, do not write it into the dimension sentence. The main arm's motion radius is not the slave end's external dimension. Doors, elevators, and transport are checked only against external dimensions; do not treat this line as operating height.
Operating range. The stroke 65 mm refers to the finger opening distance, not the robotic arm's reach, nor the robotic platform's vertical working range. This line describes the range that the hand or lift can reach; the definition must follow the original sentence: vertical working range, arm span, motion radius, or stroke — these cannot be added together or renamed. If "excluding end effector" is stated, it must remain in the figure caption. When the original text does not specify units, retain the "units not specified" note rather than removing it for tidiness. The distal arm span is not written into the main arm column. The figure caption retains the range definition from the original sentence, as well as phrases such as "excluding end" or "units not specified."
Motion. Opening / closing time 2 s. Positional repeatability ±0.05 mm. Two seconds is the opening or closing time metric, not the control frequency. This line describes how the ground or main arm moves. Four-wheel four-drive, differential, in-place rotation radius, and speed are terms for different mechanisms and cannot substitute for one another. Published speed is a capability, not a recommended teaching speed; teaching may be slower, but the slower speed is recorded under experimental conditions and is not written back as a specification. On pages that do not state slope climbing or positioning, do not borrow from other pages. The main arm's speed and the slave end's chassis speed are listed separately. Teaching speed may be lower, but the lower speed is recorded under operating conditions and does not change the published capability in this line.
Power supply. Rated voltage 24 V. Rated / maximum current 1.9 / 5.7 A. Rated / maximum power 45.6 / 136.8 W. There is no battery capacity and no battery life in hours. This line retains only the electrical terms that appear on the page: voltage, capacity, battery life, charging, current, or power. If there are no "hours", write "battery life not specified"; do not fill the gap with hours from an adjacent page. Charging time must not be renamed as battery life. Rated and maximum must be listed separately. Retain "approximately" for approximate values. Do not sum the ampere-hours of multiple devices and claim it as one device's battery. The main arm's voltage is listed by column and is not merged with the slave end's battery into a single power supply. Hours, charging, or current that do not appear remain "not specified" and must not be copied in from an adjacent page.
Perception and computing. Communication interface: 6-pin aviation connector. Communication protocol: RS485 / Modbus-RTU. Operating environment: 0–50 ℃, relative humidity ≤85%. There is no camera on the page. This line inventories the items already specified under sensors, computing, or communication, and preserves the terms standard, included, optional, and optional-order. An unchecked optional item does not count. When the cover conflicts with the checklist, cite the checklist while not pretending the cover statement does not exist. Head-mounted devices and gloves do not enter this line. Processors, storage capacity, or camera channel counts that are not written out must not be drawn into the system diagram. Angular resolution is listed per column; 0.088° and ±0.003° must not be averaged. Optional sensors that were not purchased do not enter this data dictionary.
End-effector. It is itself the end-effector. Whether it directly matches the flange, wiring harness, and protocol of the robotic platform must be confirmed in the configuration sheet; the page states explicitly that it is not plug-and-play by default. This row describes which end the contact or grasping occurs at. Quick-change, compatible, and recommended are not models already included in the box. The ring fixture on the main arm is not a slave-end gripper. Force, stroke, and payload remain as-is in their respective rows and are not merged into a single system metric just because they are mounted on a particular robotic platform. For flange and protocol mappings that are not provided, write "to be confirmed," not "plug-and-play." The ring fixture and the slave-end gripper are two ends. "Supports" or "compatible" without a model number cannot be treated as already delivered.
Boundaries. The standard quantity table for the lift model does not include this gripper. The folding model states quick-change capability, not that the RMG22-65 is already in the case. The recommended item CTAG2F90-D is also not this model. This line is a boundary deliberately separated on the page: another model, another column, another product page, or an interface that still requires project confirmation after modularization. The boundary is not a defect note; it prevents two pages from being verbally merged into one when ordering. When writing a proposal, copy the boundary into "not included in this order". If a device that was not included is added later, open a new configuration sheet; do not go back and change the body name in the old sample. Force feedback exists only in columns that state support. Zero-force drag appears in all three columns and cannot be treated as force feedback. Devices within the boundary must be ordered separately; do not rename the old sample to say it already includes them.
Configuration column. The order must state the model RMG22-65, and specify which body it is mounted on, the quantity, and whether it replaces other gripper models in that body's recommended column. This line distinguishes standard, recommended, and optional. Recommended and optional items are not delivered unless checked. If the standard line and the parameter table line are inconsistent, keep both lines and use "locked for this order" to indicate which one is actually delivered, rather than striking out one line in the order without signing off. Price and lead time are not written into this line's restatement. The slave end's optional mounting configuration is not the main-end column name. Unchecked recommended and optional items are written in the order as not delivered.
Excerptable. Copy the attachment line by line: envelope 5 kg; friction recommendation 2 kg; maximum gripping force 130 N; stroke 65 mm; finger height 80 mm; 745 g; open/close 2 s; repeatability ±0.05 mm; 24 V; 1.9/5.7 A; 45.6/136.8 W; RS485 / Modbus-RTU. This is the type of line that can be pasted into an attachment: it has a subject, has units, and can be traced back to the original sentence on the product page. When pasting, keep words like "approximately", "excluding", "not specified", "optional", and "recommended". Do not convert and keep only the result. If the same number means different things on two pages, write it as two lines in the attachment. Do not mix test protocols into specification excerpts. The order needs at least two lines: master-side column name, slave-side page name. Add one more line at the end. When pasting into the attachment, include words like "approximately", "excluding", and "optional" as well.
Do not write. Do not convert 130 N to 5 kg and delete the original line. Do not write ±0.05 mm as the repeatability of the connected robotic arm. Do not write battery life. This line is a negative sentence for review purposes. It does not describe what the device can do; it only prevents hours, degrees of freedom, load subjects, or cover slogans from adjacent pages from being written in. If a negative sentence is matched, revert to the original sentence on the product page; do not interpret it as "approximately". Success rates from external papers and total hours not published on this site must likewise not be written in. Merged sentences such as "one teleoperation kit with force feedback" are prohibited. If a manuscript search matches a negative sentence, revert to the original sentence on the product page.
| Projects | Public-Facing Positioning of This Page |
|---|---|
| Degrees of Freedom | This is an end-effector gripper, not a multi-joint arm. The public table does not give the gripper a "degree of freedom" integer; do not fabricate one to align with other platforms. |
| Load and Mass | Maximum envelope grasp payload 5 kg. Recommended maximum friction payload 2 kg. Maximum clamping force 130 N. These three numbers cannot all be written as the same 5. |
| Form Factor and Scale | Overall dimensions 112 × 60 × 167 mm. Stroke 65 mm. Finger height 80 mm. Body weight 745 g. |
| Operating Range | The 65 mm stroke is the finger opening distance, not the robotic arm reach, nor the platform's vertical working range. |
| Motion | Open / close time 2 s. Positional repeatability ±0.05 mm. The 2 seconds is the specification for the open or close time, not the control frequency. |
| Power | Rated voltage 24 V. Rated / maximum current 1.9 / 5.7 A. Rated / maximum power 45.6 / 136.8 W. No battery capacity, no battery life in hours. |
| Perception & Compute | Communication interface: 6-pin aviation connector. Communication protocol: RS485 / Modbus-RTU. Operating environment: 0–50 °C, relative humidity ≤85%. There is no camera on the page. |
| End Effector | It is itself the end-effector. Whether it directly matches the flange, wiring harness, and protocols of the platform must be confirmed on the configuration sheet; the page states that plug-and-play is not the default. |
| Boundary | The standard quantity table for the lift model does not include this gripper. The folding model lists quick-change capability, not that the RMG22-65 is already in the box. The recommended item CTAG2F90-D is also not this model. |
| Configuration Panel | The order should specify model RMG22-65, and state which platform it is mounted on, the quantity, and whether it replaces other gripper models listed in that platform's recommended column. |
| Excerptable | Attachment specifications listed line by line: envelope 5 kg; recommended friction 2 kg; maximum gripping force 130 N; stroke 65 mm; finger height 80 mm; 745 g; open/close time 2 s; repeatability ±0.05 mm; 24 V; 1.9/5.7 A; 45.6/136.8 W; RS485 / Modbus-RTU. |
| Do not write | Do not convert 130 N to 5 kg and then delete the original row. Do not write ±0.05 mm as the repeatability of the attached robotic arm. Do not state battery life. |

Relationship to Public Methods and Adjacent Pages
The master-slave isomorphic kit is the main end, and the base unit is the slave end. The page has two tables, and the order usually has two lines. The kit itself has three columns, and merging them into "one teleoperation kit" is prohibited.
GLN-RX75: Supports force feedback, main arm length 709 mm, self-weight 7.8 kg, grip is a handle, 7 degrees of freedom, joint angle resolution ±0.003 degrees, zero-force dragging, rated speed 30 rpm, integrated joints, RJ45, DC 24 V, total power consumption no more than 200 W, main arm model RX75 in the YDS series. GLN-RX71: Also supports force feedback, length 474 mm, self-weight 3.8 kg, power consumption no more than 100 W, main arm model RX71; other interaction forms and the 75's same-category items follow that column's cell. Local isomorphic kit: Does not support force feedback, isomorphic to the slave arm, length 599 mm, grip is a rail-type ring fixture, angular resolution 0.088 degrees, self-weight including fixture approximately 1.5 kg, speed 110 rpm, bus servos, RJ45 or 10-pin, DC 12 V, rated power 84 W, main arm model YDS-DAP-75/65/RX75S.
If the main unit page lists servos, backpack, and mobile base as optional teleoperation modes, that is an installation configuration, not a selection already made from one of the three columns above. Force feedback exists only in the first two columns.
This article explains the interface relationship between this product and the three-column kit: which includes which, and which must be ordered separately.
Before handing off to a colleague
The master-slave order is placed in the upper and lower columns of a single sheet, with no "one system set" allowed in between. The upper column is the column name of one of three columns; the lower column is the slave-side product page name. Force feedback is checked only in the upper column and only when the first two columns are selected. When the local column is selected, the force feedback checkbox prints as unsupported, even if zero-force dragging is supported. Voltage is filled in according to the upper column. If an end effector is needed, use the third sheet; do not cram it into the notes between the upper and lower columns. A horizontal line is printed between the upper and lower columns, with "not the same device" written on the line. Column names use a dropdown rather than free text; the dropdown has only three columns. Free text will produce statements like "teleoperation kit" that cannot be mapped to a cell. The force feedback checkbox automatically locks to unsupported when the local column is selected, and cannot be changed back. The voltage field is likewise locked by column. A form whose lock fails cannot be saved.
First, the upper and lower rows are not the same machine.
Second, column names can only be one of three options.
Third, the force-feedback column is fixed to "not supported."
Fourth, zero-force drag does not change the previous entry.
Fifth, voltage is locked to its column.
Sixth, the end effector uses the third sheet. The three sheets are filed separately: master side, slave side, end effector. If any one sheet is missing, do not create the collection directory. Once the directory is created, someone will start putting files into it.
