Two-Finger Gripper RMG22-65 | How to read conflicting specs: catchy slogans give way, the parameter table is authoritative

When specifications conflict, present the original text side by side; do not pick the more flattering one. Sentences that need to be listed separately on the two-finger parallel gripper RMG22-65 page include: maximum envelope grasp payload 5 kg. Recommended maximum friction load 2 kg. Maximum gripping force 130 N. These three numbers must not all be written as the same 5. The standard quantity for the lift version...

2026-10-03
TOBI
Product Insights
Two-Finger Gripper RMG22-65 | How to read conflicting specs: catchy slogans give way, the parameter table is authoritative
Product InsightsTwo-Finger Parallel Gripper RMG22-652026-10-03

When specifications conflict, present the original text side by side rather than choosing the more flattering one. The sentences that need to be listed separately on the two-finger parallel gripper RMG22-65 page include: maximum envelope grasp payload 5 kg. Recommended maximum friction payload 2 kg. Maximum gripping force 130 N. These three numbers must not be written as the same 5. The standard quantity table for the lift version does not include this gripper. The folding version describes quick-change capability, not that RMG22-65 is already in the box. The recommended item CTAG2F90-D is also not this model. Rated voltage 24 V. Rated / maximum current 1.9 / 5.7 A. Rated / maximum power 45.6 / 136.8 W. There is no battery capacity and no runtime hours. These look like they are describing "capabilities," but they are actually different rows. Once merged into one sentence, each party will hold a different number at acceptance.

Specification basis

Units follow the numbers. Millimeters, kilograms, newtons, seconds, revolutions per minute, volts, and ampere-hours must not be lost when restating. The 65 mm stroke is the finger opening distance, not the robot arm reach, nor the vertical working range of the unit itself. If the original source text does not specify units at certain positions, retain the note "units not specified in the original text" externally rather than deleting the note to make the numbers look cleaner.

Standard rows, recommended rows, and optional rows are also part of the specification, not a matter of copy tone. The order specifies model RMG22-65, and states which host unit it is mounted on, the quantity, and whether it replaces other gripper models in that host unit's recommended column. When the cover slogan, parameter table, and quantity list are inconsistent, the product page for the two-finger parallel gripper RMG22-65 has already chosen to present them side by side rather than collapsing them into one line. This article follows that discipline.

A relay to a colleague can be short, but every short sentence must point back to a row in the table. Adjectives that cannot be traced back to a row, such as "high load", "long battery life", or "fully equipped with cameras", do not enter the specification summary. The authoritative table is at /product-gripper-2f.html.

Two-Finger Parallel Gripper RMG22-65

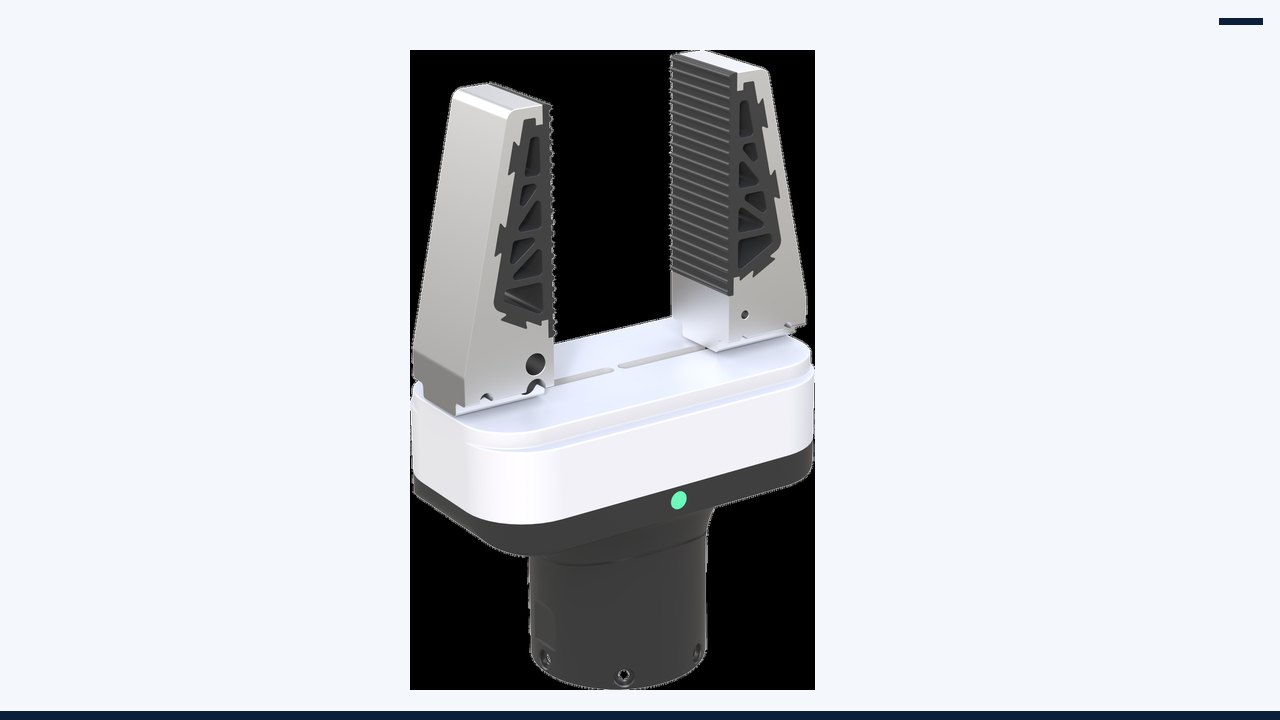

Figure 1 | Two-finger parallel gripper RMG22-65. The caption only states that this is a device photo from the product page; the appearance is not interpreted as parameters not present in the table.

How to Use This Page in This Version

Read the specifications of the two-finger parallel gripper RMG22-65 row by row, not adjective by adjective. It is recommended to copy the product page table onto a check sheet, keeping the subject on each row. The following rows are the most easily conflated, so mark them in a different color on the check sheet. Load and mass: maximum envelope grasp load 5 kg. Recommended maximum friction load 2 kg. Maximum gripping force 130 N. These three numbers must not all be written as the same 5. Geometry: overall dimensions 112 × 60 × 167 mm. Stroke 65 mm. Finger height 80 mm. Body weight 745 g. The 65 mm stroke is the finger opening distance, not the robot arm's reach, nor the body's vertical working range. Motion: open / close time 2 s. Position repeatability ±0.05 mm. The 2 seconds is the time specification for opening or closing, not the control frequency. Power: rated voltage 24 V. Rated / maximum current 1.9 / 5.7 A. Rated / maximum power 45.6 / 136.8 W. There is no battery capacity and no battery life in hours. Perception and computation: communication interface 6-pin aviation connector. Communication protocol RS485 / Modbus-RTU. Operating environment 0–50 ℃, relative humidity ≤85%. There is no camera on the page. End-effector and missing items: it is itself the end-effector. Whether the flange, wiring harness, and protocol directly match the body must be confirmed in the configuration sheet; the page states that it is not plug-and-play by default. The standard quantity table for the lift-type model does not include this gripper. The folding-type model states quick-change capability, not that RMG22-65 is already in the box. The recommended item CTAG2F90-D is also not this model.

There is only one rule for color: different subjects must not be painted the same color. Rated load and self-weight are not the same color. Envelope load and friction load are not the same color. Charging time and runtime are not the same color. Standard list and cover slogan are not the same color. Parameter-table model and standard-configuration model are not the same color. Force feedback and zero-force gravity compensation are not the same color.

The second column of the check sheet reads "can it be written in the same sentence". The answer is often no. For example, you cannot write "rated 8 kg with 6 hours of battery life", because 8 kg is the self-weight on the lift-type model, 6 hours appears only on the folding-type model, and the two machines cannot be merged into one sentence. The mergeable relationships of the two-finger parallel gripper RMG22-65 are governed by its own table, not by the customary phrasing on another card.

The third column of the check sheet records the source: the product page path /product-gripper-2f.html, and whether the row is standard, recommended, or optional. The order should specify model RMG22-65, and state which body it is mounted on, the quantity, and whether it replaces other gripper models in that body's recommended column. Numbers without a source are erased from the check sheet. Erasing is closer to acceptance criteria than keeping an "approximate".

Finally, hand the verification sheet to the person who writes the contract, not to the person who writes the poster to rewrite first. The poster can be short, but the short sentences must be findable line by line on the verification sheet. If they cannot be found, they should not appear in external text. Copy the attachment line by line: envelope 5 kg; friction recommendation 2 kg; maximum gripping force 130 N; stroke 65 mm; finger height 80 mm; 745 g; opening/closing 2 s; repeatability ±0.05 mm; 24 V; 1.9/5.7 A; 45.6/136.8 W; RS485 / Modbus-RTU. This is the type of sentence that can be kept, not raw material that can be freely converted.

Line-by-Line Verification

Degrees of freedom. This is an end-effector gripper, not a multi-joint arm. The public table does not give the gripper an integer "degrees of freedom" value; do not invent one to align with other bodies. This row only states the number and locations of joints that have already been made public. It does not evaluate intelligence, and it does not automatically include waist, legs, neck, or a whole-machine total that the page does not name. When writing into the action vector, create channels only for the body parts listed in the row; parts not listed remain blank. Do not write blank as 0, because 0 would be treated by training scripts as a real angle. Do not fill in the degrees-of-freedom integer from another device to complete the row. If the page does not provide the master-slave joint order, mark it as pending written configuration confirmation; do not number it yourself. In the specification summary, degrees of freedom are bound to body parts, not left as a standalone integer. The action vector creates channels only for the body parts named in this row; unnamed parts remain blank and are not filled with 0.

Load and mass. Maximum envelope grasp load 5 kg. Recommended maximum friction load 2 kg. Maximum gripping force 130 N. These three numbers must not all be written as the same 5. The numbers in this row must be read aloud with their subject: rated, self-weight, overall mass, envelope, friction, or gripping force. Different subjects cannot be merged into one number, nor converted without a conversion given on the page. If an object in the field is heavier, the specification cannot be changed retroactively; a larger specification does not prove that every grasping method reaches that limit. The tool mass is undetermined; do not write the arm's rated value as the graspable object mass. The acceptance table retains the original units. In the specification summary, every mass number retains its subject from the table. During acceptance, read the subject first and then the number; if the subjects differ, split into two rows.

Dimensions and scale. Overall dimensions 112 × 60 × 167 mm. Stroke 65 mm. Finger height 80 mm. Platform weight 745 g. This line describes form factor or structural scale, used to check doors, elevators, tabletops, or transport — it is not operating height, nor is it arm reach. Do not add it to the vertical range. If the diagram shows protrusions, antennas, or human standing positions not present in this line, note separately that they are not part of the specification. If weight appears in an adjacent line, do not write it into the dimension sentence. When paraphrasing form factor numbers, do not round them to approximations like "about 1.7 meters" that lose the millimeter precision. Doors, elevators, and transport only check form factor; do not treat this line as operating height.

Operating range. The stroke 65 mm is the finger opening distance, not the robotic arm's reach, nor the platform's vertical working range. This row describes the range that the hand or lift can reach; the definition must follow the original sentence: vertical working range, reach, motion radius, or stroke — these cannot be added together or renamed. If "excluding end effector" is written, it must remain in the caption. When the original does not specify units, retain the "units not specified" note and do not delete it for the sake of tidiness. When restating range figures, do not merge them with the overall height into a single "height." The caption retains the range definition from the original sentence, as well as the phrases "excluding end effector" or "units not specified."

Motion. Open \ close time 2 s. Positional repeatability ±0.05 mm. The 2-second figure is the open or close time specification, not the control frequency. This line describes how the ground or main arm moves. Four-wheel four-drive, differential drive, in-place rotation radius, and rotational speed are terms for different mechanisms and cannot be substituted for one another. Published speed is a capability, not a recommended teaching speed; teaching can be slower, but a slower speed is recorded under experimental conditions and is not written back into the specification. Pages that do not state gradeability or positioning should not borrow from other pages. Keep mechanism terms in their original wording; do not translate them into smoother synonyms. Teaching speed can be lower, but a lower speed is recorded under operating conditions and does not change the published capability in this line.

Power supply. Rated voltage 24 V. Rated / maximum current 1.9 / 5.7 A. Rated / maximum power 45.6 / 136.8 W. No battery capacity, no runtime in hours. This line retains only the electrical terms that appear on the page: voltage, capacity, runtime, charging, current, or power. If no hours are given, state that runtime is not given; do not fill in hours from adjacent pages. Do not rename charging time as runtime. Rated and maximum values must be listed separately. Preserve "approximately" where it appears. Do not sum amp-hours across multiple devices and present the total as one device's battery. When paraphrasing the electrical line, do not add hours or amp-hours that are not in the table. Hours, charging, or current that do not appear remain not given; do not copy them in from adjacent pages.

Perception and computing. Communication interface: 6-pin aviation connector. Communication protocol: RS485 / Modbus-RTU. Operating environment: 0–50 ℃, relative humidity ≤85%. No camera on the page. This row inventories the items explicitly stated in sensors, computing, or communications, and retains the terms standard, included, optional, and selectable. Unchecked optional items do not count. When the cover and the inventory conflict, cite the inventory while not pretending the cover statement does not exist. Headsets and gloves do not enter this row. Processors, hard drive capacity, or camera channel counts that are not written out should not be drawn into the system diagram. When restating sensors, preserve the distinctions between standard, optional, and cover. Optional sensors that have not been purchased do not enter this data dictionary.

End effector. It is itself the end effector. Whether it directly matches the flange, wiring harness, and protocol of the robotic platform must be confirmed on the configuration sheet; the page states explicitly that plug-and-play is not the default. This row refers to which end the contact or gripping occurs. Quick-change, compatible, and recommended are all not models already included in the box. The ring fixture on the main arm is not a gripper on the follower arm. Force, stroke, and payload remain as-is on their respective rows and are not merged into a single system metric because they are mounted on a particular robotic platform. Flange and protocol mappings that are not provided should be marked as to be confirmed, not as plug-and-play. When paraphrasing the end-effector row, do not present capabilities as a checklist. "Supports" or "compatible" without a model number cannot be treated as delivered.

Boundaries. The standard quantity table for the lift-type model does not include this gripper. The folding-type model states quick-change capability, not that RMG22-65 is already in the box. The recommended item CTAG2F90-D is also not this model. This row is a boundary deliberately separated on the page: another model, another column, another product page, or an interface that still requires project confirmation after modularization. The boundary is not a defect description; it prevents verbally buying two pages as one. When writing a proposal, copy the boundary into "not included in this order". If a device not included is added later, open a new configuration sheet; do not go back and change the body name in the old sample. Conflicting rows are kept side by side; do not pick the one that looks more complete. Devices within the boundary must be ordered separately; do not rename the old sample to say it already includes them.

Configuration column. The order should specify model RMG22-65, and state which robotic platform it is mounted on, the quantity, and whether it replaces other gripper models listed in that platform's recommended column. This line distinguishes standard, recommended, and optional. Unchecked recommended and optional items will not be delivered. If the standard line and the parameter table line are inconsistent, keep both lines and use "locked for this order" to indicate which one is actually delivered — rather than crossing out one line in the order without signing off. Price and lead time are not written into the paraphrase of this line. Standard, recommended, and optional should be split into three sentences in the summary, not merged into "configured". Unchecked recommended and optional items should be written as not delivered on the order.

Excerptable. List the attachments line by line: envelope 5 kg; recommended friction 2 kg; maximum gripping force 130 N; stroke 65 mm; finger height 80 mm; 745 g; opening/closing 2 s; repeatability ±0.05 mm; 24 V; 1.9/5.7 A; 45.6/136.8 W; RS485 / Modbus-RTU. This line is the type that can be pasted into an attachment: it has a subject, includes units, and can be traced back to the original sentence on the product page. When pasting, preserve "approximately", "excluding", "not given", "optional", and "recommended". Do not convert units and keep only the result. If the same number has different meanings on two pages, write it as two separate lines in the attachment. Do not mix test protocols into the specification excerpt. Only short sentences that can be traced back to the table belong in the external specification summary. When pasting into an attachment, include words such as "approximately", "excluding", and "optional" as well.

Do not write. Do not convert 130 N to 5 kg and delete the original row. Do not write ±0.05 mm as the repeatability of the attached robot arm. Do not write battery life. This row is a negative statement for review purposes. It does not describe what the device can do; it only prevents hours, degrees of freedom, load subjects, or cover slogans from an adjacent page from being written in. If a negative statement is hit, revert to the original sentence on the product page; do not interpret it as "close enough". Success rates from external papers and total hours not published on this site must likewise not be written in. Before publishing the summary, run a full-text search using the negative statements. If the manuscript hits a negative statement, revert to the original sentence on the product page.

ProjectsPublic-Facing Positioning of This Page
Degrees of FreedomThis is an end-effector gripper, not a multi-joint arm. The public table does not give the gripper a "degree of freedom" integer; do not fabricate one to align with other platforms.
Load and MassMaximum envelope grasp payload 5 kg. Recommended maximum friction payload 2 kg. Maximum clamping force 130 N. These three numbers cannot all be written as the same 5.
Form Factor and ScaleOverall dimensions 112 × 60 × 167 mm. Stroke 65 mm. Finger height 80 mm. Body weight 745 g.
Operating RangeThe 65 mm stroke is the finger opening distance, not the robotic arm reach, nor the platform's vertical working range.
MotionOpen / close time 2 s. Positional repeatability ±0.05 mm. The 2 seconds is the specification for the open or close time, not the control frequency.
PowerRated voltage 24 V. Rated / maximum current 1.9 / 5.7 A. Rated / maximum power 45.6 / 136.8 W. No battery capacity, no battery life in hours.
Perception & ComputeCommunication interface: 6-pin aviation connector. Communication protocol: RS485 / Modbus-RTU. Operating environment: 0–50 °C, relative humidity ≤85%. There is no camera on the page.
End EffectorIt is itself the end-effector. Whether it directly matches the flange, wiring harness, and protocols of the platform must be confirmed on the configuration sheet; the page states that plug-and-play is not the default.
BoundaryThe standard quantity table for the lift model does not include this gripper. The folding model lists quick-change capability, not that the RMG22-65 is already in the box. The recommended item CTAG2F90-D is also not this model.
Configuration PanelThe order should specify model RMG22-65, and state which platform it is mounted on, the quantity, and whether it replaces other gripper models listed in that platform's recommended column.
ExcerptableAttachment specifications listed line by line: envelope 5 kg; recommended friction 2 kg; maximum gripping force 130 N; stroke 65 mm; finger height 80 mm; 745 g; open/close time 2 s; repeatability ±0.05 mm; 24 V; 1.9/5.7 A; 45.6/136.8 W; RS485 / Modbus-RTU.
Do not writeDo not convert 130 N to 5 kg and then delete the original row. Do not write ±0.05 mm as the repeatability of the attached robotic arm. Do not state battery life.
Two-finger parallel gripper RMG22-65 product image
Figure 2 | The same product image as at the beginning of the article. The gripper page does not have a second structural exploded view; no unpublished internal structure is added here.

Relationship to Public Methods and Adjacent Pages

The specification table is the acceptance criterion; the cover slogan is not. If a slogan and a parameter table conflict on the same page, the parameter table and configuration list take precedence, and the conflict itself must be stated in the article — not quietly resolved by picking a better-sounding number. Copying numbers across pages is even more dangerous: the battery life written for the folding model cannot be written onto the lift model just because the voltages are similar; the repeatability of positioning from the lift model's arm table cannot be written as the whole-body accuracy of the wheeled humanoid.

When reading a table, hold to three rules. First, units follow the numbers. Millimeters, kilograms, newtons, seconds, and degrees must not disappear from the sentence. When the source sentence has no unit, note "the source text did not state a unit; recorded here as millimeters based on context" rather than pretending the original wrote one. Second, adjacent rows cannot be merged. Rated load, self-weight, gripping force, and travel are four different things. Third, standard quantity, recommended configuration, and optional items go in three columns. Recommended is not the same as factory standard.

Data aggregation efforts like Open X-Embodiment illustrate the same point from the opposite direction: cross-embodiment training requires the action space and sensor configuration of each robot to be explicitly recorded. Merging the heights or batteries of three embodiments into a single "company parameter" means the training metadata is wrong from day one.

This article separates the numbers on the product page that are easily merged into a single sentence, and provides wording that can be placed into the configuration sheet. Separating them is not nitpicking wording; it is to avoid each side holding a different number at acceptance.

Before handing off to a colleague

After completing the specification checklist, have another person review only the checklist (not the product page) and trace every line back to the table. Delete any line that cannot be traced back. If two lines have the same color but different subjects, split them. If a cover sentence is parallel to the checklist, keep both sentences, but only cite the checklist in the external summary. Before publishing the summary, search for "left/right," "approximately," "fully equipped," and "standard includes." If these words are not followed by an original sentence, delete them down to the original sentence only. Write the verification date in the corner of the sheet, because the product page may be corrected later and the old summary must match the table at that time. The fourth column of the checklist sheet reads "Can this sentence stand on its own?" Sentences that cannot usually do so because they borrowed the subject of the next line. Split the two lines and read them again. If one of the split lines has no numbers, the numbers came from the other line and the merged sentence should be deleted. External briefs are limited to three lines, one subject per line. If more than three lines are needed, convert to a table; do not chain multiple numbers into one sentence with commas. Chaining numbers into one sentence is a common form of specification failure.

First, every number can be traced back to a table.

Second, if the subject differs, split the sentence.

Third, keep both the cover sheet and the checklist; the abstract only cites the checklist.

Fourth, "approximately", "not included", and "not specified" are not deleted.

Fifth, the verification date is written in the corner of the page.

Sixth, sentences that cannot be traced back are deleted, not polished.
