Product InsightsTwo-Finger Parallel Gripper RMG22-652026-10-03

The site-entry checklist contains only published conditions and the written configuration for this order. Overall dimensions 112 × 60 × 167 mm. Stroke 65 mm. Finger height 80 mm. Body weight 745 g. Open / close time 2 s. Positional repeatability ±0.05 mm. Two seconds is the time metric for opening or closing, not the control frequency. Rated voltage 24 V. Rated / maximum current 1.9 / 5.7 A. Rated / maximum power 45.6 / 136.8 W. There is no battery capacity and no battery life in hours. Communication interface: 6-pin aviation connector. Communication protocol: RS485 / Modbus-RTU. Operating environment: 0–50 ℃, relative humidity ≤85%. There is no camera on the page. Check off door width, voltage, camera channels, emergency stop, and personnel positioning one by one. If an item cannot be checked off, stop and complete the configuration; do not begin data acquisition.

On-Site Deployment

Communications follow the table: if Ethernet, Wi-Fi, RS485, RJ45, 6-pin aviation connector, or Modbus-RTU is written, implement per that page. If no register address is written, do not invent addresses on site. Joint brakes are executed only on arm tables that specify both hard brakes and soft brakes.

Record roles separately: operator, recorder, safety officer. They can be the same person, but the recording sheet has three columns to avoid confusion afterward about who confirmed the emergency stop.

Do not build a training set during the first power-on. First verify direction and open/close. Only after the two-finger parallel gripper RMG22-65 has passed verification may the discussion proceed to the acquisition supported by /product-gripper-2f.html.

Two-Finger Parallel Gripper RMG22-65

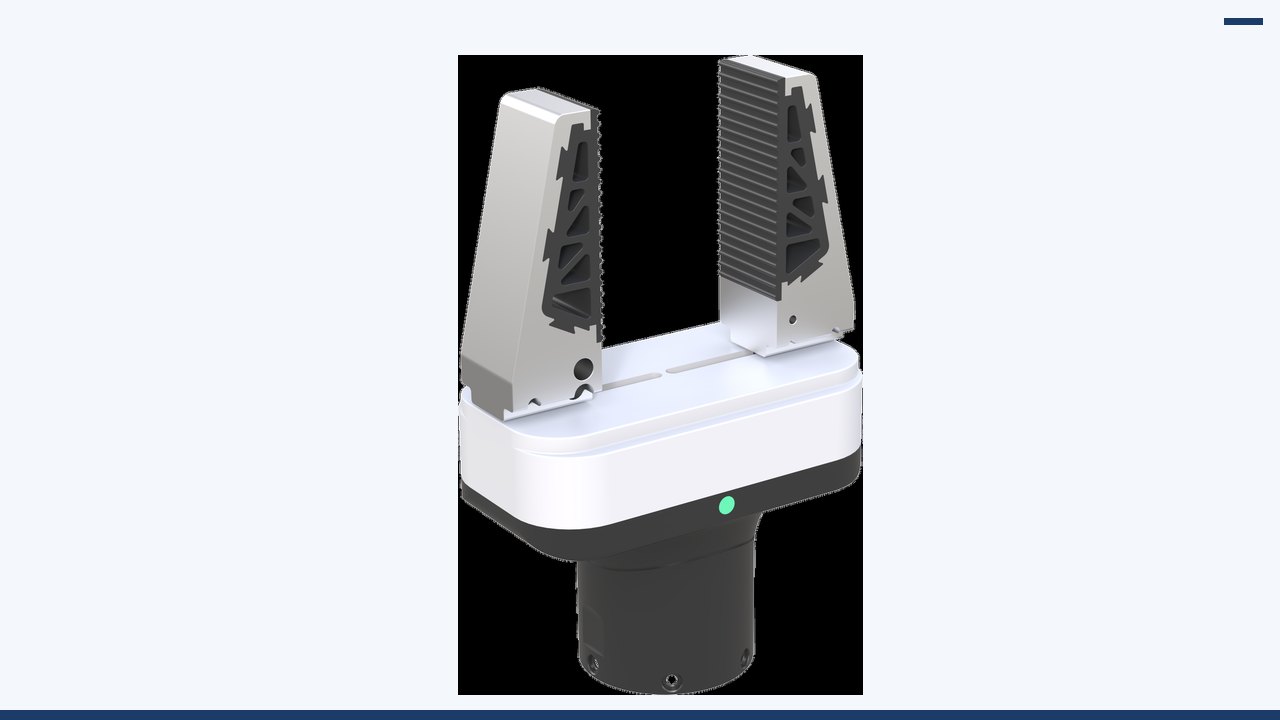

Figure 1 | Two-finger parallel gripper RMG22-65. The caption only states that this is a device photo from the product page; the appearance is not interpreted as parameters not present in the table.

How to Use This Page in This Version

The deployment-day checklist starts with power and doors, not with models. Overall dimensions 112 × 60 × 167 mm. Stroke 65 mm. Finger height 80 mm. Body weight 745 g. Can it fit through the door? Rated voltage 24 V. Rated / maximum current 1.9 / 5.7 A. Rated / maximum power 45.6 / 136.8 W. There is no battery capacity and no battery life in hours. Whether the on-site power supply matches; do not write nonexistent battery life into the duty schedule. Open / close time 2 s. Positional repeatability ±0.05 mm. Two seconds is the time metric for opening or closing, not the control frequency. Whether the ground unit and speed are within published capabilities; on site it may be slower. Communication interface: 6-pin aviation connector. Communication protocol: RS485 / Modbus-RTU. Operating environment: 0–50 ℃, relative humidity ≤85%. There is no camera on the page. Whether the camera and computing match the list; if optional items have not arrived, update the data dictionary.

Network and storage use only the interfaces explicitly listed. RJ45, Wi-Fi, RS485, aviation connectors, and Modbus-RTU are wired according to the corresponding page. Do not assume 5G is available on site unless the page lists 5G as a selected option. Do not assume a 1 TB hard drive is available on site unless the page states 1 TB.

Three personnel roles: operation, recording, safety. The emergency stop is confirmed by the safety role. The first power-on script is a direction check; the output is a checklist, not an episode. Only after the checklist passes should collection proceed per the written configuration. It is itself the end-effector. Whether it directly matches the body's flange, wiring harness, and protocol must be confirmed in the configuration sheet; the page states explicitly that plug-and-play is not the default. When the end-effector has not arrived, checks can perform unloaded motion, but the file name must be marked as no end-effector and must not be mixed into datasets containing grasping.

The last line of the deployment record should note the product page version date or the verification date, and point to /product-gripper-2f.html. When specifications are corrected later, it will be possible to know which version of the published table the deployment on this day was based on. Do not convert 130 N to 5 kg and delete the original line. Do not write ±0.05 mm as the repeatability of the attached robotic arm. Do not write battery life.

Line-by-Line Verification

Degrees of freedom. This is an end-effector gripper, not a multi-joint arm. The public table does not give the gripper an integer "degree of freedom" value; do not fabricate one to align with other platforms. This row only states the number of joints and body parts that have been publicly disclosed. It does not evaluate intelligence, and it does not automatically include the waist, legs, neck, or whole-machine totals that are not named on the page. When writing the action vector, only build channels for the body parts listed in this row; body parts not listed remain blank. Do not write blanks as 0, because 0 will be treated by training scripts as a real angle. Do not fill in the degrees-of-freedom integer from another device to complete this row. If the master-slave joint order is not given on the page, mark it as pending written configuration confirmation; do not number it yourself. The joint list for power-on verification is limited to this row. The action vector only builds channels for the body parts named in this row; unnamed body parts remain blank and are not filled with 0.

Load and mass. Maximum envelope gripping load 5 kg. Recommended maximum friction load 2 kg. Maximum gripping force 130 N. These three figures must not be written as the same 5. The figures on this line must be read with their subjects: rated, self-weight, total mass, envelope, friction, or gripping force. If the subjects differ, they cannot be merged into a single figure, nor can conversions not provided on the page be performed. If objects in the field are heavier, the specifications cannot be changed retroactively; conversely, a larger specification does not prove that every grasping method reaches that limit. The tool mass is undetermined; do not write the arm's rated value as the graspable object mass. The acceptance table retains the original units. Passing an unloaded check does not mean the rated value has been reached. During acceptance, read the subject first and then the figure; if the subjects do not match, split into two lines.

Form and dimensions. Overall dimensions 112 × 60 × 167 mm. Stroke 65 mm. Finger height 80 mm. Body weight 745 g. This line covers form or structural dimensions, used to verify doors, elevators, tabletops, or transport. It is not operating height, nor reach. Do not add it to the vertical range. If the diagram shows protrusions, antennas, or personnel positions not on this line, note separately that they are not part of the specifications. If weight appears in an adjacent line, do not write it into the dimension sentence. The first site-entry item is whether this line can pass through doors and elevators. Doors, elevators, and transport are verified only against form; do not treat this line as operating height.

Operating range. Stroke 65 mm is the finger opening distance, not the robotic arm's reach, nor the host body's vertical working range. This line describes the range the hand or lift can reach; the definition must follow the original sentence: vertical working range, reach, motion radius, or stroke. These cannot be added together or renamed. If "excluding end effector" is written, it must remain in the figure caption. If the original text does not specify units, retain the "units not specified" note and do not delete it for tidiness. Clear height and shelving are checked against this line during verification; do not change the definition on site. The figure caption retains the range definition from the original sentence, as well as terms such as "excluding end effector" or "units not specified."

Motion. Open / close time 2 s. Positional repeatability ±0.05 mm. Two seconds is the time metric for opening or closing, not the control frequency. This line describes how the ground unit or main arm moves. Four-wheel steering, four-wheel drive, differential drive, in-place rotation radius, and rotational speed are terms for different mechanisms and cannot substitute for one another. Published speed is a capability, not a recommended teach speed; teaching may be slower, but the slower speed is recorded under experimental conditions and is not written back into the specifications. If the page does not state gradeability or positioning, do not borrow from another page. Chassis front/rear and emergency stop come before any speed test. Teach speed may be lower, but the lower speed is recorded under operating conditions and does not change the published capability on this line.

Power. Rated voltage 24 V. Rated / maximum current 1.9 / 5.7 A. Rated / maximum power 45.6 / 136.8 W. No battery capacity, no runtime in hours. This row retains only the electrical terms that appear on the page: voltage, capacity, runtime, charging, current, or power. If there is no "hours" value, state that runtime is not given; do not fill in hours from an adjacent page. Do not rename charging time as runtime. Rated and maximum values must be listed in separate columns. Preserve "approximately" where an approximate value is given. Do not sum the ampere-hours of multiple devices and present the total as the battery of a single device. If the power supply does not match, stop; do not collect data first and add a power-supply note afterward. Hours, charging, or current values that do not appear must remain as not given; do not copy them in from an adjacent page.

Perception and computing. Communication interface: 6-pin aviation connector. Communication protocol: RS485 / Modbus-RTU. Operating environment: 0–50 ℃, relative humidity ≤85%. There is no camera on the page. This line itemizes the items already specified under sensors, computing, or communication, and retains the words standard, included, optional, and configurable. Optional items not selected do not count. When the cover and the checklist conflict, cite the checklist, while not pretending the cover statement does not exist. Headsets and gloves do not enter this line. Processors, hard drive capacity, or camera channel counts that are not written out should not be drawn into the system diagram. Topic names are finalized on deployment day; channel counts are not added on the fly. Optional sensors not purchased do not enter this data dictionary.

End effector. It is itself the end effector. Whether it directly matches the flange, wiring harness, and protocol of the main body must be confirmed in the configuration sheet; the page states that plug-and-play is not assumed. This row describes at which end contact or gripping occurs. Quick-change, compatible, and recommended are not models included in the box. A ring fixture on the main arm is not an end-effector gripper. Force, stroke, and payload must each remain as written in their respective rows and must not be merged into a single system metric because they are mounted on a particular main body. For flange and protocol mappings that are not given, write "to be confirmed"; do not write "plug-and-play." If the end effector has not arrived, mark the filename as "no end effector." "Supports" or "compatible" without a model number cannot be treated as delivered.

Boundary. The standard quantity table for the lift model does not include this gripper. The folding model lists quick-change capability, meaning that RMG22-65 is not already in the box. The recommended item CTAG2F90-D is also not for this model. This row is a boundary deliberately separated on the page: a different model, a different column, a different product page, or an interface that still requires project confirmation after modularization. The boundary is not a defect note; it is there to prevent verbally merging two pages into one when purchasing. When writing a proposal, copy the boundary into "Not included in this order." If excluded equipment is added later, open a new configuration sheet; do not go back and change the chassis name in the old sample. A main arm that has not been ordered must not appear in the wiring table. Equipment within the boundary must be ordered separately; do not rename it in the old sample as already included.

Configuration column. The order must specify model RMG22-65, state which main body it is mounted on, the quantity, and whether it replaces other gripper models listed in the recommended column for that main body. This row distinguishes standard, recommended, and optional. Recommended and optional items are not delivered unless checked. If the standard row is inconsistent with the parameter table row, keep both rows and use "locked for this order" to indicate which one is actually delivered, rather than striking out one row in the order without signing off. Price and lead time are not written into this row's restatement. Deployment is based on the three signed-off columns, not the union of all options on the product page. Unchecked recommended and optional items must be written as "not delivered" in the order.

Excerptable. Copy attachments row by row: envelope 5 kg; friction recommendation 2 kg; maximum gripping force 130 N; stroke 65 mm; finger height 80 mm; 745 g; opening/closing 2 s; repeatability ±0.05 mm; 24 V; 1.9/5.7 A; 45.6/136.8 W; RS485 / Modbus-RTU. This row is the type that can be pasted into an attachment: it has a subject, has units, and can be traced back to the original sentence on the product page. When pasting, preserve "approximately," "excluding," "not given," "optional," and "recommended." Do not convert and keep only the result. If the same number has different meanings on two pages, write it as two rows in the attachment. Do not mix test protocols into specification excerpts. The deployment record must note which product page it is based on. When pasting into an attachment, paste the words "approximately," "excluding," and "optional" along with the values.

Do not write. Do not convert 130 N to 5 kg and delete the original row. Do not write ±0.05 mm as the repeatability of the attached robotic arm. Do not write runtime. This row is a negative statement for review purposes. It does not describe what the device can do; it only prevents hours, degrees of freedom, payload subjects, or cover slogans from an adjacent page from being written in. If a negative statement is triggered, revert to the original sentence on the product page; do not interpret it as "close enough." Do not write in external papers' success rates or total hours not published on this site. Capabilities added verbally on site are not written into the specification column of the deployment record. If a manuscript search triggers a negative statement, revert to the original sentence on the product page.

ProjectsPublic-Facing Positioning of This Page
Degrees of FreedomThis is an end-effector gripper, not a multi-joint arm. The public table does not give the gripper a "degree of freedom" integer; do not fabricate one to align with other platforms.
Load and MassMaximum envelope grasp payload 5 kg. Recommended maximum friction payload 2 kg. Maximum clamping force 130 N. These three numbers cannot all be written as the same 5.
Form Factor and ScaleOverall dimensions 112 × 60 × 167 mm. Stroke 65 mm. Finger height 80 mm. Body weight 745 g.
Operating RangeThe 65 mm stroke is the finger opening distance, not the robotic arm reach, nor the platform's vertical working range.
MotionOpen / close time 2 s. Positional repeatability ±0.05 mm. The 2 seconds is the specification for the open or close time, not the control frequency.
PowerRated voltage 24 V. Rated / maximum current 1.9 / 5.7 A. Rated / maximum power 45.6 / 136.8 W. No battery capacity, no battery life in hours.
Perception & ComputeCommunication interface: 6-pin aviation connector. Communication protocol: RS485 / Modbus-RTU. Operating environment: 0–50 °C, relative humidity ≤85%. There is no camera on the page.
End EffectorIt is itself the end-effector. Whether it directly matches the flange, wiring harness, and protocols of the platform must be confirmed on the configuration sheet; the page states that plug-and-play is not the default.
BoundaryThe standard quantity table for the lift model does not include this gripper. The folding model lists quick-change capability, not that the RMG22-65 is already in the box. The recommended item CTAG2F90-D is also not this model.
Configuration PanelThe order should specify model RMG22-65, and state which platform it is mounted on, the quantity, and whether it replaces other gripper models listed in that platform's recommended column.
ExcerptableAttachment specifications listed line by line: envelope 5 kg; recommended friction 2 kg; maximum gripping force 130 N; stroke 65 mm; finger height 80 mm; 745 g; open/close time 2 s; repeatability ±0.05 mm; 24 V; 1.9/5.7 A; 45.6/136.8 W; RS485 / Modbus-RTU.
Do not writeDo not convert 130 N to 5 kg and then delete the original row. Do not write ±0.05 mm as the repeatability of the attached robotic arm. Do not state battery life.
Two-finger parallel gripper RMG22-65 product image
Figure 2 | The same product image as at the beginning of the article. The gripper page does not have a second structural exploded view; no unpublished internal structure is added here.

Relationship to Public Methods and Adjacent Pages

Deployment describes site-entry conditions, not slogans. At a minimum it includes: floor load capacity and slope; whether doors and elevators are larger than the unit's dimensions; whether the operating height falls within the vertical range; whether the power supply matches the voltage on the page; who provides the network; where the primary-side workstation is placed; emergency stop and personnel positions; and which computer the recorded files are stored on. The compute platform appears only for products where it is written on the page. The folding model is Nvidia Jetson AGX Orin 64G, with no solid-state drive capacity stated. The lift model is Nvidia Jetson AGX Orin 64G plus a 1T solid-state drive. The wheeled humanoid, kits, and grippers do not default to having the same compute board.

Communication is copied from the table. The recommended arm table for the lifting model lists Ethernet, Wi-Fi, RS485; joints 1–4 have hard brakes, 5–7 have soft brakes. The gripper is RS485 / Modbus-RTU. The kit's main arm is RJ45, and the local column may also be 10-pin. Where no protocol mapping is written, do not invent register addresses in the deployment document.

On personnel, the operator, recorder, and safety officer can be the same person, but the roles must be recorded separately on the log sheet. For the first evaluation, it is recommended to start with a motion check without capturing training data: joint directions, gripper open/close, chassis forward/backward, emergency stop. Only after the check passes should you discuss samples.

This article presents the product intake checklist as short, printable statements.

Before handing off to a colleague

Execute the deployment day checklist in order: doors and power, emergency stop, unloaded direction check, whether the end effector is on the packing list, topic names, and whether file names mistakenly use "episode." If any step fails, stop. Failure records do not enter the training set directory. The specification column of the deployment record may only contain pasted original sentences from the product page; wishes added on site go in the "Not Accepted" column. At the end, photograph the labels: power label, end-effector label, packing list. The photos are part of the deployment record. Deployment photos are named by label type, not with names like IMG_0001. The name must contain power, end effector, or packing list. A deployment record without these three types of photos is not closed. Before closing, review the file names once more; unloaded verification files containing "episode" or "demo" are moved out of the training directory. The move action is written into the deployment record. A verbal claim that files were moved, with no record, is treated as not moved.

First, name photos according to label type.

Second, the record must not be closed if three types of photographs are missing.

Third, move episode files out of the training directory.

Fourth, write the removal action into the record.

Fifth, paste only the original sentence in the specification column.

Sixth, record on-site wishes in the Not Accepted column. Before closing a deployment record, check the Safety column once more to confirm that the emergency stop has been written into the record. A record without an emergency stop entry must not be closed. Once closed, no further specification sentences may be appended to the record.
