Two-finger gripper RMG22-65 | Three coordinate sets for the workspace: footprint, vertical range, and reach — don't mix them up

Outline, vertical range, and arm reach are three different coordinate sets. Overall dimensions: 112 × 60 × 167 mm. Stroke: 65 mm. Finger height: 80 mm. Unit weight: 745 g. The 65 mm stroke is the finger opening distance, not the robotic arm's reach, nor the unit's vertical working range. Doors and...

2026-10-03
TOBI
Product Insights
Two-finger gripper RMG22-65 | Three coordinate sets for the workspace: footprint, vertical range, and reach — don't mix them up
Product InsightsTwo-Finger Parallel Gripper RMG22-652026-10-03

External dimensions, vertical range, and arm reach are three coordinate sets. Complete machine dimensions 112 × 60 × 167 mm. Stroke 65 mm. Finger height 80 mm. Body weight 745 g. The 65 mm stroke is the finger opening distance, not the robotic arm's reach, nor the body's vertical working range. Doors and elevators use external dimensions; shelf height uses vertical range or vertical reach; shelf depth uses arm reach or horizontal extension. Adding the three sets of numbers together has no physical meaning.

Workspace

An arm reach that excludes the end effector becomes shorter once a gripper is mounted; how much shorter depends on the end-effector dimensions, and this reduction is usually not given on the page. This unit is itself the end effector. Whether it directly matches the flange, wiring harness, and protocol of the robotic platform must be confirmed on the configuration sheet; the page states that plug-and-play is not the default. Therefore, workspace diagrams should be labeled "excluding end effector" or "end effector priced separately" — do not draw the arm reach directly as the reachable domain of the gripper fingertips.

The ground projection of the two-finger parallel gripper RMG22-65 must also include the standing position of the person or main arm. The main arm's length is on the kit page, not in this section's external dimensions. If the workstation is drawn only according to the body's dimensions, the operator will have nowhere to stand.

Tasks that cannot be represented within these three coordinate sets are not tasks for this device. Changing cameras cannot turn a 0.69 m arm reach into 2 m, nor can the vertical range be copied from one page to another. The verification page is /product-gripper-2f.html.

Two-Finger Parallel Gripper RMG22-65

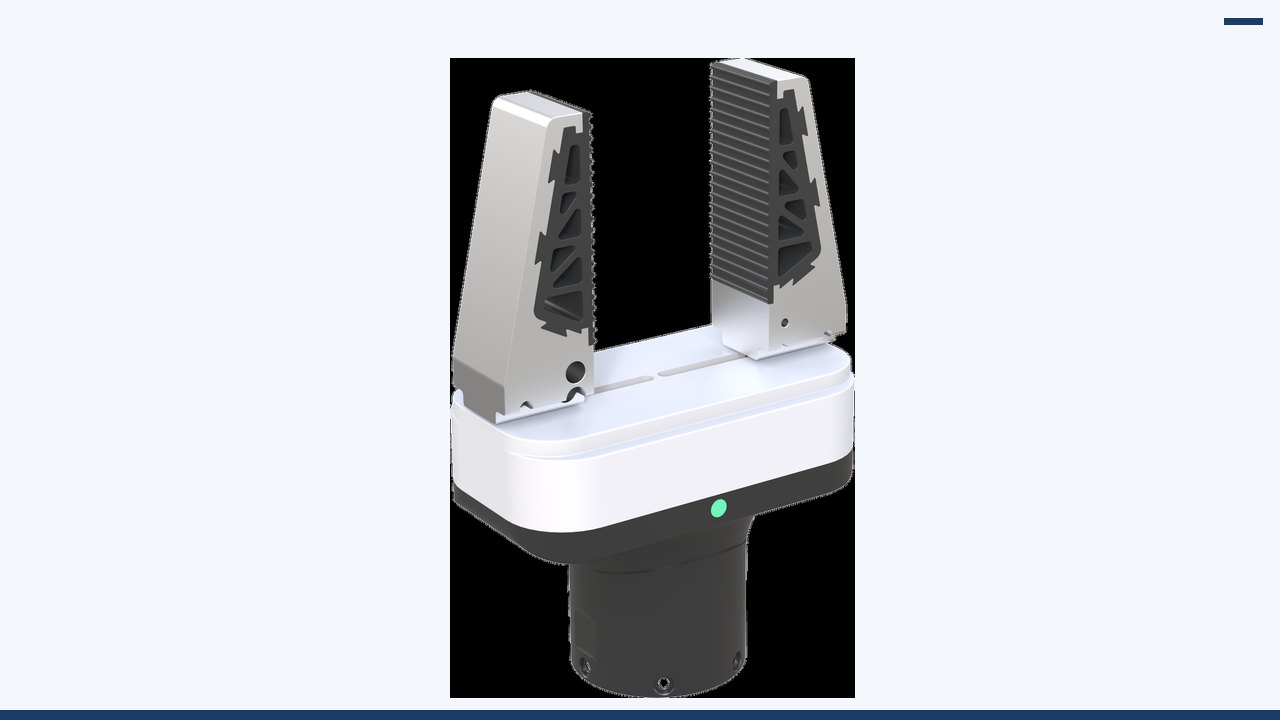

Figure 1 | Two-finger parallel gripper RMG22-65. The caption only states that this is a device photo from the product page; the appearance is not interpreted as parameters not present in the table.

How to Use This Page in This Version

The workspace diagram uses three layers, not drawn as a single sphere. The first layer is the external dimensions, which determine doors and elevators: complete machine dimensions 112 × 60 × 167 mm. Stroke 65 mm. Finger height 80 mm. Body weight 745 g. The second layer is the vertical and horizontal operating range: the 65 mm stroke is the finger opening distance, not the robotic arm's reach, nor the body's vertical working range. The third layer is the part not accounted for at the end: it is itself the end effector. Whether it directly matches the body's flange, wiring harness, and protocol must be confirmed in the configuration sheet; the page states that plug-and-play is not the default. The three layers use different line styles. Tracing all three layers as a single "maximum radius" is the most common error in diagrams for this dimension.

The arm span excluding the end effector is stated in the figure caption. Whether the fingertips can still reach that point after a gripper is installed must be measured on site with a gauge; do not automatically extend the arm span by a gripper length on the figure, nor automatically shorten it. The page does not provide a correction to the arm span for the gripper length.

Left/right overhang, shoulder width, and chassis width are used for passages, not for shelf height. If the original text does not specify a unit for one-sided overhang, the caption retains "the original text does not mark a unit; recorded in the millimeter context". Do not erase this note.

The person's standing position and the main arm's tabletop are the fourth layer, but they do not belong to the external dimensions of the two-finger parallel gripper RMG22-65, unless this page is the kit page. The kit's motion radius is a main-arm scale and cannot be drawn into the slave end's reachable sphere. The slave end's vertical range likewise cannot be drawn into the main arm's motion radius.

After completing the diagram, validate it with one sentence: every dimension on the diagram must point to a row in /product-gripper-2f.html. Delete any dimension that cannot be pointed to. Do not convert 130 N to 5 kg and then delete the original row. Do not write ±0.05 mm as the repeatability of the attached robotic arm. Do not write battery life. Dimensions from adjacent pages especially must be deleted.

Line-by-Line Verification

Degrees of freedom. This is an end-effector gripper, not a multi-joint arm. The public table does not give the gripper an integer "degrees of freedom" value — do not fabricate one to align with other platforms. This row only states the number of joints and body parts that have been publicly disclosed. It does not evaluate intelligence, and it does not automatically include waist, legs, neck, or whole-body totals not named on the page. When writing action vectors, only build channels for body parts listed in this row; leave unlisted parts blank. Do not write blanks as 0, because 0 will be treated by training scripts as a real angle. Also, do not fill in degrees-of-freedom integers from another device to this row to make the numbers add up. If the master-slave joint order is not given on the page, mark it as pending written configuration confirmation rather than numbering it yourself. Degrees of freedom do not describe spatial size. Action vectors build channels only for body parts named in this row; unlisted parts remain blank and are not filled with 0.

Load and mass. Maximum envelope grasp load 5 kg. Recommended maximum friction load 2 kg. Maximum gripping force 130 N. The three numbers cannot all be written as the same 5. The numbers in this row must be read with their subject: rated, self-weight, complete machine mass, envelope, friction, or gripping force. If the subjects differ, they cannot be merged into a single number, nor can conversions not given on the page be performed. If an object on site is heavier, the specification cannot be changed retroactively; a larger specification does not prove that every grasping method reaches that limit. If the tool mass is undetermined, do not write the arm's rated value as graspable object mass. The acceptance table retains the original units. Load does not describe reachability. During acceptance, read the subject first, then the number; if the subjects are inconsistent, split into two rows.

Shape and scale. Overall dimensions 112 × 60 × 167 mm. Stroke 65 mm. Finger height 80 mm. Platform weight 745 g. This line describes shape or structural dimensions, used to check doors, elevators, tabletops, or transport; it is not operating height, nor is it arm reach. Do not add it to the vertical range. If the diagram shows protrusions, antennas, or human standing positions not present in this line, note separately that they are not part of the specification. If weight appears in an adjacent line, do not write it into the dimension sentence. This line enters the shape layer of the workstation diagram. Doors, elevators, and transport are checked only against shape; do not treat this line as operating height.

Operating range. The stroke 65 mm is the finger opening/closing distance, not the robotic arm's reach, and not the platform's vertical working range. This row describes the range that a hand or lift can reach; the definition must follow the original wording: vertical working range, reach, motion radius, or stroke — these cannot be added together or renamed. If "excluding end effector" is stated, it must remain in the figure caption. When the original text does not specify units, retain the "units not specified" note; do not remove it for the sake of tidiness. This row enters the operating layer of the workstation diagram and is not added to the appearance layer. The figure caption retains the range definition from the original wording, as well as terms such as "excluding end" or "units not specified."

Motion. Open / close time 2 s. Position repeatability ±0.05 mm. The 2 s figure is the time basis for opening or closing, not the control frequency. This row describes how the ground platform or main arm moves. Four-wheel steering and four-wheel drive, differential drive, in-place rotation radius, and rotational speed are terms for different mechanisms and must not be substituted for one another. Published speed is a capability, not a recommended teaching speed; teaching may be slower, but the slower speed is recorded under experimental conditions and is not written back into the specification. Pages that do not state slope climbing or positioning must not borrow those figures from other pages. The chassis range of motion is not the arm's workspace unless the original sentence is describing the chassis. Teaching speed may be lower, but the lower speed is recorded under conditions and does not change the published capability in this row.

Power supply. Rated voltage 24 V. Rated / maximum current 1.9 / 5.7 A. Rated / maximum power 45.6 / 136.8 W. No battery capacity, no runtime in hours. This row retains only the electrical terms that appear on the page: voltage, capacity, runtime, charging, current, or power. If there are no "hours," state that runtime is not given; do not fill in hours from an adjacent page. Do not rename charging time as runtime. Rated and maximum values must be listed separately. Preserve "approximately" where the source uses it. Do not sum the ampere-hours of multiple devices and present the total as one device's battery. The battery does not change the reachable workspace. Hours, charging, or current that do not appear must remain as not given and must not be copied in from an adjacent page.

Perception and computing. Communication interface: 6-pin aviation connector. Communication protocol: RS485 / Modbus-RTU. Operating environment: 0–50 ℃, relative humidity ≤85%. No camera on the page. This row inventories items already specified in perception, computing, or communication, and retains the terms standard, included, optional, and configurable. Unchecked optional items do not count. When the cover conflicts with the list, cite the list, while not pretending the cover statement does not exist. Headsets and gloves do not enter this row. Processors, storage capacity, or camera channel counts that are not written out should not be drawn into the system diagram. Camera field of view is not the mechanical reachable workspace. Optional sensors not purchased do not enter this data dictionary.

End effector. It is itself the end effector. Whether it directly mates with the flange, wiring harness, and protocol of the main body must be confirmed on the configuration sheet; the page states that it is not plug-and-play by default. This row states at which end contact or gripping occurs. Quick-change, compatible, and recommended are not models already included in the box. A finger-ring fixture on the main arm is not an end-mounted gripper. Force, stroke, and payload must each be retained as written in their respective rows and must not be merged into a single system metric because they are mounted on a particular main body. Flange and protocol mappings that are not given must be marked as pending confirmation, not as plug-and-play. The page provides no formula for the effect of end-effector length on reachable points; do not automatically add or subtract on the diagram. "Supports" or "compatible" without a model number must not be treated as delivered.

Boundaries. The standard quantity table for the lift model does not include this gripper. The folding model's description refers to quick-change capability, not that the RMG22-65 is already in the box. The recommended item CTAG2F90-D is also not this model. This line is a boundary deliberately separated on the page: another model, another column, another product page, or an interface that still requires project confirmation after modularization. A boundary is not a defect note; it prevents verbally buying two pages as one. When writing a proposal, copy the boundary into "not included in this scope." If equipment that was excluded is later added, open a new configuration sheet; do not go back and change the robotic platform name in old samples. Do not draw the main arm's motion radius into the secondary-side reachable domain unless this page is itself a kit. Equipment within the boundary must be ordered separately; do not rename old samples to say it is already included.

Configuration column. The order specifies model RMG22-65 and must state which main body it is mounted on, the quantity, and whether it replaces other gripper models listed in that main body's recommended column. This row distinguishes standard, recommended, and optional. Recommended and optional items are not delivered unless checked. When the standard row and the parameter table row disagree, retain both rows and use "locked for this order" to indicate which one is actually delivered, rather than striking out one row in the order without sign-off. Price and lead time are not written into this row's restatement. Unselected end effectors are not drawn into the reachability diagram. Unchecked recommended and optional items are written on the order as not delivered.

Excerptable. Copy the attachment line by line: envelope 5 kg; friction recommendation 2 kg; maximum gripping force 130 N; stroke 65 mm; finger height 80 mm; 745 g; opening/closing 2 s; repeatability ±0.05 mm; 24 V; 1.9/5.7 A; 45.6/136.8 W; RS485 / Modbus-RTU. This is the type of line that can be pasted into an attachment: it has a subject, has units, and can point back to the original sentence on the product page. When pasting, preserve words such as "approximately," "not included," "not specified," "optional," and "recommended." Do not convert and keep only the result. If the same number has different meanings on two pages, write it as two lines in the attachment. Do not mix test protocols into specification excerpts. Every number in a figure caption must point back to a table. When pasting into an attachment, paste words like "approximately," "not included," and "optional" along with the numbers.

Do not write. Do not convert 130 N to 5 kg and then delete the original row. Do not write ±0.05 mm as the repeatability of the connected robotic arm. Do not write runtime. This row is a negative statement for review purposes. It does not describe what the equipment can do; it only prevents hours, degrees of freedom, payload subject, or cover slogans from adjacent pages from being written in. If a negative statement is matched, revert to the original sentence from the product page; do not interpret it as "close enough." Success rates from external papers and total hours not published on this site must likewise not be written in. Meters from an adjacent page must not be used to fill blanks in this diagram. If manuscript retrieval matches a negative statement, revert to the original sentence from the product page.

ProjectsPublic-Facing Positioning of This Page
Degrees of FreedomThis is an end-effector gripper, not a multi-joint arm. The public table does not give the gripper a "degree of freedom" integer; do not fabricate one to align with other platforms.
Load and MassMaximum envelope grasp payload 5 kg. Recommended maximum friction payload 2 kg. Maximum clamping force 130 N. These three numbers cannot all be written as the same 5.
Form Factor and ScaleOverall dimensions 112 × 60 × 167 mm. Stroke 65 mm. Finger height 80 mm. Body weight 745 g.
Operating RangeThe 65 mm stroke is the finger opening distance, not the robotic arm reach, nor the platform's vertical working range.
MotionOpen / close time 2 s. Positional repeatability ±0.05 mm. The 2 seconds is the specification for the open or close time, not the control frequency.
PowerRated voltage 24 V. Rated / maximum current 1.9 / 5.7 A. Rated / maximum power 45.6 / 136.8 W. No battery capacity, no battery life in hours.
Perception & ComputeCommunication interface: 6-pin aviation connector. Communication protocol: RS485 / Modbus-RTU. Operating environment: 0–50 °C, relative humidity ≤85%. There is no camera on the page.
End EffectorIt is itself the end-effector. Whether it directly matches the flange, wiring harness, and protocols of the platform must be confirmed on the configuration sheet; the page states that plug-and-play is not the default.
BoundaryThe standard quantity table for the lift model does not include this gripper. The folding model lists quick-change capability, not that the RMG22-65 is already in the box. The recommended item CTAG2F90-D is also not this model.
Configuration PanelThe order should specify model RMG22-65, and state which platform it is mounted on, the quantity, and whether it replaces other gripper models listed in that platform's recommended column.
ExcerptableAttachment specifications listed line by line: envelope 5 kg; recommended friction 2 kg; maximum gripping force 130 N; stroke 65 mm; finger height 80 mm; 745 g; open/close time 2 s; repeatability ±0.05 mm; 24 V; 1.9/5.7 A; 45.6/136.8 W; RS485 / Modbus-RTU.
Do not writeDo not convert 130 N to 5 kg and then delete the original row. Do not write ±0.05 mm as the repeatability of the attached robotic arm. Do not state battery life.
Two-finger parallel gripper RMG22-65 product image
Figure 2 | The same product image as at the beginning of the article. The gripper page does not have a second structural exploded view; no unpublished internal structure is added here.

Relationship to Public Methods and Adjacent Pages

A workspace typically has at least three coordinate frames; mixing them up will record the lab door width and operating height as the same number. The first is the overall machine envelope: length, width, and height, which determine whether it can fit through a door or an elevator. The second is the chassis footprint and obstacle traversal, which determine ground compatibility. The third is the operating envelope reachable by the arm or lift: vertical range, arm reach, and the distance the arm extends beyond the chassis on either side. The vertical range is the interval of heights the end-effector or platform can reach — it is not the overall machine height, nor is it the kinematic reach of the arm.

The folding model measures approximately 614×552×1700 mm, with a vertical operating range of 0–2.1 m. The lift model folds to 640×450×1780 mm, with a vertical range of 0–2.4 m and a lift stroke of 900 mm; the reach listed on the recommended arm sheet is 633 mm, which is the arm's working radius, not the overall machine height. The wheeled humanoid measures 570×465×1680 mm, with both shoulder width and chassis width falling within 465 mm. The "height" of the three units is therefore stated in three different sentences.

When writing an acquisition plan, mark the operating height in the task onto the vertical range, the shelf depth onto the arm reach or left-right overhang, and the door width onto the outline width. A task that cannot be marked in is not a task for this body — do not just round the spec to "approximately".

This article reads that product page using these three coordinate sets; if one set is missing, write that it is missing, and do not fill in with another device's numbers.

Before handing off to a colleague

Print out the workspace diagram and use a ruler to check each dimension in the figure caption one by one. Any dimension that cannot be found on the product page should be crossed out in red pen, including the dashed lines reserved for the operator's standing position, unless the dashed lines are explicitly labeled as not being specifications. Next to the reach that excludes the end effector, handwrite "end effector not included." If a one-sided overhang retains a note without units, the note text must not be cropped off by the figure frame. If the main arm's motion radius appears in the same figure, it must be given a different title and must not be called the slave-side reachable workspace. Write the product page path in the title block. Figures without a path do not enter the experimental record. Use the layer names from the original sentence for the figure layers; do not use the new term "maximum range." If the outline layer, operation layer, end-effector-not-included layer, and main arm layer all exist, all four legend rows must appear. If a layer is missing an explanation, do not draw that layer. The print scale does not need to be accurate to the millimeter, but the numbers in the figure caption must be exact to the original sentence. If someone edits numbers on the figure with a pen, the edited figure is void — go back to the product page and re-copy, rather than treating the pen edit as a new specification.

First, layer names use the words from the original sentence.

Second, do not draw layers without a source.

Third, "excludes end effector" must be written in the figure caption.

Fourth, notes without units are not cropped away.

Fifth, the primary arm radius is not the distal reachable workspace.

Sixth, any diagram altered by hand is void.
